Panasonic KX-PD615DL User manual
Quick Reference Guide
Facsimile
Thank you for purchasing a Panasonic product.
●This guide explains some basic features and operations, but not all of them. For further details,
see the Japanese operating instructions.
●This product is designed for use in Japan.
Panasonic cannot provide service for this product if used outside Japan.
●Any details given in this guide are subject to change without notice.
Table of Contents
Parts Descriptions .....................................................................................................................2
Basic Operations .......................................................................................................................3
Model No. KX-PD615DL KX-PZ610DL
KX-PD615DW KX-PZ610DW
●KX-PD615DL/KX-PZ610DL includes 1 cordless handset and 1 base unit.
●KX-PD615DW/KX-PZ610DW includes 2 cordless handsets and 1 base unit.

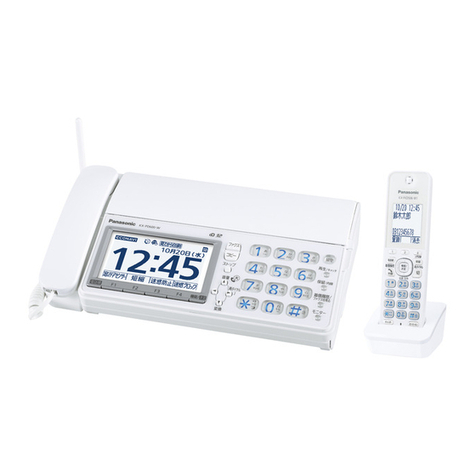

Base unit
(KX-PD615)
Cordless handset
(KX-FKD506)
Base unit
(KX-PZ610)
Cordless handset
(KX-FKD506)
KX-PD615DL/KX-PD615DW KX-PZ610DL/KX-PZ610DW
2
Backside View
31
30
16
17
18
19
21
20
22
23
26
28
25
29
24
27

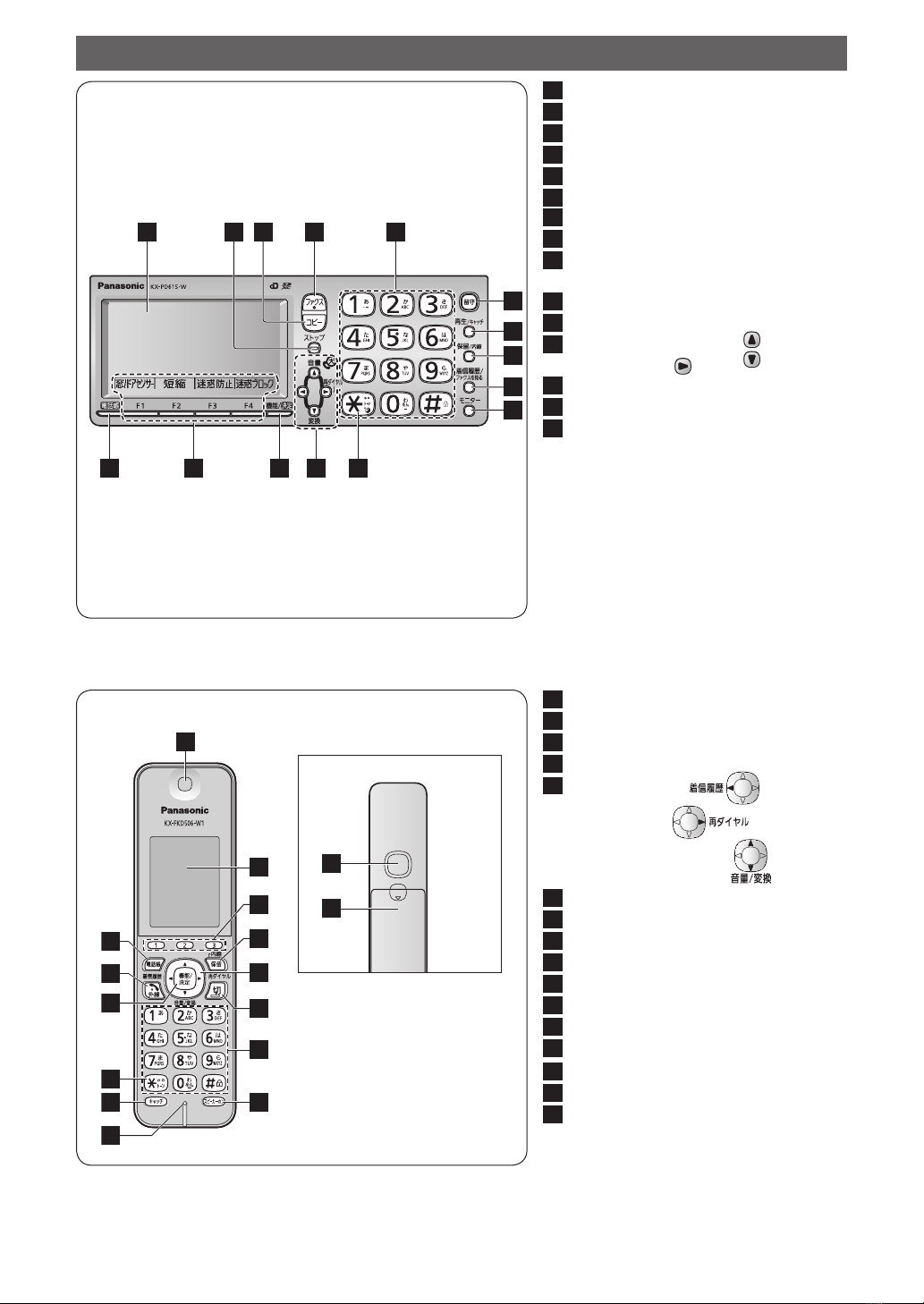

Cordless handset
Earpiece
Liquid crystal display
Multi-operation/One-touch Dial buttons
Hold/Intercom button
Caller ID button ( )
Redial button ( )
Volume control button ( )
Off button
Numeral/Character buttons
Speakerphone button
Microphone
Flash button
Tone button (to switch to tone dialing)
Function/Set button
Talk button
Phonebook button
Speaker
Battery cover
Liquid crystal display
Stop button
Copy button
Fax button
Numeral/Character buttons
Auto Answer button & indicator
Playback/Flash button
Hold/Intercom button
Caller ID Log/Fax Print button &
indicator
Monitor button
Tone button (to switch to tone dialing)
Volume control buttons ( )
Redial button ( )
Function/Set button
Multi-operation buttons
Phonebook button
12 3 4 5
6
7
8
9
10
15 14 13 12 11
Base unit
Parts Descriptions
3
To play back all messages while TAM is
deactivated, press(Playback: )
(
)
to select “
すべて再生
”
(Set:
).
After playing back the messages, press
(Yes:
) twice to erase the messages or press
(No:
) to keep the messages.
*Up to 50 messages can be recorded for approx.
12 minutes in total.
■To hear recorded messages while away from
home (Remote control)
Preparation before you leave home
Store a remote control number.
With the handset placed on the base unit, press
(Function:
)
.
Enter the desired 4-digit number. Press
, then press (Stop: ).
When you leave home, pressto turn on
the indicator.
To hear messages
Dial your home phone number. While the
outgoing message is played back, enter your
remote control number. Announcement.
Press 4. You will hear recorded messages if
any.
NOTE
●This operation can be made only from a
touch-tone phone.
Cordless handset
■To make a call
Lift the cordless handset from the charger and
press(Talk:
). Dial the phone
number (
). Talk. To end the call, place
the cordless handset on the charger or press
(Off:
).
■To receive a call
When the phone rings, lift the cordless handset
from the charger and press. Talk.
To end the call, place the cordless handset on
the charger or press.
●When:
– document reception is required,
– a fax calling tone (slow beep) is heard, or
– no sound is heard,
press(Function:
)
(
) to select “ファク ス 受 信 ”
(Set:
) (Yes:
).
●The number after the button shows the location
of the button described in the previous page.
Base unit
■To make a call
Lift the handset. Dial the phone number ( ).
Talk.
■To receive a call
When the phone rings, lift the handset. Talk.
●When:
– document reception is required,
– a fax calling tone (slow beep) is heard, or
– no sound is heard,
press (Fax: ).
■To place the current call on hold
Press(Hold: ) during a call. (You can
place the handset on the base unit.)
■To retrieve the held call
●If you have returned the handset on the base
unit, lift the handset.
●If you have not returned the handset on the
base unit, press.
■To transfer the held call to the cordless
handset
Press during a call. ( When
you use multiple cordless handsets, press
-
(Intercom No.).) Place the handset
on the base unit when the other party answers.
■To use TAM (Telephone Answering Machine)
When you leave home, press(Auto
Answer: ) to turn on the indicator. (To
deactivate, pressagain to turn off the
indicator.)
When receiving a call while TAM is activated,
it answers the call automatically in Japanese,
and records the incoming messages. Then, the
indicator starts flashing.
When you return home, pressto play
back the messages. Theindicator turns
off and the answering mode is deactivated.
After playing back the messages, press
(Yes:
) twice to erase the messages or press
(No:
) to keep the messages.
Basic Operations
PNQP1342ZA TT0417TU0
Panasonic Corporation 2017
C
Sending faxes/Copying documents
■Sending faxes
Press (Fax: ). Insert the
document. Dial the fax number. Press
.
■Copying documents
Insert the recording paper. Insert the
document. Press(Copy: ).

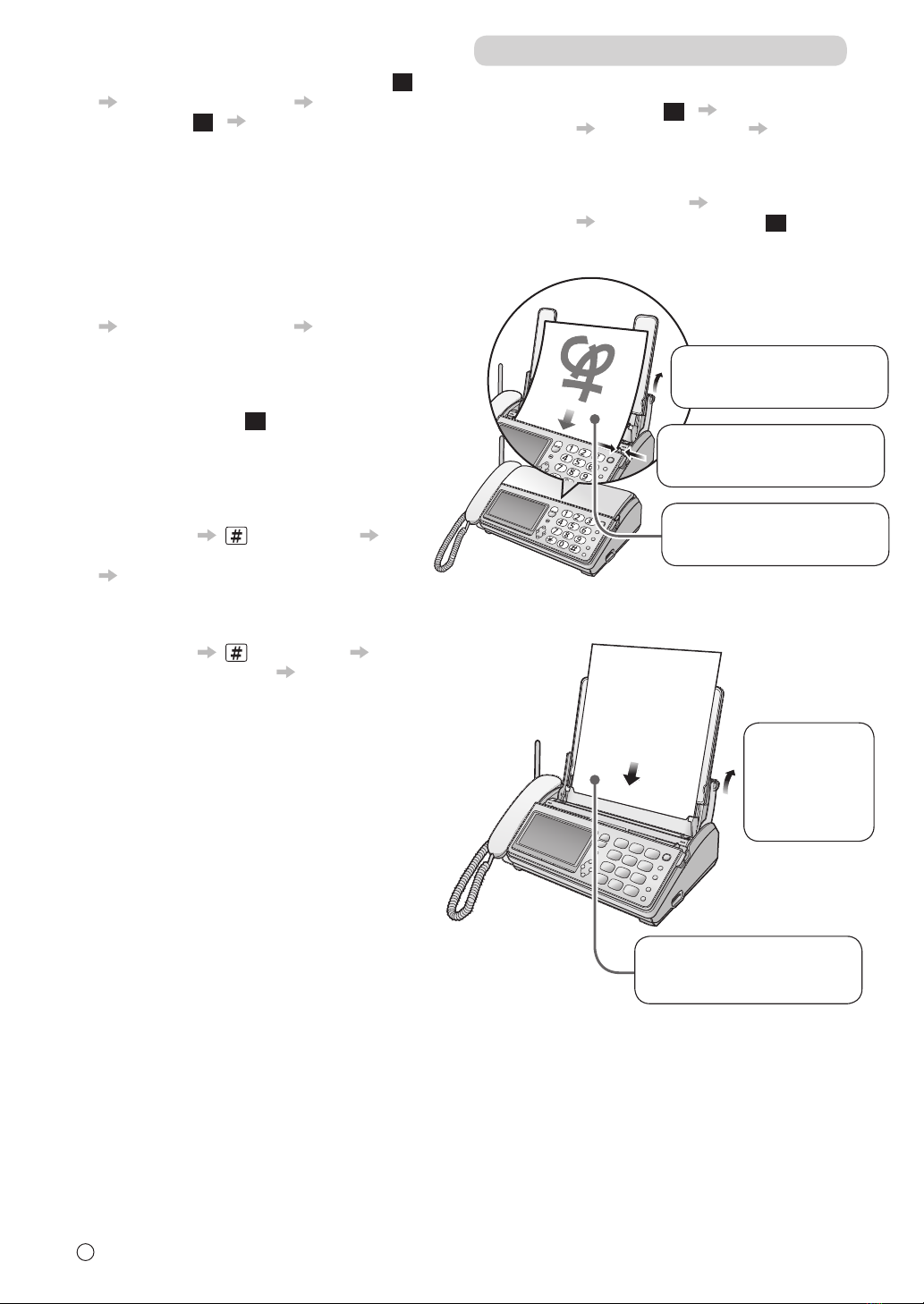

■Installing document
2
Adjust the width of the
document guides to the
size of the document.
1
Open the recording
paper tray, and set up the
recording paper stands.
3
Insert the document (up to
5 pages) FACE UP until a
single beep is heard.
■Installing recording paper
Recording paper
●Printing side
is on the back.
1
Open the
recording
paper tray,
and set up
the recording
paper stands.
2
Insert the recording paper
into the recording paper
tray. (Up to 15 sheets)
■To make a call using the speakerphone
(Hands-free talk)
Press(Speakerphone:
).
Dial the phone number. Talk to the
microphone (
). To end the call, place the
cordless handset on the charger or press.
●Speak clearly about 50 cm away from the
microphone.
●Speak alternately with the other party. The
sound may cut in and out if you both speak at
the same time.
■To receive a call with the speakerphone
(Hands-free talk)
When the phone rings, press.
Talk to the microphone. To end the call,
place the cordless handset on the charger or
press.
■To place the current call on hold
Press(Hold:
) during a call.
■To retrieve the held call
Press.
■To transfer the held call to the base unit
Press during a call. ( When
you use multiple cordless handsets, press
.)
Presswhen the other party answers.
■To transfer the held call to another cordless
handset
Press during a call. Press
-
(Intercom No.). Presswhen
the other party answers.
