Safety precautions
Unit
≥To reduce the risk of fire, electric shock or
product damage,
jDo not expose this unit to rain, moisture,
dripping or splashing.
jDo not place objects filled with liquids, such as
vases, on this unit.
jUse only the recommended accessories.
jDo not remove covers.
jDo not repair this unit by yourself. Refer
servicing to qualified service personnel.
≥To prevent injury, this apparatus must be
securely attached to the wall in accordance with
the installation instructions.
AC mains lead
≥To reduce the risk of fire, electric shock or
product damage,
jEnsure that the power supply voltage
corresponds to the voltage printed on this unit.
j
Insert the mains plug fully into the socket outlet.
j Do not pull, bend, or place heavy items on the lead.
jDo not handle the plug with wet hands.
jHold onto the mains plug body when
disconnecting the plug.
jDo not use a damaged mains plug or socket
outlet.
≥The mains plug is the disconnecting device.
Install this unit so that the mains plug can be
unplugged from the socket outlet immediately.
Button-type battery (Lithium battery)
≥Risk of fire, explosion and burns. Do not
recharge, disassemble, heat above 60 oC or
incinerate.
≥Keep the Button-Type battery out of the reach of
children. Never put Button-Type battery in
mouth. If swallowed call your doctor.
Small object
≥Keep the screws out of reach of children to
prevent swallowing.
≥Keep the adhesive tape out of reach of children
to prevent swallowing.
≥Keep the button-type battery out of reach of
children to prevent swallowing.
Unit
≥Do not place sources of naked flames, such as
lighted candles, on this unit.
≥This unit may receive radio interference caused
by mobile telephones during use. If such
interference occurs, please increase separation
between this unit and the mobile telephone.
≥This unit is intended for use in moderate
climates.
≥Product Identification Marking is located on the
bottom of the unit.
Placement
≥Place this unit on an even surface.
≥To reduce the risk of fire, electric shock or
product damage,
jDo not install or place this unit in a bookcase,
built-in cabinet or in another confined space.
Ensure this unit is well ventilated.
jDo not obstruct this unit’s ventilation openings
with newspapers, tablecloths, curtains, and
similar items.
jDo not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive
vibration.
Button-type battery (Lithium battery)
≥Danger of explosion if battery is incorrectly
replaced. Replace only with the type
recommended by the manufacturer.
≥Insert with poles aligned.
≥Mishandling of batteries can cause electrolyte
leakage and may cause a fire.
jRemove the battery if you do not intend to use
the remote control for a long period of time.
Store in a cool, dark place.
jDo not heat or expose to flame.
jDo not leave the battery(ies) in a car exposed
to direct sunlight for a long period of time with
doors and windows closed.
≥When disposing of the batteries, please contact
your local authorities or dealer and ask for the
correct method of disposal.
WARNING CAUTION
SC-HTB680EG_RQT9920-H.book 2 ページ ２０１４年３月５日 水曜日 午前１０時３９分

Precautions
ENGLISH
RQT9920 3
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.
Customers can download a copy of the original DoC to our R&TTE products from our DoC server:
http://www.doc.panasonic.de
Contact to Authorised Representative: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany
This product is intended for general consumer. (Category 3)
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents
mean that used electrical and electronic products and batteries must not be mixed
with general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points in accordance with your national
legislation.
By disposing of them correctly, you will help to save valuable resources and prevent
any potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local
municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
Note for the battery symbol (bottom symbol):
This symbol might be used in combination with a chemical symbol. In this case it
complies with the requirement set by the Directive for the chemical involved.
SC-HTB680EG_RQT9920-H.book 3 ページ ２０１４年３月５日 水曜日 午前１０時３９分

4RQT9920
Table of contents
Safety precautions............................................................................................ 2
Before use
Supplied items .................................................................................................. 5
This system (SC-HTB680) ...................................................................................................5
Accessories .........................................................................................................................5
Control reference guide ................................................................................... 6
This system (Front) ..............................................................................................................6
This system (Rear) ..............................................................................................................7
Remote control ....................................................................................................................8
Getting started
Step 1 Connections ......................................................................................... 9
Connection with the TV .......................................................................................................9
Connection from an HDMI compatible device ...................................................................10
Connection to a 4K Ultra HD TV ........................................................................................11
Using the IR Blaster ...........................................................................................................11
AC mains lead connection .................................................................................................12
Step 2 Placement........................................................................................... 13
Safety Precautions ............................................................................................................13
The active subwoofer ........................................................................................................13
Wireless interference .........................................................................................................13
Selecting the placement method .......................................................................................14
When placing the main unit in a rack or on a table ............................................................15
When attaching the main unit to a wall ..............................................................................16
Step 3 Wireless connections........................................................................ 19
Active subwoofer wireless connection ...............................................................................19
Bluetooth®connection .......................................................................................................19
Remote control code ......................................................................................20
Operations
Using this system ...........................................................................................21
3D sound .........................................................................................................22
Sound menu ....................................................................................................22
Audio format ......................................................................................................................23
Setup menu .....................................................................................................24
Linked operations with the TV (VIERA Link “HDAVI ControlTM”) ............... 25
Reference
Troubleshooting .............................................................................................26
About Bluetooth®............................................................................................29
Unit care ..........................................................................................................29
Licenses ..........................................................................................................29
Specifications ................................................................................................. 30
SC-HTB680EG_RQT9920-H.book 4 ページ ２０１４年３月５日 水曜日 午前１０時３９分

Getting started
Operations
Reference
Before use
Precautions
RQT9920 5
Before use
Supplied items
Check the supplied accessories before using this system.

≥Product numbers are correct as of December 2013. These may be subject to change.
≥The supplied AC mains lead is for use with this system only.
Do not use it with other equipment. Also, do not use cords from other equipment with this system.
≥The illustrations shown may differ from your unit.
≥Operations in this operating instructions are described mainly with the remote control, but
you can perform the operations on the main unit if the controls are the same.
This system (SC-HTB680)

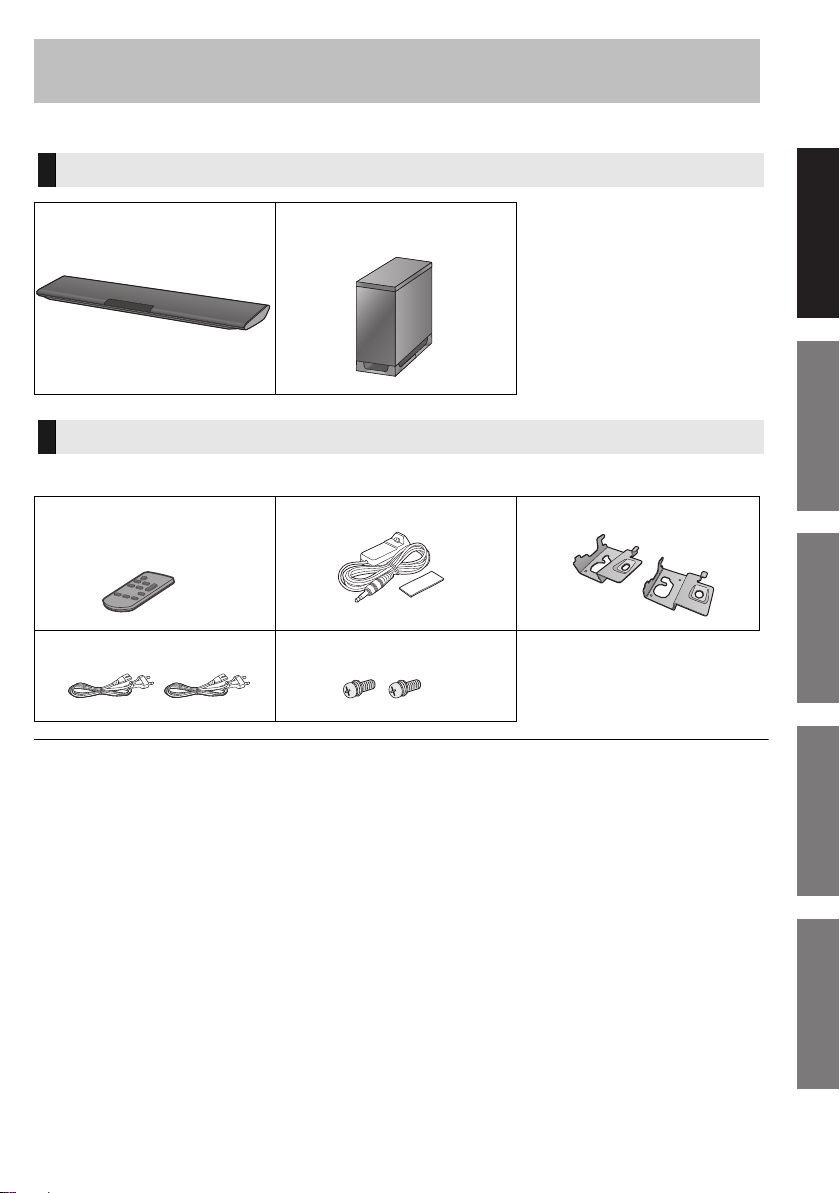

∏1 Main unit (speaker)
(SU-HTB680)
∏1 Active subwoofer
(SB-HWA680)
Accessories
∏1 Remote control (with a
battery)
(N2QAYC000098)
∏1 IR Blaster ∏2 Wall mount brackets
∏2 AC mains leads ∏2 Screws
SC-HTB680EG_RQT9920-H.book 5 ページ ２０１４年３月５日 水曜日 午前１０時３９分

6RQT9920
Control reference guide
1Standby/on switch (Í/I)
Touch to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Adjust the volume of this system (>21)
3 Select the input source (>21)
“TV” --# “BD/DVD” --# “BLUETOOTH”
^--------------------------------------------------------}
4 Select the Bluetooth®device as the source
(>21)
5 NFC touch area (>20)
6 Remote control signal sensor (>8)
7 Display
8 WIRELESS LINK indicator (>19)
§ These switches work just by touching the marks. Each time you touch the switch, there will be a beep sound.
This system (Front)
7
8
5
6
2341
Main unit
Active subwoofer
SC-HTB680EG_RQT9920-H.book 6 ページ ２０１４年３月５日 水曜日 午前１０時３９分

Before use
RQT9920 7
1 HDMI AV IN (BD/DVD) terminal (>10)
2 HDMI AV OUT (TV (ARC)) terminal (ARC
compatible) (>9, 10)
3 OPTICAL DIGITAL AUDIO IN (TV) terminal
(>10)
4 Ir SYSTEM terminal (>11, 12)
5 USB port (for service use only)
6 AC IN terminal (>12)
7 Active subwoofer on/off button (>19)
§The I/D SET button is only used when the main unit is not paired with the active subwoofer. (>28)
This system (Rear)
7
6
2
1
3
4
5
6
Main unit
Active subwoofer
SC-HTB680EG_RQT9920-H.book 7 ページ ２０１４年３月５日 水曜日 午前１０時３９分

8RQT9920

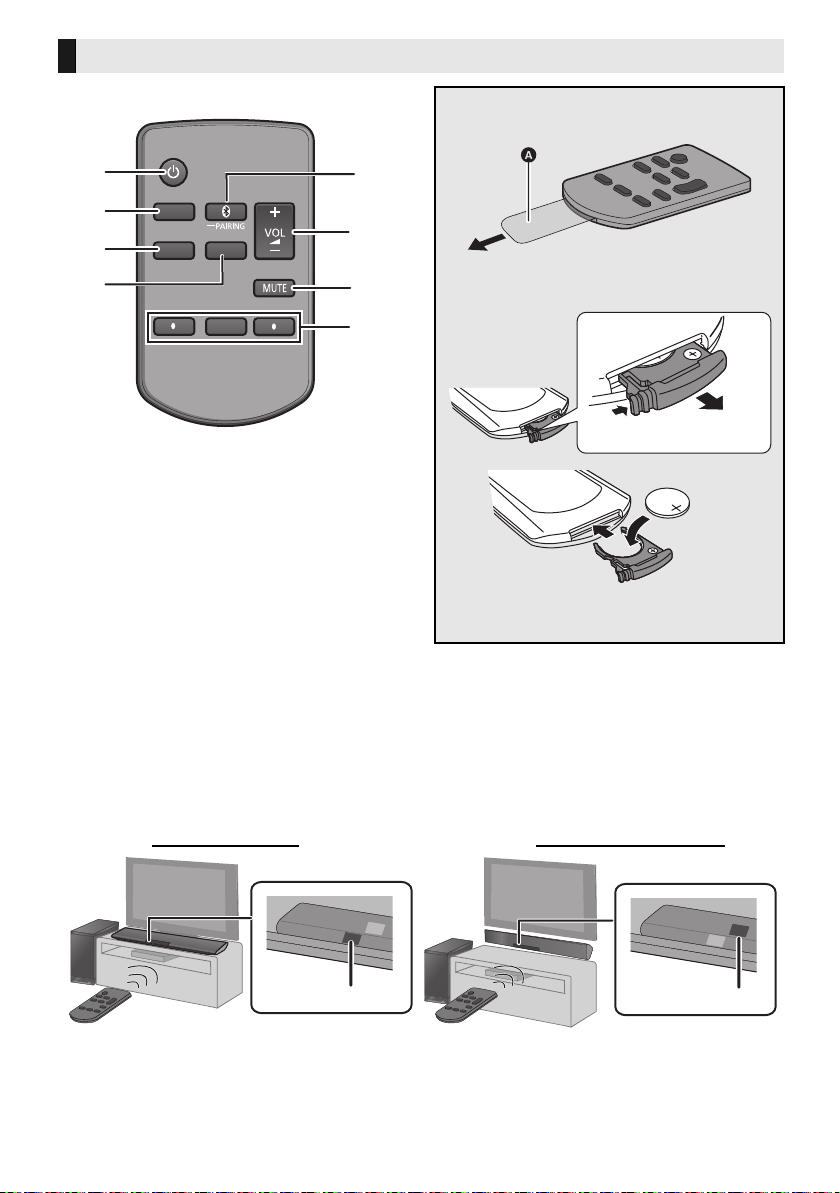

1 Turn the main unit on or off (>21)
2 Select the input source (>21)
“TV” --# “BD/DVD” --# “BLUETOOTH”
^--------------------------------------------------------}
3 Select the setup menu (>24)
4 Select the sound menu (>22)
5 Select the Bluetooth®device as the source
(>21)
6 Adjust the volume of this system (>21)
7 Mute the sound (>21)
8 Select and confirm the option
∫About remote control signal sensor
The remote control signal sensor is located on the main unit.
≥Use the remote control within the correct operation range.
Distance: Within approx. 7 m directly in front
Angle: Approx. 30oleft and right
B Remote control signal sensor for table top layout
C Remote control signal sensor for wall mounting layout
Remote control
SOUND
15
6
7
8
2
INPUT
SETUP

OK
3
4
∫Before using for the first time
Remove the insulation sheet A.
∫To replace a button-type battery
Battery type: CR2025 (Lithium battery)
≥Set the button-type battery with its (i) mark
facing upward.



For table top layout For wall mounting layout
SC-HTB680EG_RQT9920-H.book 8 ページ ２０１４年３月５日 水曜日 午前１０時３９分

Getting started
Before use
RQT9920 9
Getting started
Step 1 Connections
≥Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are completed.
∫HDMI (High-Definition Multimedia Interface)
≥The HDMI connection supports VIERA Link “HDAVI Control” (>25) when used with a compatible Panasonic TV.
≥Use the ARC compatible High Speed HDMI Cables. Non-HDMI-compliant cables cannot be utilised.
≥It is recommended that you use Panasonic’s HDMI cable.
∫IR (Infrared) Blaster
≥Do not use the IR Blaster if the TV’s remote control sensor is not blocked by the main unit. (>14)
Verify if the TV’s HDMI terminal is labelled “HDMI (ARC)”.
∫What is ARC?
ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you
connect the main unit to the terminal labelled “HDMI (ARC)” on the TV, the optical digital audio cable that is usually required in
order to listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.
Make the connection.
AHDMI cable
Connection with the TV
Connection differs depending on the label printed next to the HDMI terminal.
Labelled “HDMI (ARC)”: Connection [A]
Not Labelled “HDMI (ARC)”: Connection [B]
[A] Labelled “HDMI (ARC)”
HDMI IN (ARC)
AV OUT
TV(ARC)
A
Be sure to connect to
the TV’s ARC
compatible terminal.
(Refer to the operating
instructions for the TV.)
TV
SC-HTB680EG_RQT9920-H.book 9 ページ ２０１４年３月５日 水曜日 午前１０時３９分

10 RQT9920
AHDMI cable BOptical digital audio cable
≥When you use the optical digital audio cable, insert
the tip correctly into the terminal.
You can direct the audio signal from the connected Blu-ray Disc player, DVD player, Set Top Box, etc. to
this system.
Preparation
≥Connect the main unit to the TV. (>9)
AHDMI cable

≥Refer to the operating instructions of the connected HDMI compatible device for the necessary setting, to output the video and
audio signals.

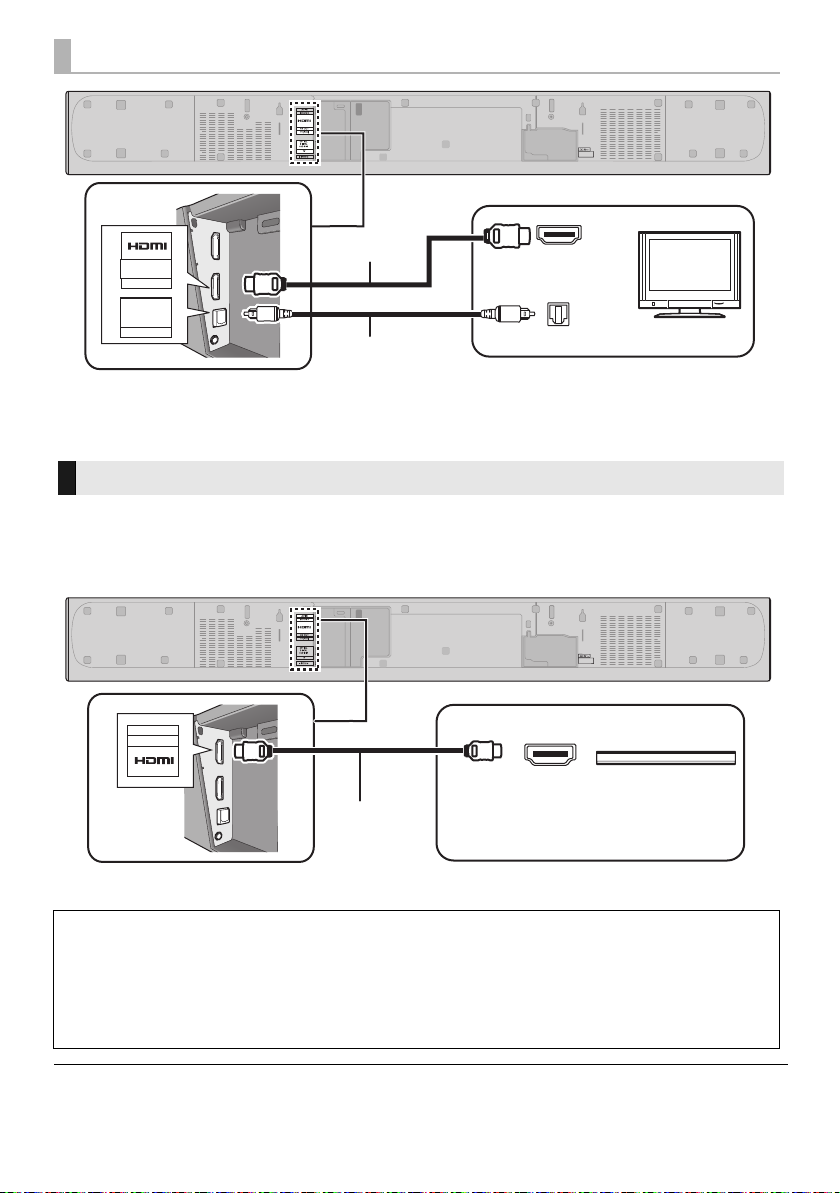

[B] Not labelled “HDMI (ARC)”
HDMI IN
OPTICAL OUT
TV
OPTICAL
DIGITAL
AUDIO IN
AV OUT
TV(ARC)
B
A
TV
Connection from an HDMI compatible device
∫HDMI standby pass-through
Even if the main unit is in standby mode, the audio and/or video signal from the device connected to the HDMI AV IN terminal
will be sent to the TV connected to the HDMI AV OUT terminal (the sound will not be output from this system).
∫3D compatibility
Compatible with FULL HD 3D TV and Blu-ray Disc player.
≥The main unit can pass-through the 3D video signal from a 3D compatible Blu-ray Disc player to a FULL HD 3D TV.
HDMI OUT
BD/DVD
AV IN
A
e.g., Blu-ray Disc player
SC-HTB680EG_RQT9920-H.book 10 ページ ２０１４年３月５日 水曜日 午前１０時３９分

Getting started
RQT9920 11
This system cannot pass-through the 4K content of a 4K compatible equipment to a 4K Ultra HD TV.
However, you can connect the system to a 4K Ultra HD TV to enjoy the 4K content.
AHDMI cable

≥Refer to the operating instructions of the 4K Ultra HD TV (VIERA) and the 4K/60p compatible equipment for setup and for
playing the 4K content.
≥To enjoy multi-channel output from this system, set the audio output of other equipment to Bitstream.
≥The audio signal input to this system is up to 5.1 channels.
With the IR Blaster connection, it is possible to send the IR signal received by this system’s remote
control signal sensor to the TV’s sensor.
Use the TV’s remote control within the operation range of this system’s remote control signal sensor.
≥For the operation range, refer to page 8.
Connect the jack plug to the main unit’s Ir SYSTEM terminal.

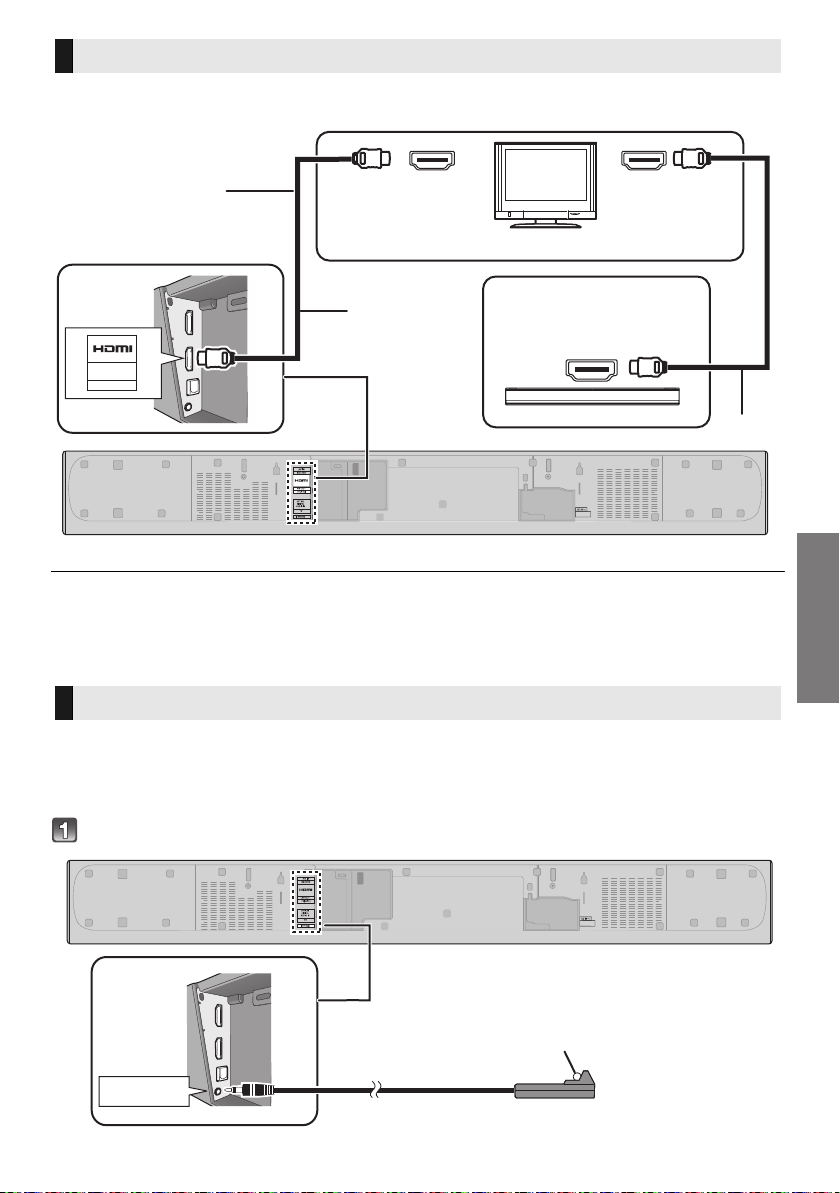

Connection to a 4K Ultra HD TV
Using the IR Blaster
HDMI IN (ARC)
HDMI OUT
HDMI IN (4K)
AV OUT
TV(ARC)
A
A
e.g., Blu-ray Disc player
(4K compatible)
TV
Connect both ends
to ARC compatible
HDMI terminals.
(4K compatible)
Ir SYSTEM
Infrared emitter
SC-HTB680EG_RQT9920-H.book 11 ページ ２０１４年３月５日 水曜日 午前１０時３９分

12 RQT9920
Place the infrared emitter in sight of the TV’s remote control signal
sensor.
≥For the location of the TV’s remote control signal sensor, refer to the operating instructions for the TV.
Aim the TV’s remote control at this system’s remote control sensor and
operate the TV.
≥For the location of this system’s remote control signal sensor, refer to page 8.
≥Make sure to clean the surface, where the adhesive tape is to be attached.
≥If you peel off the adhesive tape, the surface may become damaged and exposed adhesive may remain. Once you have
confirmed the TV is operating correctly, secure it by attaching the adhesive tape.

≥The supplied IR Blaster is only compatible with Panasonic TVs.
∫Placement example
On the rear of the main unit:
≥Connect only after all other connections are completed.
ATo a household mains socket
BAC mains lead (supplied)
≥
This system consumes a small amount of AC power ( > 30) even when it is turned off. In the interest of power
conservation, if you will not be using this system for a long time, unplug it from the household mains socket.

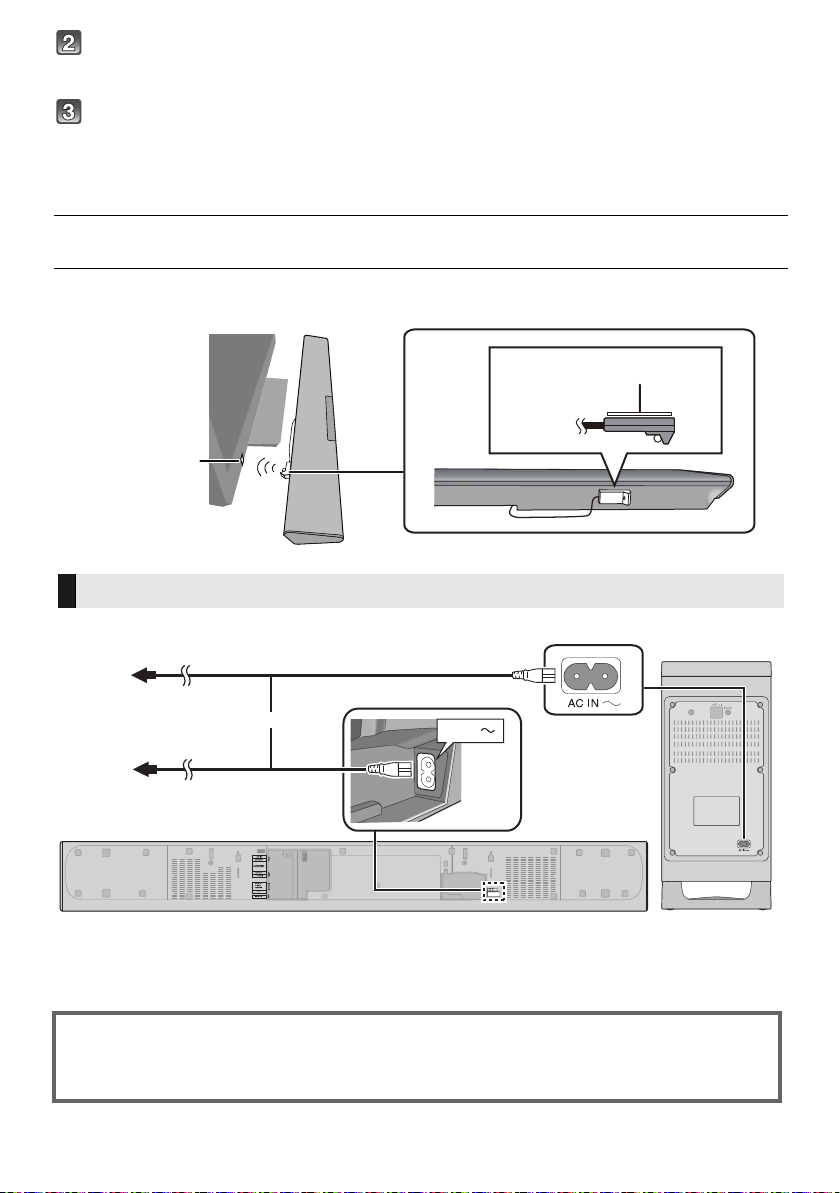

AC mains lead connection
TV remote control
signal sensor
Adhesive tape (supplied)



AC IN
Saving energy
The main unit is designed to conserve its power consumption and save energy.
≥
The main unit will automatically switch to standby mode when no signal is input and no operation is
performed for approx. 20 minutes. Refer to page 24, “AUTO POWER DOWN” to turn this function off.
SC-HTB680EG_RQT9920-H.book 12 ページ ２０１４年３月５日 水曜日 午前１０時３９分

Getting started
Precautions
RQT9920 13
Step 2 Placement

≥Do not hold the main unit in one hand to avoid injury, you may drop the main unit when carrying it.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
When carrying the active subwoofer
To avoid interference, maintain the following distances between the main unit/active subwoofer
and other electronic devices that use the same radio frequency (2.4 GHz band).
Safety Precautions
Professional installation is required.
The installation should never be done by any other than a qualified installation specialist.
PANASONIC DISCLAIMS ANY PROPERTY DAMAGE AND/OR SERIOUS INJURY, INCLUDING
DEATH RESULTING FROM IMPROPER INSTALLATION OR INCORRECT HANDLING.
≥Be sure to install the main unit as indicated within this operating Instructions.
≥Attach using techniques suited to the structure and materials of the installation location.
Caution
≥This system is to be used only as indicated in these instructions. Failure to do so may lead to
damage to the amplifier and/or the speaker, and may result in the risk of fire. Consult a qualified
service person if damage has occurred or if you experience a sudden change in performance.
≥Do not attempt to attach the main unit to a wall using methods other than those described in this
manual.
The active subwoofer
ADo not hold the active subwoofer from this
opening.
The parts inside may get damaged.
BAlways hold the bottom of the active subwoofer when
moving it.
Wireless interference
CMain unit/active subwoofer
DWireless router, cordless phone and
other electronic devices: approx. 2 m
A
B
D
C
SC-HTB680EG_RQT9920-H.book 13 ページ ２０１４年３月５日 水曜日 午前１０時３９分

14 RQT9920
Choose a placement method that suits you best.
∫When placing the main unit in front of the TV
The main unit may block or interfere with the TV’s various sensors (C.A.T.S. (Contrast Automatic
Tracking System) sensor, remote control sensor, etc.) and the 3D Eyewear transmitters on a 3D
compatible TV.
≥If interference occurs, move the main unit further away from the TV. If the TV still does not function
correctly, try using it in a rack or in the wall mount position.
∫If the TV’s remote control sensor is blocked by the main unit
Try using the TV’s remote control from a different angle. If the problem persists, you can use the supplied
IR Blaster to relay the signal to the TV. (>11, 12)

≥Place the active subwoofer within a few meters of the main unit and in a horizontal position with the top panel facing upward.
≥Do not use the main unit or the active subwoofer in a metal cabinet.
≥Placing the active subwoofer too close to the walls and corners can result in excessive bass. Cover walls and windows with
thick curtains.
≥If irregular colouring occurs on your TV, turn the TV off for about 30 minutes. If it persists, move the main unit and active
subwoofer further away from the TV.
≥Keep magnetised items away. Magnetised cards, watches, etc., can be damaged if placed too close to the main unit and active
subwoofer.

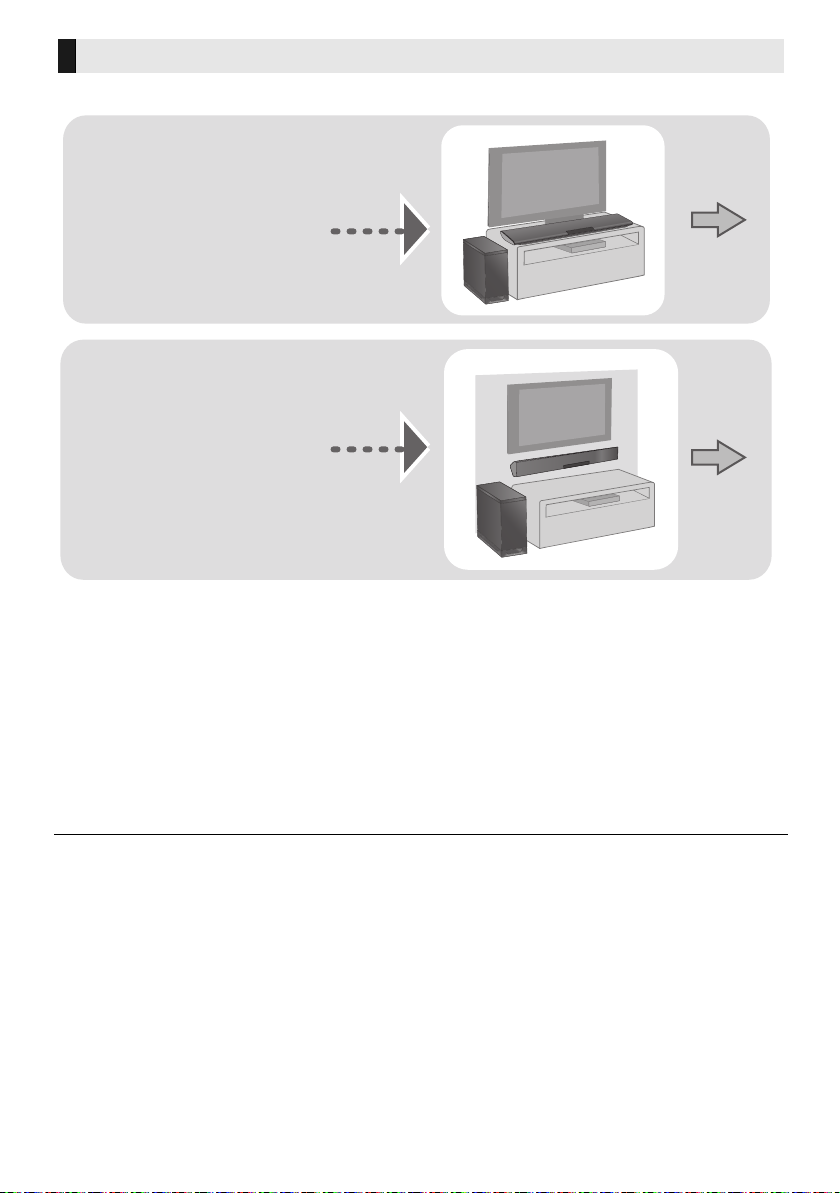

Selecting the placement method
When placing the main unit
in a rack or on a table
≥Place the main unit on a flat
and horizontal surface.
When attaching the main
unit to a wall
≥Place the main unit on a
flat and vertical surface.
Page 15
Page 16
SC-HTB680EG_RQT9920-H.book 14 ページ ２０１４年３月５日 水曜日 午前１０時３９分

Getting started
Precautions
RQT9920 15
Additionally required accessories (commercially available)
≥Fall prevention cord ...................................................................................................................... k 2
≥Screw eyes (to attach the fall prevention cord) ............................................................................. k2

≥Use commercially available screws that are capable of supporting over 26 kg.
≥Use a cord that is capable of supporting over 26 kg(with a diameter of about 1.5 mm).

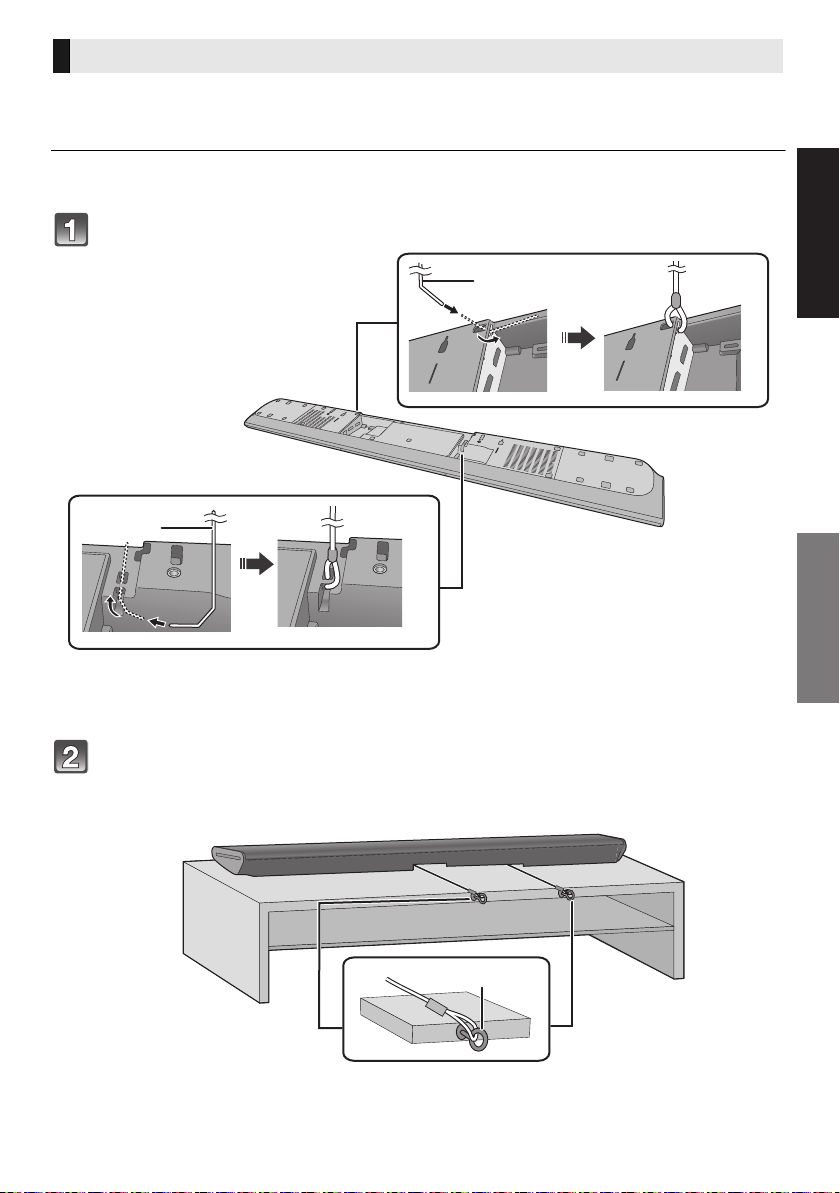

Attach the cord to the main unit.
ACord§
§If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm apart from the tip, at an angle of 45o(as illustrated above).
Place the main unit in the desired position and attach each cord onto the
rack or table.
≥Make sure that the slack of the cord is minimal.
≥Do not lean the main unit against the TV or wall.
BScrew eye
≥Attach at a position capable of supporting over 26 kg.
≥Depending on the placement of the main unit, the screwing position of the screw eye may differ.
When placing the main unit in a rack or on a table



SC-HTB680EG_RQT9920-H.book 15 ページ ２０１４年３月５日 水曜日 午前１０時３９分

16 RQT9920
The main unit can be wall mounted using the supplied wall mount brackets, etc. Make sure that the
screw used and the wall are strong enough to support the weight of at least 26 kg.
The screws and other items are not supplied as the type and size will vary with each installation.
≥Refer to step 3 for details about the required screws.
≥Be sure to attach the fall prevention cord as a secondary safety measure.
Supplied accessories
Additionally required accessories (commercially available)
≥Screws for wall mounting............................................................................................................. k2
≥Fall prevention cord ..................................................................................................................... k2
≥Screw eyes (to attach the fall prevention cord)............................................................................ k2

≥Use a cord that is capable of supporting over 26 kg(with a diameter of about 1.5 mm).
Attach the cord to the main unit.
ACord§
§If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm apart from the tip, at an angle of 45o(as illustrated above).
When attaching the main unit to a wall
∏2 Screws ∏2 Wall mount brackets


SC-HTB680EG_RQT9920-H.book 16 ページ ２０１４年３月５日 水曜日 午前１０時３９分

Getting started
Precautions
RQT9920 17

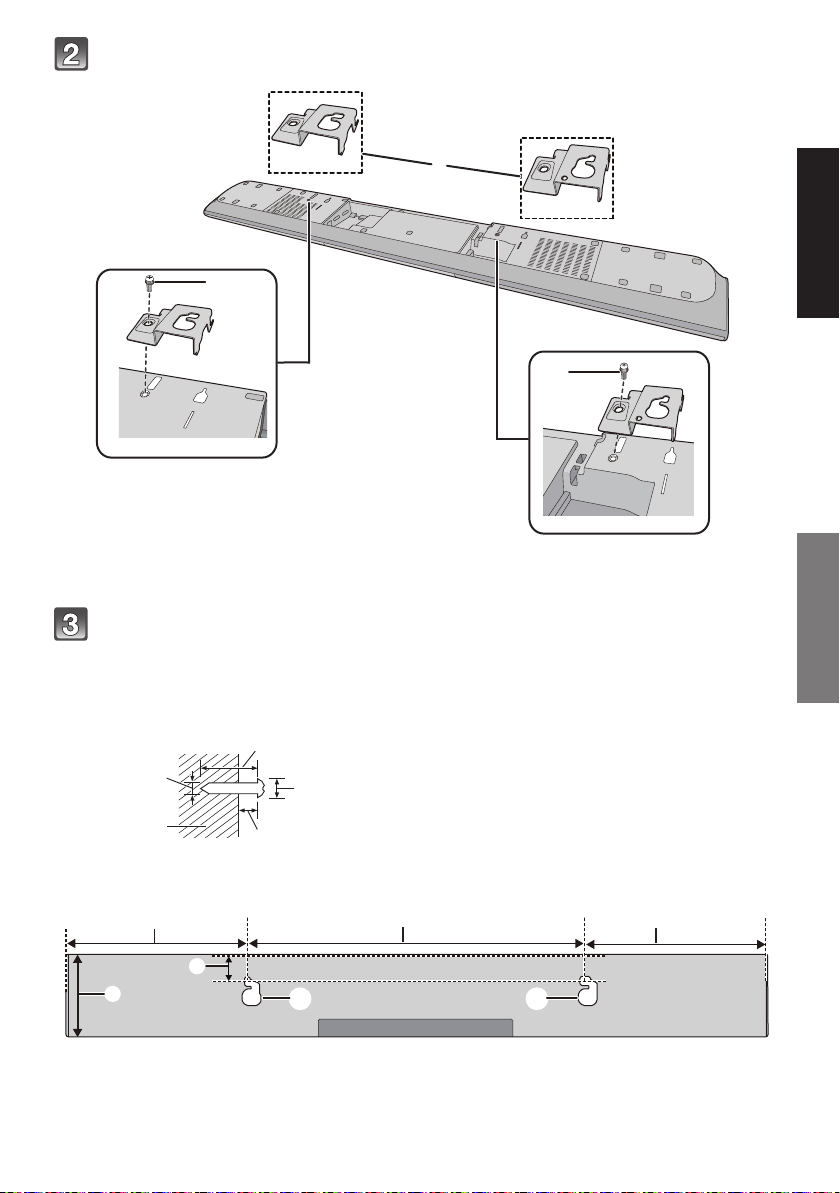

Attach the wall mount brackets to the main unit.
AWall mount bracket (supplied)
BScrew (supplied)
Drive a screw into the wall.
≥Use the measurements indicated below to identify the screwing positions on the wall.
≥Leave at least 100 mm of space above of the main unit to allow enough space for fitting the main unit.
≥Position the main unit with at least 50 mm of free space to its right. If not, it may not be possible to access the touch keys.
≥Be sure to use a level to ensure that both mounting holes are level to each other.
Front view (semi-transparent image)
CAt least 30 mm
D‰4.0 mm
E‰7.0 mm to ‰9.4 mm
FWall or pillar
G1.6 mm to 2.5 mm
H400 mm I275 mm J275 mm
K27 mm L110 mm MWall mounting hole















SC-HTB680EG_RQT9920-H.book 17 ページ ２０１４年３月５日 水曜日 午前１０時３９分

18 RQT9920

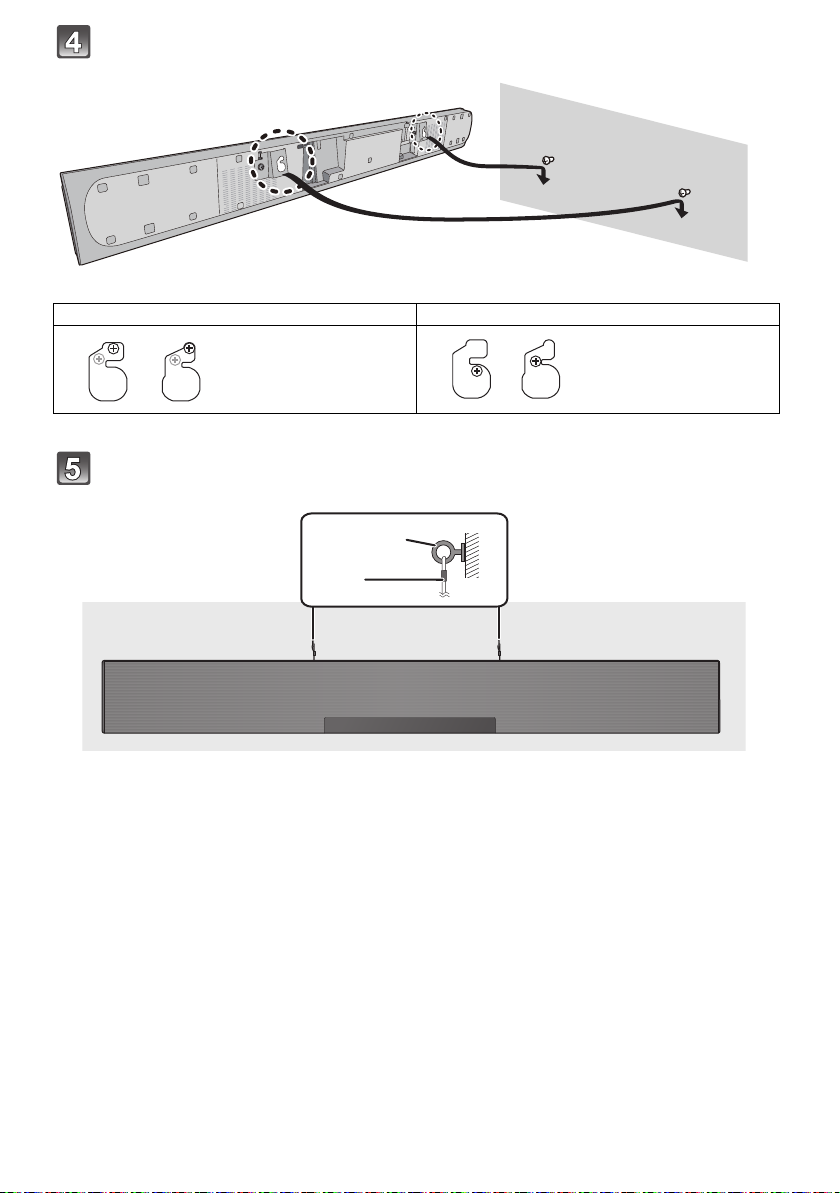

Fit the main unit securely onto the screw(s).
Secure the cord to the wall.
≥Make sure that the slack of the cord is minimal.
AScrew eye
BCord
DO DO NOT
≥Move the speaker so
that the screw is in
this position.
≥In this position, the
speaker will likely fall
if moved to the left or
right.


SC-HTB680EG_RQT9920-H.book 18 ページ ２０１４年３月５日 水曜日 午前１０時３９分

Getting started
Precautions
RQT9920 19
Step 3 Wireless connections
Preparation
≥Turn on the main unit.
Press [BÍ CI].
Active subwoofer on/off button [BÍCI]
Use this button to turn the active subwoofer on
and off.
CI:
The active subwoofer is on.
BÍ:
The active subwoofer is off.
The active subwoofer will still consume a small
amount of power even when it is turned off (
B , Í ).
Check that the wireless link is
activated.
WIRELESS LINK indicator
Lights red:
The wireless link is not activated.
Lights green:
The wireless link is activated.
Blinks green:
The active subwoofer is trying to activate the
wireless link with the main unit.

The wireless link will be activated when the main unit and the
active subwoofer are both turned on.
By using the Bluetooth®connection, you can listen
to the sound from the Bluetooth®audio device
from this system wirelessly.
≥ Refer to the operating instructions of the Bluetooth
®
device for
further instruction on how to connect a Bluetooth
®
device.
Preparation
≥Turn on the Bluetooth®feature of the device and
place the device near the main unit.
Press [ ] to select “BLUETOOTH”.
≥If “PAIRING” is indicated on the display, go to step 3.
Press and hold [ ] until “PAIRING”
is indicated on the display.
Select “SC-HTB680” from the
Bluetooth®device’s Bluetooth®
menu.
≥If prompted for the passkey on the Bluetooth®device, enter
“0000”.
≥Once the Bluetooth®device is connected, the name of the
connected device will be indicated on the display for a few
seconds.

≥You can register up to 8 devices with this system. If a 9th
device is paired, the device that has not been used for the
longest time will be replaced.
Press [ ] to enter Bluetooth®mode.
“BLUETOOTH READY” is indicated on the display.
Select “SC-HTB680” from the
Bluetooth®device’s Bluetooth®
menu.
∫Disconnecting a Bluetooth®device
Press and hold [ ] until the “BLUETOOTH
READY” is indicated on the display.

≥When “BLUETOOTH” is selected as the source, this
system will automatically try and connect to the last
connected Bluetooth®device.
≥The Bluetooth®device will be disconnected if a different
audio source (e.g. “TV”) is selected.
≥
This system can only be connected to one device at a time.
≥ To change the sound quality, refer to page 24 “LINK MODE”.
Active subwoofer
wireless connection
Bluetooth®connection
Bluetooth®pairing
Connecting a paired
Bluetooth®device
SC-HTB680EG_RQT9920-H.book 19 ページ ２０１４年３月５日 水曜日 午前１０時３９分

20 RQT9920
For NFC-compatible Bluetooth®devices
(AndroidTM devices) only
Simply by touching an NFC (Near Field
Communication)-compatible Bluetooth®device on
the main unit, you can complete all preparations,
from registering a Bluetooth®device to
establishing a connection.
Preparation
≥Turn on the NFC feature of the device.
≥Android device version lower than 4.1 requires
the installation of the app “Panasonic Music
Streaming” (free of charge).
1Enter “Panasonic Music Streaming” in the search
box of Google PlayTM to search, and then select
“Panasonic Music Streaming”.
2Start the app “Panasonic Music Streaming” on the
device.
– Follow on-screen instructions on your device.
– Always use the latest version of the app.
Press [ ] to select “BLUETOOTH”.
Touch and hold your device on the
NFC touch area of the main unit [ ].
(>6)
Do not move the Bluetooth®device until it beeps,
displays a message or reacts in some way.
Once the Bluetooth®device has reacted, move the
device away from the main unit.
≥When the registration and connection of the Bluetooth®
device is complete, the name of the connected device is
indicated on the display for a few seconds.
≥The location of the NFC touch area differs depending on
the device. When a connection cannot be established
even if your Bluetooth®device has touched the NFC
touch area of the main unit, change the position of the
device. The condition may also improve if you download
the dedicated app “Panasonic Music Streaming” and
start it up.
Start playback on the Bluetooth®
device.

≥If you touch another device to the main unit, you can
update the Bluetooth®connection. The previously
connected device will be disconnected automatically.
≥When the connection is established, playback may start
automatically depending on the type of device being used.
≥The One-Touch Connection may not work properly
depending on the type of device being used.
Remote control code
When other Panasonic devices respond to this
system’s remote control, change the remote
control code on this system and the remote
control.
Preparation
≥Turn off all other Panasonic products.
≥Turn on the main unit.
∫To set the code to “REMOTE 2”
Press and hold [MUTE] and [OK] for more than
4 sec.
“REMOTE 2” is indicated on the display.
∫To set the code to “REMOTE 1”
Press and hold [MUTE] and [4] for more than
4 sec.
“REMOTE 1” is indicated on the display.
One-Touch Connection
(Connecting by NFC)
SC-HTB680EG_RQT9920-H.book 20 ページ ２０１４年３月５日 水曜日 午前１０時３９分
