Operating Instructions
Microwave/Convection Oven
Model NN- C980B/NN- C980W
Before operating this oven, please read these instructions completely.
.Writes de operar este pibductojea est& instructive en su totalidad.
La referenda rapids on espaho! puede ser encontrada en la paginas 25-42
{Spanish quick reference can be found on pages 25-42,)
For assistance, please call : 1 -BOD-211-PA NA (7262)
or send e-mail to : consumerproducts® Panasonic, com

Thank you for purchasing the Panasonic Microwave I Convection Oven .
Let's Start to Use Your Oven!-—page 11.
PRECAUTIONS
TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks. Under normal conditions, the oven will not operate with the
door open.
(b) Do not place any object between the oven front face and the door, or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the :
(1) door (bent)
(2) hinges and latches (broken or loosened)
(3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
EXAMINE YOUR OVEN
Unpack oven, remove all packing material.
Examine the oven for any damage such as dents, broken door latches or cracks in the door.
Check that none of the accessories are missing, by following the list below.
| | Roller Ring
| | Oven Rack
Place the Roller Ring
correctly on the oven floor.
<^ 7 7 m u v T f> Oven Rack should be used
! for Bake and Broil cooking.
| | Ceramic Tray
Place the Ceramic Tray
exactly on Roller Ring.
Alway use Roller Ring and
Ceramic Tray in proper
position.
Q Operating Instructions
O Cookbook
Notify dealer immediately if oven is damaged. DO NOT install if oven is damaged.
The serial number of this product may be found on Model No._
the right side of the oven door opening. You
should note the model number and the serial Serial No._
number of this oven in the space provided and
retain this book as a permanent record of your Date of Purchase,
purchase for future reference.
© Copyrighted by Matsushita Electric Industrial Co., Ltd. 2000.
2

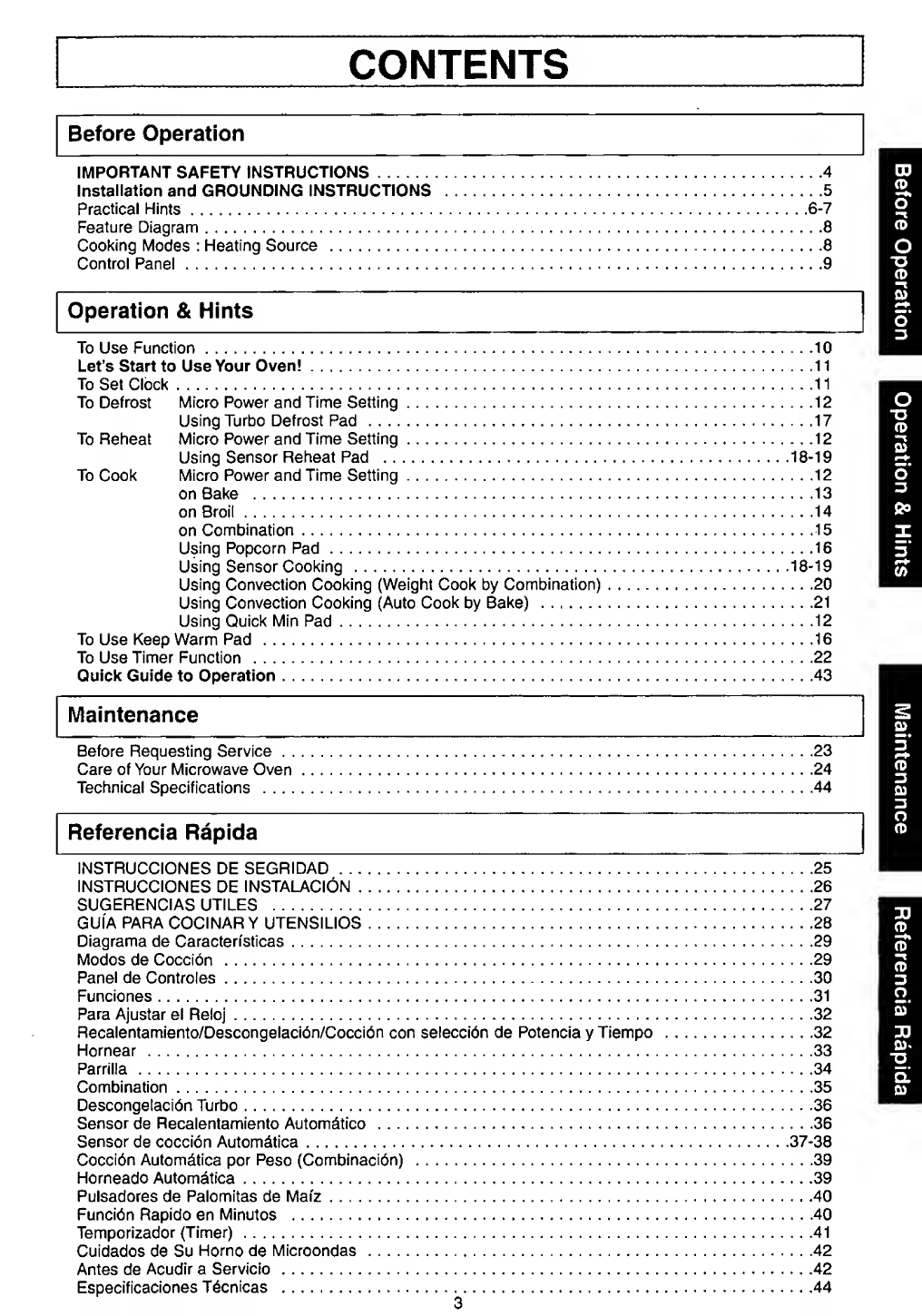

CONTENTS
Before Operation
IMPORTANT SAFETY INSTRUCTIONS.4
Installation and GROUNDING INSTRUCTIONS .5

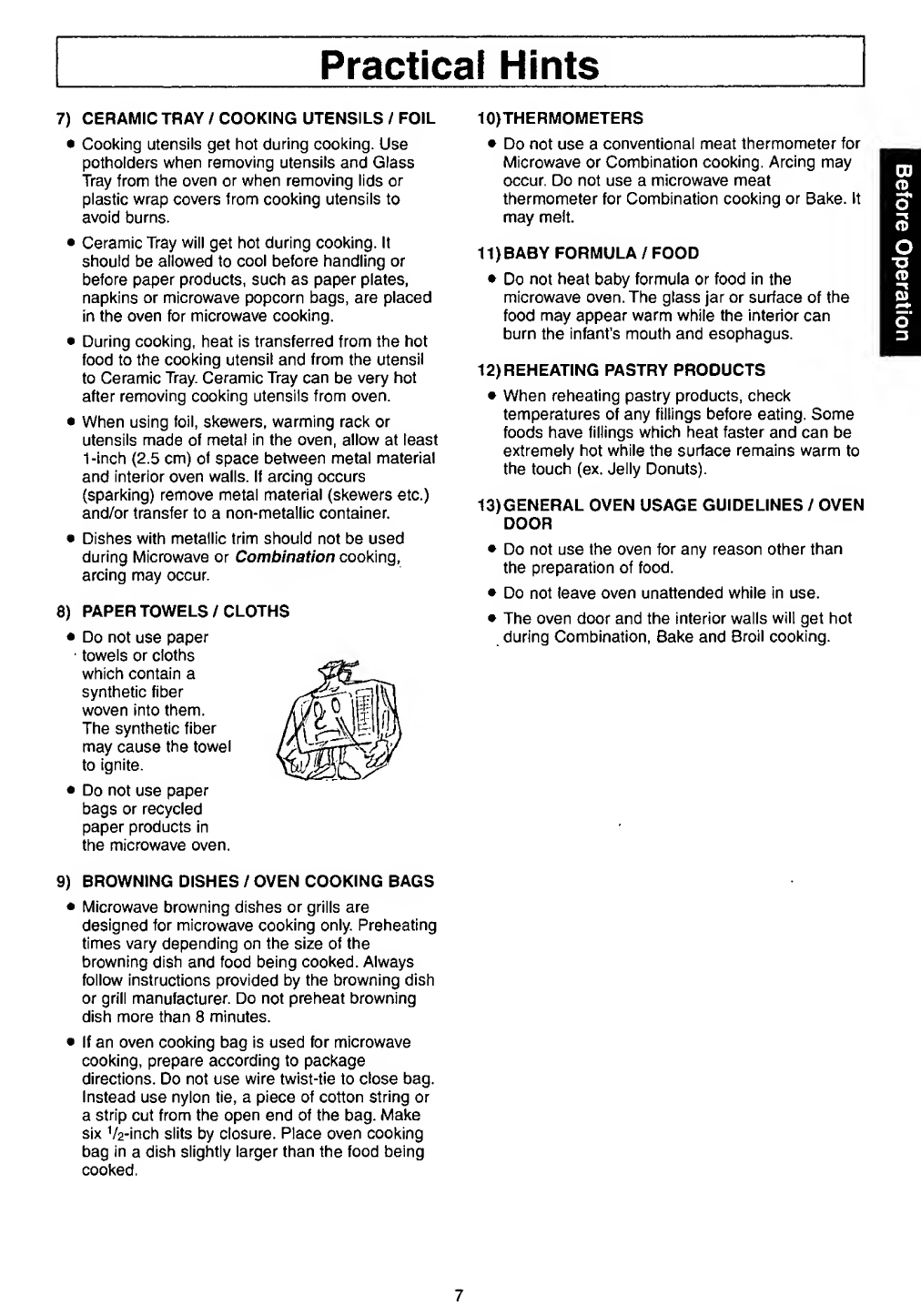

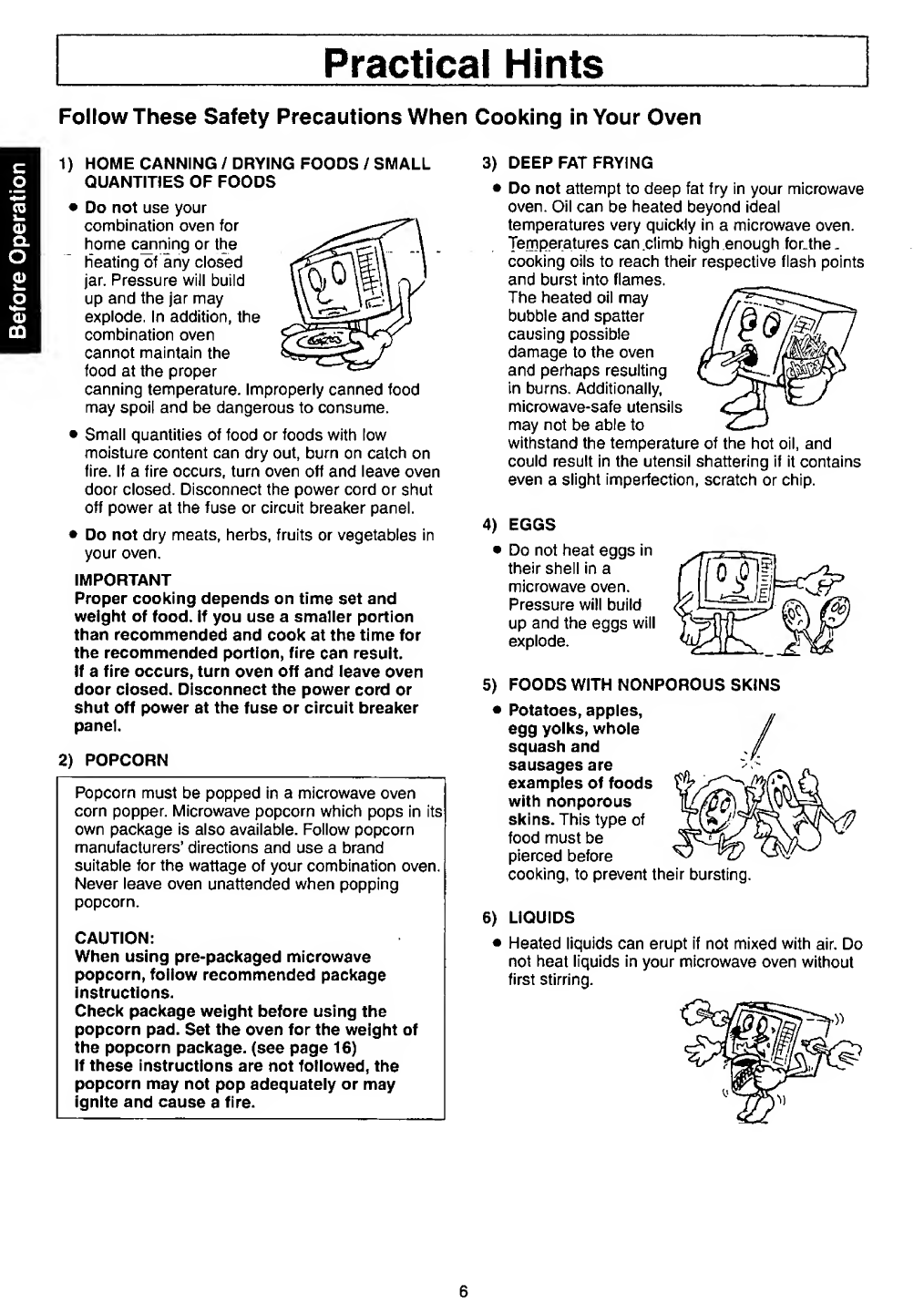

Practical Hints.6-7

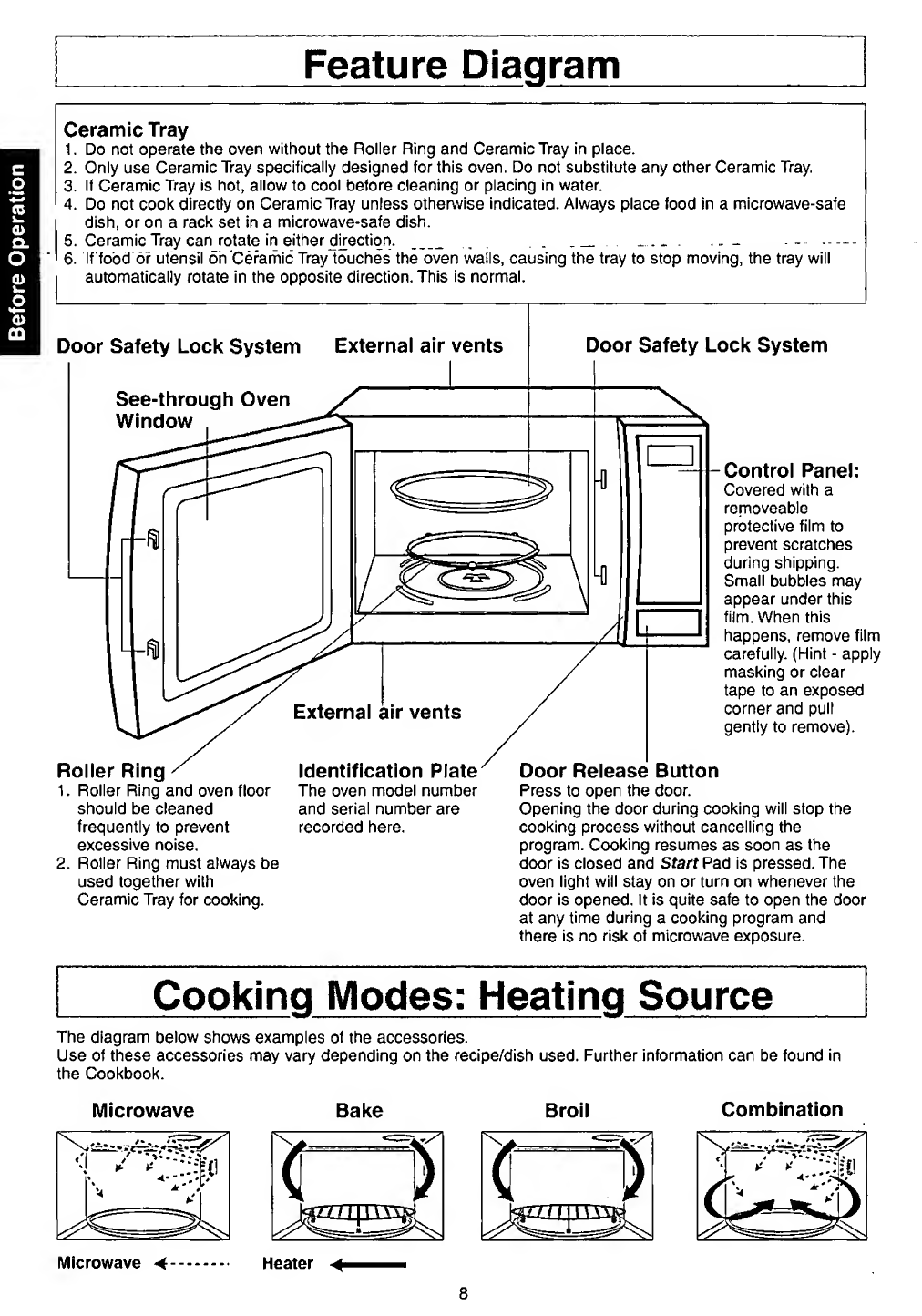

Feature Diagram.8
Cooking Modes : Heating Source .8

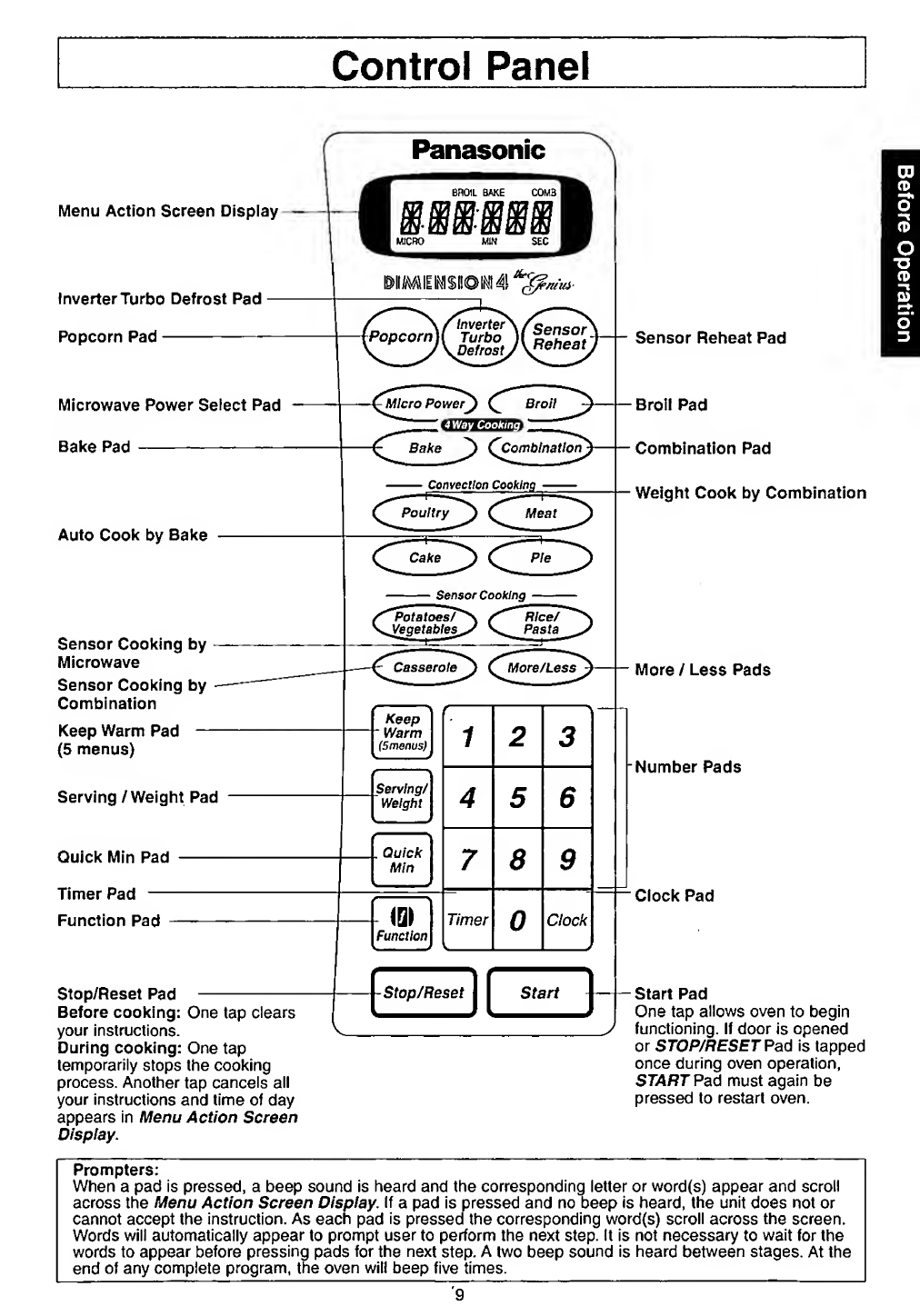

Control Panel .9
Operation & Hints |

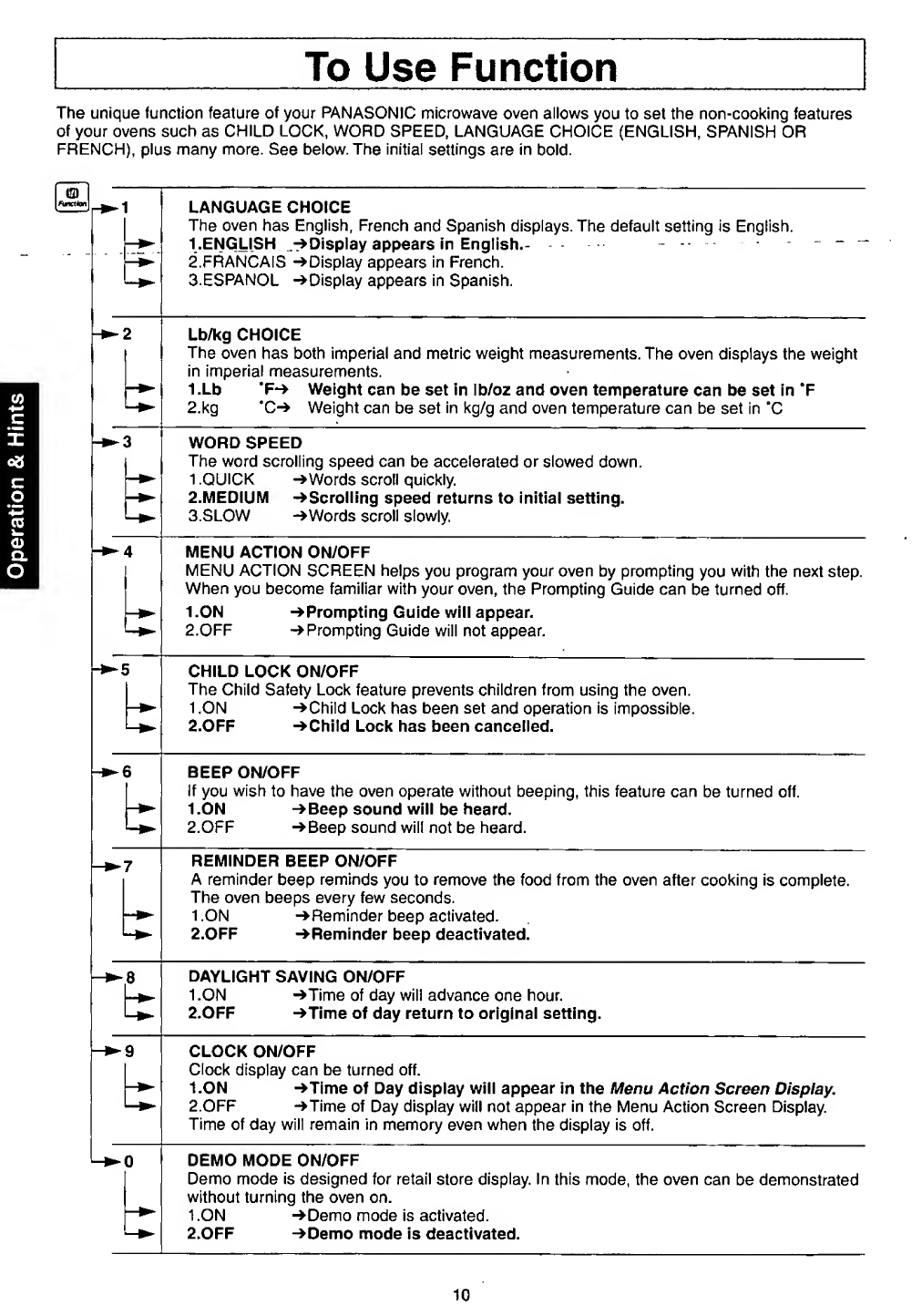

To Use Function.10
Let’s Start to Use Your Oven!.11
To Set Clock.11
To Defrost Micro Power and Time Setting.12
Using Turbo Defrost Pad .17
To Reheat Micro Power and Time Setting.12

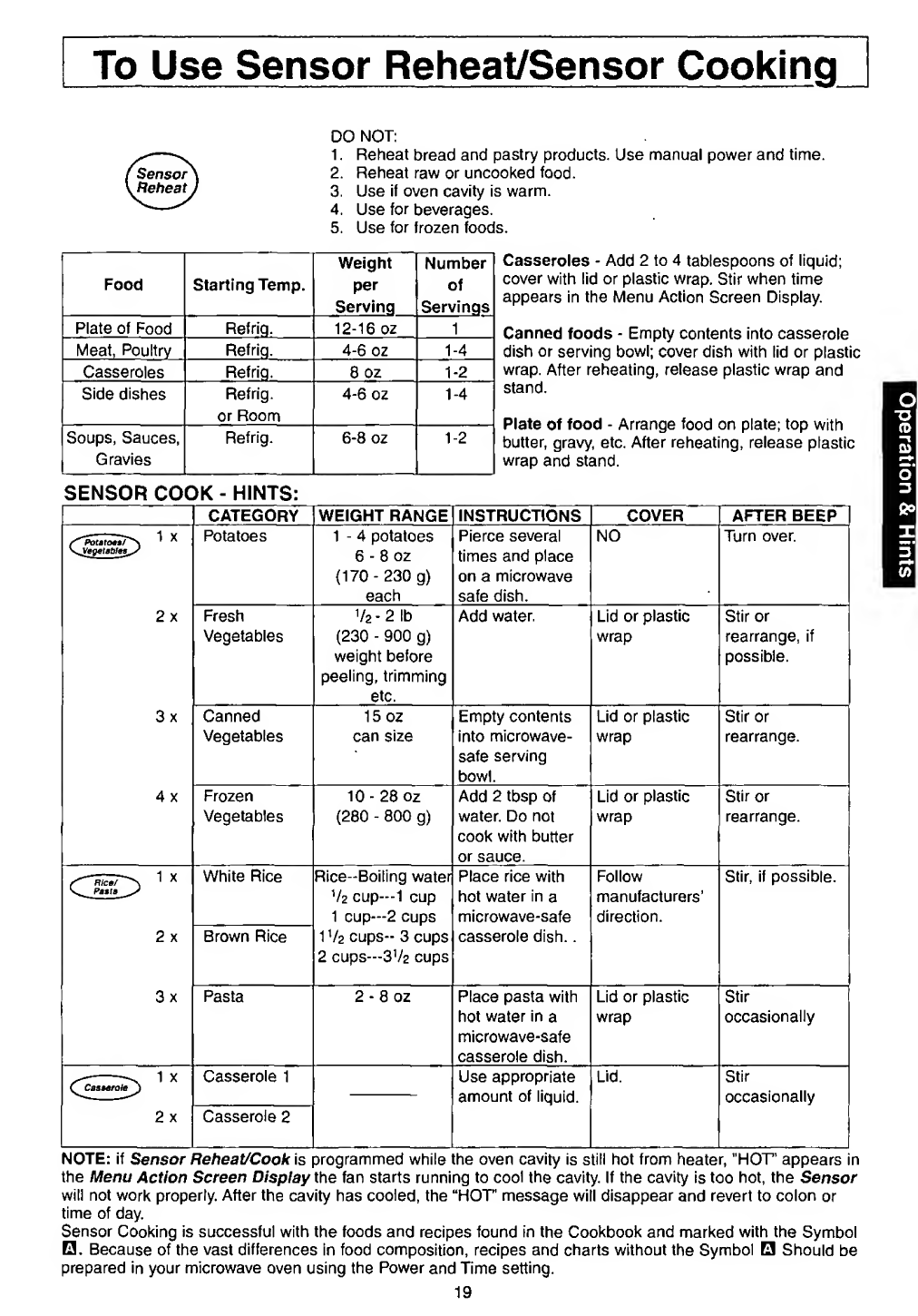

Using Sensor Reheat Pad .18-19
To Cook Micro Power and Time Setting.12

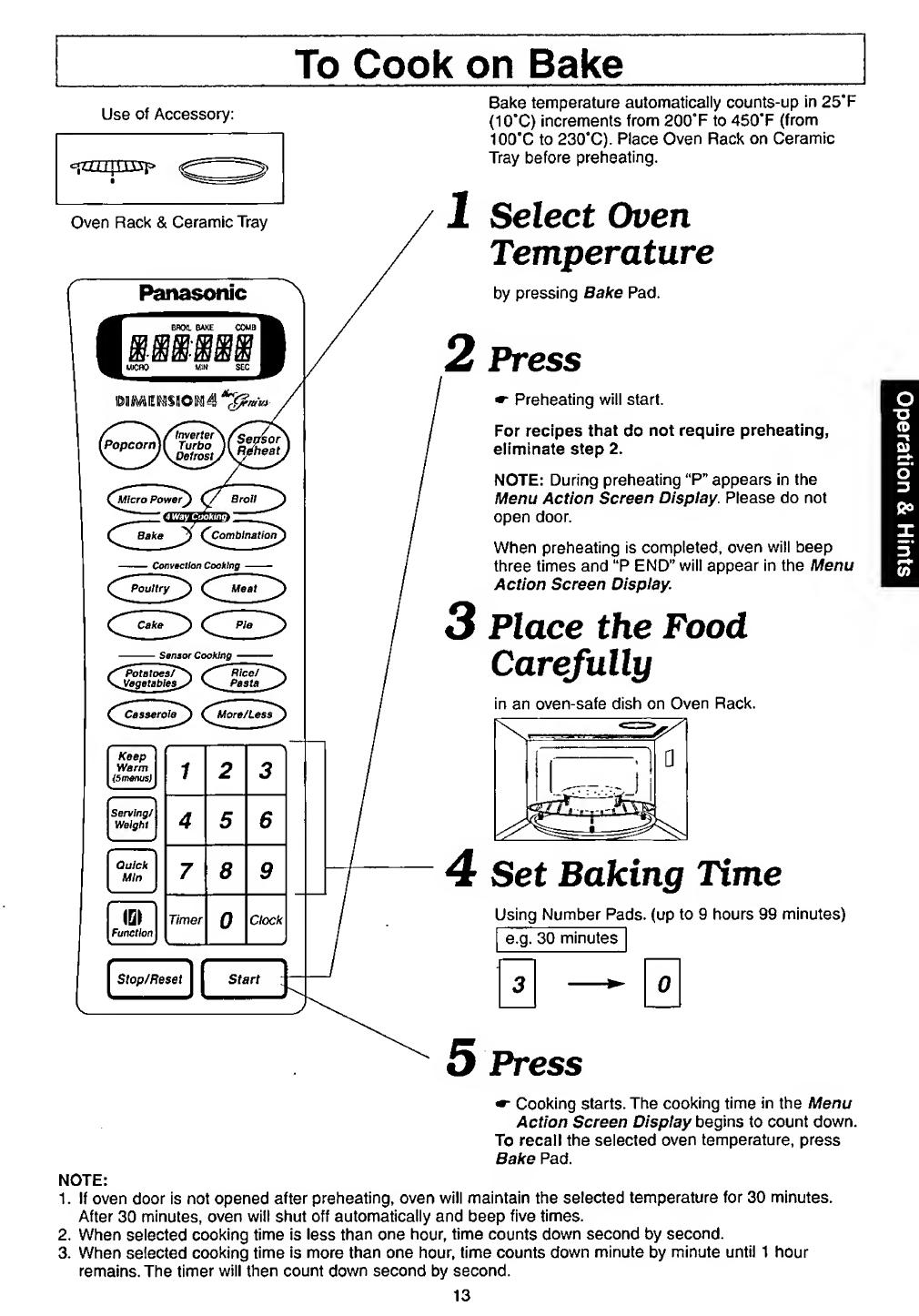

on Bake .13
on Broil.14
on Combination.15
Using Popcorn Pad.16
Using Sensor Cooking .18-19
Using Convection Cooking (Weight Cook by Combination).20
Using Convection Cooking (Auto Cook by Bake) .21
Using Quick Min Pad.12
To Use Keep Warm Pad .16
To Use Timer Function .22
Quick Guide to Operation.43
Maintenance
Before Requesting Service.23
Care of Your Microwave Oven.24
Technical Specifications .44
Referencia Rapida
INSTRUCCIONES DE SEGRIDAD.25
INSTRUCCIONES DE INSTALACI6n.26
SUGERENCIAS UTILES .27
GUI A PARA COCINAR Y UTENSILIOS.28
Diagrams de Caracteristicas.29
Modos de Coccion .29
Panel de Controles.30
Funciones.31
Para Ajustar el Reloj.32
Recalentamiento/Descongelacibn/Coccibn con seleccibn de Potencia y Tiempo .32
Hornear .33
Parrilia .34
Combination.35
Descongeiacibn Turbo.36
Sensor de Recalentamiento Autombtico .36
Sensor de coccion Autombtica.37-38
Coccibn Autombtica por Peso (Combinacibn) .39
Horneado Autombtica.39
Pulsadores de Palomitas de Mafz.40
Funcibn Rapido en Minutos .40
Temporizador (Timer).41
Cuidados de Su Horno de Microondas .42
Antes de Acudir a Servicio .42
Especificaciones Tbcnicas .44

Before
Operation
IMPORTANT SAFETY INSTRUCTIONS
Your microwave oven is a cooking device and you
should use as much care as you use with a stove or
any other cooking device. When using this electric
appliance, basic safety precautions should be
followed, including the following:
WARNING -To reduce the risk of burns, electric
shock, fire, injury to persons or exposure to
excessive.microwave energy:- ... -
I. Read all instructions before using the appliance.
2 Read and follow “PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY,” found on page 2.
3. This appliance must be grounded. Connect only
to a properly grounded outlet. See "Grounding
Instructions” found on page 5.
4. Install or locate this appliance only in
accordance with the provided installation
instructions found on page 5.
5. Do not cover or block any openings on this
appliance.
6. Do not store or use this appliance outdoors. Do
not use this product near water—for example,
near a kitchen sink, in a wet basement, or near a
swimming pool, and the like.
7. Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type
of oven is specifically designed to heat, or cook
food. It is not designed for industrial or laboratory
use.
8. When cleaning surfaces of door and oven that
come together on closing the door, use only
mild, non-abrasive soaps or detergents applied
with a sponge or soft cloth.
9. As with any appliance, close supervision is
necessary when used by children.
10. Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped.
II. Do not immerse cord or plug in water.
12. Keep cord away from heated surfaces.
13. Do not let cord hang over edge of table or
counter.
14. This appliance should be serviced only by
qualified service personnel. Contact the nearest
authorized service facility for examination, repair
or adjustment.
15. Some products such as whole eggs and sealed
containers (for example, closed glass jars) may
explode and should not be heated in this oven.
16. To reduce the risk of fire in the oven cavity:
(a) Do not overcook food. Carefully attend
appliance if paper, plastic, or other
combustible materials are placed inside the
oven to facilitate cooking.
(b) Remove wire twist-ties from paper or plastic
bags before placing bag in oven.
(c) If materials inside the oven should ignite,
keep oven door closed, turn oven off, and
disconnect the power cord, or shut off power
at the fuse or circuit breaker panel.
(d) D o not use the cavity for storage purposes.
Do not leave paper products, cooking
utensils, or food in the cavity when not in
use.
17. T o avoid the possible risk of a burn, the
appliance must not be used in areas such as
island-type countertops where the rear surfaces
would be exposed to user contact and the. _
appliance must be placed more than 3 feet
(85 cm) above the floor.
General Use
1 . DO NOT tamper with or make any adjustments
or repairs to the door, control panel housing,
safety interlock switches or any other part of the
oven.
DO NOT remove outer panel from oven. Repairs
should only be done by qualified service person.
2. DO NOT use the microwave function when the
oven is empty. The microwave energy will reflect
continuously throughout the oven, if food or
water is not present to absorb energy. This could
damage the oven and result in the danger of a
fire.
3. DO NOT use this oven to heat chemicals or
other non-food products. DO NOT clean this
oven with any product that is labeled as
containing corrosive chemicals. The heating of
corrosive chemicals in this oven can cause
radiation leaks.
4. DO NOT dry clothes, newspapers or other
materials in the oven. They may catch on fire.
5. DO NOT use recycled paper products unless
the paper product is labeled as safe for
microwave oven use. Recycled paper products
may contain impurities which may cause sparks
and/or fires when used.
6. DO NOT use newspapers or paper bags for
cooking. Fire can result.
7. DO NOT hit or strike the control panel. Damage
to the controls may occur. Fire can result.
8. DO NOT store flammable materials next to, on
top of, or in the oven. These could be fire
hazards.
9. POT HOLDERS may be needed when handling
dishes. Heat is transferred from the hot food to
the cooking container and from the cooking
container to Glass Tray. Glass Tray can be very
hot after removing cooking container from oven.
10. Before using the BAKE, COMBINATION or
BROIL functions for the first time, operate the
oven without food on BROIL for 20 minutes. This
will allow the oil that is used for rust protection
to be burned off.
11. Door and exterior will get hot during BAKE,
COMBINATION and BROIL. Please handle door
carefully.
12. Use extreme caution when removing oven
accessories or cooking containers from oven or
disposing of hot grease.
SAVE THESE INSTRUCTIONS
4

Installation & GROUNDING INSTRUCTIONS
Placement of Your Oven
1. Oven must be placed on a flat, stable surface.
For proper operation, the oven must have
sufficient air flow. Allow 3” ( 8 cm ) of space on
both sides of the oven and 6” ( 15 cm ) of space
on top of the oven.
a. DO NOT block air vents. If they are blocked
during operation, the oven may overheat. If
the oven overheats, a thermal safety device
will turn the oven off. The oven will remain
inoperable until it has cooled,
b. DO NOT place the oven near a hot, damp
surface such as a gas or electric range, or
dishwasher.
c. DO NOT operate the oven when room
humidity is too high.
2. This oven was manufactured for household use
only.
3. This oven may be built into a wall cabinet, if
desired, by using the proper trim kit, which may
be purchased from a local dealer.
Follow all installation instructions packed with
kit.
Grounding Instructions
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. This appliance is equipped with a
cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is
properly installed and grounded.
WARNING— Improper use of the grounding plug
can result in a risk of electric shock.
Consult a qualified electrician or service person if
the grounding instructions are not completely
understood, or if it is uncertain whether the
appliance is properly grounded or not.
If it is necessary to use an extension cord, use only
a three wire extension cord that has a three-blade
grounding plug, and a three-slot receptacle that will
accept the plug on the appliance. The marked rating
of the extension cord should be equal to, or greater
than, the electrical rating of the appliance.
Power Supply
1. A short power-supply cord is provided to reduce
the risks resulting from becoming entangled in
or tripping over a longer cord.
2. Longer cord sets or extension cords are
available and may be used if care is exercised in
their use.
3. If a long cord or extension cord is used, (1) the
marked electrical rating of the cord set or
extension cord should be at least as great as
the electrical rating of the appliance, (2) the
extension cord must be a grounding-type 3-wire
cord, and (3) the longer cord should be
arranged so that it will not drape over the
countertop or tabletop where it can be pulled on
by children or tripped over accidentally.
Wiring Requirements
1. The oven must be on a SEPARATE CIRCUIT.
No other appliance should share the circuit with
the microwave oven. If it does, the branch circuit
fuse may blow or the circuit breaker may trip, or
the food may cook slower than recommended in
this manual.
2. The VOLTAGE used must be the same as
specified on this microwave oven (120 V). Using
a higher voltage is dangerous and may result in
a fire or other accident causing oven damage.
Using a lower voltage will cause slow cooking.
Panasonic is NOT responsible for damage
resulting from the use of the oven with other
than specified voltage.
3. The oven must be plugged into at least a 20
AMP, 120 VOLT, 60 Hz GROUNDED OUTLET.
Where a standard two-prong outlet is
encountered, it is the personal responsibility and
obligation of the consumer
to have it replaced with
a properly grounded
three-prong outlet.
4. A TEMPORARY CONNECTION with a two-
prong adapter may be made where LOCAL
CODES PERMIT it. Unless the cover screw is
grounded through the house wiring, attaching
the adapter grounding plate
to the cover screw will not
ground the oven. If there is ^ jpr a
any doubt that the cover
screw is grounded, have it
checked by an electrician.
Radio Interference
1. Operation of the microwave oven may cause
interference to your radio, TV or similar
equipment.
2. When there is interference, it may be reduced or
eliminated by taking the following measures:
a. Clean door and sealing surfaces of the oven
(See Care of Your Microwave Oven found on
page 24)
b. Place the radio, TV, etc. away from the
microwave oven as far as possible.
c. Use a properly installed antenna to obtain
stronger signal reception.
Fan Motor Operation
After using the oven, the fan rotate to cook the
electric components. This is perfectly normal, and
you can take out the food from the oven while the
fan operates.
5
Before
Operation

Before
Operation
_ Practical Hints
Follow These Safety Precautions When Cooking in Your Oven
1) HOME CANNING /DRYING FOODS /SMALL
QUANTITIES OF FOODS
• Do not use your
combination oven for
home canning or the
heating^f any closed
jar. Pressure will build
up and the jar may
explode. In addition, the
combination oven
cannot maintain the
food at the proper
canning temperature. Improperly canned food
may spoil and be dangerous to consume.
• Small quantities of food or foods with low
moisture content can dry out, burn on catch on
fire. If a fire occurs, turn oven off and leave oven
door closed. Disconnect the power cord or shut
off power at the fuse or circuit breaker panel.
• Do not dry meats, herbs, fruits or vegetables in
your oven.
IMPORTANT
Proper cooking depends on time set and
weight of food. If you use a smaller portion
than recommended and cook at the time for
the recommended portion, fire can result.
If a fire occurs, turn oven off and leave oven
door closed. Disconnect the power cord or
shut off power at the fuse or circuit breaker
panel.
2) POPCORN
Popcorn must be popped in a microwave oven
corn popper. Microwave popcorn which pops in its'
own package is also available. Follow popcorn
manufacturers’ directions and use a brand
suitable for the wattage of your combination oven.
Never leave oven unattended when popping
popcorn.
CAUTION:
When using pre-packaged microwave
popcorn, follow recommended package
instructions.
Check package weight before using the
popcorn pad. Set the oven for the weight of
the popcorn package, (see page 16)
If these instructions are not followed, the
popcorn may not pop adequately or may
ignite and cause a fire.
3) DEEP FAT FRYING
• Do not attempt to deep fat fry in your microwave
oven. Oil can be heated beyond ideal
temperatures very quickly in a microwave oven.
Temperatures can climb high enough forJhe -
cooking oils to reach their respective flash points
and burst into flames.
The heated oil may
bubble and spatter
causing possible
damage to the oven
and perhaps resulting
in burns. Additionally,
microwave-safe utensils
may not be able to
withstand the temperature of the hot oil, and
could result in the utensil shattering if it contains
even a slight imperfection, scratch or chip.
4) EGGS
• Do not heat eggs in
their shell in a
microwave oven.
Pressure will build
up and the eggs will
explode.
5) FOODS WITH NONPOROUS SKINS
• Potatoes, apples,
egg yolks, whole
squash and
sausages are
examples of foods
with nonporous
skins. This type of
food must be
pierced before
cooking, to prevent their bursting.
6) LIQUIDS
• Heated liquids can erupt if not mixed with air. Do
not heat liquids in your microwave oven without
first stirring.
6

Practical Hints
7) CERAMIC TRAY / COOKING UTENSILS / FOIL
• Cooking utensils get hot during cooking. Use
potholders when removing utensils and Glass
Tray from the oven or when removing lids or
plastic wrap covers from cooking utensils to
avoid burns.
• Ceramic Tray will get hot during cooking. It
should be allowed to cool before handling or
before paper products, such as paper plates,
napkins or microwave popcorn bags, are placed
in the oven for microwave cooking.
• During cooking, heat is transferred from the hot
food to the cooking utensil and from the utensil
to Ceramic Tray. Ceramic Tray can be very hot
after removing cooking utensils from oven.
• When using foil, skewers, warming rack or
utensils made of metal in the oven, allow at least
1-inch (2.5 cm) of space between metal material
and interior oven walls. If arcing occurs
(sparking) remove metal material (skewers etc.)
and/or transfer to a non-metallic container.
• Dishes with metallic trim should not be used
during Microwave or Combination cooking,
arcing may occur.
8) PAPER TOWELS / CLOTHS
• Do not use paper
■ towels or cloths
which contain a
synthetic fiber
woven into them.
The synthetic fiber
may cause the towel
to ignite.
• Do not use paper
bags or recycled
paper products in
the microwave oven.
9) BROWNING DISHES / OVEN COOKING BAGS
• Microwave browning dishes or grills are
designed for microwave cooking only. Preheating
times vary depending on the size of the
browning dish and food being cooked. Always
follow instructions provided by the browning dish
or grill manufacturer. Do not preheat browning
dish more than 8 minutes.
• If an oven cooking bag is used for microwave
cooking, prepare according to package
directions. Do not use wire twist-tie to close bag.
Instead use nylon tie, a piece of cotton string or
a strip cut from the open end of the bag. Make
six V 2 -inch slits by closure. Place oven cooking
bag in a dish slightly larger than the food being
cooked.
10) T HERMOMETERS
• Do not use a conventional meat thermometer for
Microwave or Combination cooking. Arcing may
occur. Do not use a microwave meat
thermometer for Combination cooking or Bake. It
may melt.
11) BABY FORMULA / FOOD
• Do not heat baby formula or food in the
microwave oven. The glass jar or surface of the
food may appear warm while the interior can
burn the infant’s mouth and esophagus.
12) R E H E ATING PASTRY PRODUCTS
• When reheating pastry products, check
temperatures of any fillings before eating. Some
foods have fillings which heat faster and can be
extremely hot while the surface remains warm to
the touch (ex. Jelly Donuts).
13) G E N E R AL OVEN USAGE GUIDELINES / OVEN
DOOR
• Do not use the oven for any reason other than
the preparation of food.
• Do not leave oven unattended while in use.
• The oven door and the interior walls will get hot
during Combination, Bake and Broil cooking.
7
Before
Operation

Before
Operation
Feature Diagram
Ceramic Tray
1. Do not operate the oven without the Roller Ring and Ceramic Tray in place.
2. Only use Ceramic Tray specifically designed for this oven. Do not substitute any other Ceramic Tray.
3. If Ceramic Tray is hot, allow to cool before cleaning or placing in water.
4. Do not cook directly on Ceramic Tray unless otherwise indicated. Always place food in a microwave-safe
dish, or on a rack set in a microwave-safe dish.
5. Ceramic Tray can rotate in either direction. _ ., . . __ _ . - .—
6. If food or utensil on Ceramic Tray touches the oven walls, causing the tray to stop moving, the tray will
automatically rotate in the opposite direction. This is normal.
Door Safety Lock System External air vents
Door Safety Lock System
See-through Oven
Window
External air vents
i—i
Control Panel:
Covered with a
removeable
protective film to
prevent scratches
during shipping.
Small bubbles may
appear under this
film. When this
happens, remove film
carefully. (Hint - apply
masking or clear
tape to an exposed
corner and pull
gently to remove).
Roller Ring ^
1. Roller Ring and oven floor
should be cleaned
frequently to prevent
excessive noise.
2. Roller Ring must always be
used together with
Ceramic Tray for cooking.
Identification Plate
The oven model number
and serial number are
recorded here.
Door Release Button
Press to open the door.
Opening the door during cooking will stop the
cooking process without cancelling the
program. Cooking resumes as soon as the
door is closed and Start Pad is pressed. The
oven light will stay on or turn on whenever the
door is opened. It is quite safe to open the door
at any time during a cooking program and
there is no risk of microwave exposure.
Cooking Modes: Heating Source
The diagram below shows examples of the accessories.
Use of these accessories may vary depending on the recipe/dish used. Further information can be found in
the Cookbook.
Microwave Bake Broil Combination
Microwave *<. Heater
8

Control Panel
Panasonic
Menu Action Screen Display
inverter Turbo Defrost Pad
Popcorn Pad
Microwave Power Select Pad
Bake Pad-
Auto Cook by Bake
Sensor Cooking by
Microwave
Sensor Cooking by
Combination
Keep Warm Pad
(5 menus)
Serving / Weight Pad
Quick Min Pad
Timer Pad —
Function Pad
Stop/Reset Pad -
Before cooking: One tap clears
your instructions.
During cooking: One tap
temporarily stops the cooking
process. Another tap cancels all
your instructions and time of day
appears in Menu Action Screen
Display.
BROIL SAKE COMB
ffl © ffl' © © ©
ffl- ffl ffl* ffl ffl ffl
MICRO MIN SEC
Micro Power) c Broil
:<EZHEjW
Combination
Bake ^Coi
Cake _ )
Sensor Cooking
'casserole^ (^More/Less^) -
Keep
' Warm
(5 menus}
Serving/
‘ Weight
Quick
Min
IQ)
Function
* -
—
1
2
3
4 5 6
7 8 9
Timer
0
Clock
\ _ _ *
Stop/Reset
Start
Sensor Reheat Pad
Broil Pad
Combination Pad
Weight Cook by Combination
More / Less Pads
Number Pads
Clock Pad
Start Pad
One tap allows oven to begin
functioning. If door is opened
or STOP/RESET Pad is tapped
once during oven operation,
START Pad must again be
pressed to restart oven.
Prompters:
When a pad is pressed, a beep sound is heard and the corresponding letter or word(s) appear and scroll
across the Menu Action Screen Display. If a pad is pressed and no beep is heard, the unit does not or
cannot accept the instruction. As each pad is pressed the corresponding word(s) scroll across the screen.
Words will automatically appear to prompt user to perform the next step. It is not necessary to wait for the
words to appear before pressing pads for the next step. A two beep sound is heard between stages. At the
end of any complete program, the oven will beep five times.
'9
Before
Operation

Operation
&
Hints
To Use Function
The unique function feature of your PANASONIC microwave oven allows you to set the non-cooking features
of your ovens such as CHILD LOCK, WORD SPEED, LANGUAGE CHOICE (ENGLISH, SPANISH OR
FRENCH), plus many more. See below. The initial settings are in bold.
1
— ►
LANGUAGE CHOICE
The oven has English, French and Spanish displays. The default setting is English.
1 .ENGLISH .- ♦ D isplay appears in English.- . - .- - - —
2. F R ANCAIS - ♦ D i splay appears in French.
3. E SP ANOL - ♦ D isplay appears in Spanish.
2
t
Lb/kg CHOICE
The oven has both imperial and metric weight measurements. The oven displays the weight
in imperial measurements.
1. L b “F-> Weight can be set in Ib/oz and oven temperature can be set in “F
2. k g ‘C-* Weight can be set in kg/g and oven temperature can be set in °C
3
tr
WORD SPEED
The word scrolling speed can be accelerated or slowed down.
1 .QUICK - ♦ W ords scroll quickly.
2.MEDIUM - ♦ S crolling speed returns to initial setting.
3.SLOW - ♦ W ords scroll slowly.
MENU ACTION ON/OFF
MENU ACTION SCREEN helps you program your oven by prompting you with the next step.
When you become familiar with your oven, the Prompting Guide can be turned off.
1 .ON - ♦ P rompting Guide will appear.
2.OFF Prompting Guide will not appear.
5
b
CHILD LOCK ON/OFF
The Child Safety Lock feature prevents children from using the oven.
1 .ON - ♦ C h i l d Lock has been set and operation is impossible.
2.0FF - ♦ C h il d Lock has been cancelled.
6
b
BEEP ON/OFF
If you wish to have the oven operate without beeping, this feature can be turned off.
I.ON - ♦ B eep sound will be heard.
2.OFF -» Beep sound will not be heard.
I
REMINDER BEEP ON/OFF
A reminder beep reminds you to remove the food from the oven after cooking is complete.
The oven beeps every few seconds.
I.ON - ♦ R eminder beep activated.
2.0FF - ♦ R eminder beep deactivated.
h
DAYLIGHT SAVING ON/OFF
1 .ON - ♦ T ime of day will advance one hour.
2.0FF - ♦ T ime of day return to original setting.
9
b
CLOCK ON/OFF
Clock display can be turned off.
I.ON - ♦ T ime of Day display will appear in the Menu Action Screen Display.
2.OFF - ♦ T ime of Day display will not appear in the Menu Action Screen Display.
Time of day will remain in memory even when the display is off.
0
1=
_
DEMO MODE ON/OFF
Demo mode is designed for retail store display. In this mode, the oven can be demonstrated
without turning the oven on.
I.ON - ♦ Demo mode is activated.
2.0FF - ♦ D emo mode is deactivated.
10

Let’s Start to Use Your Oven!
Panasonic
BPOL BAKE COMB
MICRO MIN SEC
DIMENSION
MosXM:
Micro Power 0 C 8ro//
Senior Cooking
Pofefoes/
^yegeiebtei^
Casserole ) C More/Loss
7 2 3
4 5 3
7 8 9
m Time/- Q Clock
Function
Stop/Reset I I Start
1 Plug In
Plug into a properly grounded electrical outlet.
“WELCOME TO PANASONIC REFER TO
OPERATING INSTRUCTIONS BEFORE USE"
appears in the Menu Action Sereen Display.
(This will immediately cease F
when any pad is pressed.) ^firn=) K
2 Press
Open the door and place the food on Ceramic
Tray in the oven. Then close the door.
3 Select Power Level
e.g.PIO power — Press once
(Continue pressing for other power levels
— page 12)
4 Set Cooking Time
) e.g. 1 minute 30 seconds I
5 Press
<+ ■ The time in the Menu Action Sereen Display
will count down.
To Set Clock
PT — 1 - ► 2 5
Press . Enter time of day.(e.g. 11:25)
Using Number Pad.
NOTE
1. You can use the oven without setting the clock.
2. There is no a.m. or p.m. settings. Clock is a 12 hour display.
3. To reset the time of day, repeat steps above.
4. The clock will retain time setting only when plugged into power source.
Press.
11
Operation
&
Hints

Operation
&
Hints
Micro Power and Time Settin g _
Use of Accessory:
— — C on wciiof} Coo &ng •
~Poultry^) (" jw *
^#fo*77**X
1
2
3
4
5 6
7
8
9
Timer
0
Clock
2 Select Power Level
Press Power Level
... once P10 (HIGH)
twice P9
3 times
P8
4 times P7 (MEDIUM-HIGH)
5 times P6 (MEDIUM)
6 times P5
7 times
P4
8 times P3 (MEDtUM-LOW)
9 times
P2
10 times PI (LOW)
Stop/Rea*t j I Start
For P10 Power, you can start from step 2.
2 Set Cooking Time
(P10 -» up to 30 minutes
Others -» up to 99 minutes and 99 seconds.)
3 Press
• ■ Cooking will starts. The time in the Menu
Action Screen Display will begin to count
down.
To recall the selected power level, press Micro
Power pad.
For 2 or 3 stage cooking,
Repeat above steps 1 and 2 before pressing Start
Pad.
To Use Quick Min Pad _
This feature helps you in programming your oven without pressing the Number Pads and allows you to add
extra cooking time easily.
To Set Cooking Time:
Set cooking time (up to Press.
10 taps/minutes). •'Cooking will start
on P10 power.
To Add Extra Cooking Time:
NOTE:
1. You can use other power levels or other cooking
modes, select the desired power level or cooking
mode before setting the cooking time.
2. After setting the time by Quick Min Pad, You
cannot use the Number Pads, and vice versa.
Press to add extra cooking time (up to 10
taps) during cooking.
•“Cooking time changes to include extra time and
continues to count down in the Menu Action
Screen Display.
NOTE:
You can add cooking time for all features with power
and time settings.
12

To Cook on Bake
Use of Accessory:
Oven Rack & Ceramic Tray
Panasonic
BROtl BAKE COMB
MICRO MlN SEC
dimension* ,
f \ / nverter\ /ttorrirtr
(Popcornji Turbo ){%%%%'>
Convection Cooking
Sensor Cooking
Potatoes/
.Vegetables^
7 8 9
IGI Timer Q Clock
Function
Slop/Reset I I Sfarf
Bake temperature automatically counts-up in 25° F
(10’C) increments from 200°F to 450*F {from
100’C to 230‘C). Place Oven Rack on Ceramic
Tray before preheating.
1 Select Oven
Temperature
by pressing Bake Pad.
2 Press
f
Preheating will start.
For recipes that do not require preheating,
eliminate step 2.
NOTE: During preheating “P” appears in the
Menu Action Screen Display. Please do not
open door.
When preheating is completed, oven will beep
three times and “P END" will appear in the Menu
Action Screen Display.
3 Place the Food
Carefully
in an oven-safe dish on Oven Rack.
4 Set Baking Time
Using Number Pads, (up to 9 hours 99 minutes)
e.g. 30 minutes
0 —* 0
5 Press
Cooking starts. The cooking time in the Menu
Action Screen Display begins to count down.
To recall the selected oven temperature, press
Bake Pad.
NOTE:
1. If oven door is not opened after preheating, oven will maintain the selected temperature for 30 minutes.
After 30 minutes, oven will shut off automatically and beep five times.
2. When selected cooking time is less than one hour, time counts down second by second.
3. When selected cooking time is more than one hour, time counts down minute by minute until 1 hour
remains. The timer will then count down second by second.
13
Operation
&
Hints

Operation
&
Hints
To Cook on Broil
Use of Accessory:
< p?77jnrc p
Oven Rack & Ceramic Tray
Panasonic
BPOtL BAKE COMB
MICRO min sec
(popcorn)( ,n TuZ YgSSr
Micro PowerJ ^ Brofi
gaEsaBE) —*
Convection Cooking
Sensor Cooking
Potatoes /
Vegetables
Most broil items require preheating the oven. Place Oven
Rack on Ceramic Tray.
Follow these steps.
1 Press Broil Pad
2 Press
• ■ P r eheating will start.
For recipes that do not require preheating,
eliminate step 2.
NOTE: During preheating “P” appears in the
Menu Action Screen Display. Do not open door
during preheating.
When preheating is completed, oven will beep
three times and “P END” will appear in the Menu
Action Screen Display.
3 Place the Food
On spatter shield on broiler pan and carefully
place on the Oven Rack. You can purchase most
broiler pans from your local stores.
4 Set Broiling Time
using Number Pads.
(up to 99 minutes and 99 seconds)
e.g. 35 minutes
3—5 + 0 — 0
5 Press
«*- The cooking time in the Menu Action Screen
Display begins to count down.
NOTE:
1. If oven door is not opened after preheating, oven will maintain the temperature for 30 minutes.
After 30 minutes, oven will shut off automatically and beep five times.
14

To Cook on Combination
There are 4 combination settings. These settings are
automatic, there is no need to set oven temperature or
microwave power level. Some combination recipes
require preheating. For instructions, follow steps 1 and 2
of the “To Cook on Bake” selection.
1 Place the Food
Panasonic
/- R ice/ S
K^Pasta^
^^Casserole^ ore/Less ^
Keep
Warm
(Smenus)
Serving /
Weight
Quick
Min
m
Function
1
2
3
B
5
6
7
8 9
Timer
0
Clock
Stop/Reset Start
Open the door and place the food in appropriated
sized dish on Ceramic Tray in the oven. Then
close the door.
Select the Setting
Combination 1,2, 3, or 4 can be selected.
- 1
Oven Temperature
1 -
Micro-
wave
Food
1 275‘F (130“C)
30 %
power
, m-.mwwmm \
■ EBSaiSStni
2 300T (150°C)
Beef (Rare, Med)
Lamb (Med)
3
325'F (160’C)
Pork
4
375'F (190'C)
Chicken or Duck
Set Cooking Time
using Number Pads (up to 9 hours 99 minutes).
e.g. 20 minutes
Press
+ ■ Cooking starts. The cooking time in Menu
Action Screen Display begins to count down.
NOTE:
1. When selected cooking time is less than one hour, the time counts down second by second.
2. When selected cooking time is more than one hour, the time counts down minute by minute until only
1 hour remains. The timer will then count down second by second.
3. Use microwaveable and heat-safe dishes.
4. DO NOT use plastic wrap or wax paper.
5. Use parchment paper or lid when covering food.
15
Operation
&
Hints

Operation
&
Hints
To Use Popcorn Pad
Use of Accessory:
1 Press Popcorn Pad
to select the weight-of prepackaged microwave
popcorn.
press Weiqht
once
twice
3 times
3.5 oz. (99 g)
3.0 oz. (90 g)
1.75 oz. (50 g)
2 Press Start
Cooking time appears in the Menu Action
Screen Display and begins to count down.
NOTES:
1 . Use prepackaged room temperature microwave
popcorn. Read manufacturers’ instructions.
2. Place the bag in oven on Ceramic Tray according
to manufacturers’ directions.
3. Pop only one bag at a time.
4. When popping multiple bags one right after the
other, the cooking times may vary slightly.
This does not affect the popcorn results.
5. After popping, open the bag carefully, popcorn
and steam are extremely hot.
6. Do not reheat unpopped kernels or reuse bag.
7. Never leave oven unattended when popping
popcorn,
CAUTION: If pre-packaged popcorn is of a different
weight than the recommended weight, do not use
the popcorn setting, or inadequate popping or a fire
may occur. Follow the manufacturers’ instructions.
_ To Use Keep Warm Pad _
This feature helps you to keep a certain selection of foods warm for 30 minutes after cooking. (Pie, Gravy,
Stew, Casserole or Mushed Potatoes)
Keep
Warm
’-
Serving/
(Smenus)
Weight
■ ► [ J
Select Category. Select Serving/Weight. Press Start.
Keep Warm time appears in the Menu
Action Screen Display and begins to
count down from 30 minutes.
At the end of cooking, five beeps sound
and “ENJOY YOUR MEAL” appears in
the Menu Action Screen Display.
16

Using Inverter Turbo Defrost Pad
Use of Accessory:
Ceramic Tray
This feature allows you to defrost meat, poultry and
seafood by using the weight on the package.
1 Place the Food
Open the food and place the food in appropriated
sized dish on Ceramic Tray in the oven. Then
close the door.
Panasonic
OIMCIMSIOI
Convection Cooking
Poultry*^ ) Meat
Cake C Pie
Sensor Cooking
(^Casserole^) ^More/Les^^
Keep
Warm
ISmenus)
I Serving/
Weight
Quick
Min
Function
B
2
3
5
6
8
9
Timer
B
Clock
Stop/Reset
Start
Press
Set Weight
Weight must be programmed in pounds and
tenths of a pound (not ounces).
e.g. 2.6 lbs (1.2 kg)
2
6
If you wish to use
the g / kg, see
page 10
“Function”.
Press
Defrosting time appears in the Menu Action
Screen Display and begins to count down.
Conversion Chart:
Follow this chart to convert ounces or hundredths
of a pound into tenths as a pound. If a piece of
meat weighs 1.95 pounds or 1 pound 14 ounces,
program 1.9 pounds.
Ounces
Hundredths of
a Pound
Tenths of
a Pound
0 .96 - .05 0.0
1-2 .06 - .15
0.1
3-4
.16 - .25
0.2
5 .26 - .35
0.3
6-7
.36 - .45
0.4
8 .46 - .55
0.5
9-10 .56 - .65 0.6
11-12 .66 - .75 0.7
13 .76 - .85 0.8
14-15 .86 - .95 0.9
NOTE:
1. The shape and size of food will determine the maximum weight the oven can accommodate. The
recommended maximum weight of meat is 4 lbs (1.8 kg); poultry, 6 lbs (2.7 kg); and seafood, 3 lbs
(1.4 kg).
2. The oven beeps once during the defrosting cycle to signal that the food needs to be turned or rearranged.
To prevent overdefrosting, thin areas or edges can be shielded with strips of aluminum foil.
3. For best results, the minimum recommended weight is 0.5 pound.
4. Stand time or power level may be programmed after Inverter Turbo Defrost.
17
Operation
&
Hints

Operation
&
Hints
To Use Sensor Reheat/Sensor Cooking 1
This feature allows you to reheat/cook most of your
favourite foods without having to select reheating/cooking
times and power levels.The oven does it all automatically.
Use of Accessory:
Panasonic
broil BAKE COMB
MJCBO MtN SEC
DIMEIMSION4 i ^*a
Vegetables^ \^^Pasta
Casserole j ( More/Less
12 3
4 5 6
7 8 9
<D> Timer Q Clock
Function
Stop/Reset I I Start
Select Category
The Potatoes/Vegetables, Rice/Pasta and
Casserole Pads each have 2 - 4 categories.
See next page.
More / Less Pads:
Preferences for food doneness vary with each
individual. After having used Sensor Reheat /
Sensor Cooking a few times, you may decide
you would prefer your food cooked to a
programs can be adjusted to cook food for a
longer or shorter time.
Press More / Less Pad before pressing Start.
1 tap = More cooking
2 taps = Less cooking
3 taps = original cooking
Press
Cooking will start.
After the burst of steam is detected by the
SENSOR, the remaining cooking time appears in
the Menu Action Screen Display and begins to
count down.
For best results by Sensor, follow these recommendations.
BEFORE Reheating / cooking:
1. The room temperature surrounding the oven
should be below 95T(35'C)
2. Food weight should be between 4 oz (120 g)and
24 oz (680 g).
3. Ceramic Tray and outside of container should be
dry.
4. Cover foods loosely but completely, with plastic
wrap or place foods in a casserole dish with a
proper fitting lid.
5. All foods should be taken from their normal
storage place.
DURING Reheating / Cooking:
While “AUTO" is displayed in the Menu Action
Screen Display, DO NOT open door longer than 1
minute. This causes inaccurate cooking results.
Once the timer begins to count down, the oven door
may, be opened to stir, turn, shield or add foods.
AFTER Reheating / Cooking:
All foods should have a covered stand time.
18

To Use Sensor Reheat/Sensor Cookin g
Sensor
Reheat .
Food
Starting Temp.
Weight
per
Serving
Number
of
Servings
Plate of Food
Refriq.
12-16 oz
1
Meat, Poultry
Refriq.
4-6 oz 1-4
Casseroles
Refrig.
8 oz
1-2
Side dishes
Refrig,
or Room
4-6 oz 1-4
Soups, Sauces,
Gravies
Refrig.
6-8 oz 1-2
DO NOT:
1. Reheat bread and pastry products. Use manual power and time.
2. Reheat raw or uncooked food.
3. Use if oven cavity is warm.
4. Use for beverages.
5. Use for frozen foods.
Casseroles - Add 2 to 4 tablespoons of liquid;
cover with lid or plastic wrap. Stir when time
appears in the Menu Action Screen Display.
Canned foods - Empty contents into casserole
dish or serving bowl; cover dish with lid or plastic
wrap. After reheating, release plastic wrap and
stand.
Plate of food - Arrange food on plate; top with
butter, gravy, etc. After reheating, release plastic
wrap and stand.
SENSOR COOK - HINTS:
CATEGORY
Potatoes
Fresh
Vegetables
Canned
Vegetables
1 x Casserole 1
2 x Casserole 2
INSTRUCTIONS
Pierce several
times and place
on a microwave
safe dish.
Add water.
WEIGHT RANGE
1 - 4 potatoes
6 - 8 oz
(170 -230 g)
each
V 2 - 2 lb
(230 - 900 g)
weight before
peeling, trimming
etc.
Empty contents
into microwave-
safe serving
Add 2 tbsp of
water. Do not
cook with butter
or sauce.
Rice-Boiling water Place rice with
V 2 cup—1 cup hot water in a
1 cup—2 cups microwave-safe
1V 2 cups- 3 cups casserole dish..
2 cups—3V 2 cups
10 - 28 oz
(280 - 800 g)
2 - 8 oz Place pasta with
hot water in a
microwave-safe
casserole dish.
Use appropriate
amount of liquid.
COVER
Lid or plastic
wrap
Lid or plastic
wrap
Follow
manufacturers
direction.
AFTER BEEP
Turn over.
Stir or
rearrange, if
possible.
Stir or
rearrange.
Stir or
rearrange.
Stir, if possible.
Stir
occasionally
NOTE: if Sensor Reheat/Cook is programmed while the oven cavity is still hot from heater, "HOT’ appears in
the Menu Action Screen Display the fan starts running to cool the cavity. If the cavity is too hot, the Sensor
will not work properly. After the cavity has cooled, the “HOT 1 message will disappear and revert to colon or
time of day.
Sensor Cooking is successful with the foods and recipes found in the Cookbook and marked with the Symbol
0 . Because of the vast differences in food composition, recipes and charts without the Symbol 0 Should be
prepared in your microwave oven using the Power and Time setting.
19

Operation
&
Hints
Using Convection Cooking (Weight cook by combination)
This feature allows you to Roast Beef, Pork or Whole
Chicken by setting the weight.
Place food on a microwave roasting rack set in a
microwave- and heat-safe dish.
Panasonic
BROtL BAKE COMB
MIN SEC
DIMEMSION4 Tjpmmt
, _ „ inverter
[Popcorn)! Turbo
Sensor
6ZrosJ\"ete°<
Icro Power^ <r BroU^
^^Casserote^ (^More/L oss^
Keep
Warm
(S menus)
Serving/
Weight
Quick
Min
<01
Function
1 2
3
4
5 6
7 8
9
Timer
0
Clock
Place the Food
Open the door and place the food in dish on
Ceramic Tray in the oven. Then close the door.
Select Category
This pad is subdivided into 4 categories;
Chicken Pieces, Whole Chicken,
Beef-medium and Pork.
Set Weight
If you wish to adjust the roasting time,
press More / Less pads (See page 18).
Press
Cooking starts. The cooking time in the Menu
Action Screen Display begins to count down.
NOTE:
1. These settings are cooked by Auto Combination (Bake and Microwave).
2. When the weight has been selected, the cooking time will be automatically determined.
3. Roasts weighing above or below the recommended weights should be cooked using the Manual
Combination.
Auto Combination
CATEGORY
WEIGHT RANGE
INSTRUCTIONS
AFTER BEEP
Chicken Pieces
max. 2 lb (1 kq)
Place skin-side down.
Turn over
Whole Chicken
max. 6 lb (3 kq)
Place breast-side down.
Turn over
FI 1 iflul 1 IHIiiM max. 4 lb (2 kq)
Place fat- side down.
Turn over
Pork
max. 4 lb (2 kg)
Place fat-side sown. Pork must
reach 170’F(77°C) before serving.
Turn over
20
