Model No.

Installation Guide

Model Name Model No.

Wireless Video Intercom System VL-SWD273

Video Intercom System VL-SVD273

Main Monitor Station VL-MWD273

RThis guide is for use with the above 3 models.

VL-V554 VL-MWD273

Door station Main monitor station

RThe Installation Guide in Indonesian can be accessed from the following site:

https://panasonic.net/cns/pcc/support/intercom/swd273

RDoor station is described as "doorphone" and Main monitor station is described as "main

monitor" in this guide.

RIn this guide, the suffix of each model number (e.g., the "BX" in "VL-MWD273BX") is omitted

unless necessary.

Note to the installer

RBefore attempting to connect or operate this product, please read the label on the rear of

the doorphone and the main monitor/extension monitor.

RPlease read this guide carefully, and install the product safely and correctly by following

the instructions. Carefully read the information found in the section titled "For your

safety" in particular.

ROnly use attachments/accessories specified by the manufacturer.

RThe installation shall be carried out in accordance with all applicable installation rules.

RAfter installation, make sure to leave this guide with the customer.

To the maximum extent permitted by law, Panasonic assumes no responsibility for

injuries or property damage resulting from failures arising out of improper installation or

operation inconsistent with this document.

273_ig.book Page 1 Friday, April 28, 2017 9:46 AM

For your safety

To prevent severe injury and loss of life/

property, read this section carefully

before using the product to ensure

proper and safe operation of your

product.

Preventing fire, electric shock and

short circuits

RLeave installation work to the

dealer. Installation work requires

technique and experiences. Failure

to observe this may cause fire,

electric shock, injury, or damage to

the product. Consult the dealer.

RElectrical connection work should

be performed by certified personnel

only. Certification is required for

performing electrical connection

work. Consult your dealer.

RUse only the specified power supply

unit and AC cable.

RDo not attempt to disassemble or

modify this product. Contact an

authorised service centre for repairs.

RNever install wiring during a lightning

storm.

RDo not connect non-specified devices.

RDo not connect a power cable to a

terminal that is not specified in this

guide.

RWhen opening holes in walls for

installation or wiring, or when securing

the power cable, make sure you do not

damage existing wiring and ductwork.

RDo not make any wiring connections

when the power supply is turned on.

RDo not use the supplied power supply

unit for outdoor installations (it is for

indoor use only).

RDo not install the main monitor/

extension monitor in the following

places:

– Places where the main monitor/

extension monitor may be splashed

with water or chemicals.

– Places where there is a high

concentration of dust, or high

humidity.

RDo not perform any actions (such as

fabricating, twisting, stretching,

bundling, forcibly bending, damaging,

altering, exposing to heat sources, or

placing heavy objects on the power

cable) that may damage the power

cable. Using the product with a

damaged power cable may cause

electric shock, short circuits, or fire.

Contact an authorised service centre

for repairs.

RWhen existing chime wires are used, it

is possible that they contain AC

voltage.

Contact an authorised service centre.

Preventing accidents and injuries

RDo not install or use the product in

health care facilities if any regulations

posted in the area instruct you not to

do so. Hospitals or health care

facilities may be using equipment that

could be sensitive to external RF

(radio frequency) energy.

RDo not install or use this product near

automatically controlled devices such

as automatic doors and fire alarms.

Radio waves emitted from this product

WARNING

273_ig.book Page 2 Friday, April 28, 2017 9:46 AM

may cause such devices to

malfunction, resulting in an accident.

Preventing electric shock

RIf the wiring is underground, do not

make any connections underground.

RIf the wiring is underground, use a

protection tube.

RIf the wiring is outdoors, use a

protection tube or a surge protector.

Preventing injury

RInstall the product securely adhering

to the instructions in this guide to

prevent it from falling off the wall.

Avoid installing onto low-strength

walls, such as gypsum board, ALC

(autoclaved lightweight concrete),

concrete block, or veneer (less than

18 mm thick) walls.

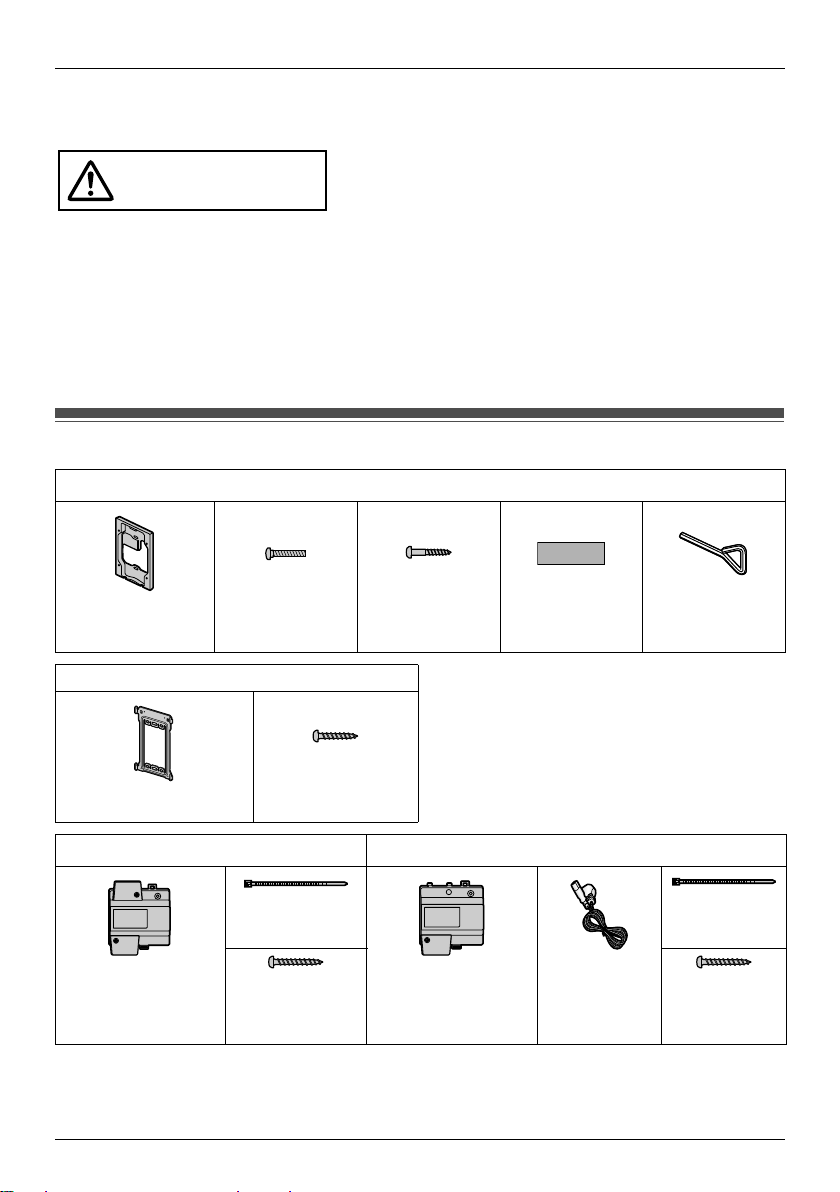

Supplied accessories for installation

Important:

RYou will need the following additional items to install and configure the doorphone and the

main monitor/extension monitor.

CAUTION

For the doorphone*1

Mounting base ×1 Screw ×4

(4 mm ×12 mm)

Screw ×2

(3.8 mm ×20 mm)

Name plate ×2

(incl. 1 spare)

Hex wrench ×1

For the main monitor/extension monitor

Screw ×2

(4 mm ×16 mm)

Mounting bracket ×1

Power supply unit and related items*2 Power supply unit and related items*3

Cable binder ×2 Cable binder ×

Power supply unit ×1

(VL-PS240)

Screw ×2

(4 mm ×40 mm)

Power supply unit ×1

(VL-PS241)

AC cable ×1 Screw ×2

(4 mm ×

40 mm)

273_ig.book Page 3 Friday, April 28, 2017 9:46 AM

Note:

RThe illustrations in the supplied manual(s) may vary slightly from the actual product.

*1 VL-SWD273AZ/VL-SVD273AZ models only

*2 VL-MWD273BX/VL-MWD273ML models only

*3 VL-SWD273AZ/VL-SVD273AZ/VL-MWD273AZ models only

Precautions for installation

To avoid malfunction or communication disturbances, do not install the doorphone or the main monitor/

extension monitor in the following locations:

– Places where vibration or any other kind of impact occurs.

– Places where echoing is frequent.

– Places near a high concentration of dust, hydrogen sulphide, ammonia, sulphur, or noxious fumes.

For the doorphone

RIf a strong light is shining on the doorphone, the visitor’s face may not be distinguishable. Do not place

the doorphone in the following locations:

– Where most of the background is the sky.

– Where the background is a white wall, and direct sunlight will reflect off it.

– Where direct sunlight will shine on the doorphone.

RDo not place the doorphone in locations where echoing occurs, as this will cause the doorphone to

beep frequently.

RDust protection/water protection is IP54.

Only when installation work specified in this guide is properly performed and appropriate water

protection treatment is performed.

RMake sure the rear of the doorphone is not subject to water.

RDepending on the installation location, condensation may form on the doorphone’s lens cover. This

may cause images to become obscured. Condensation will dissipate as the temperature rises.

For the main monitor/extension monitor

RInstall the main monitor away from electronic appliances such as TVs, radios, personal computers, air

conditioners, boiler control panels with intercom, home security equipment, wireless devices, or digital

cordless phones.

RDo not install the main monitor/extension monitor in places where it will be affected by extremely high-

frequency radio waves (near broadcasting antennas etc.). This may cause the display to flicker or an

interrupting noise to occur.

RLeave at least 20 cm of space above, below, and to the left and right sides of the main monitor/

extension monitor. Do not install on a wall that is deeply recessed.

RDo not install the main monitor/extension monitor inside a wall.

RBe sure to install the main monitor/extension monitor more than 5 m away from the doorphone.

RThe product operates in the frequency range of 1.88 GHz and 1.90 GHz with a peak transmission

power of 250 mW (max.). Refer to the "For best performance" section in the Operating Instructions.

RIn areas surrounded by a high electrical field, disturbances may occur in the main monitor’s/extension

monitor’s image or sound.

[Locally procured]

– Power cables (AC/DC cables), wires (for doorphone and other connections):

Prepare wires of the appropriate specification. (a"Wire type and length")

273_ig.book Page 4 Friday, April 28, 2017 9:46 AM

Wiring schematic diagram

Set up correctly according to the following wiring schematic diagram and "Wire type and length".

RFor information, such as order numbers, about optional devices that can be connected to, refer to the

"Additional/replacement accessories" section in the Operating Instructions.

APower supply

*1 When you use an additional doorphone, the maximum number of the electric locks that can be

connected to the doorphone depends on the type of doorphone. Consult your dealer for further

information.

For VL-V554 users:

– Make sure to only connect electric door locks to the S1/S2 terminals of the doorphones.

*2 You can also connect an optional lobby station or Video Intercom System for Apartment Complexes.

(See page 7.)

*3 Connection devices for option input (A contact) can be used when a VL-V900 and VL-V700 series

Video Intercom System for Apartment Complexes is used.

– Make sure to connect emergency terminals to the IN1/IN2 terminals.

– Make sure to connect doorbells to the IN3/IN4 terminals. A doorbell and doorphone 2 cannot be

used together.

*4 VL-MWD273BX/VL-MWD273ML models only

*5 VL-SWD273AZ/VL-SVD273AZ/VL-MWD273AZ: Use only the supplied AC cable.

D1 D2 S1 S2

Electric

lock

Electric

lock

DOORPHONE 1 DOORPHONE 2*1 *1

Electric

lock

Electric

lock NP: Non-polarised

MAIN MONITOR

Ml-1

Ml-2

MO-1

MO-2

MO-3

MO-4

MO-5

MO-6

IN1

IN2

IN3

IN4

Ml-1

Ml-2

Ml-1

Ml-2

Ml-1

Ml-2

EXTENSION

MONITOR 1

EXTENSION

MONITOR 2

EXTENSION

MONITOR 3

Connection device

for option Input

(A contact) *3

Terminal box

(4-conductor

wiring)

PBX

D1 D2 S1 S2

POWER SUPPLY UNIT

24 V DC

220-240 V AC *4

273_ig.book Page 5 Friday, April 28, 2017 9:46 AM

Wire type and length

*1 Type: Single-pair cable with outer sheath (jacket)

Conductor: Copper solid

RA certified power supply wiring has to be used with this equipment. The relevant national

installation and/or equipment regulations shall be considered. A certified power supply wiring not

lighter than ordinary polyvinyl chloride flexible wiring according to IEC 60227 shall be used.

*2 When an extension monitor is used, make sure that the total wiring length from the doorphone to the

main monitor and then to the extension monitor, is within about 100 m.

*3 When using an electric lock or a connection device for option input (A contact), select a device that

meets the following guidelines:

RElectric lock connection terminal (S1/S2, S3/S4):

– N/O dry closure contact

– 30 V AC (1 A)/24 V DC (1 A) or lower

RConnection device for option input (A contact) terminal (IN1/IN2/IN3/IN4):

– Input method: No-voltage contact

– Open-circuit voltage between terminals: DC 7 V or less

– Detection definite time: 0.1 second or more

– Short-circuit between terminals: 5 mA or less

– Resistance value: make: 500 Ωor less, break: 15 KΩor more

Wiring run

Wire type*1

Diameter Length (Max.)

Doorphone –

Main monitor –

Extension monitor*2

ø 0.65 mm 22 AWG 100 m

ø 1.0 mm 18 AWG 130 m

ø0.5mm CAT5 50m

Main monitor –

Power supply unit

ø 0.65 mm 22 AWG 10 m

ø 1.0 mm 18 AWG 20 m

Power supply unit –

AC power source

ø 1.2 mm – ø 2.0 mm

(17 AWG – 12 AWG) No requirement

Main monitor –

Electric lock*3

ø 0.5 mm - ø 1.2 mm

(24 AWG - 17 AWG)

According to the

specifications of the

connected device.

Doorphone –

Electric lock*3

ø 0.5 mm - ø 1.2 mm

(24 AWG - 17 AWG)

According to the

specifications of the

connected device.

Main monitor –

Connection device for

option input (A contact)*3

ø 0.5 mm - ø 1.2 mm

(24 AWG - 17 AWG)

According to the

specifications of the

connected device.

Main monitor –

PBX ø 0.65 mm CAT 3 or 22 AWG 100 m

273_ig.book Page 6 Friday, April 28, 2017 9:46 AM

Connecting an optional lobby station

RConnecting an optional VL-V590 lobby station

– Connect terminal D1/D2 on the main monitor with terminal D1/D2 on the lobby station.

– Connect terminal S1/S2 on the main monitor with terminal S1/S2 on the lobby station.

– After connecting to the main monitor, change the [Lobby connection] setting to [Connected devices]

using the main monitor. (→Operating Instructions of the Video Intercom System.)

RConnection for VL-V900 and VL-V700 series Video Intercom System for Apartment Complexes

– Connect terminal D1/D2 on the main monitor with terminal D1/D2 on the VL-V701 Distribution Box.

Note:

RFor information about connections, refer to the documentation of the VL-V590 or VL-V900 and VL-

V700 series.

MAIN MONITOR

Ml-1

Ml-2

MO-1

MO-2

MO-3

MO-4

MO-5

MO-6

IN1

IN2

IN3

IN4

VL-V590 Lobby station

NP: Non-polarised

273_ig.book Page 7 Friday, April 28, 2017 9:46 AM

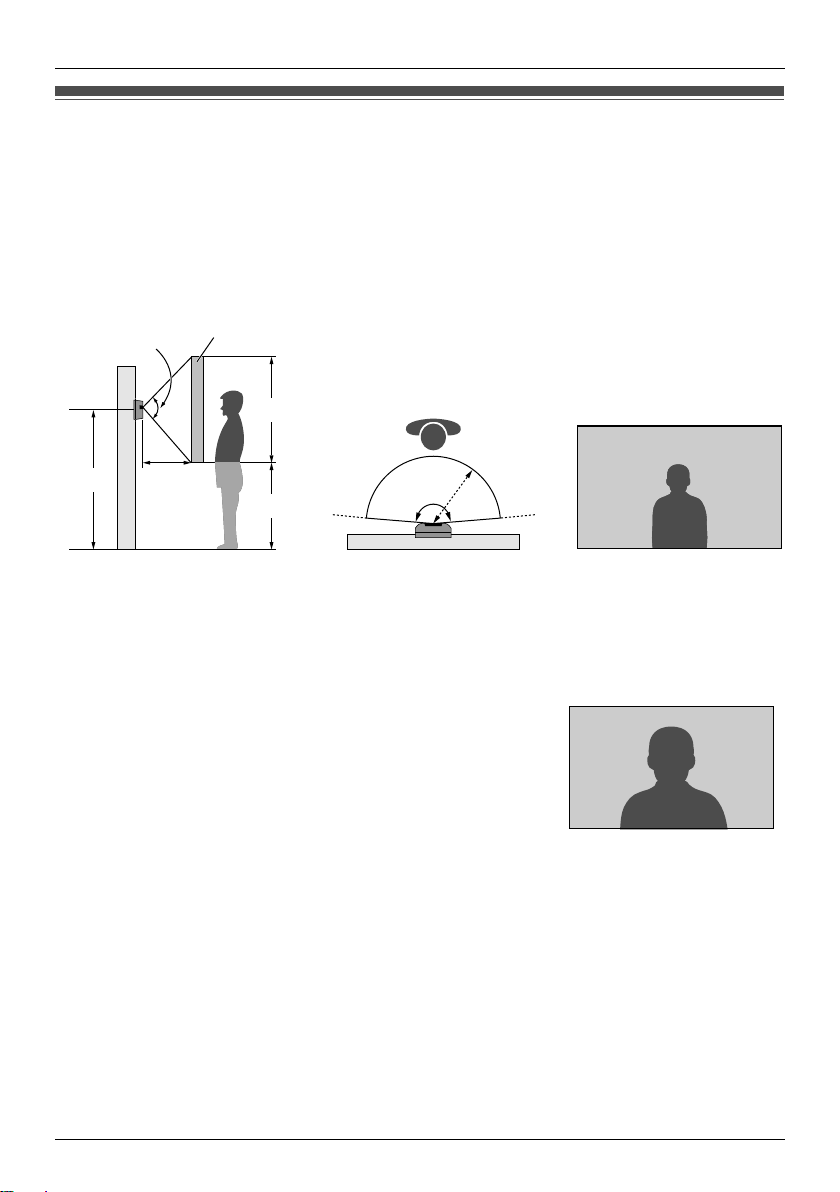

Doorphone installation position

Installation height and area visible by the camera lens (when connected to VL-SWD273 series)

You can use the [Wide/Zoom settings] setting on the main monitor to select the area that is visible when

a visitor calls; available settings are [Wide] and [Zoom]. (Default setting: [Wide])

RThe following values are for when the doorphone is installed in the standard position (the centre of the

doorphone’s height is approximately 1450 mm) and the visitor is approximately 500 mm away from the

camera lens.

When set to wide (default)

(Units: mm)

AImage range BApprox. 110°CCentre of doorphone DApprox. 1450 EApprox. 500

FApprox. 2150 GApprox. 1400 HApprox. 750 IApprox. 170°JApprox. 500

When set to zoom

RYou can use the main monitor’s [Zoom position settings] setting to select the desired area visible when

zooming.

Refer to the following and configure the main monitor.

A view when looking

from above

Image displayed on

main monitor

Displays a portion of the wide image at 2 times the size.

RThe zoom feature uses a digital zoom. As a result, the image quality

of zoomed images is lower than wide display images.

Image displayed on

main monitor

273_ig.book Page 8 Friday, April 28, 2017 9:46 AM

Up and down Left and right (when looking from above)

(Units: mm)

Left

AImage range BApprox. 55°CCenter of

doorphone DApprox. 1450 EApprox. 500

FApprox. 1950 GApprox. 500

HApprox. 1450

AImage range: Approx. 900 BApprox. 500

CApprox. 85°DApprox. 170°

Centre (default) Centre (default)

AImage range BApprox. 55°CCenter of

doorphone DApprox. 1450 EApprox. 500

FApprox. 1700 GApprox. 500

HApprox. 1200

AImage range: Approx. 900 BApprox. 500

CApprox. 85°

Down Right

AImage range BApprox. 55°CCenter of

doorphone DApprox. 1450 EApprox. 500

FApprox. 1420 GApprox. 500 HApprox. 920

AImage range: Approx. 900 BApprox. 500

CApprox. 170°DApprox. 85°

273_ig.book Page 9 Friday, April 28, 2017 9:46 AM

Installing the doorphone

Important:

ROn the bottom surface of the doorphone and the

mounting base, there are holes to allow water to

drain. Do not cover them up when installing.

RWhen existing wiring (such as chime wires) is

used:

– It may contain AC voltage that may cause

electric shock and/or damage the product.

– Never use the following types of wiring.

Consult a qualified technician/dealer.

RSee "Wire type and length" for information about

wiring materials.

1Attach the mounting base (B) (accessory) to

the wall securely.

RInstall the mounting base on a vertical flat

wall.

AScrews (accessory) ×2

CWire (locally procured)

D83.5 mm

*1 To prevent dew condensation, fill a hole

for wiring as much as possible.

2Use a hex wrench (A) (accessory) to loosen

screw A (B) and remove the front panel (C)

of the doorphone.

A2 mm hex wrench

When using mounting box (option):

Model No. VL-MB554

Install the flush mounting box (A) in the

wall.

BKnockout hole*1

C100 mm D151 mm E37 mm

*1 Only open the knockout holes as

required for the wiring.

273_ig.book Page 10 Friday, April 28, 2017 9:46 AM

3Connect the wires.

Loosen the screws. Push in the wires to the

terminal connectors (non-polar), then tighten

the screws (A, B).

ATerminal for the main monitor

BTerminal for the electric lock

4Attach the doorphone to the mounting base.

AScrews (accessory) ×4

5Attach the name plate (A) (accessory) to the

doorphone and use screw A (B) to secure the

front panel.

RWrite the name on the name plate as

needed.

BRecommended torque: 0.35 N·m

{3.6 kgf·cm}

A/B– Recommended torque: 0.5 N·m

{5.1 kgf·cm}

– Maximum torque: 0.7 N·m {7.1 kgf

cm}

When using mounting box (option):

Model No. VL-MB554

Attach the doorphone to the flush

mounting box.

AScrews (accessory) ×4

273_ig.book Page 11 Friday, April 28, 2017 9:46 AM

Installing the power supply

unit (VL-MWD273BX, VL-

MWD273ML models only)

About the installation location

RThe device must be installed inside an electrical

panel or cabinet.

RA readily accessible disconnect device shall be

incorporated external to the equipment.

– External disconnect device must be certified

and have a creepage and clearance distance

of 3 mm or more.

Precautions for wiring

RMake sure you turn off the power at the breaker

before performing any wiring work.

RAlways connect AC or DC cables to the

appropriate connection terminals. Incorrectly

connecting the AC or DC cables may damage

the power supply unit.

RTo prevent the power cables from disconnecting

and to prevent electric shock, secure the power

cables using the cable binders (accessory) and

attach the cable covers.

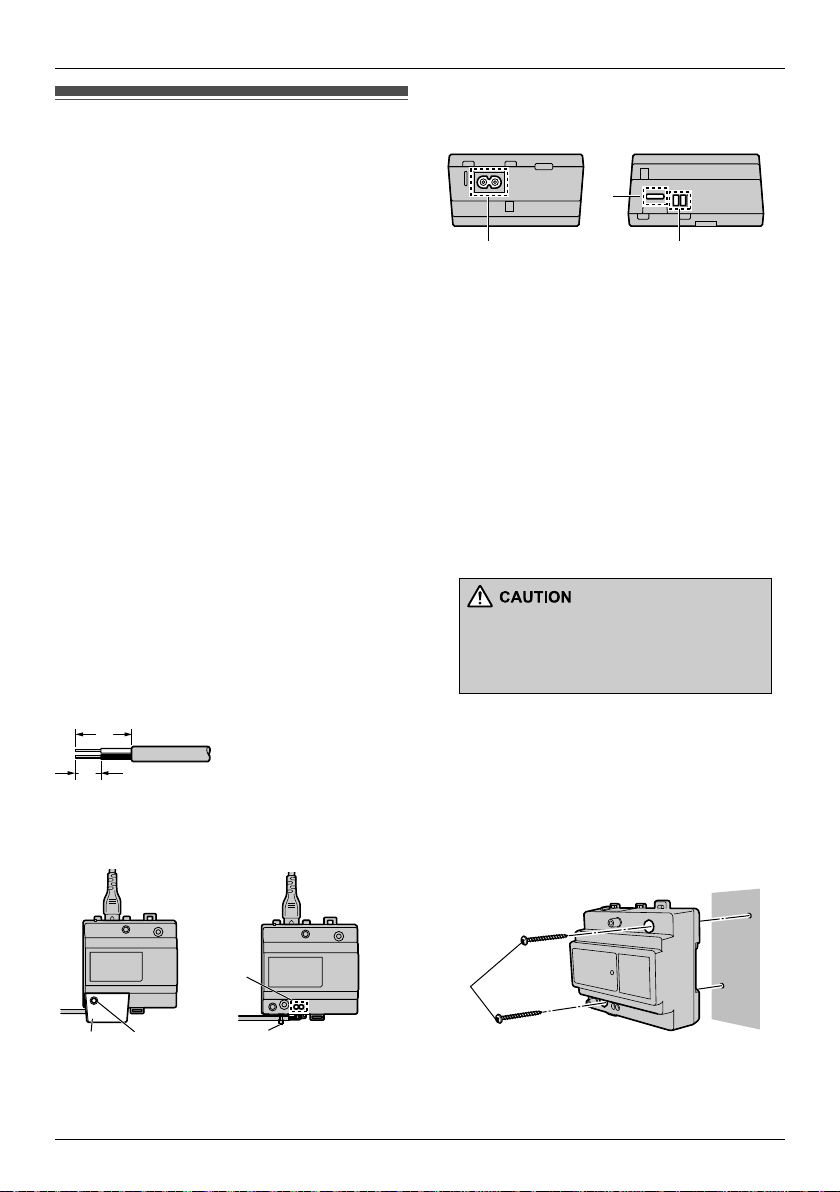

How to connect the power cable (AC/DC):

Connect the power supply unit (accessory) and

AC/DC cables (locally procured).

A45 mm B25 mm C7mm

FAC cable HDC cable

*1 Do not connect the AC cable and DC cable

inversely. That would be a cause of

malfunctions.

Make sure that there are no bare wires

exposed outside the product.

LAC cable binder hole

MDC cable binder hole

1Strip the AC/DC cables as follows:

AC cable (A, C), DC cable (B, C)

2Remove the screws (D) and then remove the

cable covers (E).

3Connect the AC cable (F) to the AC IN

terminal (J)/DC cable (H) to the DC OUT

terminal (K) on the top and bottom of the

power supply unit, and then secure the wires

by tightening the screws (G).

RRecommended torque:

– AC terminal: 0.5 N·m {5.1 kgf·cm}

– DC terminal: 0.45 N·m {4.6 kgf·cm}

4Use the cable binders (I) (accessory) to

secure the AC/DC cables (F) (H) (double-

coated area) to the power supply unit.

5Make sure to replace the cable covers (E).

Attach to the DIN rail

Attach in the order described below so that hook

(A) is positioned at the bottom.

1Hang hook (B) on the DIN rail (C).

2Pull and hold the lever down (D).

3Secure hook (A) to the DIN rail (E).

Note:

RRefer to "Wall mounting", page 13 for

information about mounting to a wall.

Front view

Power supply unit (with cable covers

removed)

Top view Bottom view

Insert the cables firmly all the way into the

terminals. If the cables are not inserted all

the way, heat may be generated.

J K

273_ig.book Page 12 Friday, April 28, 2017 9:46 AM

Installing the power supply

unit (VL-SWD273AZ, VL-

SVD273AZ, VL-MWD273AZ

models only)

About the installation location

RThe AC cable plug is used as the main

disconnect device. Ensure that the power outlet

is installed near the product and is easily

accessible.

RA readily accessible disconnect device shall be

incorporated external to the equipment.

– External disconnect device must be certified

and have a creepage and clearance distance

of 3 mm or more.

Precautions for wiring

RMake sure that the power supply unit is

unplugged before performing any wiring work.

RAlways connect AC or DC cables to the

appropriate connector or connection terminal.

RTo prevent the DC cable from disconnecting and

to prevent electric shock, secure the DC cable

using the cable binder (accessory) and attach

the cable cover.

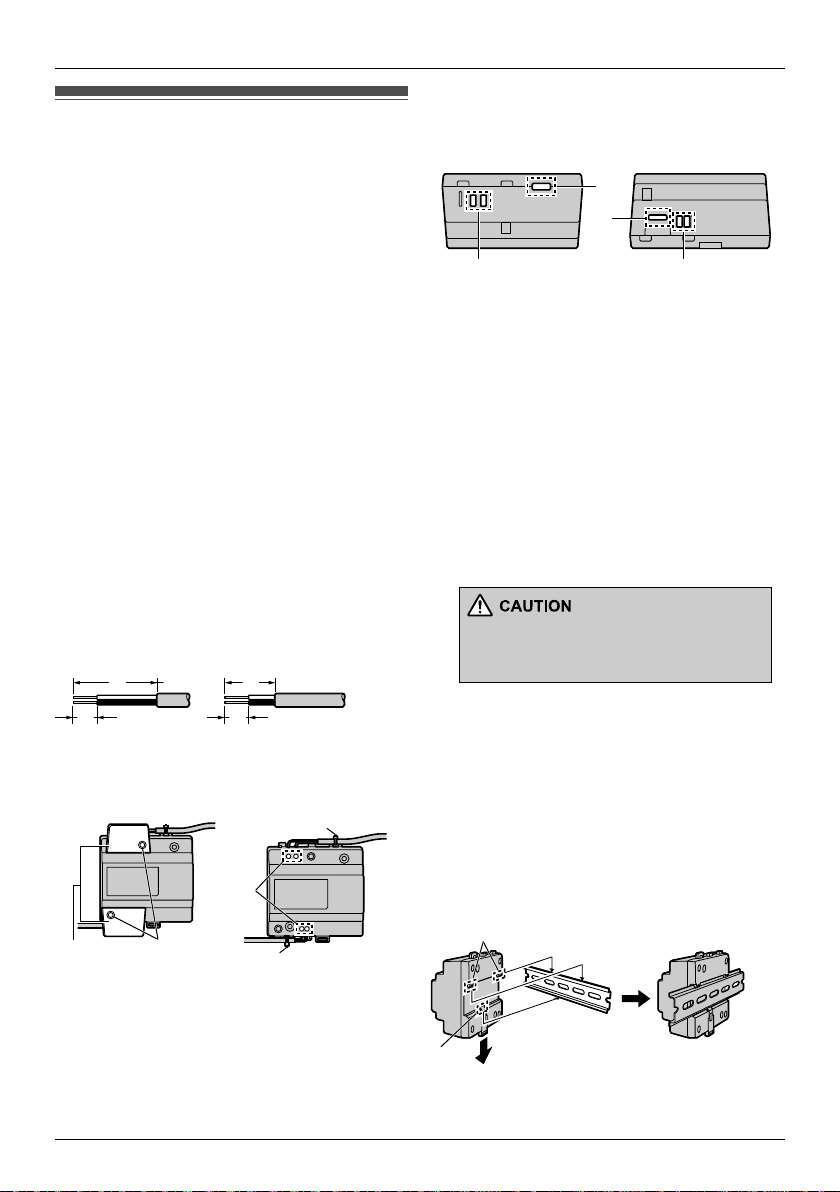

How to connect the AC cable and DC cable:

Connect the power supply unit (accessory), the AC

cable (accessory), and a DC cable (locally

procured).

A25 mm B7mm

*1 Make sure that there are no bare wires

exposed outside the product.

KDC cable binder hole

1Strip the DC cables as follows:

DC cable (A, B)

2Remove the screws (C) and then remove the

cable cover (D).

3Connect the AC cable (E) (accessory) to the

AC IN connector (I) on the top of the power

supply unit. Next, connect the DC cable (G)

(locally procured) to the DC OUT terminal (J)

on the bottom of the power supply unit, and

then secure the wires by tightening the screws

(F).

RRecommended torque: 0.45 N·m

{4.6 kgf·cm}

4Use the cable binder (H) (accessory) to

secure the DC cable (G) (double-coated area)

to the power supply unit.

5Make sure to replace the cable cover (D).

Wall mounting

Attach the power supply unit to the wall securely.

Note:

RRefer to "Attach to the DIN rail", page 12 for

information about mounting to a DIN rail.

Front view

GH*1

Power supply unit (with cable cover removed)

Top view Bottom view

Insert the cables firmly all the way into the

connector and terminals. If the cables are

not inserted all the way, heat may be

generated.

AScrews (accessory) ×2

273_ig.book Page 13 Friday, April 28, 2017 9:46 AM

Main monitor/extension

monitor installation position

About the installation position of the main

monitor/extension monitor and mounting

bracket

RPlace the main monitor/extension monitor in a

location that your eyes are the same height as

the centre of the display.

RFor the following reasons, leave at least 20 cm

(A) of space above, below, and to the left and

right sides of the main monitor/extension

monitor:

– To prevent malfunction and sound cutting out

– To ensure to make sure the reset button (B)

can be used (the reset button is on the bottom

of the main monitor/extension monitor)

RAfter deciding where to install the main monitor/

extension monitor, attach the mounting bracket

in the location shown below.

CMain monitor/extension monitor installation

position

D121.5 mm

E58 mm

Installing the main monitor/

extension monitor

1Attach the mounting bracket (A) to the wall

securely.

RInstall the mounting bracket on a vertical flat

wall (B).

CScrews (accessory)

DHole in wall E60 mm F83.5 mm

G7mmH50 mm

2Connect the DC cable and wires.

RConnect the wires correctly according to

"Wiring schematic diagram".

2-1 How to connect the DC cable

ARemove screw A (A) and then remove the

terminal cover.

BWhile pressing on the button (B) with a

pointed object such as a screwdriver, insert

the wires of the DC cable into the terminal

connectors (non-polar).

CMake sure to replace the terminal cover.

Bare wire at tip: C11 mm D42 mm

EWiring from power supply unit

2-2

2-1

2-2

273_ig.book Page 14 Friday, April 28, 2017 9:46 AM

2-2 How to make wiring connections

While pressing on the button (F) with a

pointed object such as a screwdriver, insert

the wire into the terminal connector (G). (To

disconnect a wire, pull out the wire while

pressing on the button (F).)

HBare wire at tip: 9mm

IWiring from doorphone

Important:

Do not connect the power cable.

(Damage may occur.)

3Mount the main monitor/extension monitor to

the mounting bracket.

3-1 Line up the tab on the bottom of the

bracket with the groove on the main monitor/

extension monitor.

3-2 Line up the tab on the top of the bracket

with the groove on the main monitor/extension

monitor, and push the main monitor/extension

monitor down until it is secure.

INotes about electrical wiring

Make sure not to pinch

the wires (as shown to

the right) on the mounting

bracket when installing.

RDo not forcibly attach

to the mounting

bracket.

273_ig.book Page 15 Friday, April 28, 2017 9:46 AM

PNQX8466ZA

C0417MM0

1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8501, Japan

http://www.panasonic.com

273_ig.book Page 20 Friday, April 28, 2017 9:46 AM

Other manuals for VL-SWD273

This manual suits for next models

Table of contents

Panasonic VL-SWD273 User manual

Popular Video Door Phone System manuals by other brands
