Instruction Manual
MRM-1485
Video Receiver
With Bi-directional RS485

2
Table of Contents
Functional Description........................................................................ 3
Installation.......................................................................................... 3
Power Source..................................................................................... 3
Power Connection.............................................................................. 3
Input / Output Connections................................................................. 4
Data Configuration ............................................................................. 4
Switch/Jumper Settings...................................................................... 5
MRM-1485 Status LED Indicators...................................................... 6
RS-485 Termination and Offset Bias Requirements .......................... 7
Warranty............................................................................................. 8
Service Information ............................................................................ 8

3
INSTALLATION AND OPERATION INSTRUCTIONS
INTRODUCTION
Thank you for purchasing your American Fibertek MRM-1485 multimode mini video
receiver with RS485 transceiver. Please take a few minutes to read these installation
instructions in order to obtain the maximum performance from this product.
FUNCTIONAL DESCRIPTION

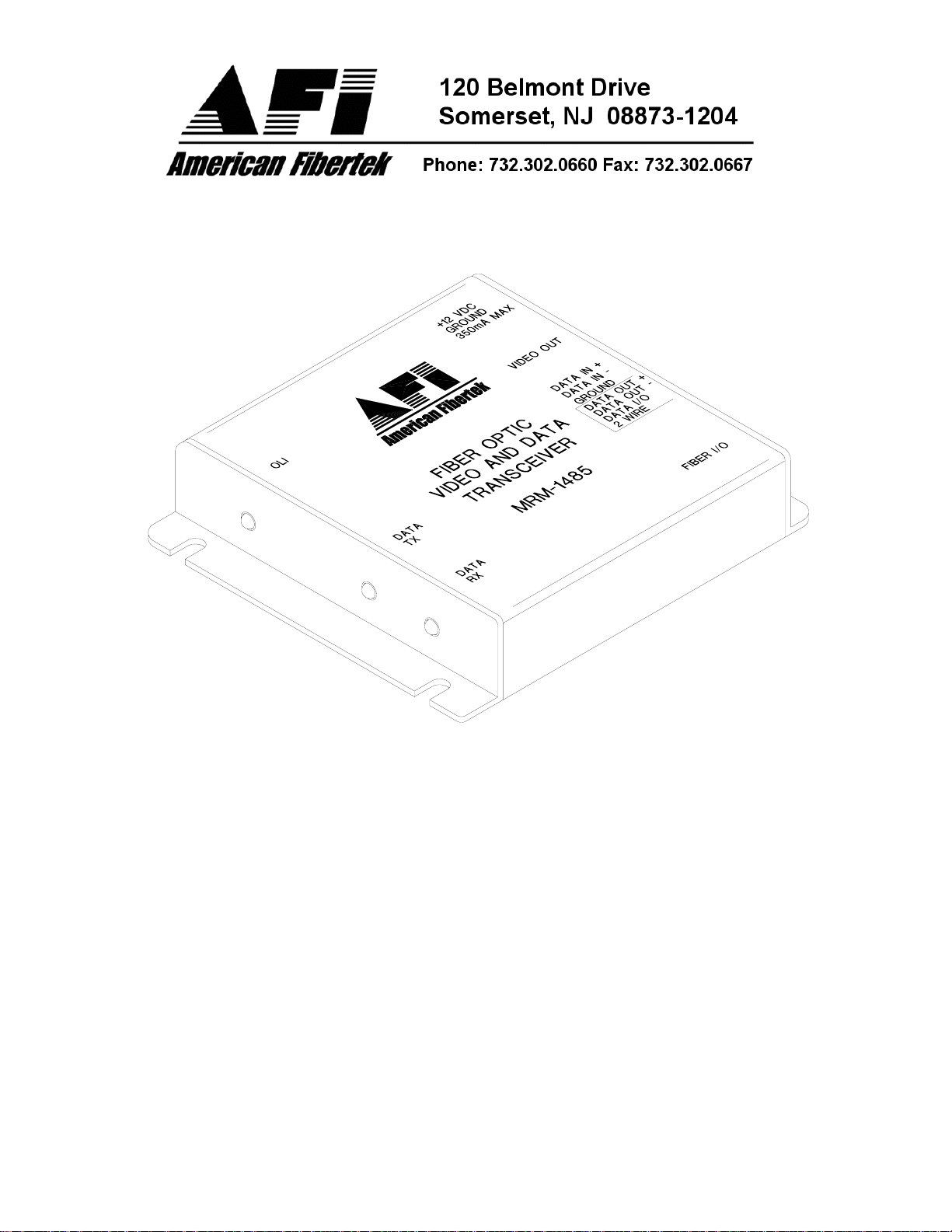

The MRM-1485 operates as half of a transmitter / receiver pair for the transmission of
baseband NTSC, PAL, RS170, or RS343 video signals and bi-directional RS485 data. It
is designed to operate with the MTM-1485 or RTM-1485 video transmitter with RS485
transceiver over a single multimode fiber optic cable.
The MRM-1485 converts a FM modulated optical fiber input into a single video output
and a single RS485 output using a 1300 nm wavelength detector. The MRM-1485 also
converts an electrical RS485 input signal into an optical RS485 output returning on the
same fiber using an 850 nm wavelength source. This unit may be configured for two wire
half duplex or four wire full duplex electrical interfaces. The M1485 Series product is
designed to operate over an optical loss budget range of 0 to 12 dB. The MRM-1485
operates on 50 um or 62.5 um multimode fiber. Refer to the data sheets for detailed
performance specifications.
This unit is contained in a compact and rugged aluminum housing with internal dc
voltage regulation. The detachable terminal block and LED indicators provide for easy
installation and monitoring of video, data, and dc power.
The MRM-1485 is designed for mounting as a modular stand alone unit. For a rack
mounted version please see the RRM-1485.
INSTALLATION
THE INSTALLATION OF THIS UNIT SHOULD BE MADE BY A QUALIFIED SERVICE
PERSON(S) AND MUST CONFORM TO ALL LOCAL CODES.
Mount the unit to a secure surface using #8 (3mm) hardware in four places. Mounting
dimensions can be found on the connection diagram included with this manual. Be sure
to allow sufficient room for the required minimum bend radius of the fiber cable used.
POWER SOURCE
This unit requires a +12VDC power source for proper operation. The DC input is diode
protected. In the USA and in Canada an American Fibertek PS-12 is supplied with this
unit. The negative side of the power input is directly connected to ground. ANSI/NFPA
70 Class 2 wiring is recommended.
POWER CONNECTION
Power is supplied to the unit via a two pin terminal connector. Follow label on unit and
customer connection drawing for proper orientation of +12 volt dc and ground.
INPUT / OUTPUT CONNECTIONS
The fiber optic connection is made via a ST connector located on the right side of the
unit.

4
The video output connection is made via a BNC connector on the right side of the unit.
The 75Ωvideo output can be looped through typical baseband video inputs of switchers,
recorders and other equipment as required. For proper operation, the output must be
terminated with 75Ω. For optimum performance the video cables should be the shortest
length of coax practical.
Data input and output connections are made via a terminal block on the right side of the
unit. Follow label on unit and customer connection drawing for proper orientation of
RS485 data input and output. Please note that RS485 two wire applications utilize the
four wire data out (+) and data out (-) terminals.
DATA CONFIGURATION
The MRM-1485 is shipped from the factory in the RS485 4-wire configuration. In
order to configure the unit for RS485 two wire operation, the unit needs to be
opened up and several switch settings and jumper pins need to be modified using
the internal switch/jumper settings shown on the next page.
The MRM-1485 is shipped from the factory with internal data input and output 120
ohm terminations switched on. In order to remove the internal terminations, the
unit needs to be opened up and several switch settings need to be modified using
the internal switch/jumper settings shown on the next page.
See page 7 for an explanation of termination and offset bias requirements for RS485
data. To open the MRM-1485, remove the screw on the bottom of the module. Also
remove two screws holding the end panel to the chassis on the side with the video and
data connections. Slide PCB assembly out of chassis to access the switch and jumper
locations.

5

6
MRM-1485 STATUS INDICATORS
The MRM-1485 receiver provides the following LED status indicators to aid in installation
and troubleshooting:
OLI
A bi-color LED indicator monitors the optical input power of the video and data signal
that is being received at the MRM-1485 from the MTM-1485 or the RTM-1485. DC
power and optical input status associated with this LED are summarized below.
Optical Level Indicator DC Power Status Optical Status
Green On Proper Optical Input Power Present
Red On Optical Input Not Detected
Off Off Check Power Supply
DATA TX
A red LED indicator is provided to monitor the RS485 input data from the electrical
interface, through the MRM-1485, and out onto the fiber. The intensity of this indicator
will vary with input data patterns, however in typical applications it will cycle on and off
as data is transmitted. RS485 status associated with this LED is summarized below.
DATA TX LED RS485 Status
Red Data Flow Present
Off Data Flow Not Detected
DATA RX
A red LED indicator is provided to monitor the RS485 data coming in from the fiber,
through the MRM-1485, and out onto the electrical interface. The intensity of this
indicator will vary with input data patterns, however in typical applications it will cycle on
and off as data is received. RS485 status associated with this LED is summarized
below.
DATA RX LED RS485 Status
Red Data Flow Present
Off Data Flow Not Detected

7
RS485 TERMINATIONS
The RS485 protocol is an expanded version of the original RS422 protocol. The RS485
protocol is an expanded version of the original RS422 protocol. RS485 differs from
RS422 in the ability of the transmitter devices to go into a high impedance (Hi-Z) state.
This allows multiple transmitter devices to reside on the same wire pair. The software
must dictate a protocol that allows one device to transmit at any one time to prevent data
crashes. Data wiring can use two wires or four wires. Using two wires the system works
in half duplex. This means that data is exchanged between two points sequentially.
When a four-wire system is used, the system may be full duplex. In many cases the
system head end controller will continuously poll data from all remote devices. The
remote devices all respond back to the head end (one at a time!) as they are addressed.
This property of the network rests solely in the hands of the software or firmware.
The driver chips used in RS485 communications are capable of changing into their high
impedance state very rapidly. On even short lengths of wire there can exist a residual
voltage after a driver circuit turns off. This can interfere with circuits that are used to
detect the Hi-Z state. It is very important that the copper communications lines be
terminated with resistors across the data wire pair. The best place to locate such
resistors is at the furthest electrical devices at the ends of the wire pair. For instance, if
several RS485 devices are connected in a daisy chain fashion, the wire connection
would loop across all devices in a chain. The furthest two points in the chain would need
to be terminated. A termination resistor for RS485 input data can be selected in the
MRM-1485 using switch # 1. A termination resistor for RS485 output data can be
selected in the MRM-1485 using switch # 2.
OFFSET BIAS – RS485
The RS485 specification requires receivers to detect input signals down to 200mVp-p of
voltage level. In many cases this can cause systems to be sensitive to noise on the data
wires. In an effort to eliminate the effects of low levels of noise, some manufacturers of
equipment that communicate using RS485 have introduced a small voltage bias to the
data lines. This is usually accomplished using 470 Ohm resistance to +5V on the
positive line and 470 Ohm resistance to ground on the negative line. When used in
conjunction with the appropriate termination resistors referred to in the previous section,
this introduces about a 300 mV offset, improving noise immunity.
Offset bias for RS485 can be applied on the MRM-1485 by setting switch # 3 and switch
# 4 on. Please note that these switches work as a set and must be either both on or both
off. In a majority of cases, bias will not be required and these switches should remain in
the off position. If using offset bias, it is important that termination resistor switch # 2 be
on (applied) position. Using offset bias without a termination on the line will cause
communications to fail.

8
LIFETIME WARRANTY INFORMATION
American Fibertek, Inc warrants that at the time of delivery the products delivered will be
free of defects in materials and workmanship. Defective products will be repaired or
replaced at the exclusive option of American Fibertek. A Return Material Authorization
(RMA) number is required to send the products back in case of return. All returns must
be shipped prepaid. This warranty is void if the products have been tampered with. This
warranty shall be construed in accordance with New Jersey law and the courts of New
Jersey shall have exclusive jurisdiction over this contract. EXCEPT FOR THE
FOREGOING WARRANTY, THERE IS NO WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE OR OTHERWISE, EXPRESSED OR
IMPLIED, WHICH EXTENDS BEYOND THE WARRANTY SET FORTH IN THIS
AGREEMENT. In any event, American Fibertek will not be responsible or liable for
contingent, consequential, or incidental damages. No agreement or understanding,
expressed or implied, except as set forth in this warranty, will be binding upon American
Fibertek unless in writing, signed by a duly authorized officer of American Fibertek.
SERVICE INFORMATION
There are no user serviceable parts inside the unit.
In the event that service is required to this unit, please direct all inquiries to:
American Fibertek, Inc. Phone: [phone]
120 Belmont Drive Phone: [phone]
Somerset, NJ 08873 FAX [phone]
E-mail: [email protected]
