Instruction Manual
MRM-1600P
Video Receiver
With ‘Up-The-Coax’ Control

2
INSTALLATION AND OPERATION INSTRUCTIONS
INTRODUCTION
Thank you for purchasing your American Fibertek MRM-1600P multimode mini video
receiver. Please take a few minutes to read these installation instructions in order to
obtain the maximum performance from this product.
FUNCTIONAL DESCRIPTION
The MRM-1600P operates as half of a transmitter / receiver pair for the transmission of
baseband NTSC, PAL, RS170, or RS343 video signals and return control for Panasonic
‘up-the-coax’ systems. It is designed to operate with the MTM-1600P or RTM-1600P
video transmitter over a single multimode fiber optic cable.
The MRM-1600P converts a FM modulated optical input into a single video output using
a 1300 nm wavelength detector. The MRM-1600P also converts an electronic camera
control signal into an optical control signal returning on the same fiber using an 850 nm
wavelength source. The M1600P Series product is designed to operate over an optical
loss budget range of 0 to 12 dB. Panasonic allows a maximum transmission distance of
up to 1.6 km (1 mile) for their ‘up-the-coax’ protocol. The MRM-1600P operates on 50
um or 62.5 um multimode fiber. Refer to the data sheets for detailed performance
specifications.
This unit is contained in a compact and rugged aluminum housing with internal dc
voltage regulation. The detachable terminal block and LED indicator provide for easy
installation and monitoring of video and dc power.
The MRM-1600P is designed for mounting as a modular stand alone unit. For a rack
mounted version please see the RRM-1600P.
INSTALLATION
THE INSTALLATION OF THIS UNIT SHOULD BE MADE BY A QUALIFIED SERVICE
PERSON(S) AND MUST CONFORM TO ALL LOCAL CODES.
Mount the unit to a secure surface using #8 (3mm) hardware in four places. Mounting
dimensions can be found on the connection diagram included with this manual. Be sure
to allow sufficient room for the required minimum bend radius of the fiber cable used.
POWER SOURCE
The unit requires a +12VDC power source for proper operation. The DC input is diode
protected. In the USA and in Canada an American Fibertek PS-12 is supplied with this
unit. The negative side of the power input is directly connected to ground. ANSI/NFPA
70 Class 2 wiring is recommended.
POWER CONNECTION
Power is supplied to the unit via a two pin terminal connector. Follow label on unit and
customer connection drawing for proper orientation of +12 volt dc and ground.
INPUT / OUTPUT CONNECTIONS
The fiber optic connection is made via a ST connector located on the side of the unit.

3
The video output connection is made via a BNC connector on the side of the unit. The
75Ωvideo output can be connected to any VD-2 protocol video monitoring device. For
proper operation, the output must be terminated with 75Ω. For optimum performance the
video cable should be the shortest length of coax practical.
MRM-1600P STATUS INDICATOR
The MRM-1600P transmitter provides the following LED status indicator to aid in
installation and troubleshooting:
OLI
A bi-color LED indicator monitors the optical input power of the video signal that is being
received at the MRM-1600P from the MTM-1600P or the RTM-1600P. DC power and
optical input status associated with this LED are summarized below.
Optical Level Indicator DC Power Status Optical Status
Green On Proper Optical Input Power Present
Red On Optical Input Not Detected
Off Off Check Power Supply

4
LIFETIME WARRANTY INFORMATION
American Fibertek, Inc warrants that at the time of delivery the products delivered will be
free of defects in materials and workmanship. Defective products will be repaired or
replaced at the exclusive option of American Fibertek. A Return Material Authorization
(RMA) number is required to send the products back in case of return. All returns must
be shipped prepaid. This warranty is void if the products have been tampered with. This
warranty shall be construed in accordance with New Jersey law and the courts of New
Jersey shall have exclusive jurisdiction over this contract. EXCEPT FOR THE
FOREGOING WARRANTY, THERE IS NO WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE OR OTHERWISE, EXPRESSED OR
IMPLIED, WHICH EXTENDS BEYOND THE WARRANTY SET FORTH IN THIS
AGREEMENT. In any event, American Fibertek will not be responsible or liable for
contingent, consequential, or incidental damages. No agreement or understanding,
expressed or implied, except as set forth in this warranty, will be binding upon American
Fibertek unless in writing, signed by a duly authorized officer of American Fibertek.
SERVICE INFORMATION

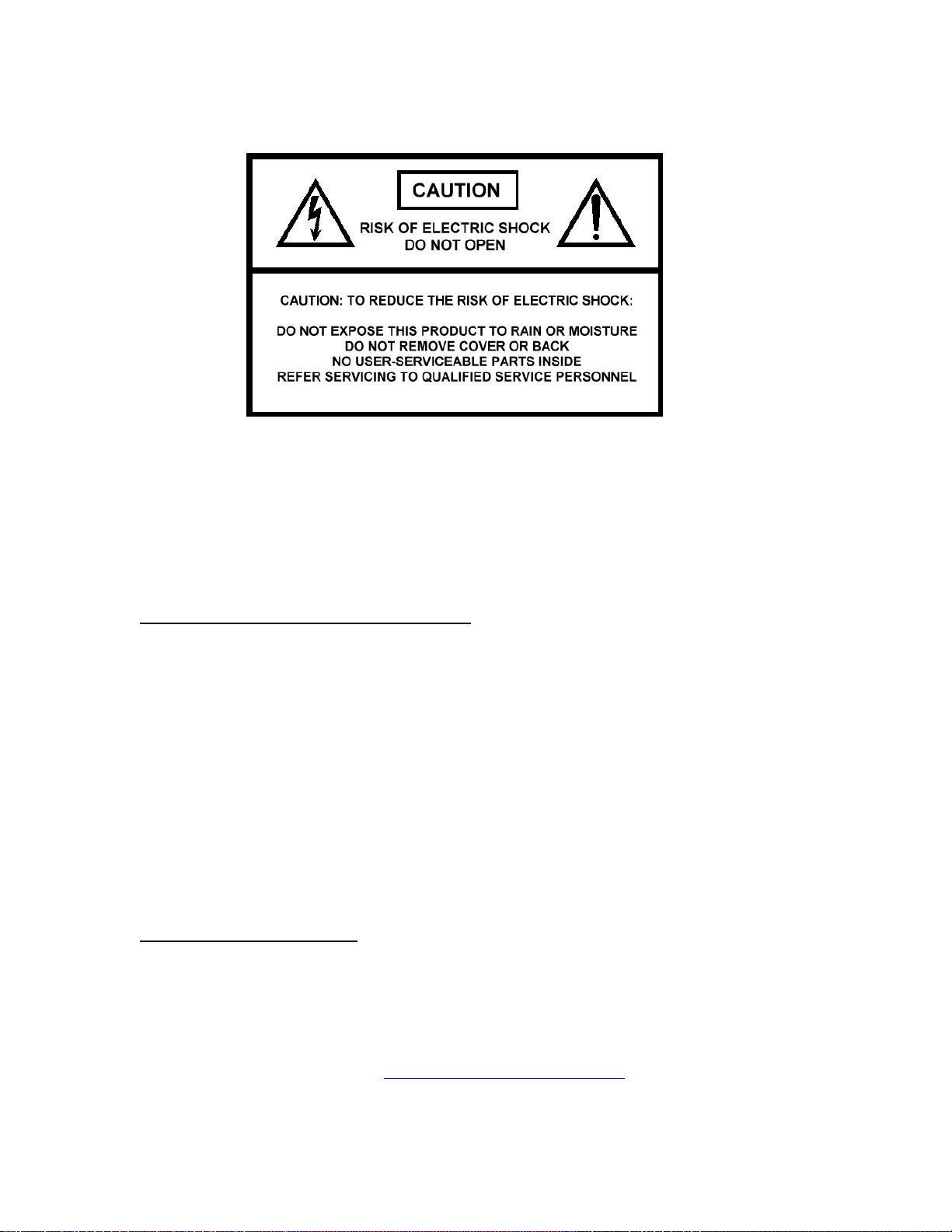

There are no user serviceable parts inside the unit.
In the event that service is required to this unit, please direct all inquiries to:
American Fibertek, Inc. Phone: [phone]
120 Belmont Drive Phone: [phone]
Somerset, NJ 08873 FAX [phone]
E-mail: [email protected]
