Panasonic NA-A47VB4WDE User manual

© Panasonic Corporation 2012 Unauthorized copy-
ing and distribution is a violation of law.
Order No. VES1211002CE
Drum Type Washing Machine
Model No. NA-A47VB4WDE
Model No. NA-B28VB4WTA
Model No. NA-147VB4
Model No. NA-148VB4
Product Color : White
Destination : Germany, Italy
rway, Finland, Portugal, Poland
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3
2 Specifications ----------------------------------------------------- 4
2.1. Product Specifications------------------------------------ 4
2.2. Name Plate-------------------------------------------------- 4
3 Technical Descriptions ----------------------------------------- 5
3.1. Twinjet Information ---------------------------------------- 5
4 Location of Controls and Components ------------------- 6
5 Installation Instructions ---------------------------------------- 7
5.1. Moving and Installing ------------------------------------- 7
5.2. Detergent Box Group ------------------------------------- 8
6 Operating Instructions------------------------------------------ 9
6.1. LCD Screen, Function Buttons & Knobs ------------ 9
6.2. Program List ------------------------------------------------ 9
6.3. Program Details-------------------------------------------10
6.4. Program Details with Half Load Defection ---------11
6.5. Child Lock --------------------------------------------------11
7 Test Mode ----------------------------------------------------------12
7.1. Autotest----------------------------------------------------- 12
8 Service Mode ----------------------------------------------------- 14
8.1. Service Autotest ------------------------------------------ 14
8.2. Failure Codes --------------------------------------------- 15
9 Troubleshooting Guide --------------------------------------- 16
10 Disassembly and Assembly Instructions--------------- 17
10.1. Torque Values--------------------------------------------- 17
10.2. Top Plate --------------------------------------------------- 18
10.3. Door --------------------------------------------------------- 18
10.4. Spring Wire ------------------------------------------------ 20
10.5. Detergent Drawer ---------------------------------------- 20
10.6. Control Panel---------------------------------------------- 21
10.7. Kick Plate -------------------------------------------------- 22
10.8. Front Panel ------------------------------------------------ 22
10.9. Upper Support Bracket --------------------------------- 24
10.10. Detergent Drawer Housing ---------------------------- 24
10.11. Power Cable Group and Parasite Filter ------------ 25

2
10.12. Electronic Pressure Switch (EPS) ------------------- 26
10.13. Door Lock -------------------------------------------------- 26
10.14. Pump Motor------------------------------------------------ 26
10.15. Front Counterweight------------------------------------- 27
10.16. Heater ------------------------------------------------------- 27
10.17. Twinjet System-------------------------------------------- 28
10.18. Tub Bellows Seal----------------------------------------- 29
10.19. Transport Screw ------------------------------------------ 29
10.20. Upper Counterweight------------------------------------ 30
10.21. Washing Group ------------------------------------------- 30
10.22. Shock Absorber PIN------------------------------------- 31
10.23. Belt----------------------------------------------------------- 31
10.24. Driven Pulley ---------------------------------------------- 31
10.25. Motor -------------------------------------------------------- 31
10.26. Tub Entrance with Bellow Hose ---------------------- 32
10.27. Pressure Switch Hose Group ------------------------- 32
10.28. Tub----------------------------------------------------------- 32
10.29. Drum--------------------------------------------------------- 32
11 Measurements and Adjustments -------------------------- 33
11.1. Drain Pump ------------------------------------------------ 33
11.2. Circulation Pump ----------------------------------------- 34
11.3. Resistance ------------------------------------------------- 35
11.4. NTC---------------------------------------------------------- 36
11.5. Valve--------------------------------------------------------- 37
11.6. Electronic Pressure Switch (EPS) ------------------- 38
11.7. Motor (For NA-127VB4 and NA-147VB4)---------- 39
11.8. Motor (For NA-128VB4 and NA-148VB4)---------- 40
11.9. Door Lock -------------------------------------------------- 41
12 Dimensions ------------------------------------------------------- 43
13 Wiring Connection Diagram --------------------------------- 44
13.1. Wiring Diagram NA-127VB4 and NA-147VB4 ---- 44
13.2. Wiring Diagram NA-128VB4 and NA-148VB4 ---- 46
14 Exploded View and Replacement Parts List ----------- 48
14.1. Control Panel Parts -------------------------------------- 48
14.2. Front Panel Parts----------------------------------------- 50
14.3. Washing Group Parts ----------------------------------- 51
14.4. Circulation Group Parts--------------------------------- 53
14.5. Detergent Drawer Group Parts ----------------------- 54
14.6. Pressure Switch Hose Group Parts ----------------- 55
14.7. Body Group Parts ---------------------------------------- 56
14.8. Porthole Group Parts------------------------------------ 58
14.9. Accessories------------------------------------------------ 59
14.10. Packaging Group Parts --------------------------------- 61

3
1 Safety Precautions

4
2 Specifications
2.1. Product Specifications

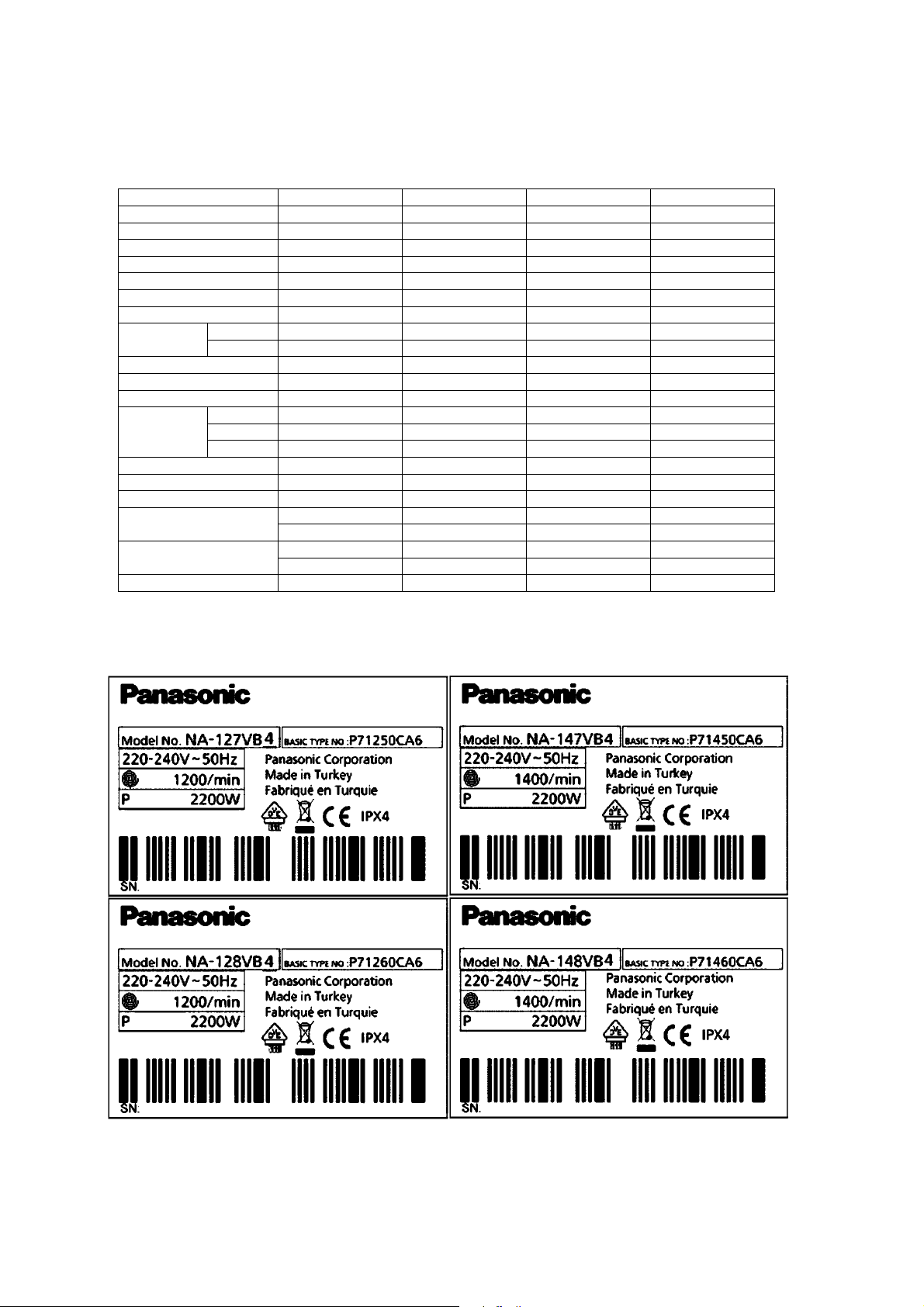

2.2. Name Plate
NA-127VB4 NA-128VB4 NA-147VB4 NA-148VB4
Product Type Front Loader Front Loader Front Loader Front Loader
Capacity 7 kg 8 kg 7 kg 8 kg
Max Spin Speed 1200 r/min 1200 r/min 1400 r/min 1400 r/min
Drum Volume 50 L 60 L 50 L 60 L
Energy Label Rating A+++ A+++ A+++ A+++
Energy Consumption 162 kWh/annum 162 kWh/annum 162 kWh/annum 162 kWh/annum
Water Consumption 9240 L/annum 9900 L/annum 9240 L/annum 9900 L/annum
Noise Level Wash 58 dBA 58 dBA 58 dBA 58 dBA
Spin 74 dBA 76 dBA 75 dBA 76 dBA
Control Panel LED display, E-Type LED display, E-Type LED display, E-Type LED display, E-Type
Wash Programs 15 settings 15 settings 15 settings 15 settings
Spin Speed Setting 6 setting 6 setting 6 setting 6 setting
Dimensions Height 85 cm 85 cm 85 cm 85 cm
Width 60 cm 60 cm 60 cm 60 cm
Depth 53 cm 58 cm 53 cm 58 cm
Door Opening Large door opening Large door opening Large door opening Large door opening
Delay Start Yes Yes Yes Yes
Colour White White White White
Water Protection aquastop hose aquastop hose aquastop hose aquastop hose
for Germany only for Germany only for Germany only for Germany only
Other Features Child Lock Child Lock Child Lock Child Lock
Twinjet system Twinjet system Twinjet system Twinjet system
Packaging Shrink package Shrink package Shrink package Shrink package

5
3 Technical Descriptions
3.1. Twinjet Information
1. Twinjet system is designed to obtain a better washing
performance by directly injecting water with detergent
using a recirculation system and two nozzles connected
to it. With twinjet system, water consumption is
decreased by 30%, energy consumption is decreased by
10% and washing time is decreased by 15%
2. Twinjet system is valid for all programs except spin and
drain mode. The system dos not function during Water
inlet, heating, spinning, drain phases.
3. Even with a large load of 8 kg. the washing machine will
have the minimum energy consumption by the help of
Twinjet system.
4. Washing machines with Twinjet system are very environ-
ment-friendly by having maximum washing performance
with minimum water consumption.
• Washing machines with Twinjet system will let the customer wash longer amount of load in a shorter period of time.

6
4 Location of Controls and Components

7
5 Installation Instructions
5.1. Moving and Installing
5.1.1. Removal of Transportation Screw
1. Transportation screws, which are located at the back side
of the machine, must be removed before running the
machine.
2. Loosen the screws by turning them anticlockwise with a
suitable spanner.
3. Pull out the screws and rubber washers.
4. The holes where the transport screws have been
removed should be covered with the plastic transport
caps found in the accessories bag.
5. The transportation screws that have been removed from
the machine must be re-used in any future transporting of
the machine.
5.1.2. Foot Adjustment
1. Do not install machine on rugs or similar surfaces.
2. For machine to work silently and without any vibration, it
should be installed on a flat, non-slippery firm surface.
Any suspended floor must be suitably strengthened.
3. You can adjust the level of machine using its feet.
4. First, loosen the plastic adjustment nut away from the
cabinet base.
5. Change the level by adjusting the feet upwards or down-
wards.
6. After level has been reached, tighten the plastic adjust-
ment nut again by rotating it upwards against the base of
the cabinet.
7. Never put cartons, wooden blocks or similar materials
under the machine to balance irregularities of the floor.
5.1.3. Electrical Connection
1. Washing machine requires a 50Hz supply of 220-
240Volts.
2. A special earthed plug has been attached to the supply
cord of washing machine. This plug must be fitted to an
earthed socket. The fuse value fitted to this plug should
be 13 amps. If you have any doubts about electrical sup-
ply, consult a qualified electrician.
THIS APPLIANCE MUST BE EARTHED.
Insert the machine's plug to a grounded socket which
you can easily reach.

8
5.1.4. Water Supply Connection
1. Washing machine is supplied with a single (cold) water
inlet.
2. To prevent leakage from the connection joints, a rubber
washer is included in the hose packing. Fit this washer at
the end of water inlet hose on the tap side.
3. Connect the hose to the water inlet valve. Tighten the
plastic connector by hand. Please call a qualified plumber
if you are unsure about this.
4. Water pressure of 0,1-1 MPa from tap will enable
machine to work more efficiently. (0,1 MPa pressure
means water flow of more than 8 litres in 1 minute from a
fully opened tap)
5. After connection is complete, check for leakage by turning
on tap completely.
6. Make sure that water inlet hoses can not become folded,
damaged, stretched or crushed when the washing
machine is in its final position.
7. Mount the water inlet hose to a 3/4inch threaded water
tap.
5.1.5. Drain Connection
1. Make sure that water inlet hoses are not folded, twisted,
crushed or stretched.
2. The drain hose should be mounted at a minimum height
of 60 cm, and a maximum height of 100 cm from the floor.
3. The end of the drain hose can be connected directly to a
drainage stand-pipe or alternatively to a specific connec-
tion point designed for that purpose on the waste outlet of
a sink unit.
4. Do not extend the drain hose or guarantee will be invali-
dated.
5.2. Detergent Box Group
PREWASH = WATER ENTRY VALVE 1
MAIN = WATER ENTRY VALVE 2
SOFTENER = WATER ENTRY VALVE 1 + VALVE 2

9
6 Operating Instructions

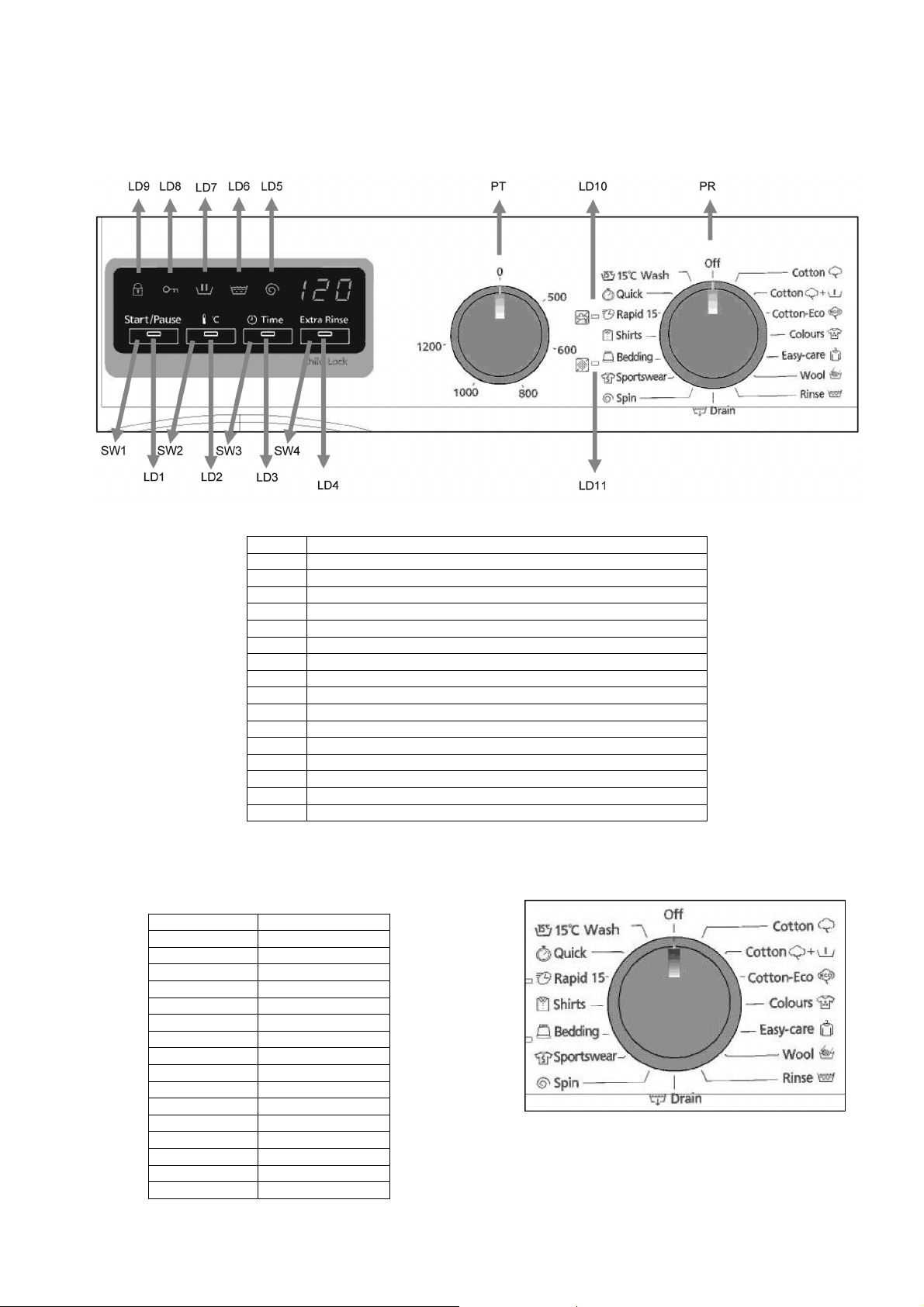

6.1. LCD Screen, Function Buttons & Knobs
6.2. Program List
PR Program selector 16 programs with ON/OFF.
SW1 Switch 1, Start / Pause
SW2 Switch 2, Temperature Selection
SW3 Switch 3, Delay Time Function
SW4 Switch 4, Extra Rinse
PT PT speed potentiometer
LD1 Switch 1- Start/ Pause Led
LD2 Temperature Function Button Led
LD3 Delay Time Function Button Led
LD4 Extra Rinse Function Button Led
LD5 Spin Phase Led
LD6 Rinse Phase Led
LD7 Wash Phase Led
LD8 Child Lock Activation Led
LD9 Door Lock Led
LD10 Lack Of Water Indication Led
LD11 Pump Failure Indication Led
Knob Position Program
Pos1 Cotton
Pos2 Cotton + PW
Pos3 Cotton - Eco
Pos4 Coulors
Pos5 Easy-care
Pos6 Wool
Pos7 Rinse
Pos8 Drain
Pos9 Spin
Pos10 Sportswear
Pos11 Bedding
Pos12 Shirts
Pos13 Rapid 15’
Pos14 Quick
Pos15 15 °C Wash
Pos16 STOP

10
6.3. Program Details
NA-148VB4 NA-128VB4
NA-147VB4 NA-127VB4
* : Programme duration, Energy and Water Consumption are given for the cycles for programmes are started in set temperature.
WIT: Water Inlet Temperature
- : Programmes do not take water
• Temperature may vary depending on the heating time
• Durations may vary according to wash load (weight and type), tap water and ambient temperature and selected extra functions.
Programmes Available
Temperature
Program
Duration (min)*
Energy
(kwh)*
Water
Consumption (L)*
Cotton Cold - 90 120 0,92 58
Cotton Eco Cold - 60 200 0,76 48
Cotton PreWash Cold - 90 138 0,98 70
Easy Care Cold - 60 85 0,60 55
Coulors Cold - 40 100 0,91 48
Wool Cold - 40 40 0,10 50
Quick Cold - 60 68 0,48 38
Rapid 15 Cold - 30 15 0,10 30
15 °C Wash WIT 100 0,21 42
Sports Wear Cold - 40 100 0,63 42
Shirts Cold - 60 80 0,60 45
Bedding Cold - 40 65 0,28 57
Rinse WIT 36 0,05 58
Spin - 15 0,08 -
Drain - 3 0,02 -
Programmes Available
Temperature
Program
Duration (min)*
Energy
(kwh)*
Water
Consumption (L)*
Cotton Cold - 90 120 0,92 60
Cotton Eco Cold - 90 138 0,98 69
Cotton PreWash Cold - 60 200 0,80 45
Easy Care Cold - 60 85 0,61 47
Coulors Cold - 40 100 1,00 52
Wool Cold - 40 40 0,11 45
Quick Cold - 60 68 0,48 38
Rapid 15 Cold - 30 15 0,10 30
15 °C Wash WIT 100 0,22 42
Sports Wear Cold - 40 100 0,62 42
Shirts Cold - 60 80 0,60 44
Bedding Cold - 40 65 0,25 50
Rinse - 36 0,05 58
Spin - 15 0,08 -
Drain - 3 0,02 -

11
6.4. Program Details with Half Load Defection
NA-148VB4 NA-128VB4
NA-147VB4 NA-127VB4

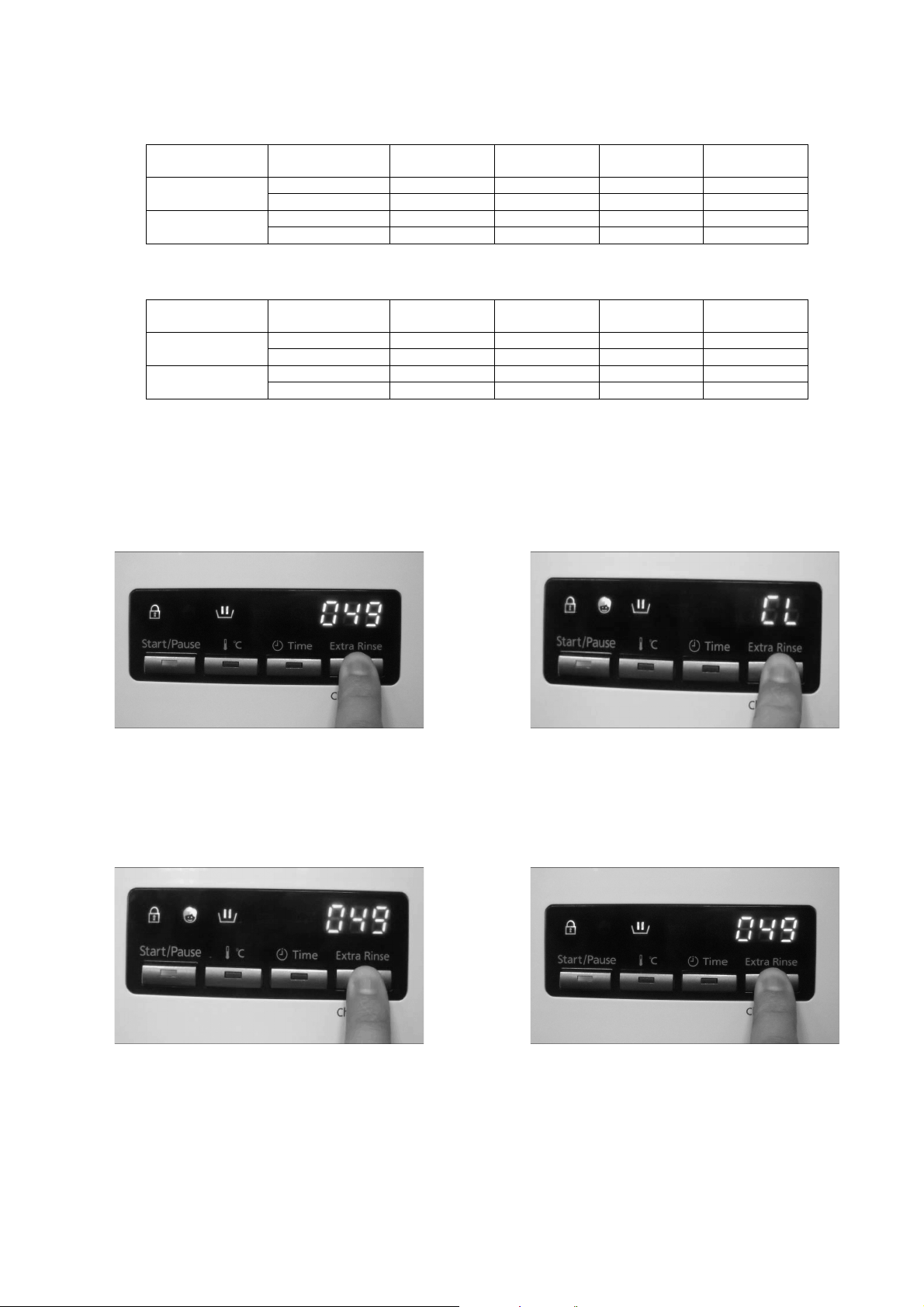

6.5. Child Lock
Activation
1. Press the fourth function button for 4-5 seconds. 2. The Child Lock Symbol is appeared on the LCD display.
Deactivation
1. Press the fourth function button for 4-5 seconds. 2. The Child Lock Symbol is deleted on the LCD display.
Full Load / Half Load Programmes Available
Temperature
Program
Duration (min)*
Energy
(kwh)*
Water
Consumption (L)
Full Load Cotton Eco Cold - 60 198 0,72 48
Cotton Eco Cold - 60 200 0,76 48
Half Load HL Cotton Eco Cold - 60 160 0,64 42
HL Cotton Eco Cold - 60 165 0,70 42
Full Load / Half Load Programmes Available
Temperature
Program
Duration (min)*
Energy
(kwh)*
Water
Consumption (L)
Full Load Cotton Eco Cold - 60 195 0,65 45
Cotton Eco Cold - 60 200 0,78 45
Half Load HL Cotton Eco Cold - 60 160 0,62 42
HL Cotton Eco Cold - 60 165 0,66 42

12
7 Test Mode

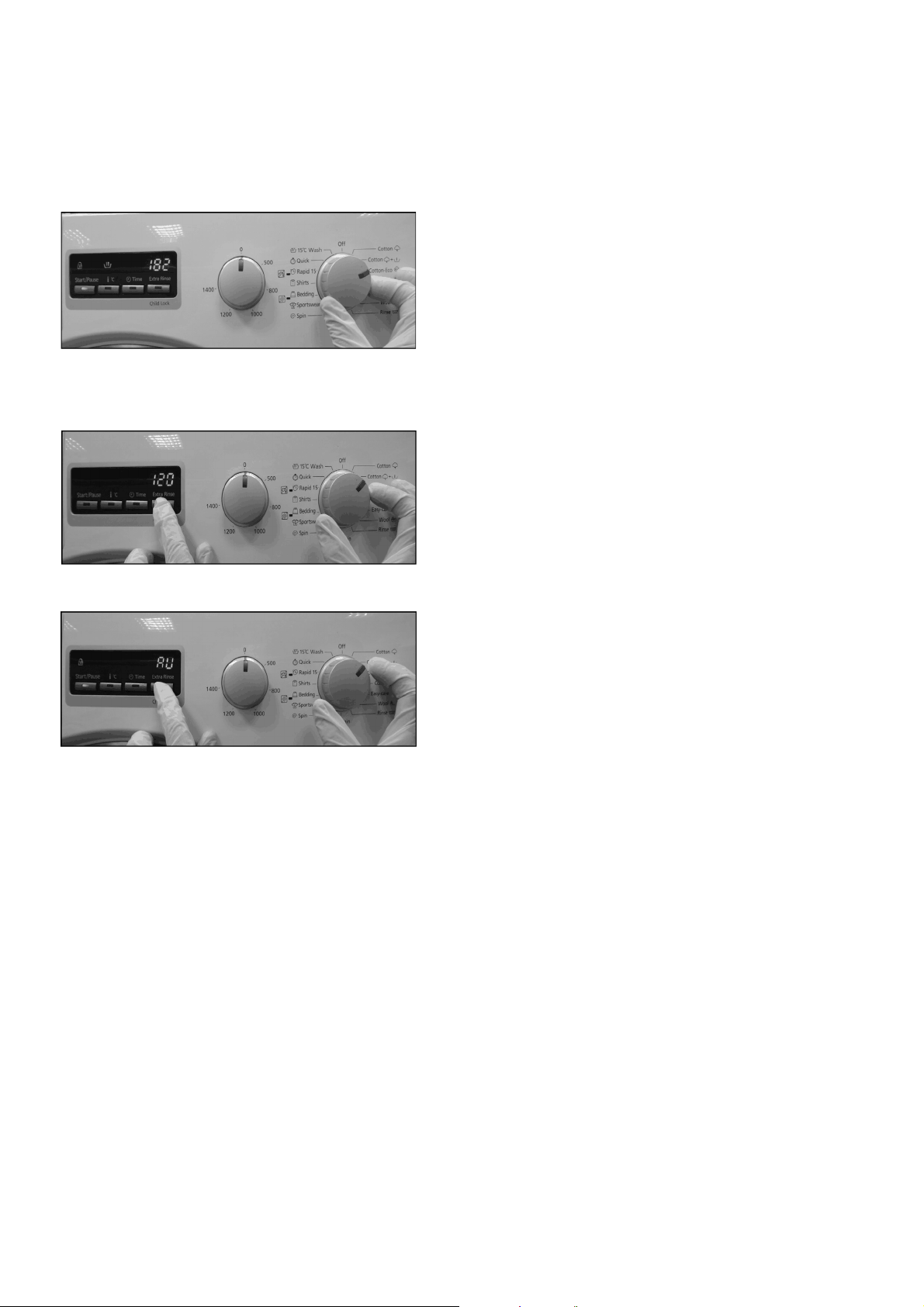

7.1. Autotest
1. After selecting spin speed to max, select the program 3
(Cotton Eco)
2. While pressing Extra Rinse button, change position of the
third to second, and release the Extra Rinse button imme-
diately.
3. Autotest starts.

13

14
8 Service Mode
8.1. Service Autotest
1. Set program knob at Cotton Eco after selection spin speed to max.
2. While pressing the T °C button, change position of the third to second, and remove the T °C button within 1 second.
During test [SAU] is visualized on display :
LD1 Start / Pause Button LED →ON
LD9 Door Lock LED →ON (in a 30 sec)
Display →[SAU]
The test steps are as below ;
Step 1 :
• Selector Cotton will be [HEATER ON]
• Before heating it should take water till first level frequency
then start heating.
• Heater will be on max. 8 minutes after this 8 minutes if the
temp. doesn't change more than 2 °C then it will give NTC
failure. (E05).
• Or if the NTC connection is broken then it should give again
E05 NTC failure.
• At the end of heating, [SAU] visualization should make slow
blink to indicate that the step is over.
• Note : If user changes the selector position, machine will do
what is defined for the new selected position.
Step 2 :
• Selector Cotton with Prewash will be [PUMP ON]
• Temperature will be measured, if it is higher than 50 °C, it
should take 60 sec. cooling water, and then make [Drain + 5
sec.]
• At the end of pump activation, [SAU] visualization should
make slow blink to indicate that the step is over.
Step 3 :
• Selector Cotton Eco will be 15 minutes test program.
• So, time for selector position 3 is 15 minutes.
• At the end of 15 minutes test program [END] is visualized
and door is unlocked. During test pressing other buttons
makes no change.
• LD1 Start / Pause button LED →ON
LD9 Door Lock LED →When the door is unlocked it will be
off
Display →[END]
15 Minutes Test Program
• Total water consumption : 30 L (14L Main Wash, 16L Rinse)
• Total duration : 15 min. (8 min Main Wash, 7 min Rinse)
• Total 53 r/min motor movement : 6.5 min. (4.5 min Main
Wash, 2 min Rinse)
• Heating : 1,5 min during Main Wash
• Spinning :
400 r/min (After Main Wash)
800 r/min (After Rinse)
• Number of Rinses : 1
Selector Cotton Selector Cotton Prewash Selector Cotton Eco
Result Result Result
HEATER ON PUMP ON TEST PROGRAM ON
Comments : When entering in service test, door
will be locked.
Test is over Door will be unlocked,
machine will go to ENS state.

15
8.2. Failure Codes
Error Indication Error Number Indication For User Indication For Service
Yes/No Yes/No
Door is not locked E01 Yes Yes
Door is unlocked during programme E01 Yes Yes
Lack of water E02 Yes Yes
Pump failure E03 Yes Yes
Overflow E04 Yes Yes
NTC or Heater Failure E05 No Yes
Motor Failure - 1 (Tachometer open-short circuit or
motor connector is disconnected)
E06 No Yes
Motor Failure - 2 (triac short circuit) E08 No Yes
Electronic Pressure Sensor E10 No Yes

16
9 Troubleshooting Guide
All repairs which must be done on the machine should be done by authorized agents only. When a repair is required for machine or
you are unable to eliminate the failure with the help of the information given below:
• Unplug the machine.
• Close the water tap.
FAILURE PROBABLE CAUSE METHODS OF ELIMINATION
Machine does not
operate.
It is unplugged. Insert the plug into the socket.
Fuse is defective. Change fuse.
Start / Pause button has not been pressed. Press the start / pause button.
The program knob is in 0 (off) status. Bring the program knob on the desired status.
The door is not shut properly. Shut the door properly. You should hear the click.
Child lock is active. Refer to 6.5. Child Lock.
Machine does not
receive water.
Water tap is closed. Open water tap.
The water inlet hose may be bent. Check the water inlet hose.
The water inlet hose is obstructed. Clean the filters of water inlet hose.
The water inlet filter is obstructed. Clean the valve inlet filters.
The door is not shut properly. Shut the door properly. You should hear the click.
Machine is not drain-
ing water.
The drain hose is obstructed or bent. Check the drain hose.
The pump filter is obstructed. Clean the pump filter.
The clothes are not placed inside the machine in a
well-balanced manner.
Spread the clothes inside the machine in an orderly
and well-balanced manner.
Machine is vibrating. The feet of machine are not adjusted. Adjust the feet.
Transportation screws are not removed. Remove transportation screws.
There is a small amount of clothes in the device. It does not prevent operation of the machine.
Excessive amount of clothes are filled in the machine
or the clothes are not placed in a well-balanced man-
ner.
Do not exceed the recommended quantity of clothes
and spared clothes in the machine in a well-balanced
manner.
Excessive foam in
the detergent drawer
Too much detergent has been used. Press the start/pause button. In order to stop the
foam, dilute one table-spoon of softener in half liter of
water and pour it in the detergent drawer. Press the
start/pause button after 5-10 minutes. Arrange the
amount of the detergent properly in the next washing
process.
Wrong detergent has been used. Use only the detergents produced for full automatic
machines.
The washing result is
bad.
Laundry too dirty for the program you have selected. Select a suitable program.
The amount of detergent used is not sufficient. Use more detergent according to the detergent.
The washing result is
not good.
Clothes exceeding the maximum capacity has been
filled in machine.
Put the clothes in machine in a manner not to exceed
its maximum capacity.
Water may be hard. Use the amount of detergent according to the declara-
tion of the detergent producer.
Distribution of the clothes in machine is not well-bal-
anced.
Spread the clothes inside the machine in an orderly
and well-balanced manner.
The water is seen in
the drum during
washing.
No failure. The water is at the lower part of the drum.
There are residues of
detergent on the
clothes.
The pieces of some detergents which do not dissolve
in water may stick to clothes as white stains.
By calibrating machine for [Rinsing] program, make
an additional rinsing or eliminate the stains After dry-
ing with the help of a brush.
There are grey stains
on the clothes.
These stains may be caused by oil, cream or oint-
ment.
In the next washing operation, use the maximum
detergent amount declared by the detergent producer.
The spinning process
is not done or starts
with delay.
No failure. The unbalanced load control works in that
way.
The unbalanced load control system will try to distrib-
ute clothes in a homogenous manner. After clothes
are distributed, passage to spinning process will be
realized. In the next washing process, place clothes
into the machine in a well-balanced manner.

17
10 Disassembly and Assembly Instructions
10.1. Torque Values
ASSEMBLY LOCATION PART NAME SAP CODE TORQUE
MIN. (Nm)
TORQUE
NOM. (Nm)
TORQUE
MAX. (Nm)
Parazit Filter - Cabinet Assembly ISO 7049 ST 4.2X9.5 R Underhead Serrated 35001817 2,34 2,60 2,86
Pressure Switch Supporting Plastic -
Cabinet Assembly
SCREW 4X12 PAN HEAD WITH COLLAR UNDER
HEAD SERRATED
37013513 1,44 1,60 1,76
Hinge - Cabinet Assembly Without
Hing Support Sheet
SCREW TT M4X8 PAN HEAD CROSS RECESS 35007417 1,40 1,65 1,90
Speed Control Hole Tapper - Cabinet
Assembly
ISO 7049 ST 4.2X9.5 R Underhead Serrated 35001817 1,50 1,50 1,60
Spring Supporting Sheet - Cabinet
Assembly
ISO 7049 ST 4.2X9.5 R Underhead Serrated 35001817 1,98 2,20 2,42
Front Panel - Cabinet Assembly ISO 7049 ST 4.2X9.5 R Underhead Serrated 35001817 2,30 2,40 2,80
Front Panel - Plint Assembly ISO 7049 ST 4.8X9.5 R Underhead Serrated 37010108 2,40 3,50 3,70
Middle Support Braket - Cabinet
Assembly
ISO 7049 ST 4.2X9.5 R Underhead Serrated 35001817 2,43 2,70 2,97
Control Panel - Front Panel Assembly ISO 7049 ST 4,2x13 TYPE 2 37007273 2,43 2,70 2,97
Door Lock - Cabinet Assembly ISO 7049 ST 4,2x16 35008931 1,10 1,60 1,70
Adjustable Foot M10x1,25 6g 47000778 2,50 2,80 3,10
Top Support Sheet - Cabinet Assembly ISO 7049 ST 4.2X9.5 R Underhead Serrated 35001817 2,43 2,70 2,97
Front Panel Drop Fixing Plastic ISO 7049 ST 4,2x16 35008931 2,50 2,70 2,90
Mechanic Control Panel Program Knob
Supporting Sheet MV1
SCREW 3.5X9 PAN HEAD WITH COLLAR
CROSS RECESS
35007387 0,50 1,00 1,00
Mechanic Control Panel Program Knob
Supporting Sheet MV2
SCREW 3.5X9 PAN HEAD WITH COLLAR
CROSS RECESS
35007387 0,50 1,00 1,00
Detergent Drawer - Control Panel
Assembly
SCREW 4X14 PAN HEAD TYPE 2 37007242 1,00 1,00 1,20
Detergent Drawer - Spring Supporting
Sheet Assembly
ISO 7049 ST 4,2x16 35008931 1,44 1,60 1,76
Drum Group Type A COUNTERSUNK HEAD BOLT M6X22 TORX INOX 37000513 13,00 14,00 16,00
Transport Screw Assembly TRANSPORT SCREW GROUP 2 37009655 6,50 6,50 7,00
Motor Assembly COUNTERSUNK HEAD BOLT 8X28 TORX 37007899 6,00 6,50 7,50
Front Concrete Weight - Front Tub
Assembly
HEXAGON HEAD BOLT 10X52 35007415 17,50 18,00 19,00
Upper Counter Weight Assembly MUSHROOM HEAD SQUARE NECK BOLT M
8X65 WITH M8 NUT
37003063 25,00 27,50 30,00
Pulley - Drive Shaft - Washing Group
Assembly
COUNTERSUNK HEAD BOLT M 8X29 37005142 39,50 40,00 40,50
Drum Wrapper Sheet-Plastic Lifter
Assembly
SCREW 4X14 PAN HEAD INOX 37007086 0,90 1,00 1,10
Front Tub - Rear Tub Assembly HEXAGON HEAD BOLT 6x30 PT 37014521 4,50 4,70 5,00
HEXAGON HEAD BOLT 6x30 DELTA PT 37008870 5,00 5,25 5,50
Motor Cover Assembly THREAD ROLLING SCREW M4X12 PAN HEAD
TORX
35008716 1,10 1,20 1,30
Front Tub- Resistance Protection Foil 1 SCREW 3,5X7 PAN HEAD WITH COLAR CROSS
RE.
37015637 0,60 0,75 0,90

18
10.2. Top Plate
1. Remove two screws that fix the top-plate at the back.
2. Push the top-plate back and pull it up.
10.3. Door
1. Remove two screws that fix the door. (by using the T25)
2. Pull the door up.
3. Remove screws that fix the door group.

19
4. Put the door outside plastic with helping screwdriver as it
is shown in the picture.
5. Remove the door inside plastic as it is shown in the pic-
ture.
6. Remove six screws that fix the door hinge as it is shown
in the picture.
7. Remove the door handle as it is shown in the picture.
8. Remove the door handle pin as it is shown in the pictures.

20
10.4. Spring Wire
1. First remove the spring wire fixing the tub bellows seal by
using the small size screw driver.
Pull the tub bellows seal as it is shown in the picture.
2. Remove the tub bellows seal-body fixing spring.
10.5. Detergent Drawer
1. Remove the detergent drawer and pull it up carefully.
