Paradox Insight
™
HD77
Installation Guide
Revision 1.00

Warranty
For complete warranty information on this product please refer to the Limited Warranty Statement found on
the website www.paradox.com/terms. Your use of the Paradox product signifies your acceptance of all
warranty terms and conditions. Please ensure compliance with the applicable laws of local jurisdictions
including privacy laws.
© 2014 Paradox Ltd. All rights reserved. Specifications may change without prior notice. Canadian and
international patents may apply. EVOHD Digiplex is a trademark or registered trademark of Paradox Ltd. or its
affiliates in Canada, the United States and/or other countries. LODIFF® is a registered trademark of Fresnel
Technologies Inc.
For the latest information on products approvals, such as UL and CE, please visit www.paradox.com.
Note: This hardware or software product (“product(s)”) and its related documentation are provided by
Paradox for use complying with all local, national, and international laws. any express or implied
warranties, including, but not limited to, the implied warranties of merchantability, fitness for a
particular purpose and noninfringement are disclaimed. In no event shall Paradox be liable to any
customer or third party for any direct, indirect, special, exemplary, or consequential damages of any
kind (including, but not limited to, payment for procurement of substitute goods or services; loss of
property, data, or profits; or business interruption) however caused and on any theory of liability,
whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way from
the use of the product(s) and related documentation.
This product is manufactured in Canada.
Paradox
780 Industrial Boulevard
St-Eustache, Quebec
Canada, J7R 5V3
Tel: [phone]
Fax: [phone]

HD77 Installation Guide 3
Contents
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 HD77 Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1.2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.3 LED Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Chapter 2 Hardware Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.2 Location and Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2.3 HD77 Installation (Wall or Corner Mount) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Chapter 3 Configure IP Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Setting Up the Router for Port Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Reserve the IP or Bind the IP to a MAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Chapter 4 HD77 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.1 PIR programming Through BabyWare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2 System Programming Through BabyWare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.3 Registering your Customer’s System with ParadoxMyHome . . . . . . . . . . . . . . 27
4.4 Upgrading Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Chapter 5 Insight Application Configuration . . . . . . . . . . . . . . . . . . . . . . . . 31
Appendix: A Specifications ............................................................................32
HD77 Specifications ............................................................................................................32
Appendix: B PIR Detector Beam Pattern .......................................................33
Appendix: C Certifications .............................................................................34

Introduction 1
4 HD77 Installation Guide
Introduction 1
The Paradox HD77 is an HD video & audio camera with superior PIR detector. HD77 is a high-performance HD
720p color camera, and a microphone with an integrated PIR detector. It offers superior motion detection with
video verification, for areas up to 12m x 12m (40ft x 40ft).
The HD77 enables streaming Video On Demand (VOD) and Record On Demand (ROD) functionality using the
Insight Application. Video and JPEG outputs can be sent to the IPRS-7 monitoring software and to the user's
email to help determine the cause of an alarm, and apply an appropriate response to the situation.
The HD77 provides 24/7 continuous monitoring of your property. The high definition digital video camera
transmits a color signal at 360p resolution during normal light conditions. During periods of low light the HD77
supplies IR illumination that supports the HD77 camera down to zero lumens of light with black and white
signal transmission.
The high quality microphone supplements the video with superior quality audio.
The system’s master user can ensure privacy by setting viewing rights by user. This can be done through the
Paradox Insight app. The HD77 also increases privacy and security by storing video recordings within the
module. This way any recordings are more secure than video files stored on a pubic or private server. The
module only records upon a detection event or when Record On Demand is enabled.
The HD77 is user-centered and respects user privacy. There are 2 levels of authorization. The lower level
authorized users receive 15 minutes of viewing after an alarm. The higher level authorized users have unlimited
viewing and authorization to Record On Demand.
Recording only takes place when an alarm is triggered, or when an authorized user implements Record On
Demand. Each time ROD is enabled the recording is limited to 5 minutes. Images sent to the CMS include only
those from actual alarm events, as defined during installation. Recordings of events remain in control of the
user and are stored within the HD77 device. The master user can download the recordings at his convenience
and to his preferred files location.
1.1 HD77 Key Features
• HD 720p 1.4 Mega Pixel color image sensor
• Video and Audio H.264 streaming for VOD and ROD
• Paradox patented PIR technology
• Video verification of an alarm event viewable by IPRS-7/CMSI or the Mobile application
• Integrated email client to send notification of events as video and/ or images
• Multiple simultaneous multimedia streams
• Event file names and video file names are linked through the naming convention for easy identification
• Auto Gain Control, Auto White Balance, Auto Exposure
• Zero-lux vision using high power IR LEDs
• Microphone for high quality sound transmission
• 4 GB Micro SD card
• Digibus connection to Paradox EVOHD Panel
• LAN connection

HD77 Installation Guide 5
1.2 Overview
The Paradox HD77 is an HD video and audio camera with a superior PIR detector.
Figure 1 – Front view
1.3 LED Status Indicators
The following table describes the HD77 LEDS and their functionality.
Figure 2 – LED Arrangement
LEDs 1, 2, 4, and 5 are used for installer diagnostics. These LEDs are active after boot up, when the lock
mechanism is opened.
P A R A D O X
TX RX
LED 2 LED 3
LED 1 LED 4 LED 5
Camera
Microphone
IR LEDs
Information
TX RX
LED 2 LED 3LED 1 LED 4 LED 5

6 HD77 Installation Guide
Important - LED3: PIR indication can be set to On or Off by the installer, however, the VOD indication can be
turned off only by the master user using the Insight application.
Turning the VOD LED off may be considered in some countries as a violation of applicable laws. Make sure to
install the HD77 according to Local Laws.
Table 1: LED Status Indicators
LED Functionality LED assignment
LED1 Data TX Flashing green = data
transmission
Off = No data
LED2 Data RX Flashing green = data
reception
Off = No data
LED3
(both with the case
locked and
unlocked)
HD77 module is up and running. There are currently no
alarms or requests for VOD/ROD.
OFF
Firmware upgrade in progress Flashing Purple
VOD (no PIR detection) Blue on
Power-up (PIR stabilization and CPU not fully ready –
waiting for all labels)
Flashing Blue
Locate mode Flashing Blue
General bus failure, wiring problem, too many modules
communication problem
Red on
Bus low power Flashing Red
PIR alarm Red for 5 sec
LED4 Active Web connection Green
LED5 100MB/10MB link
100MB/10MB data TX or RX
Green = LAN Active
Off = No Connection
Flashing green on data

Hardware Installation 2
HD77 Installation Guide 7
Hardware Installation 2
This section explains the hardware requirements and mounting instructions.
2.1 Requirements
Before you start the installation make sure you have all of the required infrastructure, tools and software.
2.1.1 Hardware
Note: A singleCAT5 or higher cable can be used to wire a single HD77 camera. This cable includes 2 twisted
pairs for the 4-wire combus and 2 twisted pairs for the Ethernet lines. When using this option the cable
length is limited to 50 meters. When using this option the cable length is limited to 50 meters.
Note: An alternate wiring scheme is to wire the HD77 with two separate cables. 1 Ethernet cable and 1– 4-
wire combus.
In order to take full advantage of all that the Insight Solution has to offer ensure that the mounting location has
the following infrastructure:
• 4-wire combus cable that connects to the EVOHD
• Ethernet line that connects to a router or Ethernet switch
• a router with enough ports to connect all of the cameras (1 port for each camera) plus 1 port if you are
using an IP150, 1 port for your computer, and 1port for the incoming internet connection
If the router does not have enough ports you will also need a switch.
The router will need to be configured for port forwarding for the HD77. Each HD77 in the system will
have a different IP address and each one will need port forwarding to two ports of its IP address. One
from the external IP address:port (any port above port #1024) to the internal <IP address>:80 and
one for <IP address>:443.
The installer will also need to have the following job specific tools and equipment:
• a laptop with Windows 7
• a connection from your laptop to the system either by:
• 307USB cable
OR
• IP150 Internet module to connect to the EVOHD serial port

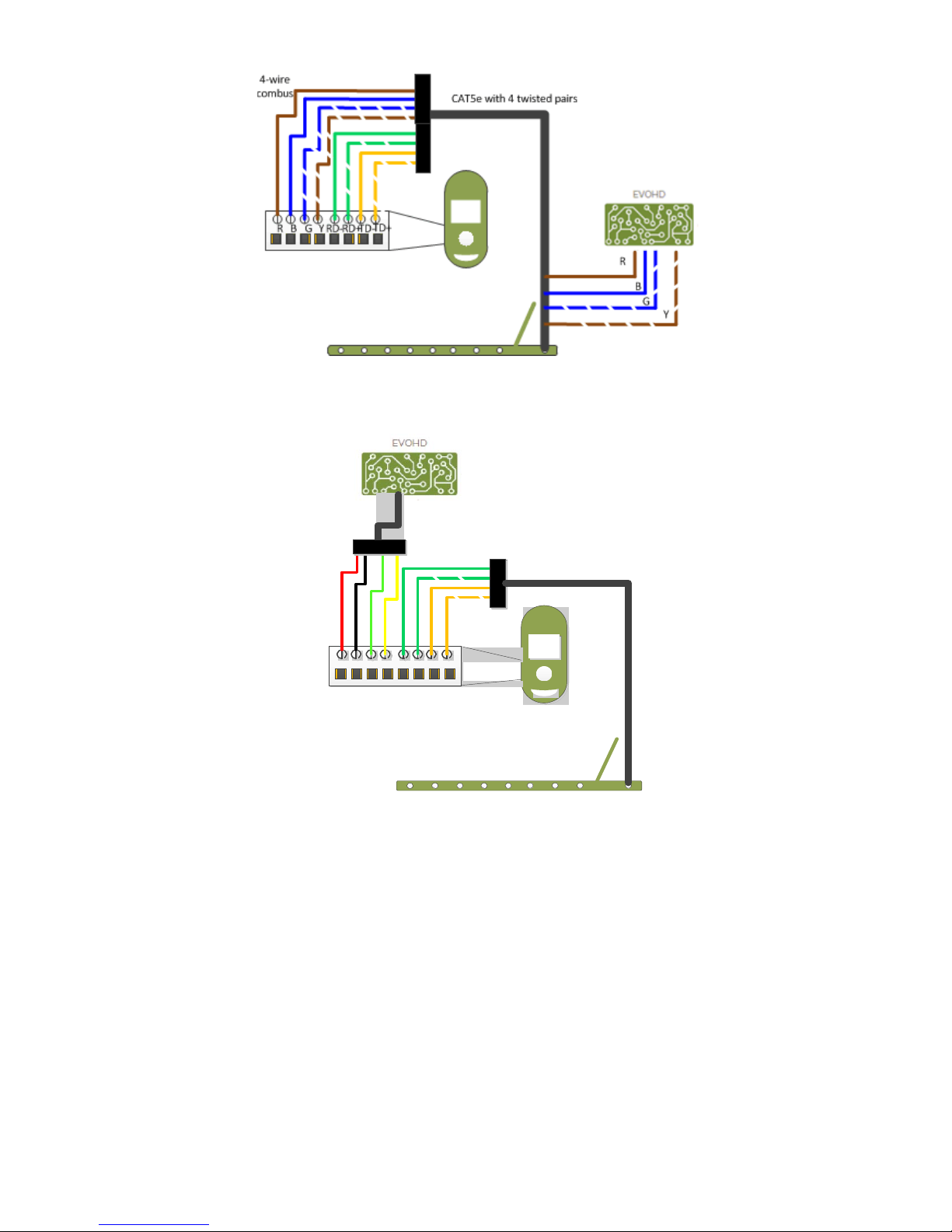

Figure 3 – Recommended wiring for using the oneCAT5 or higher cable

8 HD77 Installation Guide
Figure 4 – HD77 Hardware Connections
2.1.2 Software
The installer will also need to have the following software available on his laptop.
• BabyWare Installer software V 2.5 or higher (downloadable from paradox.com)
• Paradox IP Exploring Tool V1.66 or higher (downloadable from paradox.com)
2.2 Location and Mounting
Follow the recommendations and cautions in order to get the most out of your system.
2.2.1 Recommendations
• Install the device at a height between 2.1m to 2.7m (7ft to 9ft), allowing a minimum gap of 2cm (~1 in)
from the ceiling (to allow for opening/closing of the cover).

HD77 Installation Guide 9
Figure 5 – Mounting Guidelines
• Install the device in a location where the detector and camera’s field of view is clear of any obstacles.
• For LAN connection, use a CAT5e/CAT6 Ethernet cable (70m Max.) between the HD77 and the router.
• Mount the module so that walking traffic cuts across the beam pattern.
2.2.2 Cautions
• Do not install the device near objects causing temperature changes such as heaters, refrigerators and
ovens.
• Do not install the device in the path of air flow from vents, fans or windows.
• Do not install the device in the path of reflective surfaces, direct sunlight or infrared light.
• Do not install the device where it is exposed to oil vapors or steam.
• Do not touch the sensor surface or the camera lens as this could result in a detector malfunction.
2.3 HD77 Installation (Wall or Corner Mount)
1. Separate the front from the back plate of the HD77:
Step 1. Open the lock mechanism at the bottom of the device.
Step 2. Pry the cover off from the bottom of the unit.
Step 3. Lift the front cover up and away. On the back of this module you will see the serial number.
Step 4. Knock out the appropriate holes on the back plate. Use an awl or an ice pick.
Step 5. Write the serial number of the module into your module table. Include the exact location of this
module. If you are using BabyWare the serial number will be displayed, but you will need to
write down the correct location for each module serial number.
2. Ensure to include the wall tamper knockout for the installation.

10 HD77 Installation Guide
Figure 6 – Knockout Locations
3. Secure the back plate to the wall at the location:
Step 1. Install the device a minimum of 2cm (~1 in) from the ceiling, between 2.1m and 2.7m off the
floor.
Step 2. Insert the Ethernet and 4-wire combus cables through the wiring slot of the back plate.
Step 3. Secure the back plate to the wall with screws. (use wall anchors if required).
Step 4. Ensure that the wall tamper knockout is secured to the wall.
Step 5. Wire up both the 4-wire combus and the Ethernet cable.
Step 6. Connect the wires to the terminal board as seen in Figure 8 on page 11 and Figure 7 on page 11.
Note: A singleCAT5 or higher cable can be used to wire a single HD77 camera. This cable includes 2 twisted
pairs for the 4-wire combus and 2 twisted pairs for the Ethernet lines. When using this option the cable
length is limited to 50 meters. When using this option the cable length is limited to 50 meters.
RBGYRx- TX-RX+ Tx+
RBGYRx- TX-RX+ Tx+
Anti-Tamper
For corner
installation
Anti-Tamper
For wall
installation
Wall mount
Ceiling
Corner mount

HD77 Installation Guide 11
Figure 7 – Recommended wiring for using theCAT5 or higher cable option.
Figure 8 – HD77 2 Cables Wiring
Note: These are 2 separate cables going to two different locations. One cable to the router and one cable to
the EVOHD.
Step 7. Slack wire should not interfere with closing the cover.
RBGYRD- TD-RD+ TD+
4-wire combus
Ethernet

12 HD77 Installation Guide
4. Place the front cover onto the back plate:
Step 1. Install the top of the unit first.
Step 2. Close the HD77 onto the back plate.
Step 3. Close the lock mechanism at the bottom of the device. (note that by securing the lock, the tech-
nician indication LEDs will be turned off).
5. Connect the Ethernet line to the router (if not already connected). Make sure the router is turned on.
6. Connect the Ground from the power line to the metal box and to the GND connector on the EVOHD board.
If a plastic box is used connect the power ground to the GND connector on the EVOHD board directly.
Warning: Connect the box and board to a valid ground connection.
7. After the whole system hardware is connected power up the system by connecting the power lines from
the 16V AC transformer to an outlet.
Note: This outlet must not have any in-line switches!
8. The system will boot-up including the HD77s.
The HD77 boot-up is indicated by LED3. The LED will flash blue for up to 3 minutes.

Configure IP Router 3
HD77 Installation Guide 13
Configure IP Router 3
With the IP150 and Cameras wired to the router, perform the port forwarding and reserve the IP addresses of
the IP150 and the HD77cameras.
Determine if this job site has a network administrator. See if he is able to assist you in this part of the
installation.
Note: This procedure is dependent upon the individual router and network security for the end user’s system.
The end user’s router may require a different procedure.
The following provides an example for one type of router. Refer to the router manufacturer's documentation for
detailed instructions. If the end user does not have his router documentation you can find the correct
instructions on the internet.
3.1 Setting Up the Router for Port Forwarding
Following is an example of instructions for port forwarding.
Note: The end users specific router may require different instructions.
EXAMPLE:
1. Ensure that the router is connected properly as indicated in the router’s instructions.
2. Access your router’s configuration page:
Step 1. Refer to your router’s manual for the exact procedure. In most cases, this is done by entering
the router’s IP address in the address bar of your web browser. Your router’s IP address may be
indicated in the router’s instructions or on a sticker on the router.
Step 2. If you cannot find the IP address of the router, try the following from your Windows Screen:
Step a. Open a command prompt window. Press the windows button on your keyboard.
In the search programs and files window type in Command.
Step b. Select Command Prompt.
Step c. At the prompt Type ipconfig
Step d. Press Enter.
The router IP address will be the Default Gateway . . . . .:xx.xx.xx.xxx

14 HD77 Installation Guide

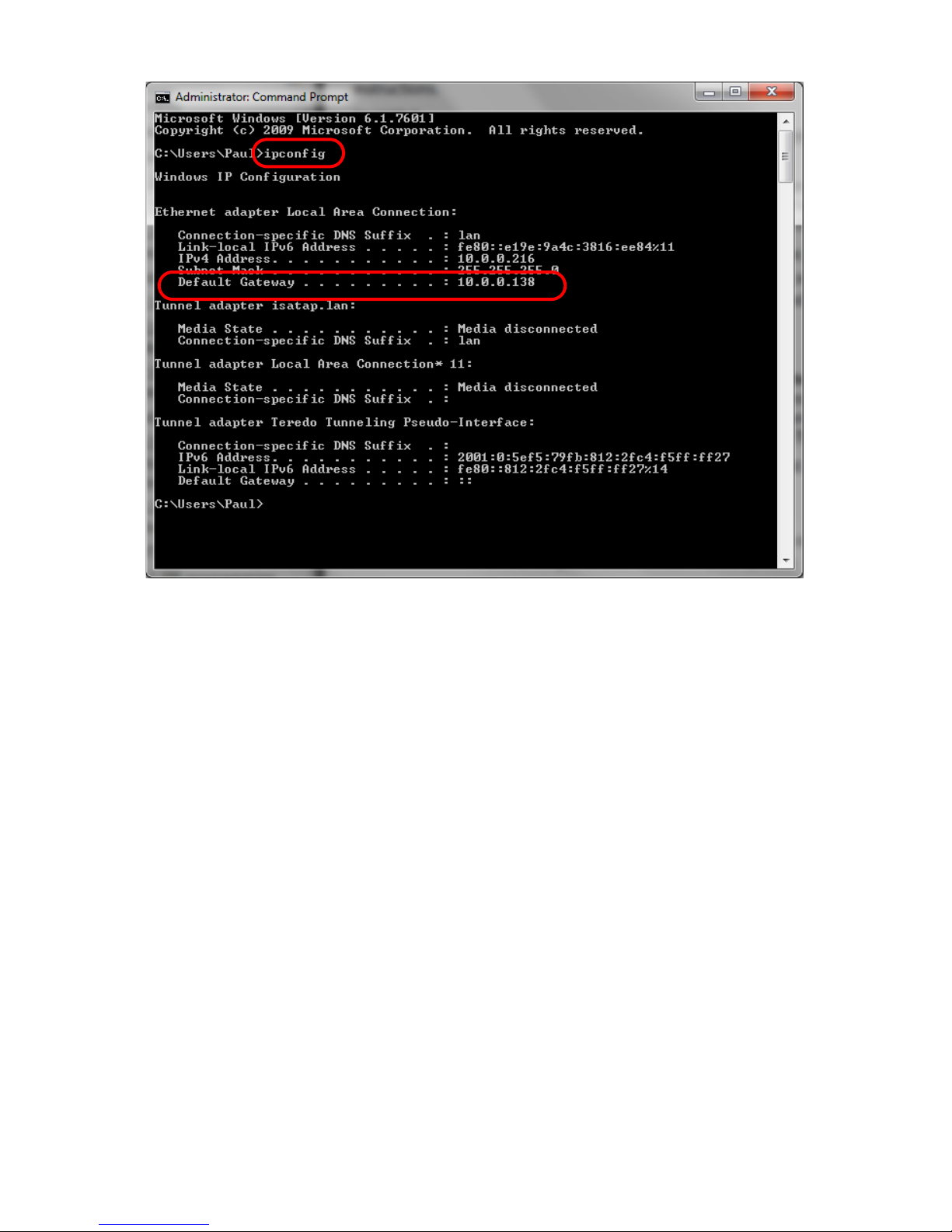

Figure 9 – Command Prompt ipconfig
Step e. Enter this IP address into the address bar at the top of the browser page. Press
Enter.
Step f. Put in the user name and password. If you do not know the user name and pass-
word, go to the site www.routerpasswords.com and select your router manufac-
turer and model. The default user name and password should be listed.
Step 3. For this instruction sheet, we will use 10.0.0.138 as an example, since it is the router IP address
seen in Figure 9.

HD77 Installation Guide 15
3. In the router’s configuration page, check the DHCP settings:
Step 1. If DHCP is enabled, verify that the IP address range is large enough to accommodate all of your
cameras. Four cameras will require 4 IP addresses.
Figure 10 – DHCP Enable
Step 2. Record one address at the upper end of the DHCP range for each HD77 in your system. You will
need two ports for each IP address one port for (port 80) for HTTP and one port for (port 443)
for HTTPS.
Step 3. DHCP Settings (screenshot may differ depending on type of router used).
Figure 11 – Port Forwarding
Figure 12 – Fill in the Port Forwarding Information

16 HD77 Installation Guide
4. In the router’s configuration page, go to the Port Forwarding section (also known as “port mapping”, "NAT",
(network address translation), or “port redirection”).
5. Select an available port on the router and assign it to the HD77 camera. Select a port above #10000 for the
external port. This will be internal port 80 on the camera side. For example, set the router port number to
10166 (assuming that it is available) to HD77 port 80. The HD77 IP address according to the IP Exploring
tool is 10.0.0.166:10166.
6. Repeat the procedure using the same IP address, select the next consecutive port and assign it to port 443
for HTTPS.

HD77 Installation Guide 17
Note: As a suggested standard try to assign the port so that it has 10 + the last section of the IP address.
In step 5 above notice that The IP address is 10.0.0.166 and the port # is 10166. The port number is
chosen arbitrarily by the installer. Choosing the port number to match the IP address will make
configuration easier.
Example of IP addresses and ports for 4 cameras.
Note: Each camera needs a separate IP address and matching external port.
Figure 13 – HD77 IP Address
Note: The IP Exploring tool must be closed before you try and connect to the EVOHD panel through
BabyWare.
3.2 Reserve the IP or Bind the IP to a MAC
You need to bind the IP address of the HD77 to a MAC address in your router. This is called reserving an IP
address or binding an IP address.
This is done on the router, just like you connected to the router for port forwarding you will need to connect for
reserving a port. This should be under the LAN properties.
Table 2: List of Cameras
Camera name Location IP Address External port
number
Internal port
number
Living room facing front door 10.0.0.166
10166 80
10167 443
Den facing sliding rear
door 10.0.0.168
10168 80
10169 443
Safe room facing the safe 10.0.0.170
10170 80
10171 443
2nd floor looking down the
staircase 10.0.0.172
10172 80
10173 443

18 HD77 Installation Guide
Since each router is different you may need to use the router user manual or search online for instructions for
your particular router.
You can also try searching the internet for videos on routers and reserving IP addresses (screenshots may differ
depending on type of router used).
Figure 14 – Binding or Reserving a Port
Once the IP is successfully reserved:
1. Make sure that you are disconnected from BabyWare.
2. Open the IP Exploring Tool.
3. Right click the HD77 camera.
4. Select Module Setup.
5. Check the box for “Obtain an IP address automatically”. This means that DHCP is enabled.
6. Put in the Module password [paradox].
7. Click OK.
Router Configuration page Paradox IP Exploring Tool

HD77 Programming 4
HD77 Installation Guide 19
HD77 Programming 4
All PIR parameters of the HD77 can be configured by the installer using the TM50 touchpad, the K641 plus
keypad, and by using BabyWare software. Server parameters must be programmed through BabyWare, only.
Note: To program the module sections from any keypad BabyWare must be disconnected from the system.
Note: ALWAYS DO A READ before programming.
4.1 PIR programming Through BabyWare
1. In BabyWare under the Security Modules double click the HD77 modules or right click the HD77 module
and Click Properties. The HD77 Programming screen appears.
Note: Due to our constant efforts to improve our products the software screen grabs may not be exactly the
same as your screen.
Figure 15 – BabyWare Main Screen
Note: This may take up to 1 minute.
2. Wait for the properties to appear.
3. Use VOD to verify Camera vision / image / angle.
In BabyWare => HD77 Properties => Video tab => play button

20 HD77 Installation Guide
Figure 16 – HD77 Video Stream in BabyWare
4. Configure PIR settings.
Note: Always do a Receive Programming before configuring.
Figure 17 – Receive Programming
5. Select the configuration parameters (See Figure 18 on page 21):
•ShowPIRLEDCheck this box to activate LED#3 to display when PIR motion is detected LED#3 lights up Red.
When this box not checked LED#3 stays off when PIR motion is detected. – Default is on.
• PIR sensitivity level – Default is #3.
Sensitivity level 1 is low sensitivity, useful for a room with large windows, or a small room.
Sensitivity level 5 is high sensitivity, useful for a large room with small windows.
• PIR Security level – Default is Normal.
