Parkside PABH 20-Li B2 User manual

CORDLESS HAMMER DRILL PABH 20-Li B2
AKKU-BOHRHAMMER
Originalbetriebsanleitung
IAN 339124_1910
CORDLESS HAMMER DRILL
Translation of the original instructions
АКУМУЛАТОРЕН ПЕРФОРАТОР
Превод на оригиналното ръководство за експлоатация
CIOCAN ROTOPERCUTOR
CUACUMULATOR
Traducerea instrucţiunilor de utilizare original
ΕΠΑΝΑΦΟΡΤΙΖΟΜΕΝΟ
ΚΡΟΥΣΤΙΚΟ ΔΡΑΠΑΝΟ
Μετάφραση των αυθεντικών οδηγιών λειτουργίας
AKU UDARNA BUŠILICA
Prijevod originalnih uputa za uporabu
AKU UDARNA BUŠILICA
Prevod originalnog uputstva za upotrebu

GB/ CY Translation of the original instructions Page 1
HR Prijevod originalnih uputa za uporabu Stranica 15
RS Prevod originalnog uputstva za upotrebu Strana 29
RO Traducerea instrucţiunilor de utilizare original Pagina 43
BG Превод на оригиналното ръководство за експлоатация Cтраница 57
GR/ CY Μετάφραση των αυθεντικών οδηγιών λειτουργίας Σελίδα 73
DE/ AT /CH Originalbetriebsanleitung Seite 87
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of
the device.
Prije nego što pročitate tekst, otvorite stranicu sa slikama i upoznajte se na osnovu toga sa svim funkcijama
uređaja.
Pre čitanja rasklopite obe strane sa slikama te se upoznajte sa svim funkcijama uređaja.
Înainte de a citi instrucţiunile, priviţi imaginile şi familiarizaţi-vă cu toate funcţiile aparatului.
Преди да прочетете отворете страницата с фигурите и след това се запознайте с всички функции
на уреда.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις λειτουργίες
της συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.

AR

20V max.
18V

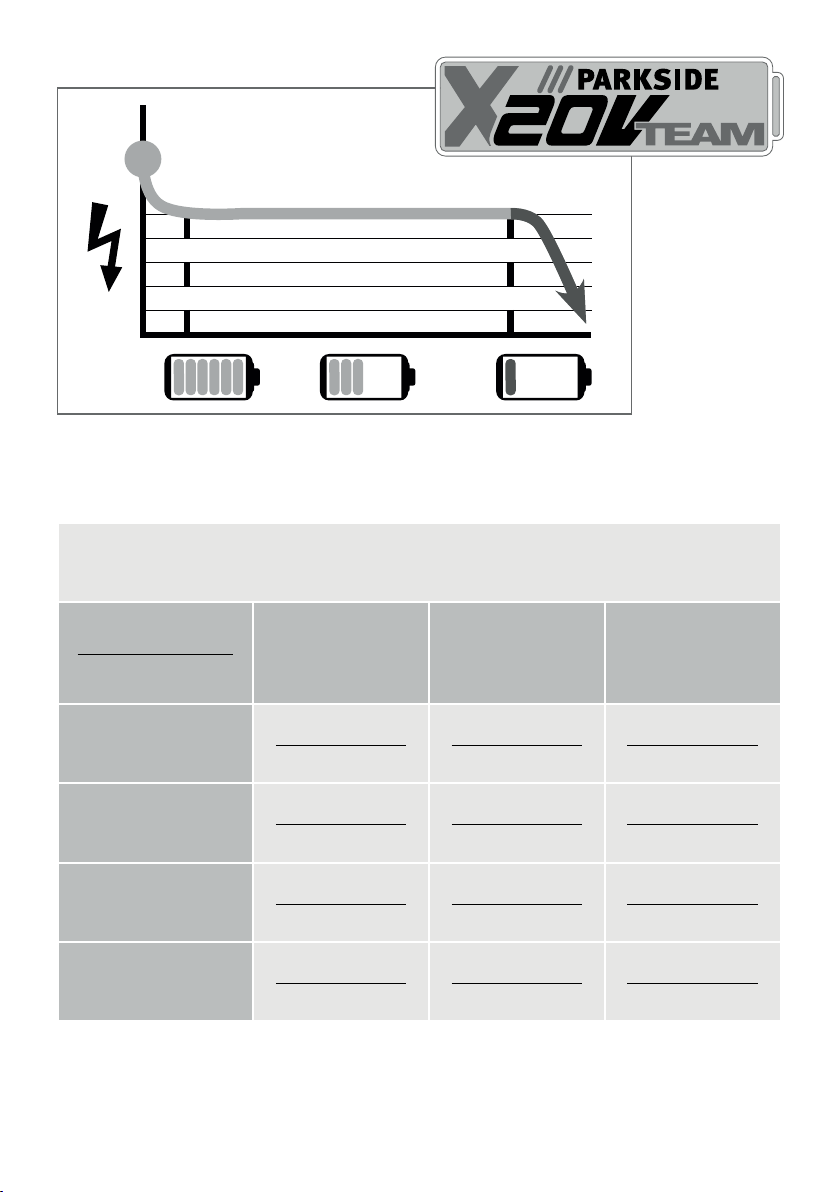

All Parkside tools and the chargers PLG 20 A1/PLG 20 A2/PLG 20 A3/PDSLG 20 A1 of the
X20V Team series are compatible with the PAP 20 A1/PAP 20 A2/PAP 20 A3 battery pack.
Charging times
Charging currents
2 Ah
Battery pack
PAP 20 A1
3 Ah
Battery pack
PAP 20 A2
4 Ah
Battery pack
PAP 20 A3
max. 2.4 A
Charger PLG 20 A1
60 min
2,4 A
90 min
2,4 A
120 min
2,4 A
max. 3.5 A
Charger PLG 20 A2
60 min
2,4 A
60 min
3,5 A
80 min
3,5 A
max. 4.5 A
Charger PLG 20 A3
45 min
3,5 A
45 min
4,5 A
60 min
4,5 A
max. 4.5 A
Charger PDSLG 20 A1
35 min
3,5 A
45 min
4,5 A
60 min
4,5 A

PABH 20-Li B2 GB│CY │ 1 ■
Contents
Introduction .........................................................2
Intended use .................................................................... 2
Depicted components ............................................................. 2
Package contents................................................................. 2
Technical data ................................................................... 2
General Power Tool Safety Warnings ....................................3
1. Work area safety .............................................................. 3
2. Electrical safety ................................................................ 4
3. Personal safety ................................................................ 4
4. Use and handling of the power tool ................................................ 5
Use and handling of the cordless electrical power tool.................................... 5
5. Service....................................................................... 5
Safety guidelines for battery chargers................................................. 6
Safety instructions for hammer drills .................................................. 6
Original accessories/auxiliary equipment.............................................. 6
Before use...........................................................7
Charging the battery pack (see fig. A) ...................................................7
Checking the battery charge level.................................................... 7
Attaching/disconnecting the battery pack to/from the appliance ........................... 7
Operation ...........................................................7
Selecting a tool .................................................................. 7
Tool-changing ................................................................... 7
Fitting an SDS tool/Keyless chuck .................................................... 8
Removing an SDS tool ............................................................. 8
Operation ...........................................................8
Select operating mode ............................................................ 8
Setting the rotation direction ........................................................ 8
Switching on/off ................................................................. 9
Set drill/hammer speed............................................................ 9
Maintenance and cleaning .............................................9
Disposal.............................................................9
Kompernass Handels GmbH warranty ..................................10
Service.............................................................11
Importer ...........................................................11
Translation of the original Conformity Declaration.........................12
Ordering a replacement battery........................................13
Telephone ordering ..............................................................13

PABH 20-Li B2
■ 2 │ GB│CY
CORDLESS HAMMER DRILL
PABH 20-LI B2
Introduction
Congratulations on the purchase of your
new appliance. You have selected a high-
quality product. The operating instructions
are part of this product. They contain important
information about safety, usage and disposal.
Before using the product, please familiarise your-
self with all operating and safety instructions. Use
the product only as described and for the range of
applications specified. Please also pass these oper-
ating instructions on to any future owner.
Intended use
The cordless hammer drill PABH 20-Li B2
(hereinafter appliance) is suitable for:
▯ Hammer-drilling into brickwork, concrete and
stone
▯ Drilling into stone, wood and metal
▯ Screwing into wood and metal
Any other usage of or modification to the appliance
is deemed to be improper and carries a significant
risk of accidents.
The manufacturer accepts no responsibility for
damage(s) attributable to misuse.
The appliance is not intended for commercial use.

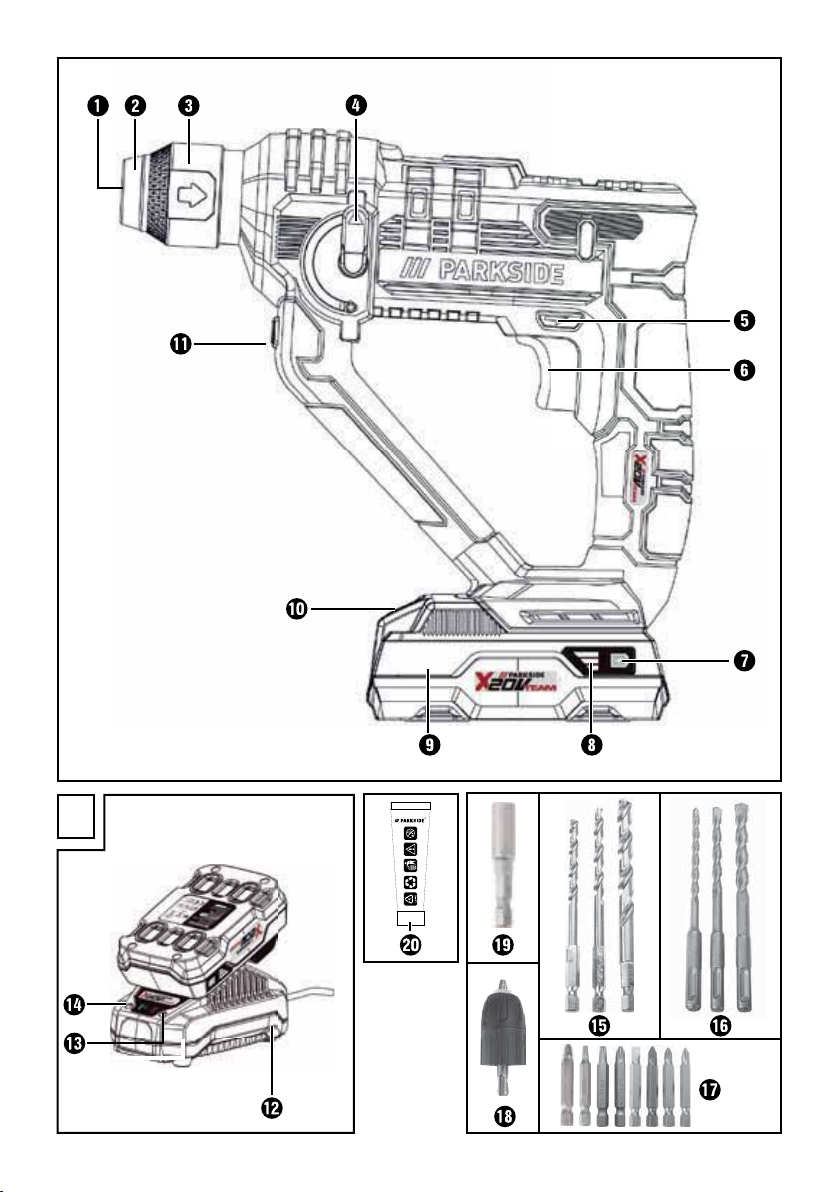

Depicted components
SDS-plus tool holder
Dust protection cap
Locking collar
“Drill/hammer drill” switch
Rotation direction switch
On/Off switch
Battery charge level button
Battery display LED
Battery pack*
Release button for the battery pack
LED work light
High-speed charger*
Red charge control LED
Green charge control LED
Drill with hexagonal shank
Drill with SDS-plus fitting
Screwdriver bits
Keyless chuck
Universal bit holder
Grease
Package contents
1 cordless hammer drill PABH 20-Li B2
3 x 150 mm SDS-plus drills Ø 6/8/10 mm
3 x drill bits Ø 5/6/8 mm (HSS) with hexagonal
shanks
6 x 50 mm bits (S2):
5.5/PH1/PZ1/PZ2/PZ2/T20/T25
2 x Bit PH2 (50 mm)
1 x bit extension (hexagonal shank)
1 x 10 mm keyless chuck for round shank drill bits
(SDS-plus fitting)
1 carrying case
50 g grease
1 set of operating instructions
Technical data
Cordless hammer drill PABH 20-Li B2
Nominal voltage 20 V (DC)
Idle speed n00–900 rpm
Stroke rate 0–5000 spm
Stroke energy ≥ 1 joule
Max. drill diameter 8 mm for metal
10 mm for concrete
16 mm for wood
Battery pack PAP 20 A1*
Type LITHIUM ION
Rated voltage 20 V (DC)
Capacity 2 Ah
Cells 5
High-speed charger PLG 20 A1*
INPUT
Rated voltage 230–240 V ∼, 50 Hz
(AC)
Rated power consumption 65 W
Fuse (internal) 3.15 A T3.15A

PABH 20-Li B2 GB│CY │ 3 ■
OUTPUT
Rated voltage 21.5 V (DC)
Rated current 2.4 A
Charging time approx. 60 min
Protection class II/
(double insulation)
* BATTERY AND CHARGER ARE NOT INCLUDED
Noise emission value
Noise measurement value determined in accord-
ance with EN 60745. The A-rated noise level of
the power tool is typically:
Hammer drilling
Sound pressure level LpA = 86.5 dB(A)
Uncertainty KpA = 3 dB(A)
Sound power level LWA = 97.5 dB(A)
Uncertainty KWA = 3 dB(A)
Wear hearing protection!
Total vibration value
Total vibration values (vector total of three directions)
determined in accordance with EN 60745:
Hammer drilling in concrete ah(HD) =4.724m/s2
K = 1.5 m/s2
WARNING!
► The vibration level varies in accordance with
the use of the power tool and may be higher
than the value specified in these instructions
in some cases. Regular use of the electric tool
in such a way may cause the user to underes-
timate the vibration. Try to keep the vibration
loads as low as possible. Measures to reduce
the vibration load are, e.g. wearing gloves
and limiting the working time. All states of
operation must be taken into account (e.g.
times when the power tool is switched off and
times where the power tool is switched on but
running without load).
NOTE
► The vibration level specified in these instruc-
tions has been measured in accordance
with the standardised measuring procedure
specified in EN 60745 and can be used to
make equipment comparisons. The specified
vibration emission value can also be used to
make an initial exposure estimate.
General Power Tool
Safety Warnings
WARNING!
► Read all safety warnings and all
instructions. Failure to follow the
warnings and instructions may
result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future
reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flam-
mable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.

PABH 20-Li B2
■ 4 │ GB│CY
2. Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets
will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat,
or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energising
power tools that have the switch on invites acci-
dents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewel-
lery or long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use
of dust collection can reduce dust-related haz-
ards.

PABH 20-Li B2 GB│CY │ 5 ■
4. Use and handling of the power
tool
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at
the rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children. Do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools diligently. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits,
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Use and handling of the cordless
electrical power tool
a) Charge a rechargeable battery unit using only
the charger recommended by the manufactur-
er. Chargers are often designed for a particular
type of rechargeable battery unit. There is the
danger of fire if other types of rechargeable
battery units are used.
b) Only the rechargeable battery units supplied
are to be used with an electrical power tool.
The use of other rechargeable battery units may
lead to the danger of injury or fire.
c) When they are not being used, store re-
chargeable battery units away from paper-
clips, coins, keys, nails, screws or other small
metal objects that could cause the contacts
to be bridged. Short-circuiting the contacts of
a rechargeable battery unit may result in heat
damage or fire.
d) Fluids may leak out of rechargeable battery
units if they are misused. If this happens,
avoid contact with the fluid. If contact occurs,
flush the affected area with water. Seek addi-
tional medical help if any of the fluid gets into
your eyes. Escaping battery fluid may cause
skin irritation or burns.
CAUTION! RISK OF EXPLOSION!
Never charge non-rechargeable
batteries!
Protect the rechargeable battery
from heat, for example from
continuous exposure to sunlight,
fire, water and moisture.
There is a risk of explosion.
5. Service
a) Have your power tool serviced by a qualified
repair person using only identical replace-
ment parts. This will ensure that the safety of
the power tool is maintained.

PABH 20-Li B2
■ 6 │ GB│CY
Safety guidelines for battery
chargers
■ This appliance may be used by
children aged 8 years and above
and by persons with limited physical,
sensory or mental capabilities or
lack of experience and knowledge,
provided that they are under super-
vision or have been told how to use
the appliance safely and are aware
of the potential risks. Children must
not play with the appliance. Clean-
ing and user maintenance tasks
may not be carried out by children
unless they are supervised.
■ To avoid potential risks, damaged
mains cables should be replaced
by the manufacturer, their customer
service department or a similarly
qualified person.
The charger is suitable for
indoor use only.
ATTENTION!
♦ This charger can only charge the following
batteries: PAP 20 A1/PAP 20 A2/PAP 20 A3 .
♦ A current list of battery compatibility can be
found at www.lidl.de/Akku.
Safety instructions for hammer drills
■Wear hearing protection. Exposure
to loud noise can lead to hearing loss.
■Use the additional handles supplied with the
appliance. Loss of control can lead to injuries.
■Hold the appliance using the insulated handle
areas if you are carry out any work during
which the attached tool could contact hidden
power cables. Contact with a live wire may
electrify exposed metal parts of the power tool
and could give the operator an electric shock.
■Wear a dust mask.
WARNING! TOXIC DUST!
► Working with the tool can produce harmful/
toxic dusts which represent a health hazard
for the person operating the appliance and
for anyone else in the vicinity.
■CAUTION, POWER CABLES! DANGER!
Ensure that you are not likely to hit power, gas
or water supply lines when you are working
with the power tool. If necessary, check with a
service line detector before you start to cut or
drill into a surface.
Original accessories/auxiliary
equipment
■Only use the accessories and additional
equipment that are specified in the operating
instructions and compatible with the appli-
ance.
WARNING!
■ Do not use any accessories which are not
recommended by PARKSIDE. This can lead to
an electric shock and fire.

PABH 20-Li B2 GB│CY │ 7 ■
Before use
Charging the battery pack (see fig. A)
CAUTION!
► Always pull out the plug before you remove
the battery pack from or connect the
battery pack to the charger.
► Never charge the battery pack when
the ambient temperature is below 10°C or
above 40°C.
♦ Connect the battery pack to the high-speed
battery charger (see Fig. A).
♦ Insert the power plug into the socket. The con-
trol LED lights up red.
♦ The green LED indicates that the charging
process is complete and the battery pack is
ready.
♦ Switch off the charger for at least 15 minutes
between successive charging sessions. Also
disconnect the power plug from the mains
power socket.
Checking the battery charge level
♦ Press the battery charge level button to
check the status of the battery (see also main
diagram). The status/remaining charge will be
shown on the battery display LED as follows:
RED/ORANGE/GREEN = maximum charge
RED/ORANGE = medium charge
RED = low charge – charge the battery
Attaching/disconnecting the battery
pack to/from the appliance
Inserting the battery pack
♦ Push the rotation direction switch into the
middle position (lock). Allow the battery pack
to click into the handle.
Removing the battery pack
♦ Press the release button and remove the
battery pack .
Operation
NOTE
► Push the rotation direction switch into
the middle position before carrying out
any work on the power tool (e.g. mainten-
ance, tool-changing, etc.) as well as during
carriage and storage of the power tool.
Unintentional activation of the On/Off
switch can result in injury.
Selecting a tool
■ For hammer drilling, you will need an SDS-plus
drilling tool.
■ For standard drilling in wood, metal, ceramics
and plastic, you can use an appropriate SDS-
plus drilling tool or a tool with a hexagonal
shank.
■ For screwing, use the screwdriver bits that
you can attach using the SDS bit adapter .
Tool-changing
■ You can use the SDS-plus tool holder to
change tools quickly and easily without the
need for any additional tools.
■ The SDS-plus drilling tool moves freely (depend-
ing on the system). This leads to a radial run-out
deviation while idling. This has no effect on the
accuracy of the drill hole as the drill centres
itself during drilling.
■ The dust protection cap largely prevents the
entry of drilling dust into tool holder during
operation. Ensure that the dust protection cap
does not get damaged when fitting tools.
NOTE
► A damaged dust protection cap must
be replaced immediately. We recommend
having this done by a customer service
workshop.

PABH 20-Li B2
■ 8 │ GB│CY
Fitting an SDS tool/Keyless chuck
WARNING!
►
Do not use the quick-action drill
chuck in hammer drilling or chiselling
operation!
♦ Grease the tool holder slightly before
inserting the tool.
♦ Insert the tool rotatingly into the tool holder
until it clicks into place.
♦ Check that the tool is properly locked by pulling
it. The system has radial play because of the
design.
Removing an SDS tool
♦ Pull the locking sleeve backwards and
remove the tool.
Operation
Select operating mode
■ Use the “Drill/hammer drill” switch to select
the operating mode of the power tool.
NOTE
► Change the mode only when power tool is
switched off. Otherwise, the tool could be
damaged.
♦ To change the operating mode, turn the “Drill/
hammer drill” switch to the desired position.
Hammer drilling = Hammer ON
Drilling/screwing = Hammer OFF
Setting the rotation direction
NOTE
► Operate the rotation direction switch only
when the appliance is at a standstill.
■ You can use the rotation direction switch to
change the direction of rotation of the power
tool. This is not possible, however, while the on/
off switch is pressed in.
Clockwise
♦ For drilling and screwing in screws, turn the
rotation direction switch to the left as far
as the stop.
♦Anti-clockwise
♦ For undoing and removing screws and nuts, turn
the rotation direction switch to the right as
far as the stop.

PABH 20-Li B2 GB│CY │ 9 ■
Switching on/off
Switching on
♦ To start the power tool, press the on/off switch
and keep it pressed in.
■ The lamp lights up when the on/off switch
is pushed in slightly or fully and illuminates the
working area in low light conditions.
Switching off
♦ To switch off the power tool, let go of the on/
off switch .
■ At low temperatures, the power tool will only
reach its full hammer performance/strike power
after a certain time.
■ To save energy, do not switch the power tool
on unless you plan to use it.
Set drill/hammer speed
■ You can infinitely adjust the drill/hammer speed
of the switched on power tool, depending on
how far the on/off switch is pressed in.
Pressing the on/off switch lightly yields a
low drill/hammer speed. Increasing pressure
increases the speed.
Run-on brake
■ When you release the on/off switch , the
brake stops the chuck and prevents run-on of
the tool.
Maintenance and cleaning
WARNING! RISK OF INJURY! Always
switch the appliance off and remove
the battery before carrying out any
work on the appliance.
■ The cordless hammer drill is maintenance-free.
■ Use a soft, dry cloth to clean the housing.
■ If a lithium-ion battery is to be stored for an
extended period, the charge level should be
checked regularly. The optimum charge level is
between 50% and 80%. The optimum storage
environment is cool and dry.
NOTE
► Replacement parts not listed (such as carbon
brushes, switch) can be ordered via our
service hotline.
Disposal
The packaging protects the device
from damage during transport. The
packaging materials have been selected
for their environmental friendliness and
disposal attributes, and are therefore
recyclable.
Returning the packaging into the material cycle
conserves raw materials and reduces the amount of
waste generated. Dispose of packaging materials
that are no longer needed in accordance with
applicable local regulations.
NOTE
► If possible, keep the original packaging of the
device for the entire duration of the warranty
period so that the device can be packed
properly for return shipment in the event of a
warranty claim.

PABH 20-Li B2
■ 10 │ GB│CY
Do not dispose of power tools
in your normal domestic waste!
European Directive 2012/19/EU
requires that worn-out power tools be
collected separately and recycled in an environ-
mentally compatible manner.
WARNING!
■ Remove the battery before disposal.
Do not dispose of batteries in
your normal household waste!
Defective or worn-out rechargeable
batteries must be recycled according
to Directive 2006/66/EC. Take the battery pack
and/or appliance to a nearby collection facility.
Please consult your local authorities regarding
suitable disposal of worn out power tools/battery
packs.
Dispose of the packaging in an
environmentally friendly manner.
Note the labelling on the packaging
and separate the packaging material
components for disposal if necessary. The packag-
ing material is labelled with abbreviations (a) and
numbers (b) with the following meanings:
1–7: plastics, 20–22: paper and cardboard,
80–98: composites.
Your local community or municipal
authorities can provide information
on how to dispose of the worn-out
product.
Kompernass Handels GmbH
warranty
Dear Customer,
This appliance has a 3-year warranty valid from
the date of purchase. If this product has any faults,
you, the buyer, have certain statutory rights. Your
statutory rights are not restricted in any way by the
warranty described below.
Warranty conditions
The warranty period starts on the date of purchase.
Please keep your receipt in a safe place. This will
be required as proof of purchase.
If any material or manufacturing fault occurs within
three years of the date of purchase of the product,
we will either repair or replace the product for you
or refund the purchase price (at our discretion).
This warranty service requires that you present the
defective appliance and the proof of purchase
(receipt) within the three-year warranty period,
along with a brief written description of the fault
and of when it occurred.
If the defect is covered by the warranty, your
product will either be repaired or replaced by us.
The repair or replacement of a product does not
signify the beginning of a new warranty period.
Warranty period and statutory claims for
defects
The warranty period is not prolonged by repairs
effected under the warranty. This also applies to
replaced and repaired components. Any damage
and defects present at the time of purchase must
be reported immediately after unpacking. Repairs
carried out after expiry of the warranty period shall
be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accord-
ance with strict quality guidelines and inspected
meticulously prior to delivery.
The warranty covers material faults or production
faults. The warranty does not extend to product
parts subject to normal wear and tear or to fragile
parts which could be considered as consumable
parts such as switches, batteries or parts made of
glass.

PABH 20-Li B2 GB│CY │ 11 ■
The warranty does not apply if the product has
been damaged, improperly used or improperly
maintained. The directions in the operating
instructions for the product regarding proper use of
the product are to be strictly followed. Uses and
actions that are discouraged in the operating
instructions or which are warned against must be
avoided.
This product is intended solely for private use and
not for commercial purposes. The warranty shall
be deemed void in cases of misuse or improper
handling, use of force and modifications/repairs
which have not been carried out by one of our
authorised Service centres.
The warranty period does not apply to
■ Normal reduction of the battery capacity
overtime
■ Commercial use of the product
■ Damage to or alteration of the product by the
customer
■ Non-compliance with safety and maintenance
instructions, operating errors
■ Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please
observe the following instructions:
■ Please have the till receipt and the item number
(e.g.IAN12345) available as proof of purchase.
■ You will find the item number on the type plate
on the product, an engraving on the product,
on the front page of the operating instructions
(below left) or on the sticker on the rear or
bottom of the product.
■ If functional or other defects occur, please
contact the service department listed either by
telephone or by e-mail.
■ You can return a defective product to us free of
charge to the service address that will be pro-
vided to you. Ensure that you enclose the proof
of purchase (till receipt) and information about
what the defect is and when it occurred.
You can download these instructions
along with many other manuals,
product videos and installation
software at www.lidl-service.com.
This QR code will take you directly
to the Lidl service page (www.lidl-service.com)
where you can open your operating instructions by
entering the item number (IAN) 123456.
Service
Service Great Britain
Tel.: [phone]
E-Mail: [email protected]
CY Service Cyprus
Tel.: [phone]
E-Mail: [email protected]
IAN 339124_1910
Importer
Please note that the following address is not the
service address. Please use the service address
provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com

PABH 20-Li B2
■ 12 │ GB│CY
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21,
44867 BOCHUM, Deutschland, hereby declare that this product complies with the following standards,
normative documents and the EC directives:
Machinery Directive
(2006/42/EC)
EC Low Voltage Directive
(2014/35/EU, charger only)
EMC (Electromagnetic Compatibility)
(2014/30/EU)
RoHS Directive
(2011/65/EU)*
* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the
declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament
and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic
appliances.
Applied harmonised standards:
EN 60745-1:2009/A11:2010
EN 60745-2-6:2010
EN 60335-1:2012/A13:2017
EN 60335-2-29:2004/A2:2010
EN 62233:2008
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 50581:2012
Type designation of machine: Cordless hammer drill PABH 20-Li B2
Year of manufacture: 11-2019
Serial number: IAN 339124_1910
Bochum, 23/01/2020
Semi Uguzlu
- Quality Manager -
The right to effect technical changes in the context of further development is reserved.

PABH 20-Li B2 GB│CY │ 13 ■
Ordering a replacement battery
If you want to order a replacement battery for your appliance, you can do so easily via the internet on
www.kompernass.com or by telephone.
Due to limited stocks, this item may sell out in a relatively short time.
NOTE
► Online ordering of replacement parts might not be possible in some countries. In this is the case,
please contact the Service hotline.
Telephone ordering
Service Great Britain Tel.: [phone]
CY Service Cyprus Tel.: [phone]
To ensure fast processing of your order, have the article number of your appliance to hand
(e.g. IAN 339124) in case of questions. The article number can be found on the type plate
or the title page of these instructions.

PABH 20-Li B2
■ 14 │ GB│CY

PABH 20-Li B2 HR │ 15 ■
Sadržaj
Uvod ..............................................................16
Namjenska uporaba .............................................................16
Prikazane komponente ...........................................................16
Opseg isporuke .................................................................16
Tehnički podaci .................................................................16
Opće sigurnosne napomene za uporabu električnog alata..................17
1. Sigurnost na radnom mjestu .....................................................17
2. Električna sigurnost ............................................................18
3. Sigurnost osoba. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4. Korištenje i rukovanje električnim alatom............................................19
Korištenje i rukovanje alatom nabaterije..............................................19
5. Servis.......................................................................19
Sigurnosne napomene za punjače ..................................................20
Sigurnosne napomene za čekiće....................................................20
Originalni pribor/dodatni uređaji ...................................................20
Prije uključivanja uređaja .............................................21
Punjenje paketa baterije (vidi sliku A) ...................................................21
Provjera stanja baterije ...........................................................21
Umetanje paketa baterija u uređaj/vađenje ...........................................21
Puštanje u pogon ....................................................21
Odabir alata za rad .............................................................21
Zamjena alata ..................................................................21
Umetanje SDS-alata/brzozatezni zaglavnik ...........................................22
Vađenje SDS-alata...............................................................22
Rukovanje..........................................................22
Odaberite način rada ............................................................22
Podesite smjer okretanja ..........................................................22
Uključivanje/isključivanje..........................................................23
Podešavanje broja okretaja/udara ..................................................23
Održavanje i čišćenje.................................................23
Zbrinjavanje........................................................23
Jamstvo tvrtke Kompernass Handels GmbH..............................24
Servis..............................................................25
Uvoznik............................................................25
Prijevod originalne izjave o sukladnosti .................................26
Narudžba zamjenske baterije .........................................27
Telefonska narudžba .............................................................27

PABH 20-Li B2
■ 16 │ HR
AKU UDARNA BUŠILICA
PABH 20-LI B2
Uvod
Čestitamo na kupnji Vašeg novog uređa-
ja. Time ste se odlučili za vrlo kvalitetan
proizvod. Upute za uporabu sastavni su
dio ovog proizvoda. One sadrže važne napomene
za sigurnost, rukovanje i zbrinjavanje. Prije uporabe
proizvoda upoznajte se sa svim napomenama za
rukovanje i sa svim sigurnosnim napomenama.
Proizvod koristite isključivo na opisani način i u
navedenim područjima uporabe. U slučaju predaje
proizvoda trećim osobama, priložite i također pre-
dajte i svu dokumentaciju.
Namjenska uporaba
Aku udarna bušilica PABH 20-Li B2 (u nastavku
teksta „uređaj“) je prikladna za:
▯ Udarno bušenje u cigli, betonu i kamenu
▯ Bušenje u kamenu, drvetu i metalu
▯ Odvijanje u drvetu i metalu
Svaki drugi način uporabe i svaka izmjena uređaja
smatra se nenamjenskom i krije znatnu opasnost od
nezgode.
Proizvođač ne preuzima odgovornost za štete
nastale uslijed nenamjenskog korištenja uređaja.
Uređaj nije namijenjen za komercijalnu uporabu.
Prikazane komponente
Prihvatnik za SDS-Plus alate
Kapa za zaštitu od prašine
Čahura za blokadu
Prekidač „Bušenje/Udarno bušenje“
Prekidač za odabir smjera okretanja
Prekidač za uključivanje/isključivanje
Tipka za stanje baterije
LED indikator baterije
Paket baterija*
Tipka za deblokadu paketa baterija
LED radna svjetiljka
Brzi punjač*
Crvena LED svjetiljka za kontrolu punjenja
Zelena LED svjetiljka za kontrolu punjenja
Svrdlo sa šestokutnim umetkom
Svrdlo sa SDS-Plus prihvatom
Bitovi za zavrtanje
Brzozatezni zaglavnik
Univerzalni držač bitova
Mast
Opseg isporuke
1 Aku udarna bušilica PABH 20-Li B2
3 x 150 mm SDS-Plus svrdlo Ø 6/8/10 mm
3 x bitovi svrdla Ø 5/6/8 mm (HSS) sa šestokut-
nim prihvatom
6 x 50 mm bitovi (S2): 5.5/PH1/PZ1/PZ2/PZ2/
T20/T25
2 x bitovi PH2 (50 mm)
1 x Produživač bitova (šestokutni prihvat)
1 x 10 mm brzozatezni zaglavnik za svrdlo
sokruglim nastavkom (SDS-Plus prihvat)
1 Kofer za nošenje
50 g mast
1 Upute za uporabu
Tehnički podaci
Aku udarna bušilica PABH 20-Li B2
Nazivni napon 20 V
(istosmjerna struja)
Broj okretaja u praznom
hodu n00–900 min-1
Broj udara 0–5000 min-1
Snaga udara ≥ 1 Joule
Maks. promjer bušenja 8 mm za metal
10 mm za beton
16 mm za drvo
Paket baterija PAP 20 A1*
Tip LITIJ-IONSKA
Nazivni napon 20 V
(istosmjerna struja)
Kapacitet 2 Ah
Broj ćelija 5
Brzi punjač baterija PLG 20 A1*
ULAZ/Input
Nazivni napon 230–240 V ∼, 50 Hz
(izmjenična struja)
Nazivna snaga 65 W
Osigurač (unutarnji) 3,15 A T3.15A
