Parkside PBSA 12 A1 User manual

CORDLESS DRILL PBSA 12 A1
IAN 273457
AKKU-BOHRSCHRAUBER
Originalbetriebsanleitung
CORDLESS DRILL
Translation of the original instructions
BATTERIDREVET BORE-/SKRUEMASKINE
Oversættelse af den originale driftsvejledning
PERÇEUSE-VISSEUSE SANS FIL
Traduction des instructions d‘origine
ACCU-SCHROEFBOORMACHINE
Vertaling van de originele gebruiksaanwijzing
273457_par_Akku-Bohrschrauber_cover_DK_BE_NL.indd 2 19.01.16 11:51

GB / IE Translation of the original instructions Page 4
DK Oversættelse af den originale driftsvejledning Side 17
FR / BE Traduction des instructions d‘origine Page 30
NL / BE Vertaling van de originele gebruiksaanwijzing Pagina 45
DE / AT / CH Originalbetriebsanleitung Seite 60
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the
device.
Før du læser, vend siden med billeder frem og bliv bekendt med alle apparatets funktioner.
Avant de lire le mode d‘emploi, ouvrez la page contenant les illustrations et familiarisez-vous ensuite avec
toutes les fonctions de l‘appareil.
Vouw vóór het lezen de pagina met de afbeeldingen open en maak u vertrouwd met alle functies van het
apparaat.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen
Funktionen des Gerätes vertraut.
273457_par_Akku-Bohrschrauber_cover_DK_BE_NL.indd 3 19.01.16 11:51

1 2 3412
5
6
7
7
7
8
13
13
1415
15
16
16
8
9
1011

4
GB IE
Content
Introduction .................................4
Intended purpose.........................4
General description......................5
Extent of the delivery ........................5
Overview........................................5
Functional description.......................5
Technical data..............................5
Safety instructions........................6
Symbols and icons ...........................6
General safety instructions for power
tools...............................................7
Charging the battery.................. 11
Inserting/removing the battery.........11
Recharging the battery....................11
Used batteries ...............................12
Checking the battery charge level ....12
Operation ..................................12
Choice of gear ..............................12
Set the direction of rotation .............12
Torque setting ................................12
Tool change ..................................13
Keyless drill chuck removal..............13
Using the bitholder.........................13
Switching on/off............................13
Cleaning and maintenance.........14
Cleaning.......................................14
Maintenance .................................14
Storage......................................14
Disposal and protection of the
environment ..............................14
Replacement parts/accessories...15
Guarantee .................................15
Repair Service............................16
Service-Center............................16
Importer .................................... 16
Translation of the original EC
declaration of conformity ............75
Introduction
Congratulations on the purchase of your
new device. With it, you have chosen a
high quality product.
During production, this equipment has
been checked for quality and subjected to
a nal inspection. The functionality of your
equipment is therefore guaranteed.
The operating instructions constitute
part of this product. They contain
important information on safety, use
and disposal.
Before using the product, familiarise
yourself with all of the operating
and safety instructions. Use the
product only as described and for
the applications specied.
Keep this manual safely and in the
event that the product is passed on,
hand over all documents to the third
party.
Intended purpose
The device is intended for drilling screws
in and out and for drilling holes in wood,
metal or plastic.
Any other use that is not explicitly ap-
proved in these instructions may result in
damage to the equipment and represent a
serious danger to the user.
The user or operator is responsible for ac-
cidents causing injury to other people or
damage to property.
This equipment is not suitable for commer-
cial use. Commercial use will invalidate the
guarantee.

5
GB IE
General description
The illustrations are on the
front and back fold-out
page.
Extent of the delivery
Carefully unpack the appliance and check
that it is complete:
- Cordless Drill
- Battery-charger
- Battery
- Storage case
- Instruction Manual
Pictured bit and drill not included.
Overview
1 Keyless drill chuck
2 Chuck ring
3 Torque adjustment ring
4 Battery Indicator
5 Speed selector
6 Direction of rotation switch
7 Battery
8 Battery release button
9 On/off switch
10 LED working light
11 Drill chuck aperture
12 Storage case
13 Charger
14 Charger power supply cord
15 Green LED
16 Red LED
17 Bitholder
Functional description
The cordless drill with two-speed gearing
has a 19+1 level torque adjustment, left/
right running, a removable keyless chuck,
a 6-point bitholder and an LED working
light.
Technical data
Appliance
Motor voltage............................. 12 V
Idling speed
1st gear.............................0-350 min-1
2nd gear .........................0-1200 min-1
Maximum torque..........................25 Nm
Span-chuck............................ 0.8-10 mm
Weight (without battery charger).....1.1 kg
Drilling capacity
for wood.......................... max. 25 mm
for steel ............................. max. 8 mm
Sound power level
(LpA)......................66.5 dB(A), K= 3 dB
Sound power level
(LWA)........................ 77.5 dB(A); K= 3 dB
Vibration (ah)
Drilling in metal ...................< 2.5 m/s2
Screwdriving without impact.. < 2.5 m/s2
K= 1.5 m/s2
Battery (Li-Ion)............ DCBK-70-12
Nominal voltage......................... 12 V
Capacity..................................... 1.5 Ah
Charging time ...................... approx. 1 h
Recharger ............ JLH201261500G
Nominal consumption.....................30 W
Uptake voltage/Input
........................... 100-240 V~, 50-60 Hz
Voltage output/Output
.................................12.6 V 1500 mA
Protection class................................ II
Protection category ......................... IPX0

6
GB IE
Noise and vibration values have been
determined according to the standards and
regulations mentioned in the declaration of
conformity.
Technical and optical changes may be
undertaken in the course of further devel-
opment without notice. All dimensions,
references and information in this instruc-
tion manual are therefore not guaranteed.
Legal claims made on the basis of the
instruction manual can therefore not be
considered as valid.
The stated vibration emission value was
measured in accordance with a standard
testing procedure and may be used to com-
pare one power tool to another.
The stated vibration emission value may
also be used for a preliminary exposure
assessment.
Warning: The vibration emission
value may differ during actual use
of the power tool from the stated
value depending on the manner in
which the power tool is used.
Safety precautions aimed at protect-
ing the user should be based on esti-
mated exposure under actual usage
conditions (all parts of the operating
cycle are to be considered, includ-
ing, for example, times during which
the power tool is turned off and
times when the tool is turned on but
is running idle).
Safety instructions
Ensure that the safety instructions are ob-
served when operating the appliance.

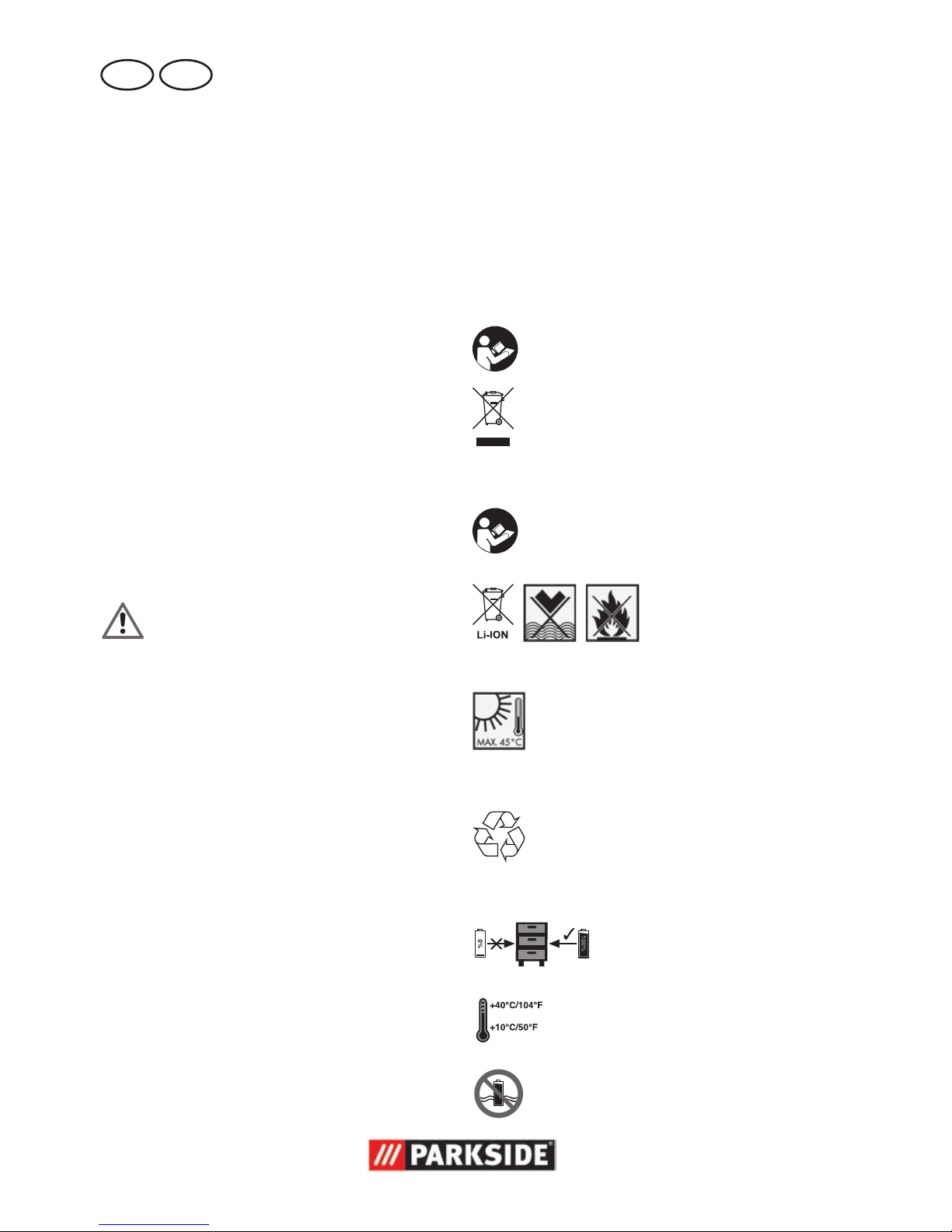

Symbols and icons
Symbols on the appliance:
Carefully read these operating in-
structions.
Electrical appliances must not be dis-
posed of with the domestic waste.
Symbols on the battery:
Carefully read these operating in-
structions.
Do not dispose of
batteries in house-
hold waste, re or
water.
Do not subject the battery to strong
sunlight over long periods and
do not leave it on a heater (max.
45°C).
Take batteries to an old battery
collection point where they will
be recycled in an environmentally
friendly manner.
Store the battery in charged
condition
The battery requires an ambient
temperature of
+10°C to + 40°C.
The battery should never come into
contact with water.

7
GB IE
General safety instructions
for power tools
WARNING! Read all safety
directions and instructions.
Omissions in the compliance with
safety directions and instructions
can cause electrical shock, re
and/or severe injuries.
Retain all safety directions and in-
structions for future use.
The term “Power Tools” used in the safety
instructions refers to mains-operated power
tools (with power cord) and to battery-oper-
ated power tools (without power cord).
1) WORK AREA SAFETY
a) Keep work area clean and well
lit. Cluttered or dark areas invite acci-
dents.
b) Do not operate power tools in
explosive atmospheres, such as
in the presence of ammable
Iiquids, gases or dust. Power tools
create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders
away while operating a power
tool. Distractions can cause you to lose
control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the
outlet. Never modify the plug in
any way. Do not use any adapter
plugs with earthed (grounded)
power tools. Unmodied plugs and
matching outlets will reduce risk of electric
shock.
b) Avoid body contact with earthed
or grounded surfaces, such as
Symbols on the recharger:
Warning!
Before using for the rst time, care-
fully read through the user manual.
The recharger is for indoor use
only.
T2A
Miniature fuse
Protection class II
Electrical appliances must not be dis-
posed of with the domestic waste.
LED display while
charging.
Symbols in the manual
Warning symbols with in-
formation on damage and
injury prevention.
Instruction symbols (the instruction
is explained at the place of the
exclamation mark) with information
on preventing damage.
Help symbols with information on
improving tool handling.

8
GB IE
pipes, radiators, ranges and re-
frigerators. There is an increased risk
of electric shock if your body is earthed
or grounded.
c) Do not expose power tools to rain
or wet conditions. Water entering a
power tool will increase the risk of electric
shock.
d) Do not abuse the cord. Never use
the cord for carrying, pulling or
unplugging the power tool. Keep
cord away from heat, oil, sharp
edges or moving parts. Damaged
or entangled cords increase the risk of
electric shock.
e) When operating a power tool
outdoors, use an extension cord
suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the
risk of electric shock.
f) If operating a power tool in a
damp location is unavoidable,
use a residual current device
(RCD) protected supply. Use of an
RCD reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are
doing and use common sense
when operating a power tool. Do
not use a power tool while you
are tired or under the inuence
of drugs, alcohol or medication.
A moment of inattention white operating
power tools may result in serious personal
injury.
b) Use personal protective equip-
ment. Always wear eye protec-
tion. Protective equipment such as dust
mask, non-slip safety shoes, hard hat, or
hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting.
Ensure the switch is in the off-po-
sition before connecting to power
source and/or battery pack,
picking up or carrying the tool.
Carrying power tools with your nger on
the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or
wrench before turning the power
tool on. A wrench or a key left attached
to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper
footing and balance at all times.
This enables better control of the power
tool in unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your
hair, clothing and gloves away
from moving parts. Loose clothes,
jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the
connection of dust extraction and
collection facilities, ensure these
are connected and properly used.
Use of dust collection can reduce dust-
related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use
the correct power tool for your
application. The correct power tool will
do the job better and safer at the rate for
which it was designed.
b) Do not use the power tool if the
switch does not turn it on and off.
Any power tool that cannot be controlled
with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the

9
GB IE
power source and/or the bat-
tery pack from the power tool
before making any adjust -ments,
changing accessories, or storing
power tools. Such preventive safety
measures reduce the risk of starting the
power tool accidentaIly.
d) Store idle power tools out of the
reach of children and do not al-
low persons unfamiliar with the
power tool or these instructions to
operate the power tool. Power tools
are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for
misalignment or binding of mov-
ing parts, breakage of parts and
any other condition that may af-
fect the power tool’s operation. If
damaged, have the power tool repaired
before use. Many accidents are caused
by poorly maintained power tools.
f) Keep cutting tools sharp and
clean. Properly maintained cutting tools
with sharp cutting edges are less Iikely to
bind and are easier to control.
g) Use the power tool, accessories
and tool bits etc. in accordance
with these instructions, taking into
account the working conditions
and the work to be performed.
Use of the power tool for operations dif-
ferent from those intended could result in
a hazardous situation.
h) Hold the device by the insulated
gripping surfaces when per-
forming work in which the cut-
ting tool may come into contact
with hidden wiring or its own
cord. Contact with a live wire can also
cause a charge in metal parts of the
device and result in an electric shock.
5) CAREFUL HANDLING AND USE OF
BATTERY DEVICES
a) Charge the batteries only in
chargers that are recommended
by the manufacturer. Risk of re if a
charger that is suitable for a specic type
of battery is used with other batteries.
b) In the power tools, use only the
batteries designed for the pur-
pose. The use of other batteries may
result in injuries and risk of re.
c) Keep the unused battery away
from paper clips, coins, keys,
nails, screws and other small
metal objects, which could cause
bridging of the contacts. A short
circuit between the battery contacts may
cause burns or re.
d) If used incorrectly, liquid may
leak from the battery. Avoid
contact with this. In the event of
accidental contact, rinse off with
water. If the liquid gets into eyes,
seek medical assistance. Leaking
battery uid may cause skin irritations or
burns.
6) SERVICE
Have your power tool serviced by
a qualied repair person using
only identical replacement parts.
This will ensure that the safety of the
power tool is maintained.
7) SPECIAL SAFETY DIRECTIONS FOR
BATTERY-OPERATED TOOLS
a) Ensure that the device is switched
off before inserting the battery.
Inserting a battery into a power tool that
is switched on may result in accidents.
b) Recharge the batteries indoors

10
GB IE
only because the battery charger
is designed for indoor use only.
c) To reduce the electric shock haz-
ard, unplug the battery charger
from the mains before cleaning
the charger.
d) Do not subject the battery to
strong sunlight over long periods
and do not leave it on a heater.
Heat damages the battery and there is a
risk of explosion.
e) Allow a hot battery to cool before
charging.
f) Do not open up the battery and
avoid mechanical damage to the
battery. Risk of short circuit and fumes
may be emitted that irritate the respiratory
tract. Ensure fresh air and seek medical
assistance in the event of discomfort.
g) Do not use non-rechargeable bat-
teries!
8) CORRECT HANDLING OF THE BAT-
TERY CHARGER
• This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and un-
derstand the hazards involved. Children
shall not play with the appliance. Clean-
ing and user maintenance shall not be
made by children without supervision.
•To charge the battery, use only
the charger supplied. Risk of re and
explosion. This ensures that the safety of
the device is maintained.
•Before each use, check the charg-
er, cable and plug and have them
repaired by qualied profession-
als and only with original parts.
Do not use a defective charger and do
not open it up yourself. This ensures that
the safety of the device is maintained.
•Connect the charger only to a
socket with an earth. Ensure that
the mains voltage matches the
specications on the charger rat-
ing plate. Risk of electric shock.
•Disconnect the charger from the
mains before closing or opening
connection to the battery / power
tool / device.
•Keep the charger clean and away
from wet and rain. Do not use
the charger outdoors. Dirt and the
entry of water increase the risk of electric
shock.
•Operate the charger only with
the appropriate original batteries.
Charging other batteries may result in
injuries and risk of re.
•Avoid mechanical damage to the
charger. This can result in internal short
circuits.
•Do not operate the charger on a
combustible surface (e.g. paper,
textiles). Risk of re due to heating dur-
ing charging.
• If the power cable for this equipment is
damaged, it must be replaced by the
manufacturer, a customer service agent of
the same or a similarly qualied person in
order to prevent hazards.
• The battery of the appliance is not fully
charged at the time of delivery. It there-
fore needs to be fully recharged before
you use it for the rst time. Slot the bat-
tery into the base and plug the battery
charger into a mains outlet.
• When the battery is fully charged, unplug
the charger from the mains and from the
appliance.
• Do not use the charger to charge non-
rechargeable batteries.

11
GB IE
9) RESIDUAL RISKS
Even if properly operating and handling this
electric tool, some residual risks will remain.
Due to its construction and build, this electric
tool may present the following hazards:
a) Cuts
b) Ear damage if working without ear protec-
tion.
c) Damage to your health caused by swing-
ing your hands and arms when operating
the appliance for longer periods of time or
if the unit is not held or maintained prop-
erly.
Warning! During operation, this
electric tool generates an electromag-
netic eld which, under certain circum-
stances, may impair the functionality of
active or passive medical implants. To
reduce the risk of serious or lethal inju-
ries, we recommend that persons with
medical implants consult their doctor
and the manufacturer of their medical
implant before operating the machine.
Charging the battery
Do not expose the battery to
extreme conditions such as
heat or impact. Risk of injury
from escaping electrolytic so-
lution! After eye/skin contact,
rinse the affected areas with
water or a neutraliser and
consult a doctor.
Charge the battery in a dry
room only.
Prior to attaching the charger,
check that the battery‘s outer
surface is clean and dry.
There is a risk of injury due to
electric shock.
Only use the original charger from
the package to charge the battery.
• Charge the battery before the rst time
of use. Do not briey charge the bat-
tery several time in a row.
• Recharge the battery when you notice
that the appliance is becoming slower.
• If a fully recharged battery lasts for
considerably shorter operating times,
the battery is used up and needs to
be replaced. Only use an OEM spare
battery available from our Customer
Service.
• Always take heed of the applicable
safety instructions as well as the envi-
ronmental protection regulations and
information.
• The warranty excludes all defects
caused by improper handling.
Inserting/removing the
battery
1. To insert the battery (7), place it
on the guide track and push it
back into the appliance. It will
audibly snap in.
2. To remove the battery (7) from the
appliance, press the release but-
tons (8) on the battery and pull
out the battery.
Recharging the battery
1. Remove the battery (7) from the
appliance i necessary.
2. Insert the battery (7) in the charg-
ing compartment of the battery
charger (13). It will audibly snap
in.
3. Plug the battery charger (13) into
a mains outlet.

12
GB IE
4. When the battery is fully re-
charged unplug the battery
charger (13) from the mains.
5. Pull the battery (7)out of the bat-
tery charger (13).
Overview of the LED indicators on
the charger (13):
Green LED (15) lights up
without battery inserted:
Charger ready.
Green LED (15) lights up:
Battery such alleged
charged.
Red LED (16) lights up:
Battery charging.
Used batteries
• If a fully recharged battery lasts for
considerably shorter operating times,
the battery is used up and needs to be
replaced. Only use an OEM battery
pack replacement available from our
Customer Service.
• Always take heed of the applicable
safety instructions as well as the envi-
ronmental protection regulations and
information (see “Cleaning and Main-
tenance”).
Checking the battery charge
level
The battery’s ( 7) charge level is indi-
cated by the charge state indicator ( 4).
The LEDs indicate the battery’s charge
level, when the device is in operation.
red-yellow-green => Battery fully
charged
red and yellow => Battery half charged
red => Battery needs to be
charged
Operation
Choice of gear
Slide the gear selector (5) to 1or
2, corresponding to a low or high
torque selection.
A gear change may only be per-
formed in standstill mode!
Set the direction of rotation
You can select the direction of rotation with
the direction switch (clockwise and anti-
clockwise direction) and secure the device
against accidental start up.
1. Wait for the device to shut-down.
2. Clockwise direction:
Press direction switch (6) to
the right.
3. Anticlockwise direction:
Press direction switch (6) to
the left.
4. Switch lock: Bring direction switch
to neutral position.
The direction changed may only be
performed in standstill mode.
Torque setting
You can preset the maximum torque by ro-
tating the torque adjustment ring (3).
19+1 torque levels are provided.

13
GB IE
1. Turn the adjusting ring (3) to se-
lect the desired torque:
Step 1 --> lowest torque,
Step --> highest torque.
Screws: Steps 1 - 19
Drilling: Step .
2. Start with a lower torque step
and increase according to re-
quirement.
Torque adjustment should only be
performed in standstill mode.
Reaching the preset torque limit pro-
duces a noticeable rasping sound.
This sound is caused by the slip
clutch.
Tool change
1. Rotate the keyless chuck (1) coun-
ter-clockwise, until the drill chuck
aperture (11) is large enough to
accommodate the tool.
2. Push the tool as far as possible
into the keyless chuck (1).
3. Rotate the chuck clockwise to
clamp the tool rmly.
4. To remove the tool again, rotate
the keyless chuck (1) and pull out
the tool.
Keyless drill chuck removal
To use the bitholder (17), you must remove
the keyless chuck (1).
1. Hold the keyless chuck (1) tightly
from the front. Pull or push the
drill chuck ring (2) in the direction
of the keyless chuck (1).
2. This unlocks the keyless chuck (1)
and it can be pulled off from the
front.
3. In order to put the keyless chuck
(1) back in position, pull the drill
chuck ring (2) in the direction of
the keyless chuck. Push the key-
less chuck (1) on as far as it will
go.
If the keyless chuck (1) does not
engage automatically, turn the drill
chuck ring (2).
Using the bitholder
After removing the keyless chuck (1) you
can use the bitholder (17).
1. Insert a suitable 6-point bit in the
bitholder (17). Because of the
6-point bit holder, it may be that
you need to rotate the bit slightly.
2. Slide the bit right into the bithold-
er (17). The bit is held rmly
by the duct and the magnetic
bitholder.
3. To remove the bit, simply remove
the bit from the bitholder (17).
Switching on/off
By using the on/off switch (9) you can
progressively control the speed. The longer
you push the on-off button, the higher the
speed.
1. Press the on/off switch (9) to start
the device. The LED work light
(10) lights up during operation.
2. To turn it off, release the on/off
switch (9).
When you move the direction
switch (6) to the middle position,
the device is secured against be-
ing switched on.

14
GB IE
Cleaning and
maintenance
Contact our Service Centre about
repairs and servicing not described
in this manual. Only use OEM
parts. Risk of injury!
Turn off the appliance and, before
doing any servicing, remove the
battery.
The following cleaning and servicing
should be done regularly. This will ensure
a long and reliable service life.
Cleaning
Do not spray the appliance
with water and do not im-
merse it in water. Electric
shock hazard!
• Keep clean the ventilation slots, motor
housing and handles of the appliance.
Use a damp cloth or a brush.
Do not use cleaning agents or solvents.
You may otherwise irreparably dam-
age the appliance.
Maintenance
The appliance cleaner is maintenance free.
Storage
• Store the trimmer in a dry place well
out of reach of children.
• Store the equipment between 10° C
and 40° C. During storage, avoid ex-
treme cold or heat so the battery does
not lose power.
• Remove the battery before storing the
unit for longer periods of time.
• During a longer storage period, check
the state of charge of the battery and
recharge if necessary roughly every
3months.
Disposal and protection
of the environment
Remove the battery from the device and
take the device, battery, accessories and
packaging for environmentally friendly
recycling.
Machines do not belong with domes-
tic waste.
Do not dispose of batteries in
household waste, re (risk of explo-
sion) or water. Damaged batteries
may damage the environment and
your health if toxic fumes or liquids
leak out.
• Return the unit to a recycling centre.
The plastics and metals in the unit can
be sorted and appropriately recycled.
Ask our Service Centre for details.
• Dispose of batteries in discharged condi-
tion. We recommend covering the pole
with adhesive tape to prevent a short
circuit. Do not open up the battery.
• Dispose of batteries in accordance with
the local regulations. Take batteries to
an old battery collection point where
they will be recycled in an environ-
mentally friendly manner. For informa-
tion about this, ask your local waste
management company or our service
centre.
• Defective units returned to us will be
disposed of for free.

15
GB IE
Replacement parts/
accessories
Spare parts and accessories can be
obtained at
www.grizzly-service.eu
If you do not have internet access, please
contact the Service Centre via telephone
(see “Service-Center” Page 16). Please
have the order number mentioned below
ready.
Keyless drill chuck ( 1)........ 91103353
Battery ( 7) ....................... 80001133
Charger ( 13).................... 80001078
Guarantee
Dear Customer,
This equipment is provided with a 3-year
guarantee from the date of purchase.
In case of defects, you have statutory rights
against the seller of the product. These
statutory rights are not restricted by our
guarantee presented below.
Terms of Guarantee
The term of the guarantee begins on the
date of purchase. Please retain the original
receipt. This document is required as proof
of purchase.
If a material or manufacturing defect
occurs within three years of the date of
purchase of this product, we will repair or
replace – at our choice – the product for
you free of charge. This guarantee requires
the defective equipment and proof of pur-
chase to be presented within the three-year
period with a brief written description of
what constitutes the defect and when it oc-
curred.
If the defect is covered by our guarantee,
you will receive either the repaired product
or a new product. No new guarantee pe-
riod begins on repair or replacement of the
product.
Guarantee Period and Statutory
Claims for Defects
The guarantee period is not extended by
the guarantee service. This also applies for
replaced or repaired parts. Any damages
and defects already present at the time of
purchase must be reported immediately af-
ter unpacking. Repairs arising after expiry
of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully pro-
duced in accordance with strict quality
guidelines and conscientiously checked
prior to delivery.
The guarantee applies for all material and
manufacturing defects. This guarantee
does not extend to cover product parts that
are subject to normal wear and may there-
fore be considered as wearing parts (e.g.
keyless drill chuck) or to cover damage to
breakable parts (e.g. switches, batteries).
This guarantee shall be invalid if the prod-
uct has been damaged, used incorrectly or
not maintained. Precise adherence to all of
the instructions specied in the operating
manual is required for proper use of the
product. Intended uses and actions against
which the operating manual advises or
warns must be categorically avoided.
The product is designed only for private
and not commercial use. The guarantee
will be invalidated in case of misuse or
improper handling, use of force, or inter-
ventions not undertaken by our authorised
service branch.

16
GB IE
Processing in Case of Guarantee
To ensure efcient handling of your query,
please follow the directions below:
• Please have the receipt and item num-
ber (IAN 273457) ready as proof of
purchase for all enquiries.
• Please nd the item number on the rat-
ing plate.
• Should functional errors or other de-
fects occur, please initially contact the
service department specied below by
telephone or by e-mail. You will then
receive further information on the pro-
cessing of your complaint.
• After consultation with our customer
service, a product recorded as defective
can be sent postage paid to the service
address communicated to you, with the
proof of purchase (receipt) and speci-
cation of what constitutes the defect
and when it occurred. In order to avoid
acceptance problems and additional
costs, please be sure to use only the ad-
dress communicated to you. Ensure that
the consignment is not sent carriage
forward or by bulky goods, express or
other special freight. Please send the
equipment inc. all accessories supplied
at the time of purchase and ensure ad-
equate, safe transport packaging.
Repair Service
For a charge, repairs not covered by
the guarantee can be carried out by
our service branch, which will be happy to
issue a cost estimate for you.
We can handle only equipment that has
been sent with adequate packaging and
postage.
Attention: Please send your equipment to
our service branch in clean condition and
with an indication of the defect.
Equipment sent carriage forward or by
bulky goods, express or other special
freight will not be accepted.
We will dispose of your defective devices
free of charge when you send them to us.
Service-Center
Service Great Britain
Tel.: [phone]
(£ 0.10/Min.)
E-Mail: [email protected].uk
IAN 273457
Service Ireland
Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: [email protected]
IAN 273457
Importer
Please note that the following address is
not a service address. Please initially con-
tact the service centre specied above.
Grizzly Tools GmbH & Co. KG
Stockstädter Straße 20
63762 Großostheim
Germany
www.grizzly-service.eu
GB
IE

17
DK
Sisältö
Introduktion............................... 17
Anvendelse................................17
Generel beskrivelse ...................18
Leveringsomfang............................ 18
Oversigt........................................ 18
Funktionsbeskrivelse ....................... 18
Tekniske data ............................18
Sikkerhedsinformationer............19
Symboler og billedtegn .................. 19
Generelle sikkerhedshenvisninger for
el-værktøjet.................................... 20
Ladning .....................................24
Isætning/Udtagning af akku............ 24
Opladning af akku......................... 25
Udtjente akku’er............................. 25
Kontrol af akku‘ens ladetilstand........ 25
Operation ..................................25
Gearvalg ...................................... 25
Indstilling af drejeretning................. 25
Indstilling af drejningsmoment.......... 26
Værktøjsskift .................................. 26
Tag hurtigspændepatronen af.......... 26
Anvendelse af bitoptagelsen............ 26
Tænd/sluk..................................... 26
Rengøring og vedligeholdelse ....27
Rengøring ..................................... 27
Vedligeholdelse ............................. 27
Opbevaring ...............................27
Bortskaffelse/miljøbeskyttelse ...27
Reservedele/Tilbehør .................28
Garanti......................................28
Reparations-service.................... 29
Service-Center............................29
Importør .................................... 29
Oversættelse af den originale
CE-konformitetserklæring...........75
Introduktion
Hjertelig tillykke med købet af dit nye ap-
parat.Du har besluttet dig for et produkt af
højeste kvalitet.
Dette apparats kvalitet blev kontrolleret un-
der produktionen og det blev underkastet
en slutkontrol. Dermed er dit apparats funk-
tionsevne garanteret.
Betjeningsvejledningen er bestand-
del af dette produkt. Den indehol-
der vigtige informationer vedrøren-
de sikkerhed, brug, vedligeholdelse
og bortskaffelse. Gør dig inden
brugen af produktet fortrolig med
alle betjenings- og sikkerheds-infor-
mationer. Benyt kun produktet som
beskrevet og kun til de anførte ind-
satsområder. Opbevar vejledningen
godt og lad alle dokumenter følge
med ved videregivelse af produktet
til tredje.
Anvendelse
Apparatet er beregnet til indskruning og fri-
gørelse af skruer samt til boring i træ, metal
eller plast.
Enhver anden anvendelse, som ikke udtryk-
keligt er tilladt iht. denne vejledning, kan
medføre skader på boreskruemaskine og
alvorlige farer for brugeren.
Producenten påtager sig intet ansvar for
skader, der forårsages på grund af ukor-
rekt brug eller forkert betjening.
Dette apparat er ikke egnet til erhvervs-
mæssig brug. Ved erhvervsmæssig brug
bortfalder garantien.

18
DK
Generel beskrivelse
Illustrationer af de vigtige
funktionsdele nder du på
foldeudsiden.
Leveringsomfang
- Batteridrevet boreskruemaskine
- Oplader
- Akku
- Opbevaringskuffert
- Betjeningsvejledning
De viste bit og bor er ikke inkluderet i leve-
rancen.
Oversigt
1 Hurtigspændeborepatron
2 Borepatronring
3 Indstillingsring til drejningsmo-
ment
4 Ladetilstandsindikator akku
5 Gearvalgkontakt
6 Drejeretningskontakt
7 Akku
8 Oplåsningsknap akku
9 Tænd/sluk kontakt
10 LED-arbejdslys
11 Borepatronåbningen
12 Opbevaringskuffert
13 Oplader
14 Nettilslutningsledning til oplader
15 Grøn LED
16 Rød LED
17 Bitoptagelse
Funktionsbeskrivelse
Den batteridrevne boreskruemaskine med
2-gears drev har en 19+1 trins drejnings-
momentindstilling, højre-/venstreløb, en
aftagelig hurtigspændeborepatron, en
sekskant-bitoptagelse og et LED-arbejdslys.
Tekniske data
Apparat
Motorspænding .......................... 12 V
Omdrejningstal
1. gear..............................0-350 min-1
2. gear............................0-1200 min-1
Maksimalt drejningsmoment ..........25 Nm
Spændvidde for borepatron .... 0,8-10 mm
Vægt ...........................................1,1 kg
Borediameter for træ ...........maks. 25 mm
Borediameter for stål .............maks. 8 mm
Lydtryksniveau (LpA).....66,5 dB(A), K=3 dB
Lydeffektniveau (LWA).... 77,5 dB(A); K=3 dB
Vibration (ah).........................................
Boring i metal......................< 2,5 m/s2
Skruning uden slag< 2,5 m/s2
K= 1,5 m/s2
Akku (Li-Ion) ............... DCBK-70-12
Nominel spænding...................... 12 V
Kapazität.................................... 1,5 Ah
Ladetid .......................................ca. 1 h
Oplader ............... JLH201261500G
Nominelt strømforbrug....................30 W
Nominel indgangsspænding/Input
........................... 100-240 V~, 50-60 Hz
Udgangsspænding/Output
.................................12,6 V 1500 mA
Kapslingsklasse................................ II
Beskyttelsestype.............................. IPX0

19
DK
Der tages forbehold for tekniske og optiske
ændringer i forbindelse med den tekniske
udvikling.
Alle mål, henvisninger og oplysninger i
denne betjeningsvejledning er derfor uden
garanti. Retlige krav, som stilles på bag-
grund af denne betjeningsvejledning, kan
derfor ikke gøres
Den anførte svingningsemissionsværdi blev
målt iht. en standardiseret prøvemetode
og kan anvendes til sammenligning af et
el-værktøj med et andet.
Den anførte svingningsemissionsværdi kan
også anvendes til en indledende vurdering
af afbrydelsen.
Advarsel:
Svingningsemissionsværdien kan
adskille sig fra den angivne værdi
under brugen af el-værktøjet, af-
hængig af den måde som værktøjet
bruges på.
Der er nødvendigt af fastlægge for-
holdsregler til beskyttelse af brugeren,
der beror på en vurdering af afbry-
delsen under de faktiske brugsbetin-
gelser (derved skal der tages hensyn
til alle driftscyklussens dele, dvs. også
tider, hvor værktøjet er slukket og
tider, hvor det er tændt, men kører
uden belastning).
Sikkerhedsinformationer
Dette afsnit beskriver de grundlæggende
sikkerhedsforskrifter ved arbejdet med elek-
trisk havekultivatoren.

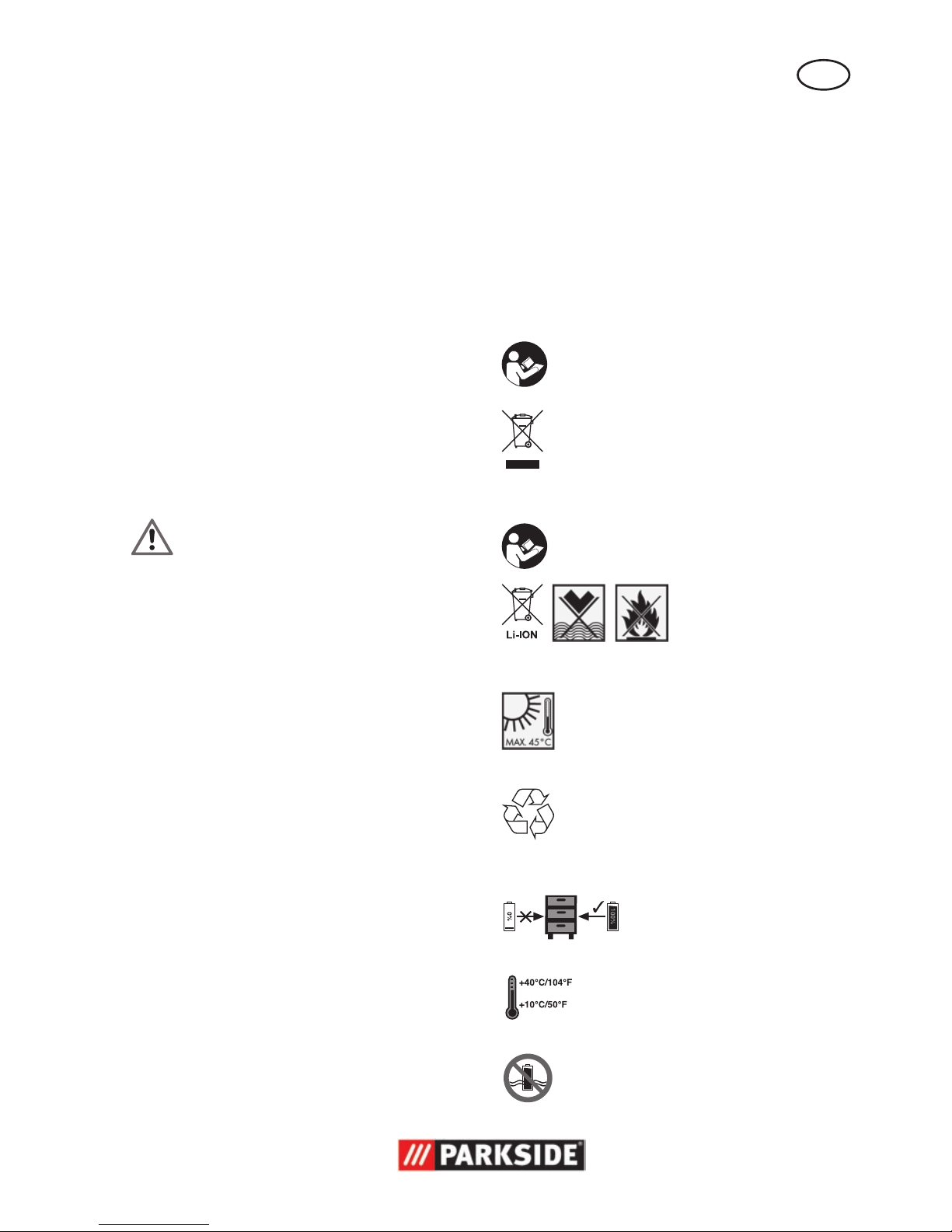

Symboler og billedtegn
Påskrifter på maskinen:
Læs betjeningsvejledningen.
El-apparater må ikke komme i hus-
holdningsaffaldet.
Billedtegn på akku‘en:
Læs betjeningsvejledningen.
Smid ikke akku’en i
husholdningsaffal-
det, på åben ild el-
ler i vandet.
Udsæt ikke akku for kraftigt sollys
i længere tid og læg den ikke på
varmelegemer (max. 45°C).
 Aevérakku’ernepåetsamlested
for gamle batterier, hvor de bliver
tilført et miljørigtigt genbrugssy-
stem.
Opbevar batteriet i opla-
det tilstand.
Batteriet skal have en omgivelse-
stemperatur på mellem
+10°C og + 40 °C.
Batteriet må ikke komme i kontakt
med vand.

20
DK
Generelle sikkerhedshenvis-
ninger for el-værktøjet
ADVARSEL! Læs alle sikker-
hedsinformationer og anvis-
ninger. Forsømmelighed ved over-
holdelse af sikkerhedsinformationer
og anvisninger kan forårsage elek-
trisk stød, brand og/eller alvorlige
kvæstelser.
Opbevar vejledningen på for at
informationerne til enhver tid er til
rådighed. Det i sikkerhedsinformationer-
ne anvendte udtryk “el-værktøj” vedrører
netdrevne el-værktøjer (med forsyningska-
bel) og akku-drevne el-værktøjer (uden
forsyningskabel).
1) SIKKERHED PÅ ARBEJDSPLADSEN
a) Sørg for at dit arbejdsområde
er rent og godt belyst. Uorden og
uoplyste arbejdsområder kan medføre
ulykker.
b) El-værktøjet må ikke benyttes i
eksplosionstruede omgivelser,
hvor der er brændbare væsker,
gasser eller støv. El-værktøj kan slå
gnister, som kan antænde støvet eller
dampene.
c) Sørg for at børn og andre per-
soner holdes væk fra arbejds-
området, når el-værktøjet er i
brug. Hvis man distraheres, kan man
miste kontrollen over maskinen.
2) ELEKTRISK SIKKERHED
a) El-værktøjets stik skal passe
til kontakten. Stikket må ikke
ændres på nogen måde. Brug
ikke adapterstik sammen med
Billedtegn på opladeren:
Advarsel!
Læs betjeningsvejledningen.
Opladeren er kun egnet til inden-
dørs brug.
T2A
Apparatsikring
Kapslingsklasse II
El-apparater må ikke komme i hus-
holdningsaffaldet.
LED-visning under op-
ladningen.
Billedtegn i vejledningen:
Faretegn med angivelser til
forebyggelse af person- eller
materiel skade.
Påbudstegn (i stedet for udråbsteg-
net er påbuddet forklaret) med an-
givelser til forebyggelse af skader.
Henvisningstegn med informationer
til bedre omgang med apparatet.
