Partron PWB-100 User manual

1

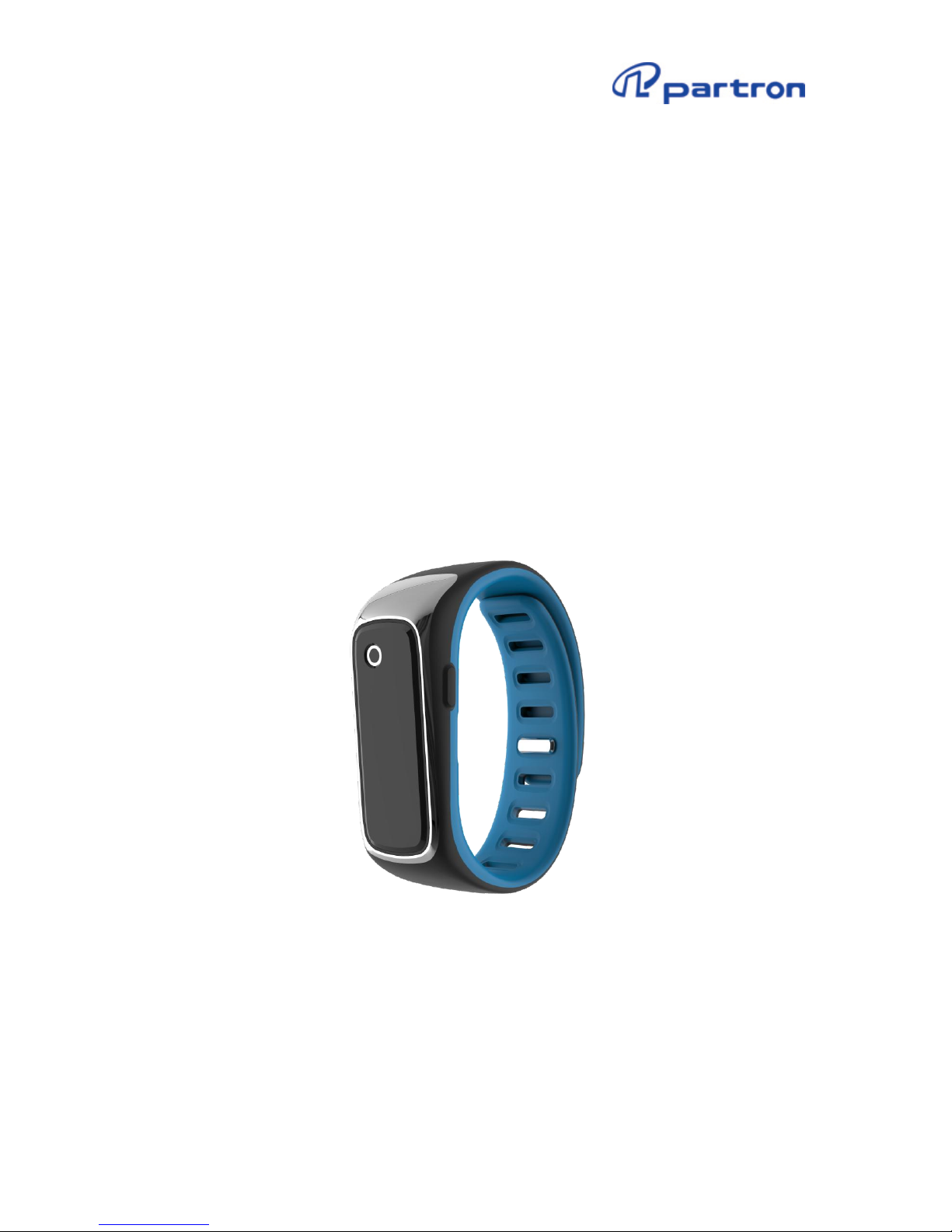

Instruction Manual
Croise.E Smart Band
(PWB-100)

2
Contents
Croise.E Urban Band Instruction Manual
1. Product specification
2. Components
3. Description of products
4. Using Method
5. Basic Screen
6. Croise.E App execution and basic setting
7. Urban Mode
8. Extreme Mode
9. Measure Mode
10. Call/text message setting
11. Storage and management method
12. Precaution

3
1. Product specification
Product specification
Product
Skin Infrared clinical thermometer
Product certification
No.
Jein No. 15-1167
Additional function &
major usage
Measurement of physical condition including heartbeat, altitude,
activity, stress, sleep
(Above additional function is not permitted to be used as
medical purpose.)
Measurement gauge for measuring body temperature by
checking infrared ray emission of skin such as forehead (Above
function was certified by medical device information technology
support center)
Measurement range
Measurement gauge for measuring body temperature by
checking infrared ray emission of skin such as forehead (Above
function was certified by medical device information technology
support center)
Measurement time
Within 7 seconds
Measurement
method
Infrared ray sensing
Power
DC 3.7V, 80mAh (±20%)
Weight
27g (Main body 9g, band 18g)
Display
0.9inch PMOLED (128×36)
Sensor
Heartbeat, temperature, atmosphere, acceleration, gyro
Connection
Bluetooth Smart
Wireless using
distance
Within 10m
Component
1 Set (Main body 1ea, band 1ea, charging cradle 1ea Brief
instruction manual 1ea)
Compatibility
Over Android 4.4, iOS 7.0

4
2. Components
Main body Band Charging cradle USB Cable
3. Product description
4. Using Method
1) Turn On/Off Croise.E Urban Band
(1) When pushing button for one time under switched off condition, power is energized along
with flickering LED.
(2) If you wish to switch power off, push Croise.E band in clock screen for 3 seconds.
2) Battery charge
(1) Mount main body on charging cradle.
(2) Charging is performed by connecting micro USB connector-mounted mobile phone
<Front>
<Rear>
Button

5
charger or other charger or computer using USB cable being provided as component to
mounted cradle.
(3) Please be noted that in order to secure max. stability of main body when charging by
mounting on cradle, power is made to be switched off.
(4) (In case of charging by mounting on cradle under the condition that power has been
already turned on, turn-on condition is maintained.)
3) Croise.E Application Installation
(1) Search CroiseE. from Apple App Store and Google player.
(2) Install Croise.E App to smart phone.(Android, IOS)
4) Bluetooth setting
(1) Turn on bluetooth of mobile phone and power of Croise.E Urban band.
(2) Execute Croise.E App.
(3) When smart phone and band are connected, clock screen of Bluetooth icon band is
displayed.

6
Fixing pin
(4) If CroiseE. urban band is not registered, CroiseE. is indicated in the list.
(5) In case that connected CroiseE. urban band is not provided, information text is displayed
in upper smart advise space and if touching such text, it is moved to connection screen.
(6) If registered CroiseE. is provided at the time of executing CroiseE. App, Bluetooth is
connected automatically.
(7) In case that a lot of App is under use in smart phone, Bluetooth connection is sometimes
interrupted and so, please try reconnection after deleting App that is not used in smart
phone.
★★Reference
In case that bluetooth between smart phone and band is disconnected, band tries re-connection
repeatedly based on a constant cycle. And data being accumulated from the time of Bluetooth
disconnection to re-connection is updated at the time of connection. In this case, many data may
be entered at the same time.
5) Wearing Method
(1) Insert main body to band by slanting it.

7
(2) Wear band on wrist and fix band with fixing pin.
(3) As the part where band and body are coupled as shown on below figure, precaution is
required at the time of its use.
6) Button operation
(1) At the time of entry and measurement of urban mode, extreme mode, messenger mode:
Push button twice in short
(2) At the time of confirming mode transfer (movement) and other number in the same
mode : Push button once in short
(3) At the time of clock screen movement: Push Croise.E band button for 1 second.
(4) At the time of basic altitude setting and continued measurement of PPG : Push button
three times.
화면꺼짐 상태: screen turn-off condition
-Move to Idle mode by long click in all the sub-depth.
-Power is off by long-click of Idle mode.
7) Screen description
(1) Indicator screen : Bluetooth and current battery condition are displayed.
(2) Urban Mode : Sleep, fatigue recovery, Stress, Condition, Steps distance, consumed calorie
and heartbeat could be confirmed.
(3) Extreme Mode : Walking, running, mountaineering, bicycle mode are provided.
(4) Measure Mode : Pulse (BPM) measurement, altitude difference, body temperature and
swing mode are provided.

8
※If you wish to move to clock screen,
Push button of current screen until vibration is felt for 1 second.
.
5. Basic Screen
Display Bluetooth connection and current battery condition.
1) Battery condition display
Battery
condition
Battery screen
Below 20%
Below 40%
Below 60%
Below 80%
Over 81%
If pushing clock screen twice shortly, it is changed to date screen and pushing once shortly, it
returns to clock screen. (If a condition that smart phone and band are not connected with
Bluetooth is prolonged, time may be incorrect as clock is not synchronized.)

9

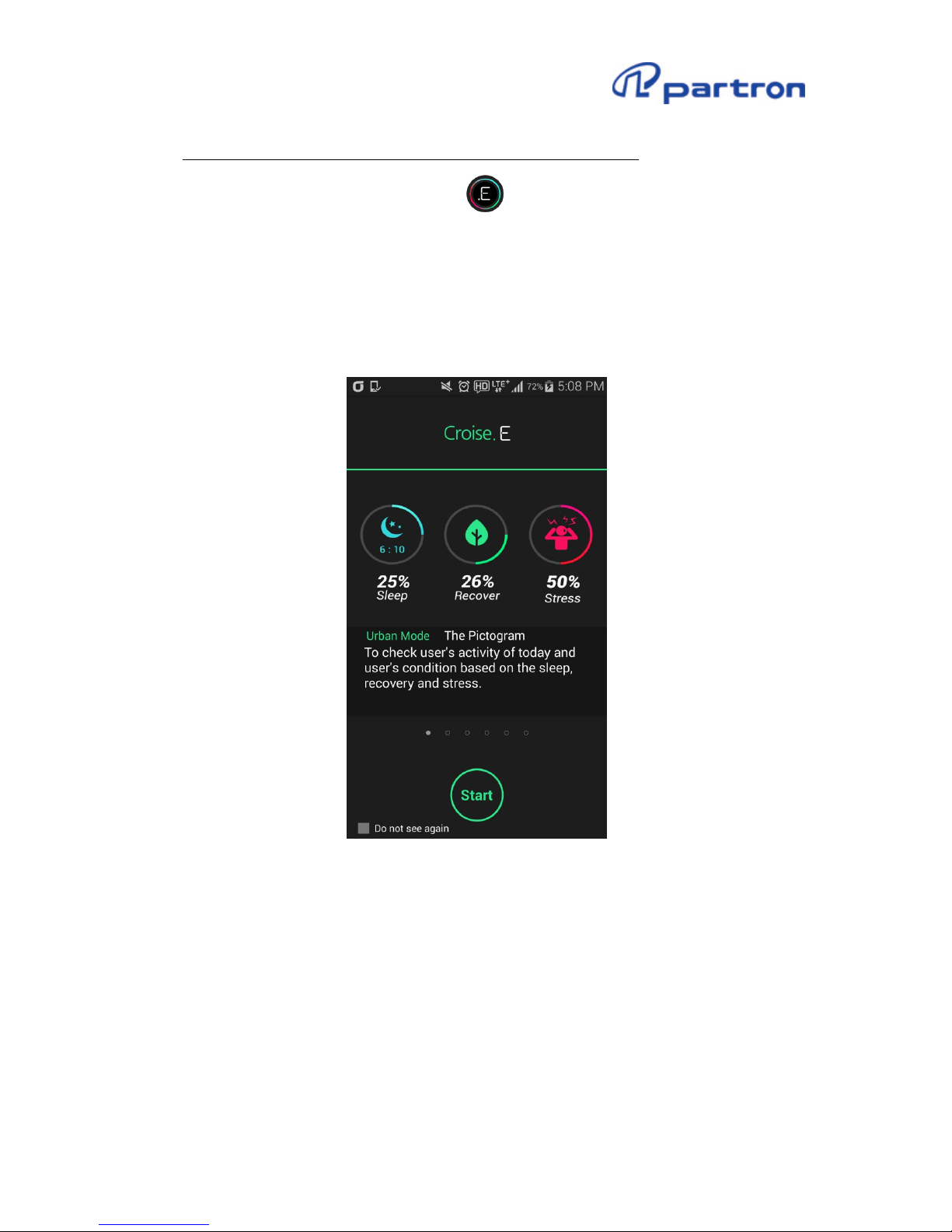

6. Croise.E App execution and basic setting
Execute Croise.E App in smart phone.
1) Guide screen
(1) App function is set.
(2) Confirm function of each mode by scrolling screen from left to right.
(3) If pushing start button, move to Croise.E membership enrollment screen.
(4) ’If you do not want to view guide screen, check ‘not viewing again’mode.
2) Membership enrollment
(1) If service condition is consented, screen is moved to below registration screen.
(2) At the time of new registration, it is completed when pushing completion button after
selecting name, DOB, height, weight, gender.

10
3) Setting
Diversified settings are enabled if pushing above menu icon.

11
(1) Change of user information
①User information being entered at the time of membership enrollment could be
changed.
(2) Inquiry
①By preparing an E-mail, it could be sent to personnel in charge of App.

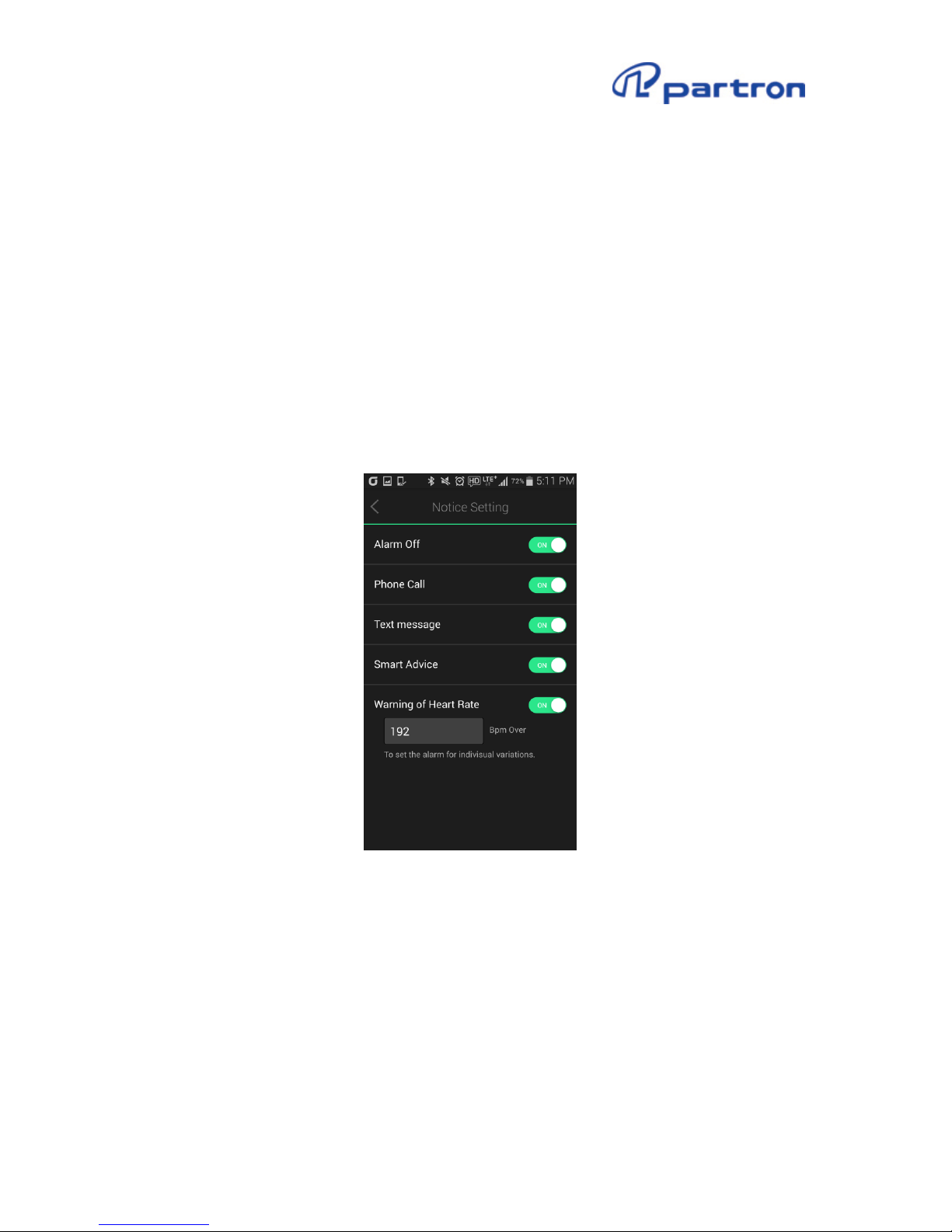

(3) Advise setting
①Entire advise could be switched on or off.
②Phone or text advise could be switched on or off. (Android exclusive)
③.Smart advise could be switched on or off.
④In App, warning heartbeat advise could be set. Age value of 220 is set basically and by
direct input, it could be set to be lowered. In case that setting value exceeds, warning is
advised from band for 3 seconds through its vibration.
(4) Bluetooth connection
①Through bluetooth connection in setting menu, it could be connected with or released
from band.
(5) Using condition and use information handling guideline
(6) User instruction manual
(7) Version information
①App version information being set at present is displayed.

12
7. Urban Mode
1) Basic information
(1) When smart phone and band are connected by Bluetooth, condition indicated as % in
urban mode of band could be confirmed. (Condition is estimated by summarizing sleep
index, fatigue recovery, stress and activity.)
(2) In pedometer screen, step count, moving distance, consumed calorie from 0 o’clock on the
very date to the present are indicated sequentially. Pedometer value may be affected by
vibration similar to step, movement of vehicle or other movements. (Each screen is
circulated at an interval of app. 3 seconds.)
2) Urban Mode

13
(1) Smart advise
①Optimal advise is recommended based on internal, external data of human body being
received through band sensor and online.
②In case of many advises, such advise could be confirmed by scrolling smart advise from
left to right.
③If pushing smart advise button, detailed contents could be confirmed.
(2) Pedometer (step count)
①Step count from 0 o’clock on the very date to the present is indicated.
(3) Distance
①Moved distance from 0 o’clock on the very date to the present is indicated. (Km)
(4) Consumed calorie
①Consumed calorie from 0 o’clock on the very date to the present is indicated. (kcal)
(5) Sleep index
①This is an index indicating sleeping condition by calculating sleeping hour and toss &
turn last night.When an index is close to 100, it means sound sleep.(5)
②In case of sleeping without wearing band, condition is calculated based on basic setting
of 70%.
(6) Stress index
①This index indicates how much mind and body receive stress. Nearing 0 means no
stress. (%)
(7) Fatigue recovery index
①This is an index through which how much my bodily fatigue is could be checked based
on last night sleep index, present fatigue and consumed calorie. Nearing 100 means
less fatigue. (%)
(8) My condition –When pushing human-shaped icon, it moved to Urban Measure mode.
①User condition is indicated by summarizing stress, fatigue and sleep index.
(9) At the time of not wearing band
①Through guide text, a condition of not wearing band is indicated.
3) Smart Advise Screen
(1) When entering detailed screen by pushing smart advise, more detailed information could

14
be confirmed.
4) Urban Measure Mode

15
(1) Information about step count, sleep, consumed calorie is indicated based on unit of hour,
day, week, month.
(2) When pushing sleep mode, it is indicated by dividing it into deep sleep and light sleep
and it could be confirmed based on unit of hour, day, week, month.
(3) When pushing calorie mode, consumed calorie could be confirmed based on unit of hour,
day, week, month.
(4) Latest heartbeat measurement is indicated by measuring it at 30 minute cycle and its
average value by hour, day, week and month could be confirmed. .
(5) When scrolling graph part of lower part from left to right, previous record could be
confirmed

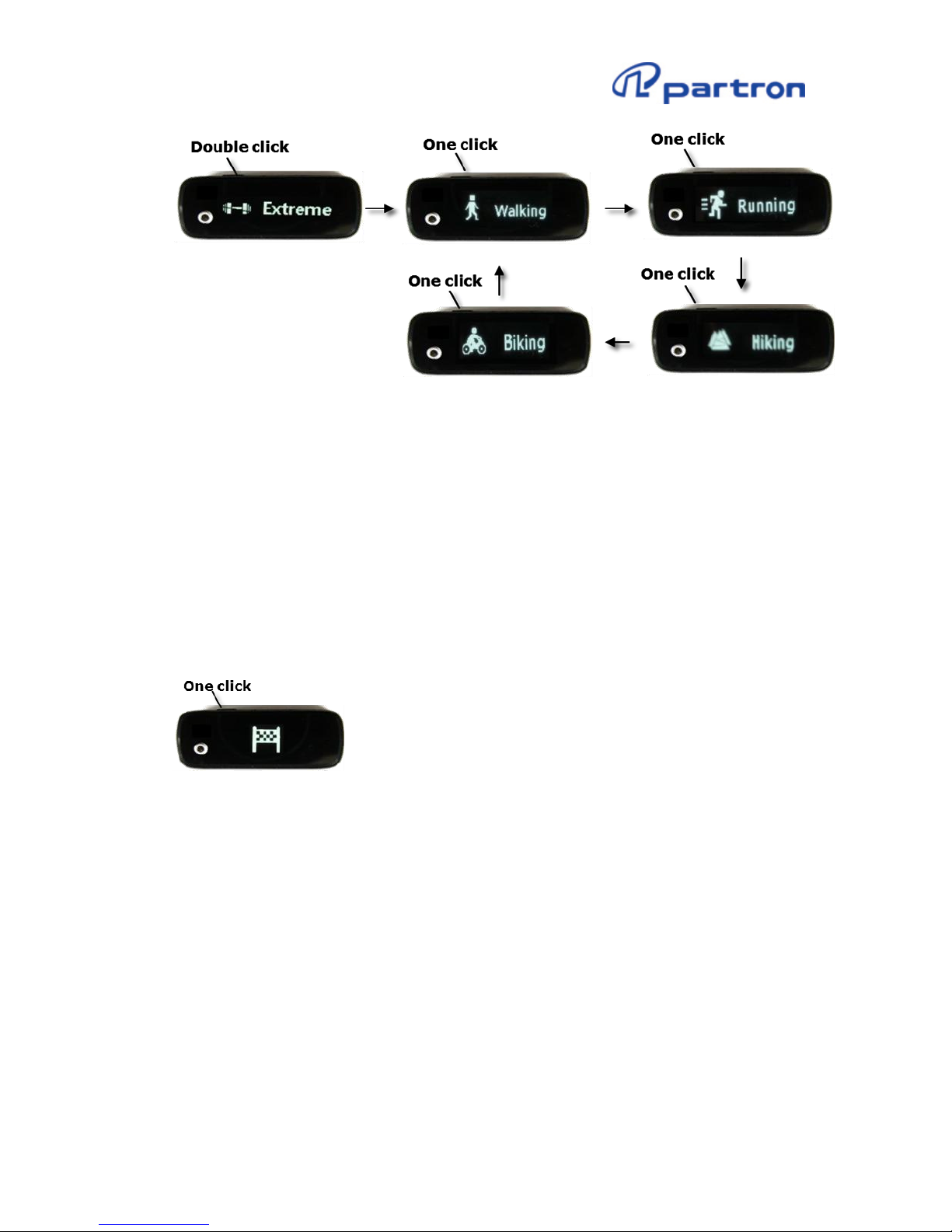

8. Extreme Mode
1) Basic information
Extreme mode advises exercised information through walking, running, mountaineering,
cycling modes. Exercise information may vary depending on environment, physical information.

16
(1) In case of using extreme mode only in band without connecting smart phone, only
walking, running and mountaineering mode could be used. (If you wish to use bicycling
mode, be sure to connect Bluetooth as GPS information is required to be used.)
(2) If pushing button twice in walking/running/cycling/mountaineering mode, each mode is
started.
(3) When setting goal is achieved in App, goat achievement icon is indicated and in App,
goat achievement pop-up is displayed. If pushing button, goal achievement pop-up is
disappeared and it returns to previous screen.
2) Walking mode
Step count, moved distance and heartbeat from the time of starting walking to the present are
indicated measured value during or after exercise as well as consumed calorie could be confirmed.
If pushing exercise hour once, step count, moved distance (within 3 minutes) and measured
heartbeat are indicated sequentially.

17
※Confirmation image of walking mode in App.
3) Running mode
Moved distance, average speed, heartbeat during running exercise were measured and indicated
and its measured value as well as consumed calorie after exercise could be confirmed. If pushing
exercise hour mode once, step count, moved distance, heartbeat measured recently (within 3
minutes) are indicated.

18
※Confirmation image of running mode in App
4) Mountaineering mode
Altitude, step count, heartbeat during mountaineering are indicated and measured value during,
after exercise as well as consumed calorie after exercise could be confirmed. If pushing exercise
hour mode once, altitude vs present elevation above sea level and reference point, step count up

19
to the present, heartbeat measured recently (within 3 minutes) are indicated.
※Precaution
.As altitude is estimated by comparing weather information (atmospheric information being
indicated as anticyclone, cyclone at currently located area) with measured atmosphere, in
order to use weather information of relevant area, band and App are required to be
connected through Bluetooth.
Accuracy of altitude depends on accuracy of weather information and rapidly changing
climate could also lower its accuracy.
※An image confirming mountaineering mode and altitude change of App.

20
5) Bicycling mode
During use of cycling mode, moving distance, average speed, consumed calorie, heartbeat are
measured but measured value could be confirmed only after exercise. If pushing button twice in
exercise hour mode, cycling mode is stopped and changed to exercise screen and if pushing
button once again, exercise distance, average speed, consumed calorie, heartbeat measured
recently (within 3 minutes) are indicated.
※Precaution
Cycling mode could be used under the condition that this mode is connected with App and
GPS is activated.
※Confirmation image of cycling mode of App
