INFORMATION
BEFORE YOU BEGIN
Before beginning assembly, make sure all parts are present. Compare parts received with the “Parts List.” If any part
is missing or damaged, do NOT attempt to assemble the product. Please read and understand this entire manual
before attempting to assemble, operate or install this product. If you have any questions regarding the product,
please call us toll-free at [phone], email us at [e-mail], or go online and live chat at
www.wtliving.com. Our hours are: 9 a.m. – 6 p.m., EST, Monday – Friday
GENERAL INFORMATION
Your new chair and ottoman set are made from the nest materials available. It should provide many years of
enjoyment with minimal care.
Keep your chair and ottoman set clean. For best results, clean with a soft, damp cloth. If you use furniture covers,
always make sure the chair and ottoman set are clean and completely dry before covering, as mold may form
in dark, wet places. Remove cushions prior to covering and store them in a dry, temperature controlled place.
Check the connectors on your chair and ottoman set regularly to make sure they are secure.
The weight limit for one seat of the chair is 250 lbs.
SAFETY INFORMATION
WARNING
DO NOT stand or allow children to stand on the assembled product. Make sure connectors are securely in place.
Perform periodic checks to make sure the connectors are secure and adjust if needed.
CAUTION
READ all instructions before beginning assembly. Failure to do so may result in faulty assembly and potential injury.
Assemble the item on a soft, non-abrasive surface such as carpet or cardboard to avoid damaging the item.
SUGGESTIONS
Use at least two people for assembly. Assemble on a at, soft ground. Do not tighten bolts fully until parts all
connected.

Contact us for assistance: [phone] | www.wtliving.com 3
PARTS LIST
PART DESCRIPTION QUANTITY
ASeat 1
BBack 1
CLeft Arm 1
DRight Arm 1
EBar 1
FLumbar Cushion 1
GOttoman Top 1
HFront Leg 1
IBack Leg 1
M
Allen Wrench
Qty: 1
P
Spacer
Qty: 4
R
Wrench
Qty: 1
Q
Nut
Qty: 4
J
M6x40 Bolt
Qty: 4
N
M6x35 Bolt
Qty: 4
K
M6x20 Bolt
Qty: 10
L
Washer
Qty: 14
O
Washer
Qty: 8
HARDWARE CONTENTS
CHAIR PARTS
OTTOMAN PARTS
CHAIR PARTS
OTTOMAN PARTS
C
D
E
F
G
H
I
A
B

Contact us for assistance: [phone] | www.wtliving.com 4
ASSEMBLY

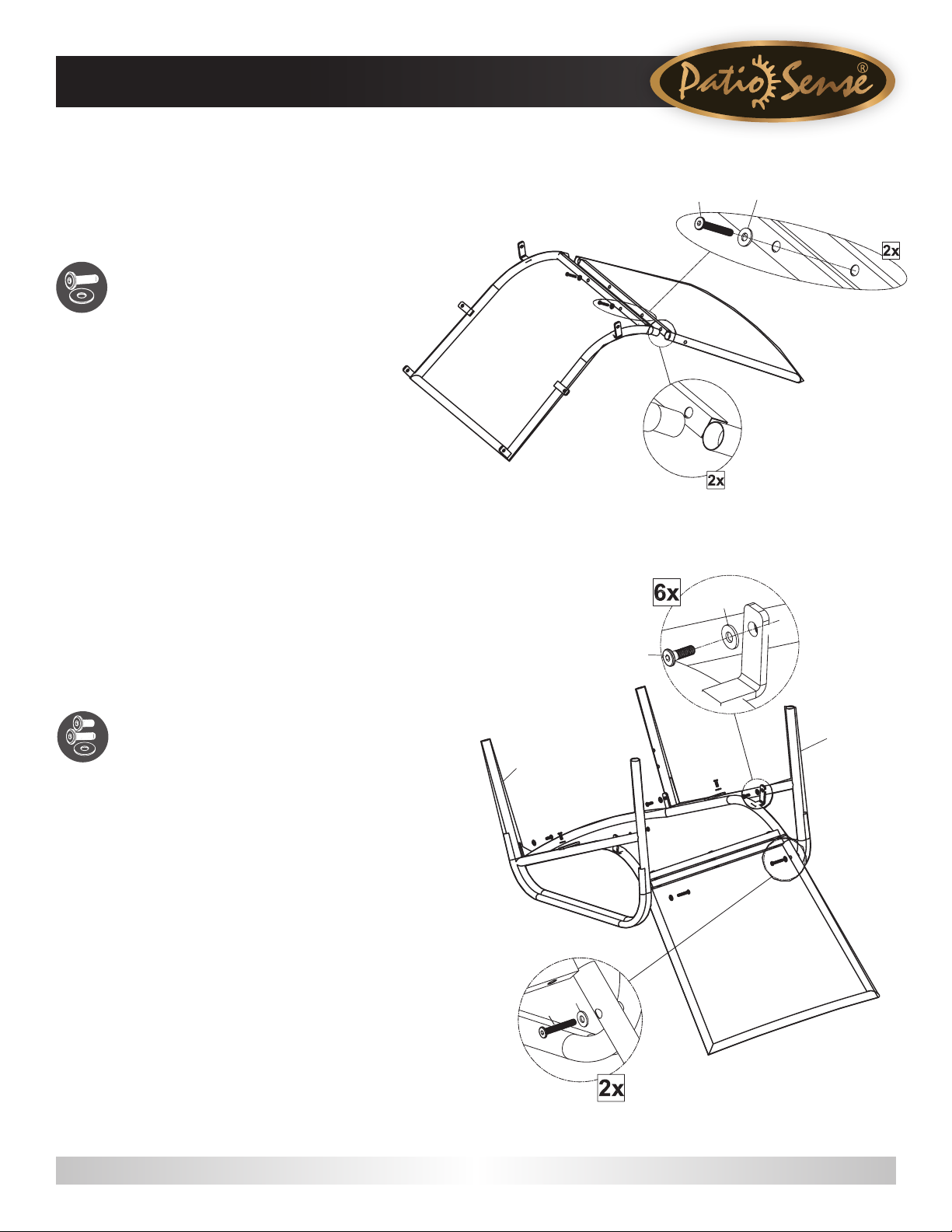

1 Attach Chair Seat Ato Chair Back Busing 2 - M6x40 Bolts Jand Washers L. Tighten
with Allen Wrench M.
Hardware Used: M6x40 Bolt x 2
Washer x 2
2 Attach Right and Left Arms C& Dto assembled Seat/Back using M6x20 Bolts Kand
Washers Land M6x40 Bolts Jand Washers L.
Tighten with Allen Wrench M.
Hardware Used: M6x40 Bolt x 2
M6x20 Bolt x 6
Washer x 8
L
K
D
C
L
J
A
B
JL

Contact us for assistance: [phone] | www.wtliving.com 5
ASSEMBLY
3 Attach the Bar Eto the assembled chair using M6x20 Bolt Kand Washers Lon each side.
Tighten with Allen Wrench M.
Hardware Used: M6x20 Bolt x 4
Washer x 4
4Turn the assembled chair upright and rest on a at, level surface. Place the Lumbar
Cushion F in the chair and enjoy you new seating!
E
K
F
L
