PDL Thermosafe 4HS1200WH User manual

Installation Guide
PDL Thermosafe Ceiling Sweep Fans
4HS12 WH, 4HS14 WH, 4HS12 SS, 4HS14 SS, 4JH12 WH,
4JH14 WH, 4JH12 SS, 4JH14 SS
IMPORTANT NOTES
1. To ensure proper balance, the blades are a matched set. Do
notmix-up the blades with those from another fan.
2. Transport and transit handling may loosen factory fitted cables.
Please check and secure terminal screws before installation.
PM-119PDLA Rev0
Thank you for purchasing this PDL Thermosafe Ceiling Sweep Fan. You can be assured of years of trouble free operation by
installing your ceiling fan carefully according to these instructions. Please read all the instructions before commencing, then
complete each step in order from one to eight.
INCLUDED WITH YOUR FAN
A. otor Assembly
B. 4 x Blades
C. 3-Speed Fan Controller
D. Screw Pack
E. ounting Bracket
F. Instruction Sheet
Hangsure Bracket or J-Hook Bracket
PROTECTING THE FAN
Do not place the motor directly onto a flat surface.
The plastic nipple underneath the motor cannot support the weight
of the motor and may be easily damaged. When working on the
fan, place the motor on the foam packaging with the nipple located
in one of the recesses. This protects the nipple and the finish.
All electrical work must be carried
out by a qualified electrician.
CLEARANCES AND ANGLED CEILINGS
Hangsure Mounting
Suitable for pitched ceilings
with a maximum angle of 18.5˚.
CONTROLLING A SINGLE FAN
This fan has been supplied with a quality PDL 3 Speed Controller
that is designed to operate a single fan.
1

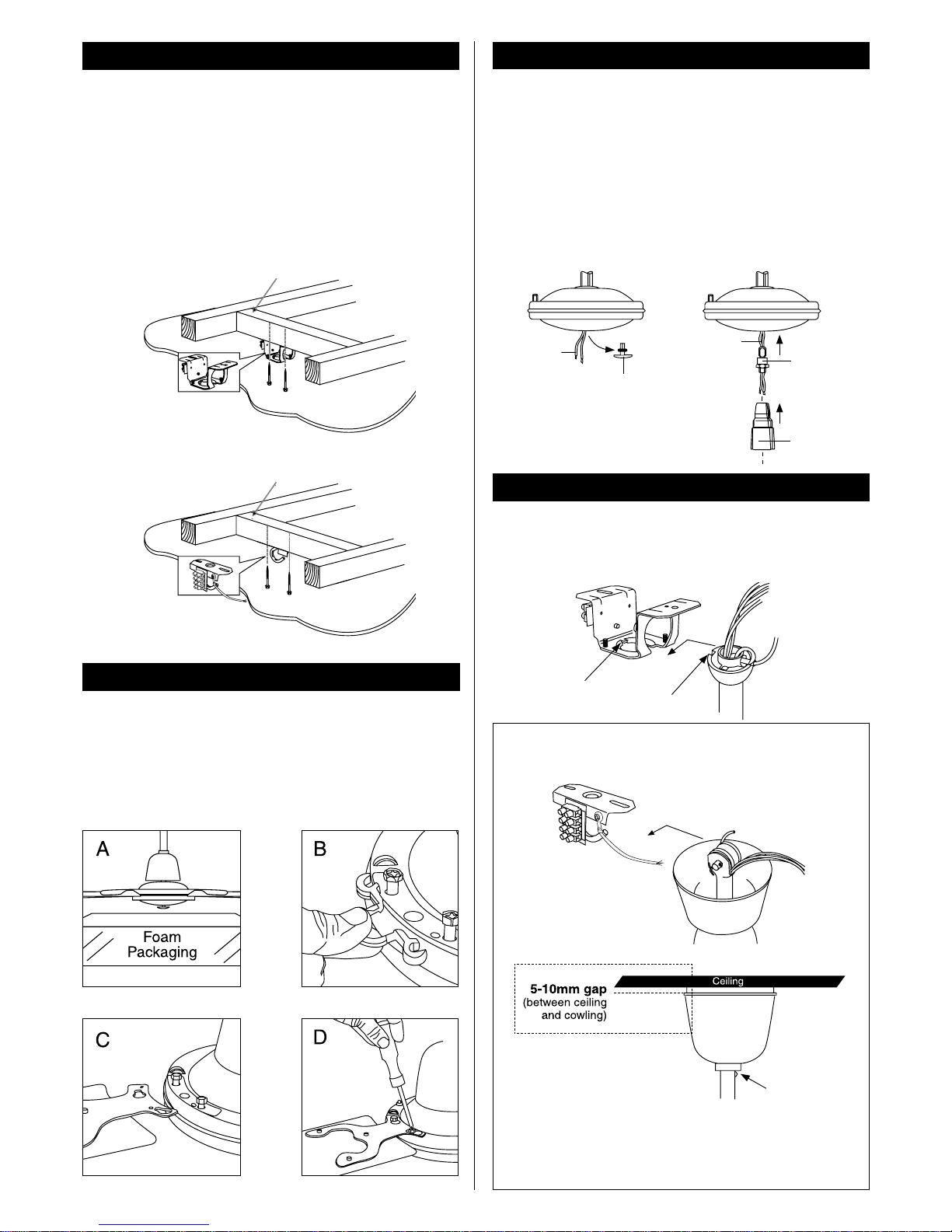

1. MOUNTING THE FAN SUPPORT BRACKET
Select a suitable location to mount the fan support bracket.
The mounting bracket must be fixed to a solid structural member
such as a ceiling joist or a securely fixed noggin and be capable of
supporting 15 Kg.
Additionally it must be located so as to provide the blade with a
minimum clearance from the floor of 2100mm, and from other
obstructions of at least 300mm.
Hangsure Mounting
J-Hook Mounting
Secure fixing to support 15kg
Secure fixing to support 15kg
2. FITTING THE BLADES
Discard the plastic spacer as illustrated in the diagram below.
Seat the key-slot holes of the blade on the screws of the fan motor.
Slide the blade to the right as illustrated until the blade engages in
the locking mechanism and secure the blade with screws.
Slide up top cowl but allow 5-10mm clearance. Secure with locking
screws.
Support the otor Remove Plastic Spacer
Slide Blade over Screws Tighten Screws 2
3. CONNECTION OF THE LIGHT FITTING
If you are attaching a light fitting to the fan, do so prior to hanging
the fan. Note that Clipper Light (CL) and Oyster Light (OL) may be
installed in fans which are constructed for this purpose.
1. Unscrew the plastic nipple from the bottom of the motor housing.
2. Pull out the light wires from the motor housing for connection
with the lamp holder.
3. Insert the light wires through the adaptor, then screw the adaptor
into the motor shaft.
4. Connect the light wires to the lamp holder then screw the lamp
holder and the adaptor together firmly.
Light Wires
Plastic Nipple
Lamp Holder
Light Wires Adaptor
4. HANGING THE FAN
Hangsure Bracket
Position the ball-joint in the bracket so that the guide pin on the
bracket engages in the slot in the ball-joint.
Guide Pin Slot
J-Hook Bracket
Fit the rubber wheel assembly over mounting
Cowling
Screw
IMPORTANT NOTES
For J-Hook Brackets leave a 5-10mm gap between the ceiling
and cowling. It’s normal for the cowling to move slightly when
the fan is running. This gap prevents damaging the painted
ceiling and prevents ticking or clicking noises.

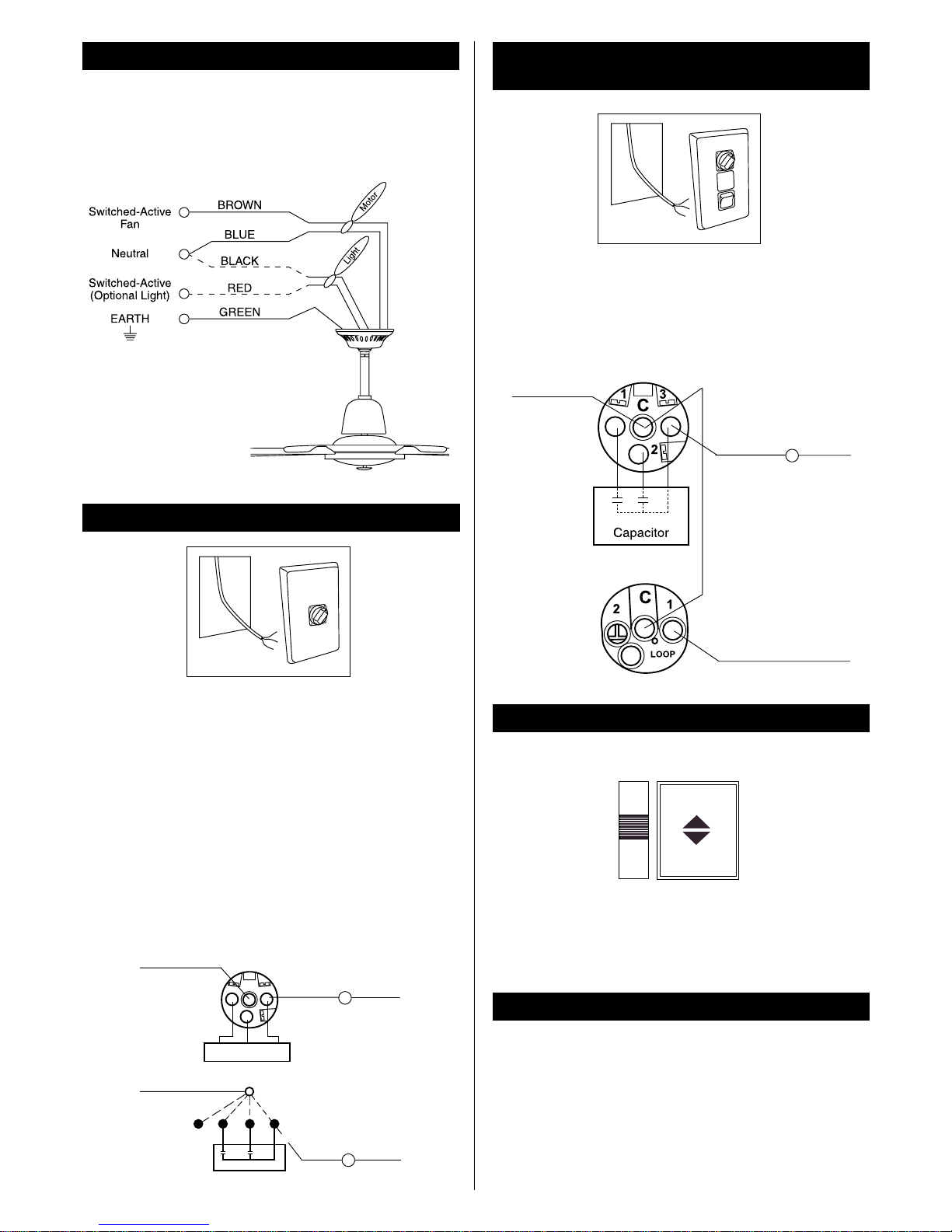

5. CONNECTING THE FAN
All PDL Thermosafe Ceiling Sweep Fans are pre-wired to allow for a
light to be fitted onto the fan.
If you are not fitting a light to the fan, please disregard the light
wires. The wires are connected to the incoming wiring as illustrated
in the below diagram.
6. CONNECTING THE SPEED CONTROLLER
All PDL Thermosafe Ceiling Sweep Fans come complete with a Three
Speed Flush Fitting Capacitor Controller.
This controller fits to standard 84mm fixing centres the same as a
normal switch or power point.
Although supplied standard in the vertical format, the mechanism
can be rotated through 90 degrees to provide a horizontal format if
required.
Three is the highest speed, one is the lowest.
• Remove switch surround.
• Terminate cables as illustrated in the below diagram .
Active to Common (C) and Switched Active terminal 3.
• Fix controller to wallbox or bracket using screws provided.
• Replace switch surround.
3
7. CONNECTIING THE SPEED
CONTROLLER WITH A LIGHT SWITCH
Requires additional components (not supplied with this fan)
including:
- PDL 681 20 Switch echanism
- 2 Gang Grid Plate & Cover (682VH)
Fan Only
Fan with Light
CLEANING INSTRUCTIONS
To clean the fan, wipe over with a damp, soap cloth.
Do not use scourers or abrasive cleaners.
ROTARY SWITCH
MECHANISM
PDL 681M2
SWITCH
MECHANISM
ACTIVE
A
SWITCHED ACTIVE (LIGHT)
NEUTRAL
N
SWITCHED
ACTIVE M
Red Blue
2
13
NEUTRAL
N
SWITCHED
ACTIVE M
Black
ACTIVE
A
ACTIVE
A
NEUTRAL
N
SWITCHED
ACTIVE
2
13
Red Blue Black
CM
8. CHECK FORWARD / REVERSIBLE SWITCH
The forward / reversible switch is located on the bottom cowl.
Check switch and make sure it is in correct setting, depend on
summer or winter season.
Note that the forward / reversible switch must be fully engaged for
the fan to operate.
SUMMER
WINTER

4
ALL ELECTRICAL WORK MUST BE CARRIED OUT BY A
QUALIFIED ELECTRICIAN.
TROUBLE SHOOTING GUIDE:
Fan will not switch on:
- Switch Off the fan.
- Forward/Reverse switch on fan motor not fully engaged in
desired setting.
- Connections not as per installation diagram.
- Fuse blown, Circuit Breaker tripped or there is a power failure.
- Fan will not operate at varying speed control settings.
- Controller connections not as per page 3.
- Ticking, rattles, mechanical noises.
- Ensure all screws and bolts are tight.
- Ensure the mounting assembly is secure.
- Ensure the lower canopy is clear of the motor.
- With hook mount models, ensure the top canopy is clear of
the ceiling by 5 to 10mm to allow for slight movement of the fan.
- Ensure the wires are not tapping against the canopy.
WARNING:
• Do not attemp to stop the blades by hand, even at low speed.
•This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
For further technical support contact PDL National Customer
Service Centre:
WARRANTY
The benefits conferred by this warrantly are in addition to all implied
warranties, other rights and remedies in respect of the product which
the consumer has under the Trade Practices Act and similar State
and Territory Laws.
The original purchaser of this PDL ceiling fan, is provided with the
following warranty, subject to the following conditions:
PDL Industries Australia Pty Ltd warrants this product for a period of
3 years from the date of purchase for all parts defective in
workmanship or materials. All products used in commercial
applications are limited to a 90 day warranty.
All defective parts will be replaced free of charge.
The following exclusions do not preclude the purchaser from those
statutory rights consumers have under the Trade Practices Act or
similar State and Territory Laws.
WARRANTY CONDITIONS:
1. This warranty is only valid for appliances installed according to
the manufacturers instructions and for indoor use only.
2. This appliance must not be modified or changed in any way
and all electrical connections must be carried out by a
qualified electrician only.
3. Connection must be to the voltage requirements as specified in
the ratings label located on the product.
4. The manufacturer does not accept liability for any direct or
consequential damage, loss or other expense arising from misuse
or incorrect installation and operation of the appliance.
5. Warranty will only be given where proof of purchase is provided,
eg. original invoice.
6. For warranty to be valid only PDL accessories, such as down
rods and light kits, shall be installed with the PDL Thermosafe
Ceiling Sweep Fan.
IMPORTANT
Record this warranty information at the time of purchase but do not
send this information unless you are making a claim or are asked to
do so.
To obtain service under warranty you must retain your original
purchase receipt, service will otherwise be charged at current rates.
odel No.:
Purchase from:
Name:
Address:
Postcode:
Date of purchase:
Electrical Products
PDL Industries Australia Pty Ltd
Locked Bag 5500, Baulkham Hills Business Centre
Baulkham Hills NSW 2153Australia
Freephone 1300 735 266, Freefax 1300 735 329
Telephone [phone], Fax: [phone]
www.pdl.com.au
