Pegasus CCTV PCCMINI-WDR28 User manual

DESCRIPTION
PRECAUTIONS
FEATURES

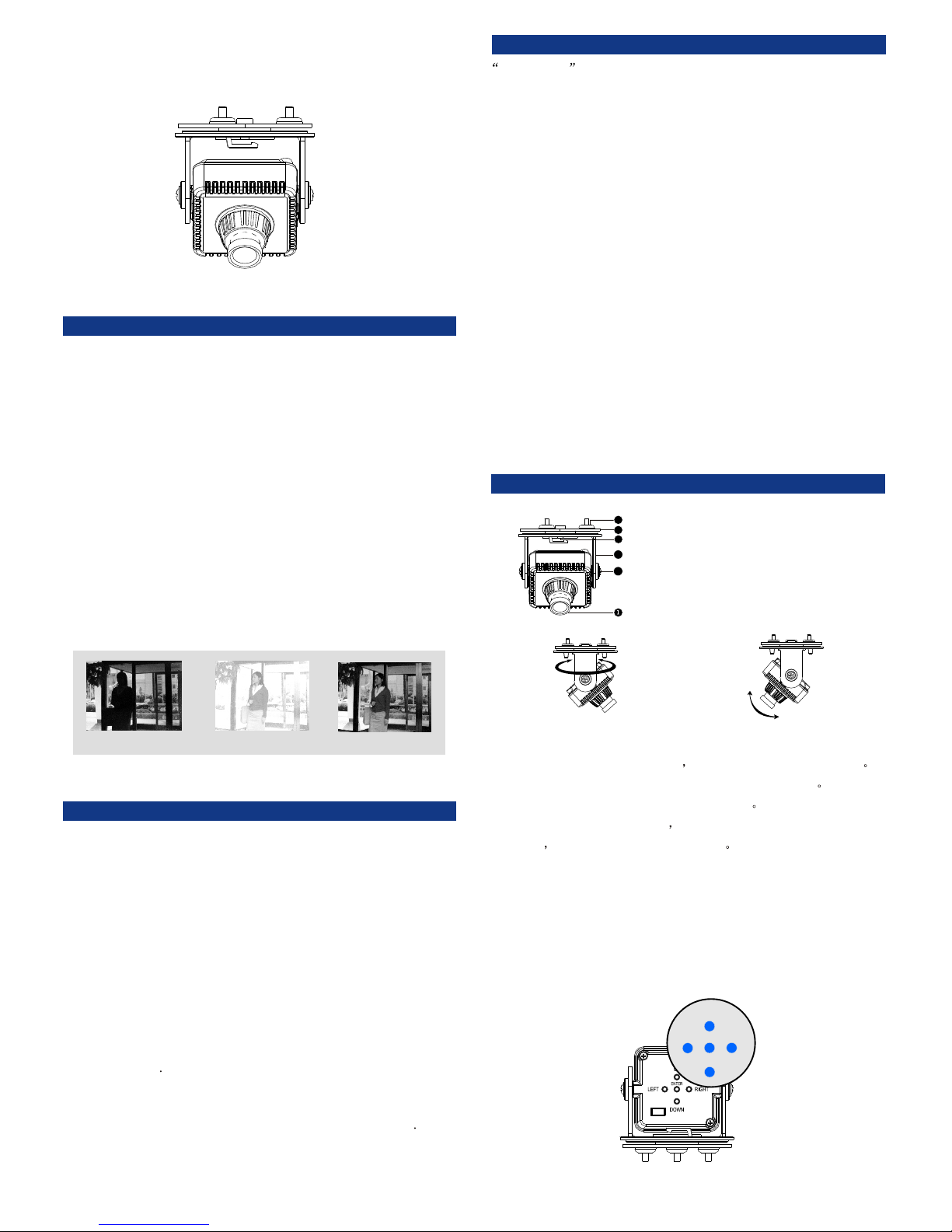

PARTS INSTRUCTION
Ultra Wide Dynamic Mini Camera
User's Manual
Average camera withBLC off Average camera withBLC on Ultra Wide DynamicRange camera
Ultra Wide Dynamic Range
The captured widedynamic range is102dB typical andcan reach
120dB maximum.
High Effective Resolution
Image resolution ashigh as 690TVL-E, offering enhanced horizontal
and vertical resolutionuseable in existingas well asnew CCTV
systems.
Lower Illumination Working Capability
0.1Lux low illumination(IR OFF)
3D Noise EliminatingTechnology
Adopts Pixim fullydigitalized 3D noise reduction technology to
minimize noise, extendingDVR storage by 30%+.
This camera adoptsinnovative DPS(Digital PixelSystem) image
sensor and imageprocessing technology. The sensor picks updetails
from each pixelbased on hundreds of samples pervideo frame. vs
CCD's limited exposures,to ensure wider dynamic range thanisposs
-ible with analogCCD. The image quality iseven brilliant under
extreme lighting conditions.changeablelighting condition.
SEAWOLF Image Sensor
1. Use theAppropriate Power Supply
The input powerwill be DC12V. Be sure to connect itto the
appropriate power.Wrong connectionmay cause malfunction and
damage to thevideo camera.
2. Do notattempt to disassemble the camera.
To prevent electric shock, do not removescrews or covers. There
are no userserviceable parts inside. Ask aqualified service person
for servicing.
3. Handle thecamera with care.
Do not abusethe camera.Avoid striking, shaking, etc.The camera
could be damagedby improper handlingor storage.
4. Do noteuse strong or abrasive detergents when cleaning the
camera body
Use a drycloth to clean the camera whendirty. In case thedirt is
hard to removeUse a mild detergent and wipe gently.
5. Do not put the camera in a place with interference
When this camerais installed nearthe equipment likewireless
communication device whichemits strong electromagneticfield,
some irregularity suchas noise on monitor screen mayhappen.
Enter Right
Left
Up
Down
OSD Menu Operation
55
22
33
44
camera horizontal angle adjustment
camera vertical angle adjustment
66
ENTER: Enter Menuor Select Menu
UP/DOWN: This button is used to move thecursor upward or
downward.
LEFT/RIGHT: This left or right button isused to move the cursor
horizontally or changeparameter.
OSD Menu Setup
1.loose bracket retainingscrew, take off the installation panel
2.fix the installationpanel by screw to the placeneeded
3.install the bracketto the installationpanel
4.loose the adjustmentscrew, adjust the verticaland horizontal
angle then fix theadjustment screw
1.lens
2.adjustment acrew
3.bracket
4.bracket retaining screw
5.installation panel
6.retaining screw holeon installation panel
SW series Ultra WDR cameras are newCCTV cameras which adopt
Pixim'sinnovative “SEAWOLF”image sensor chipbased on Digital
Pixel System ®technology. The resolution is up to690TVL-E and
the industry-leading widedynamic range isup to 120dB.This WDR
ensures brilliant imagequality under anylighting environment. The
image and colorquality is also excellent in lowillumination environ
-ments. This camera series is a ultra widedynamicrange camera in
the real senseusing digital sampling which can't beparalleledby
average wide dynamicrange cameras usingolder generation CCD
imagers. The application of 3D digital noise reductiontechnology
ensures higher S/N,which efficiently reduces the digitalstorage and
transmission data savingsystem cost. Fashionableand professional
exterior design andspecial all-in-one alldirectional bracket, makes
round-the-clock surveillance easyand convenient.

AGC:
Move cursor toAGC byUp and Down button, setAGC by Left and
Right Button as: NORMAL, LOW and HIGH. SettingAGC is better
for cameras towork in wider lighting range, ifthe illumination is low,
can setAGC high torise the sensitivityof cameras.
LENS SELECT:
Move cursor toLENS SELECT, set LENS SELECT by Right and Left
button as :MANUAL,DC:DCAutomatically. MANUAL FOR
MANUAL IRIS LENS, DC forAUTO IRIS LENS.
FLUORESCENT:
Move cursor to FLUORESCENT by Up and Down button, set by Left
and Right buttonas: OFF, CRR2: ColorRolling Restrain. Cameras
output color rollingimage under fluorescent lamp, CRR canrestrain
color rolling, keepthe image stable.
D/N Control:
Move cursor toD/N Control by Up and Downbutton, set D/N by Left
andRight button as:OFF; Auto;GPIO: External Control; On.The
illumination is verylow at night,so we needto rise thesensitivity and
improve imaging quality, then wecan get betterimage quality. Set
D/N in accordancewith different actual need.
SAVE&EXIT:
Move cursor toSAVE&EXIT by Up and Downbutton, set by Left
and Right buttonas :SAVE&EXIT;DEFAULT,CANCEL.
LANGAGE SELECT:
Move cursor toLANGAGE SELECT by Up andDown button, set by
Left and Rightbutton as :ENGLISH;CHINESE.
ATW
MEDIUM
OFF
NORMAL
OFF
DC
AUTO
ENGLISH
DEFAULT
WDR CONTROL
BLC
WHITE BALANCE
LENS SELECT
D/N CONTROL
LANGAGE SELECT
AGC
FLUORESCENT
SAVE
(ATW/AWB)
(LOW/NORMAL/MEDIUM/HIGH)
(OFF/ON)
(LOW/NORMAL/HIGH)
(OFF/CRR/CRR2)
(MANUAL/DC)
(OFF/AUTO/GPIO)
(ENGLISH/CHINESE)
(CANCEL)
CAMERA SETUP
WD NROMAL
SAVE
PRESETS
PRE
WDR ZONE SELECT:
NORMAL METERPRESETS
WD NROMAL/SAFEAREA/ATM/LOW1/3
CANCEL
*Specialists press "Left,Right, Left, Right,Down" button entersuperior menu.
OSD MENU OPERATION
WDR Control:
Press Enter toshow the menu, move the cursorto WDR Control, set
MEDIUM, NORMAL, LOW, HIGHby leftand right button;choose
the setting forWDRinaccordance with the lighting condition,set
High in stronglighting contrast to realize higher qualityimage.
WDR ZONE SELECT:WD NROMAL/SAFEAREA/ATM/LOW 1/3.
BLC:
move to BLCby Up and Down button, setBLC by Left and Right
button: On andOff.
WHITE BALANCE:
Move to White Balance by Up and Downbutton, set White balance by
Left and Rightbutton: AWB: AutoWhite Balance; ATW: Auto Track
-ing White Balance. The color's temperature aredifferent in different
lighting condition,The color'stemperature changes indifferent ligh
-ting condition, sothe white color in video imagechanges if the light
-ing condition changes.AWB means camerascan compensate color
temperature automatically. In somespecial environment, in orderto
keep the samecolor temperature , ATW setting can keep a fixed color
temperature

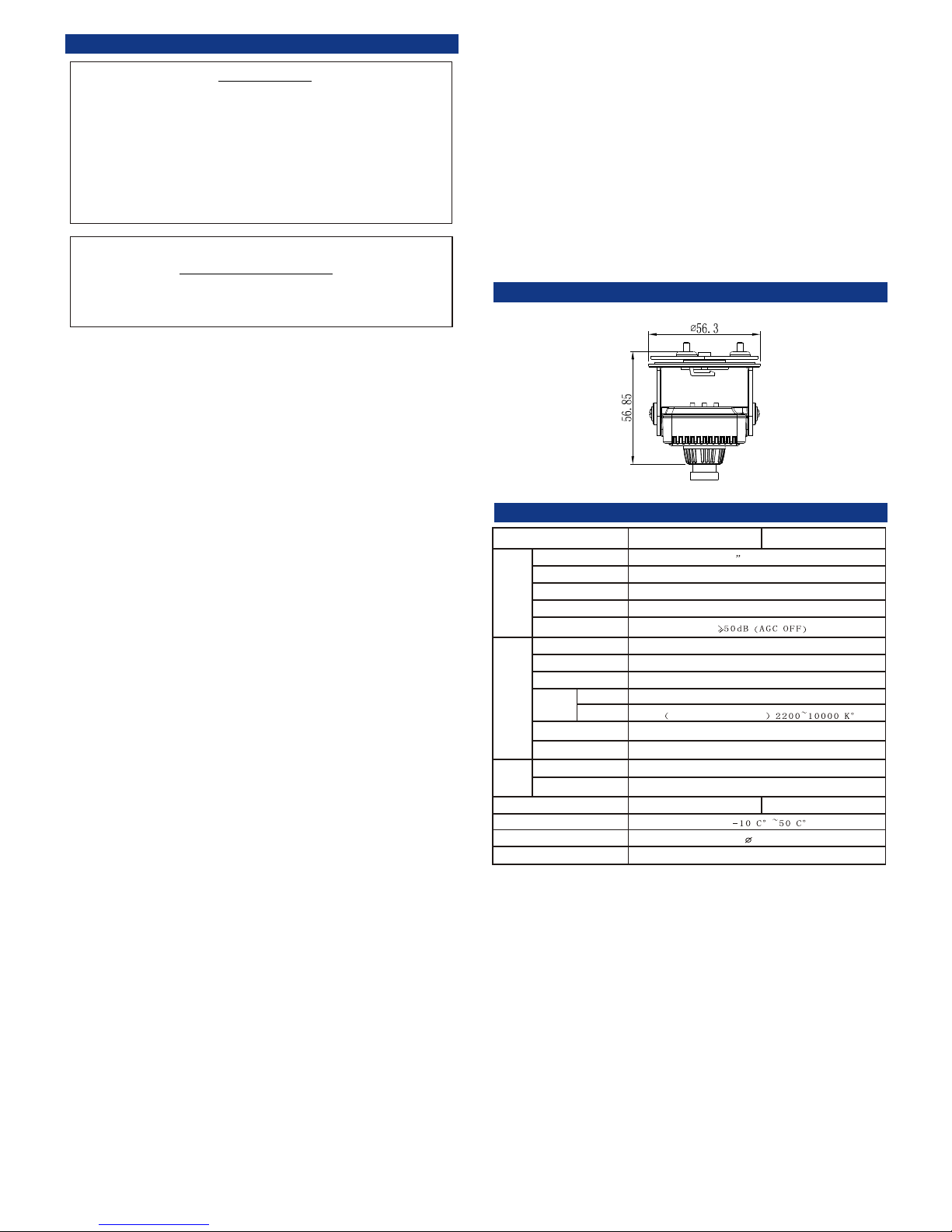

DIMENSIONS
*Specification is subjectto change withoutprior notice
Sensor
Video Format
SYNC Mode
Resolution
S/N Ratio
Mini illumination
AGC
White
Balance
BLC
WDR control
Voltage
Current
Lens
Working Temperature
Size
Weight
1/3 DPS Sensor
PAL/NTSC
INTERNAL
690HTVL-E
normal, low, high
ON,OFF
medium, normal, low, high
DC12V
Tracking White Balance, Auto White Balance(ATW)
D/N
OFF, External Control, Auto; ON
Sensor Control Power
0.1Lux
100g
56( )*57( H )
Auto White Balance
2.8mm pinhole
<150mA
SPECIFICATION
Automatic
Mode
