PENTODE TK100 User manual

GSM/GPRS/GPS TRACKER
USER MANUAL
Thank you for purchasing the tracker. This manual shows how to operate the
device smoothly and correctly. Make sure to read this manual carefully
before using this product. Please note that specification and information are
subject to changes without prior notice in this manual. Any change will be
integrated in the latest release.

Contents
1 Summary ...................................................................................................................................3
2 Main functions...........................................................................................................................3
3 Specs. ..........................................................................................................................................3
4 SIM card installation ...................................................................................................................4
5 Wires connection .........................................................................................................................4
6 Device Parameter Settings ..........................................................................................................5
6.1 Initialization ........................................................................................................................5
6.2 Set password ........................................................................................................................5
6.3 Authorization .......................................................................................................................6
6.4 Single Locating ...................................................................................................................6
6.5 Get geographical location ....................................................................................................7
6.6 Auto continuous track ..........................................................................................................7
6.7 Voice Surveillance & Two-way calling ...............................................................................8
6.8 Geo-fence ............................................................................................................................8
6.9 Overspeed alarm ..................................................................................................................9
6.10 ACC ON alarm ..................................................................................................................9
6.11 SOS alarm ........................................................................................................................10
6.12 Time Zone Setting ...........................................................................................................10
6.13 Cut oil or circuit (optional) ..............................................................................................10
6.14 Recover oil or circuit .......................................................................................................10
6.15 Power failure alarm ......................................................................................................... 11
6.16 Check device setting parameters ..................................................................................... 11
6.17 GPRS setting ................................................................................................................... 11
6.18 Device restart ...................................................................................................................12
6.19 Web platform GPS tracking software ..............................................................................12

1 Summary
Working Based on existing GSM/GPRS network and GPS satellites, this
product can locate and monitor any remote targets by SMS or GPRS.
2 Main functions
· GSM quad-band frequency;
· Real time tracking by SMS/GPRS;
· Recover original password;
· Real time voice monitoring;
· Over speed alarm ;
· ACC anti-theft alarm ;
· SOS alarm ;
· Built-in backup battery to realize power failure alarm;
· Two-way calling; (optional);
· Cut vehicle oil or circuit (optional).
3 Specs.
Content Specs.
Dim. 97 mm x 51 mm x 15 mm
Weight 80g
Network GSM/GPRS/GPS
Band 900/1800Mhz or 850/900/1800/1900 Mhz
GPS chip UBLOX
GSM module MTK60
GPS sensitivity -159dBm
GPS accuracy 5m
Time To First Fix
Cold status 45s
Warm status 35s
Hot status 1s
Work voltage 9V-36V
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +55°C
Humidity 5%--95%

4. SIM card installation
4.1 Preparation
Please insert SIM card before turning the device power switch to on;
The SIM card need open the GPRS function;
Please make sure SIM card with full balance.
4.2 Device light description
Color Represents
red power
yellow GSM signal
green GPS signal
Note: the three lights must be stable lighting on represent device can work
normally. All lights will turn off after 5 minutes, if you call the device
number, lights will wake up.
5. Wires connection
5.1 device power wire connection as below:
5.1.1 Red wire connects to vehicle power positive +
5.1.2 Black wire connects to vehicle power negative -
5.1.3 Yellow wire connects to oil pump or circuit control wires
5.1.4 Green wire connects to ACC wire

5.2 Device wiring diagram
6. Device Parameter Settings
6.1 Initialization
Send SMS “#begin#” to the tracker, it will reply “begin ok” and initialize all
the settings. (Default password: 123456). Remark: initialization is resetting
all the parameters to factory defaults.
For example, send SMS “#begin#”, If succeeded, it will reply“begin ok”.
6.2 Set password
6.2.1Set Password: Send SMS: “#password#old password#new
password#” to the unit to change the password.

For Example, send SMS: “#password#123456#666888#” to device, it will
reply SMS: “password OK”.
6.2.2 Make sure the new password is in 6 digits arabic numbers, or the
device cannot recognize the password.
6.2.3 Resume original password: send SMS: “#resume#” to the device, it
will reply SMS: “resume password, password is 123456”.
6.3 Authorization
6.3.1 Set authorization: send SMS “#admin#password#cell phone
number#” to set up authorized number, device will reply “admin ok”.
6.3.3 Delete authorization send SMS “#noadmin#password#authorized
number#” to delete the authorized number, device will reply “no admin ok”.
6.4 Single Locating
6.4.1 If there is no authorized number, any number dials up the device
number, it will report tracking message; if already set authorized number,
then it will not respond when an unauthorized number calls it.

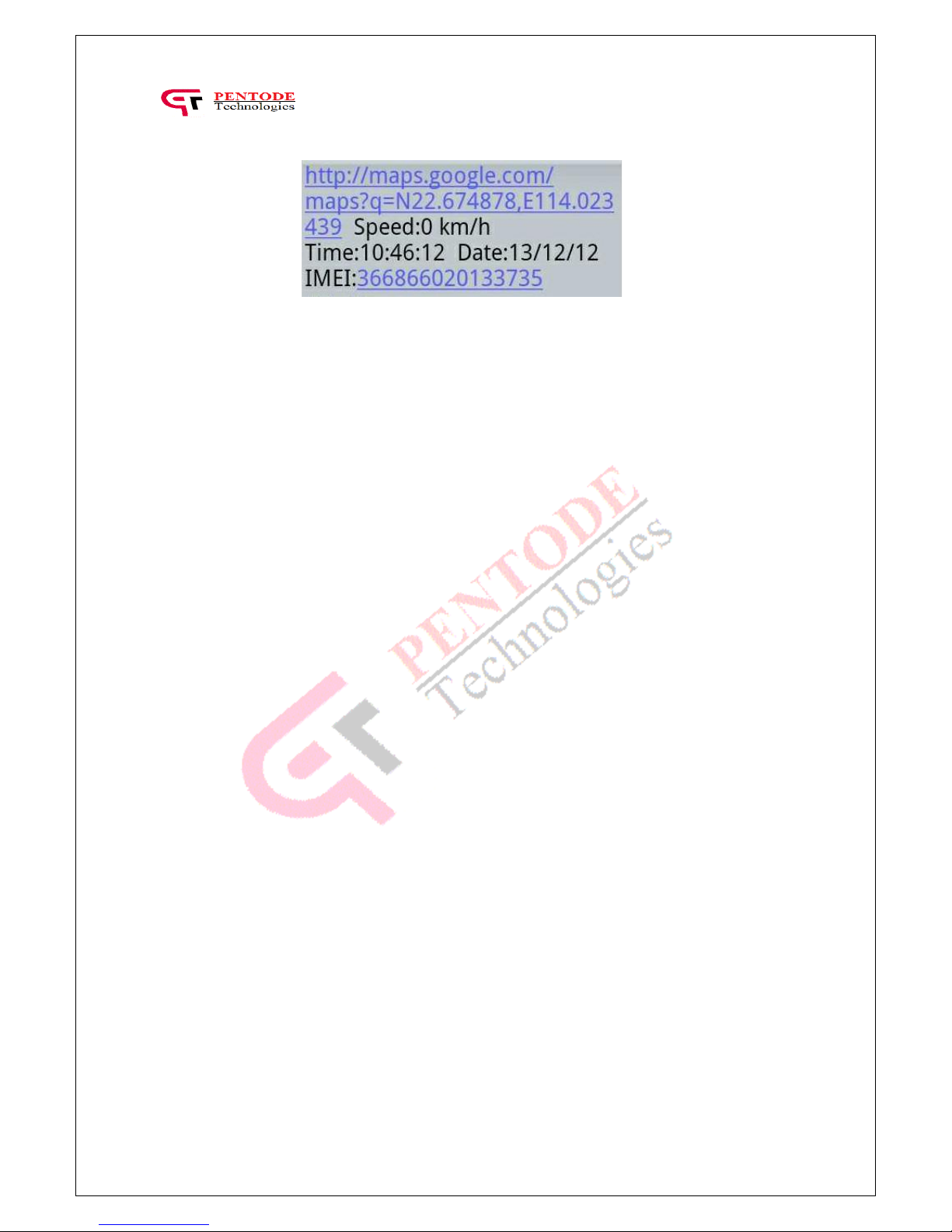

6.4.2 Dialing tracking: make a call to device number, it will hang up and
reply a real-time tracking message.
6.4.3 SMS tracking: send SMS“#smslink#123456#”, it will reply a
real-time tracking message.

Note: when GPS signal is weak, you will receive the last location when GPS
is available. If it is different with its exact current location, pay attention to
check the time included in the SMS.
6.5 Get geographical location
6.5.1 Must set the SIM Card APN parameter firstly before using this function,
if there is APN user name and password, Please refer to point 6.13 to
set.
6.5.2 Send SMS: “DW” to device, it will reply current location info: around
118m, jianhui rd, bao’an district, Shenzhen, China.
Note: this function may not work in some certain area.
6.6 Auto continuous track
6.6.1 Limited times auto track: Send SMS “#at#30#sum#15#”to the device,
it will reply the tracking message at 30s intervals for 15 times. ( default
“s”:second).
6.6.2 Unlimited time auto track: Send SMS “#at#30#sum#0#” to the device.
Remark: device must be connected to tracking software.

6.6.3 Cancellation: Send SMS “#noat#password#” to the device.
6.7 Voice Surveillance & Two-way calling
It need connect external microphone, two-way calling function is
optional.
6.7.1 Device has 3 mode to switch, the default mode is “tracker” mode
(Tracking status).
6.7.2. Send SMS “#monitor#password#” to the device, and it will reply
“monitor ok!” and switch to “monitor” mode. Then use mobile phone to dial
the device number, it will get though and enter voice listening function.
6.7.3. Send SMS “#tracker#password#” to the device, it will reply “tracker
ok!” and restore to “track” mode.
6.7.4. Send SMS “#call#password#” to the device, it will reply “call ok!”.
Then use mobile phone to dial the device number, device speaker will ring,
press the SOS button to receive the call so that it can realize two-way talking
function.
6.8 Geo-fence
Set up geo-fence for the unit to restrict its movement within a district. The
device will send message to the authorized number automatically when it
exceed the district.
6.8.1 When the unit stays immobile in a place, send SMS:

“#stockade#password#semidiameter#” to unit to set the restricted district.
For example, send SMS: “#stockade#123456#3#”, “3” represents 300
meters.
In case of breach, it will send SMS “stockade!+Geo-info” to the authorized
number.
6.8.2 Cancel: Send SMS: “#nostockade#password#” to deactivate this
function, it will reply “no stockade ok”.
6.9 Overspeed alarm
6.9.1 Set up: Send SMS:“#speed#password#speed number in 3 digits#” to
the device (suppose the speed is 80km/h), EG, send SMS
“#speed#123456#080#”, and it will reply “speed ok ”. When the car moves
exceeding 80 km/h, the unit will send SMS alert “speed alarm” to the
authorized number.
6.9.2 Cancel: send SMS “#nospeed#password#” to deactivate the overspeed
alarm. It will reply “cancel speed ok”.
6.10 ACC ON alarm
6.10.1 Send SMS"#ACC#ON#" to device to start illegal start alarm function,
when vehicle ignition on, device will reply "ACC!! +IMEI
number+Long&Lat" to the authorized number.
6.10.2 Send SMS"#ACC#OFF#" to device to close the function.

6.11 SOS alarm
When connect external SOS wire, if press the SOS button, device will reply
"SOS alarm! +IMEI number+Long&Lat" to authorized number.
6.12 Time Zone Setting
Remark: UTC+8 is default time zone.
6.12.1 Send SMS “#timezone#password#direction#time zone value in
hours#time zone in munites#”. If set OK, it will reply “time zone ok”. For
example, if in UTC-6, send SMS “#timezone#123456#W#6#00#”. If in
UTC+5.30, send SMS “#timezone#123456#E#5#30#”.
6.13 Cut oil or circuit (optional)
Send SMS “#stopoil#password#” to device, it will reply “stop oil ok”, cut
oil successfully.
Send SMS “#stopelec#password#” to device, it will reply “stop electricity
ok”, cut circuit successfully.
6.14 Recover oil or circuit
Send SMS “#supplyoil#password#” to device, it will reply “supply oil ok”,
recover oil successfully.

Send SMS “#supplyelec#password#” to device, it will reply “supply
electricity ok”, recover circuit successfully.
6.15 Power failure alarm
Built-in backup battery to send SMS “cut power alert! +IMEI
number+Long&Lat” to the authorized number when the power was cut.
6.16 Check device setting parameters
Send SMS “TCP” to device, device will reply SMS “ IP+port+APN+GPRS
setting(A: valid,V: invalid).
6.17 GPRS setting
User must send SMS via cell phone to set IP, port and APN before starting
GPRS.
6.17.1 Setting APN
6.17.1.1 APN standards for Access Point Name and differs from country to
country. For more information about the local APN, inquiry from your local
GPRS network operator.
6.17.1.2 Send SMS “#apn#password#APN content#APN user name#APN
password#” via a cell phone and if succeeded, the tracker will return the
message “set APN OK”.
E.g. send SMS command “#apn#123456#cmnet#”.

Notes: CMNET is the APN content of China Mobile (it has no APN user
name and password).
6.17.2 IP and Port setting
Send SMS “#IP#password#ip address#port number#”. If succeeded,
“set ip address and port ok” will be returned by SMS.
E.g, Send SMS command “#IP# password #58.64.200.27#6780#” to the
device (58.64.200.27 is IP, 6780 is port, IP is in capital)
6.18 Device restart
Send SMS “#reboot#123456#”, device will reply “system will reboot…”.
6.19 Web platform GPS tracking software
Web based platform www.web2trac.com, further details please contact
manufacturer.
