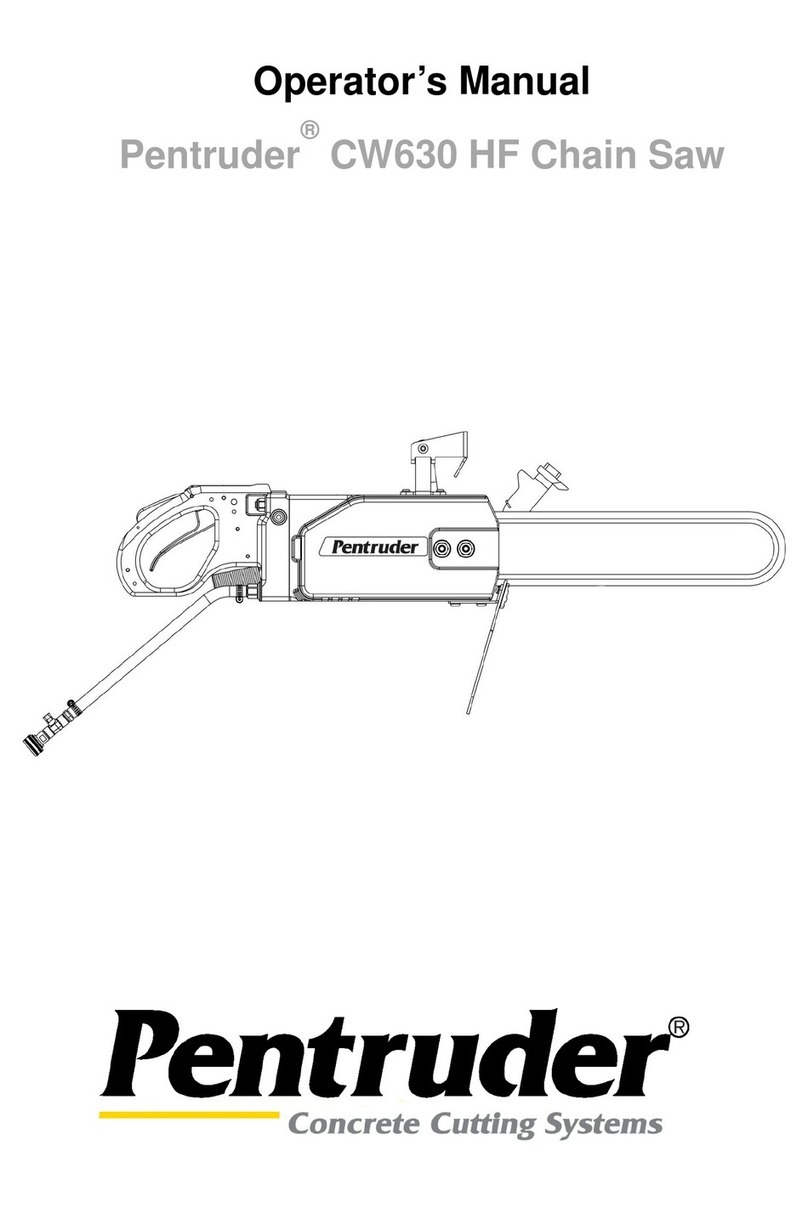

Pentruder CWF630 User manual
Operator’s Manual
Pentruder®CW630 HF Chain Saw
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage2
Operator’sManualfor
Pentruder
®
CW630HFChainSawforusewith
PentpakHF‐powerpacks
Version:2.0Date:2015‐11‐04
Support&Servicedocument
Originalinstructions
Copyright©2015TractiveAB.
PentruderisaregisteredtrademarkbelongingtoTractiveAB.
Contents
1Introduction...................................................................................................................................................3
1.1ValidityofthisOperator’sManual.........................................................................................................3
2DescriptionofTheMachine............................................................................................................................4
2.1Listofcompletemachine.......................................................................................................................4
2.2Signsanddataplatesonthemachine....................................................................................................5
2.3PentruderCW630..................................................................................................................................6
2.4PentruderHFdrivesystem.....................................................................................................................7
3SafetyInstructions.........................................................................................................................................8
3.1SafetyinstructionswhichareusedinthisOperator’sManual.................................................................8
3.2Intendeduseofthemachine..................................................................................................................8
3.3Generalsafetyinstructions....................................................................................................................9
3.4Safetyprecautionsatsite.....................................................................................................................10
4Preparations................................................................................................................................................11
4.1Guidebaranddiamondchaininstallation............................................................................................11
4.2Determiningproperchaintension........................................................................................................13
4.3Connectiontowatersupply.................................................................................................................13
4.4Pre‐cutchecklist..................................................................................................................................14
4.5Planningthecut...................................................................................................................................14
5Cutting........................................................................................................................................................15
5.1StartingandstoppingthePentruderCW630........................................................................................15
5.2Cuttingtips..........................................................................................................................................16
5.3CuttingductileironpipewiththePowerGrit®UtilitySawChain...........................................................17
6MaintenanceandTroubleShooting..............................................................................................................18
6.1Systemclean‐up..................................................................................................................................18
6.2Sprocketinspectionandinstallation.....................................................................................................19
6.3Troubleshooting..................................................................................................................................20
6.4Transportandstorageofthemachine..................................................................................................20
7TechnicalData.............................................................................................................................................21
7.1Approximatecuttingrates...................................................................................................................21
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage3
Introduction
1
Thankyouverymuchforyourconfidenceinourproduct!Youhavechosentoinvestinaproductwhichwillgiveyou
manyyearsofefficientandprofitableproduction.ThePentruderCW630hasbeendevelopedbasedonmorethan30
yearsofexperienceinthisspecializedfield.Withcorrecthandlingitoffersoutstandingperformance,safetyand
reliability.
Itisessentialthatallpersonnelworkingwithorincloseproximityofthemachine
havereadandunderstoodthecontentsofthismanualbeforecommencing
operations.PleasetakecarefulnoteoftheSafetyPrecautions.
TheOperator’sManualshouldbekeptwherethemachineis.
Toavoidseriousorevenfatalinjurytotheoperatorandpersonsincloseproximity
ofthemachine,itisimportantthatthemachinealwaysisoperatedbytrained,
responsiblepersonnel.
ByreadingandunderstandingthemanualtheoperatorwillbeabletogetthemaximumbenefitfromthePentruder
CW630HFChainSaw.Besuretoreadthismanualthoroughlyandperiodicallyreviewsafetyinstructions.
Weareconfidentthatyourinvestmentinthisequipmentanditsmanydesignfeatureswillenhanceyourcompetitive
edgeandprofitability!
ValidityofthisOperator’sManual
1.1
ThisOperator’sManualisonlyvalidforthePentruderCW630asdescribedinChapter2DescriptionofThe.Please
alsorefertotheOperator’sManualforthePentpakhighfrequencypowerpackbeingused.
TractiveABalwaysstrivestoimprovetheproducts.Thereforewereservetherighttomaketechnicalchanges
withoutpriorinformation.
InthefollowingOperator’sManual,“themachine”,“chainsaw”or“PentruderCW630”isusedtorefertothe
completemachineaslistedinChapter2DescriptionofThe.
Shouldquestionsarise,pleasecontactoursalesdistributor.Theaddresscanbefoundatwww.pentruder.com.
ProductDescriptionSerialnumber
Category:HFChainSaw
Makeandtype:PentruderCW630‐HF400_______________
Drivesystem:PentpakHighFrequencyPowerPack
Typeofdrivesystem:427/422/418_______________
Drivemotor:HighFrequencyelectricmotor
Manufacturer PentruderDistributor
TractiveAB
Gjutargatan54
S‐78170Borlänge
Sweden
Phone:+46(0)243‐221155
Fax:+46(0)243‐221180
Web:www.tractive.se
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage4
DescriptionofTheMachine
2
ThePentruderCW630isdevelopedandmanufacturedbyTractiveABinSwedeninaprocesswheresafety
awareness,performanceandreliabilitywerethemostimportantdesignparameters.
ThePentruderCW630isdesignedtocutconcrete,stoneandmasonrywhenusedwiththeappropriateDiamond
Chain.Othermaterialsincludingductileiron,castironorPVCpiperequireaspecialchain.Followthemanufacturer’s
recommendations.TractiverecommendsusinggenuineICS®diamondchains,guidebarsanddrivesprockets.
Listofcompletemachine
2.1
ThePentruderCW630isusedwiththePentruderHFdrivesystemtobeacompletemachine.
1. PentruderCW630HFChainSaw
2. Baranddiamondchain
3. Pentruderhighfrequencypowerpack
4. Remotecontrol
5. Highvoltagecable
PleasenotethataPentruderCW630isnotcompletewithoutthemoduleslistedinthisparagraph.Pleasealsorefer
totheOperator’sManualforthePentpakHF‐drivesystembeingused.
ThemanufacturercannottakeresponsibilityfordiamondconsumablesusedwiththePentruderCW630.Pleaserefer
tothetechnicaldocumentationofthediamondtoolinquestionbeforeusingitwiththePentruderCW630.
3
1
2
4
5
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage5
SignsanddataplatesontheCW630HFChainSawand/orinthisOperator’smanual
2.2
ThefollowingsignscanbefoundonthePentruderCW630HFChainSawand/orthroughoutthisOperator’s
manualandaredesignedtomakeyouawareofpotentialhazardsorunsafepractices.
Safetyalert
Thismachineisaprofessionaltool
andcanbedangerousifnotused
correctly.
Readinstructions
TheOperator’smanualofthe
CW630andthePentruderHF‐drive
systemcontainimportantsafety
andoperatinginformation.Read
andfollowtheinstructions
carefully.
Weareye,hearingandrespiratory
protection.Wearheadprotection
Allpersonsworkingwith,orinthe
proximityofthemachineshould
wearsafetyequipment.
Kerfwidth
Donotinserttoolintoslot
narrowerthanchain.
Thisproductisinaccordancewith
applicableEC‐directives.
Thetrashbinsymbolisan
environmentalmarkingand
indicatesthatthismachine
containselectrical/electronical
equipmentwhichshouldbe
recycled.
Noiseemissiontotheenvironment
accordingtotheEuropean
Community’sDirective.Thenoise
levelscanbefoundinChapter7
TechnicalData.
Wearlongpants
Wearlongpantswhenoperating
thesaw.
Wearfootprotection
Wearappropriateclosed‐toeboots
whenoperatingthesaw.
Wearhandprotection
Wearhandprotectionwhen
operatingthesaw.
Bewareofkickback
Kickbackcancausesevereinjuries.
Two‐handedhold
Operatoethesawwithtwohands,
securelygrippingbothhandles.
One‐handedhold
Donotoperatethesawwithone
hand.
Donotusealadder
Neverstandonaladderwhen
usingthesaw.
Slipperysurface
Unsurefootingcanleadto
accidents.
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage6
Safetylabel
Nameplatelabel
Meaningofabbreviations
S/N:SerialNumber
YoM:YearofManufacture
Model:CW630‐HF400,380‐480Vversion‐
Warninglabel
Cuttinginapowerline
Cuttinginapowerlinewhichis
energizedcanresultinserious
injuryandeventofatalinjuries.
Disconnectfrompowersupply
Beforeanykindofserviceonthe
machineiscommenced,the
machinemustalwaysbe
disconnectedfromtheelectric
powersupply.
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage7
PentruderCW630
2.3
PentruderCW630HFChainSaw
-CW630‐HF400,380‐480Vversion
ICS®DiamondChainandguidebarcombinations
-Bar25cm(10in),38cm(15in),50cm(20in),63cm(25in)
PentruderCW630HFChainSaw
PentruderHFdrivesystem
2.4
Pentruderhighfrequency(HF)powerpackwithcableremotecontrol
2.4.1
TheCW630‐HF400,380‐480VInputvoltageispoweredbythePentpak427,422
or418equippedwithdigitalcommunicationconnectors.
-PP427,Pentpak427(50‐60Hz)
-PP422,Pentpak422(50‐60Hz)
-PP418,Pentpak418(50‐60Hz)
InthefollowingOperator’sManualPentpakHFpowerpackorjustPentpakis
usedtorefertoallofthePentpakHFpowerpackslistedabove.
ThePentruderCW630HFChainSawisusedwiththeCRCcableremotecontrolor
WRCradioremotecontrol.Thechainsawhasafixedcablewithconnector
attachedtothemachinethatconnectsdirectlyintothePentpak.Thehigh
voltagecableHF400‐9‐30canbeusedasanextensioncable.
Pentruder427,422,418
CRCCableRemoteControlHF400‐9‐3
0
WR
C
WirelessRemote Control
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage8
SafetyInstructions
3
SafetyinstructionswhichareusedinthisOperator’sManual
3.1
WARNING!
Hereweinformaboutrisksconnectedwithuseofthemachine,and,ifthesafety
precautionsarenotrespected,canresultinseriousinjuryandeventofatalinjuries
topersonsincloseproximityofthemachine.
!
Important!
Hereweinformaboutrisksconnectedwithuseofthemachine,and,ifthesafety
precautionsarenotrespected,canresultindamagetopropertyandpersonsin
closeproximityofthemachine.
Note! Thissignindicatestechnicalspecificsandmethodswhichwillfacilitatethejob.
Intendeduseofthemachine
3.2
!
Important!
-PleaseobservethatTractivesresponsibilityasamanufacturercanonlybe
acceptedwhenthePentruderCW630,isusedtogetherwiththeHFdrive
systemdescribedinthisOperator’sManual.Ifthemachineisusedwith
non‐originalequipmentthewarrantyandTractivesCE‐markingwillbevoid.
-Themanufacturercannottakeresponsibilityfordiamondconsumablesused
withthePentruderCW630.
-Pleaserefertothemanufacturerofthediamondconsumableinquestion
beforeusingitwiththePentruderCW630.
ThePentruderCW630HFChainSawisdesignedtocutconcrete,stoneandmasonrywhenusedwithanappropriate
genuineICS®DiamondChain.Othermaterialsincludingductileiron,castironorPVCpiperequiretheuseofICS®
PowerGrit®UtilitySawChain.TractiverecommendsusinggenuineICS®diamondchains,guidebarsanddrive
sprockets.
Thismachinemaynotbeusedunlesstheoperatorisfullyfamiliarwiththecontentsofthismanualaswellasthe
Operator’sManualsforthehighfrequencydrivesystemandhasbeentrainedinitsoperationbyanauthorised
distributorofTractiveAB’sproducts.Theoperatorisfullyresponsibleforthemannerinwhichthemachineis
operated.Itistheresponsibilityofthepurchaserofthemachinethattheoperatorhasreceivedtheinformation
neededtooperateandhandlethemachineinasafeandcorrectway.
Goodworkingpracticeshouldalwaysbeusedalongwithcommonsense.Tractivecannotforeseeeverypossible
situationandthismanualisnotasubstituteforprofessionalskillsandexperience.
ThePentruderCW630HFChainSawispoweredbyaPentruderHF‐powerpackandremotecontrol.ThePentruder
CW630cannotbeusedwithanyothertypeofdrivesystem.
ThemanufacturercannottakeresponsibilityfordiamondconsumablesusedwiththePentruderCW630.
Pleaserefertothetechnicaldocumentationfromthemanufacturerofthediamondconsumableinquestionbefore
usingitwiththePentruderCW630.
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage9
Generalsafetyinstructions
3.3
WARNING‐DANGEROFLIFE!
-Cuttinginapowerlinewhichisenergizedcanresultinseriousinjuryandeven
tofatalinjuries.Thechainsawcangetenergized.Acircuitbreakercannot
protectagainstthisdanger.
-Diamondchainbreakagecanresultinhigh‐speedejectionofparts,whichcan
resultindeathorseriouspersonalinjurytooperatorsorbystanders.Theitems
listedbelowarecriticaltominimizingtheriskofdiamondchainbreakageand
injury.
WARNING!
-Themachineisstateoftheartandfollowsthepresentregulations.However,
incorrecthandlingofthemachinecanresultinseriousorevenfatalinjuryto
theoperatorandpersonsinproximityofthemachine.
-Allpersonswhichareoperatingorinanywayworkingonthemachinehasto
readandunderstandthewholeOperator’sManualandespeciallythesafety
instructions,beforeanyworkiscommenced.Itistheobligationofthe
employertomakesurethattheoperatorreallyhasreceivedtheinformation
necessarytooperateandtakecareofthemachineinacorrectandsafeway.
-Goodworkingpracticeshouldalwaysbeusedalongwithcommonsense.
Tractivecannotforeseeeverypossiblesituationandthismanualisnota
substituteforprofessionalskillsandexperience.
-Themachinemayonlybeoperatedandservicedbyauthorizedandtrained
personnel.Thepersonnelshouldbetrainedbypersonnelauthorizedby
Tractive.
-APentrudermachineusedinthecorrectwayisasafeandefficienttool.Ifthe
machineisusedimproperlythiscanexposetheoperatorandotherpersons
stayinginthesameareatoextremedangerorevenriskoffatalinjuries.
-Theuserisliablethatthemachineisinfaultlessconditionandthatall
functionsareinorderbeforeworkiscommenced.
-Tomaintainthelevelofsafetyinherentinthedesignofthismachine,only
Tractiveoriginalpartsmaybefitted.TractiveABdisclaimsallresponsibilityfor
damagesoccurringasaresultofuseofnon‐originalparts.
-Modificationsorchangesonthemachinearenotallowed.
-Beforeanykindofserviceonthemachineiscommenced,themachinemust
alwaysbedisconnectedfromtheelectricpowersupply.
-Themachinemaynotbeusedinanenvironmentwhereexplosionprotected
equipmentisdemanded.
-TractiveABdisclaimsallresponsibilityfordamagestopersonsand/or
propertyresultingfromuseofthemachine,whethertheyarecausedbyfaulty
handlingorfromdamagesthathaveoccurredasaconsequenceofnegligentor
faultymaintenance,orasaconsequenceoffailuretocheckandcontrolthe
machinewithregardtodamagesand/orfaults.
-DONOToperateadiamondchainsawwithadamaged,modified,brokenor
missingsidecoverormudflap.Thesidecoverandmudflapprovideprotection
againstcontactwithmovingparts,ejecteddebris,brokendiamondchain,
thrownwaterandconcreteslurry.
-DONOTinsertthesawintoaslotnarrowerthanthechainsegments.Rapid
pushbackmightoccur.Reference:Mostdiamondsegmentsare5.72mm(.225)
wide.
-DONOTusethesidecoverasareplacementcoverforanothersaw.
-DONOTusedamaged,modifiedorimproperlyrepairedchain.
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage10
Safetyprecautionsatsite
3.4
WARNING!
BEFORECUTTING
Beforecuttingiscommenced,makesurethat;
-Therearenopowerlines,gasorpipingwhichcanbedamagedbytheCW630
chainsaw.
-Thestaticsofthebuildingarenotcompromisedbecauseofthecutopenings.
-Nodamageisdoneontheothersideoftheconcretewhencuttingthrough.
-Checkwiththeforemanresponsiblethatallnecessaryprecautionshavebeen
performedbeforecommencingwork.Awaittheapprovalofthesafety
precautionsandpositionofthemachinefromtheforemanbeforeworkis
commenced.
-Safetyandhealthregulationsattheworkplacemustbefollowed.
-Noworkshouldbecommencedwhichcannotbejudgedtobesafe.Alwaysuse
commonsenseandgoodworkingpractice.
-Alwayscheckthatthemachine,diamondchainandguidebarareinfaultless
conditionandthatallfunctionsareinorderbeforeworkiscommenced.
-Neveruseadiamondchainformaterialwhichitisnotintendedfor.
-Beforecuttingiscommencedallpersonsinvolvedmustknowhowthe
emergencystopbuttonsareworking.
-Insufficientwatersupplymayresultinexcessiveweartothediamondchain,
whichcanleadtolossofstrengthandchainbreakage,and/ordamagetothe
guidebarnosesprocket.Assurethatthewatersupplyiscapableofdelivering
1.5bar(20psi)pressuretothechainsawataminimumflowrateof4lpm(1
gpm).
-OnlyusePowerGrit®UtilitySawChainwhencuttingductileironpipeorlike
materialswiththesaw.Usingchainplatformsnotspecificallydesignedforthis
typeofmaterialmaycausesegmentlossordiamondchainbreakage.
WEARSAFETYEQUIPMENT
-Allpersonsworkingwith,orintheproximityofthemachineshouldwear
safetyequipment,i.e.protectionhelmet,protectionshoes,gloves,eyeandear
protectorsandlongpants.
-Thenoiselevelduringcuttingmightleadtopermanenthearingdisordersifear
guardsarenotworn.
-Findoutwhatmaterialiscutandwearappropriatedustmaskorrespirator
protectionifnecessary.
-Avoidloosefittingclothing.
MOUNTACCORDINGTOTHEINSTRUCTIONS
-Beforeanykindofserviceincludingchaintensioning,onthemachineis
commenced,themachinemustalwaysbedisconnectedfromtheelectric
powersupply.
-Neverstartthesawunlesstheguidebar,diamondchainandsidecover
areproperlyinstalled.
CUTTING
-FollowtheinstructionsforcuttinginChapter5.
-Donotrunthesawupside‐down.Concretedebriscanflybackintothe
operator’sface.
-Alwaysoperatethesawwithsolidfootingandwithbothhandsfirmlygripping
thehandle.Donotstandonaladderwhenusingthesaw.
LIFTINGANDTRANSPORTING
-Alwaysliftthetoolergonomicallycorrectandinasafeway.
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage11
WARNING!
RISKAREA
-Theriskareamustberopedoffandtheoperatormustmakesurethat
nounauthorisedpersonsentertheriskarea.
-Cleartheworkingareaandmakesurenounauthorizedpersonsare
withintheriskareabeforethemachineisallowedtobestarted.
-Rememberalwaystocovercutopeningssothatnopersonfallsdown
andhurtshimself.
-Securetheconcretebeforestartingworktomakesurethereisno
possibilitythatconcreteblocksmayfalldowncausinginjuryordamage
topersonsorproperty.
Preparations
4
Guidebaranddiamondchaininstallation
4.1
STEP1
Loosenthesidecovernutsandremove
thesidecoverandbarclampplate.
STEP2
Placethebarontothestudsandthechain
adjustmentpin.
STEP3
Turnthechain‐tensioningscrewcounter
clockwiseuntilthebarcomesintocontactwith
thedrivesprocket.
STEP4
Mountthechainonthebarstartingatthe
drivesprocket&continueoverthebar
nose.
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage12
STEP5
Makesureallofthedrivelinksareinsidethebar
groove,thenpre‐tensionthechain.
STEP6
Installthebarclampplateoverthebar
studs.
STEP7
Installthesidecoveroverthebarstudsandinstall
sidecovernuts.Fingertightenonly.
STEP8
Tensionthechain.Donotovertensionthe
diamondchain.Lossofpowerwillresult.
STEP9
Liftuponthenoseofthebarandfirmlytighten
thesidecovernuts.Topreventchaintensioner
breakage,besurethesidecovernutsare
tightenedtoapproximately27Nm(20ft‐lbs).
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage13
Determiningproperchaintension
4.2
Connectiontowatersupply
4.3
!
Important!
-TheHF‐powerpackandHF‐chainsawhavetobedrainedfromwaterin
subzerotemperatures.TheHF‐chainsawisselfdrainingifputonaflat
surfacewiththechainsidedownandwiththewaterhoseopen.
-Insufficientwatersupplywillresultinexcessiveweartothechain,which
canleadtolossofstrengthandchainbreakage,and/ordamagetothe
guidebarnosesprocket.
CoolingwaterissuppliedthroughtheHF‐drivesystemtothePentruderCW630.
ThePentruderCW630isequippedwithanefficientelectricmotorcoolingsystem.Atleast4litres/minute(1gpm)of
coolwaterisrequiredtokeepthetemperaturedownwhenmaximumpowerisused
PleaserefertotheOperator’sManualforthePentruderHF‐drivesystembeingusedforinformationregardingwater
flow,pressure,etc.fortheHF‐powerpack.
Adequatewatersupplyandpressure
Minimumflow:4lpm(1gpm)
Minimumwaterpressure:1.5bar(20psi)
CorrectChainTension
Allchainshaveatendencyto
stretchwhenused.Diamondchainsstretch
morethanwoodcuttingchainsbecauseofthe
abrasivematerialstheyarecutting.
Ifthechainistootight,alotofthesaw'spower
goesintoturningthechainratherthanintothe
cut.Inextremeover‐tightenedcases,thesaw
maynotbeabletoturnthechainatall.In
addition,damagecanoccurtothebarnoseand
prematurestretchmayoccur.
ChainTooLoose
Ifthechainistooloose,itcouldcomeoffthe
bar.
Whenachainstretchestoapointwherethe
drivelinksarehangingapproximately12mm
(1/2in)to18mm(3/4in)belowthebar,itis
timetotensionthechain.
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage14
Pre‐cutchecklist
4.4
Ensureproperchaintension:Thechainshouldbeeasilypulledaroundtheguidebarbyhand.
Ensureallsafetydevicesareproperlymountedandfunctionalandthatallcontrolsareinproperworking
order.
Besuretherearenoobstructions(plumbing,electricalconduit,airducts,etc.)andnounnecessarypeople
present.
Alwayswearprotectiveclothing,includinghardhat,eyeprotection,hearingprotection,non‐slipsafety
boots,gloves.Avoidwearingloosefittingclothing.
Planningthecut
4.5
Outlinethecutwithapermanentmarkerforavisualcuttingguide.
Avoidpinchingtheguidebaranddiamondchain.Alwayscutthebottomofanopeningfirst,thentop,and
thenthesides.Savetheeasiestcutforlast.
Forthestraightestcutsusethe“StepCut”method.Firstscoretheentirecutlineapproximately
12mm(1/2in)deepusingthenoseoftheguidebar.Next,deepenthecutbyabout50mm(2in).Then
plungeallthewaythroughandcompletethecutusingtheWallWalker®.
Warning!
-Besurecutconcretecannotfallandinjureoperatororbystanders.
Concreteisveryheavy,onecubicfoot=30cmx30cmx30cm=68kg
(12inx12inx12in=150lbs).
-Checkforliveelectricalwiringnearthecuttingareaorintheconcreteto
avoidelectrocution.
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage15
Cutting
5
Warning!
-Beforecutting,itisessentialthatallpersonnelworkingwithorinclose
proximityofthemachinehavereadandunderstoodthecontentsofthis
Operator’sManualandtheOperator’sManualfortheHF‐drivesystem
andthattheinstructionsarefollowed.
-Ifthesafetyprecautionsarenotrespected,thiscanresultinseriousinjury
andevenfatalinjuriestopersonsincloseproximityofthemachine.
Whenallsafetyprecautionsaretakenasdescribedinchapter3andthePentruderCW630ispreparedasdescribedin
chapter4,theoperationcanstart.PleaserefertotheOperator’sManualforthePentpakHF‐drivesystembeingused
fordetailedinformationonhowtoconnectandstarttheHF‐powerpack.
StartingandstoppingthePentruderCW630
5.1
TheremotecontrolmustbeconnectedtothePentpakforbeingabletooperatetheCW630.Itispartofthe
emergencystopsafetysystem.
Makesuretheemergencystopbuttonontheremotecontrolisout(releasedposition).
TurnthestartkeyontheWirelessremotecontroltopos“1”.TwoshortbeepswillfollowandthegreenLEDon
theWirelessremotecontrolwillstartflashing.Thewirelessremotecontrolisnowonbutnotyetactivated.
Toactivate,turnthestartkeyfrompos“1”tothenextposition(likestartingacar)andrelease.
Stepbandcarenotnecessarywhenusingthecableremotecontrol.
PushthegreenstartbuttononthePentpakandcheckthatthegreenlightcomeson.
MakesurethatboththeemergencystopbuttonsontheremotecontrolaswellasonthePentpakisoutandthe
greenstartbuttononthePentpakison.
Tostartthemotor,pressandholdthetriggeronthePentruderCW630.Aslongasthetriggerispressed,the
motor(chain)willberunning.
Thewaterflowwillbeswitchedonautomaticallyaslongasmotorisrunning.
Tostopthemotor(chain),releasethetrigger.Thewaterflowwillbeswitchedoffautomaticallyafter15
seconds.
EmergencyStop
button
HF‐Motorrpm
Feedrate
Joystick
Operator’sManualPentruderCW630HFChainSaw–OriginalinstructionsPage16
Cuttingtips
5.2
Warning!
-Donotrunthesawupside‐down.Concretedebriscanflybackintothe
operator’sface.
-Alwaysoperatetoolwithsolidfootingandwithbothhandsfirmlygrippingthe
handles.
!
Important!
-Toavoidoverheating,theHF‐motorwillbeswitchedoffautomaticallyifthe
motorwindingtemperatureisover140°C(284°F).Thecoolantwatershould
thenbeleftrunningthroughtheHF‐powerpackandHF‐chainsawtoavoid
terminaloverheating.
-IfthewateristurnedoffimmediatelyaftertheHF‐motorhasbeenswitchedoff
automatically,forinstanceduetooverloadandthewarninglightison,terminal
damagetothemotorwindingsmayoccur.
-Rebarmustbeencasedinconcrete.NevercutbarerebarwithaDiamond
Chain.
Note!
-Ifoneoftheemergencystopbuttonsis pressedortheunithasbeen
unpluggedfromthepowersupply,boththebladespeedandthefeedand
travelpotentiometersmustbereturnedtozerobeforethemachineis
operationalagain.
-Thesinglemostimportantfactoranoperatorcancontroltoincreasechainlife
istouseadequatewaterpressureandflow.
Tostartacut,holdtriggerandslowlyplungethenoseoftheguidebarstraightinto
thewall.UsethefixedWallWalker®asapivotpointandpullupontherearhandletorotatetheguidebar
intothecut.
Alwaysoperatethesawatfullspeed.Iftoomuchforceisapplied,thesawwilllugorstall.Thechainwillnot
haveenoughspeedtocuteffectively.Iftoolittlefeedforceisapplied,thediamondswillskidandglazeover.
Forstraightercutsusethe“StepCut”method.Firstscoretheentirecutlinewiththenoseoftheguidebar
approximately12mm(1/2in)to25mm(1in)deep.Next,deepenthecutbyabout50mm(2in).This
groovewillhelpguidetheguidebarforastraightcut.Thenplungeallthewaythroughandcompletethecut
usingtheWallWalker®.
UsetheWallWalker®tohelpcutmoreefficientlyandreduceoperatorfatigue.TheWallWalker®isafulcrum
thatconvertsinwardforcetodownwardforceandwilldevelopa4‐to‐1mechanicaladvantage.Touse
correctly,plungeintothewallandsimplyengagethepointoftheWallWalker®intothecutandpush
straightin.TheWallWalker®willforcethesawtofeeddown.
Table of contents
Other Pentruder Chainsaw manuals
