INTRODUCTION
GENERAL
Keep this owner’s manual handy, so you can refer to it at any time. This owner’s
manual is considered a permanent part of the Smart Frog Air Conditioner and should
remain with the unit if resold.
Your system contains refrigerant R-410A, an environmentally friendly
refrigerant, which operates at high pressure. Do not adjust or handle
refrigerant unless you are an EPA-Certified technician.
Do not handle high-voltage electrical wires unless properly trained.
Installation should be done in accordance with local and national
building, electrical, gas codes.
Important!

Installation / Operational Manual
Jan 2018 Page 6
WIRING SCHEMATIC
The Smart Frog’s Wiring Schematic is located on the front panel.
SAFETY
As you read this manual, you will encounter information preceded by symbols such
as:
These symbols represent special instructions that if performed incorrectly can
result in damage to the equipment or cause personal injury even death. Please
observe them carefully.
DANGER!
WARNING!
CAUTION!
Important!

Installation / Operational Manual
Jan 2018 Page 7
DANGER identifies the most serious hazards which will result in severe personal
injury or death if instructions are not properly followed.
WARNING indicates hazards that could result in personal injury or death if not
properly installed.
CAUTION is used to identify unsafe practices which would result in minor personal
injury or product and property damage.
Important indicates special instructions in order for correct installation and
operation of the Smart Frog unit.
Every Smart Frog contains the following warnings in regards to the electrical
panel:

Installation / Operational Manual
Jan 2018 Page 8

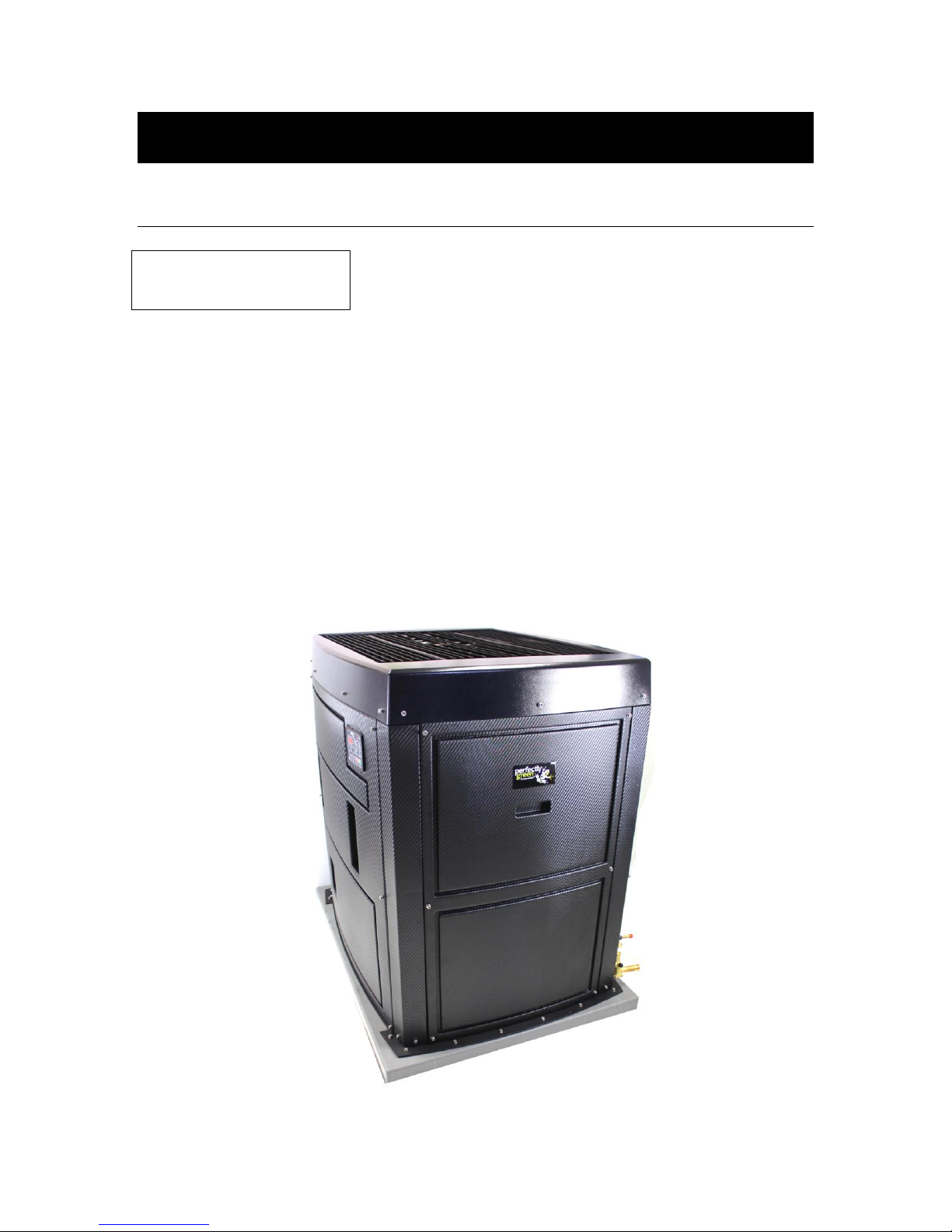

INSTALLATION GUIDE
UNPACK UNIT
S
Remove packaging carefully to insure that no damage has been done to the unit
during shipping.
REMOVING THE GENERATOR
The PGC generator in the Smart Frog AC is 200lbs. It’s recommended that the
generator be taken out before installation. Once the unit is set on its permanent
location the generator can be placed back in the unit. To remove the generator,
follow our video tutorial at: https://youtu.be/1AgqgRh75dI
After the generators removal, move the unit to permanent location of installation.
Important!

Installation / Operational Manual
Jan 2018 Page 9
PLACEMENT
Make sure unit is level and secure.
Ensure unit is not positioned below rain spout.

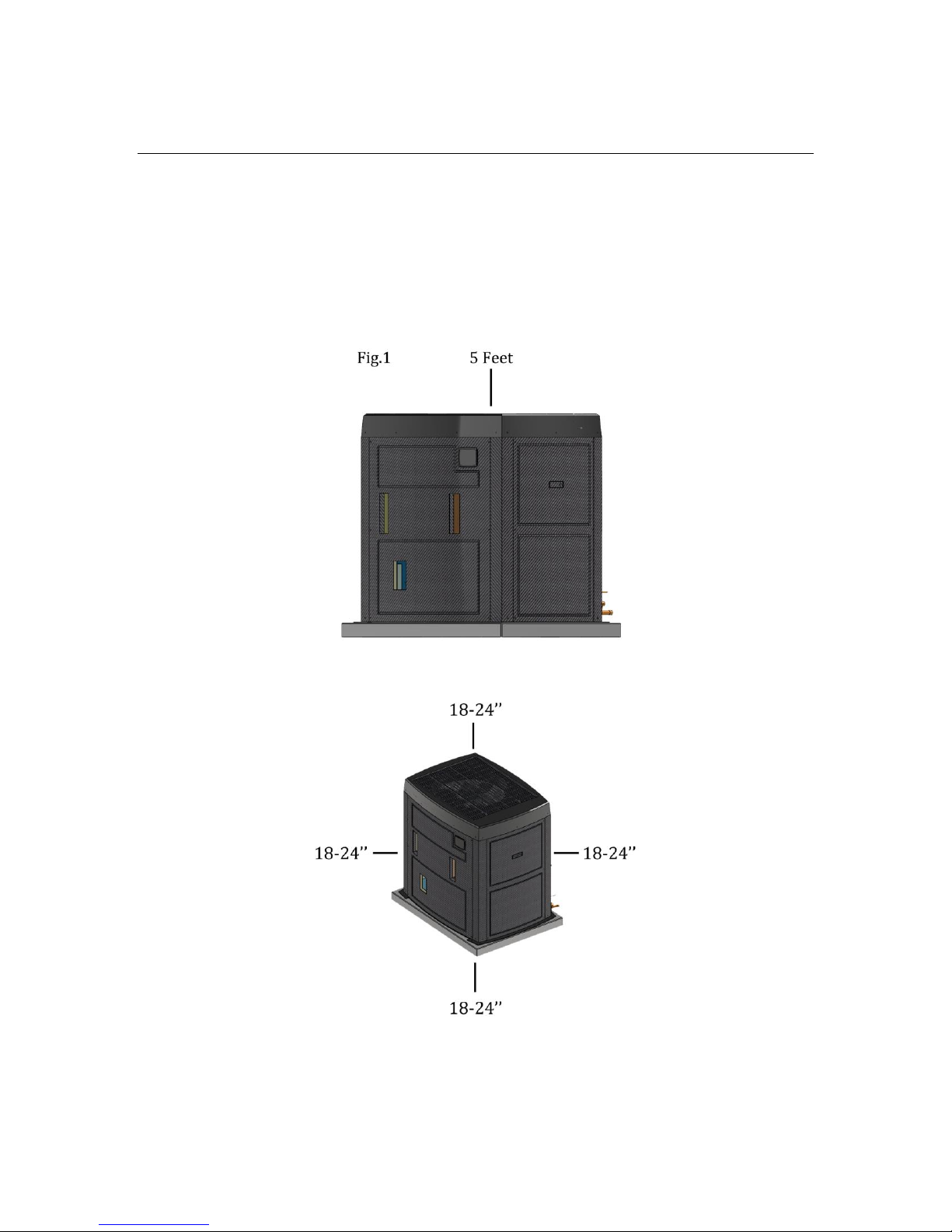

Top discharge must allow 5 feet clearance. (fig. 1)
18” – 24” inch clearance around the perimeter of the unit or in accordance
with local code. (fig. 2)

Installation / Operational Manual
Jan 2018 Page 10
CONDUIT HOLES
Conduit Knockouts require sizing if necessary.
If other field connections are present they should be removed temporarily to
prevent damage to other wires.

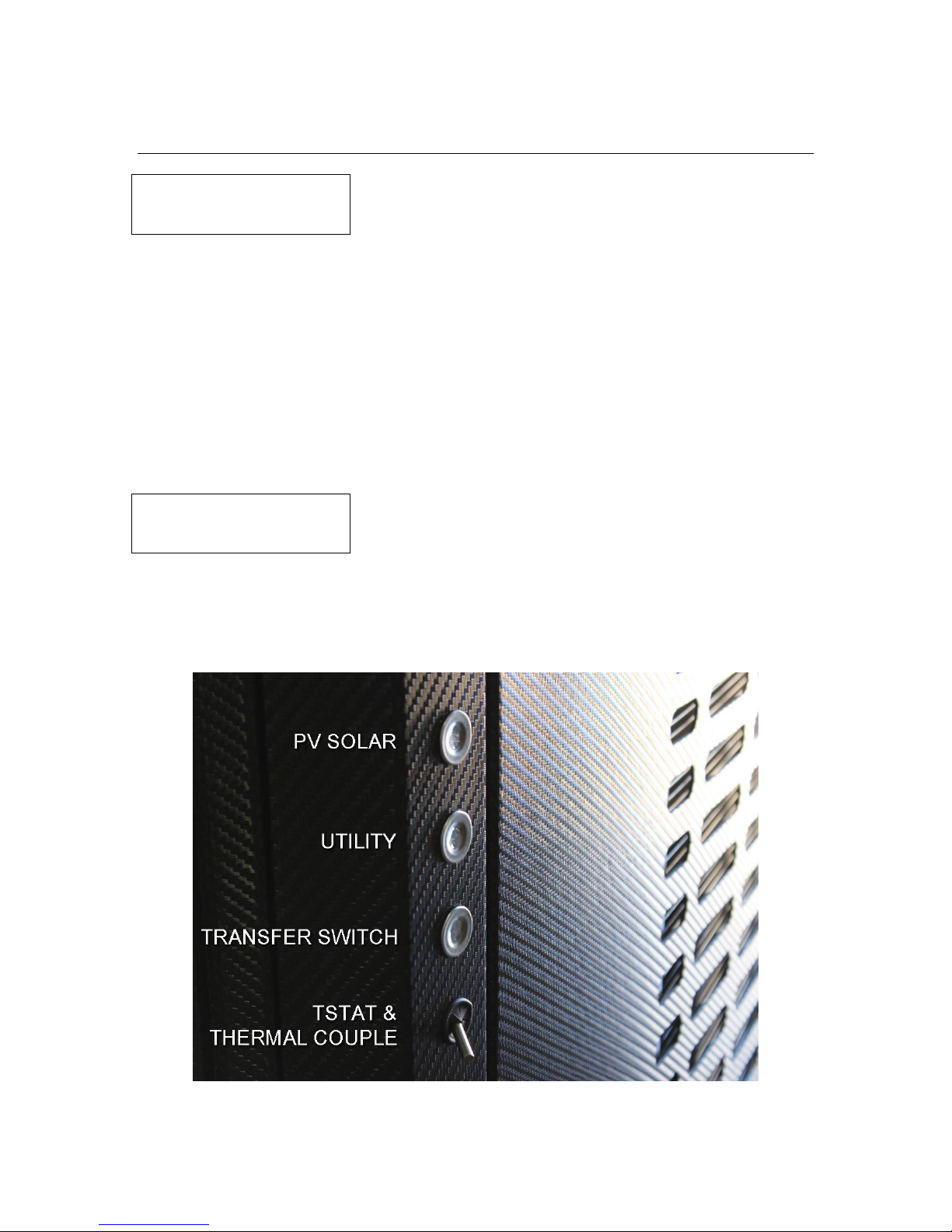

PV (Solar) Array Connection
AC Utility Power
Transfer Switch Connection
Thermostat Connection
Low Voltage wires (Air Handler / Thermostat) connection should use separate
Conduit Hole from any High Voltage wires (Utility Power, Transfer Switch)
connection and PV (Solar) wire connection.
Fig.2
Important!
Important!

Installation / Operational Manual
Jan 2018 Page 11
FIELD WIRING / CONNECTIONS
CONTROL PANEL CONNECTIONS
Use copper wires only. (Reference-National Electric Code)
Photovoltaic (PV)
Solar Panel Array Input (+ / - )
Thermostat
24 volt Thermostat wire must be rated for 600 volts.
Communicating
Hx™Thermostat required for communicating.
Model Number: S1-THXU280.
Transfer Switch (TS)
240VAC Generator
From Smart Frog Unit to Automatic Transfer Switch
This terminal lug sends power if not used by Smart
Frog to transfer switch.
Utility 208 / 240
Utility Power Connection (Single Phase)
This terminal lug is powered by multiple sources.
Earth Ground
Unit grounding should meet Local and National Code
Fig. 3

Installation / Operational Manual
Jan 2018 Page 12
AIR CONDITIONING UNIT
The Smart Frog Air Conditioning unit is built with a variable speed compressor
allowing the unit to change speed during operation. This provides a more
consistent temperature throughout your home.
Your air conditioning unit is controlled by your internal 24 Volt AC
Thermostat. Make sure your thermostat is set to Cool or Cooling for Air
Conditioner to function.
R410A refrigerant must be handled by a certified professional in accordance
with local and national code standards.
Refrigerant under high pressure!
Important!
DANGER!

Installation / Operational Manual
Jan 2018 Page 13
THERMOSTAT INSTALLATION
If Theres a A at the end of your serial number the thermostat connection should look like
this.
If Theres a B at the end of your serial number the thermostat connection should look like
this.

Installation / Operational Manual
Jan 2018 Page 14
PHOTOVOLTAIC (SOLAR PANEL) INSTALLATION
(Reference-National Electric Code)
Installation and or connection of the Smart Frog should be done by a licensed and
trained professional. Solar Panels can be electrically charged when exposed to
sunlight. Connection to the Smart Frog Air Conditioner should be done by an
electrical professional.
Conditions of maintenance and supervision must ensure that qualified
persons service and operate the system.
Safeguards, documented procedures, and protective equipment are
established and maintained.
Over-voltage can cause damage to Solar Inverter! If DC voltage is greater than the
maximum input voltage of the solar inverter overvoltage damage will occur.
Solar Array Should NOT exceed 315 Volts DC for proper operation of Blending
Mode in Smart Frog Unit. If DC input voltage is greater than 315 Volts DC, the
Blending Mode function will not work properly.
When designing PV system for Smart Frog unit, ensure that all equipment
parameters conform to the Smart Frog operating parameters.
Solar panel array should be connected directly to the PV knockout and connection’s
and terminal labeled PV + - . The positive line from solar array should be connected
to (+); the negative line from solar array to (-).
Before connecting DC voltage make sure AC power voltage is zero (0).

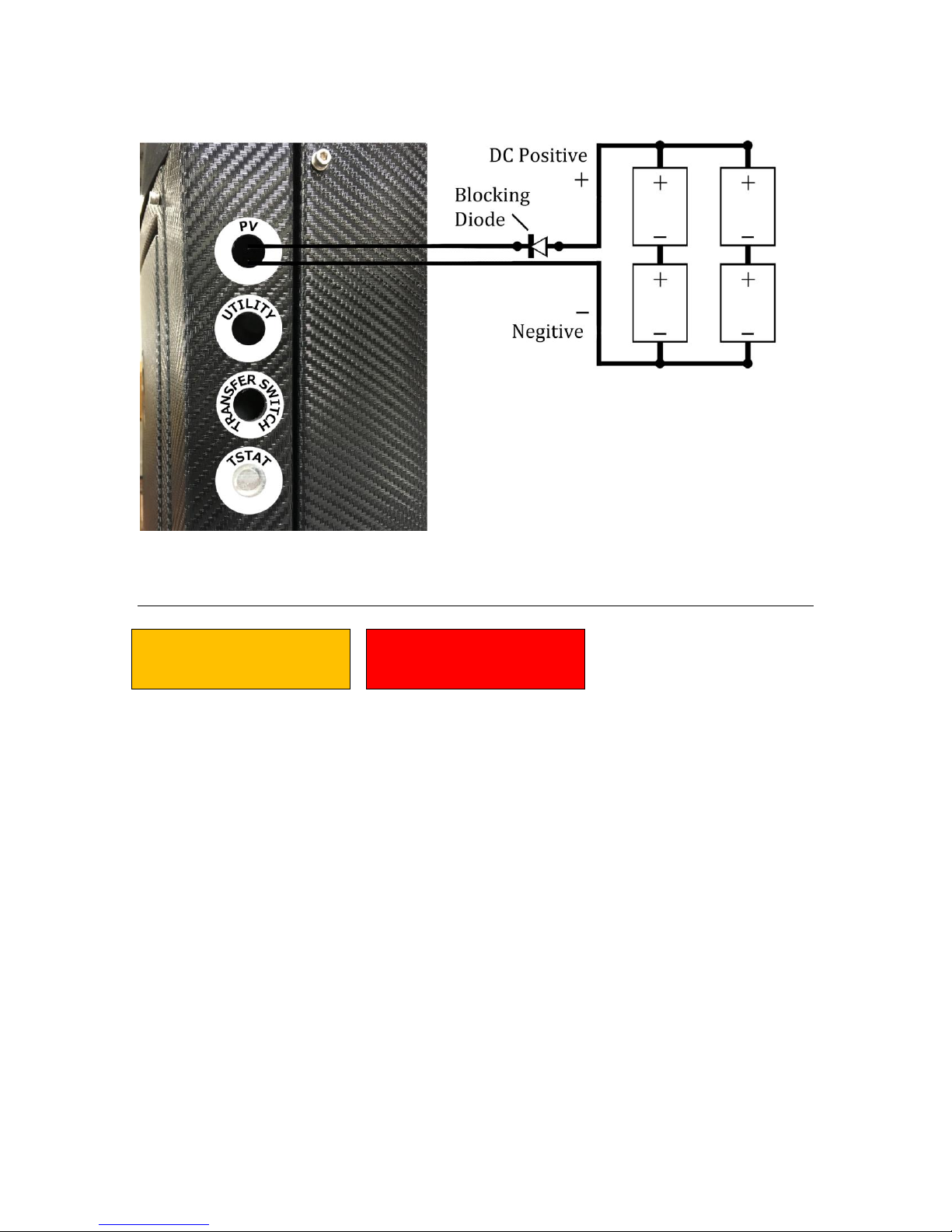

To prevent damage to any equipment a blocking diode is recommended to be
installed before connecting to the Smart Frog unit. See Fig. 4
DANGER!
Important!

Installation / Operational Manual
Jan 2018 Page 15
Fig.4
SAFETY
Make sure all other power sources are de-energized before installing or
servicing.
Do not service or maintenance solar components unless you are qualified
personnel.
Do not use solar components for purposes other than those intended with
Smart Frog.
Do not use Generator for purposes other than intended with Smart Frog.
WARNING!
CAUTION!

Installation / Operational Manual
Jan 2018 Page 16
APPROPRIATE USAGE
Fig.5

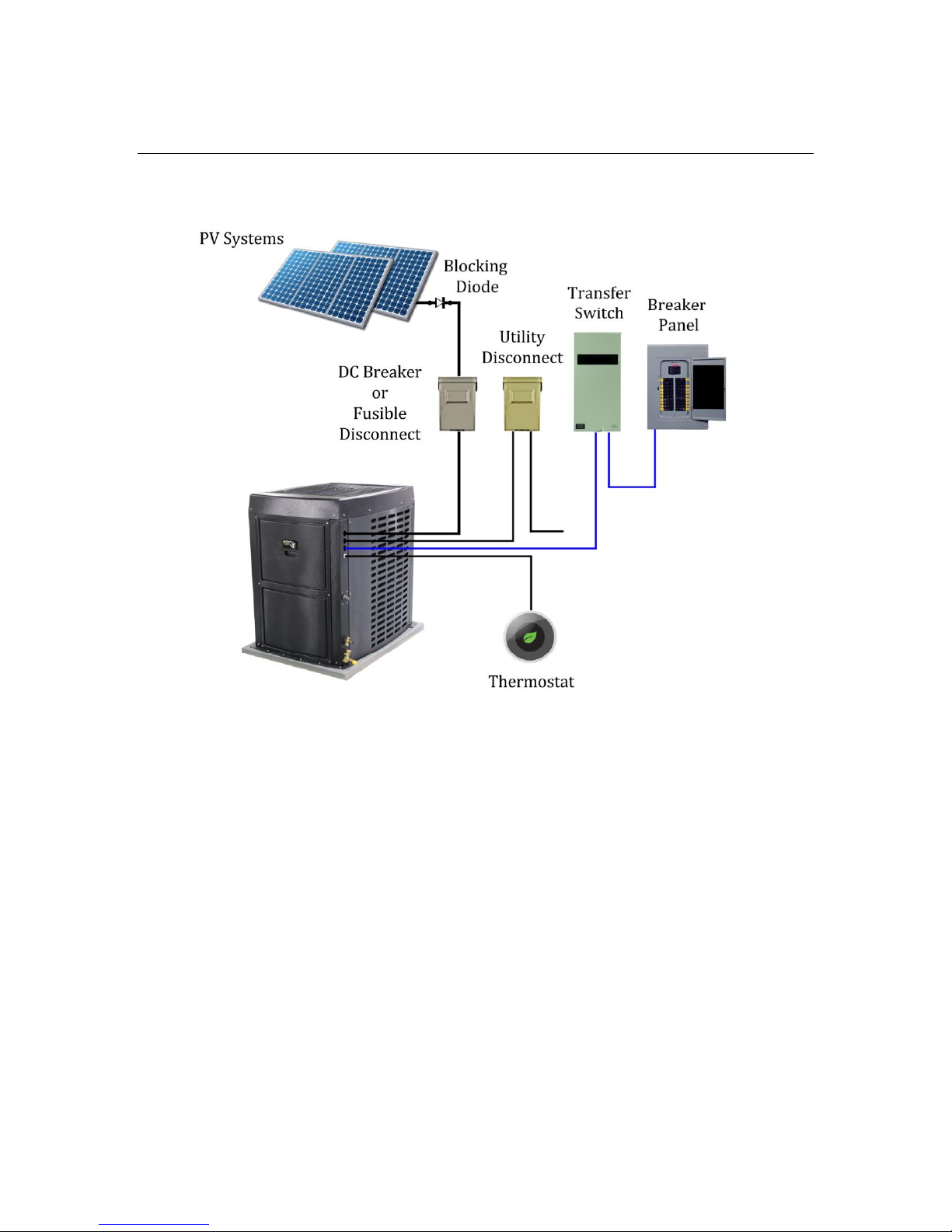

Equipment containing overcurrent devices in circuits supplying power to a busbar
or conductor supplied from multiple sources shall be marked to indicate the
presence of all sources.
(Reference-National Electric Code)

Installation / Operational Manual
Jan 2018 Page 17
STANDBY GENERATOR
The Smart Frog unit comes standard with a 7 Kilowatt standby generator. When
Interface is connected to battery and AUTO is selected, the generator will
automatically turn-on when power is out on the electrical grid.
BATTERY INSTALLATION
12 Volts, 525 CCA (Minimum CCA)
Connect Generator RED wire to + terminal in combination with the battery charger
wire and the heatsink fan wire.
Connect Generator Black wire to –terminal combination with the battery charger
wire and the heatsink fan wire.
Important!

Installation / Operational Manual
Jan 2018 Page 18
GENERATOR CONTROL PANEL

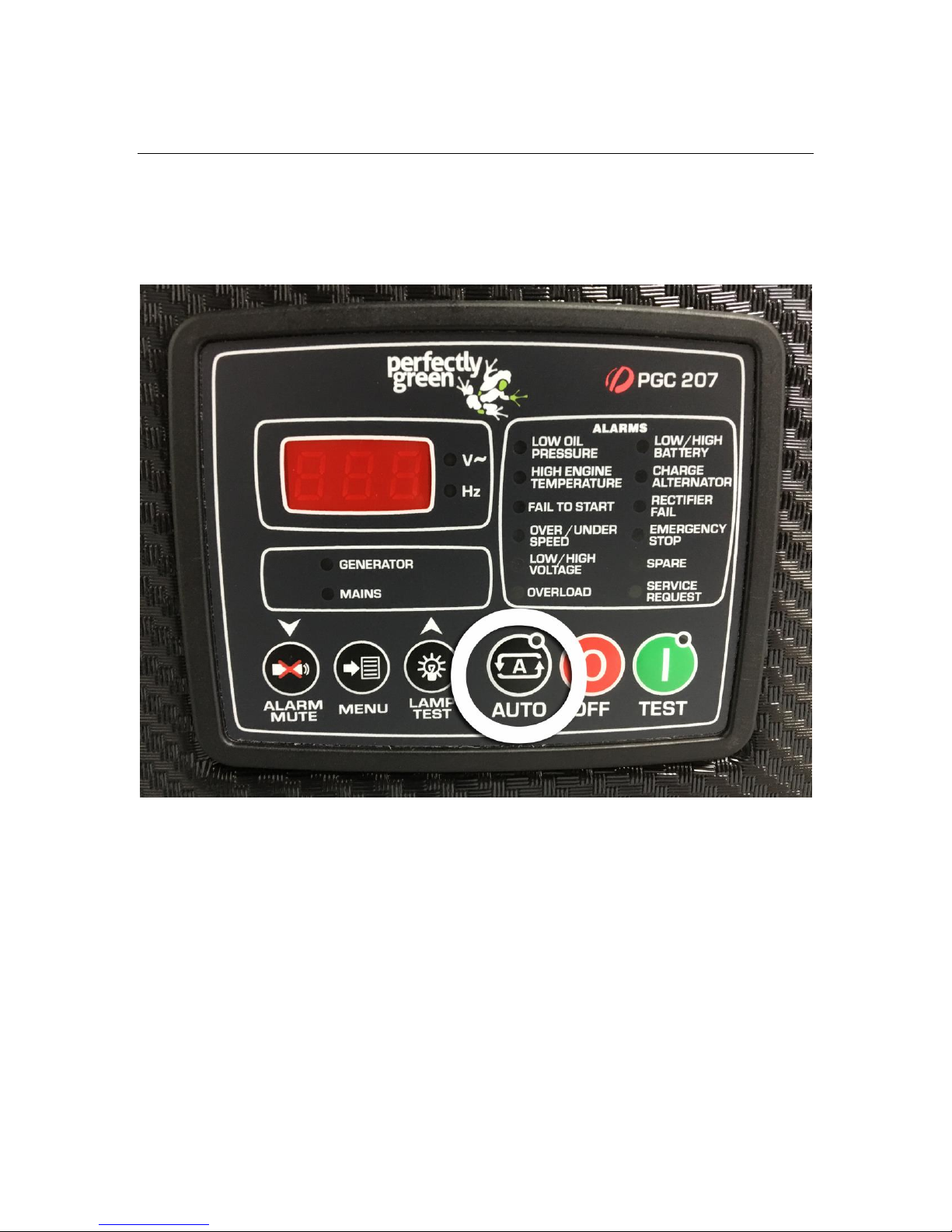

The PGC-207 Interface should now be powered on.
Press “Auto” Button to have the generator in Stand-By mode. This will ensure the
generator will Start when power is out on the utility grid.

Installation / Operational Manual
Jan 2018 Page 19

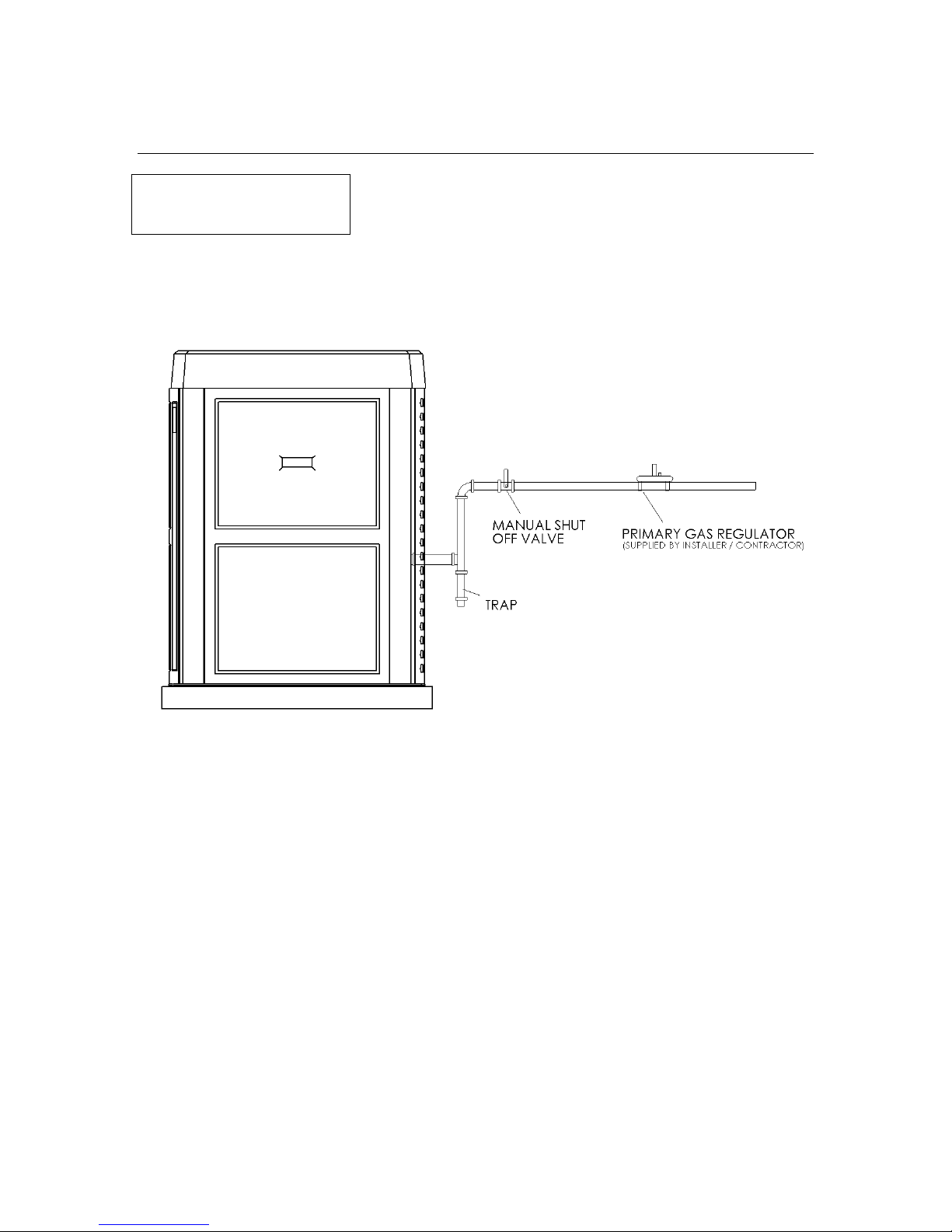

NATURAL GAS INSTALLATION
Natural Gas / Propane lines must be installed and connected by a certified
professional. Please comply with all local and national code standards.
The Natural Gas / Liquid Propane supply is fitted with a 3/4 inch female
connection fitting.
Adjustment of Primary Gas Regulator inlet must be between 7”-11” wc
(inches water column).
Liquid Propane installation requires
Important!

Installation / Operational Manual
Jan 2018 Page 20
MAINTENANCE
Before servicing verify all circuit zero (0) voltage!
When servicing the unit. The following procedure must be completed in this
order:
1. Shutoff Main Gas valve to the unit
2. Press the Red “OFF” button on PGC-207 panel.
WARNING!
