Operation Instruction
Thank you for purchasing this learnable universal remote control. Your new remote
control has a stylish design and attractive surface. It contains one of the largest
infrared code library obtainable in market for 4 different devices.
For preprogrammed code, all you have to do is to choose the device which you wish to
control (for example Projector) and it’s 3-digit code number from the brand code list (for
example 012 under Optoma Projector). After you set up it will remember all your set up
data permanently even you remove the batteries later.
The 4 in 1 universal remote control is suitable for practically almost all common brands
of DLP Projector ,television set (TV), DVD player (DVD), amplifiers(AMP). It can
operate all main functions of your device.
This remote control can “learn” a new code from a original remote control to
supplement the codes in case of it’s shortage.
“Write-protection of Device Codes” can protect the device codes from being
inadvertently overwritten or deleted
Please read this manual book carefully before you start operate your new remote
control.

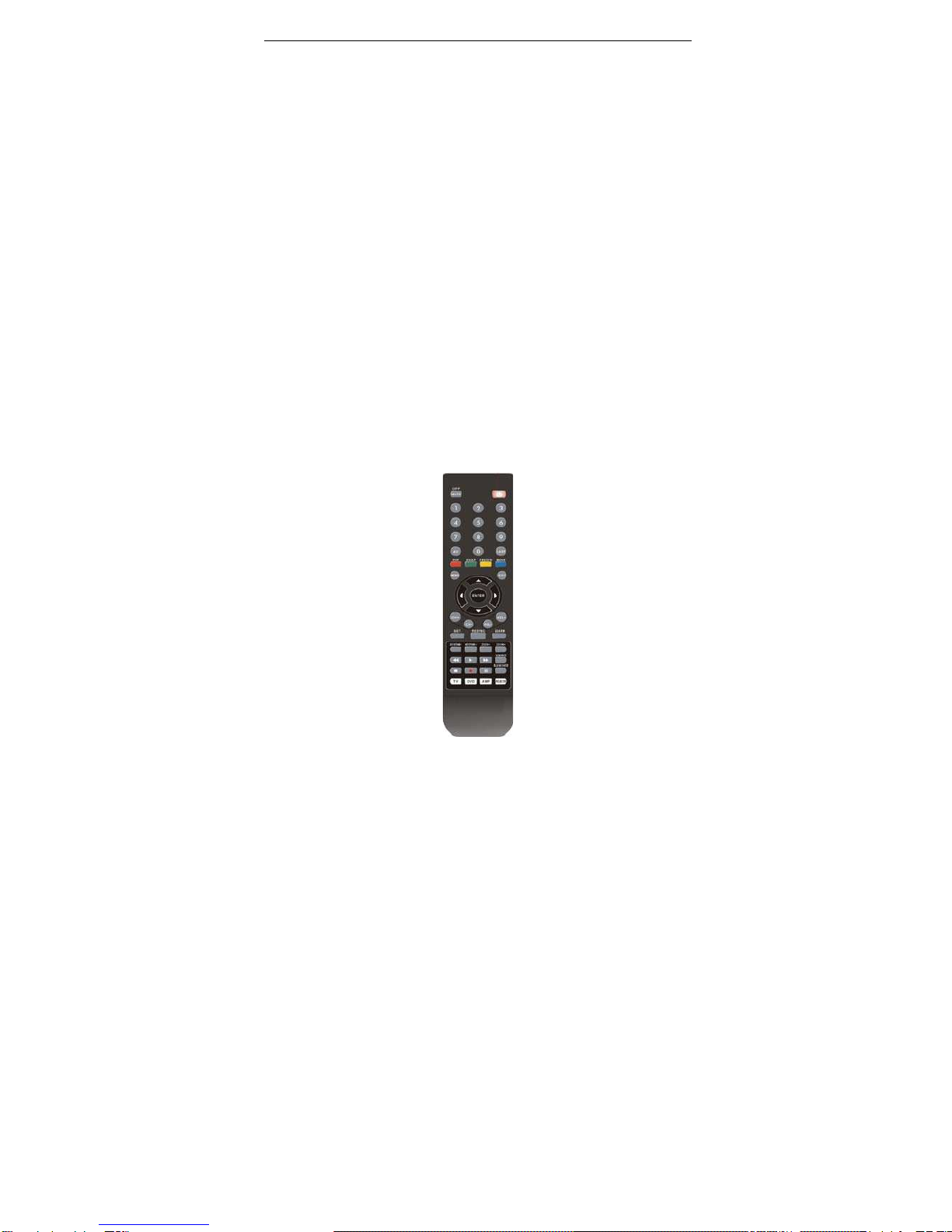

Realize the Buttons

YH414561/YH414562/YH414563/YH414564 Learning Universal Remote Control
3
SET—For you start to set up the remote control.
PROJECTORAMP DVDTV—Let you select the device you want to control.
—Turns the device on and off .
0-9—The number keys operate the same as on your original remote control, and maybe
also used for entering device codes when set up.
Keystone ± —Keystone correction increment with decrement. (Projector)
Zoom± —Zoom increment with decrement.(Projector)
Source —Input source selection when OSD off.(Projector)
BLANK MODE— Display blank.(Projector)
RESYNC— Auto adjustment for phase, tracking,size,position when OSD off.(Projector)
LEARN— For you start to learn the remote control.
MENU —Works like the Menu or OSD (on-screen display) or Memory key on your
original remote control.
CH± —Works like the Channel Up and Down keys on your original remote control.
VOL± —Control the volume like the Volume Up and Down on your original remote
control.
Mute /OFF To mute the sound or power off.
REWfast reverse
PLAY (operate your DVD, CD etc)
FFWD (fast forward)
REC (Record)
STOP (terminate your operation)
PAUSE
ENTER  EXIT Works like the UP󶁜DOWN󶁜LEFT󶁜
RIGHT󶁜ENTER󶁜EXIT Keys on your original remote control for menu function.
RED󶁜GREEN󶁜YELLOW and BLUE: for TV Fast Text.
Battery Installation
This remote control needs 2 AAA batteries to work with. Fresh Alkaline batteries are
recommended. To install the batteries:
1. Turn the remote back, and lift the battery cover off.
2. Insert the batteries, matching the batteries to the (+) and (-) marks inside the
battery compartment.
3. Slide the battery cover back into place.
All data you have set up into the unit will be stored in memory even you take off the
batteries, but you may need to set the clock again.
Set Up
A. Set up by Brand Code:
1. Switch on the device, which you would like to control (e.g. Projector set).
2. In the back section of this manual, find the brand name and code no of your device
brand (e.g. Optoma 012, 013, 014…).
Note: the codes must be in the column for the corresponding device group.
3. Hold down the SET key and actuate the device key (e.g. Projector ) at the same time.
The POWER key on your remote control lights up, that means it is in the setting
up mode.
4.You must now enter the 3-digit device code (e.g. 012 for Optoma Projector) within 10
seconds. If no entry within 10 seconds, the setting up mode is automatically terminated.

YH414561/YH414562/YH414563/YH414564 Learning Universal Remote Control
4
5.The LED goes out if the code has been accepted by the remote control. If the LED
flashes twice, that means the code may be wrong, and the remote control remains in
set-up mode, you should enter the correct code from the list again in time.
6.Check the function of the keys on remote control. If most keys on your new remote
control do not function correctly, try another 3-digit device code (e.g. 013…) from
the list under the same brand. Repeat steps 3 to 6 until all the basic functions operate
correctly. Once you satisfy the code, that means you have already got correct set up for
the device.
Remark: 1.To leave set up mode, press the device key (e.g. Projector). Or if you do not
actuate any keys within 10 seconds it will be automatically terminated.
2.You may have set up more than one device on the new remote control.
Before you operate your new remote control, please press the requested
device key first (e.g. Projector), so the remote control is surely at the proper
device status, otherwise it may control the wrong device which is not you’re
requested.
B. Set up by Learning
The LEARN function is used to supplement the preprogrammed codes. The standard
code list may provide most of functions needed, but you can add a small number of
additional functions on it. Or you can add a new code from a original remote control
which is shortage in the code list.
In learn mode, you must prepare a another original remote control where you will take
codes from.
Please use fresh batteries for both the Learning Remote Control and the Original
Remote Control.
1.Press down and hold the Learn key and press the device that you want to learn(e.g.
DVD), then release the both pressed keys. The POWER button on your new remote
control blinks and then the remote control is in learning mode for DVD codes.
2. Press and release the target button that you want to learn to (e.g.POWER), the device
button lights up.
3. Point the original remote control to the receiver LED(as the same as it’s transmitter
LED) on your new remote control, both remotes facing each other by approximately
30mm apart.
4.Press and hold the source button on your original remote control (e.g.POWER) until
the LED on your new remote control blinks 2 times and lights up 2 seconds, then
blinks again. (That means you have learnt POWER signal from the original remote,and
you new remote control is in learning again for next learning.)
If there is a learning problem, the light blinks 4 times and lights up for 2 seconds
then blinks, (That means you failed to learn POWER signal from the original remote,
and you new remote control is in learning again for next learning.)
5.Repeat Steps 2 to 4 to learn more buttons.

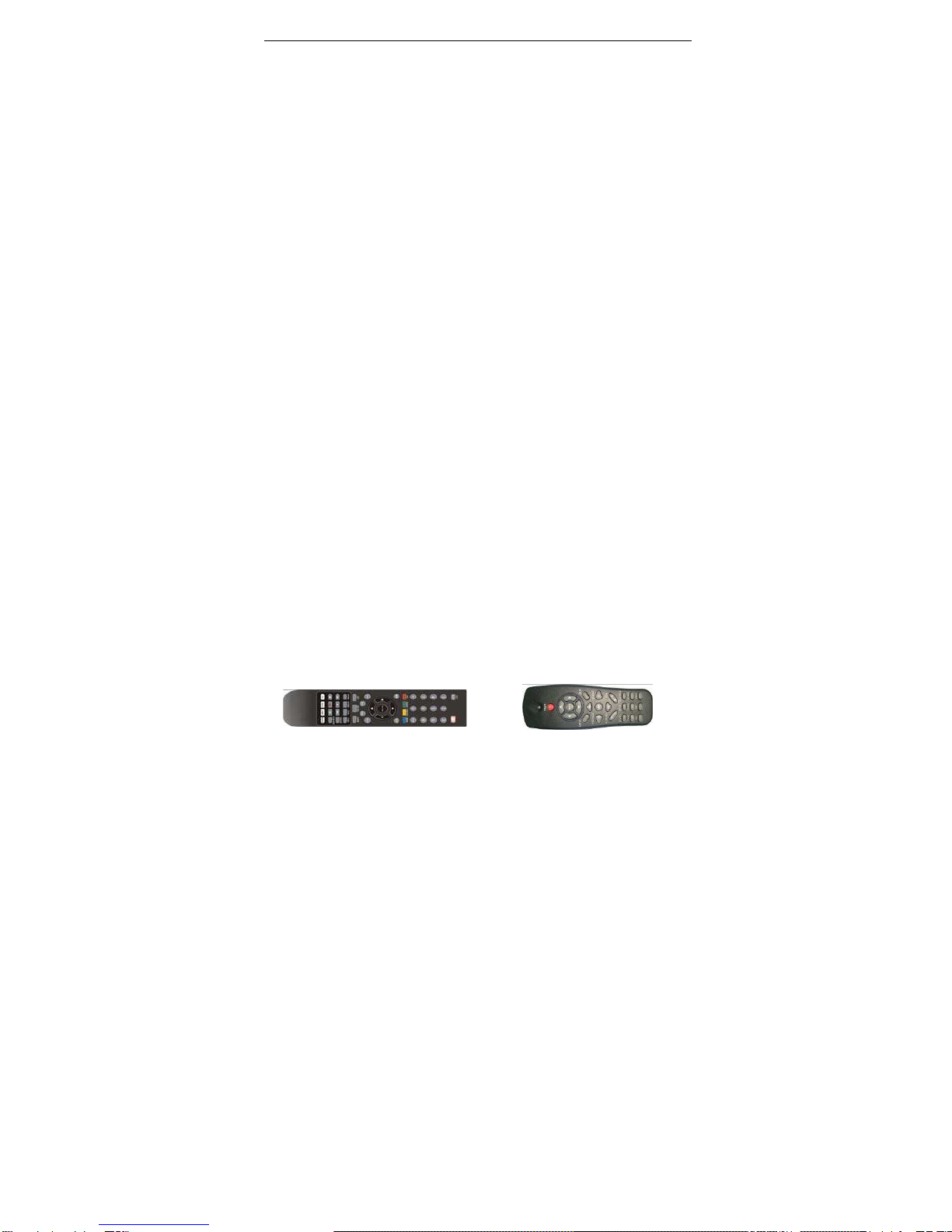

Remote Control Receiver Original Remote Control
ä

TargetKey SourceKey

YH414561/YH414562/YH414563/YH414564 Learning Universal Remote Control
5
Remark:
1. If you want exit the learning mode, Press and release LEARN key.
2. In learning mode you must not be more than 30 mm between 2 remotes., and the 2
remotes must be put in a straight line.
3. It will exit the learning mode if you don’t press any keys in 30 seconds .
4. You can press SET and 4 together to delete all buttons you have learnt under the device
button, the LED will flash 2 times to confirm it.(First choose the device button which
you like to delete)
6. The last learnt singal will overwrite the previous signal.
7. About 14 commands can be stored in this remote control .The last learnt signal will
overwaite previous signal stored in that device and button.
Other Functions
A. Display the Device Code:
The device code, which has been set up in your new remote control, can be called up
as follows:
1.Press the SET key and hold it down, now actuate number key “1” to display the
100th position of the 3-digit code. Count the numbers the LED flashes. If the
LED doesn’t flash, that means the digit is ZERO.
2.Similarly, press the SET key and hold it down, at the same time actuate number key
“2” to display the 10th position of the 3-digit code.
3. Press the SET key and hold it down, at the same time actuate number key “3” to
display the 1st position of 3-digit code.
Example for Code 028:
a. Press SET and “1”, LED flashes 0 time, no flashes.
b. Press SET and “2”, LED flashes 2 times.
c. Press SET and “3”, LED flashes 8 times.
B. Reset / Delete Function:
To delete the codes which have been set up in the remote control, press and hold down
the SET key, then press the “0”key simultaneously for more than 3 seconds and then
release the both pressed keys. The LED will flash twice and all the set up data and all
learn commands in the remote control are deleted.
Remark: Please don’t operate this function if you don’t want to delete all the settings.
C. Write-protection of Device Codes:
To protect the device codes from being inadvertently overwritten / deleted, you can
carry out the following:
1. Press the device key (e.g. Projector) that you would like to protect on your remote
control.
2. Press and hold down the SET key and press the “7” key at the same time. Then
release the both pressed keys, the LED will flash twice and the code is then
protected from being overwritten/deleted.
Remark: To cancel write protection, press the SET key and hold it down, and activate the
“8” key at the same time, and then release the both pressed keys. The LED
flashes twice and the protection have been cancelled.

YH414561/YH414562/YH414563/YH414564 Learning Universal Remote Control
10
Device Brand Code List
Projector
BRAND CODE MODEL
OPTOMA 012
DN346,DN362,DN364,DN861,DN961,DP336,DP352,D P354,DP851,DS309,DS309i,DS316,DW318,DX319,DX
319p,DX609,DX609i,DX609v,EH1020,EP620,EP720,E
P721,EP723,EP723mx,EP726,EP727,EP727i,EP727m
x,EP728,EP728i,EP728mx,ES526,ES526L,EW531,EW
533ST,EW536,EW628,EW1610,EX355,EX526,EX531,
EX531p,EX536,EX536L,EX536v,EX538,EX540,EX540i
,EX540i(3D),EX542,EX542i,EX542i(3D),EX612,EX615,
EX762,EX765w,EW766w,GT720,HD66,HW536,HW628
,OP280w,OP300w,OP380w,OP400w,OP1122,OP1126,
OP1230,OP1260,OPS2610,OPX250x,OPX2300,OPX2
510,OPX2610,OPX2800,OPX3000,OPX3800,OPX401
0,PRO100s,PRO150s,PRO200x,PRO250x,PRO350w,
RS528,PW2300,PW2500o,S22,S22E,S28,TH1020,TS5
26,TS721,TS723,TX536,TX542,TX542i,TX728,TX762,
TX765w,(ACCO)TX727,WX27o,WX28,X22c(ACCO),X2
5,X28,(COMPACT)228,EW533ST,GT720
OPTOMA 013 (COMPACT)218,CP705,DP7249,DS302,DS303,DX602
,DX625,DX670,DX733,EP706,EP706s,EP708,EP708e,
EP708s,EP709,EP709s,EP712,EP712e,EP719h,EP74
9,EP990s,FS704,KX700,S17e,SP7600,TX800,X17e,X
25c
OPTOMA 014 DV10
OPTOMA 015 DV11,DVD100,U2,U3
OPTOMA 016 EP776,EP782,EP776w,EP782w,EP1080,OPX4100,OP
X4800,TX776,TX782,TX776w,TX778w,TX782w
OPTOMA 017 ET700xe,GT7000,HD32,HD65,HD65a,HD70,HD71,HD
75,HD700x
OPTOMA 018 HD31
OPTOMA 019 DP7259,EP716b,EP716c,EP739,EP739h,EP770
OPTOMA 021 DS305,DS305r,DX605,DX605r,EP716,EP716a,EP716
mx,EP716p,EP716r,EP719,EP719p,EP719r,EP738mx,
EP7161,S16e,TD306,TD316,TS400,TX700,X20e,UNE
EC706
OPTOMA 022 HD6800, HD72, HD72i, HD73
OPTOMA 023 HD80,HD82,HD8200
OPTOMA 024 HD81,HD81-LV,HD3000
OPTOMA 025 DX608,EP747,EP773,EP780,EP781,EP1690,OP1140,
OP1280,OP1400, T20, T203, TX773, TX780
OPTOMA 030 HD20,HD20LV,HD22,HD67,HD200x,HD2200,IS800c
OPTOMA 036 EP729
OPTOMA 027 COMPACT215,EP7150
ACER 002 001,H5360,H7530,H7530d,P1100,P1100c,P1165,P116
6,P1166p,P1200,P1200a,P1200b,P1200n,P1200i,P120
3,P1206,P1265,P1265p,P1265k,P1265ki,P1266,P1266
i,P1266n,P1266p,P1270,P1300wb,P1303w,P3150,P31
51,P3250,P3251,P5260,P5260i,P5270,P5280,P5370w,

YH414561/YH414562/YH414563/YH414564 Learning Universal Remote Control
11
P7270,P7270i,P7280,P7290,S1200,X1160pz,X1161,X1
260p,X1261
ACER 027 P5260,P5260i,P5271i,P7270,P7270i,,P7280,P7290,PD
99s,PD99x,PD311,PD323,PD523pd,PD525pd,PD525p
w,PD527d,PD527w,PD528,PD726,PD726w,PD727,PD
727w,PW730,XD1150,XD1150d,XD1150p,XD1170d,XD
1250,XD1250p,XD1270d,XD1280d
ACER 032 H5350,H5360,X1160,X1160+,X1160p,X1160pz,X1160p
zn,X1160z,X1260,X1260k,X1260p,X1260t
ACER 035 PD100,PD100d,PD100p,PD100s,PD116,PD120,PD120
d,PD120p,PD120pd,PD322,PD523,PD525d
ACER 039 P1100c,P1200a,P1200b,P1200i,P1200n,P1300wb
DELL 026 1209s,1409x,1609wx,1800mp,2300mp,2400mp,3400m
p,3400p,4100mp,4210x,4310wx,4610x,7609wu,1209S,
M209x,M210x,M409wx,M410hd,
DELL 033 1210s,1410x,1510x,1610hd
DELL 043 2300mp
DELL 044 S300,S300w,S300wi
3M 013 SCP720
3M 020 DMS715,SCP715,SCP717,SCP740
ACCO 037 X20p
BENQ 001 MP771
CASIO 011 YT35,XJ-S57
CASIO 021 XL300
CHANGHO
NG 021 PDF270,PDF270x,PDF720p
EPSON 006 001, EMP-1715
EPSON 010 EMP1705,EMP1725
GAHA 021 COMPACT216,COMPACT218
HITACHI 004 CP-X200,CP-X205,CP-X300,CP-X305,CP-X308,CP-
X400,CP-X417,ED-X30,ED-X31,ED-X33
HP 003 AP0110
HP 009 ARES,ARES-a,ARES-
b,MP2210,MP2215,MP2220,MP2225,MP3320,MP3322
INFOCUS
040 IN1100,IN1102,IN3102,IN3104,IN3106,IN3108,IN3182,
IN3186,IN3188,IN3902LB,IN3904LB,IN5302,IN5302L,I
N5304,IN5304L,IN5502,IN5502L,IN5504,IN5504L,IN55
32,IN5532L,IN5534,IN5534L,IN5584,IN5588,LP85,LP8
5w,SP8602,IN81,IN81c,IN82,IN83,X10,X10c
INFOCUS 042 X6,X6c,X7,X7c,X9,X9C,X15,X20,X21,X815
KAGA 038 U6-112,U6-132,U6-232
LENOVO 013 T20,T203
LENOVO 021 C10,DT1500
MEDION 017 MD30053
NEC 007 LT20
NEC 042 NP100,NP100+,NP100g,NP100j,NP200,NP200+,NP20
0g,NP200j
SAHARA 021 DP1500
SANYO 029 PDG-DSU30
SANYO 031 PDG-DWL100,PDG-DXL100
SMART 028 UF55,UF55W

YH414561/YH414562/YH414563/YH414564 Learning Universal Remote Control
12
SONY 008 VPL-CX63
THTF 042 DX680,DX710
TOSHIBA 034 TDP-SW80,TDP-TW90,TDP-TW90A,SP1,S8,MT200
ViewSonic 005 ,001
TV
BRAND TV
Abex 011,286
Accurian 140,452
Accuscan 005,014
Acme 156
Action 002,006,010,042
ADA 167
ADC 152,154
Admiral 003,004,005,014,015,018,025,035,040,041,055,165,308,45
5
Advantz 049
Advent 030,080,087,094,101,238,326,456,457
Adventura 279
Adventuri 001
Adyson 011
Agna 030
Aiko 024
Aiwa 011,295,296,309
Akai 010,012,020,021,028,031,064,071,149,211,230,361,362,372
,373,410,442
Alaron 037,040
Alba 011,012,045
Albatron 002
Alfide 064
Alleron 010,037,193
Amark 002,007,011,013,014,018,035,165
Ambassador 030,039
America Action 041
American High 001,021
Ampro 079
Amstrad 013,038,039
Amtron 001,041, 062
Anam 041
Anamnational 019, 062,150,169,184,293
AOC 002,006,010,011,012,013,041,042,151,152,155,159,264,280
,288,341,429,439,461,476
Aomni 399
Apex 078,081,113,321,367,423
Apex Digital 033,042,078,081,083,113
Archer 002,165
Aspect 198
Astar 472
Asuka 045

YH414561/YH414562/YH414563/YH414564 Learning Universal Remote Control
13
Audinac 041
Audio-Technica 006
Audiovox 002,024,040,041,054,061,062,074,090,112,140,147,348,436
,457
AUVIO 451,489
Aventura 038
Axion 147,281,454
Bang&Olufsen 291
Basicline 045
Baycrest 011,043
Baysonic 041
Beaumark 004,006,010,040
Belcor 006,010,151
Bell&Howell 003,018,025,032,040,133,191
BenQ 139,215,226,383,462
Bluesky 258,386
Boxlight 118
Bradford 041,062
Brick 013
Brockwood 006,010,020
Broksonic 002,013,039,041,046,055,142,253,315,320,458,459
Brokwood 151
Candle 010,013,020,043,151,155,279
Capehart 002,004,006,010,011,024,280
Carnivale 010
Carver 018,037
CCE 122
Celea 081
Celebrity 001,149
Celera 081
Centrios 274
Centurion 155
Cetronic 184
Changhong 033,081,083,087,321
Cinego 016
Cineral 024,054,258
Citek 011,014
Citizen 001,002,003,006,007,010,011,013,018,020,021,024,038,041
,043,048,049,054,055,062,127,151,155,184,230,253
Civet 042
Clairtone 042, 159
Clarion 041
Classic 006,010,020,024,081,184,321
COBY 359,364,463,464
Color voice 156
Coloryme 004,005,006,010,011,014,018,021,151,155,156
Colt 006
Commercialsolutions 014,133

YH414561/YH414562/YH414563/YH414564 Learning Universal Remote Control
14
Concerto 020,151,155
Conic 006
Concierge 235
Contec 041,042, 052,159,184,062
Cornea 192
Craig 038,040,041,049,184,062
Crosley 001,010,018,026,038,041,044,
Crown 013,020,025,041,062,064,184
Crownmustang 064
CTX 165
Curtis Mathes 001,003,005,006,010,011,012,013,014,015,018,020,021,025
,028,032,036,040,041,054,056,071,077,124,127,131,133,15
1,155,160,191,230,249,318,460
CXC 041,184,062
Cybervision 258
Daewoo 006,007,013,024,054,061,064,064,138,139,151,152,155,15
6,162,163,164,181,184,185,213,225,246,247,249,256,324
Dayton 024, 151,155
Daytron 006,010,011,013,020,024
Dell 006,122,134,172,251,390
Denon 012,019,028,060
Denstar 062
Diamond Vision 220,304,331
Digimate 346
Digistar 078,087,238,251,270,272,348,384,385
Digital Lifestyles 479
Digital Stream 453
Dimensia 133,133
Disney 253,265
Dukane 198,066
Dumont 003,004,006,011,041,151,235
Durabrand 002,006,038,041,055,120,253,262,290,307,370
Dwin 025,077,085
Dynasty 184
Dynex 421
Eaton 021
Electroband 001,042,149,159
Electrograph 138
Electrohome 001,006,010,011,013,020,030,031,032,042,052,150,151,155
,167
Elektra 003,004,061
Elite 045
Elite Video 297
Emerald 006,039
Emerson 006,011,012,013,014,029,030,032,037,038,039,040,041,042
,046,048,049,054,055,061,062,141,142,155,166,168,169,17
1,174,175,176,177,179,181,182,183,184,186,187,191,193,2
