  9. Petronics FLAME-THROWER III User manual

Petronics FLAME-THROWER III User manual

09/13 0015-008705
! Caution: Flame-Thrower III 0.32 coils should not be used with the (original)
Ignitor, Ignitor II or point type ignition system. Flame-Thrower III coils are only
compatible with Ignitor III ignition systems, and most Capacitive Discharge (CD)
systems that control the dwell period, or limit the current. (12volt negative ground
systems)
HIGH PERFORMANCE COIL
INSTALLATION INSTRUCTIONS
* Legal in all 50 states and Canada
CARB E. O. #D-57-17
BALLAST RESISTOR or RESISTANCE WIRE
The ballast resistor needs to be removed if the Flame-Thrower III coil is used with the
Ignitor III, or any Capacitive Discharge (CD) system that controls dwell or limits the
current. This only applies to Ignitor III, or Capacitive Discharge systems.
1. To remove a ballast resistor (normally white ceramic blocks 3 to 4” inches long),
disconnect all wires on both ends of the ballast resistor. Remove the resistor from
the vehicle and splice the wires together at a single point.
2. To remove a resistance wire, trace the coil power wire, which was previously
connected to the positive coil terminal, back to the fuse block. Bypass this wire with
a 12-gauge copper stranded wire.
If the vehicle has a ballast resistor or resistance wire, and is not equipped with
one of the systems mentioned above, the ballast resistor should not be removed.
09/13 0015-008705
HIGH PERFORMANCE COIL
INSTALLATION INSTRUCTIONS
* Legal in all 50 states and Canada
CARB E. O. #D-57-17
FLAME-THROWER III COIL APPLICATIONS
Use with: System
Voltage Cylinders Primary
Resistance
Recommended Flame-Thrower III
Coils
Black Chrome Epoxy
Ignitor III 12V ALL 0.32 ohms 44011 45001 NA
Ignitor II Not Compatible
! Caution: Flame-Thrower III 0.32 coils should not be used with the (original)
Ignitor, Ignitor II or point type ignition system. Flame-Thrower III coils are only
compatible with Ignitor III ignition systems, and most Capacitive Discharge (CD)
systems that control the dwell period, or limit the current. (12volt negative ground
systems)
BALLAST RESISTOR or RESISTANCE WIRE
The ballast resistor needs to be removed if the Flame-Thrower III coil is used with the
Ignitor III, or any Capacitive Discharge (CD) system that controls dwell or limits the
current. This only applies to Ignitor III, or Capacitive Discharge systems.
1. To remove a ballast resistor (normally white ceramic blocks 3 to 4” inches long),
disconnect all wires on both ends of the ballast resistor. Remove the resistor from
the vehicle and splice the wires together at a single point.
2. To remove a resistance wire, trace the coil power wire, which was previously
connected to the positive coil terminal, back to the fuse block. Bypass this wire with
a 12-gauge copper stranded wire.
If the vehicle has a ballast resistor or resistance wire, and is not equipped with
one of the systems mentioned above, the ballast resistor should not be removed.
FLAME-THROWER III COIL APPLICATIONS
Use with: System
Voltage Cylinders Primary
Resistance
Recommended Flame-Thrower III
Coils
Black Chrome Epoxy
Ignitor III 12V ALL 0.32 ohms 44011 45001 NA
Ignitor II Not Compatible
LIMITED WARRANTY
PerTronix, Inc. warrants to the original Purchaser of its Flame-Thrower coils that
the product shall be free from defects in material and workmanship (normal wear and
tear excluded) for a period of 90 days from the date of purchase.
If within the period of the foregoing warranty PerTronix finds, after inspection,
that the product or any component thereof is defective, PerTronix will, at its option,
repair such products or component or replace them with identical or similar parts
PROVIDED that within such period Purchaser:
1. Promptly notifies PerTronix, in writing, of such defects.
2. Delivers the defective product or component to
PerTronix (Attn: Warranty) with proof of purchase date; and
3. Has installed and used the product in a normal and proper
manner, consistent with PerTronix printed instructions
THE FOREGOING LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
THE FURNISHING OF A REPAIR OR REPLACEMENT COMPONENT
OR COMPONENTS SHALL CONSTITUTE THE SOLE REMEDY OF PURCHASER
AND THE SOLE LIABILITY OF PerTronix WHETHER ON WARRANTY, CONTRACT
OR FOR NEGLIGENCE, AND IN NO EVENT WILL PerTronix BE LIABLE FOR
MONEY DAMAGES WHETHER DIRECT OR CONSEQUENTIAL.
440 East Arrow Highway
San Dimas, CA 91773
909-599-5955
www.pertronix.com
LIMITED WARRANTY
PerTronix, Inc. warrants to the original Purchaser of its Flame-Thrower coils that
the product shall be free from defects in material and workmanship (normal wear and
tear excluded) for a period of 90 days from the date of purchase.
If within the period of the foregoing warranty PerTronix finds, after inspection,
that the product or any component thereof is defective, PerTronix will, at its option,
repair such products or component or replace them with identical or similar parts
PROVIDED that within such period Purchaser:
1. Promptly notifies PerTronix, in writing, of such defects.
2. Delivers the defective product or component to
PerTronix (Attn: Warranty) with proof of purchase date; and
3. Has installed and used the product in a normal and proper
manner, consistent with PerTronix printed instructions
THE FOREGOING LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
THE FURNISHING OF A REPAIR OR REPLACEMENT COMPONENT
OR COMPONENTS SHALL CONSTITUTE THE SOLE REMEDY OF PURCHASER
AND THE SOLE LIABILITY OF PerTronix WHETHER ON WARRANTY, CONTRACT
OR FOR NEGLIGENCE, AND IN NO EVENT WILL PerTronix BE LIABLE FOR
MONEY DAMAGES WHETHER DIRECT OR CONSEQUENTIAL.
440 East Arrow Highway
San Dimas, CA 91773
909-599-5955
www.pertronix.com
1. Make sure the ignition switch is off or disconnect the battery negative cable.
2. Remove the coil wire from the coil tower.
3. Remove all wires from the positive coil terminal.
4. Remove all wires from the negative coil terminal.
5. Loosen the coil clamp and remove the existing coil.
6. Install FlameThrower III coil into the coil clamp and tighten into place. Note: If
the Flame-Thrower III coil does not fit properly in the existing coil clamp,
purchase PerTronix chrome clamp #10002 or zinc clamp #10001.
7. Connect the wires that were removed from the negative coil terminal of the old coil
to the negative terminal of the Flame-Thrower III coil.
8. Connect the wires that were removed from the positive coil terminal of the old coil
to the positive terminal of the Flame-Thrower III coil.
9. Push the coil wire into the coil tower making sure that the boot is secure around the
coil tower.
FLAME-THROWER III COIL INSTALLATION
1. Make sure the ignition switch is off or disconnect the battery negative cable.
2. Remove the coil wire from the coil tower.
3. Remove all wires from the positive coil terminal.
4. Remove all wires from the negative coil terminal.
5. Loosen the coil clamp and remove the existing coil.
6. Install FlameThrower III coil into the coil clamp and tighten into place. Note: If
the Flame-Thrower III coil does not fit properly in the existing coil clamp,
purchase PerTronix chrome clamp #10002 or zinc clamp #10001.
7. Connect the wires that were removed from the negative coil terminal of the old coil
to the negative terminal of the Flame-Thrower III coil.
8. Connect the wires that were removed from the positive coil terminal of the old coil
to the positive terminal of the Flame-Thrower III coil.
9. Push the coil wire into the coil tower making sure that the boot is secure around the
coil tower.
FLAME-THROWER III COIL INSTALLATION

Popular Automobile Part manuals by other brands

Edelbrock 5266 installation instructions

Edelbrock

Edelbrock 5266 installation instructions

Edelbrock 5708 installation instructions

Edelbrock

Edelbrock 5708 installation instructions

Edelbrock 66042 installation instructions

Edelbrock

Edelbrock 66042 installation instructions

Volvo 850 manual

Volvo

Volvo 850 manual

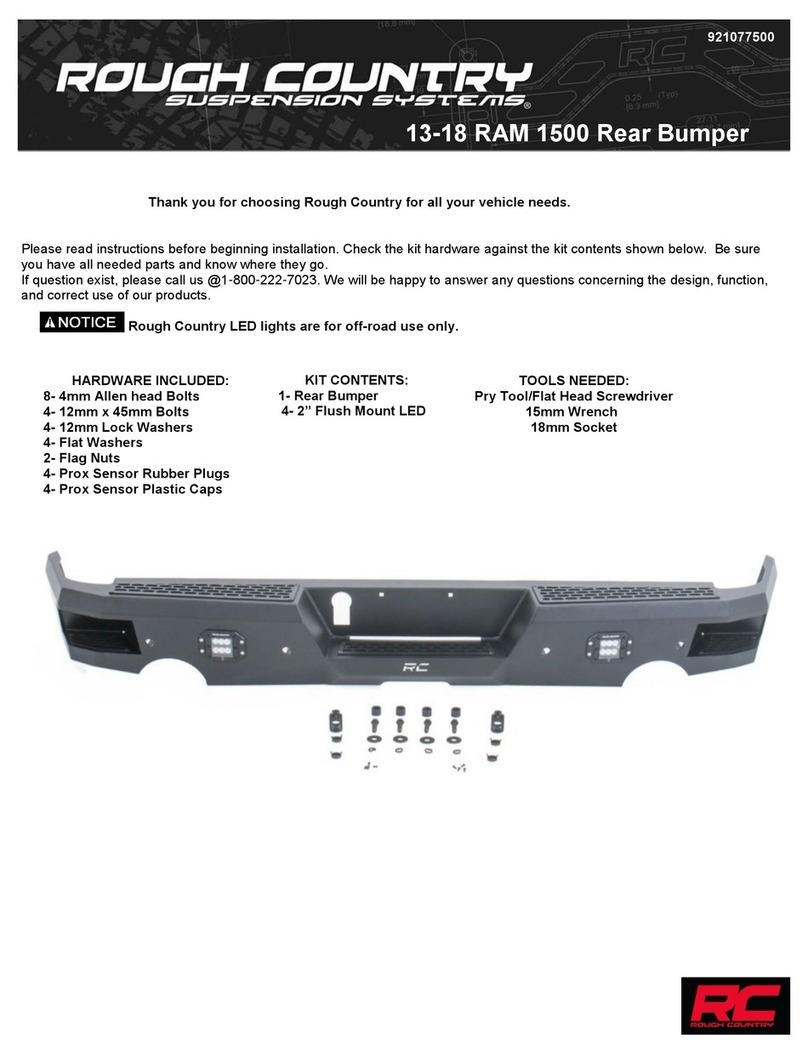

rough country 13-18 RAM 1500 manual

rough country

rough country 13-18 RAM 1500 manual

Field Controls SWG-4HD instruction manual

Field Controls

Field Controls SWG-4HD instruction manual

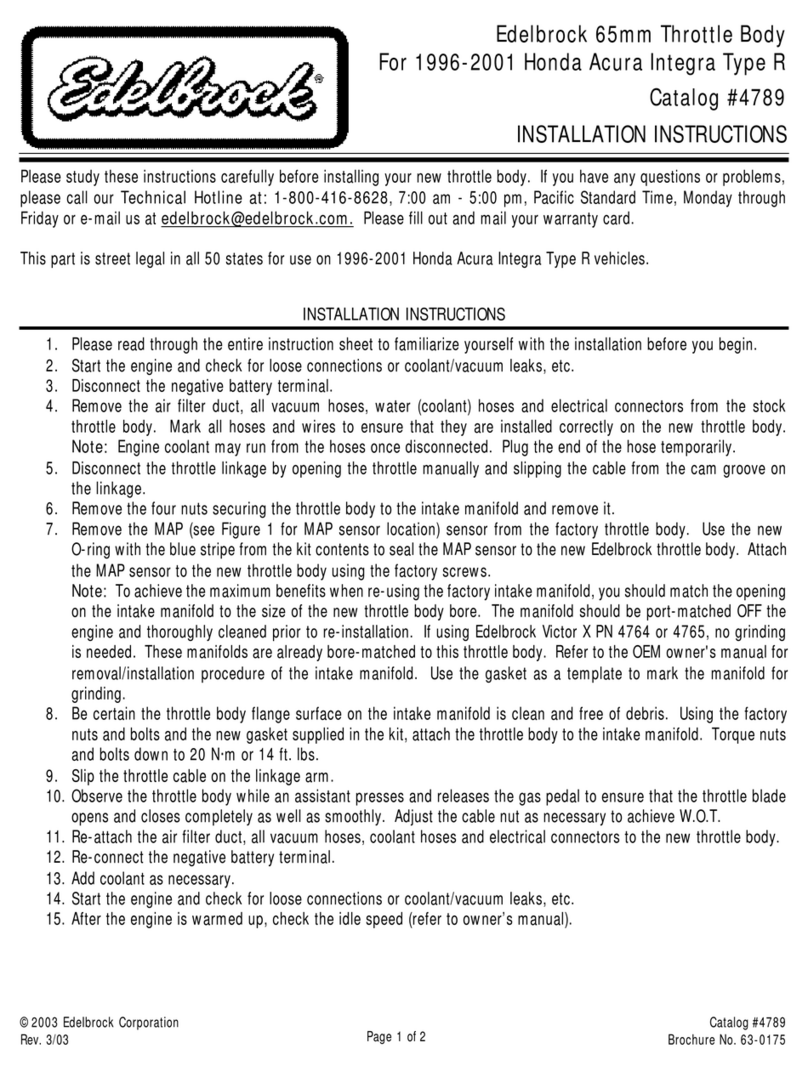

Edelbrock 4789 installation instructions

Edelbrock

Edelbrock 4789 installation instructions

BBK 5010 installation instructions

BBK

BBK 5010 installation instructions

Edelbrock 66592 installation instructions

Edelbrock

Edelbrock 66592 installation instructions

Edelbrock 3843 installation instructions

Edelbrock

Edelbrock 3843 installation instructions

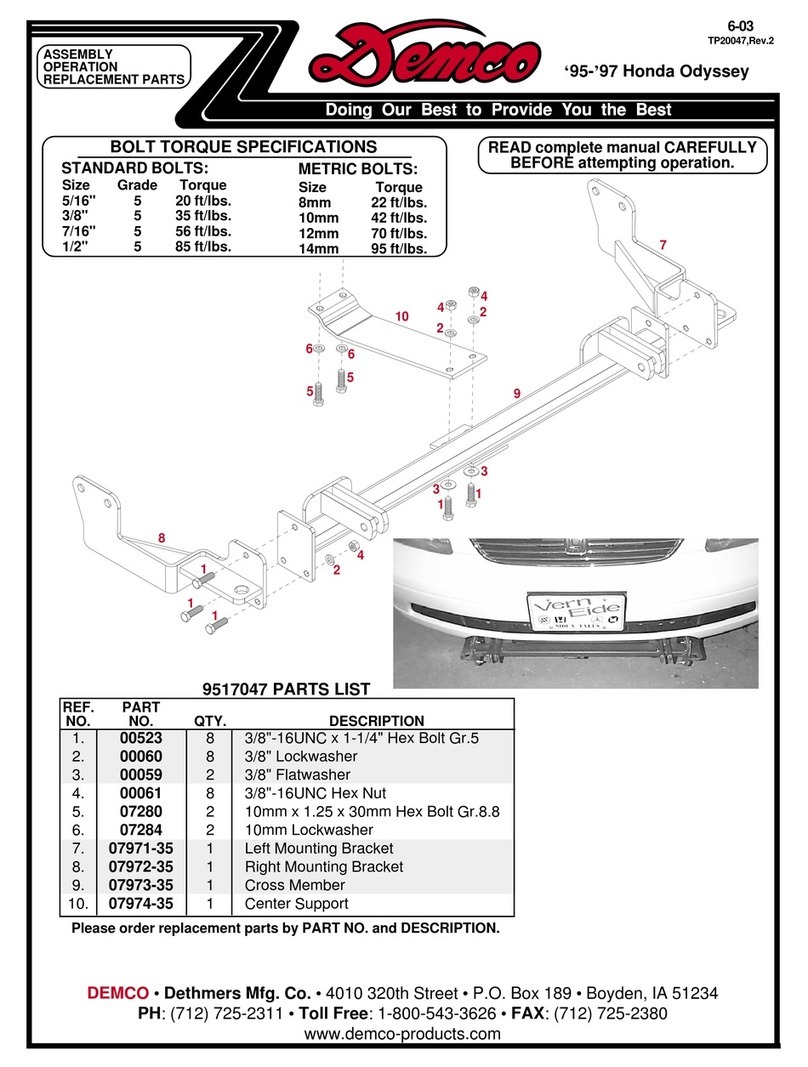

Demco TP20047 Assembly operation replacement parts

Demco

Demco TP20047 Assembly operation replacement parts

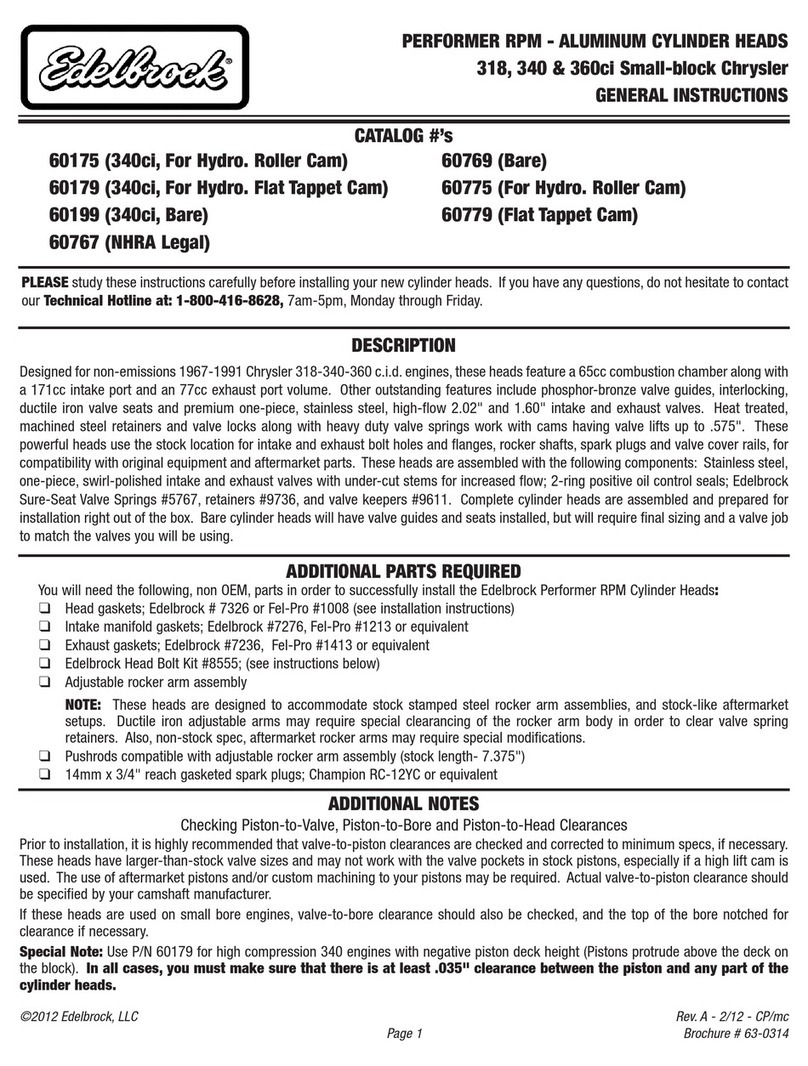

Edelbrock 60179 General instructions

Edelbrock

Edelbrock 60179 General instructions

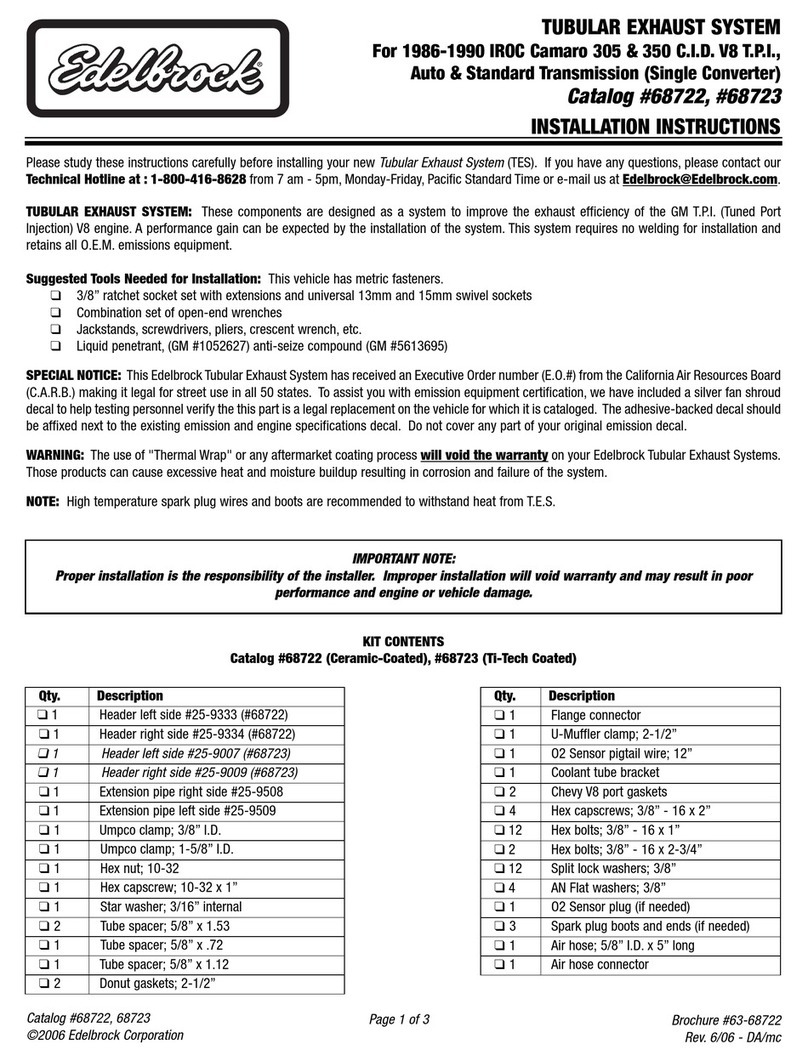

Edelbrock 68722 installation instructions

Edelbrock

Edelbrock 68722 installation instructions

Airaid 300-165 installation instructions

Airaid

Airaid 300-165 installation instructions

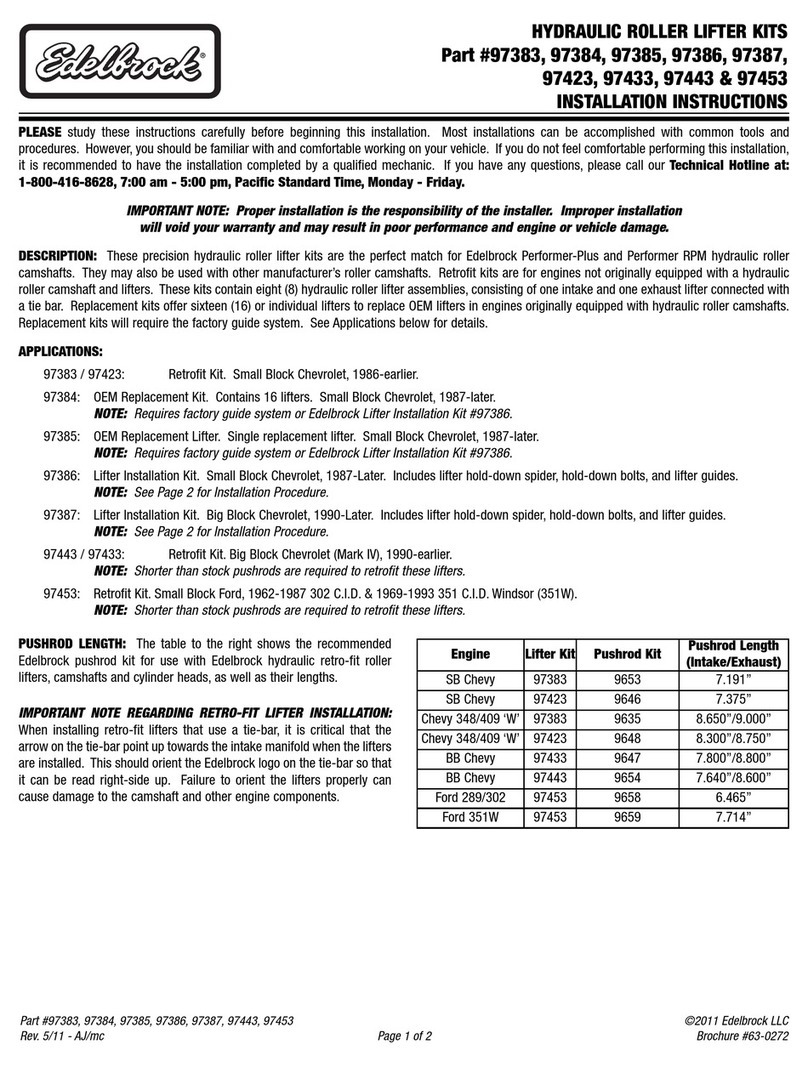

Edelbrock 97383 installation instructions

Edelbrock

Edelbrock 97383 installation instructions

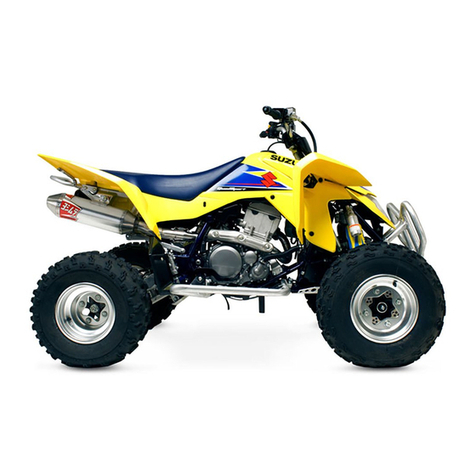

Yoshimura 03-09 SUZUKI LT-Z400 Installation procedures

Yoshimura

Yoshimura 03-09 SUZUKI LT-Z400 Installation procedures

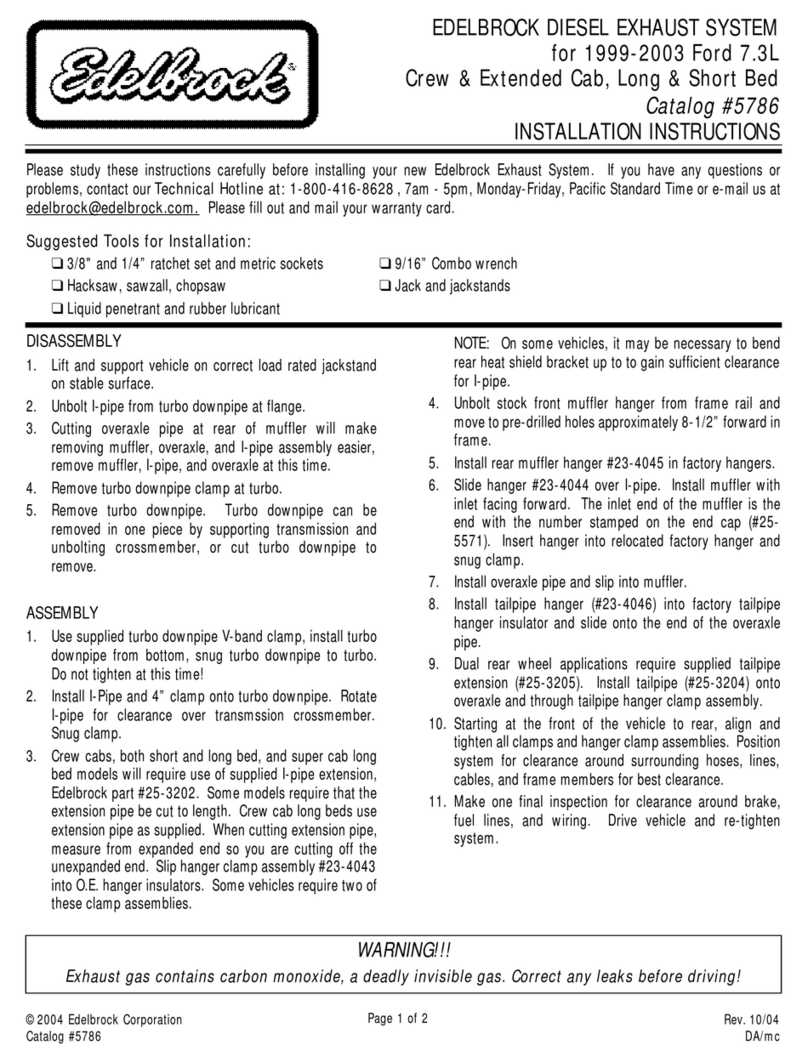

Edelbrock 5786 installation instructions
