MIW-POWER-PRO-PFP INSTALLATION INSTRUCTIONS

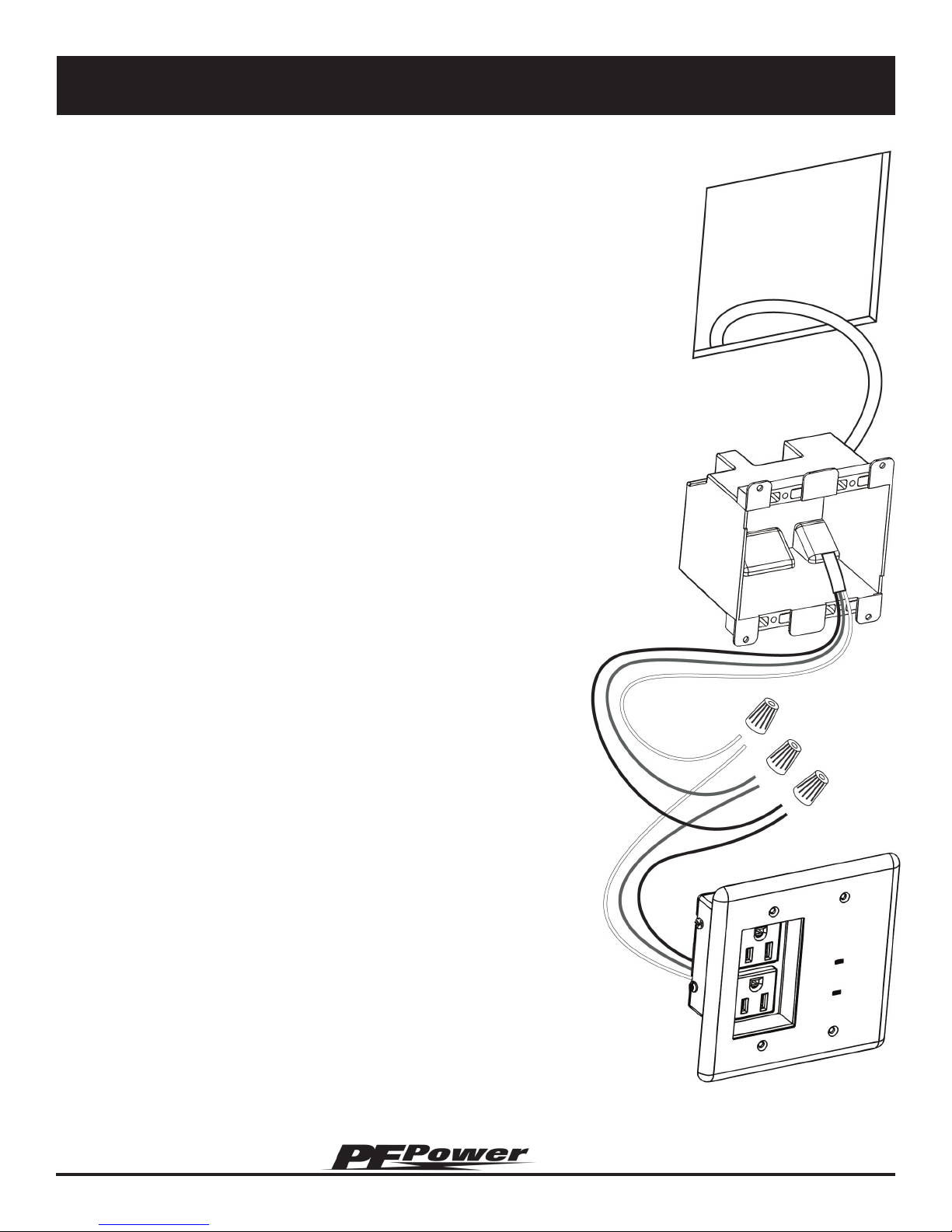

STEP 1:
Select a location close to the equipment. In the case of a at panel
display, the recommended location is one that is behind the device
and hidden from view once the Plasma TV is mounted. Cut a 4”
wide by 3 3/4” high hole in the wall for the outlet box.
STEP 2:
Run the building wire (e.g. Romex) through a rear opening in
the outlet box (not included). No more than 1” of wire sheath
should extend into the outlet box. 3” of wire should be able to
extend beyond the opening of the outlet box. Install the outlet
box in the hole.
STEP 3:
Strip building wire. Using the included wire nuts, rst connect
the ground wires - green insulated on the MlW-Power and bare
copper on the building wire. Then connect the neutral wires
(white), then the hot wires (black).
STEP 4:
Neatly fold the AC wires as you install the Max In-Wall in the
outlet box and secure with the included screws.
STEP 5:
Turn the power on to the circuit. The blue Power indicator
should light up, indicating the outlet is ready for use.
NOTES:
In the event of a hazardous voltage situation, the red Unsafe
Voltage indicator will blink until the voltage returns to a safe level.
1
(Outlet boxes
not included)
INS00840 REV A 11/07
CAUTION:
Only for use with 15 Amp circuits utilizing a minimum of 14 AWG.
Make sure the circuit is not live before installation. If you are unsure how
to perform this task, please contact an electrician.
Signal Protection Module Usage:
PF Power In-Wall signal protection modules (sold separately),
while not necessary for surge protection in the Max In-Wall
Power-Pro, may be used to provide a clean looking interface for
the signal lines. When used in the proper manner the modules
also provide total protection to the connected equipment.

2
MIW-POWER-PRO-PFP SPECIFICATIONS
AC Circuit
AC Outlets, Total: ..................................................2
Line Voltage: .....................................120V, 50/60Hz
Total Current Capacity: .....................................15A
UL 1449 Suppression Rating: ........................330 V
Protection Modes: .............................L-N, L-G, N-G
Energy Dissipation: ................................546 Joules
Peak Impulse Current: ...............................32,500A
Catastrophic Surge Circuit: ...............................Yes
Thermal Fusing: ................................................Yes
AVM (Automatic Voltage Monitoring) Circuit
Over-voltage shutoff: ...............142VAC ± 5VAC
Under-voltage shutoff: ...............84VAC ± 6VAC
Power Outlet Faceplate
AC Connectors: ............................2 NEMA 5-15
Noise Filtration: ......................................Level 1
Signal Line Protection: Not Included / Modules
Sold
Separately
CONTENTS CONTACTING PF POWER
PF Power
1690 Corporate Circle
Petaluma, CA 94954
Phone - 707-283-5900 or 800-472-5555
Fax - 707-283-5901
Web - www.panamax.com
Customer Relations
7:30 AM – 4:30 PM, M-F Pacic Time
Email - [email protected]
POWER ON
LINE FAULT
One MAX In-Wall
power outlet
enclosure
Specications are subject to changes due to product upgrades and improvements.
(4) Mounting Screws
(3) Wire Nuts
Included Installation Accessories:
