PheeNet MJCAS-210IR User manual

MJPEG IP Camera
User Manual Version 2.1.7.1
MJCAS-210IR

Network Camera User’s Guide
2/83
© 2005.
Owner's Record
The model and serial numbers are located at the bottom. Record these numbers in the spaces provided
below. Refer to these numbers whenever you call upon your dealer regarding this product.
Model No. ______________ Serial No. ____________________
To prevent fire or shock hazard, do not expose the unit to rain or
moisture.
For AC Adaptor to avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
For customers in the U.S.A.
This equipment has been tested and found to comply with the limits for a digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could void
your authority to operate this equipment.
The shielded interface cable recommended in this manual must be used with this equipment in
order to comply with the limits for a digital device pursuant to Part 15 of FCC Rules.
Declaration of Conformity

Network Camera User’s Guide
3/83
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTICE TO USERS
© 2005. All rights reserved. This manual or the software described herein, in whole or in part, may not
be reproduced, translated or reduced to any machine readable form without prior written approval.
WE PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE OR
OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE OR SUCH
OTHER INFORMATION. IN NO EVENT SHALL WE BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR
OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE
SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF.
We reserves the right to make any modification to this manual or the information contained herein at
any time without notice. The software described herein may also be governed by the terms of a
separate user license agreement.

Network Camera User’s Guide
4/83
Table of Contents
Overview ............................................................................................................................. 6
Package Contents................................................................................................................ 8
Connections......................................................................................................................... 9
Hardware Installation ....................................................................................................... 11
Logging in to Homepage................................................................................................... 12
Before Operation....................................................................................................... 12
Access the MJPEG IR IP Camera from the Internet Explorer for the first time....... 16
Logging in as an ordinary User................................................................................. 18
Logging in as an Administrator................................................................................. 18
Operating the MJPEG IR IP Camera............................................................................... 19
Control Panel ............................................................................................................ 20
Advanced Function Area........................................................................................... 22
Basic Setting ..................................................................................................... 22
System .......................................................................................... 23
Camera.......................................................................................... 25
Network ........................................................................................ 27
User............................................................................................... 33
IP Filter ......................................................................................... 34
FTP Client..................................................................................... 37
SMTP............................................................................................ 39
Schedule ....................................................................................... 41
Motion Detection.......................................................................... 42
Time Setting ................................................................................. 43

Network Camera User’s Guide
5/83
Popup............................................................................................ 45
Firmware upgrade:........................................................................ 46
Factory Default............................................................................. 49
Reboot........................................................................................... 50
Trigger............................................................................................................... 51
Capture.............................................................................................................. 52
RightMouseButton of ActiveX Control.............................................................................. 53
View Menu................................................................................................................ 54
“Image Recording…-> Save as JPEG” .................................................................... 60
“Save Current Picture As …” ................................................................................... 66
Appendix A: Troubleshooting & Frequently Asked Questions.......................................... 68
Appendix A: Troubleshooting & Frequently Asked Questions.......................................... 68
Appendix B: PING IP Address.......................................................................................... 73
Appendix C: Bandwidth Estimation.................................................................................. 74
Appendix D: Specifications............................................................................................... 75
Appendix E: Time Zone Table ........................................................................................... 77
Appendix F: DDNS Application........................................................................................ 79

Network Camera User’s Guide
6/83
Overview
This user’s guide explains how to operate the Infra-Red (IR) IP Camera from a computer.
Basically, the user’s guide is written to be read on the computer display. However, users
might consider printing it out to access easily and read it before you operate the MJPEG
IR IP Camera.
Introduction
This MJPEG IR IP Camera is an inexpensive fully scalable surveillance technology.
Because the MJPEG IR IP Cameras can be plugged in to your existing computer
network infrastructure, you will potentially save thousands of dollars on unnecessary
cabling. By using IR technology, this MJPEG IR IP Camera is not only working on day
but also on night.
The MJPEG IR IP Camera is accessible via the LAN or Internet connection. Connect
your MJPEG IR IP Camera directly to a computer network or DSL modem, and with a
standard Web browser you get instant, on demand video streams. Within minutes you
can set up the MJPEG IR IP Camera to capture a video sequence to a PC. Live video
image can be uploaded to a website for the world to see or made available only to select
users on the network.
Features:
zHigh quality 1/3” Sony CCD sensor
zComposite video output
zHigh-Light LED offers greater image quality and longer life span
z30M/50M IR distance
zJPEG video compression
zRemote-Control via Internet Explorer
zSupport statistic and dynamic IP address
zDDNS and PPPoE
zMulti-channel control software for surveillance application
zOn-line firmware upgrade

Network Camera User’s Guide
7/83
Application:
zRemote monitoring
zSurveillance
Minimum System Requirement
zMicrosoft Internet Explorer 5.0 or later
zVGA Monitor resolution 1024 x 768
zPentium 4 1.3GHz or above
zMemory Size: 256MB or above
zWindows ME, 2000, XP, or 2003

Network Camera User’s Guide
8/83
Package Contents
User can find the following items in the package:
MJPEG IR IP Camera x 1
RS-485 terminal x 1
Installation software and manual CD x 1
Quick installation guide
If any of the above items are missing, please contact your dealer immediately.

Network Camera User’s Guide
9/83
Connections
Rear Panel Connections:
1. RS-485: To connect to an indoor/outdoor Pan/Tilt scanner unit.
Definition of the RS-485:
Orange: D-
Blue: D+
2. LAN port: To connect to PC or Hub.
The LAN socket is an RJ-45 connector for connections to 10Base-T Ethernet or
100Base-TX Fast Ethernet cabling. This Ethernet port built NWay protocol can detect or
negotiate the transmission speed of the network automatically. Please use Category 5
“straight through” cable to connect the MJPEG IR IP Camera to a 100Mbps Fast
Ethernet network switch or hub.

Network Camera User’s Guide
10/83
3. AC power cord & Local Video out (BNC port)
The AC power input and video output cable are located on the MJPEG IR IP Camera’s
back panel. The input power is 85~260VAC..
The MJPEG IR IP Camera also provides composite video output. User can use BNC
video cable to connect the MJPEG IR IP Camera with a TV monitor or VCR.

Network Camera User’s Guide
11/83
Hardware Installation
1. Fix IR camera to desired location with wall mount fixture
2. Plug-in Network Cable into Ethernet port
Connect an Ethernet cable to the LAN socket located on the MJPEG IR IP Camera’s
back panel and attach it to the network.
3. Connect RS485 two wires to RS485 D+ and D- ( if you need to control PT
scanner)
4. Plug-in Power cable into power socket
5. Connect Video BNC connector to a local TV (for checking camera viewing
angle)
6. Done
Once you have installed the MJPEG IR IP Camera well, the status LED will turn on. It
means the system is booting up successfully. Furthermore, if you have a proper network
connection, and access to the MJPEG IR IP Camera, the 10/100M LAN LED will flash

Network Camera User’s Guide
12/83
Logging in to Homepage
Before Operation
Install the IP Address of MJPEG IR IP Camera
When you installed your MJPEG IR IP Camera on your LAN environment, you may
execute IPFINDER.EXE to discover MJPEG IR IP Camera’s IP address.
IPCam Finder program (IPFINDER.EXE) is used to scan the Installed MJPEG IR IP
Camera, setting the MJPEG IR IP Camera Name, IP address settings and so on.
Using your mouse to select any one of the MJPEG IR IP Cameras within your LAN
environment, you can find out its IP address and other IP parameters as follows:

Network Camera User’s Guide
13/83
1. Edit the Name of this MJPEG IR IP Camera. Note that use “_” or “-“ to
replace “space” character to separate the name string. For example,
“Dome_IP” or “Dome-IP” will be right. However “Dome IP” will not work
here.
2. Might be needed to update the IP address of this MJPEG IR IP Camera.
( Power recycling i might be necessary)
3. Might be needed to update the Gateway Address. ( Power recycling might
be necessary)
4. Might be needed to update the Network Mask (255.255.255.0). ( Power
recycling might be necessary)
5. Might be needed to modify the port number 1 of HTTP access. ( Power
recycling might be necessary)
6. Might be needed to modify the port number 2 of HTTP access. ( Power
recycling might be necessary)
7. ‘Submit’ it.
Click “submit”, the IP information of this MJPEG IR IP Camera will be updated
after seconds
Install the MJPEG IR IP Camera with an ADSL Router
If the MJPEG IR IP Camera was installed on the LAN with an ADSL router, then the
MJPEG IR IP Camera can get a dynamic IP address from the DHCP server. However, if
the MJPEG IR IP Camera wants to be access from the WAN, its IP address needs to be
setup as fixed IP, also the Virtual Server function of ADSL router needs to be setup as
follows:
1. Setup the MJPEG IR IP Camera as Fixed IP, such as 192.168.0.49.

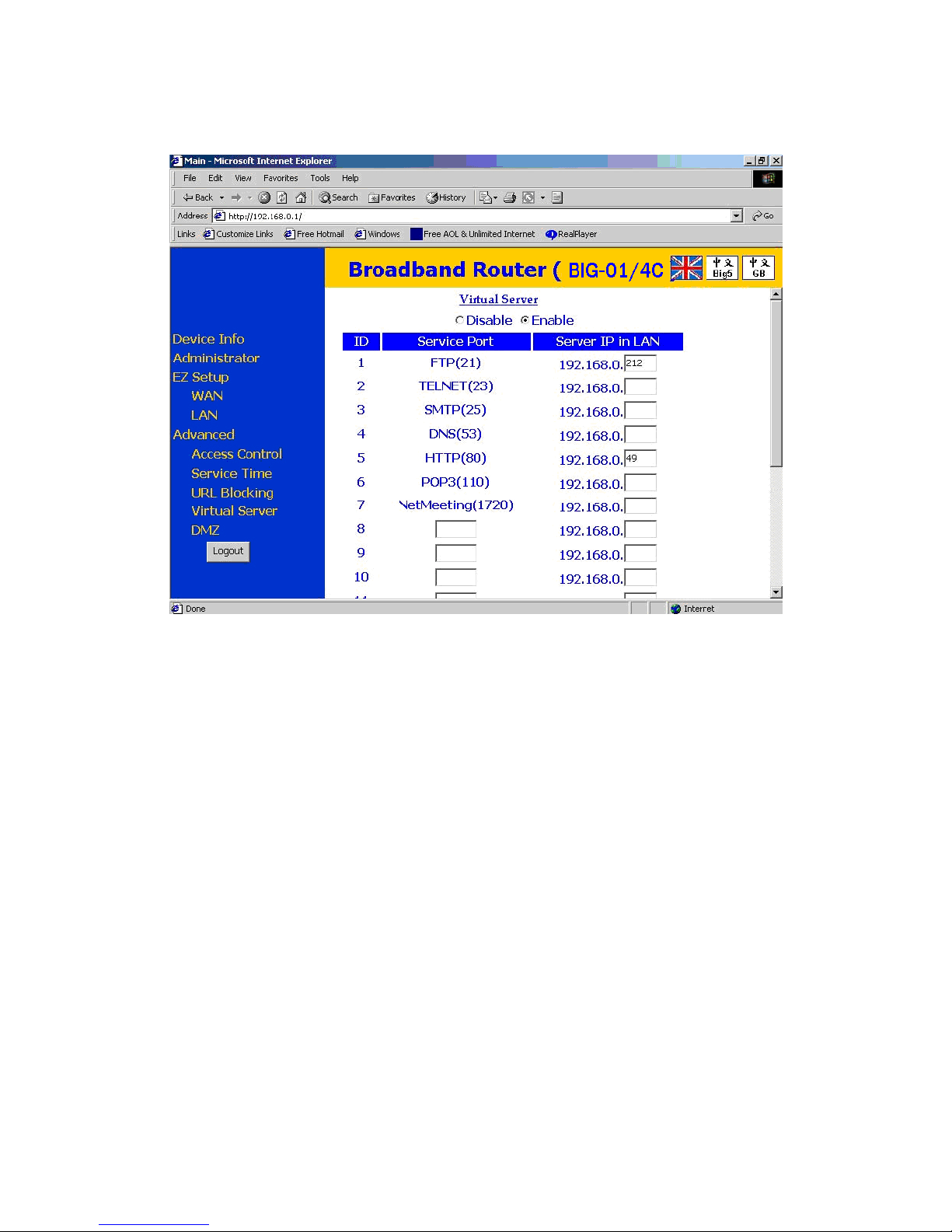

2. Enter the administrator page of ADSL router. (Use BIG-01/4C as an example).
3. Enter the Virtual Server Page.
a. Setup the mapping of HTTP Port (80) to 192.168.0.49.
b. Restart the ADSL router.
Then the MJPEG IR IP Camera can be access from WAN by the ADSL WAN IP Address.

Network Camera User’s Guide
14/83
First time uses the MJPEG IR IP Camera
The MJPEG IR IP Camera web page communicates with the MJPEG IR IP Camera
using an ActiveX control. The ActiveX control must be downloaded from the MJPEG IR
IP Camera and installed on your PC. Your Internet Explorer security settings must allow
for the web page to work correctly. To use the MJPEG IR IP Camera, user must setup
his IE browser as follows:
From your IE browse ΔTools” ΔInternet Options…” ΔSecurity” ΔCustom
Level…”, please setup your “Settings” as follow.
Set the first 3 items
• Download the signed ActiveX controls
• Download the unsigned ActiveX controls
• Initialize and script the ActiveX controls not masked as safe
To Prompt

Network Camera User’s Guide
15/83
By now, you have finished your entire PC configuration for MJPEG IR IP Camera.

Network Camera User’s Guide
16/83
Access the MJPEG IR IP Camera from
the Internet Explorer for the first time
1. Start the web browser on the computer and type the IP address of the MJPEG IR IP
Camera you want to monitor as below:
The Login Window of the MJPEG IR IP Camera is displayed:
2. Type in your login name and password under “USERNAME” and “PASSWORD”
textbox.
For the first time use (default value), input the
User Name : admin
Password:

Network Camera User’s Guide
17/83
That’s, type in “admin” on the “USERNAME” as a default name and leave PASSWORD
textbox blank. Click “OK” button to start the main menu.
Now, you login to the MJPEG IR IP Camera as a full-authorized administrator. You can
enter “Setting” to change the password and setup “Administrator” or “User” authority.
Please refer to “Setting” ΓUser” and “IP Filter”.
3. The IE Web Page will display the “Security Warning” window, select “Yes” to install
and run the ActiveX control into your PC.
4. Display the image. After the ActiveX control was installed and ran, the first image will
be displayed.

Network Camera User’s Guide
18/83
Logging in as an ordinary User
For ordinary user usage, “Setting”, “Trigger”, and “Capture” will be not available. On the
right side of the screen, there are lots of controls and function buttons. If “Remote
camera control” is turned off by the administrator, then those control and function
buttons will not be available as well.
For the rest of this user guide, it is assumed that the “Remote camera control” will be
turned on for normal operation.
Logging in as an Administrator
If you log in the MJPEG IR IP Camera as the Administrator, you can perform all the
settings provided within the software. The Administrator may be logged in at any time,
regardless of the number of the users being accessed.

Network Camera User’s Guide
19/83
Operating the MJPEG IR IP
Camera
Start-up screen will be as follow no matter an ordinary users or an administrator.
Viewing Area: Images from the MJPEG IR IP Camera

Network Camera User’s Guide
20/83
Control Panel
Control Panel Area: MJPEG IR IP Camera Manipulation and image quality control
Item Button Meaning
1 Camera
direction
Control camera up/down/left/right and home position
Note: It’s useful if MJPEG IR IP Camera is carried by a P/T
scanner. Otherwise, this function is not available.
2 Camera
speed
Adjust camera speed up / down
Note: It’s useful if MJPEG IR IP Camera is carried by a P/T
scanner. Otherwise, this function is not available.
