Philco PARC09GGAWM User manual

PARC09GGAWM, PARC12GGAWM
PARC18GNAWM, PARC24GNAWM

1
Table of Contents
Congratulations ....................................................................................... 2
Safety Precautions .................................................................................. 3
Product´s Description .............................................................................. 5
Indoor Unit Display .................................................................................. 6
Remote Control ........................................................................................ 6
Remote Control Description .................................................................... 7
Remote Control Display Indicators .......................................................... 8
First Use .................................................................................................. 9
How to use the Remote Control ............................................................... 9
How to use the Indoor Unit ...................................................................... 14
Emergency Operation .............................................................................. 15
Optimal Operation .................................................... ............................... 15
Cleaning and Maintenance ...................................................................... 16
Operation Tips ......................................................................................... 18
Troubleshooting ....................................................................................... 19
• Keeptheremotecontrolwhereitssignalcanreachthereceiverof
theindoorunit.
• Whenoperatetheairconditioner,makesuretheremotecontrolis
pointingtothesignalreceiveroftheindoorunit.
• Whentheremotecontrolsendsoutasignal,thesymbol will
blinkforabout1secondonthedisplayoftheremotecontrol.
• Theindoorunitwillacknowledgethesignalwithabeepwhenit
receivesthesignalfromtheremotecontrol.
• Pleasepressthebuttonoftheremotecontrolandresendthesignal
ifyoudidnothearabeepfromtheindoorunit.
ImportantReminder

2
Congratulations
• The air conditioner is not intended for use by young
childrenorinrmedpersonswithoutsupervision.
• Youngchildrenshouldbesupervisedtoensurethatthey
do not play with the air conditioner.
• Contact an authorised installer for installation of this air
conditioner.
• Contactanauthorisedservicetechnicianforrepairor
maintenance of this unit.
• If the power cord is to be replaced, replacement work
shall be performed by authorised personnel only.
• Installation work must be performed in accordance with
the national wiring Standards by authorised personnel
only.
Congratulations and thank you for choosing a split-type air
conditioner.Wearesureyouwillndyournewairconditioner
a pleasure to use.
Before you use the air conditioner, we recommend that you
readthroughtheentireusermanual,whichprovidesthe
description of the air conditioner and its functions.
Toavoidtherisksthatarealwayspresentwhenyouusean
electrical appliance, it is important that the air conditioner is
installed correctly and that you read the safety instructions
carefullytoavoidmisuseandhazards.
We recommend that you keep this instruction booklet for future
reference and pass it on to any future owners.
After unpacking the air conditioner please check it is not
damaged. If in doubt, do not use the air conditioner but contact
yourlocalauthorisedservicecentre.
Conditionsofuse
This appliance is intended to be used in household and
similar applications such as:
• Staffkitchenareasinshops,ofcesandotherworking
environments.
• Farm houses.
• By clients in hotels, motels, and other residential type
environments.
• Bedandbreakfasttypeenvironments.
Importantnotes
Contact an authorised installer for installation of this unit.
Contactanauthorisedservicetechnicianforrepairor
maintenance of this unit.
• The socket oultet required to supply power must be
connected and commissioned by a licenced contractor.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge,unlesstheyhavebeengivensupervisionor
instruction concerning use of the appliance by a person
responsible for their safety.
• Youngchildrenshouldbesupervisedtoensurethat
they do not play with the air conditioner.
• If the power cord is to be replaced, replacement work
shall be performed by authorised personnel only.
• Installation work must be performed in accordance
with the national wiring standards and the electricity
suppliersservicerulesbyauthorisedpersonnelonly.
• Iftheunitistobemovedtoanotherlocationor
disposedof,onlyasuitablyqualiedpersonis
permitted to undertake such work.
• Takecarenottocatchngersonthefanbladewhen
adjustingverticallouvers.
• This air conditioner uses R22 or R410a refrigerant
(Conrmbeforeinstallation).
Information on disposal for users
• Most of the packing materials are recyclable. Please
dispose of those materials through your local recycling
depot or by placing them in appropriate collection
containers.
• If you wish to discard this air conditioner, please contact
your local authorities and ask for the correct method of
disposal.
caution
environmentaltip

3
If you notice an unusal situation, such as a
burning smell, please switch off the power to the
airconditionerandcontactanauthorisedservice
agent. If this abnormal status continues the air
conditionermaybedamagedorevencause
electricshockorre.
Do not operate the air conditioner with wet hands.
This may cause electric shock.
Do not damage or cut off the power cord or other
wires.Ifthisoccurs,pleasehaveitrepairedor
replaced by an accredited technician
Do not connect this air conditioner to a multi outlet
powerboard.
Please switch off the power supply to the air
conditioner if it is not to be used for an extended
period. Otherwise, it will accumulate dust and may
causeare.
Before cleaning the air conditioner, please
disconnect the power supply in order to eliminate
the possibility of electric shock.
The power supply should be matched with the air
conditioner according to the installation manual. Air
conditionersprovidedwithasupplycordshouldbe
connected directly to a power outlet with a suitable
safety switch.
Air conditioners that are hard wired must be
connected to a suitable safety circuit breaker
according to the installation manual.
Please ensure that the power supply to the air
conditioner is stable and meets the requirements
set out in the installation manual.
Always ensure the product is installed with
appropriate earthing.
For safety, be sure to turn off the circuit breaker
before performing any maintenance or cleaning
or when the product is not used for an extended
periodoftime.Accumulateddustmaycausereor
electric shock.
Safetyprecautions
Insidethismanualyouwillndmanyhelpfulhintsonhowtouse
andmaintainyourairconditionerproperly.Justalittlepreventive
careonyourpartcansaveyouagreatdealoftimeandmoney
overthelifeofyourairconditioner.You’llndmanyanswersto
common problems in the chart of troubleshooting tips on page
20-21.Ifyoureviewthechartoftroubleshootingtipsrst,you
maynotneedtocallforservice.
Meanings of symbols used in this manual are shown below:
This indicates information concerning your personal safetyand
howtoavoiddamagingtheappliance.
This symbol indicates tips and information about use of the
appliance.
This symbol indicates tips and information about economical
and ecological use of the appliance.
Thissymbolindicatesnevertodothis.
Always do this.
Importantnotes:
1 Donotoperateunitwithhorizontallouvreinclosedposition.
2 Donotoperateunitwithouttheairlter.
caution
warning
environmentaltip
tipsandinformation

4
Safetyprecautions
Usage
Exposuretodirectairowfromtheairconditionerfor
anextendedperiodoftimecouldbehazardoustoyour
health.
Donotexposepeople,petsorplantstothedirectairow
for an extended period.
Cleaningandmaintenance
1 Whencleaningtheunit,rstmakesurethatthepower
and circuit breaker are turned off.
2 Do not touch the metal parts of the unit when
removingthelters.Injuriescanoccurwhenhandling
sharp metal edges.
3 Do not use water to clean inside the air conditioner.
Exposure to water may lead to possible electric shock.
Service
For repair and maintenance, contact your authorised
servicedealer.
PriortoOperation
1 Contactaninstallationqualiedforinstallation.
2 Plug in the power plug properly.
3 Do not use a damaged or non-standard power
cord.
4 Do not share the same outlet with other
appliances.
5 Do not use an extension cord.
6 Do not start/stop operation by plugging /
unplugging the power cord.
caution
Select the most appropriate temperature.
Itcansaveelectricity.
Do not keep windows and doors open for a long
timeduringoperation.Itwillresultininsufcient
performance.
Do not block the air inlet or outlet.
Itwillresultininsufcientperformanceandcause
malfunctions.
Keep combustible materials away from the units at
least1m.Itmaycausere.
Do not step on the top of the outdoor unit or place
heavythingsonit.
It may cause damage or injury.
Do not attempt to repair the air conditioner by
yourself. Incorrect repairs may cause electric
shockorre.Pleasecontactyourlocalauthorised
servicecentre.
Do not insert your hands or objects into the air inlet
or outlet. It may cause injury.
Do not expose animals or plants directly to the air
ow.
Do not use the unit for any other purpose, such as
preservingfoodordryingclothes.
Do not splash water on the air conditioner. It may
cause electric shock or malfunction.

5
/LJKW
7XUER &OHDQ
7LPHU2Q 7HPS
7LPHU2II
6ZLQJ 0\7HPS (FR
)DQ
&ORFN
0RGH





 




1

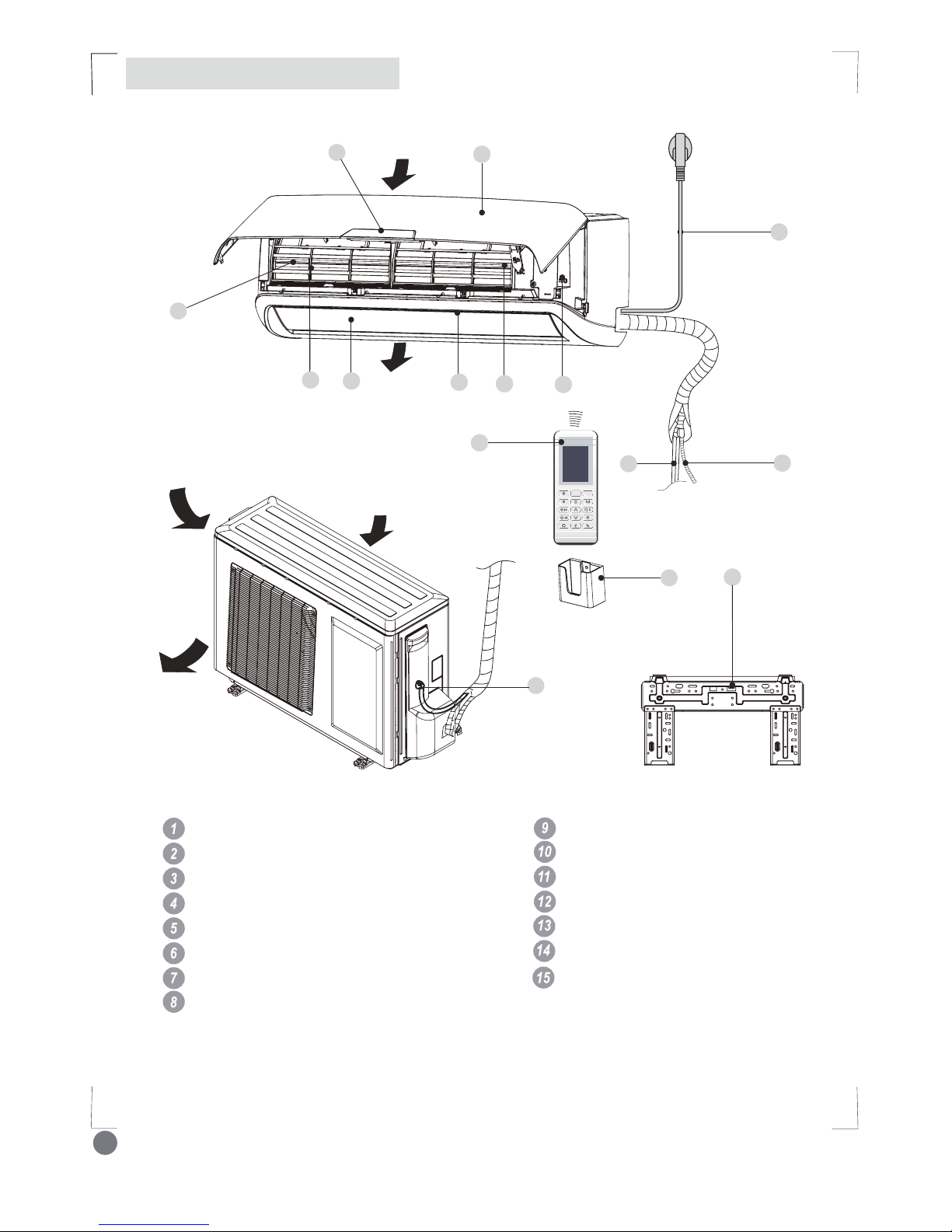

ProductDescription
Air inlet
IndoorUnit
Air Outlet
OutdoorUnit
Air inlet (rear)
Air inlet
(side)
Air Outlet
The above drawings are for explanation purpose only.
Your air conditioner may be slightly different.
The actual shape shall prevail.
Note:
Front panel
Digital display
Healthyairlter(behindthedustlter)
Pre-dustlter
Horizontalairlouvers
Verticalairlouvers
Cold plasma generator (if applicable)
Manual control button
Remote control
Remote control holder
Refrigerant pipe (if applicable)
Drain hose (if applicable)
Power cable (if applicable)
Mounting plate
Connecting cable (if applicable)

6
/LJKW
7XUER &OHDQ
7LPHU2Q 7HPS
7LPHU2II
6ZLQJ 0\7HPS (FR
)DQ
&ORFN
0RGH





 




RemoteControl
tipsandinformation
• Whenchangingbatteries,donotuseoldorvaried
ones, otherwise, it may cause problems with the remote
control.
• Iftheremotecontrolisnotusedforalongtime,remove
the batteries as old batteries may leak or corrode and
damage the remote control.
• The battery life during normal use is about six months.
• If the remote control does not operate normally, please
removeandretthebatteries.Ifabnormaloperation
continues, replace with new batteries.
• Keep the remote control where its signal can reach the
receiveroftheindoorunit(amaximumdistanceof8mis
allowed).
• When you select the timer operation, the remote control
automatically transmits a signal to the indoor unit at the
speciedtime.
• The air conditioner will not operate if curtains, doors or
other materials block the signals from the remote control
to the indoor unit.
• Preventanyliquidfromfallingintotheremotecontrol.Do
not expose the remote control to direct sunlight or heat.
• Iftheinfraredsignalreceiverontheindoorunitis
exposed to direct sunlight, the air conditioner may not
functionproperly.Usecurtainstopreventthesunlight
fromfallingonthereceiver.
• If other electrical appliances react to the remote control,
eithermovetheseappliancesorconsultyourlocaldealer.
IndoorUnitDisplay
Signal
receiver
• If you keep the remote control in a position that hinders
proper signal transmission, a time lag of up to 15 minutes
may occur.
• When the remote control sends out a signal, the symbol
will blink for about 1 second on the display. The indoor unit
willacknowledgethesignalwithabeepwhenitreceivesan
effectivesignal.
MyTempindicator
ItlightswhenIFeelfunctionisactivated.
Turboindicator
Illuminates during Turbo operation.
Eco(Economy)indicator
Illuminates when ECO function is in operation.
Temperatureindicator
Displays the temperature settings when the air conditioner
is in operation.
Timerindicator
The indicator illuminates when Timer is set ON and/or
OFF.
Swingindicator
ItlightswhentheSwingfunctionisactivated.
caution
HowtousetheRemoteControl
• Pointtheremotecontroltothesignalreceiverofindoorunit.
• Make sure there is no obstacle that may interfere with the
signal.
Locationoftheremotecontrol
Batteryinstallation/replacement
• Slidethebatterycompartmentcoveroffandinserttwonew
alkaline dry batteries (2x AAA1.5Volt). Make sure that the
polarity of (+) or (-) is installed correctly.
• Slidethebatterycompartmentcoverbackon
8m
Light
Turbo
Timer-On Temp
Timer-Off
Swing Eco
Fan
Clock
Mode

7
















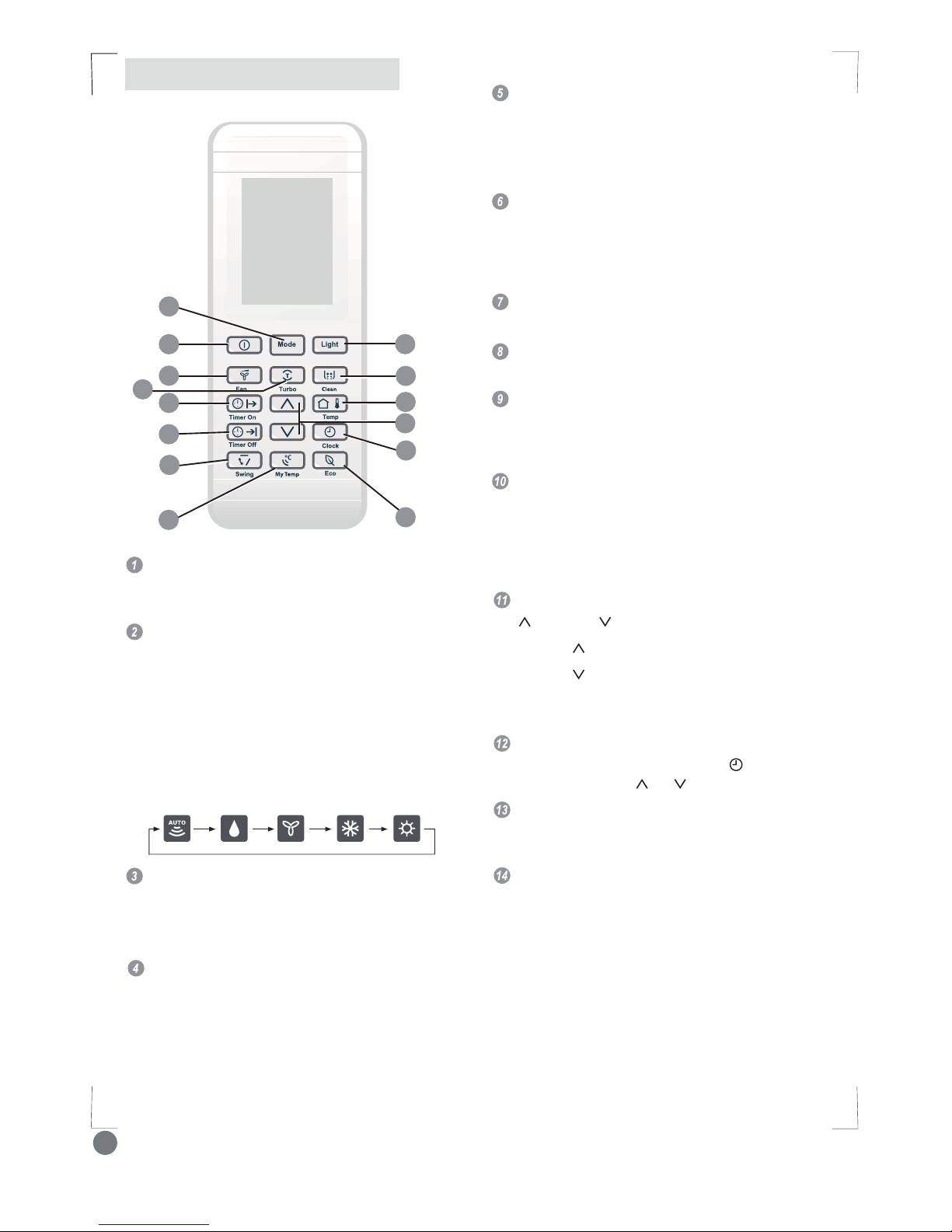

RemoteControlDescription
TurboButton
Press this button in COOL or HEAT mode to put the fan into
the high speed Turbo mode and the air conditoner will work at
maximum power.
Press again to cancel this function.
CleanButton
PresstheCleanbuttontoactivetheSelf-Cleaning.Afterthe
unit is turned off the indoor fan will continue operation for
10minutestodrytheindoorunitpreventfrombacteriaand
mildew growing.
TimerOnButton
Press this button to set the start time.
TimerOffButton
Press this button to set the stop time.
SwingButton:
Pressthisbutton,thelouverwillswingupanddown
automatically.Pressagaintocancelitandthelouverwillstay
at its last position.
MyTemp
Press this button, the remote control will send the
temperatureinformationtotheindoorunitevery2minutes.
The unit will operate to reach the set temperature at the
location of remote control. Presss again to cancel this
function.
ControlButton
Forward Backward
Press the button to increase the temperature setting.
Press the button to decrease the temperature setting.
In Timer On/Off or Clock functions, use these buttons to set
the clock or timer adjustment.
ClockButton:
Press this button and the Clock symbol will blink. You can
press Control buttons and to set the time you want.
Temp(Temperature)Button
Press this button to change the remote control display of the
set temperature to the room temperature.
Eco(Economy)Button
Press this button to start the Eco operation.
This is ideal for the users to use while sleeping.
Press again to cancel the function.
AUTO DEHUMIDIFY COOL FAN HEAT
ON/OFFButton
Press this button to turn the air conditioner
ON or OFF.
ModeButton
By pressing this button, AUTO, DEHUMIDIFY, FAN,
COOL, and HEAT (COOL only model has no HEAT
feature)modecanbeselectedprogressively.
AUTO mode is default while power on.
UnderAUTOmode,theinitialvalueis23°C;
UnderHEATmode,theinitialvalueis28°C;
Underothermodes,theinitialvalueis25°C.
LightButton
Press this button to switch the indicating lights of the
indoor unit ON or OFF.
The normal condition at start up is ON.
FanButton
By pressing this button, Auto, Low, Medium and High
speedcanbeprogressivelyselected.
When the unit is turned on, Auto fan speed is the default.
InDEHUMIDIFYmode,thefanspeedisxedatLow
speed.
1
2
4
3
5
6
7
8
9
10
11
12
13
14

8
RemoteControlDisplayIndicator
TransmissionIndicator:
Displays when the remote control transmits signals to
the indoor unit.
TurboDisplay
Displays when Turbo function is selected.
MyTempDisplay
DisplayswhenMyTemplfunctionisactivated.
EcoDisplay
Displays when Eco function is selected.
HealthyDisplay
Displayed by pressing the Healthy button. Press the
Healthybuttonagaintoremove.
NOTE: there is no such indicator for the models
without Cold-Plasma function.
RoomTemperatureDisplay
Displays when the temperature shown on the LCD
screen is room temperature. It can be switched on/off by
pressing the Temp button.
ProgrammedTemperatureDisplay
Lights when the remote control displays the set
temperature. It can be switched on/off by pressing the
Temp button.
TimerOn/OffDisplay
DisplayswhentheTimerOn/Offfunctionisactivated.
FanSpeedDisplay
Displays the selected fan speed in the following sequence:
“” (Low), “ ” (Medium), “ ” (High) and Auto.
In Auto speed, only “ ” symbol displays.
SwingDisplay
Displays when the Swing function is selected.
CleanDisplay
DisplayswhentheCleanfunctionisactivatedbypressing
Turbo and Healthy buttons at the same time (for models with
Cold-plasma function) or by pressing Clean button (for models
without Cold-plasma function)
TemperatureDisplay
Displaystheroomorsettemperaturein°Cor°F.
No display in Fan mode.
TimeDisplay
Displays the Clock time (must be set) and/or the on/off time of
the timer.
ModeDisplay
Displays the current operation mode, including Auto ( ),
Dehumidify ( ), Fan ( ), Cool ( ) and Heat ( ).
NOTE: The Cool model does not offer a Heating option.
















9

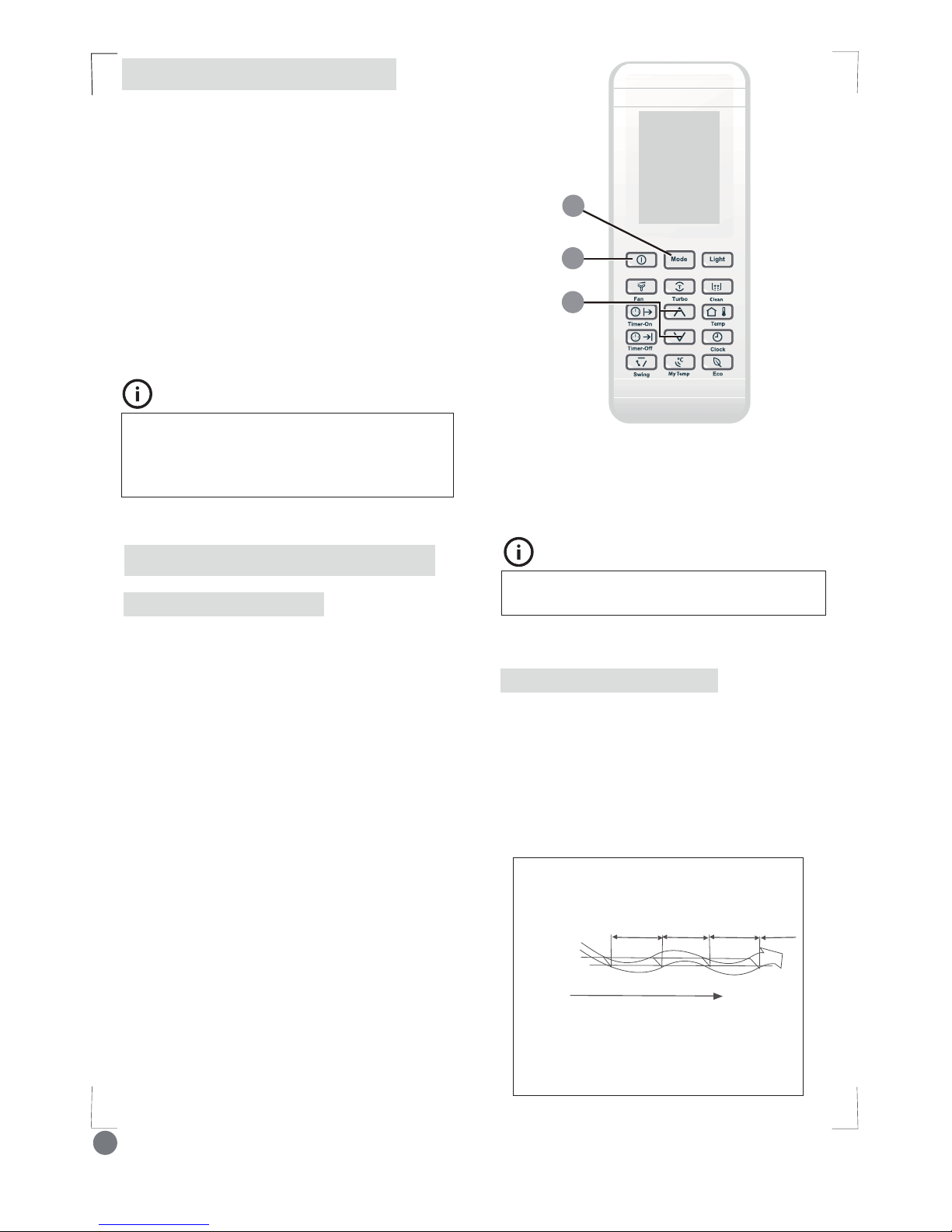

FirstUse
In case of energy cut off or product shut down when
removingthepowercord,orevenwhenchangingthe
remote control batteries the microprocessor will return
back to the AUTO mode.
AutomaticOperation
HowtoUsetheRemoteControl
When the AUTO operating mode is selected, the fan
speed will be automatically controlled and can not be set.
Fan
Fan
Cooling
Cooling
Time
Programmed temp.
DehumidifyingOperation
1 Ensuretheunitispluggedinandpowerisavailable.
2 Be sure the batteries are inserted correctly in the remote
control (the lights on the remote control will be on).
3 SetthetimebyControlbuttonsandconrmbypressingthe
Clock button.
4 Point the remote control to the indoor unit and press ON/
OFF button to turn the unit on.
The default operating mode is AUTO. Once you select
the operating mode with remote control, the operating
conditionswillbesavedintheindoorunit’smicrocomputer
memory. The next time the air conditioner will start
operating under the same conditions when you simply push
the ON/OFF button of the remote control.
If the AUTO mode is uncomfortable, you can select the
desired conditions manually.
When the AUTO mode is selected, the air conditioner will
automatically select COOL, HEAT (if applicable), or FAN only
operation, depending on the programmed and/or the room
temperature.
Start
1 ON/OFF Button
Press this button to turn the air conditioner on. The
temperature indicator on the indoor unit display lights on.
2 Mode Button
Press to select AUTO.
3 Control Buttons
Set the desired temperature.
Normally, set between 21ºC to 28ºC.
The air conditioner starts functioning after approx 3 minutes.
Stop
1 ON/OFF Button
Press this button again to turn the air conditioner off. The
horizontallouverreturnsbacktothepositionuponshut
down.
The DEHUMIDIFY mode works based on the difference
between the set temperature and the actual room
temperature.
The temperature is regulated while dehumidifying through
repeatedly turning on/off of the COOLING operation or FAN
only operation.
tipsandinformation
tipsandinformation
Dehumidifying Operation
٢
٣
١
2
3
1

10
InDEHUMIDIFYmodethefanspeedisxedatLow,
andTurbofunctioncan’tbeused.
FanOperation
• The temperature can not be set through the remote
control in FAN operating mode.
• No fan speed indication disaplys on the remote control
if Auto fan speed is selected.
CoolingandHeatingOperation
Start
1 ON/OFF Button
Press this button to turn the air conditioner on.
The temperature indicator on the indoor unit display lights
on.
2 Mode Button
Press to select DEHUMIDIFY.
3 Control Buttons
Set the desired temperature.
Normally, set between 21ºC to 28ºC.
2 Mode Button
Press to select FAN.
3 Fan Button
Press to select the desired fan speed at: Auto, Low,
Medium and High.
The default fan speed is Auto.
Stop
1 ON/OFF Button
Press this button again to turn the air conditioner off. The
horizontallouverreturnsbacktothepositionuponshut
down.
Stop
1 ON/OFF Button
Press this button again to turn the air conditioner off. The
horizontallouverreturnsbacktothepositionuponshut
down.
Start
1 ON/OFF Button
Press this button to turn the air conditioner on.
The temperature indicator on the indoor unit display lights
on.
2 Mode Button
Press to select COOL or HEAT (if applicable) mode.
When you select the FAN operating mode the air conditioner
willjustventtheindoorair.
1 ON/OFF Button
Press this button to turn the air conditioner on.
The temperature indicator on the indoor unit display lights
on.
tipsandinformation
tipsandinformation
1
2
3
1
2
3
1
2
3
1
2
3

11
No fan speed indication disaplys on the remote control
if Auto fan speed is selected.
TimerSettings
• The working time of the timer function set by the remote
control depends on the Clock time. Check that the Clock
ontheremotecontrolissetcorrectlyinordertoprevent
malfunctioning.
• Theeffectiveoperationtimesetbytheremotecontrolis
limited in 24 hours.
3 Control Buttons
Set the desired temperature.
Normally, set between 21ºC to 28ºC.
4 Fan Button
Press to select the desired fan speed at: Auto, Low,
Medium and High.
The defaul fan speed is Auto.
3 Pointtheremotecontroltotheindoorunit,conrmthesettime
by pressing the Timer-On button.
symbolwillstayontheremotecontrol’sdisplay.
Check that the Timer indicator on the display panel of indoor
unit is illuminated.
CancelingtheSettings
Point the remote control to the indoor unit and press again the
Timer-On button. Make sure the symbol on the remote control
is turned off.
TimerOffOperation
1 Press the Timer-Off button,
willashonthedisplayoftheremotecontrolin
caseoftherstuseofTimer-Offoperation.Otherwise,thelast
settimewillash.
2 Set the desired time by pressing the Control buttons:
Forward Backward
Eachtimeyoupressthebuttons,thetimewillmovesforward
or backward by 1 minute.
Holding the button down will scroll more rapidly through the
time display.
3 Pointtheremotecontroltotheindoorunit,conrmthesettime
by pressing the Timer-Off button.
symbolwillstayontheremotecontrol’sdisplay.
Check that the Timer indicator on the display panel of indoor
unit is illuminated.
CancelingtheSettings
Point the remote control to the indoor unit and press again the
Timer-Off button. Make sure the symbol on the remote control
is turned off.
Stop
1 ON/OFF Button
Press this button again to turn the air conditioner off.
Thehorizontallouverreturnsbacktothepositionupon
shut down.
TimerOnOperation
1 Press the Timer-On button,
willashonthedisplayoftheremote
controlincaseoftherstuseofTimer-Onoperation.
Otherwise,thelastsettimewillash.
2 Set the desired time by pressing the Control buttons:
Forward Backward
Eachtimeyoupressthebuttons,thetimewillmoves
forward or backward by 1 minute.
Holding the button down will scroll more rapidly through
the time display.
ExamplesofTimerSettings
TimerOnOperation(TimerStartOperation)
This function is recommended when you want the unit to
be turned on automatically before returning home. The air
conditioner will automatically start operating at the set time.

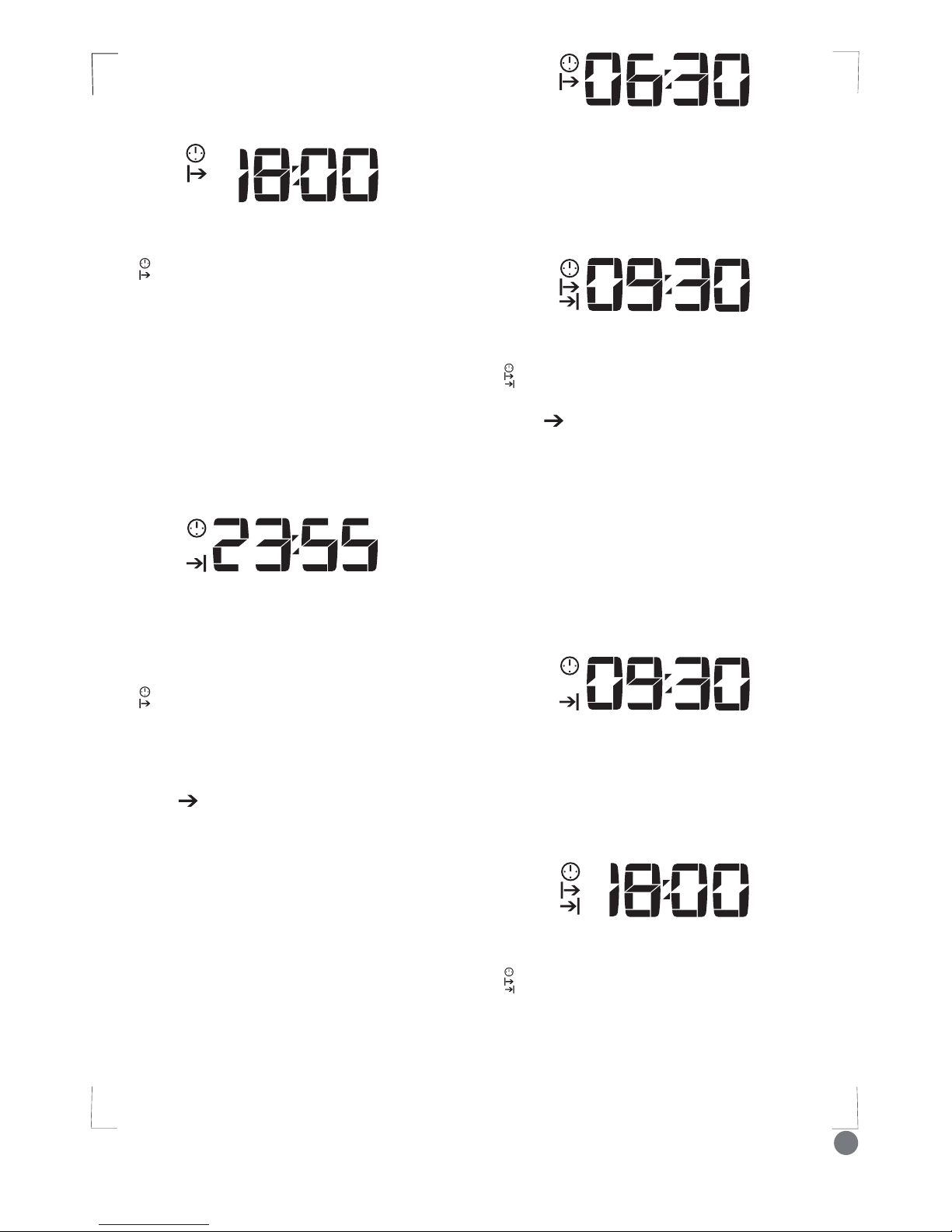

Example: It is 8:00 AM and you want the air conditioner
to start working at 6:00 PM.
tipsandinformation
tipsandinformation
1
2
3
4

12
1 Press the Timer-On button.
2 Set the desired time by pressing repeatedly or holding
down the Control buttons until 18:00 shows in the
display of the remote control.
3 Conrmthesettimebypointingtheremotecontroltothe
indoor unit and pressing again the Timer-On button.
symbolwillstayontheremotecontrol’sdisplay.
The Timer indicator on the display panel of indoor unit is
illuminated.
TimerOffOperation(TimerStopOperation)
This function is recommended when you want the unit to be
turned off automatically for bed time.
The air conditioner will automatically stop operating at the
set time.
Example: It is 6:00 PM and you want the Air Conditioner
to turn off at 11:55 AM.
1 Press the Timer-Off button.
2 Set the desired time by pressing repeatedly or holding
down the Control buttons until 23:55 shows in the
display of the remote control.
3 Conrmthesettimebypointingtheremotecontroltothe
indoor unit and pressing again the Timer-Off button.
symbolwillstayontheremotecontrol’sdisplay.
The Timer indicator on the display panel of indoor unit is
illuminated.
CombinedTimer
TimerOn TimerOff
(Off-Start-Stop operation)
This function is recommended when you want to turn the air
conditioneronbeforewakingupandturnitoffafterleaving
the house.
Example: It is 10:00 PM and you want to start the air
conditioner at 6:30 AM and stop it at 9:30 AM.
1 Press the Timer On button.
2 Set the desired time by pressing repeatedly or holding
down the Control buttons until 06:30 shows in the
display of the remote control.
3 Conrmthesettimebypointingtheremotecontroltothe
indoor unit and pressing again the Timer-On button.
4 Press the Timer-Off button.
5 Set the desired time by pressing repeatedly or holding
down the Control buttons until 09:30 shows in the display of
the remote control.
6 Conrmthesettimebypointingtheremotecontroltothe
indoor unit and pressing again the Timer-Off button.
symbol is displayed on the remote control and the
functionisactivated.
TimerOff TimerOn
(On-Stop-Start operation)
This function is recommended when you want to turn the air
conditioner off after going to bed and start it again before
waking up in the morning or returning back home.
Example:It is 8:00 AM and you want to stop the air
conditioner at 9:30AM and restart at 6:00PM
1 Press the Timer-Off button.
2 Set the desired time by pressing repeatedly or holding
down the Control buttons until 09:30 shows in the display of
the remote control.
3 Conrmthesettimebypointingtheremotecontroltothe
indoor unit and pressing again the Timer-Off button.
4 Press the Timer-On button.
5 Set the desired time by pressing repeatedly or holding
down the Control buttons until 18:00 shows in the display of
the remote control.
6 Conrmthesettimebypointingtheremotecontroltothe
indoor unit and pressing again the Timer-On button.
symbol is displayed on the remote control and the
functionisactivated.

13
• The clock timer uses a 24 hour clock mode.
• The default time for remote control is 12:00PM and it
willreverttothiswhenthebatteriesarechanged.
Economy(Eco)Operation
MyTempOperation

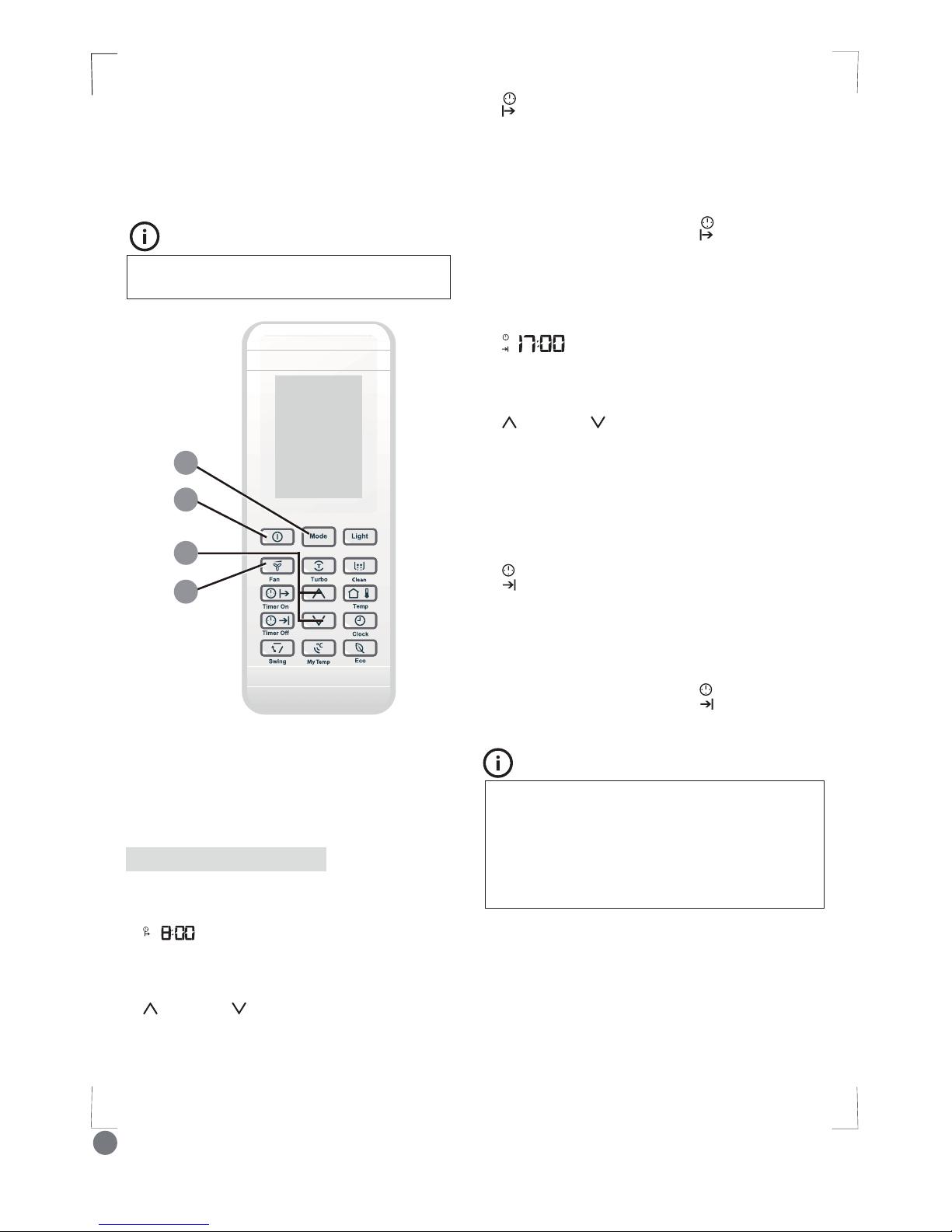

SettingtheClock
1
Set
Temperature 1
1hour 1hour
Cooling
SetTemperature 1
1
 1hour 1hour
Press Eco button in COOL or HEAT (if applicable) mode, the air
conditioner will automatically increase (in COOL mode) or decrease
(inHEATmode)1Cperhourovera2hourperiod.Theset
temperature will be steady for the next 5 hours then the unit will stop.
Thisfunctionpermitsmorecomfortandsavesenergy.Thisoperation
is recommended for bed time.
Before you start operating the air conditioner, set the clock
oftheremotecontrolusingtheproceduregiveninthis
section. The clock panel on the remote control will display
the time regardless of whether the air conditioner is in
operation or not.
After batteries are inserted in the remote control, will
displayandbegintoash.
1 Control Buttons
Press the Control buttons to set the desired time.
Forward Backward
Eachtimeyoupressthebuttonsthetimewillmoves
forward or backward by 1 minute.
Holding the button down will scroll more rapidly through
the time display.
2 Clock Button
Whenthedesiredtimeisachieved,presstheClock
button again or after 5 seconds with no operation, the
clocktimestopsashingandtheclockisset.
3 Re-set the Clock
Press the Clock button and the clock display will start to
ash.
Follow step 1 and 2 to set the new time.
Heating
Theremotecontrolworksasaremotethermostat,providingan
accurate temperature control and maximum comfort.
Point the remote control to the indoor unit and press My Temp
button,abeepfromtheindoorunitistoconrmthatthisfunctionis
activated.
The My Temp symbol will stay on the display of the remote
control until My Temp button is pressed again.
The air conditioner will operate to reach the set temperature at the
location of the remote control.
The remote control sends the temperature information at its
locationtotheindooruniteverytwo(2)minutes.Theairconditioner
will quit My Temp operation if no temperature information is
receivedfromtheremotecontrolforsuccessiveten(10)minutes.
tipsandinformation
1
2

14
HowtoUsetheIndoorUnit
AdditionalOptions
AirowDirectionControl
Range Upanddownairow
Vertical
louver
• The Swing button will be disabled when the air
conditionerisnotinoperation(eveniftheTimerOnis
set).
• Do not operate the air conditioner for long time
withtheairowdirectionsetdownwardinCOOLor
DEHUMIDIFY mode. Otherwise, condensate may
occuronthesurfaceofthehorizontallouveranddrop
ontotheoororfurnishings.
• Whenthelouvermovestothedesireddirection,press the
Swingbuttonagainandthelouverwillstayatwhereitis.
• PresstheSwingbuttonagainandthelouverwillstartswing
up and down automatically.
1 SmartRestartFunction
Theairconditionerresumesautomaticallywiththeprevious
settings after a possible power failure.
2 RemovablePanel
Thefrontpanelofindoorunitcanbeeasilyremovedfor
cleaning and maintenance.
3 SelfDiagnoseandAutoProtection
This air conditioner can detect the malfunctions, showing
the diagnosis on the display of the indoor unit by means of
an error code.
The air conditioner will change operation automatically for
self-protection. Toadjustthehorizontal(left/right)airowdirection
manually
• AdjusttheverticallouversmanuallybymeansoftheLeft/
Rightleveroftheverticallouverarm.
• Perform these adjustments before you start the unit
because once it has been started, there is a risk of your
ngersgettingcaughtonthefan.
• Adjusttheairowdirectionproperly,otherwise,itmight
causediscomfortorunevenroomtemperatures.
• Adjustthehorizontallouverswiththeremotecontrol.
• Adjusttheverticallouversmanually.
Range
Left/andrightairow
Tosetthevertical(up/down)airow
directionautomatically
• Perform this function while the unit is in operation.
• Press the Swing button on the remote control, the
horizontallouverwillswingupanddownautomatically.
caution

15
• Donotmovethehorizontallouvermanually.
AlwaysusetheSwingbutton.Movingthelouver
manually may cause malfunction during operation.
Ifthelouvermalfunctions,stoptheairconditioner
and restart it.
• Openangleofthehorizontallouvershouldnotbe
set too small, as cooling or heating performance
maybeimpairedduetotoorestrictedairowarea.
• Donotoperatetheairconditionerwithhorizontal
louverinclosedposition.
• When the air conditioner is connected to power
(initialoperation),thehorizontallouvermay
generate a sound for 10 seconds, this is a normal
operation.

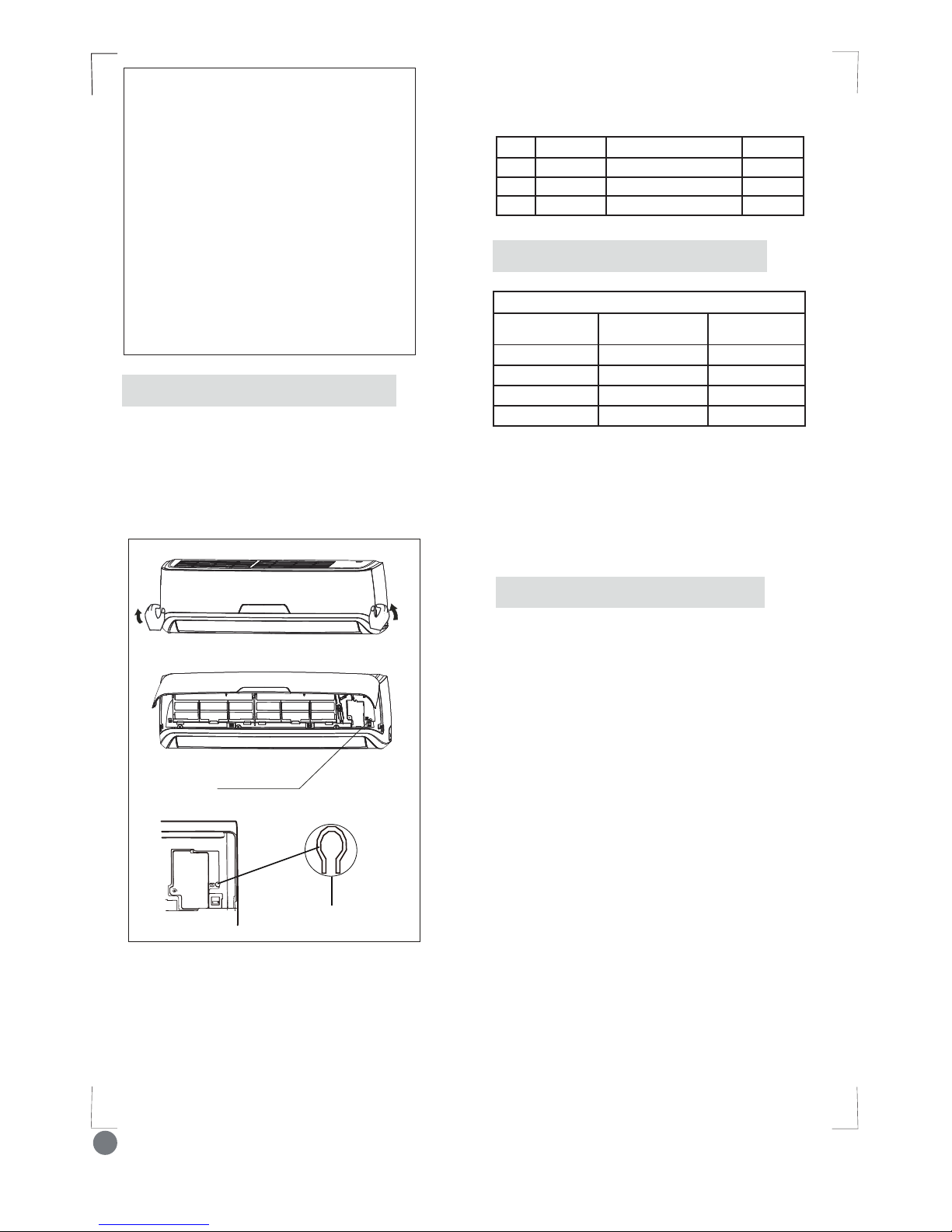

EmergencyOperation
Manual control
button
Manual control button
OperatingTemperature
OptimalOperation
• Press the Manual Control button again to turn the air
conditioner off.
The operation mode is seen in the following table.
The operation temperature range (outdoor temperature) for
cooling only model is 21ºC~43ºC, for heat pump model is
-5ºC~43ºC.
Iftheairconditionerisusedoutsideoftheaboveconditions,
certain safety protection features may come into operation and
cause the unit to function abnormally.
When the remote control is lost or fails to operate, please use
the manual switch on the indoor unit. The air conditioner will
operate in AUTO mode and the temperature setting or fan
speed can not be changed.
Toachieveoptimalperformance,pleasenote:
• Adjusttheairowdirectioncorrectlysothatitisnotdirected
on people.
• Adjustthetemperaturetoachievethehighestcomfortlevel.
Donotadjusttheunittoexcessivetemperaturelevels.
• Close doors and windows in the operation of COOL or
HEAT mode, otherwise, product performance will be
impaired.
• Use the Timer On and Timer Off buttons on the remote
control to select the desired time for startup and shut-down.
• Do not place any object close to the air inlets or outlets,
astheproductefciencymaybereducedandtheair
conditioner may stop running.
• Cleantheairltersfrequently,otherwisecoolingorheating
performance may be reduced.
• Press the Manual Control button to enter AUTO mode.
The air conditioner will select the mode of COOL, HEAT
(heat pump model only) and FAN automatically according
to the room temperature for reaching the best comfort.
Mode Model Temperature setting Airow
AUTO COOLING 25°C(COOL,FAN) AUTO
AUTO HEAT PUMP 25°C(COOL,FAN) AUTO
AUTO HEAT PUMP 20°C(HEAT) AUTO
Operating temperature ranges
Indoor Side
DB/WB(°C)
Outdoor Side
DB/WB(°C)
Maximum Cooling 32/23 43/26
Minimum Cooling 21/15 21/-
Maximum Heating 27/- 24/18
Minimum Heating 20/- -5/-6

16
CleaningandMaintenance
Maintenance
IndoorUnitandRemoteControl
Cleaning

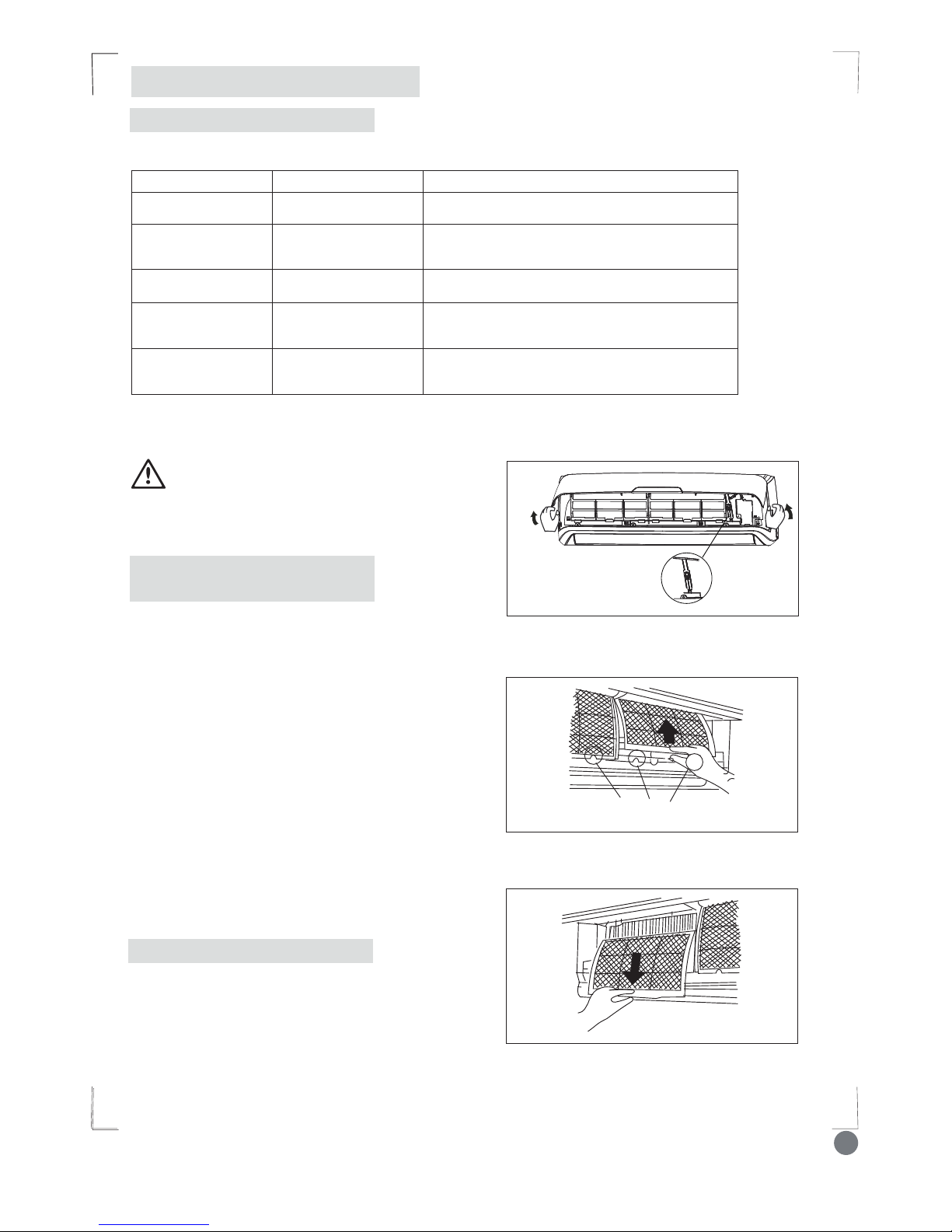

CleaningtheFilters
Panel
bracket
Dustlterhandle
The following maintenance operations must be performed regularly.
*Theoperationmustbeperformedbyqualiedpersonnelonly.
• Stop the air conditioner and disconnect the power supply
before cleaning.
• Use a dry cloth to wipe the indoor unit and remote
control.
• A cloth dampened with cold water may be used on the
indoor unit if it is too dirty.
• Thefrontpaneloftheindoorunitcantberemovedand
cleaned with water. Then wipe with a dry cloth.
• Do not use brushes, emery paper or burnishes to clean
the unit because it may cause damages.
• Do not use a chemically treated cloth or duster to clean
the unit.
• Donotusebenzine,thinner,polishingpowderorsimilar
solventsforcleaning.Thesemaycausetheplastic
surface to crack or deform.
• Neverusewarmwaterover40ºCtocleanthefrontpanel,
it may cause deformation or discoloration.
Note: Supply power must be disconnected before cleaning.
Acloggeddustlterreducesthecooling/heatingefciencyof
thisunit.Pleasecleantheltereverymonthormoreoftenif
necessary.
warning
Items Maintenance operations Recommended frequency
Dustlter Clean Everymonthormoreoftenifnecessary
Healthyairlters Replace/clean Every3monthsormoreoftenifnecessary
Unit casing Clean Everymonthormoreoftenifnecessary
Water tray and
evacuationpiping
Clean and check for
obstructions Each season before start up*
Indoor and outdoor coils Clean Each season before start up*
3 Thenpullthedustlterdownwardsoutoftheindoorunit.
2 Holdthedustlterhandleandliftitupslightlytotakeitout
fromthelterholder.
1 Lift the indoor unit front panel up to an angle until it stops
with a full support from the bracket.

17
General maintenance
Dustlter
Do not touch or try to clean the cold plasma
generator (if applicable). It may cause an electric
shock.
• Donottouchthemetalpartsoftheunitwhenremoving
thelter.Injuriescanoccurwhenhandlingsharpmetal
edges.
• Do not use water to clean inside the air conditioner.
Exposure to water can destroy the insulation, leading to
possible electric shock.
• Whencleaningtheunit,rstmakesurethatthepower
and circuit breaker are turned off.
Dustlter
Healthylter
If the air conditioner is not going to be used for a long period of
time:
• Operate in FAN only mode for 3~4 hours to allow the unit to
completely dry out.
• Switchofftheunitandpulloutthepowerplug.Removethe
batteries from the remote control.
• The outdoor unit requires periodic maintenance and
cleaning. Do not attempt to do this yourself. Contact your
dealerorservicetechnician.
Checksbeforeoperation
• Check that the wiring is not broken or disconnected
• Checkthatthedustlterisinstalled.
• Check if the air outlet or inlet is blocked if the air conditioner
has not been used for a long time.
warning
warning
6 Installtheupperportionofdustlersbackintotheunit,
taking care that the left and right edges line up correctly
andplacedustltersintoposition.

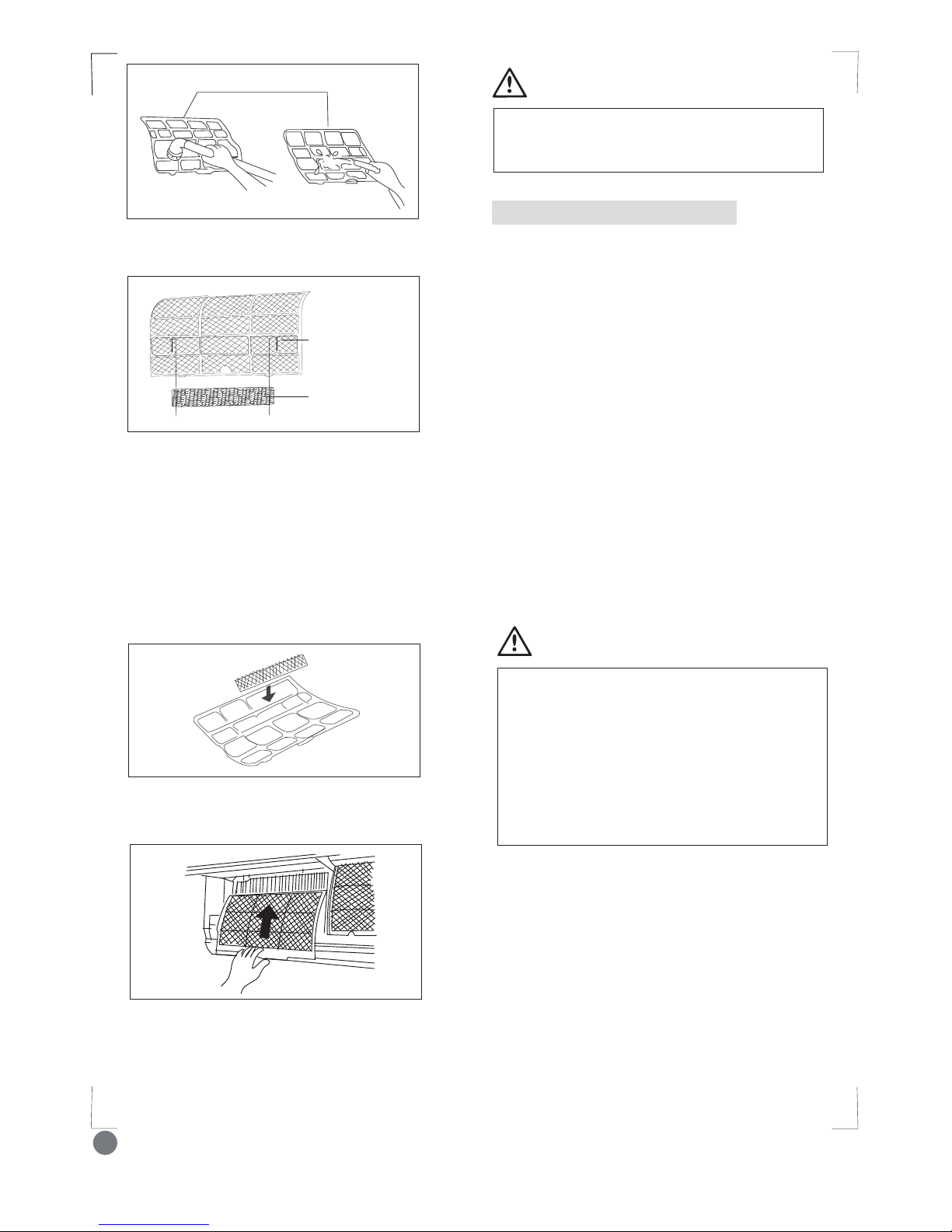

5 Installthehealthyairfresheningltersbackinposition.
4 Thehealthyairfresheninglters(ifapplicable)likeActive
carbonlter/BIOlter/VitaminClter/Silverionlterare
xedonthedustlter.
Removethehealthyltersfromthesupportframeofthe
dustlter.
Cleanthehealthyltersatleasteverythree(3)monthsand
replaceevery6months.
Cleanwithvacuumcleanerifpossible.
CleantheDustlterwithavacuumcleanerorwater,then
dry it up in cool place.

18
OperationTips • You also may hear a low “squeak” sound when the
compressor is running or just stopped running. This is
caused by heat expansion and cold contraction of the plastic
parts in the unit when the temperature is changing.
• Anoisemaybeheardduetolouverrestoringtoitsoriginal
position when power is furst turned on.
5. Dustisblownoutfromtheindoorunit
This is a normal condition when the air conditioner has not been
usedforalongtimeorduringrstuseoftheunit.
6. Apeculiarsmellcomesoutfromtheindoorunit
Thisiscausedbytheindoorunitgivingoffsmellspermeated
from building material, furniture or smoke.
7. TheairconditionerturnestoFANonlymodefromCOOLor
HEATmode
Whentheindoortemperaturereachesthesettingvalue,the
compressor will stop automatically, and the air conditioner turns
to FAN mode.
The compressor will start again when the indoor temperature
rises in COOL mode or falls in HEAT mode to the set point.
8. Condensation
Condensate water is likely to form at the air outlet if cooling or
dryingforalongtimewhentherelativehumidityismorethan
80% (with doors and windows open).
Settheverticallouvertoitsmaximumangle(totheoor)and
High fan speed. Close the doors and windows.
9. Lighting or a car wireless telephone operating nearby may
cause the unit to malfunction. Disconnect the unit with power
and then re-connect the unit with power again. Push ON/OFF
button on the remote control to restart operation.
10.Cleanfunction
The indoor unit may keep running after you switch off the unit by
pressing ON/OFF button.
Please check whether the Clean function is switched off.
Thefollowingeventsmayoccurduringnormaloperation:
1. Protectionoftheairconditioner.
• Compressorprotection
Thecompressorcan’trestartfor3minutesafteritstops
• Anti-freezing
If the unit is operating in COOL mode and in low
ambient temperature, frost may be formed on the heat
exchanger. When indoor heat exchanger temperature
decreases below 0ºC, the compressor will stop
operation to protect the unit.
• Defrosting
Frost may form on the outdoor unit in heating operation
when the outdoor temperature is low but humidity is
high,resultinginlowheatingefciency.
During this condition the air conditioner will stop heating
operation and start defrosting automatically. The time to
defrostmayvaryfrom3to12minutes.
During defrosting, the fan motors of indoor unit and
outdoorunitwillstop,theindoorindicatorashes
“H1”andtheoutdoorunitmayemitvapor.Thisisnot
malfunction.Afterdefrostingisnished,theheating
operationwillrecoverautomatically.
• Anti-coldair
In HEAT mode, the indoor fan will not operate in order
topreventcoldairbeingblownintotheroom(within5
minutes), if the indoor heat exchanger does not reach a
minimum temperature under the following states:
(1) Heating operation just start.
(2)Afterautodefrostingisjustnished.
(3) Heating at low temperature.
2. Gentlebreeze
Theindoorunitmayblowgentlebreezeandthelouver
rotate to a certain position in the following situation:
(1) In HEAT mode, the unit is turned on, the compressor
does not reach the starting condition.
(2) InHEATmode,thetemperaturereachesthesetvalue
and the compressor stops running for about 1 minute.
3. Awhitemistcomingoutfromtheindoorunit
• A white mist may generate due to a large temperature
difference between air inlet and air outlet in COOL
modeinanindoorenvironmentthathasahighrelative
humidity.
• A white mist may generate due to moisture generated
from defrosting process when the air conditioner
restarts in HEAT mode operation after defrosting.
4. Lownoiseoftheairconditioner
• You may hear a low hissing sound when the
compressor is running or has just stop running. This is
thesoundoftherefrigerantowingorcomingtoastop.

19
TroubleShooting
• If error code appear on the display window of indoor unit.
• Powerindicatororotherindicatorashrapidlyandthis
ashingcannotbestoppedbydisconnectingthepower
and then connecting it again.
• Fuse blows frequently or circuit breaker often trips.
• Water or other liquid is splashed into the unit.
• Water is leaking from the unit.
• There is a harsh sound during operation.
• Strong odours are emmited during operation.
• Powercordandpowerplugareoverheating.
• Other abnormal situations.
Theairconditionerisnotuserserviceable.Incorrectrepairmaycauseelectricshockorre.Pleasecontactan
authorisedservicecenterforprofessionalrepair.
If one of the following situations occur, immediately stop the air conditioner, disconnect the
power,andcontacttheauthorisedservicecenter.
Thepressureintherefrigerationsystemislowandcouldresultintheunitbreakingdown.Askacertied
installer to control it.
warning
Malfunctions Cause What should be done
The unit does not start
Power cut Wait for power to be restored.
Theunitmayhavebecomeunplugged. Check that plug is securely in wall
receptacle.
Fusemayhaveblown. Replace the fuse.
Voltage is too high or too low. Testthevoltagebyprofessionals.
Batteriesinremotecontrolmayhavebeen
exhausted.
Replace the batteries.
Thetimeyouhavesetwithtimerisincorrect. Wait or cancel timer setting.
The unit does not cool
or heat (if applicable)
theroomverywellwhile
airowsoutfromtheair
conditioner
Inappropriate temperature setting. Set the temperature correctly. For details
please refer to “Using Remote Control”
section
Airlterisblocked. Cleantheairlter.
Doors or windows are open. Close the doors or windows.
Air inlet or outlet of indoor or outdoor unit has
been blocked.
Cleartheobstructionsawayrst,then
restart the unit.
Compressor 3 minutes protection has been
activated.
Wait for 3 minutes.
Ifthetroublehasnotbeencorrected,pleasecontactalocaldealerorthenearestcustomerservicecenter.Besuretoinform
them of the detailed malfunctions and unit model.
