Introduction 3
• Before doing anything else, record
the TV/VCR’s model and serial num-
bers in the spaces provided on page
two. These numbers will help us
assist you if you ever call for help.
Helpful Hint
Features
• HQ (High Quality) System
• Automatic Channel Programming
• On-Screen Displays in English or Spanish
• Automatic Tracking Adjustment
• One Touch Recording
• Unattended (Timer) Recording
• Special Effects Playback: Forward and Reverse Searching; Still
• Remote Control
• Automatic Operation Features
• Closed Caption System
• Automatic Clock Setting
• Daylight-Saving Time
• VCR Plus+ Programming System
• Smart Sound
Safety Precautions
Warning: To prevent fire or shock hazard, do not expose
this equipment to rain or moisture.
FCC Warning: Any unauthorized changes or modifica-
tions to this equipment void the user’s authority to oper-
ate it.
This TV/VCR, equipped with a HQ (High Quality) system, is com-
patible with existing VHS (video home system) equipment.
Philips Consumer Electronics Company recommends that
you use only video cassette tapes that have been tested and
inspected for use in two, four, six, and eight hour VCRs, and
which are labeled with the mark. The use of tapes that
have not been inspected for use in two, four, six, and eight hour
VCRs may result in poor picture quality and excessive deposits on
the video heads, which may not be covered by the warranty if
damage occurs.
Note to the Cable TV System Installer: This reminder is
provided to call the Cable TV system installer’s attention to
Article 820-40 of the National Electrical Code, which provides
guidelines for proper grounding – in particular, specifying that the
cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as possible.
Copyright 1997 Philips Consumer Electronics Company. All rights
reserved. VCR Plus+ and PlusCode are trademarks of Gemstar
Development Corporation. The VCR Plus+ system is manufac-
tured under license from Gemstar Development Corporation.
Welcome to your TV/VCR owner’s manual.
This manual has six sections: Setting Up Your TV/VCR; Description of Controls; Basic Operations; Recording
Options; Playing Options; and Information You May Need. The instructions explain all of the TV/VCR’s fea-
tures, which are listed below. You cannot hurt your TV/VCR by trying the features! So read on – and relax.

4 Table of Contents
Setting Up Your TV/VCR
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Before Using the TV/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Hooking Up the TV/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 - 7
Turning On the TV/VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Channel Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 - 11
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 - 17
Daylight-Saving Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Time Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Description of Controls
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 - 23
Adjusting the Picture Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 - 25
On-Screen Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Basic Operations
Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Recording Options
One Touch Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Rerecording (Tape Duplication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 - 35
Setting Up the VCR Plus+ Programming System . . . . . . . . . . . . . . . . . . . . . . . . . .36 - 37
Timer Recording With the VCR Plus+ Programming System . . . . . . . . . . . . . . . . .38 - 39
Record Defeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Playing Options
Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Closed Captioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 - 43
Volume Bar / Smart Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
A - B Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 - 47
Real Time Counter Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Automatic Operation Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Playback Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Information You May Need
Specifications / Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 - 53
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

• The remote control and its batteries
are supplied.
• Do not mix alkaline and man-
ganese batteries.
• Do not mix old and new batteries.
Before Using the TV/VCR 5
Putting Batteries in the Remote Control

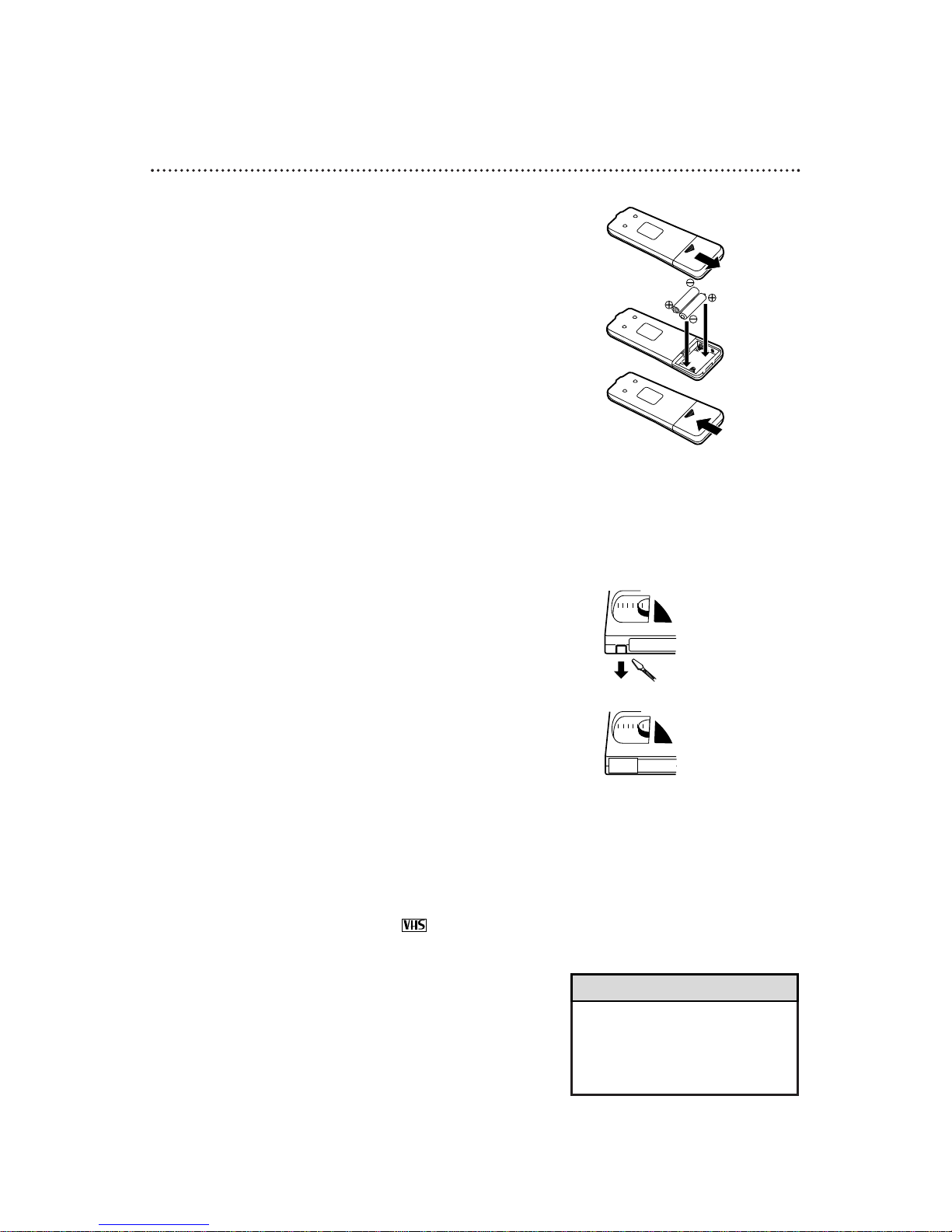

1
Remove the battery compartment lid on the bottom of
the remote control by sliding it in the direction of the
arrow.
2
Place two AA batteries inside the battery compartment
with their polarities (+and –ends) aligned as indicated.
3
Replace the battery compartment lid.
Using the Remote Control
●Point the remote control at the TV/VCR’s remote sensor.
●Do not put objects between the remote control and the
TV/VCR.
VCR Maintenance
●In this TV/VCR, use only tapes with the mark.
●Make sure any light adhesive stick-on notes are removed from
the video cassette tape before putting the tape in the TV/VCR.
Removable labels like these can jam the TV/VCR.
●Periodic maintenance is required to maintain your TV/VCR’s
continued excellent performance. This TV/VCR has an automatic
head cleaning system. However, the video heads will eventually
require cleaning or replacement. Cleaning or replacement of the
video heads should be performed by an authorized service cen-
ter.
Video cassette tapes have record tabs to ensure that recordings
are not accidentally erased.
1
To prevent accidental erasure, break off the tab with a
screwdriver.
2
To record again, cover the hole with cellophane tape.
Erase Protection
Helpful Hints
1
2
1
2
3
Removing the Shipping Card
●A shipping card may be inserted in the cassette compartment of
the TV/VCR. Before you insert a cassette tape, you must
remove the shipping card. To remove the card, open the cas-
sette compartment, then grasp the tape and remove the card.

6 Hooking Up The TV/VCR
ANT.
ANT.

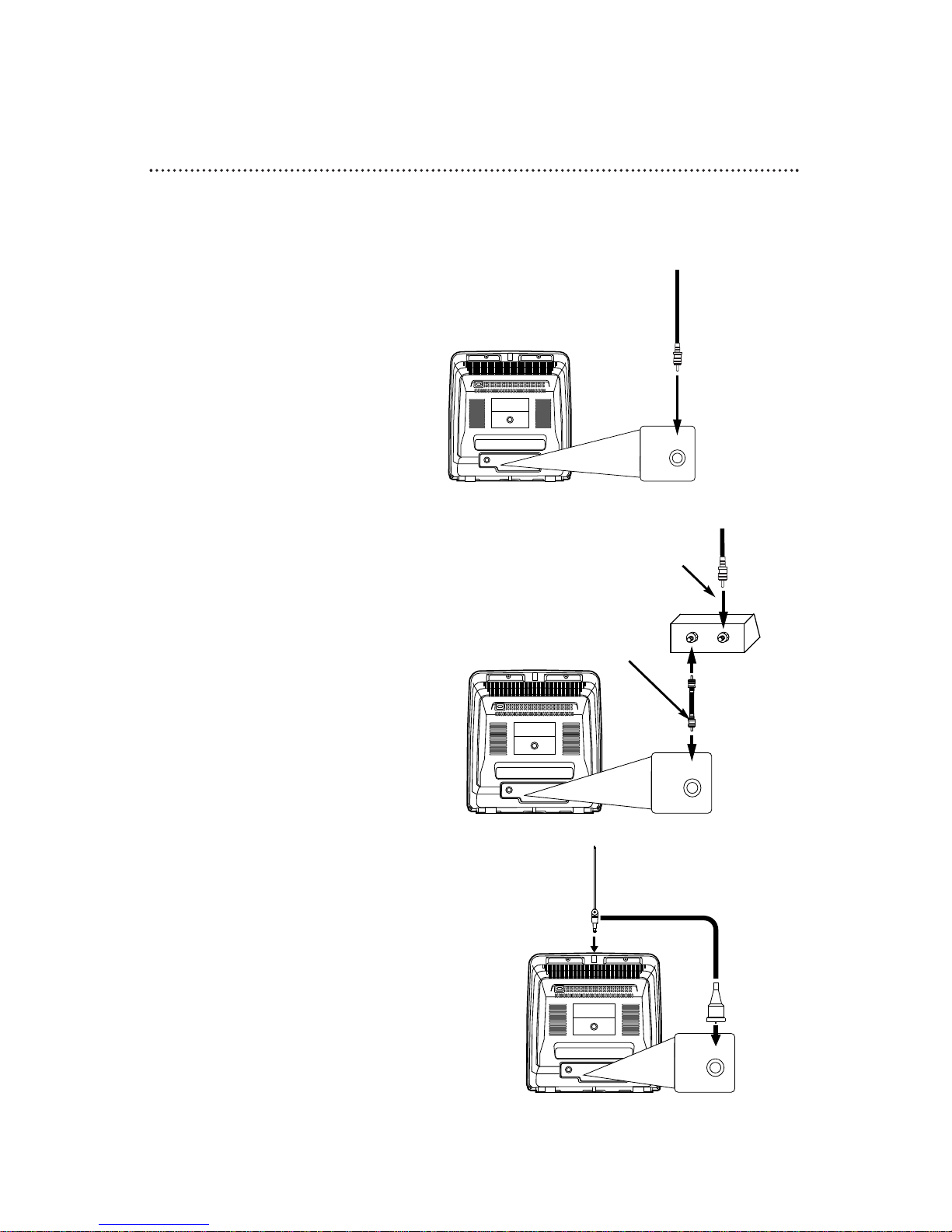

Hooking Up Your TV/VCR
With a Cable Signal or
Outdoor Antenna
IN
OUT
ANT.
ANT.
Connect an RF coaxial cable (75-
ohm, not supplied) to the OUT Jack
on the Cable Box and to the
ANT(enna) Jack on the TV/VCR.
Connect a Cable signal
or an antenna to the
ANT(enna) Jack.
Hooking Up Your TV/VCR
With a Cable Box
To view any channel, set the
TV/VCR to the Cable Box output
channel (channel 03 or 04). Then,
select channels at the Cable Box.
1
Hook up your TV/VCR using one of the connections shown.
A.
B.
ANT.
ANT.
Rod Antenna
(not supplied)
Hooking Up Your TV/VCR
With an Indoor Antenna
To install a rod antenna (not sup-
plied), push the stem of the antenna
into the antenna hole on the top of
the TV/VCR. Connect the antenna
wire to the ANT(enna) Jack on the
back of the TV/VCR as shown.
Extend the antenna and adjust its
length, direction, and angle for the
clearest picture.
C.
Connect the Cable signal to
the IN Jack on the Cable Box.

Hooking Up The TV/VCR (cont’d) 7
OUT
IN
VIDEO
IN
OUT
3CH
4CH
AUDIO ANT.
OUT
IN
VIDEO
IN
OUT
3CH
4CH
AUDIO ANT.
VIDEOAUDIO
POWER
VIDEOAUDIO STOP
EJECT
REC
PLAY F.FWD REC/OTR VOLUME CHANNEL EARPHONEREW
• Before connecting the rod antenna (or mixing adapter or coaxial cable) to the ANT(enna) Jack, make sure the
pin is not bent. If the pin is bent, straighten it as illustrated, then connect it to the ANT(enna) Jack.
• A rod antenna (not supplied) is available from Philips Service Company. The part number is 4835 3033 7006.
To order, call 1-800-851-8885.
• Audio and video cables are not supplied.
Helpful Hints
Crooked Pin Straight Pin
Bent pin
Plug
Cable
Hooking Up Your
TV/VCR to Another
Video Source
(VCR or Camcorder)
You may need this connection
if you want to copy tapes.
Details are on page 31.
AUDIO/VIDEO Jacks
on front of TV/VCR
AUDIO/VIDEO OUT
Jacks on VCR
Use an Audio cable to connect the AUDIO
OUT Jack on the VCR to the AUDIO Jack
on the front of the TV/VCR.
Use a Video cable to connect the VIDEO OUT Jack on
the VCR to the VIDEO Jack on the front of the TV/VCR.
2
Plug in the TV/VCR.
3
Before you turn on the TV/VCR, go to page eight.
D.

REW
PLAY
POWER
SPEED
MUTE
SLEEP
ALT.CH
CHANNEL
VOLUME
REC/OTR
STATUS/EXIT
MEMORY
PAUSE/STILL
MENU
CLEAR
VCR PLUS+
SMART
SOUND
STOP
F.FWD
– +
o
o
p
p
o
p
12 3
45 6
78 9
0+100

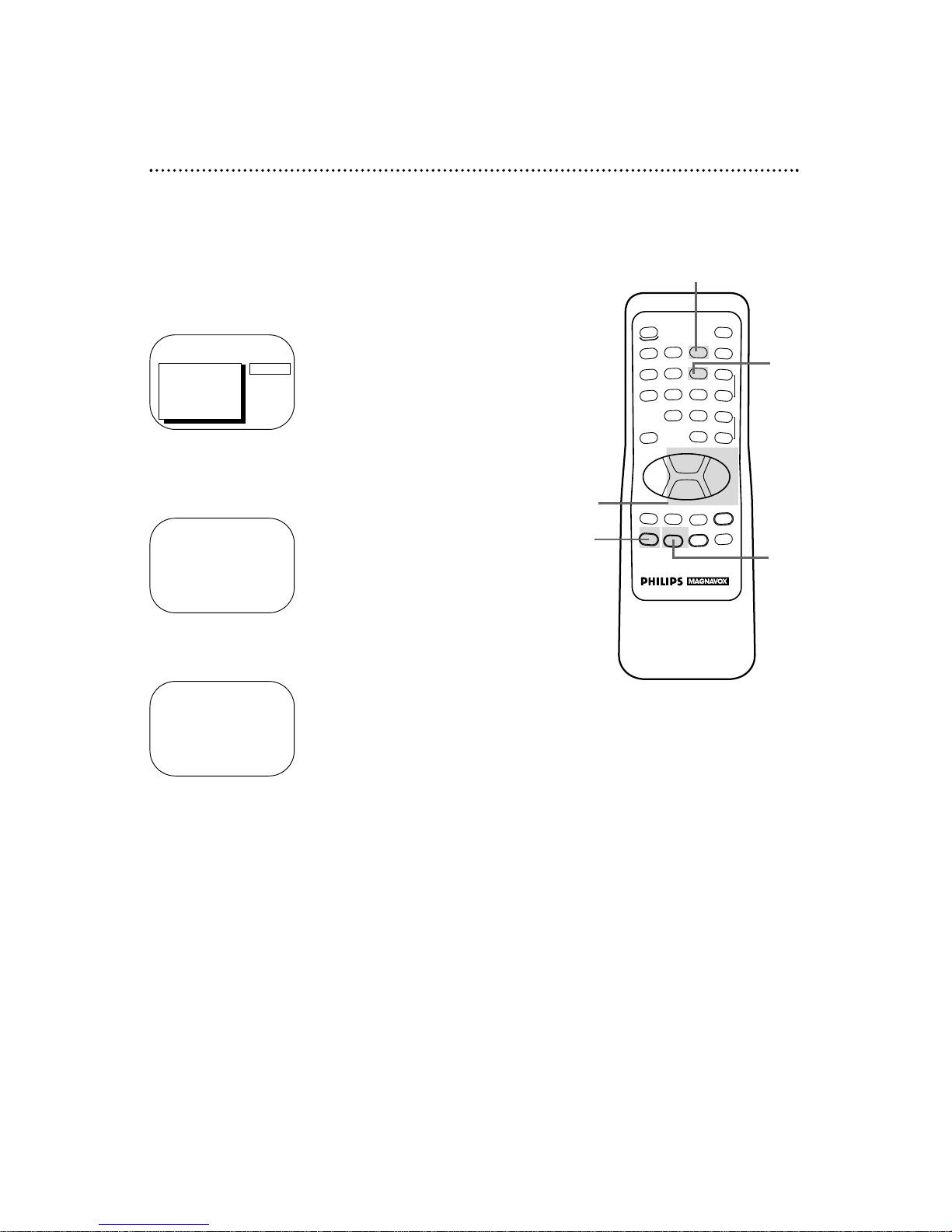

8 Turning On the TV/VCR
Before you turn on the TV/VCR, make sure there are batteries in
the remote control (details are on page five) and the TV/VCR is
hooked up correctly (details are on pages six - seven).
The instructions on this page work only when you turn on the
TV/VCR for the first time.
1
Press the POWER button. The TV/VCR will come on and the
language select display screen shown below will appear.
2
Press the Number 1 button to select English on-screen
displays or press the Number 2 button to select Spanish
on-screen displays.
3
Press the STATUS/EXIT button. The channel program dis-
play screen shown below will appear.
4
Press the F.FWD/+ button to begin automatic channel
programming. The TV/VCR will place all of the channels you
receive into its memory, so when you scan through channels using
the CHANNEL Up/Down buttons, you’ll only scan through chan-
nels that you receive. When channels are programmed, CHAN-
NELS ARE SET will appear on-screen briefly. Then the TV/VCR
will go to the lowest channel programmed.
(If you try to program channels when there is no antenna or cable
connected to the TV/VCR, programming will appear to take place,
but eventually a NO TV SIGNALS ... message will appear on-
screen. Connect an antenna or cable to the TV/VCR, then try
again. You may need to follow the steps on pages nine - 11
instead.)
CONNECTANTENNAORCABLE
TO TVCR
THEN PRESS+
TO END PRESS EXIT
SELECT LANGUAGE
1 ENGLISH ON
2 ESPAÑOL
MAKE SELECTION OR
PRESS EXIT TO CONTINUE
5
Now, you may use the CHANNEL Up/Down buttons or the
Number buttons on the remote control to select a TV/VCRchan-
nel. Use the VOLUME Up/Down buttons to adjust the sound.
• If you do not see any on-screen dis-
plays when you turn on the TV/VCR,
check your hook-ups, then try again.
If you still do not see any on-screen
displays, follow the steps on pages
nine - 11 to select a language and
program channels.
• To skip this feature and play a tape
immediately, insert a tape with its
record tab removed. Playback will
begin. Or, to skip step 2, press the
STATUS/EXIT button before pro-
ceeding. All on-screen displays will
be inEnglish. To skip step 4, press
the STATUS/EXITbutton before
proceeding. Channels will not be
programmed, and CHANNELS NOT
SET will appear on-screen briefly.
• You cannot program channels if you
are using a Cable Box.
• Line Input mode will always be
stored in the TV/VCR’s memory as
channel 00. When you select chan-
nel 00, A/V IN will appear on-
screen briefly. Press the CHANNEL
Up/Down buttons or Number but-
tons to select another channel.
Helpful Hints
1
2
34

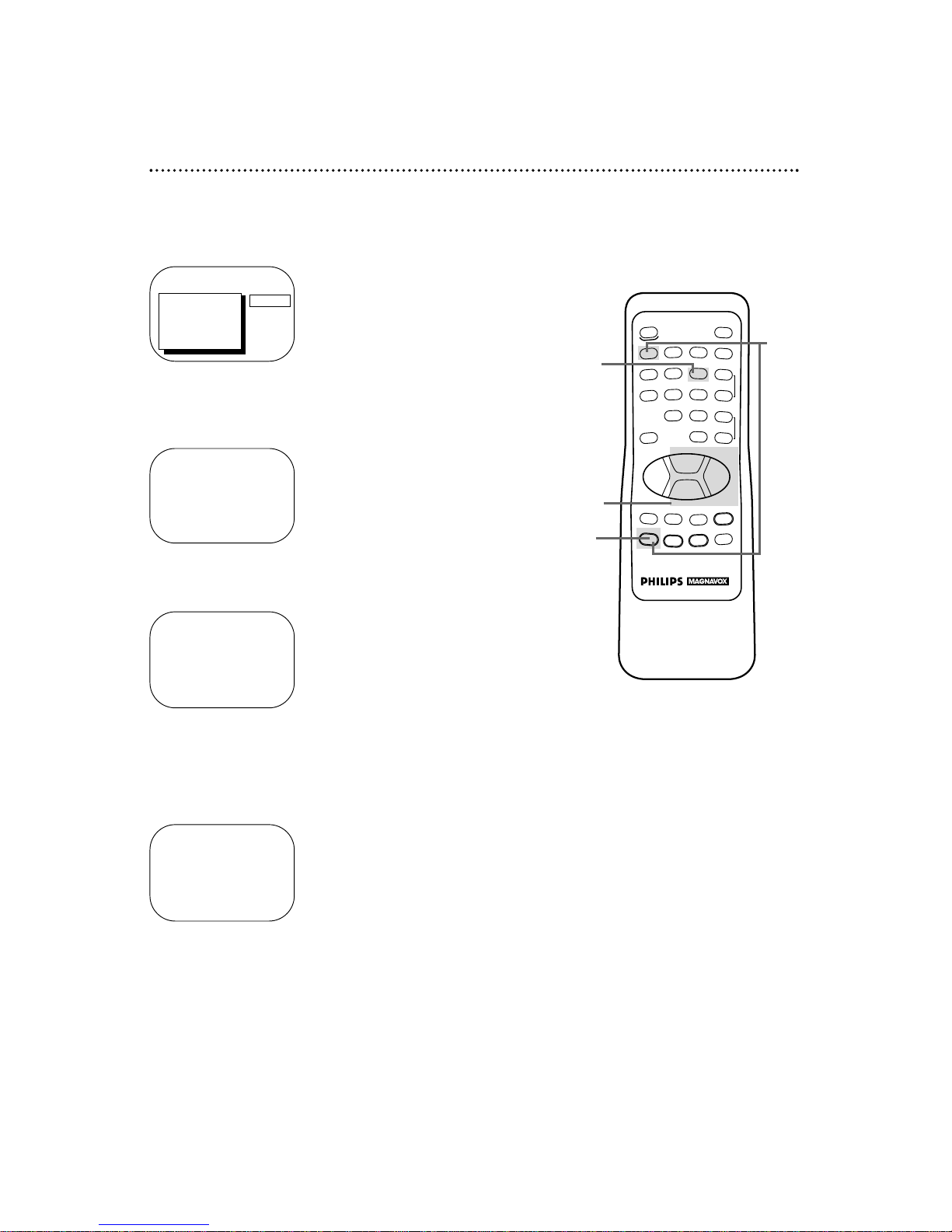

Language Selection 9
Follow the steps below to change the language of the on-screen
displays.
3
Press the Number 1 button to choose SELECT LAN-
GUAGE. (If the menu is in Spanish, press the Number 1 button
to select SELECCION IDIOMA.)
4
Press the Number 1 button if you want the on-screen dis-
plays in English. ON will appear to the right of ENGLISH on-
screen. Or, press the Number 2 button if you want the on-
screen displays in Spanish. SI will appear to the right of
ESPAÑOL on-screen.
5
Press the STATUS/EXIT button.
SELECT LANGUAGE
1 ENGLISH ON
2 ESPAÑOL
MAKE SELECTION OR
PRESS EXIT TO CONTINUE
1
Press the MENU button to display the pop up menu.
2
Press the PLAY/▲button or the STOP/▼button to select
PRIM. SETUP. (If the menu is in Spanish, select PREPARA-
CION.) Then, press the F.FWD/+ button.
PRIMARY SETUP
1 SELECT LANGUAGE
2 AUTO PROGRAMMING
3 ADD/DELETE CHANNEL
4 CH. MEMORY REVIEW
5 VOLUME BAR [ON]
6 SET CLOCK
TO SELECT PRESS NUMBER
TO END PRESS EXIT
BPRIM. SETUP
VCR PROGRAM
VCR SETUP
CAPTION
REMINDER
BRIGHTNESS
PRESS +
2
1
5
4
REW
PLAY
POWER
SPEED
MUTE
SLEEP
ALT.CH
CHANNEL
VOLUME
REC/OTR
STATUS/EXIT
MEMORY
PAUSE/STILL
MENU
CLEAR
VCR PLUS+
SMART
SOUND
STOP
F.FWD
– +
o
o
p
p
o
p
12 3
45 6
78 9
0+100
3

REW
PLAY
POWER
SPEED
MUTE
SLEEP
ALT.CH
CHANNEL
VOLUME
REC/OTR
STATUS/EXIT
MEMORY
PAUSE/STILL
MENU
CLEAR
VCR PLUS+
SMART
SOUND
STOP
F.FWD
– +
o
o
p
p
o
p
12 3
45 6
78 9
0+100

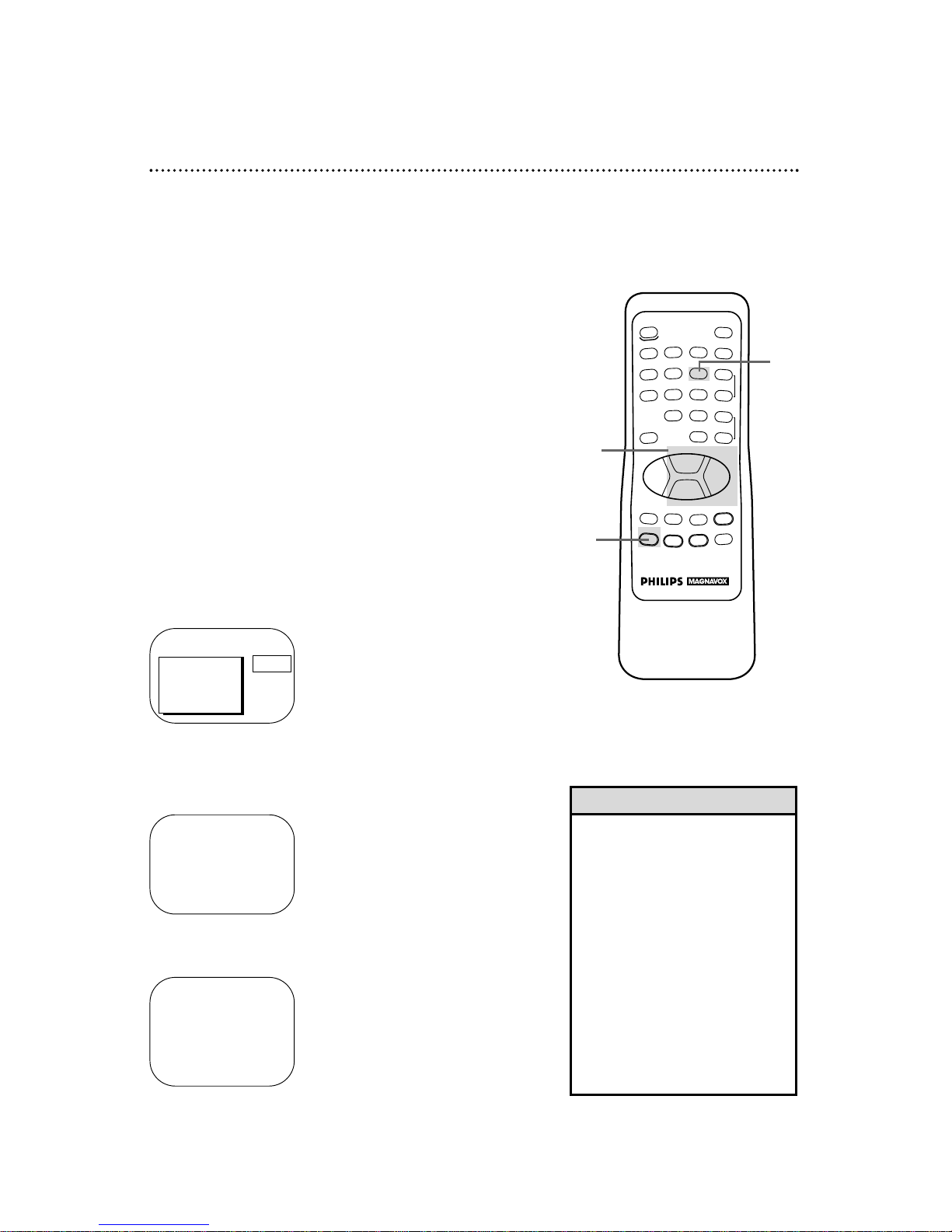

10 Channel Memory
Although the TV/VCR may automatically memorize the channels
you receive when you turn it on for the first time, you may pro-
gram channels again. Follow the steps below to program channels.
1
Press the MENU button to display the pop up menu.
TO ADJUST PRESS +/-
BINPUT
EXIT
PRIM. SETUP
VCR PROGRAM
VCR SETUP
CAPTION
CABLE
2
Press the PLAY/▲button or the STOP/▼button to select
INPUT. Press the REW(ind)/– button or the F.FWD/+
button until ANTENNA or CABLE (whichever you have)
appears to the right of the pop up menu.
3
Press the STOP/▼button repeatedly to select PRIM.
SETUP, then press the F.FWD/+ button.
PRIMARY SETUP
1 SELECT LANGUAGE
2 AUTO PROGRAMMING
3 ADD/DELETE CHANNEL
4 CH. MEMORY REVIEW
5 VOLUME BAR [ON]
6 SET CLOCK
TO SELECT PRESS NUMBER
TO END PRESS EXIT
4
Press the Number 2 button to select AUTO PROGRAM-
MING. AUTO PROGRAMMING MEMORIZED CH. ... will
appear on-screen. The TV/VCR will place all of the channels you
can receive into its memory.
• Line Input mode will always be
stored in the TV/VCR’s memory as
channel 00. You cannot delete it.
• You cannot program channels when
the TV/VCR is on channel 00 (A/V
IN will be selected at INPUT at step
2). Select ANTENNA or CABLE at
step 2.
Helpful Hints
5
Wait for a few minutes. When programming is complete,
CHANNELS ARE SET will appear on-screen. Then the program-
ming of the lowest channel number placed in the TV/VCR’s mem-
ory will appear on-screen. Now, when you press the CHANNEL
Up/Down buttons, you will scan only through channels you
receive.
1
4
2
5
3
Wait for the TV/VCR to pro-
gram channels.

6
REW
PLAY
POWER
SPEED
MUTE
SLEEP
ALT.CH
CHANNEL
VOLUME
REC/OTR
STATUS/EXIT
MEMORY
PAUSE/STILL
MENU
CLEAR
VCR PLUS+
SMART
SOUND
STOP
F.FWD
– +
o
o
p
p
o
p
12 3
45 6
78 9
0+100

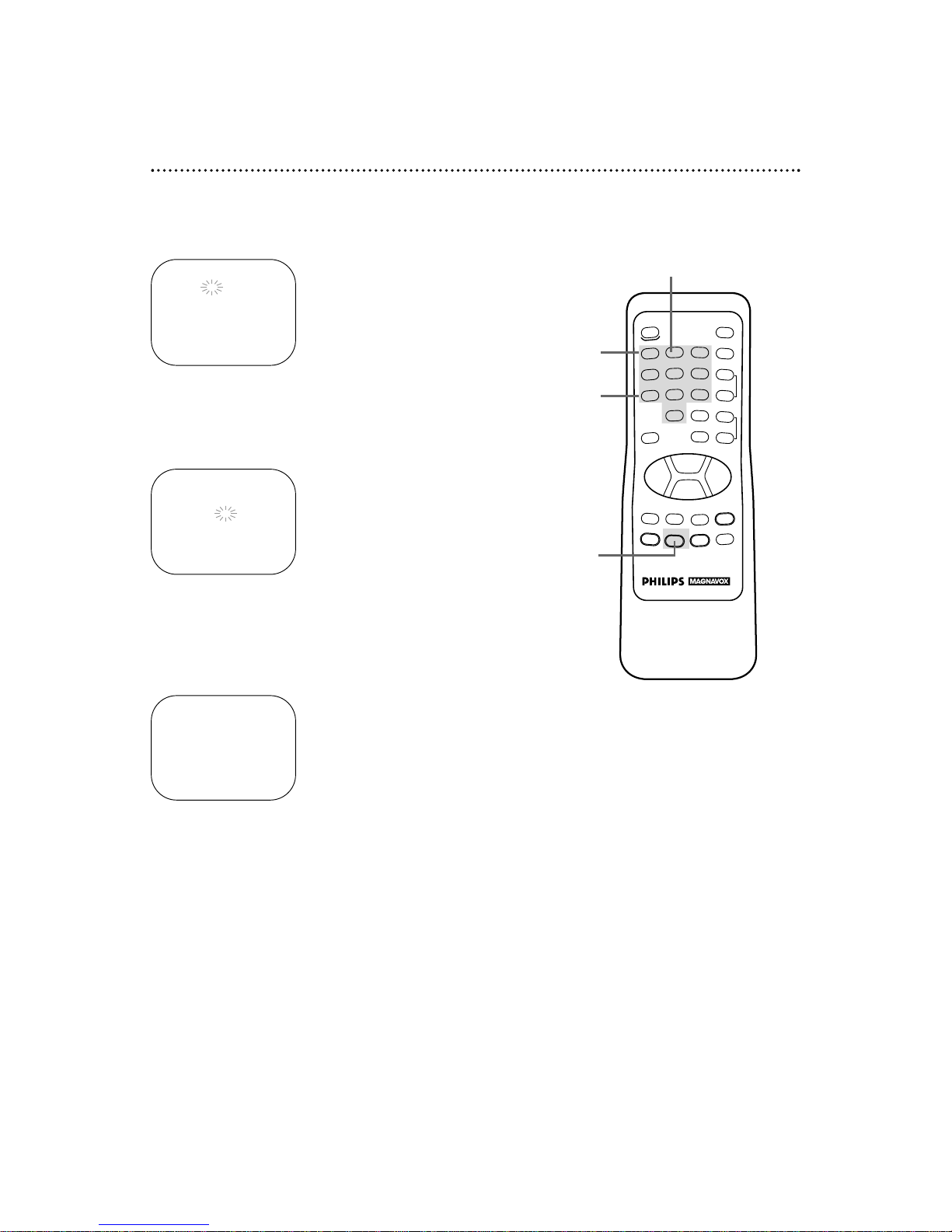

Channel Memory (cont’d) 11
5
Within five seconds, press the Number 1 button to add
that channel or the Number 2 button to delete that chan-
nel. If you do not make a choice within five seconds, you will
return to the previous screen. (If you make a mistake, press the
Number 3 button to select another channel.)
6
Press the STATUS/EXIT button.
Programming of the channel you added or deleted will appear.
3
Press the Number 3 button to select ADD/DELETE
CHANNEL.
SELECT CHANNEL NUMBER
CH – –
TO END PRESS EXIT
4
Enter the channel number you want to add or delete.
CH 12
1 ADD
2 DELETE
3 SELECT ANOTHER CH
TO SELECT PRESS NUMBER
TO END PRESS EXIT
• To review the channels memorized
by the TV/VCR, follow these steps.
1) Press the MENU button.
2) Press the PLAY/▲ button or the
STOP/▼button to select PRIM.
SETUP. Press the F.FWD/+ button.
3) Press the Number 4 button to
select CH. MEMORY REVIEW. A
list of programmed channels will
appear on-screen.
4) If all the programmed channels
don’t fit on-screen, press the
Number 1 button. If you do not
press the Number 1 button within
10 seconds, the remaining channels
will appear on-screen. (If there are
no remaining channels, the previous
menu will appear.) Or press the
Number 2 button to see the previ-
ous screen of channels.
5) Press the STATUS/EXIT button.
Helpful Hint
1
Press the MENU button to display the pop up menu.
TO ADJUST PRESS +/-
BINPUT
EXIT
PRIM. SETUP
VCR PROGRAM
VCR SETUP
CAPTION
CABLE
2
Press the PLAY/▲button or the STOP/▼button to select
PRIM. SETUP, then press the F.FWD/+ button.
PRIMARY SETUP
1 SELECT LANGUAGE
2 AUTO PROGRAMMING
3 ADD/DELETE CHANNEL
4 CH. MEMORY REVIEW
5 VOLUME BAR [ON]
6 SET CLOCK
TO SELECT PRESS NUMBER
TO END PRESS EXIT
Adding/Deleting Channels
1
3
4
5
2

REW
PLAY
POWER
SPEED
MUTE
SLEEP
ALT.CH
CHANNEL
VOLUME
REC/OTR
STATUS/EXIT
MEMORY
PAUSE/STILL
MENU
CLEAR
VCR PLUS+
SMART
SOUND
STOP
F.FWD
– +
o
o
p
p
o
p
12 3
45 6
78 9
0+100

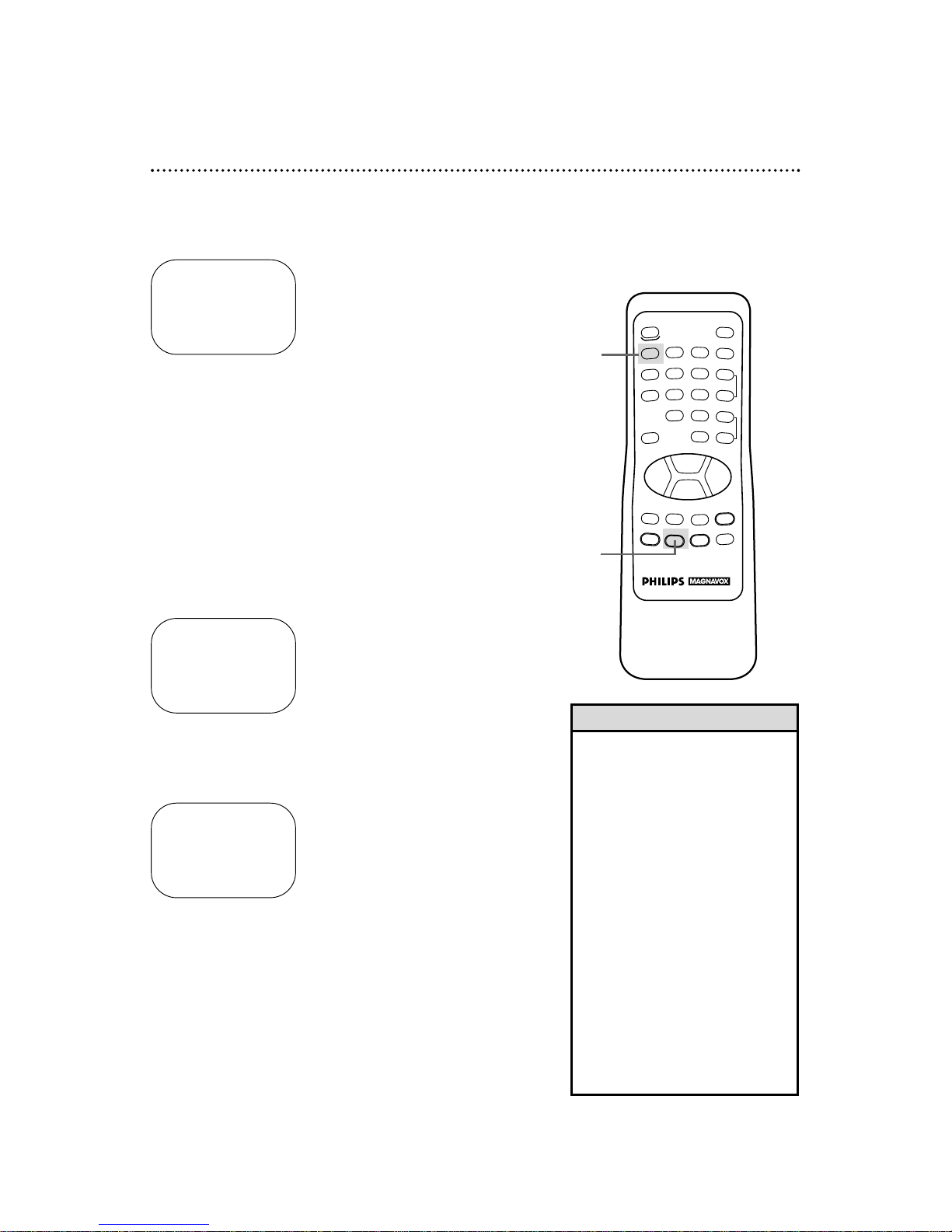

12 Setting the Clock
• Entries that do not match the
TV/VCR’s internal calendar will
cause a question mark (?) to
appear on the TV/VCR screen.
• To make corrections while you are
setting the clock, press the CLEAR
button until the space for the num-
ber you want to correct is flashing.
Then enter the correct number.
• To make corrections after you have
set the clock, start again at step 1.
• If you press the STATUS/EXIT but-
ton when you are setting the clock,
the TV/VCR will exit Set Clock mode
and return to the program you were
watching.
Helpful Hints
2
1
There are three ways to set the clock: Manually, with Automatic
PBS Channel Selection, or with Manual PBS Channel Selection.
With manual clock setting, you tell the TV/VCR the current
time. The TV/VCR then adjusts the time accordingly. With
Automatic or Manual PBS Channel Selection, the TV/VCR gets the
current time from your local PBS station. It updates the time by
referring to your PBS station broadcasts. If you use either Manual
PBS Channel Selection or Automatic PBS Channel Selection, fol-
low the steps on page 19 to have the TV/VCR update the clock
according to your Time Zone.
To set the clock manually, follow the steps on pages 12 -13. To
set the clock using Automatic PBS Channel Selection, follow the
steps on pages 14 - 15. To set the clock using Manual PBS
Channel Selection, follow the steps on pages 16 - 17.
Before you begin, make sure:
●The TV/VCR is hooked up and turned on. Details are on pages
six - eight.
●Channels are programmed. Details are on pages 10 - 11.
●You make each entry within 60 seconds of the previous entry.
(If you do not, you may start again at step 1.)
Manual Clock Setting
1
Press the MENU button to display the pop up menu.
2
Press the PLAY/▲button or the STOP/▼button to select
PRIM. SETUP. Then, press the F.FWD/+ button.
PRIMARY SETUP
1 SELECT LANGUAGE
2 AUTO PROGRAMMING
3 ADD/DELETE CHANNEL
4 CH. MEMORY REVIEW
5 VOLUME BAR [ON]
6 SET CLOCK
TO SELECT PRESS NUMBER
TO END PRESS EXIT
BPRIM. SETUP
VCR PROGRAM
VCR SETUP
CAPTION
REMINDER
BRIGHTNESS
PRESS +
SET CLOCK
1AUTO CLOCK [ON]
2SET MANUAL CLOCK
3DAYLIGHT SVG.TIME [ON]
4SET TIME ZONE
[AUTO]
TO CONTINUE PRESS MENU
TO SELECT PRESS NUMBER
TO END PRESS EXIT
3
Press the Number 6 button to select SET CLOCK.
3

Setting the Clock (cont’d) 13
5
Press two Number buttons for the hour(s) and two
Number buttons for the minute(s). Then press 1 for AM
or 2 for PM. For example, for 9:30 PM, press 09, 30, 2.
SET MANUAL CLOCK
TIME 09 : 30 PM
MONTH – – / – – / – –
TO CORRECT PRESS CLEAR
TO END PRESS EXIT
6
Press two Number buttons for the month, two Number
buttons for the day, and two Number buttons for the
year. For example, for July 1, 1997, press 07, 01, 97. The day of
the week will appear automatically.
7
Press the STATUS/EXIT button to start the clock. The
screen will return to the program you were watching.
SET MANUAL CLOCK
TIME 09 : 30 PM
DATE 07 / 01 / 97
TUESDAY
TO CORRECT PRESS CLEAR
TO END PRESS EXIT
4
Press the Number 2 button to select SET MANUAL
CLOCK.
SET MANUAL CLOCK
TIME – – : – –
DATE – – / – – / – –
TO END PRESS EXIT 5
6
4
7
REW
PLAY
POWER
SPEED
MUTE
SLEEP
ALT.CH
CHANNEL
VOLUME
REC/OTR
STATUS/EXIT
MEMORY
PAUSE/STILL
MENU
CLEAR
VCR PLUS+
SMART
SOUND
STOP
F.FWD
– +
o
o
p
p
o
p
12 3
45 6
78 9
0+100

14 Setting the Clock (cont’d)
Automatic PBS Channel Selection
4
If ON appears beside AUTO CLOCK, press the MENU
button. If OFF appears beside AUTO CLOCK, press the
Number 1 button so that ON appears to the right of
AUTO CLOCK, then press the MENU button.
1
Press the MENU button to display the pop up menu.
2
Press the PLAY/▲button or the STOP/▼button to select
PRIM. SETUP. Then, press the F.FWD/+ button.
PRIMARY SETUP
1 SELECT LANGUAGE
2 AUTO PROGRAMMING
3 ADD/DELETE CHANNEL
4 CH. MEMORY REVIEW
5 VOLUME BAR [ON]
6 SET CLOCK
TO SELECT PRESS NUMBER
TO END PRESS EXIT
BPRIM. SETUP
VCR PROGRAM
VCR SETUP
CAPTION
REMINDER
BRIGHTNESS
PRESS +
SET CLOCK
1 AUTO CLOCK [ON]
2 SET MANUAL CLOCK
3 DAYLIGHT SVG.TIME[ON]
4 SET TIME ZONE
[AUTO]
TO CONTINUE PRESS MENU
TO SELECT PRESS NUMBER
TO END PRESS EXIT
3
Press the Number 6 button to select SET CLOCK.
2
1
34
AUTO CLOCK
AUTO CLOCK USES
PBS CHANNEL DATA
1 SET PBS CH. AUTO
2 SET PBS CH. MANUAL
TO SELECT PRESS NUMBER
TO END PRESS EXIT
REW
PLAY
POWER
SPEED
MUTE
SLEEP
ALT.CH
CHANNEL
VOLUME
REC/OTR
STATUS/EXIT
MEMORY
PAUSE/STILL
MENU
CLEAR
VCR PLUS+
SMART
SOUND
STOP
F.FWD
– +
o
o
p
p
o
p
12 3
45 6
78 9
0+100

Setting the Clock (cont’d) 15
7
When the TV/VCR finds the PBS channel, the time will
appear on-screen. Press the STATUS/EXIT button.
6
NOW SEARCHING flashes on the TV/VCR screen.
However, you may see the message “PLEASE TURN OFF TO SET
AUTO CLOCK PLEASE WAIT SEVERAL MINUTES.” If this mes-
sage appears, turn off the TV/VCR for a few minutes. When you
turn on the TV/VCR, the time will be set.
If the time is not set, repeat steps 1 - 5. Or, follow the steps on
pages 12 - 13 to set the clock manually or pages 16- 17 to set the
clock with Manual PBS Channel Selection.
●If CANNOT FIND CLOCK DATA flashes on the
TV/VCR screen, you will be prompted to turn off the
TV/VCR. Turn off the TV/VCR. Leave it off for several min-
utes. When you turn on the TV/VCR again, the clock will be
set.
• To display the time, press the STA-
TUS/EXIT button. A status display,
which includes the time, will appear
on the TV/VCR screen. Details are
on page 26.
• If you press the STATUS/EXIT but-
ton while you are setting the clock,
the screen will exit Set Clock mode
and return to the program you were
watching. If this happens, start over.
• You must turn off the TV/VCR for
several minutes during automatic
clock setting. If the clock is not set
when you turn on the TV/VCR,
repeat the steps for Automatic PBS
Channel Selection. If the clock still is
not set, set the clock manually.
• You cannot use the AUTO CLOCK
feature if you don’t receive a PBS
channel that carries a time signal in
your area. Set the clock manually.
Helpful Hints
5
Press the Number 1 button to select SET PBS CH.
AUTO.
SET AUTO CLOCK
TIME – – : – –
DATE – – / – – / – –
NOW SEARCHING
TO END PRESS EXIT
SET AUTO CLOCK
TIME 06 : 30 PM
DATE 07 / 01 / 97
TUESDAY
TO END PRESS EXIT
SET AUTO CLOCK
TIME – – : – –
DATE – – / – – / – –
CANNOT FIND CLOCK DATA
TO END PRESS EXIT
REW
PLAY
POWER
SPEED
MUTE
SLEEP
ALT.CH
CHANNEL
VOLUME
REC/OTR
STATUS/EXIT
MEMORY
PAUSE/STILL
MENU
CLEAR
VCR PLUS+
SMART
SOUND
STOP
F.FWD
– +
o
o
p
p
o
p
12 3
45 6
78 9
0+100
5
6
7
Wait for the TV/VCR to find
the time.

REW
PLAY
POWER
SPEED
MUTE
SLEEP
ALT.CH
CHANNEL
VOLUME
REC/OTR
STATUS/EXIT
MEMORY
PAUSE/STILL
MENU
CLEAR
VCR PLUS+
SMART
SOUND
STOP
F.FWD
– +
o
o
p
p
o
p
12 3
45 6
78 9
0+100
16 Setting the Clock (cont’d)
Manual PBS Channel Selection
4
If ON appears beside AUTO CLOCK, press the MENU
button. If OFF appears beside AUTO CLOCK, press the
Number 1 button so that ON appears to the right of
AUTO CLOCK, then press the MENU button.
1
Press the MENU button to display the pop up menu.
2
Press the PLAY/▲button or the STOP/▼button to select
PRIM. SETUP. Then, press the F.FWD/+ button.
PRIMARY SETUP
1 SELECT LANGUAGE
2 AUTO PROGRAMMING
3 ADD/DELETE CHANNEL
4 CH. MEMORY REVIEW
5 VOLUME BAR [ON]
6 SET CLOCK
TO SELECT PRESS NUMBER
TO END PRESS EXIT
BPRIM. SETUP
VCR PROGRAM
VCR SETUP
CAPTION
REMINDER
BRIGHTNESS
PRESS +
SET CLOCK
1 AUTO CLOCK [ON]
2 SET MANUAL CLOCK
3 DAYLIGHT SVG.TIME[ON]
4 SET TIME ZONE
[AUTO]
TO CONTINUE PRESS MENU
TO SELECT PRESS NUMBER
TO END PRESS EXIT
3
Press the Number 6 button to select SET CLOCK.
2
1
34
AUTO CLOCK
AUTO CLOCK USES
PBS CHANNEL DATA
1 SET PBS CH. AUTO
2 SET PBS CH. MANUAL
TO SELECT PRESS NUMBER
TO END PRESS EXIT

Setting the Clock (cont’d) 17
8
When the TV/VCR finds the PBS channel, the time will
appear on-screen. Press the STATUS/EXIT button.
6
Use the Number buttons to select your PBS station.
●If CANNOT FIND CLOCK DATA flashes on the
TV/VCR screen and you know another PBS channel,
press the Number 1 button to select SELECT NEW
PBS CH. Repeat step 6.
●If CANNOT FIND CLOCK DATA flashes on the
TV/VCR screen and you do not know another channel,
press the Number 2 button to select SET PBS CH.
AUTO.The TV/VCR will search for the PBS channel automati-
cally.
• If the PBS channel is found, the time will appear on-screen.
• If the PBS channel is not found, you will be prompted to turn
off the TV/VCR. Leave it off for several minutes.
When you turn on the TV/VCR again, the time will be set.
5
Press the Number 2 button to select SET PBS CH. MAN-
UAL.
AUTO CLOCK (PBS) CH – –
TIME – – : – –
DATE – – / – – / – –
SELECT CHANNEL NUMBER
TO END PRESS EXIT
AUTO CLOCK (PBS) CH 12
TIME 06 : 30 PM
DATE 07 / 01 / 97
TUESDAY
TO END PRESS EXIT
7
NOW SEARCHING flashes on the TV/VCR screen.
AUTO CLOCK (PBS) CH 12
TIME – – : – –
DATE – – / – – / – –
NOW SEARCHING
TO END PRESS EXIT
REW
PLAY
POWER
SPEED
MUTE
SLEEP
ALT.CH
CHANNEL
VOLUME
REC/OTR
STATUS/EXIT
MEMORY
PAUSE/STILL
MENU
CLEAR
VCR PLUS+
SMART
SOUND
STOP
F.FWD
– +
o
o
p
p
o
p
12 3
45 6
78 9
0+100
5
6
7
8
• To make corrections while you are
setting the PBS station, press the
CLEARbutton, then enter the cor-
rect number.
• If you have an Antenna hookup, you
may select channels 2 - 69 at step
6. If you have a cable connection,
you may select channels 1 - 125 at
step 6. Details about available
channels are on pages 10 - 11.
• To display the time, press the STA-
TUS/EXIT button. A status display,
which includes the time, will appear
on the TV/VCR screen. Details are
on page 26.
Helpful Hints
Wait for the TV/VCR to
find the time.

18 Daylight-Saving Time
1
4
5
2
4
Press the Number 3 button so that ON or OFF appears
beside DAYLIGHT SVG. TIME (Daylight-Saving Time).
5
Press the STATUS/EXIT button.
1
Press the MENU button to display the pop up menu.
2
Press the PLAY/▲button or the STOP/▼button to select
PRIM. SETUP. Then, press the F.FWD/+ button.
PRIMARY SETUP
1 SELECT LANGUAGE
2 AUTO PROGRAMMING
3 ADD/DELETE CHANNEL
4 CH. MEMORY REVIEW
5 VOLUME BAR [ON]
6 SET CLOCK
TO SELECT PRESS NUMBER
TO END PRESS EXIT
3
Press the Number 6 button to select SET CLOCK.
3
SET CLOCK
1 AUTO CLOCK [ON]
2 SET MANUAL CLOCK
3 DAYLIGHT SVG.TIME[ON]
4 SET TIME ZONE
[AUTO]
TO CONTINUE PRESS MENU
TO SELECT PRESS NUMBER
TO END PRESS EXIT
BPRIM. SETUP
VCR PROGRAM
VCR SETUP
CAPTION
REMINDER
BRIGHTNESS
PRESS +
REW
PLAY
POWER
SPEED
MUTE
SLEEP
ALT.CH
CHANNEL
VOLUME
REC/OTR
STATUS/EXIT
MEMORY
PAUSE/STILL
MENU
CLEAR
VCR PLUS+
SMART
SOUND
STOP
F.FWD
– +
o
o
p
p
o
p
12 3
45 6
78 9
0+100
When the Daylight-Saving Time feature is ON, the TV/VCR clock
will automatically move forward one hour on the first Sunday in
April and move back one hour on the last Sunday in October.
Details are on page 53.
To turn Daylight-Saving Time ON or OFF, follow the steps below.

REW
PLAY
POWER
SPEED
MUTE
SLEEP
ALT.CH
CHANNEL
VOLUME
REC/OTR
STATUS/EXIT
MEMORY
PAUSE/STILL
MENU
CLEAR
VCR PLUS+
SMART
SOUND
STOP
F.FWD
– +
o
o
p
p
o
p
12 3
45 6
78 9
0+100
Time Zone 19
4
1
5
6
3
2
When you set the clock using AUTO CLOCK (either Manual PBS
Channel Selection or Automatic PBS Channel Selection), you can
specify a time zone in which a local PBS channel is located. That
way, the TV/VCR will set the clock according to your time zone.
• If you select AUTO at step 5, the
TV/VCR will set the clock according
to the first PBS station it finds.
• You cannot select TIME ZONE at
step 4 if AUTO CLOCK is set to
OFF.
Helpful Hints
4
Press the Number 4 button to select SET TIME ZONE.
5
Find your time zone, then press the Number button to
select it. ON will appear beside the selected time zone.
6
Press the STATUS/EXIT button twice.
1
Press the MENU button to display the pop up menu.
2
Press the PLAY/▲button or the STOP/▼button to select
PRIM. SETUP. Then, press the F.FWD/+ button.
PRIMARY SETUP
1 SELECT LANGUAGE
2 AUTO PROGRAMMING
3 ADD/DELETE CHANNEL
4 CH. MEMORY REVIEW
5 VOLUME BAR [ON]
6 SET CLOCK
TO SELECT PRESS NUMBER
TO END PRESS EXIT
3
Press the Number 6 button to select SET CLOCK.
SET TIME ZONE
1 AUTO [ON]
2 ATLANTIC
3 EASTERN
4 CENTRAL
5 MOUNTAIN
6 PACIFIC
7 ALASKA
8 HAWAII
TO SELECT PRESS NUMBER
TO CONTINUE PRESS EXIT
SET CLOCK
1 AUTO CLOCK [ON]
2 SET MANUAL CLOCK
3 DAYLIGHT SVG.TIME[ON]
4 SET TIME ZONE
[AUTO]
TO CONTINUE PRESS MENU
TO SELECT PRESS NUMBER
TO END PRESS EXIT
BPRIM. SETUP
VCR PROGRAM
VCR SETUP
CAPTION
REMINDER
BRIGHTNESS
PRESS +

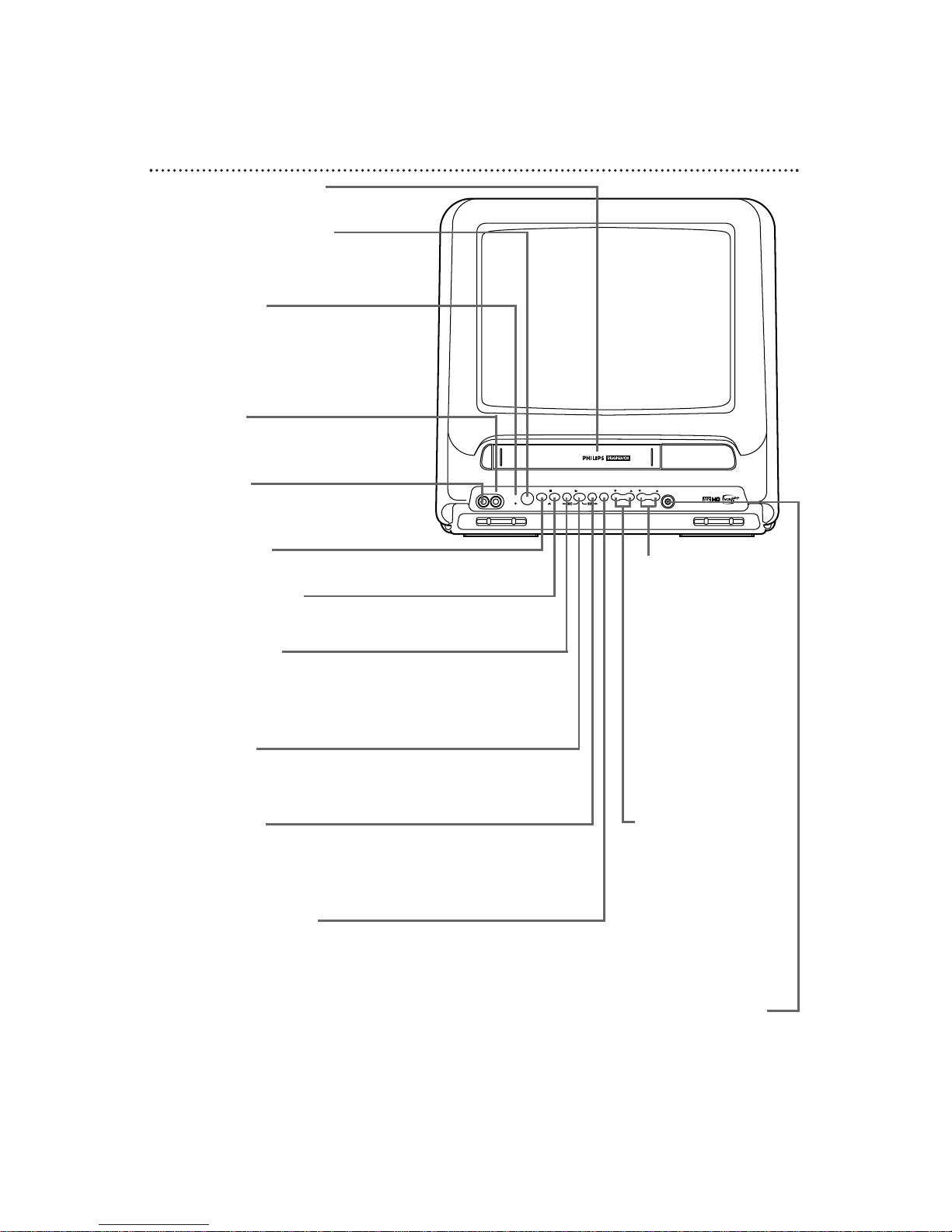

20 Front Panel
POWER
VIDEOAUDIO STOP
EJECT
REC
PLAY F.FWD REC/OTR VOLUME CHANNEL EARPHONEREW
Cassette Compartment
Insert a video cassette tape here.
POWER Button
Press to turn the power on or off. CHANNEL Up/Down
Buttons
Press to scan through
the TV/VCR channels.
Or, when in Play mode,
press to adjust the
tracking. Details are on
page 49.
Press the CHANNEL Up
button and the VOLUME
Down button on the
TV/VCR at the same
time to display the pop up
menu.
STOP/EJECT Button
Press once to stop the tape. Press again to
eject the tape.
PLAY Button
Press to play a tape. Also, press to release
Search or Still mode and return to normal
playback. Details are on page 50.
REC(ord)/OTR Button
Press once to start a recording. Details are on
page 29. Or, press three to 18 times to start
a one touch recording (an immediate timed
recording, 30 minutes to eight hours long) of
the channel you are watching. Details are on
page 30.
REW(ind) Button
When in Stop mode, press to rewind the
tape at high speed. When in Play mode,
press to rewind while the picture stays on-
screen. Details are on page 50.
F.FWD Button
When in Stop mode, press to fast forward
the tape at high speed. When in Play mode,
press to fast forward while the picture stays
on-screen. Details are on page 50.
REC(ord) Light
Appears when a recording, timer recording,
or one touch recording is in progress.
It flashes when the TV/VCR power is turned
off to set a timer recording, or when a
recording is paused.
Remote Sensor
Receives an infrared signal from your remote
control so you can operate the TV/VCR from
a distance.
VOLUME Up/Down
Buttons
Press to adjust the
sound level.
Press the CHANNEL Up
button and the VOLUME
Down button on the
TV/VCR at the same
time to display the pop
up menu.
EARPHONE Jack
Connect headphones (not
supplied) here for person-
al listening.
AUDIO Jack
Connect this jack to the audio out jack of a
camcorder or a VCR. Details are on page 31.
VIDEO Jack
Connect this jack to the video out jack of a
camcorder or a VCR. Details are on page 31.
