Philips BDP3406 /F7 User manual

BDP3406 /F7
© Copyright 2011 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without
the prior permission of Philips.
Blu-ray Disc Player
Version 1.1
Published BG AVM ASD-CY Printed in The Netherlands Subject to modification
TABLE OF CONTENTS
Chapter
Technical Specification, PCBs Location………………….. 1
Safety Instruction ……………………………………………… 2
Instruction for Use……………………………………………… 3
Mechanical and Dismantling Instructions…………………. 4
Service Modes, Troubleshooting……………………………. 5
Overall Block Diagram, Wiring Diagram……………………. 6
Electrical Diagram……………………………………………… 7
Exploded View Diagram & Service Part List………………..8
Revision List……………………………………………………. 9
3141 785 36331
Cau on: These servicing instruc ons are for use by qualifieded service personnel only. To reduce
the risk of electric shock do not perform any servicing other than that contained in the opera ng
instruc ons unless you are qualifi .osodotde
Remark: The Service Manual only for S/N starting from GS1Axxxxxxxxxx. For
defective sets with S/N GS1Bxxxxxxxxxx, please refer to Service Manual
with code number 314178536661.

1.1 Specifications
Specifications are subject to change without notice
1-1
Playable media
- BD-Video
- DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R/-R DL (Dual Layer)
- VCD/SVCD
- Audio CD, CD-R/CD-RW, MP3 media, WMA media, JPEG iles
- DivX (Ultra)/DivX Plus HD media, MKV media
- USB storage device
File format
- Video: .avi, .divx, .mp4, .mkv
- Audio: .mp3, .wma, .wav
- Picture: .jpg, .gif, .png
Video
- Signal system: PAL / NTSC
- Composite video output: 1 Vp-p (75 ohm)
- HDMI output 480p, 576p, 720p, 1080i, 1080p, 1080p24
Audio
- 2 Channel analog output
- Audio Front L&R : 2 Vrms (> 1 kohm)
- Digital output: 0.5 Vp-p (75 ohm)
- Coaxial
- HDMI output
- Sampling frequency:
- MP3: 32 kHz, 44.1 kHz, 48 kHz
- WMA: 44.1 kHz, 48 kHz
- Constant bit rate:
- MP3: 112 kbps - 320 kpbs
- WMA: 48 kpbs - 192 kpbs
USB
- Compatibility: Hi-Speed USB (2.0)
- Class support: USB Mass Storage Class (UMS)
- File system: FAT16, FAT32
- Support HDD (a portable hard drive disc): an external power source may be needed.
Main unit
- Power supply rating: AC 110-120V~, 50Hz - 60Hz
- Power consumption: 18 W
- Power consumption in standby mode: < 1 W
- Dimensions (w x h x d): 435 X 41 X 195.5 (mm)
- Net Weight: 1.47 kg
Accessories supplied
- Remote control and batteries
- User manual
Laser Specification
- Laser Type (Diode): AlGaInN (BD), AlGaInP (DVD/CD)
- Wave length: 405+7nm/-7nm (BD), 655+10nm/-10nm (DVD), 790+10/-20nm (CD)
- Output power: 1mW (BD), 0.26mW (DVD), 0.3mW (CD)

1.1 PCBs Location
VERSION VARIATIONS
Type/Versions:
Service policy
Board in used:
BDP3406
*TIPS: C -- Component Lever Repair.
M -- Module Lever Repair
X -- OCX
1-2
M
F7
PSU PCBA
LED DISPLAY PCBA M
MAIN BOARD
M
LED DISPLAY PCBA
PSU PCBA
MAIN BOARD

Software check and upgrade
Preparation to upgrade software
1)Start the CD burning software & create a folder named "UPG_ALL", B. Read out the software versions to confirm upgrading
2)Then copy the Bin file (BDP3XXXXX-XXX-XXXXXX.bin) into it,
3)Burn the data onto the blank CD.
A. Procedure for software upgrade
A) Upgrade software via Disc
4) In homemenu,enter "setup"->"advanced"->"version info", press "OK"
1) Power on the set and insert the prepared Upgrade
CDR.
and other information will display on the TV screen as below:
2) The set will starts reading disc & response with the Model:XXX.XXX
following display TV screen: Versions
Now searching for upgrade software!
Please wait…!
3) Then screen will display :
software upgrades for this player has been found!Do you want to upgrade? Caution: The set must not be power off during
upgrading, otherwise the Main board will be
Cancel Start damaged entirely.
4) Press Right cursor button to choose "Start", then press <OK>;
5) The software will updagrde and screen will display as below:
Upgrade is ongoing, Please wait…
Please do not unplug or switch off the device.
6) Restart the set.
B) Update software via USB Flash Drive:
1) Go to www.philips.com/support to check if the latest software
version is available for this player.
2) Download the software onto a USB flash drive's root DIR named "UPG_ALL".
3) Insert the USB flash drive to the USB jack of the rear panel.
4) In the Home menu, select <Setup>-<Advanced>-<Software
update>-<USB>.
5) Then press OK
6) you'll see now searching for new software, please wait.......
7) Waiting, the you'll see "software for this player has been found ......"
8) Then select "Start" and press "OK"
9) then you'll see "upgrade is ongoing ......", wait until it ends.
10) Player will restart automatically or press "Restart now" to restart, after restarting the upgrade ends.
subinfo:xxxx
system SW:xxxx
ethernet MAC:xxxxxxxx
http://www.philips.com/support
1-3

2.0 Safety instruction
1. General
safety
Safety regulations require that during a repair:
. Connect the unit to the mains via an isolation
transformer.
. Replace safety components indicated by the
symbol
Only by components identical to the original ones.
Any
Other component substitution (other than original
type)
May increase risk of fire or electrical shock hazard.
Safety regulations require that after a repair, you
must
Return the unit in its original condition. Pay, in
particular,
Attention to the following points:
. Route the wires/cables correctly, and fix them with
the
mounted cable clamps
. Check the insulation of the mains lead for external
Damage
. Check the electrical DC resistance between the
mains
Plug and the secondary side:
1) Unplug the mains cord, and connect a wire
between
The two pins of the mains plug.
2) Set the mains switch the “on” position (keep
the
Mains cord unplug).
3) Measure the resistance value between the
mains
plug and the front panel, controls, and chassis
bottom.
4) Repair or correct unit when the resistance
measurement is less than 1M Ω
5) Verify this, before you return the unit to the
customer/user (ref. UL-standard no. 1492).
6) Switch the unit “off”, and remove the wire
between
the two pins of the mains plug.
2. Laser safety
This unit employs a laser. Only qualified service
personnel
May remove the cover, or attempt to service this
device
(due to possible eye injury).
Laser device unit
Type :Semiconductor laser GaAIAs
Wavelength :650nm (DVD)
:780nm (VCD/CD)
Output power :7mW(DVD)
:10mW(DVD/CD)
Beam divergence:60 degree
Note: Use of controls or adjustments or
performance of procedure other than those
specified herein, may result in hazardous
radiation exposure. Avoid direct exposure to
beam.
2-1

3.0 Instruction for Use
You can download this information from the following websites:
http://www.philips.com/support
http://www.p4c.philips.com
3-1

4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS
The following guidelines show how to dismantle the player.
Step1: Remove 4 screws around the Top Cover, and then remove the Top Cover
4-1
Step3: Remove the 9 screws on board to dismantle the DVD BOARD & PSU BOARD & DECK
Step2: Dismantling Front Panel,the CD door should be removed first, then gently pull the Panel out from the set.
PS: insert reset hole once the disc tray jammed
use an acuate press the reset hole to release the disc tray; remove the door from the tray;

No display on VFD, and buttons do not work
No
No
No
Yes
Yes
No display on VFD, and
buttons do not work
Check every supply
voltage on main board is
normal Refer to Power supply board part
Correct connection
Replace VU1 or VFD
Yes
Go
Yes
No
Check +5V,+12V,-24V
voltage on the power
and front board
SG,GR on the front board
1.Check whether bad solder exists
on VU1 and pins of VFD
2.Check whether the circuit
connected to K1, K2, K3, K4 is
broken.
Fix the connection J3 on front board
and CN4 on power board
Trouble shooting chart
5-1
Check the signals of the VU1's Check the VU1 power supply
(VU1.38= +5V and VU1.27= -24V)

No audio output
Check whether the audio
signal is right from the
U1's pin 8, 9
Correct connection
Yes
Go
No audio output
No
Trouble shooting chart
5-2
exists on pins of J7
Check whether bad solder
Replace the J7
No
Yes
Check the U1 power supply
(U1.1= +3.3V and U1.11= +5V)
Yes
Replace the U1

Remote control does not work
Go
Yes
Yes
Remote control
does not work
NO
Replace the battery for remote
controller
Check whether the remote
controller’s battery is
exhausted or not.
Check the Power supply board part
Replace IR1
NO
Trouble shooting chart
5-3
Check the IR1 power supply is OK
Check the connection J2 on front board
and J502 on main board is broken
Yes
Fix the connection
NO
Yes

Can’t read disc or can’t open the disk door
Yes
Check the connection of the 9PIN cable
from CN3 on the Power Board.
Can’t read disc or can’t
open the disk door
Check 40pin and 8pin cable
from main board connection to
the loader is normal
Check the U900,U902 and the peripheral
components near them on the main board
NO
GO
Check whether the
DVD loader running is
normal
Fix the connection
NO
Yes
Trouble shooting chart
5-4

No VFD display
is about AC2.5V
Go
No
No
No VFD display
Yes
Fix the connection power board
CN4 and front board J3
Check whether the voltage
+5V_STB on the front board is
normal
Check DC5V to AC2.5V switch circuit
Refer to "No display on VFD,
Yes
-24V,+12V and D1 is normal
No Check the power board or replace D1
Trouble shooting chart
5-5
Check whether the voltage
between VFD's F1 and F2
Check whether the voltage
on the front board
Yes
and buttons do not work "

OVERALL BLOCK DIAGRAM
6-1
POWER
PCB&DISPLAY PCB
L-OUT
COAXIAL
MOTOR
DRIVER
CVBS
R-OUT
HDMI
NAND
FLASH
DLAN
DDR3
SDRAM
256M
MT8551-DDR3-BGA
64Mx16DDR3
R2A30209SP
SANYO TRV414H08
AC IN
100V--230V 50Hz/60Hz
x2
COLLIMATOR
DRIVER
TP1391
ASA L9829B
256M
USB
(WIFI)
VFD Driver
IC
SM1628C
PWM
DRV632
Laser
Diode
Driver
BD7175FS
+5v
+12v
KEY_OPEN
VDATA VCLK VSTB
IR
KEY_POWER
USB_VCC
USB_DP USB_DM
USB_GND
GND
USB
VFD
IR
SENSOR
POWER
DRIVER
TNY177PN
Transformer
+12V_OUT
+5V_OUT

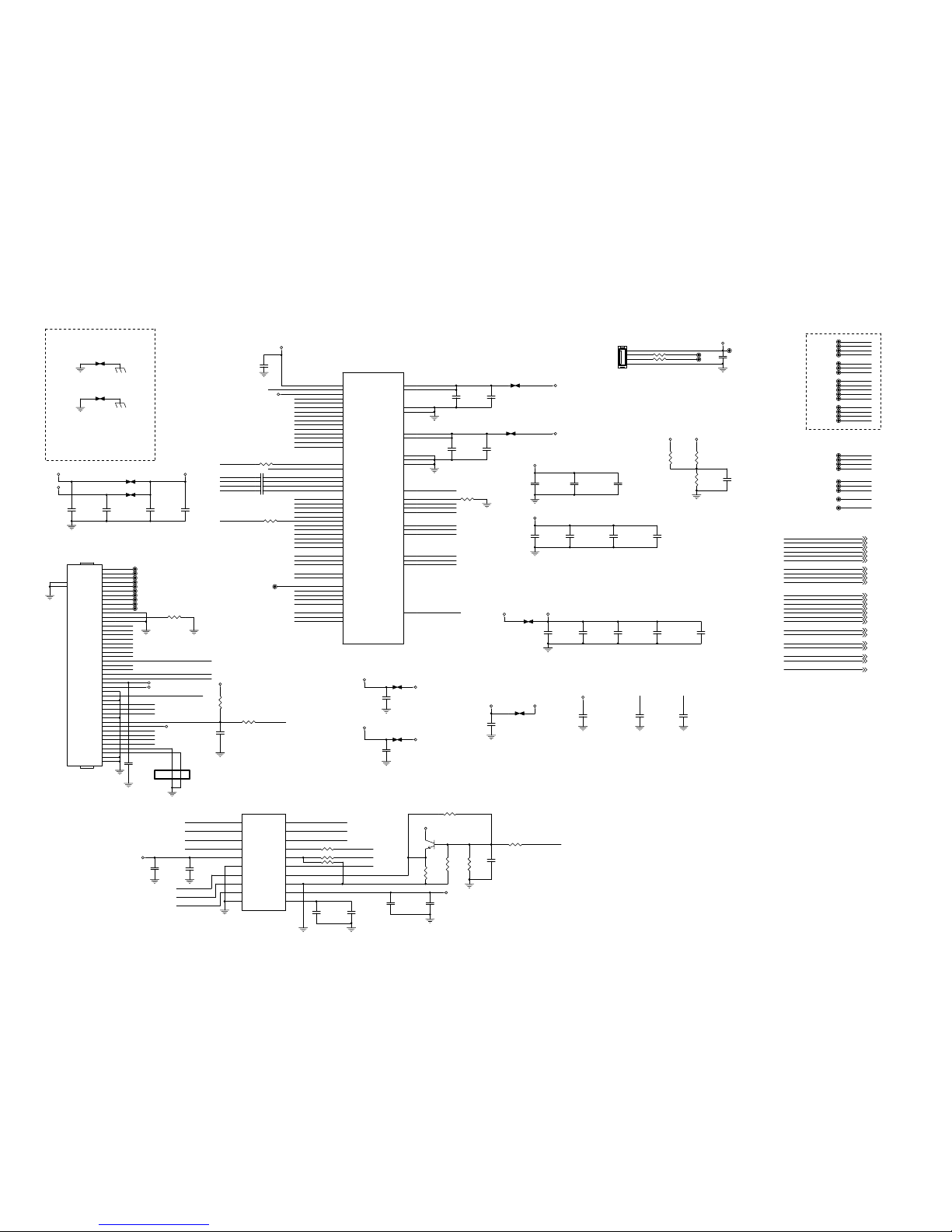

CIRCUIT DIAGRAM-Front Board 7-1
Reserve test point on top layer
FE RS232 Port
RESET
TLO
DMO REIC_DMO
FEGIO3 LED1
INA
FEFMO2 FMO2
GAINSW3
RFIN
INE
TRINB
FEGIO11 UTXD
INF
TRIND
LDD_SDIO
FEGIO0 MUTE1
FEGIO9
TRO
INB
FEFMO FMO1
GAINSW1
TRINC
TYPWM
RFIN2
FEGIO1 MUTE2
FEFMO4 FMO4
GAINSW2
ING
FOO
INC
TLO
LDD_SEN
RFIP2
TRINA
FEGIO10 URXD
FEDMO DMO
FEFMO3 FMO3
LDD_CLK
RFIP
INH
IND
CD_VR FVREF
DVD_VR FPDOCD
FEGIO4 LED2
FEGIO5 GIO5
FEGIO7 GIO7
GIO6 FEGIO6
TRAYOUT#
MPXOUT1
AVDD33_3
MPXOUT2
VWDC2O
AUX1
MPXOUT3
EJECT#
RSTI
TRAYIN#
VWDC3O
VDAC0
FEFG FG
MDI_DVD
AVDD12_2
AVDD12_1
AVDD33_1
FPDODVD
RFO-
RFO-
RFO+
RFO+
FOO
Vcc_LD
UTXD
URXD
RSTI
TRO
Vcc_PDIC
MDI_BD
LDD_SEN
LDD_CLK
LDD_SDIO
VWDC3O
VDAC0
TRINB
TRINA
TRIND
TRINC
GAINSW1
GIO7
FMO3
TRAYOUT#
EJECT#
MPXOUT3
MPXOUT1
MPXOUT2
REIC_CO_A-CO_A-
REIC_FO-FOC2-
REIC_CO_A+CO_A+
REIC_MUTE1MUTE1
TRAYIN#
REIC_FO+FOC2+
GAINSW2GAINSW2
REIC_CO_B+CO_B+
REIC_FGFG
REIC_TR-TR-
REIC_TL-FOC1-
REIC_CO_B-CO_B-
REIC_TR+TR+
REIC_TROTRO
REIC_TYPWMTYPWM
REIC_FOOFOO
REIC_FMOFMO1
REIC_TLOTLO
REIC_FMO4FMO4
REIC_FMO3FMO3
REIC_FMO2FMO2
REIC_TL+FOC1+
REIC_MUTE2MUTE2
FMO1
TYPWM
FMO4
FMO2
BD_LD
MDI_BD
MDI_DVD
CD_VR
FEGIO9
GIO6
FEGIO4
FPDODVD
GIO5
TRINC
VWDC2O
DVD_LD
CD_LD
DVD_VR
MDI_DVD
MDI_BD
CD_HFM
CO_B-
CO_A+
CO_B+
BD_LD
MDI_DVD
MDI_BD
IND
INB
INF
ING
INC
CD_LD
INH
INA
INE
FOC2+
FOC2-
DVD_LD
TR-
RFO+
RFO-
DMO
LDD_SDIO
DVD_VR
CD_VR
FOC1+
TR+
FOC1-
CO_A-
LDD_SENFECMOD_R
DVD_HFM
GAINSW1_R GAINSW1
AUX1
LDD_CLKFEOSCEN_R GAINSW2 [9]
REIC_FMO3 [9]
REIC_FMO [9]
REIC_DMO [9]
REIC_TRO [9]
REIC_TLO [9]
REIC_MUTE2 [9]
REIC_CO_B- [9]
REIC_CO_B+ [9]
REIC_FOO [9]
REIC_FMO4 [9]
REIC_FO+ [9]
REIC_TL- [9]
REIC_FO- [9]
REIC_CO_A- [9]
REIC_CO_A+ [9]
REIC_MUTE1 [9]
TRAYIN# [9]
REIC_TL+ [9]
REIC_TR- [9]
REIC_FG [9]
REIC_TR+ [9]
REIC_TYPWM [9]
REIC_FMO2 [9]
A1.2V
M
M
VCC_PDIC
VCC_LD
AVCC
HAVC
VCC_PDIC
VCC_HFM
A3.3V
A1.2V
HAVC
A3.3V
V14
3.3V
A3.3V AVCC
AVCCVCC_1
VCC_HFM AVCC
HAVC
A3.3V
A1.2V
A3.3V
1.2V
3.3V
VCC_LD
+12V_1
VCC_LD
NC25
NC17 NC PAD 0603
TP120
C177
4.7uF/16V/X5R
C201
22uF/6.3V/X5R
NC24
TP123
C173
680p/10V/X5R/NC
C178
10uF/16V/X5R
C165
10uF/16V/X5R
C144
0.1uF/16V/X7R
Q14
SST3904/NC
1
3 2
C170
4.7uF/10V/X5R
C181
10uF/16V/X5R
TP125
C183
10uF/16V/X5R
VWDC3O
R174 NC
R163 0
LDD_SEN
R138
3.6K/NC
J9
Wafer_2.0_4
1
2
3
4
C153
0.1uF/16V/X7R
C163
10uF/16V/X5R
TP121
C141
4.7uF/10V/X5R
C204
0.1uF/16V/X7R/NC
C0402/SMD
TRAYOUT#
TRO
C179
4.7uF/16V/X5R
NC15
C156
10uF/16V/X5R/NC
C149 0.1uF/16V/X7R
R162
1K/NC
C140
0.1uF/16V/X7R
R158 1.2M
C143
0.1uF/16V/X7R
C152
0.1uF/16V/X7R
R173 0R
TP126
C203
22uF/6.3V/X5R/NC
R144
R150 33
C151
0.1uF/16V/X7R
NC16 NC PAD 0603
FMO1
EJECT#
C168
0.1uF/16V/X7R
C150 0.1uF/16V/X7R
C145
0.1uF/16V/X7R
R145
TRIND
TP117
MPXOUT1
MPXOUT2
TP109
C142
0.1uF/16V/X7R
GAINSW1
R157 0
FOO
TP124
C155
10uF/16V/X5R
TD12
C176
10uF/16V/X5R/NC
R142
2.2K
C158
10uF/16V/X5R/NC
MPXOUT3
U1F
MT8551-PBGA
H3
B4
E4
A2
B3
A1
B2
C3
B1
C2
C1
E2
E1
D1
D2
C4
A3
G2
G1
H1
H2
L4
K3
L3
L2
M2
L1
N3
M3
J3
J2
H4
P2
N1
N2
P3
R2
R3
U2
R6
N5
N7
N6
R5
T3
U1
J4
K5
H5
H7
E3
J6
F6
F7
R1
F5
E5
A4
C6
F4
F2
F1
T1
U4
T2
E6
K7
V14
FVREF
HAVC
TRINA
TRINB
TRINC
TRIND
INA
INB
INC
IND
INE
INF
ING
INH
FPDODVD
FPDOCD
RFIN
RFIP
RFIP2
RFIN2
FECFREQ
FEOSCEN
FECMOD
FEGAINSW1
FEGAINSW2
FEGAINSW3
FEFMO3
FEFMO4
TLO
TRO
FOO
FETRAYPWM
FEFMO
FEFMO2
FEDMO
FEGIO0
FEGIO1
FEGIO3
FEGIO4
FEGIO5
FEGIO6
FEGIO7
FEGIO9
FEGIO10
FEGIO11
AVDD12_2
AVDD12_1
AGND12_1
AGND12_2
AVDD33_1
AVDD33_3
AGND33_1
AGND33_3
FEFG
AUX1
VDAC0
VWDC3O
VWDC2O
MPXOUT1
MPXOUT2
MPXOUT3
FEEJECT_
FETRAYOUT_
FETRAYIN_
RSTI
AGND33_2
NC14
R143
10K/NC
C169
2.2uF/10V/X5R
VDAC0
TRINC
FMO3
R161
27K/NC
R148 0/NC
C180
0.1uF/16V/X7R
TRINA
C172
680p/10V/X5R/NC
R156
10K
R175 1K
TD13
C166
10uF/16V/X5R/NC
R149 33
R137
2K
U14
BD7175FS
1
2
3
4
5
6
7
8
9
1011
12
13
14
15
16
17
18
19
20 REG OUT
HVCC(12V)
GND
LDIN
PDOUT
IMON
VMON
LDEN
P1
P2 PDIN2
PDIN1
RIN2
RIN1
VCC(5V)
GND
LDOUT1
LDOUT2
LDOUT3
GND
R139 0/NC
C157
4.7uF/10V/X5R/NC
R160
NC
NC26
C154
10uF/16V/X5R/NC
C146 0.1uF/16V/X7R
FMO2
C167
0.1uF/50V/X7R/NC
FMO4
TP119
TLO
TP108
LDD_SDIO
TP118
LDD_CLK
TYPWM
C148 0.1uF/16V/X7R
TP122
DMO
C147
0.1uF/16V/X7R
C175
1nF/X5R
TRINB
TD11
C182
10uF/16V/X5R
R147 0/NC
NC27
C174
0.1uF/16V/X7R
TOP
J10
FPC_45_0.5_TOP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
FCS2+
FCS2-
TRK+
FCS1+
TRK-
FCS1-
A-
B-
A+
B+
VCC_CLSFT
SIG_P0
GND_CLSFT
A
B
C
D
SA
SB
SC
SD
SW3(BD)
RF+
RF-
SWB2(BD)
SWB1(BD)
VREF_PD
VCC_+5PD
GND_PD
SW(DVD/CD)
GND1
LDI_BD
LDI_CD
LDI_DVD
GND1
TEMP
VCC(HFM)
MON_CD/DVD
MON_BD
SEL_DVD
SEL_CD
SEL_HFA_DVD
SEL_HFA_CD
GND1
NC
AGND
AGND
C164
10uF/16V/X5R

CIRCUIT DIAGRAM-PSU Board
7-10
100uF/250V for BDP3406
33uF/400V for BDP200M2
NL
VCC
+12V
PD8 SR260
PD1
1N4007
PF1
FUSE
PD2
1N4007
PD5
1N4007/FR107
PR14
NC
PR3 10R
+
PC10
220uF/25V
PT1 EE19
2
1
3
4
5
6
7
+
PC7
330uF/10V
PR1
68K/1W/5%
PD4
1N4007
PR13
10K/1%
PR5 10R
PL1 10uH/1A
12
PR24
150K
PR9
100R
+
PC4
10uF/25V
+
PC6
1000uF/10V
PRV1 TVR10471
PL2 10uH/3A
12
PCY1 NC
PR7
6.8K
PR2
100R/5%
PZD1 27V
PC8
1nF
PR8
2.2K
PR4 18K
PU2
EL817C
PT2 TRNSFMR
1 3
2 4
+
PC13
10uF/50V
PD7 SR260
PU1 TNY177PN
1
2
3
4
5
6
7
8
EN
BP
NC
D
S1
S2
S3
S4
PC16
NC
PR6 10R
+
PC1
100uF/250V
PR10
1K
PU3
TL431/1%
PC5
1nF
PCY2 2.2nF
PR11 3.3K
PCX1 0.1uF/275V
PD6 1N4007
+
PC9
470uF/25V
PTR1
SCK102
PJ3
1 2
PD9 SR2100
PR12
10K
PD3
1N4007
PC11
0.1uF
PR28
NC
PC2
1nF/1KV/2.2nF
PR29
150K

CIRCUIT DIAGRAM-LED Board
7-11
D1
6x1 W/HOUSING
SDX-138YGB-15
1
2
3
4
5
6
7
8
9
10
11
12
13
IR1
IR1
1
2
3
CON2
16PA-2.0MM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

PSU PCB - TOP
7-12

Front PCB - BOTTOM
7-13

Main PCB - TOP 7-14

7-15
Main PCB - Bottom
