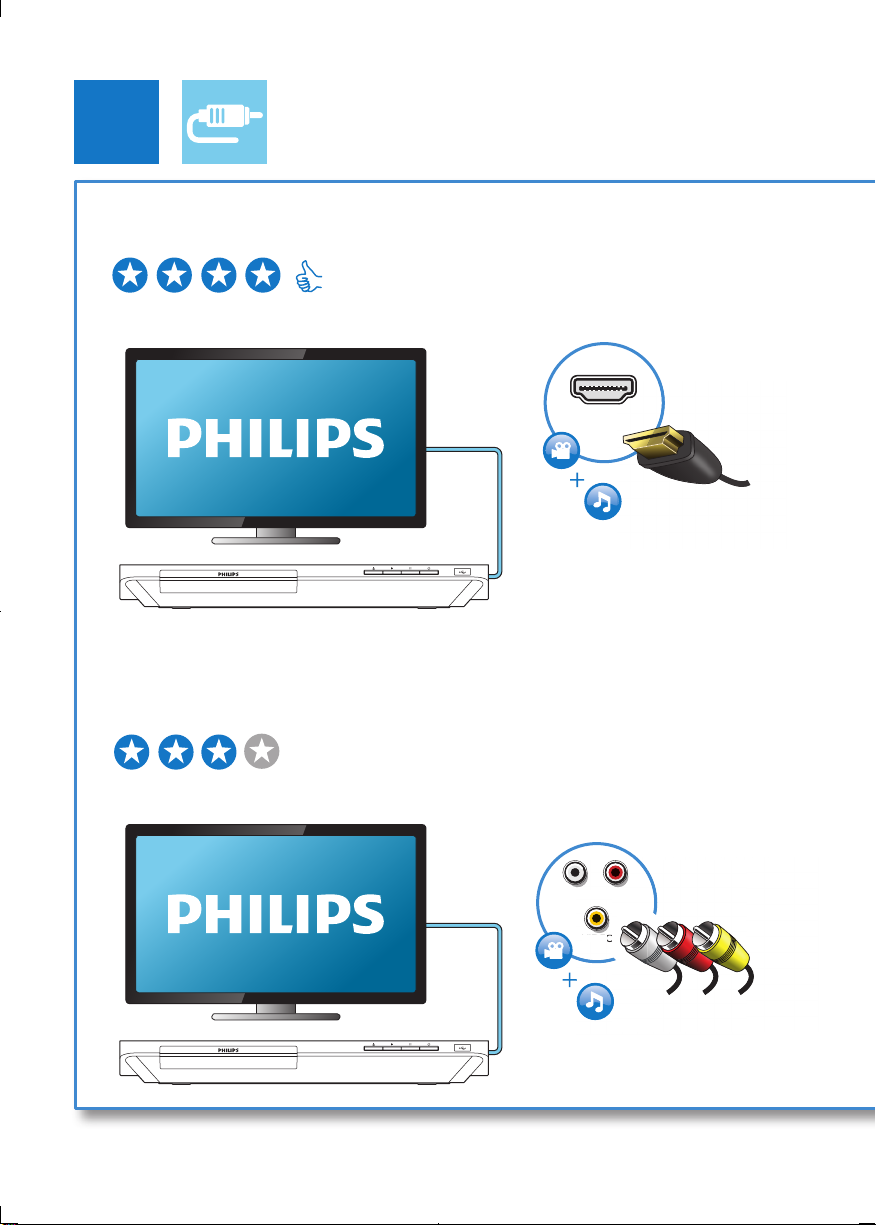

1 HDMI
2 VIDEO+AUDIO LINE OUT
HDMI VIDEO COAXIAL AUDIO LINE OUT
HDMI VIDEO COAXIAL AUDIO LINE OUT
BDP3480_96_UM_V1.0.indb 4 3/27/2013 11:14:48 AM

5

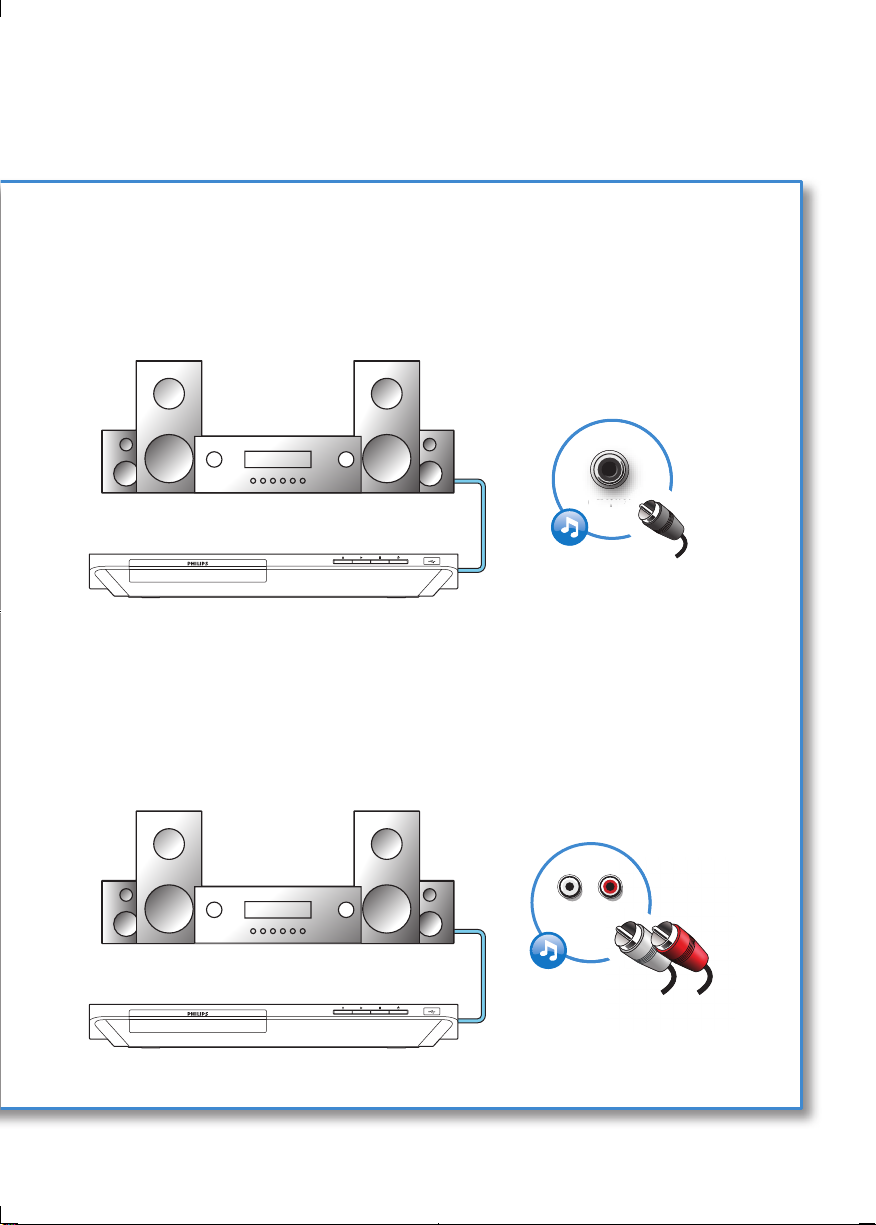

AUDIO LINE OUT
COAXIAL
C
OA
XIA
AL
A
A
3 COAXIAL
4 AUDIO LINE OUT
HDMI VIDEO COAXIAL AUDIO LINE OUT
HDMI VIDEO COAXIAL AUDIO LINE OUT
BDP3480_96_UM_V1.0.indb 5 3/27/2013 11:14:50 AM

6
4
3
5
SOURCE
1
2
TV
BDP3480_96_UM_V1.0.indb 6 3/27/2013 11:14:51 AM

7
6
USB
DVD/VCD/CD
BD
BD 3D
DivX Plus HD/MKV
MP3 / JPEG
2
3
4
1
1
2
3
BDP3480_96_UM_V1.0.indb 7 3/27/2013 11:14:53 AM

BDP3480_96_UM_V1.0.indb 8 3/27/2013 11:14:53 AM

9
English
EN
Contents
1 Hookup and play 2
2 Use your Blu-ray disc/ DVD player 10
Basic play control 10
Video, audio and picture options 11
DivX videos 12
Play a musical slideshow 12
BonusView on Blu-ray 12
BD-Live on Blu-ray 13
Play a Blu-ray 3D video 13
Set up a network 13
Browse PC through DLNA 14
Enjoy Internet services 14
Stream media from an Android device 15
Smartphone control 15
Use Philips EasyLink 16
3 Change settings 16
Picture 16
Sound 17
Network (installation, status...) 17
Preference (languages, parental control...) 17
Advanced options (clear memory...) 18
4 Update software 19
Update software via the Internet 19
Update software via USB 19
5 Specications 20
6 Troubleshooting 21
7 Safety and important notice 23
BDP3480_96_UM_V1.0.indb 9 3/27/2013 11:14:53 AM

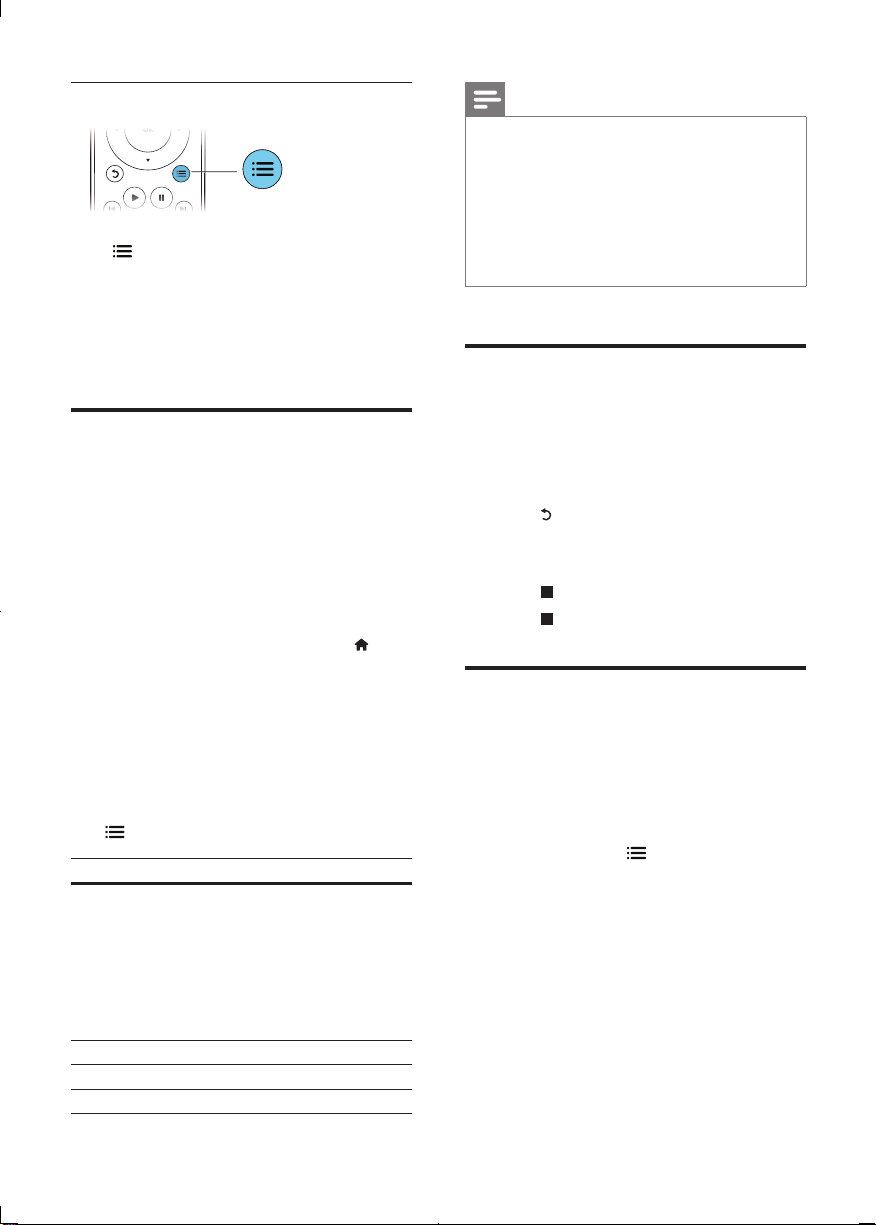

10 EN
2 Use your Blu-ray
disc/ DVD player
Congratulations on your purchase, and
welcome to Philips! To fully benet from
the support that Philips offers (e.g. product
software upgrade), register your product at
www.philips.com/welcome.
Basic play control
During play, press the following buttons to control.
Button Action
Turn on the player, or switch
to standby.
Access the home menu.
/ Stop play.
Press and hold (more than
4 seconds) to open or close
the disc compartment.
Pause play.
Press repeatedly to slow
forward frame by frame.
Start or resume play.
/ Skip to the previous or next
track, chapter or le.
/ Fast backward or forward.
Press repeatedly to change
the search speed.
Press once, and then press
to slow forward.
AUDIO Select an audio language or
channel.
SUBTITLE Select a subtitle language.
DISC MENU /
POP-UP
MENU
Access or exit the disc
menu.
TOP MENU Access the main menu of a
video disc.
Color buttons Select tasks or options for
Blu-ray discs.
Navigate the menus.
Press to rotate
a picture clockwise or
counter-clockwise during
slideshow.
OK Conrm a selection or entry.
Return to a previous display
menu.
Access more options during
play.
Alphanumeric
buttons
Select an item to play.
Enter values.
Enter letters via SMS style
entry.
BDP3480_96_UM_V1.0.indb 10 3/27/2013 11:14:53 AM

11
English
EN

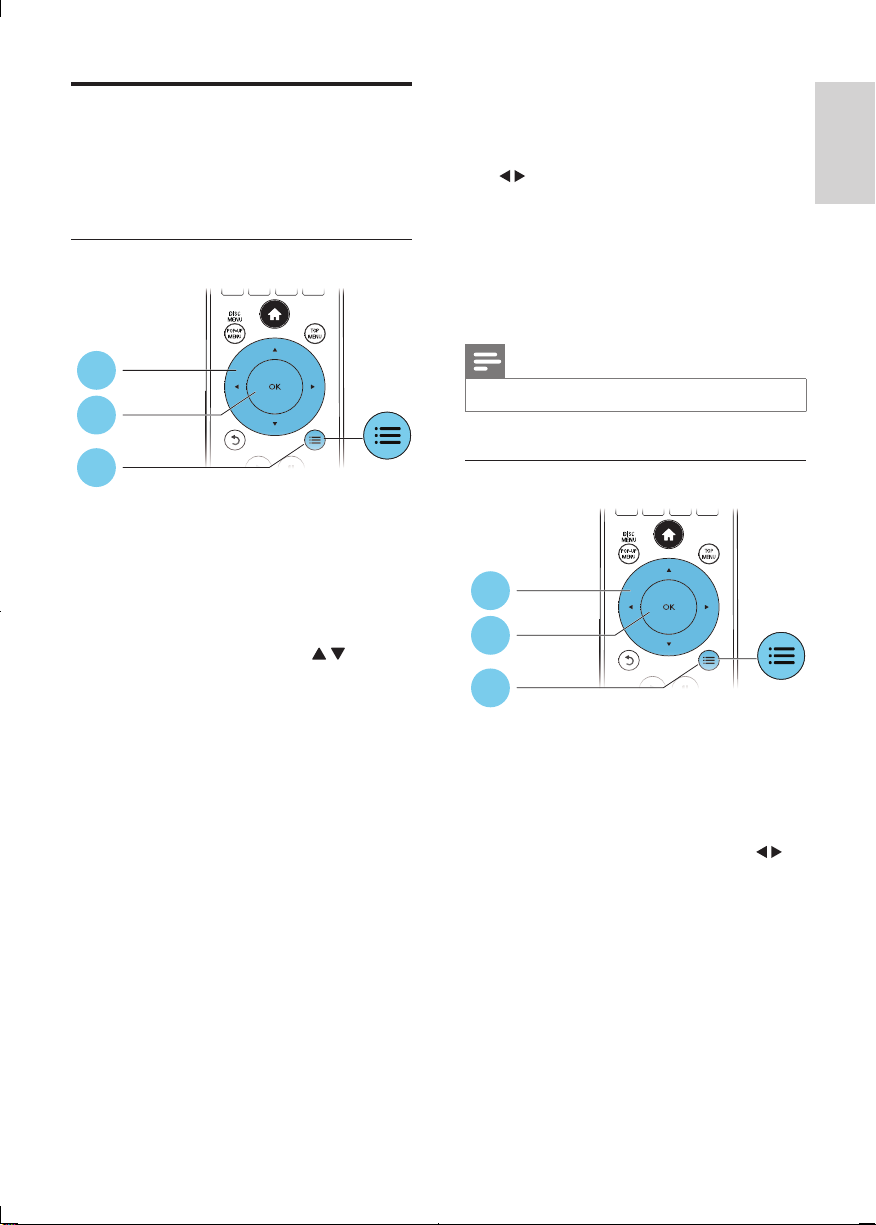

Video, audio and picture
options
More options are available for video or picture
play from a disc or USB storage device.
Video options
Access more options during video play.
• [Audio Language]: Select an audio
language.
• [Subtitle Language]: Select a subtitle
language.
• [Subtitle Shift]: Change the subtitle
position on the screen. Press to
change the subtitle position.
• [Info]: Display play information.
• [Character Set]: Select a character set that
supports the DivX video subtitle (only for
DivX videos).
• [Time Search]: Skip to a specic time
via the numeric buttons on the remote
control.
• [2nd Audio Language]: Select the second
audio language (only for Blu-ray discs that
support BonusView).
• [2nd Subtitle Language]: Select the second
subtitle language (only for Blu-ray discs that
support BonusView).
• [Titles]: Select a title.
• [Chapters]: Select a chapter.
• [Angle List]: Select a camera angle.
• [Menus]: Display a disc menu.
1
2
3
• [PIP Selection]: Display a picture-in-picture
window (only for Blu-ray discs that support
BonusView).
• [Zoom]: Zoom into a video picture. Press
to select a zoom factor.
• [Repeat]: Repeat a chapter or title.
• [Repeat A-B]: Mark two points within a
chapter for repeat play, or turn off repeat
mode.
• [Picture Settings]: Select a predened
color setting.
Note
•Available video options depend on the video source.
Picture options
Access more options during slideshow.
• [Rotate +90]: Rotate a picture 90 degrees
clockwise.
• [Rotate -90]: Rotate a picture 90 degrees
counter-clockwise.
• [Zoom]: Zoom into a picture. Press to
select a zoom factor.
• [Info]: Display picture information.
• [Duration per slide]: Set a display interval
for a slideshow.
• [Slide Animation]: Select a transition effect
for a slideshow.
• [Picture Settings]: Select a predened
color setting.
• [Repeat]: Repeat a selected folder.
1
2
3
BDP3480_96_UM_V1.0.indb 11 3/27/2013 11:14:54 AM

12 EN
Audio options
Press repeatedly to cycle through the
following options.
• Repeat the current track.
• Repeat all the tracks on the disc or folder.
• Play audio tracks in a random loop.
• Turn off a repeat mode.
DivX videos
You can play DivX videos from a disc, a USB
storage device, or an online video store (see
"Rent online videos).
VOD code for DivX
• Before you purchase DivX videos and play
them on this player, register this player on
www.divx.com using the DivX VOD code.
• Display the DivXVOD code: press , and
select [Setup] > [Advanced] > [DivX®
VOD Code].
DivX subtitles
• Press SUBTITLE to select a language.
• If the subtitle is not displayed correctly,
change the character set that supports the
DivX subtitle. Select a character set: press
, and select [Character set].
Character set Languages
[Standard] English, Albanian,
Danish, Dutch,
Finnish, French, Gaelic,
German, Italian, Kurdish
(Latin), Norwegian,
Portuguese, Spanish,
Swedish and Turkish
[Chinese] Simplied Chinese
[Chinese-Traditional] Traditional Chinese
[Korean] English and Korean
Note
•To play DivX DRM protected les from a USB storage
device, or an online video store, connect this player to a
TV through HDMI.
•To use the subtitles, make sure that the subtitle le
has the same name as the DivX video le name. For
example, if the DivX video le is named “movie.avi",
save the subtitle le as “movie.srt”, or “movie.sub”.
•This player can play subtitle les in the following
formats: .srt, .sub, .txt, .ssa, and .smi.
Play a musical slideshow
Play music and pictures simultaneously to create
a musical slideshow.
1 From a disc or connected USB storage
device, play a music le.
2 Press , and go to the picture folder.
3 Select a picture from the same disc or
USB, and press OK to start slideshow.
4 Press to stop slideshow.
5 Press again to stop music play.
BonusView on Blu-ray
View special content (such as commentaries) in
a small screen window.
This feature is only applicable to Blu-ray discs
compatible with BonusView (also known as
picture in picture).
1 During play, press .
» The options menu is displayed.
2 Select [PIP selection] > [PIP], and press
OK.
» PIP options [1]/[2] depend on the
video contents.
» The secondary video window is
displayed.
3 Select [2nd audio language] or [2nd
Subtitle Language], and press OK.
BDP3480_96_UM_V1.0.indb 12 3/27/2013 11:14:55 AM

13
English
EN
BD-Live on Blu-ray
Access exclusive online services, such as movie
trailers, games, ringtones and other bonus
contents.
This feature is only applicable to Blu-ray discs
that are BD-Live enabled.
1 Prepare the Internet connection and set
up a network (see "Set up a network").
2 Connect a USB storage device to the
(USB) connector on this player.
• A USB storage device is used to store
the downloaded BD-Live content.
• If you connect this player to the
Internet through a Wi-Fi USB adapter
(sold separately), connect a USB hub
(not supplied) to this player to make
multiple USB ports available.
• To delete the BD-Live previously
downloaded on the USB storage
device for memory release, press
and select [Setup] > [Advanced] >
[Clear memory].
3 Play a disc that is BD-Live enabled.
4 On the disc menu, select the BD-Live icon,
and press OK.
» BD-Live starts to load.The loading
time depends on the disc and the
Internet connection.
5 On the BD-Live interface, select an item
to access.
Note
•BD-Live services vary from discs and countries.
•When you use BD-Live, data on the disc and this player
are accessed by the content provider
•Use a USB storage device with at least 1GB of free
space to store the download.
•If a USB hub is used with this player, do not overload
the USB hub with many USB devices to avoid
insufcient USB power.
Play a Blu-ray 3D video
What you need
• A 3D compliant TV
• This player is connected to the TV through
HDMI
• 3D glasses compatible with theTV
• 3D Blu-ray disc
1 Make sure that 3D output is turned on:
press , and select [Setup] > [Video]
>[Watch 3D video] > [Auto].
2 Play a Blu-ray 3D video.
3 Put on the 3D glasses for 3D effects.
• To play 3D video in 2D, turn off Blu-ray
3D output (press , and select [Setup]
> [Video] > [Watch 3D video] >
[Off]).
Set up a network
Connect this player to a computer network and
the Internet to access the services:
• Browse PC (DLNA): play photos, music,
and video les streamed from your
computer.
• Internet services: access online services,
such as pictures, music and video stores.
• Update software: update the software of
this player via the Internet.
• BD-Live: access online bonus features
(applicable to Blu-ray discs that are BD-
Live enabled).
1 Connect this player to a computer
network and the Internet, through wired
(Ethernet) or wireless connection.
• For wired connection, connect a
network cable (not supplied) to the
LAN port on the back panel of this
player.
BDP3480_96_UM_V1.0.indb 13 3/27/2013 11:14:55 AM

14 EN
2 Perform the network installation.
1) Press .
2) Select [Setup], and press OK.
3) Select [Network] > [Network
installation], and press OK.
4) Follow the instructions on the TV screen to
complete the installation.
Caution
•Before you connect to a network, familiarize yourself
with the network router, media server software for
DLNA, and networking principles. If necessary, read
documentation accompanying network components.
Philips is not responsible for lost, damaged, or corrupt
data.
Browse PC through DLNA
Through this player, you can stream and play
video, music and photo from a computer on
your TV.
Before you start
• On your PC, install a DLNA-compliant
media server application (such as Windows
Media Player 11 or higher)
• On your PC, enable media sharing and le
sharing (see the "Help" document in the
media server application)
PC (DLNA)
1 Connect this player and your PC in the
same home network (see "Set up a
network").
• For better video quality, use wired
network connection whenever
possible.
2 Press .
» The home menu is displayed on the
TV screen.
3 Select [browse PC], and press OK.
» A content browser is displayed.
4 Select a le, and press OK to play.
• Use the remote control to control play.
Enjoy Internet services
With this player, you can access online services,
such as movies, pictures and music.
What you
need
Connect this player to the
Internet. (see "Set up a network").
1 Press .
2 Select a service and press OK.
• [Netix]: an online subscription service
streaming movies &TV episodes over the
Internet
• [YouTube]: a video-sharing service
• [Facebook]: a social networking service
• [Twitter]: an online social networking
service and microblogging service
• [Piccasa]: an online photo album
• [AccuWeather]: an online weather
forecasting service worldwide
Note
•Availability of Netix service varies from country to
country.
3 Follow the on-screen instruction and use
your remote control to enjoy the services.
BDP3480_96_UM_V1.0.indb 14 3/27/2013 11:14:56 AM

15
English
EN
Function Button/Action
Select a service or item.
Conrm a selection. OK
Return to a previous page, or
delete input text.
Return to the home page.
Stream media from an
Android device
With Philips SimplyShare, through this player
you can stream media les from an Android
based device on yourTV. For details, visit www.
philips.com/support
Smartphone control
Use a smartphone to browse, control and play
media les from this player.
What you need
• An iPhone (iOS 3.1.3 and above) or
Android based device (Android 2.1 and
above)
• On your smartphone, download Philips
MyRemote application
• For iPhone, search for the application
in App Store
• For Android based device, search for
the application in Android Market
Before you start
• Connect this player to a home network
(see "Set up a network").
• Connect your smartphone to the same
home network (see the user manual of the
smartphone for details).
• Turn on this player
Control your player
Use a smartphone to browse, control and play
media les from this player.
1 Insert a data disc or USB storage device
into this player.
2 On your smartphone, tap the MyRemote
icon from the home screen.
» The name of this player is displayed on
the smartphone.
3 Select this player from the smartphone
screen.
» The smartphone used as a virtual
remote control is enabled.
4 On the smartphone, tap the Media
(Media) tab, and then select the disc or
USB source.
» The folders in the data disc or USB
storage device are displayed.
5 Open a folder, and select a le to play.
• To access the remote control, return
to the previous smartphone screen,
and then tap the Remote (Remote)
tab. Only the relevant control buttons
are enabled.
6 Tap the control buttons on the
smartphone to control play.
• To access more control buttons, swipe
the screen to the left or right.
• To exit the application, press the home
button on the smartphone.
BDP3480_96_UM_V1.0.indb 15 3/27/2013 11:14:57 AM

16 EN
Use Philips EasyLink
This player supports Philips EasyLink which
uses the HDMI CEC (Consumer Electronics
Control) protocol.You can use a single remote
control to control EasyLink compliant devices
that are connected through HDMI. Philips does
not guarantee 100% interoperability with all
HDMI CEC devices.
1 Connect the HDMI CEC compliant devices
through HDMI, and turn on the HDMI
CEC operations on the TV and other
connected devices (see the user manual of
the TV or other devices for details).
2 Press .
3 Select [Setup]> [EasyLink].
4 Select [On] under the options: [EasyLink],
[One Touch Play] and [One Touch
Standby].
» EasyLink function is turned on.
One Touch Play
When a video disc is in the disc compartment,
press to wake up the TV from standby, and
then play a disc.
One Touch Standby
When a connected device (for example TV)
is put to standby with its own remote control,
this player is put to standby automatically.
3 Change settings
This section helps you to change the settings of
this player.
Note
•You cannot change a menu option that is grayed out.
•To return to the previous menu, press .To exit the
menu, press .
1 Press .

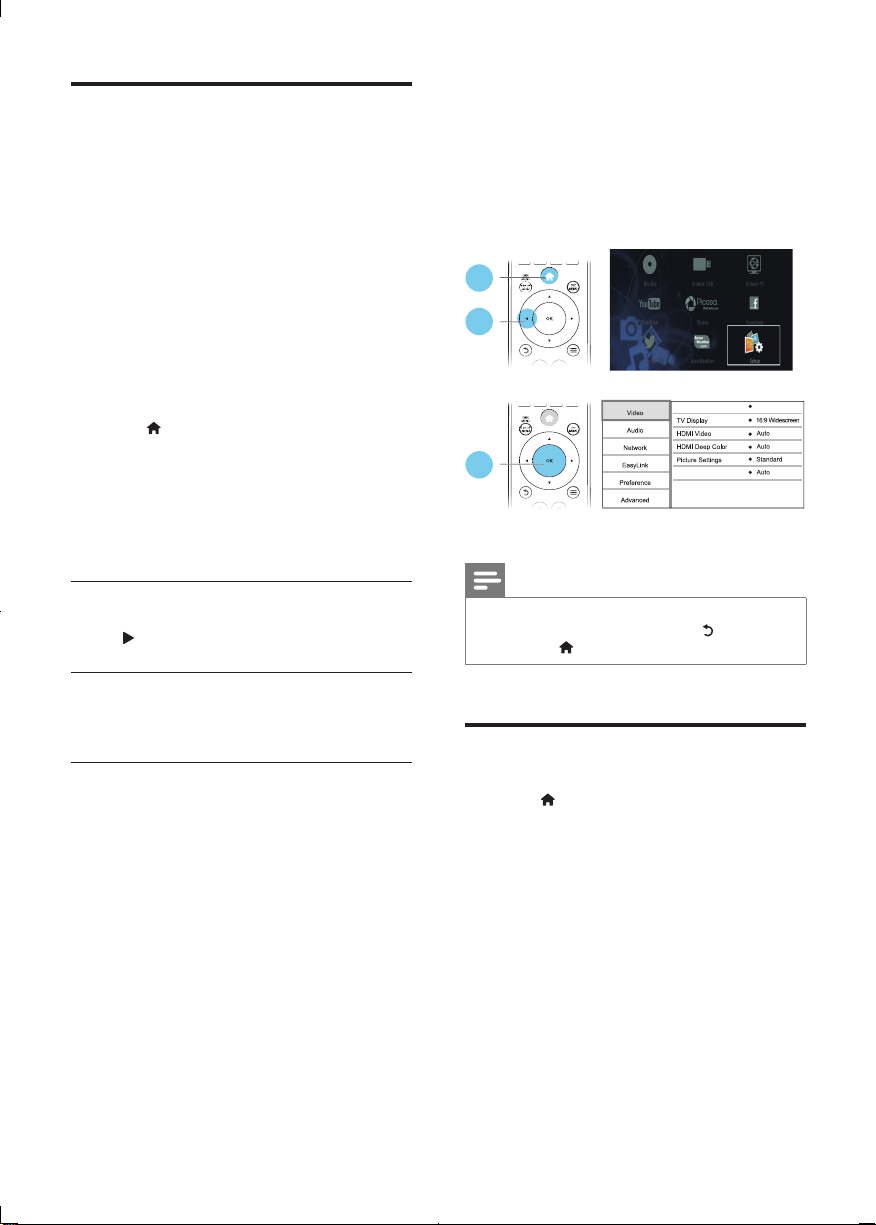

2 Select [Setup] > [Video] to access the
video setup options.
• [TV type]: Select a color system to t your
TV.
• [TV display]: Select a picture display format
to t the TV screen.
• [HDMI video]: Select an HDMI video
resolution.
• [HDMI Deep Color]: Display colors with
more shades and hues when the video
content is recorded in Deep Color and the
TV supports this feature.
1
2
3
TV type NTSC
Watch 3D video
BDP3480_96_UM_V1.0.indb 16 3/27/2013 11:14:58 AM

17
English
EN
• [Picture settings]: Select a predened
color setting.
• [Watch 3D video]: Set to 3D or 2D
output when playing a Blu-ray 3D disc.
The player must be connected to a 3D TV
through HDMI.
Note
•If you change a setting, make sure that the TV supports
the new setting.
•For settings related to HDMI, theTV must be
connected through HDMI.
•For the composite connection (via the VIDEO
connector), select a video resolution of 480i/576i
or 480p/576p under [HDMI video] to enable video
output.
Sound
1 Press .
2 Select [Setup] > [Audio] to access the
audio setup options.
• [Night Mode]: Select quiet or full dynamic
sound. Night mode decreases the volume
of loud sound and increases the volume of
soft sound (such as speech).
• [HDMI Audio]: Set an HDMI audio format
when this player is connected through
HDMI.
• [Digital Audio]: Select an audio format
for the sound output when this player is
connected through a digital connector
(coaxial).
• [PCM Downsampling]: Set the sampling
rate for PCM audio output when this
player is connected through a digital
connector (coaxial).
Note
•For settings related to HDMI, theTV must be
connected through HDMI.
•Night mode is only available for Dolby encoded DVD
and Blu-ray discs.
Network (installation,
status...)
1 Press .
2 Select [Setup] > [Network] to access the
network setup options.
• [Network installation]: Start a wired or
wireless installation to make the network
work.
• [View network settings]: Display the
current network status.
• [View wireless settings]: Display the
current Wi-Fi status.
• [Name your Product:]: Re-name this
player for identication in a home network.
Preference (languages,
parental control...)
1 Press .
2 Select [Setup] > [Preference] to access
the preference setup options.
• [Menu language]: Select an onscreen
display menu language.
• [Audio]: Select an audio language for video.
• [Subtitle]: Select a subtitle language for
video.
• [Disc Menu]: Select a menu language for a
video disc.
• [Parental Control]: Restrict access to discs
that are encoded with ratings. Input "0000"
to access the restriction options.To play all
discs irrespective of the rating, select level
"8".
• [Screen Saver]: Enable or disable screen
saver mode. If enabled, the screen enters
idle mode after 10 minutes of inactivity (for
example, in pause or stop mode).
• [Auto Subtitle Shift]: Enable or disable
subtitle shift. If enabled, the subtitle position
is changed automatically to t the TV
screen (this feature works with some
Philips TVs only).
BDP3480_96_UM_V1.0.indb 17 3/27/2013 11:14:58 AM

18 EN
• [Change Password]: Set or change a
password to play a restricted disc. Input
"0000" if you do not have a password or if
you have forgotten your password.
• [Display Panel]: Change the brightness of
the display panel of the player.
• [Auto Standby]: Enable or disable auto
standby. If enabled, the player switches to
standby after 30 minutes of inactivity (for
example, in pause or stop mode).
• [Fast wake up]: Enable or disable the
player to wake up faster from standby. If
fast wakeup is turned off, less power is
consumed during standby.
• [VCD PBC]: Display or skip the content
menu forVCD and SVCD.
Note
•If your preferred language is not available for disc
language, audio or subtitle, you can select [Other]
from the menu options and input 4-digit language code
which can be found at the back of this user manual.
•If you select a language which is not available on a disc,
this player uses the default language of the disc.
Advanced options (clear
memory...)
1 Press .
2 Select [Setup] > [Advanced] to access the
advanced setup options.
• [BD-Live security]: Restrict or allow access
to BD-Live (only for non-commercial, user-
created BD-Live discs).
• [Downmixmode]: Control 2-channel
stereo audio output.
• [Software update]: Select to update
software from a network or from USB
storage device.
• [Clear memory]: Delete the previous BD-
Live download on the USB storage device.
A "BUDA" folder is automatically created
to store the BD-Live download.
• [DivX® VOD Code]: Display the DivX®
registration code or the deregistration
code for this player.
• [Version information]: Display the
software version of this player.
• [Restore default settings]: Reset this player
to the default settings made at the factory,
except for password and parental control
level.
Note
•You cannot restrict Internet access on commercial
Blu-ray discs.
•Before you purchase DivX videos and play them on this
player, register this player on www.divx.com with the
DivX VOD code.
•Availability of Netix service varies from country to
country.
BDP3480_96_UM_V1.0.indb 18 3/27/2013 11:14:58 AM

19
English
EN
4 Update software
Before you update the software of this player,
check the current software version:
• Press , and then select [Setup] >
[Advanced] > [Version information], and
press OK.
Update software via the
Internet
1 Connect the player to the Internet (see
"Set up a network").
2 Press , and select [Setup].
3 Select [Advanced] > [Software update]>
[Network].
» If an upgrade media is detected, you
are prompted to start the update.
4 Follow the instructions on the TV screen
to update the software.
» When the update is complete, this
player automatically turns off and on
again.
Update software via USB
1 Check the latest software version on www.
philips.com/support.
• Search for your model and click on
"Software and drivers".
2 Download the software into a USB storage
device.
a Unzip the download, and make sure
that the unzipped folder is named
"UPG_ALL".
b Put the "UPG_ALL" folder in the root
directory.
3 Connect the USB storage device to the
(USB) connector on this player.
4 Press , and select [Setup].
5 Select [Advanced] > [Software update]>
[USB].
» If an upgrade media is detected, you
are prompted to start the update.
6 Follow the instructions on the TV screen
to update the software.
» When the update is complete, this
player automatically turns off and on
again.
Caution
•Do not turn off the power or remove the USB storage
device when the software update is in progress because
you might damage this player.
BDP3480_96_UM_V1.0.indb 19 3/27/2013 11:14:58 AM

20 EN
5 Specifications
Note
•Specications are subject to change without notice
Region code
This player can play discs with the following
region codes.
DVD Blu-ray Countries
Asia Pacic, Taiwan,
Korea
Playable media
• BD-Video, BD 3D
• DVD-Video, DVD+R/+RW, DVD-R/-RW,
DVD+R/-R DL (Dual Layer)
• VCD/SVCD
• Audio CD, CD-R/CD-RW, MP3 media,
WMA media, JPEG les
• DivX (Ultra)/DivX Plus HD media, MKV
media
• USB storage device
File format
• Video: .avi, .divx, .mp4, .mkv, .wmv, .rmvb,
.rm
• Audio: .mp3, .wma, .wav
• Picture: .jpg, .gif, .png
Video
• Signal system: PAL / NTSC
• Composite video output: 1 Vp-p (75 ohm)
• HDMI output: 480i/576i, 480p/576p, 720p,
1080i, 1080p, 1080p/24Hz
Audio
• 2 Channel analog output
• Audio Front L&R : 2 Vrms (> 1 kohm)
• Digital output: 0.5 Vp-p (75 ohm)
• Coaxial
• HDMI output
A
• Sampling frequency:
• MP3: 32 kHz, 44.1 kHz, 48 kHz
• WMA: 44.1 kHz, 48 kHz
• Constant bit rate:
• MP3: 112 kbps - 320 kpbs
• WMA: 48 kpbs - 192 kpbs
USB
• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class
• File system: FAT16, FAT32
• USB port: 5V , 500mA (for each port)
• Support HDD (a portable hard disc drive):
an external power source may be needed.
Main unit
• Power supply rating: 100-240V~, 50-60 Hz
• Power consumption: 10 W
• Power consumption in standby mode (fast
wakeup disabled): < 0.5 W
• Dimensions (w x h x d):
360 x 42 x 219 (mm)
• Net Weight: 1.15 kg
Accessories supplied
• Remote control and 2 AAA batteries
• HDMI cable
• User manual
LaserSpecication
• Laser Type (Diode): AlGaInN (BD), AlGaInP
(DVD/CD)
• Wave length: 398 ~ 412nm (BD),
650 ~ 664nm (DVD), 784 ~ 796nm (CD)
• Output power (Max ratings): 20mW (BD),
7mW (DVD), 7mW (CD)
BDP3480_96_UM_V1.0.indb 20 3/27/2013 11:14:59 AM
