Philips 21PT5217 User manual

Real Flat Television
21PT5217
21PT5117
User manual

IMPORTANT
Before you begin:
Make sure your package includes the following items:TV and mains cord,
remote control, Instruction manual, antenna cable (optional) and Coaxial
cable (optional).
Attention:
1. Read your manual first – your Philips TV comes with a well-designed
remote control and onscreen display to ensure your TV is easy to
operate.
2. The tips provided in this manual will save you time and money as
charges for TV installation and adjustments of customer controls are
not covered under the warranty.
3. For information outside of this manual, such as sales locations and
other Philips products, please visit www.philips.com which will
automatically link you to your local Philips website.
4. Please refer to the ‘Tips’on page 14 before calling for service.
5. In case of a need to call for service, we recommend you to call from
your room where your TV is located and have on hand your remote
control, warranty card,TV model and serial number.
6Do not discard packaging materials:
•without thorough inspection for parts and that accessories that may be
packed separately inside the carton.
•during the warranty period should you need to exchange the set.
Recycling:
The materials used in your set are either reusable or can be recycled.
To minimise environmental waste, specialist companies collect used
appliances and dismantle them after retrieving any materials that can be
used again (ask your dealer for further details).
Disclaimer: Graphics in this manual are for illustration purpose and may not represent the
actual product

General User manual-21PT5317_5117 1
Ta b le of Contents
General
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Useful Tips . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Installation
Installing your television set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Remote control keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Auto Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Manual Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Operation
Picture settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Sound settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Feature settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Signal Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Personal Zapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 0
Peripherals
DVD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Video recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Side connections (for 21PT5117). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Front connections (for 21PT5217). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Practical information
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 5
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
p1-2_21PT5217_5117.p65 07/28/04, 10:50 AM1

2 User manual-21PT5217_5117 General

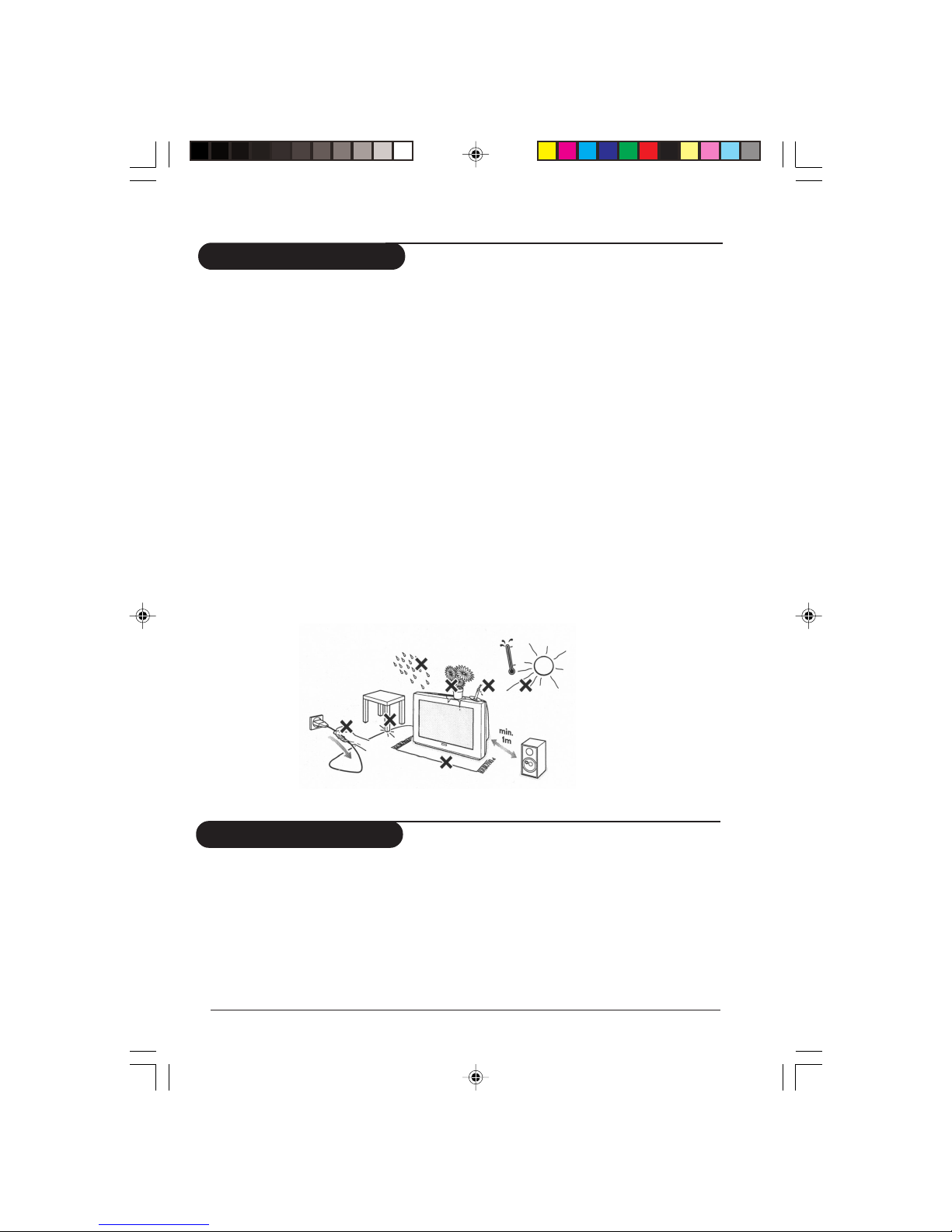

Safety information
•Disconnect mains plug when :
–the indicator light below the TV screen is flashing continuously.
–abright white line is displayed across the screen.
–there is a lightning storm.
–the set is left unattended for a prolonged period of time.
•cleaning the TV screen. Never use abrasive cleaning agents. Use a slight damp chamois
leather or soft cloth.
•No naked flame sources, such as lighted candles, should be placed on top of the TV or in
the vicinity.
• Do not place your TV set under direct sunlight or heat.
•Leave at least 10 cm around each side of TV set to allow for proper ventilation.
•Avoid placing your set (e.g. near the window) where it is likely to be exposed to rain
or water.
•No objects filled with liquids should be placed on top the TV so as to avoid dripping
or splashing of liquids on the set.
Useful information
•Do not leave your set on standby mode for a prolonged period of time. Switch off set
to allow it to be demagnetised. A demagnetised set supports good picture quality.
• Do not shift or move the set around when it is switched on. Uneveness in colour in
some parts of the screen may occur.
•Never attempt to repair a defective TV yourself.Always consult a skilled service
personnel.
p1-2_21PT5217_5117.p65 06/30/04, 9:38 AM2

Installation User manual-21PT5217_5117 3

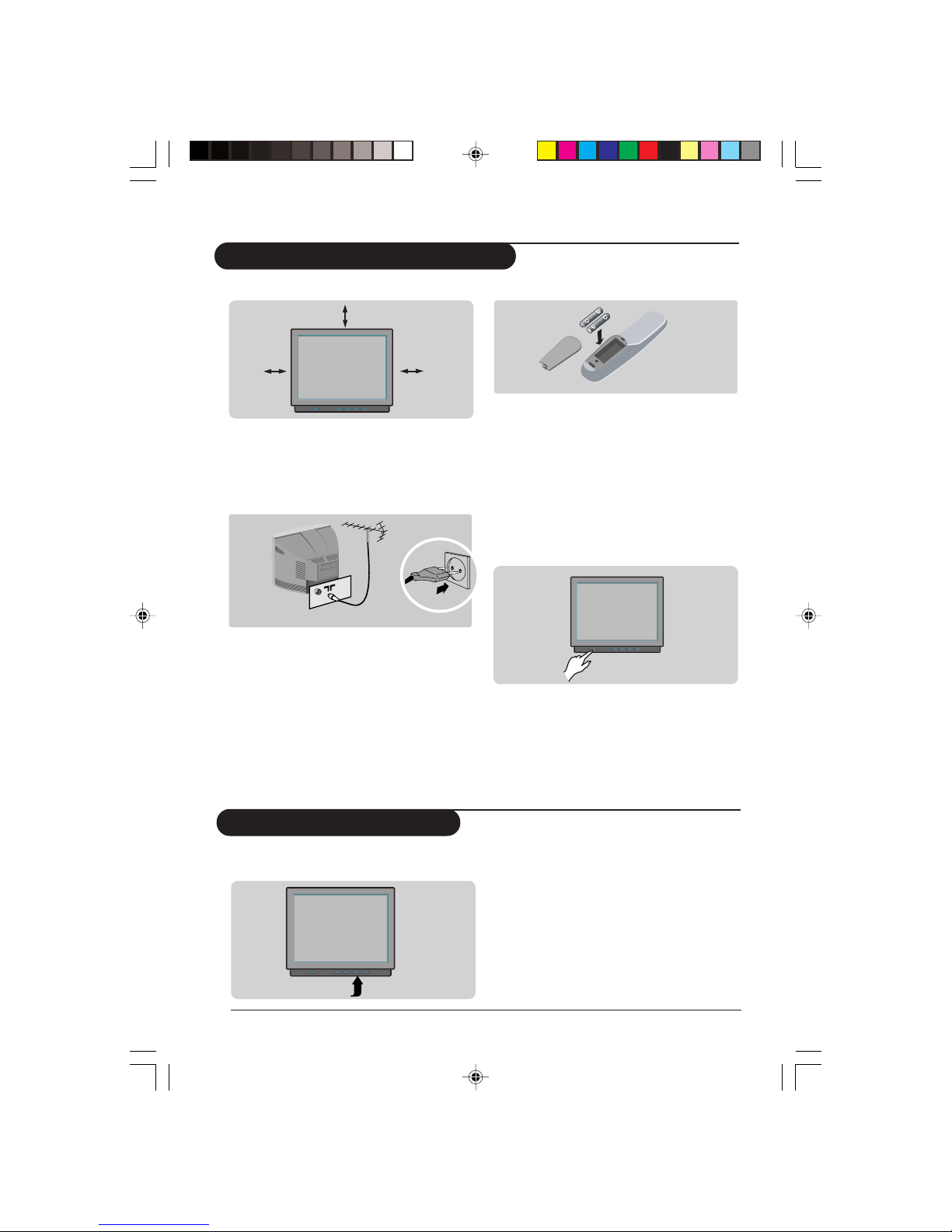

Positioning the television set
Installing your television set
Place your TV on a solid, stable surface,
leaving a space of at least 10 cm around the
appliance.
Connections
10 cm10 cm
10 cm
•Insert the aerial plug into the xsocket
at the rear of the set.
If you are using an indoor aerial, reception
may be difficult in certain conditions. You
can improve reception by rotating the
aerial. If the reception remains poor, you
will need to use an external aerial.
•Insert the mains plug into a wall socket.
Diagram may differ from the actual plug.
Remote control
Insert the two R6-type batteries (supplied)
making sure that they are the right way
round.
The batteries supplied with this appliance do
not contain mercury or nickel cadmium.
If you have access to a recycling facility, please do
not discard your used batteries (if in doubt,
consult your dealer).
Switching on
To switch on the set, press the on/off key.
A red indicator means that the television is on
standby mode. Refer to the next page on ‘Remote
Control keys’ for the various keys that you could
use to switch on the set.An indicator light will
flash when it is receiving signal from the remote
control.
The keys on the TV set
The television set has 4 keys which are
located at front.
The VOLUME – + keys are used to adjust the
sound levels.The CHANNEL v ^keys are
used to select channels.
To access or exit the main menu, press down
theVOLUME – + keys, simultaneously.
To select an item in the main menu, press the
CHANNEL v or ^key.
To select an adjustment, press down the
VOLUME – or + key.
p3-7_21PT5217_5117.p65 07/06/04, 5:09 PM3

4 User manual-21PT5217_5117 Installation

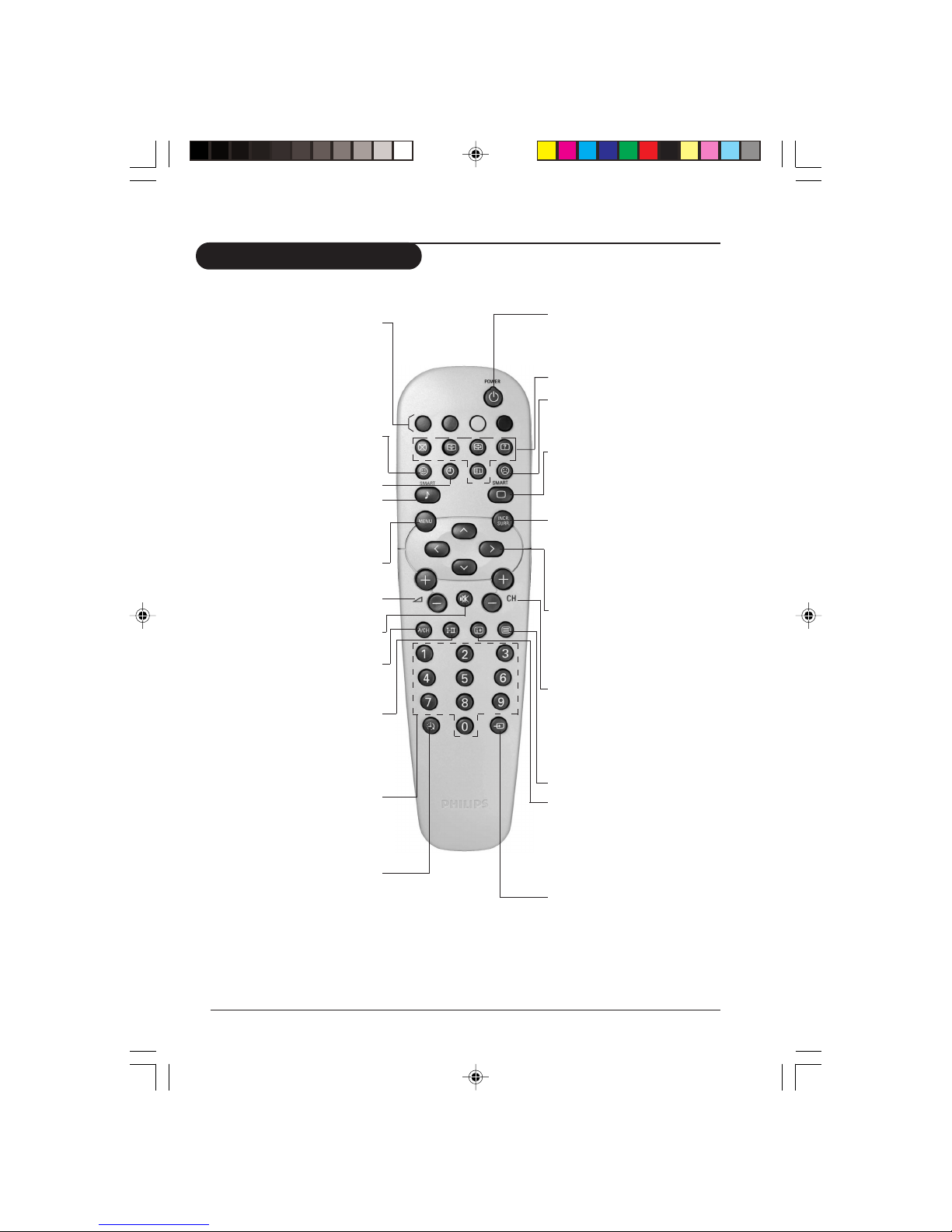

Remote control keys
Standby
Lets you place the TV set on standby.
To turn on the TV, press CH + or –,
2,AV,A/CH or digit keys
Teletext keys (p. 10)
Delete Personal Zapping list
Deletes stored channels from
Personal Zapping list (p. 9)
Teletext /Personal Zapping
In teletext mode; the colour keys
allows direct access to an item or
corresponding pages (p. 10)
In Personal Zapping mode; you can
surf up to 10 personal channels
for each key (p.9)
Smart Picture
Used to access a series of stored
settings: DVD/VCD, Rich, Natural,
Soft, Multimedia or Personal.
Incredible surround
To activate/disable the Incredible
surround feature. In stereo, the
speakers appear further apart.
In mono, a pseudo-spatial effect is
achieved.
Cursor
These 4 keys are used to move
around the menus or provide
direct access to the different
picture formats.
Channel selection
To access the next or previous
channel.The number and sound
mode are displayed for a few
moments whenever you select a
new channel.
Teletext key (p. 10)
On screen display
To display/clear the on screen
information. Press the key for 5
seconds to activate permanent
display of channel number.This key
is also used to exit from the menu.
AV channel selection
Press several times to select AV1,
AV2 or FRONT (for 21PT5117).
Add Personal Zapping list
Adds and stores channels into
Personal Zapping list (p.9)
Smart Sound
Used to access a series of stored
settings:Theatre, Music,Voice or
Personal.
Menu
To call up or exits menus.
Volume
To adjust the sound level.
Mute
To mute or restore sound.
Alternate channel
Switched between the current and
the previous channel.
X
During stereo transmission, to
switch from Stereo to Mono. During
dual sound transmission, to switch
betwen language Y or Z.
Digit keys
Direct access to the channels. For
a 2-digit channel, enter the
second digit before the first digit
disappears.
Sleeptimer
Selects a period of time after
which the TV will go into standby
mode automatically.
No function
p3-7_21PT5217_5117.p65 07/06/04, 5:09 PM4

Installation User manual-21PT5217_5117 5

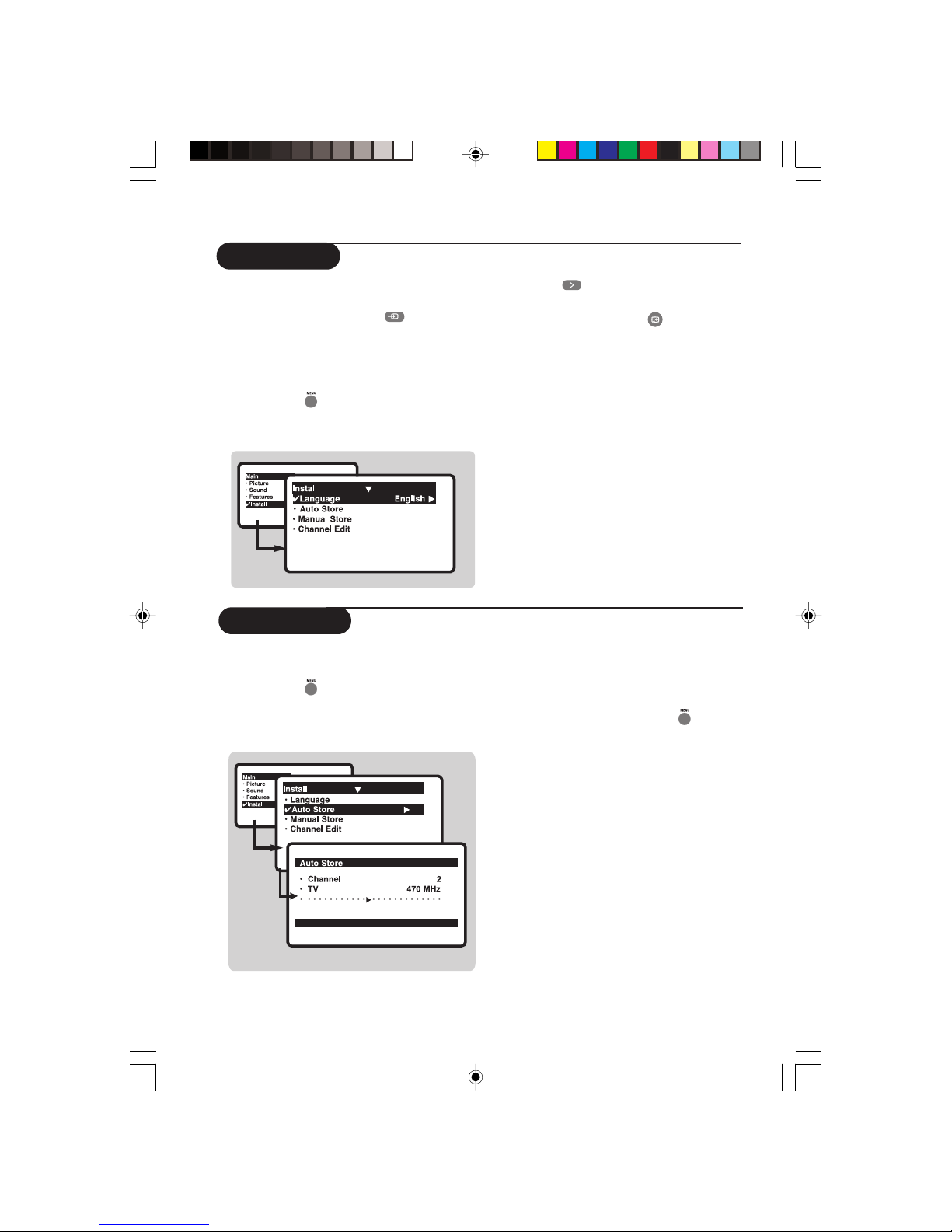

Language
When there is no signal input to the TV, you
may encounter instability of the screen display.
In this instance, please use the key to select
an AV channel.
The Language feature is used to change the
display language for menus.
&Press the key.
éWith the cursor, select the Install menu
and follow by the Language.
“Use the key to select a language of
your choice.
‘To quit the menus, press .
Auto Store
This menu is used to store all available
channels automatically.
&Press the key.
éWith the cursor, select the Install menu
and follow by the Auto Store.
All the available TV channels will be stored.
This operation takes a few minutes.The display
shows the progress of the search and the
number of channels found.
To exit or interrupt the search, press .
If no channels are found, consult the possible
solutions on p.14.
Auto Store
p3-7_21PT5217_5117.p65 07/06/04, 5:09 PM5

6 User manual-21PT5217_5117 Installation
Manual Store
‘Sound System: use the or key
to select the desired sound system; Auto,
BG, I, DK or M.
(Search: Press . The search starts.
Once a channel is found, the scanning
stops. Go to the next step.
If no picture is found, consult the possible
solutions (p.14)
§Channel: enter the required channel
with the , or digit keys.
Fine Tune: if the reception is not
satisfactory, adjust using the or
keys.
!Store: Press . The channel is stored.
çRepeat steps “to ‘for each channel
you wish to store.
0To quit the menus, press .
This menu is used to store channels one at a
time.
&Press the key.
éWith the cursor, select the Install menu
and follow by the Manual Store.
“Colour System: use the or key
to select the desired colour system;
Auto, PAL, NTSC 3.58, NTSC 4.43
or SECAM.
Channel edit
This feature allows you to skip or edit
channels which have bad or weak TV signal or
channels you do not watch often.
Once a channel is skipped, you cannot have
access to it by the Channel + or – key.You can
only access the channels by the digit (0-9) keys.
&Press the key.The Main menu is
displayed on the screen.
éWith the cursor, select the Install menu
followed by the Channel Edit menu.
“Enter into the menu and select the
channel number you wish to skip by the
digit keys.
‘Then use the key to select Skipped.
Use the key to select On.
(Repeat steps “and ‘for each
channel you wish to skip.
§To quit the menus, press .
To restore skipped channels
&Repeat steps &to “ above.
éUse the key to select Skipped and
the key to select Off.
“Repeat steps &and é for each
channel you wish to skip.
‘To quit the menus, press .
p3-6_21PT5217_5117.p65 07/07/04, 2:08 PM6

Operation User manual-21PT5217_5117 7
Picture settings
&Press then . This will call up the
Picture menu.
Description of the adjustments:
• Brightness: this changes picture brillance.
• Colour: this changes the intensity of the
colour.
• Contrast: this changes the difference
between the light and dark tones.
• Sharpness: this changes the picture
definition.
• Colour Temp.: this changes the colour
rendering: Cold(bluer), Normal(balanced) or
Warm(redder).
•NR: attenuates picture noise (snow) in
difficult reception conditions.
éUse the or keys to select a
setting and the or keys to adjust.
Note: during the picture adjustment, only
the selected line remains displayed. Press
or to display the menu again.
“Press to exit.
Sound settings
&Press , select Sound ( ) and press
. This will call up the Sound menu.
éUse the or key to select a setting
and the or key to adjust.
“Press to exit.
ge
Description of the adjustments:
• Treble Boost/Treble: this alters the high
frequency sound.
• Bass Boost/Bass: this alters the low
frequency sound.
• Balance: this balances the sound on the left
and right speakers.
•AVL (Automatic Volume Leveller): this is used
to limit increases in sound, especially on
channel change or advertising slots.
For 21PT5217
ge
For 21PT5117
p7-11_21PT5217_5117.p65 07/28/04, 10:51 AM7

8 User manual-21PT5217_5117 Operation

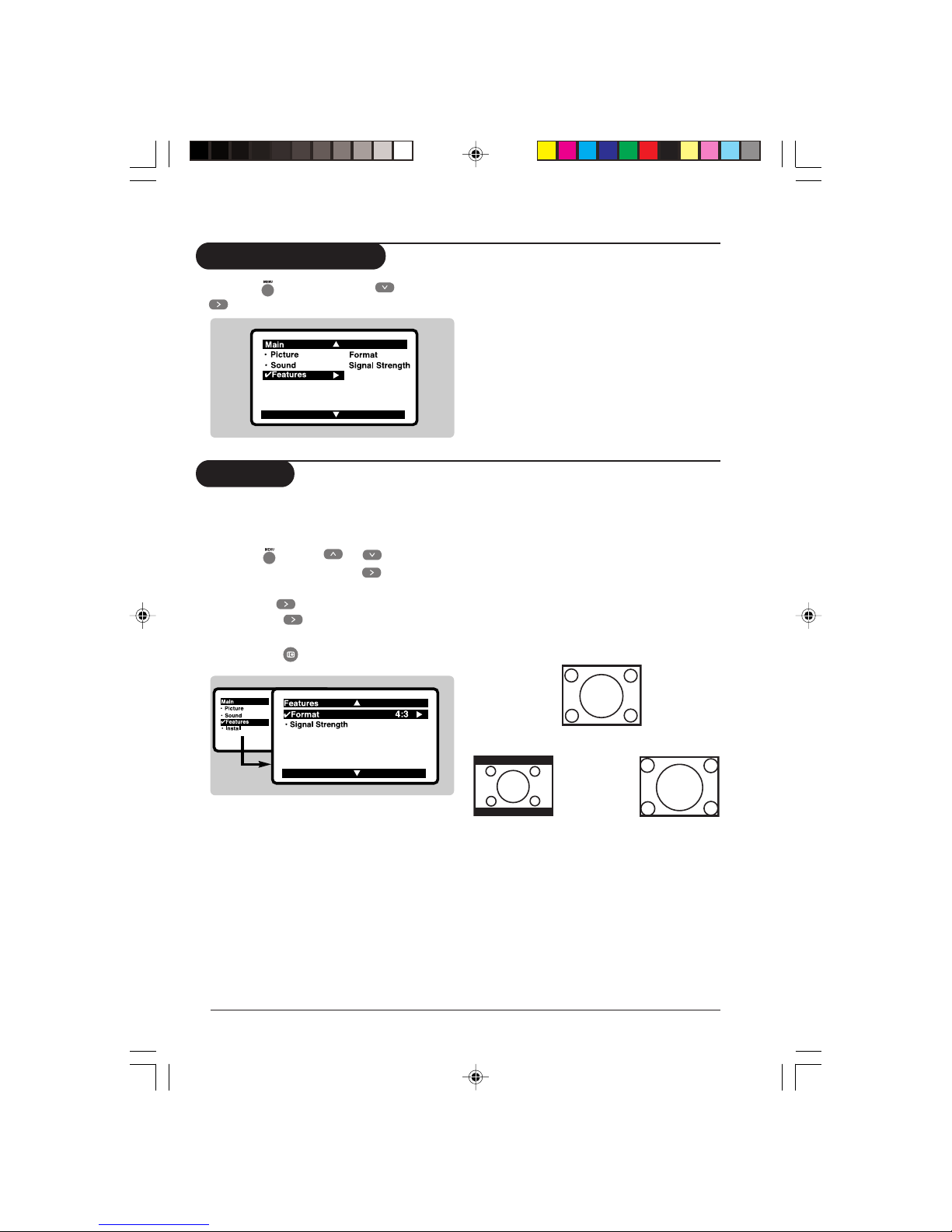

Format
This feature enhances your viewing pleasure
by providing you with a choice of two picture
formats:- 4:3 and Expand 4:3.
&Press , use the or key to select
Features and press the key.
This will call up the Features menu.
éUse the key to select Format and
press the key to select 4:3 or
Expand 4:3.
“Press the key to exit.
Description of function:
4:3 – select this format if you want to display
a conventional picture using the full surface of
the screen.
Expand 4:3 – select this format if you want
to expand pictures transmitted in a
‘letterbox’ format (black horizontal bars at
the top and bottom of the screen) to fill up
the entire screen.
4:3
Letterbox
Expand 4:3
Features settings
&Press , select Features () and press
. This will call up the Features menu.
Description of the features:
•Format: see explanation on the next few
pages.
• Signal Strength : see explanation on the
next few pages.
p7-11_21PT5217_5117.p65 07/07/04, 2:41 PM8

Operation User manual-21PT5217_5117 9
To delete channels:
&Select and press a colour key that has
stored channels repeatedly to select the
channel you want to delete.
éPress to display list.
“Press to remove channel.
‘Repeat steps &to “delete more channels.
(Press to exit.
Personal Zapping
A list or series of favourite TV programs can
be selected and stored in the 4 coloured keys
with the Personal Zapping feature.With this
feature you can easily viewed up to a total of
10 preferred channels for each coloured key.
To add channels:
&Select a channel with the digit keys.
éPress to display list.
“Press your favourite colour key to store
the channel in step &.
‘Repeat steps &to “to store more
channels.
(Press to exit.
To view channels:
Select and press a colour key that has stored
channels repeatedly to select the channel you
want to view.
Signal Strength
This feature displays the signal strength level
at the bottom of the screen. Select the option
On and it will appear each time you switch to
a new channel.
&Press , use the or key to select
Features and press the key.
This will call up the Features menu.
éUse the key to select Signal
Strength.
“Use the key to select On or Off.
‘Press the key to exit.
p7-11_21PT5217_5117.p65 07/07/04, 2:41 PM9

10 User manual-21PT5217_5117 Operation

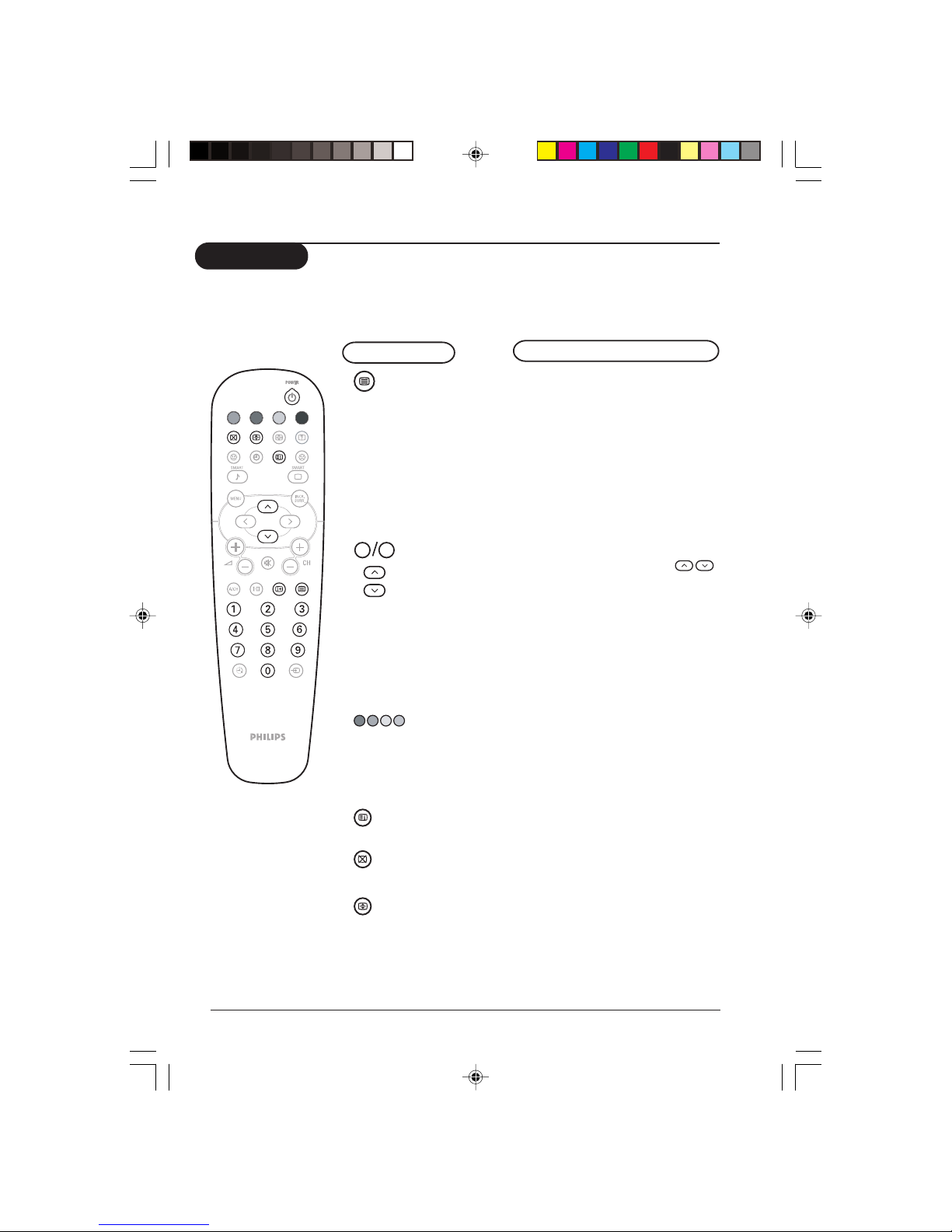

Teletext
Teletext is an information system broadcast by certain channels which can be consulted like a
newspaper. It also offers access to subtitles for viewers with hearing problems or who are not
familiar with the transmission language (cable networks, satellite channels, etc.).
Press : You will obtain:
Teletext call This is used to call teletext, change
to transparent mode and then exit.
The summary appears with a list of
items that can be accessed. Each item
has a corresponding 3 digit page
number.
If the channel selected does not
broadcast teletext, the indication 100
will be displayed and the screen will
remain blank (in this case, exit teletext
and select another channel).
Selecting a page Enter the number of the page required
using the digit, CH + or – or
keys. Example: page 120, enter 1, 2 and
0.The number is displayed on the top
left, the counter turns and then the
page is displayed. Repeat this opera-
tion to view another page.
If the counter continues to search, this
means that the page is not transmit-
ted. Select another number.
Direct access Coloured areas are displayed at the
to the items bottom of the screen.The 4 coloured
keys are used to access the items or
corresponding pages.
The coloured areas flash when the item
or the page is not yet available.
Contents This returns you to the contents page
(usually page 100).
Temporary stop This is used to temporarily disable or
activate the teletext display.
Enlarge a page This allows you to display the top or
bottom part of the page and then
return to normal size.
0 9
p7-11_21PT5217_5117.p65 07/07/04, 2:41 PM10

Operation User manual-21PT5217_5117 11
Teletext
Press : You will obtain:
Stop sub-page Certain pages contain sub-pages
acquisition which are automatically displayed
successively.This key is used to stop
or resume sub-page acquisition.
The indication gappears on the
top left.
Hidden To display or hide the concealed
information information (games solutions).
p7-11_21PT5217_5117.p65 07/07/04, 2:52 PM11

12 User manual-21PT5217_5117 Peripherals
Connecting peripheral equipment
The television has 3 external sockets situated at the back of the set (AV1 in,AV2 in and
Monitor out).
The AV1 in socket has audio and video inputs.
The AV2 in socket has S-Video, audio and video inputs.
The Monitor out socket has audio and video outputs.
&Connect the TV’s yellow, white and red (AV2 in) jacks
to the correspondingVideo and Audio jacks on the
player.
éTurn on the TV andVCR player. Set the TV to channel
AV2.You can now play your video cassette tape.
Connection is also possible via the aerial cable. You will
therefore need to tune in your video recorder’s test signal
and assign a channel number 0. Select channel 0 to
playback.
&To connect to a hi-fi system, use an audio
connection cable and connect the “L” and
“R” outputs on the TV set to the “AUDIO
IN” “L” and “R” input on your hi-fi amplifier.
Video recorder
Amplifier
p12-13_21PT5217_5117.p65 07/07/04, 3:13 PM12

Peripherals User manual-21PT5217_5117 13
Connecting peripheral equipment
Satellite receiver, decoder, games, etc.
&Carry out the connections shown opposite.
éTo optimise picture quality, connect the
equipment which produces the video signals
(digital decoder, games, etc) to AV1 in and
equipment which produces the S-VHS signals
(S-VHS and Hi-8 video recorders, certain DVD
drives to AV2 in and all other equipment to
either AV1 in or AV2 in.
Make the connections as shown opposite.With
the key, select FRONT.
For a monophonic device, connect the audio
signal to the AUDIO L input. Use the key to
reproduce the sound on the left and right
speakers of the TV set.
Headphones
When headphones are connected, the sound
on the TV set will be cut.The VOL + or –
keys are used to adjust the volume level.
The headphone impedance must be between
32 and 600 Ohms.
Other equipment
Side connections
(for 21PT5117)
Front connection
(for 21PT5217)
p12-13_21PT5217_5117.p65 07/07/04, 3:13 PM13

14 User manual-21PT5217_5117 Practical information
Tips
Poor reception
The proximity of mountains or high
buildings may be responsible for ghost
pictures, echoing or shadows. In this case,
try manually adjustingyour picture: see
Fine Tuning (p. 6) or modify the orienta-
tion of the outside aerial. Does your
antenna enable you to receive broadcasts
in this frequency range (UHF orVHF
band)? In the event of difficult reception
(snowy picture) switch the NR on the
Picture menu to ON (p. 7).
No picture
If the television does not switch on, press
the standby key (located on the
remote control) twice. Have you
connected the aerial socket properly?
Have you chosen the right system? (p. 6).
Poorly connected euroconnector cables
or aerial sockets are often the cause of
picture or sound problems (sometimes
the connectors can become half discon-
nected if the TV set is moved or turned).
Check all connections.
No sound
If on certain channels you receive a
picture but no sound, this means that you
do not have the correctTV system.
Modify the System setting (p. 6).
Colour patches on screen
Switch off the TV by the mains power
button and wait for about 20 minutes
before switching on again.
Good picture but no sound
Tr y to increase the volume level. Check
that the sound is not set to “mute”. If it is,
press the key to restore the sound.
Good sound but poor colour or no
Tr y to increase the contrast and
brightness setting.
Snowish picture and noise
Check antenna connection at the rear of
the TV.
Horizontal dotted lines
Possible electrical interference e.g.
hairdryer, vacuum cleaner, etc. Switch off
the appliances.
Double or “Ghost” images
Possible poor positioning of antenna.
Using a high directional antenna may
improve reception.
Peripheral equipment gives a black and
white picture
You have not selected the socket
connection to the right channel with the
key: for example,AV1 in socket
connection should select channel AV1 to
placback.To play a video cassette, check
that it has been recorded under the same
standard (PAL, SECAM, NTSC) which can
be replayed by the video recorder.
The remote control does not work
Check that the batteries are the right
way round and there is no obstruction
between the remote control and the TV.
If the light indicator on the set no longer
flashes when you use the remote control,
replace the batteries.
p14-17_21PT5217_5117.p65 07/07/04, 1:29 PM14

Practical information User manual-21PT5217_5117 15
Glossary
4:3
Refers to the ration between the length and
the height of the screen.Wide screen
televisions have a ration of 16:9 while
conventional televisions have a ratio of 4:3.
4:3 Expand
The images recorded in “letterbox” format
are expanded to fill the entire screen and
the black horizontal bars at the top and
bottom are removed.
Personal Zapping
A Philips trade marked feature which allows
any combination of favourite teletext pages
or TV channels to be stored in the coloured
Favourite Channels/Teletext keys.A total of
10 preferred channels/teletext pages of the
same subject or user can be stored in each
coloured key.
S-VHS Signals
These are 2 separateY/C video signals from
the S-VHS and Hi-8 recording standards.The
luminanace signals Y (Black and white) and
chrominance signals C (colour) are recorded
separately on the tape.This provides better
picture quality than with standard video (VHS
and 8 mm) where theY/C signals are
combined to provide only one video signal.
System
Television pictures are not broadcast in the
same way in all countries.There are different
standards: BG, DK, I, NTSC and SECAM.The
system setting (p.6) is used to select these
different standards.
p14-17_21PT5217_5117.p65 07/07/04, 3:17 PM15

16 User manual-21PT5217_5117 Practical information
Specification
Product type
21PT5217, 21PT5117
• Picture screen diameter: 550 mm
•Visible screen size: 510 mm
•Smart Picture Modes
•Contrast Control
•Sharpness Control
•Tint (in NTSC system)
•Colour Temperature Control
•Noise Reduction
•Signal Strength Indicator
Sound
• Sound output: 2 x 5 W rms
•Loudspeakers: Full range
•Smart Sound Modes
•Balance, Bass Boost/Bass,Treble Boost/
Tr e b le
•Auto Volume Leveller
Reception
•Tuning system: PLL tuning
•Tuner: UV, S and Hyperband
•Channel Selection: 100 presets
•Aerial input: 75 ohm coaxial
•TV System off-air: NTSC M (3.58-4.5),
Pal BG, Pal D/K, Pal I, Secam BG/DK/K1
•TV System: Pal-Multi AP
•Video playback: NTSC 4.43/3.58, NTSC
Playback, PAL 60
•Sound System:AV Stereo, Biphonic
Connectors
•Rear: Stereo Audio/Video input x 2
Stereo Audio/Video output x 1
S-Video input
•Side (for 21PT5117): Headphone out
(3.5 mm)
Stereo Audio/Video
input
•Front (for 21PT5217): Headphone out
(3.5 mm)
Ease of use
•Bilingual on screen display
•Personal Zapping
•Alternate channel
• Sleeptimer
Size and weight
•Set dimensions: L x D x H mm
21PT5217: (598 x 494 x 457) mm
21PT5117: (522 x 479 x 461) mm
•Net weight (approx.):
21PT5217: 23.2 kg
21PT5117: 24 kg
Note:
1. Operating voltage, frequency and power consumption refer to the typeplate at the rear of the set.
2. Specification subject to change without notice.
p14-17_21PT5217_5117.p65 07/28/04, 10:58 AM16

3141055 23161
p14-17_21PT5217_5117.p65 07/09/04, 10:18 AM17
