ADVANCED REMOTE FEATURES
USING THE GUIDE
The guide can provide you with infor-
mation about the current program
as well as upcoming programs. The
content and accuracy of the guide is
entirely dependent on the broadcaster
or cable company.
1Press the GUIDE button to
open the Guide window. If the
broadcaster or cable company
is providing it, information
about the current program and
programs throughout the day
are displayed.
2Use the CURSOR LEFT or
RIGHT button to select a time.
The program name, time,
inforamtion, as well as signal
type are displayed.
1

ADVANCED REMOTE FEATURES
USING SURF
After you set up a list of your
favorite signal sources in the SURF
list, you can press the SURF button to
see the list and quickly tune to a
favorite signal source. Place up to 10
signal sources in the SURF list.
1Once you are viewing the
channel you want to add to
the surf list, press the SURF
button. The Surf list box
appears. The number of the
current channel is shown with
ADD? to the right. Press the
CURSOR RIGHT button to
add the channel to the Surf
list. The text should switch
from “add?” to “delete?” The
text gives the next available
action, therefore, when it says
“delete?” the channel has been
added.
2Press the NUMBER but-
tons, CH(annel) +/– but-
tons to select another signal
source to add to the Surf list.
Press the SURF button and
then the CURSOR RIGHT
button to add the channel to
the list.
Repeat this step, filling the list
with up to 10 favorite signal
sources. NOTE: If you exceed
10 channels a warning message
will inform you to delete a
channel before adding another.
3To tune to a favorite signal
source from the list, press
the SURF button. The Surf
list box appears. Press the
SURF button or the CURSOR
DOWN button or UP as many
times as necessary to tune to
the channel.
SURF
12 > delete? ADD?
1,
2,
3
1,
2
2
SURF
12 > add? ADD?
Channel is deleted.
Channel is added.
HELPFUL HINTS
• To delete a signal source
from the list, press the
SURF button. The Surf list
box appears. Press the
SURF button or the
CURSOR DOWN button
or UP as many times as
necessary to select the
signal source to be delet-
ed. Then press the CUR-
SOR RIGHT button to
delete the signal source.
The screen will say
“add?” when the channel
has been deleted.
2

ADVANCED REMOTE FEATURES
USING DSURF
DSURF locks the tuner into a “digi-
tal only” mode. Like a “Caps
Lock” button on a computer keyboard,
DSURF limits channel selection to digi-
tal channels only.
1Press DSURF.
2Use Channel + or - to select a
channel. Only digital channels
are available. A small icon,
appears next to the channel to
indicate DSURF is activated.
3Press DSURF again to return
to normal channel selection
and the DSURF icon disappears
1,
3
2
EVENING WORLD NEWS
TONIGHT'S HEADLINES
EVENING WORLD NEWS
TONIGHT'S HEADLINES
5.1 5.1
WXYZ
(Digital)
5.1 5.1
WXYZ
(Digital)
EVENING WORLD NEWS
TONIGHT'S HEADLINES
EVENING WORLD NEWS
TONIGHT'S HEADLINES
3

ADVANCED REMOTE FEATURES
USING PICTURE-IN-PICTURE (PIP)
The Picture-In-Picture (PIP) feature
allows you to display a subscreen
within your main screen and watch two
video sources at once. Because your set
has one tuner, you need to use a VCR
as a second tuner for your PIP picture.
Tune to your favorite show on the main
screen while scanning other AV inputs in
the PIP window. See panel 24 to select
the PIP source.
1Press the PIP button to
turn PIP on.
2Press the PIP button a sec-
ond time to make the PIP win-
dow smaller.
3To select a video source to
watch in the PIP window, see
“Selecting a PIP Source”on
panel 24.
4Press the PIP button a third
time to turn PIP off.
MOVING THE PIP SCREEN
Press the POS button. Each time
you press this button, the PIP screen
moves to another corner of the main
screen.
FREEZING THE PIP SCREEN
Press the FREEZE button. The
picture in the PIP screen stands still.
Stopping motion allows you to write
down onscreen phone numbers or
addresses.
SWITCHING THE MAIN AND PIP
SCREENS
Press the SWAP button. The main
screen and PIP screen change places.
POSITION
SWAP
FREEZE
Ski Vacations
P.O. Box 55512
Anytown,USA 87654
1-800-555-1212
FREEZE
Button
SWAP
Button
POSITION
Button
1
2
4
4

ADVANCED REMOTE FEATURES
USING PICTURE FORMAT CONTROL
Your TV’s wide screen (16:9 aspect ratio)
delivers a home-cinema experience not
possible with a conventional (4:3 aspect
ratio) set. High-definition (HD) programs
originating in 16:9 format and other
widescreen-format video sources appear
more lifelike, dramatic, and theatrical.
Border bars are diminished or eliminated.
Most anamorphic-DVD programs will fill the
wide screen without border bars.
Selecting a Picture Format
Using the Remote Control
Use your TV’s picture-format modes
with video sources you connect to the
ANTENNA, CABLE AV1, AV2, AV3,
AV4, AV5, SIDE inputs on the TV. While
watching a video source—with no
onscreen menu or display present—
press the FORMAT button once to see
the currect mode. Press it again to
change to the next mode.
FORMAT
Button
Picture-format Modes
NATIVE (16:9) is the default for your
DTV because HD programs are broad-
cast in this format. Analog channels are
expanded horizontally.
4:3 shows an analog the picture in its
original, conventional (4:3 aspect ratio)
format.
ZOOM expands, or zooms, the picture
both vertically and horizontally, eliminat-
ing or reducing the size of border bars.
PANORAMIC stretches the outer por-
tions of the picture horizontally.
To prevent uneven picture-tube aging,
do not leave border bars or other sta-
tionary images on screen for extended
periods of time.
WARNING
NATIVE (16:9)
4:3
ZOOM
PANORAMIC
5

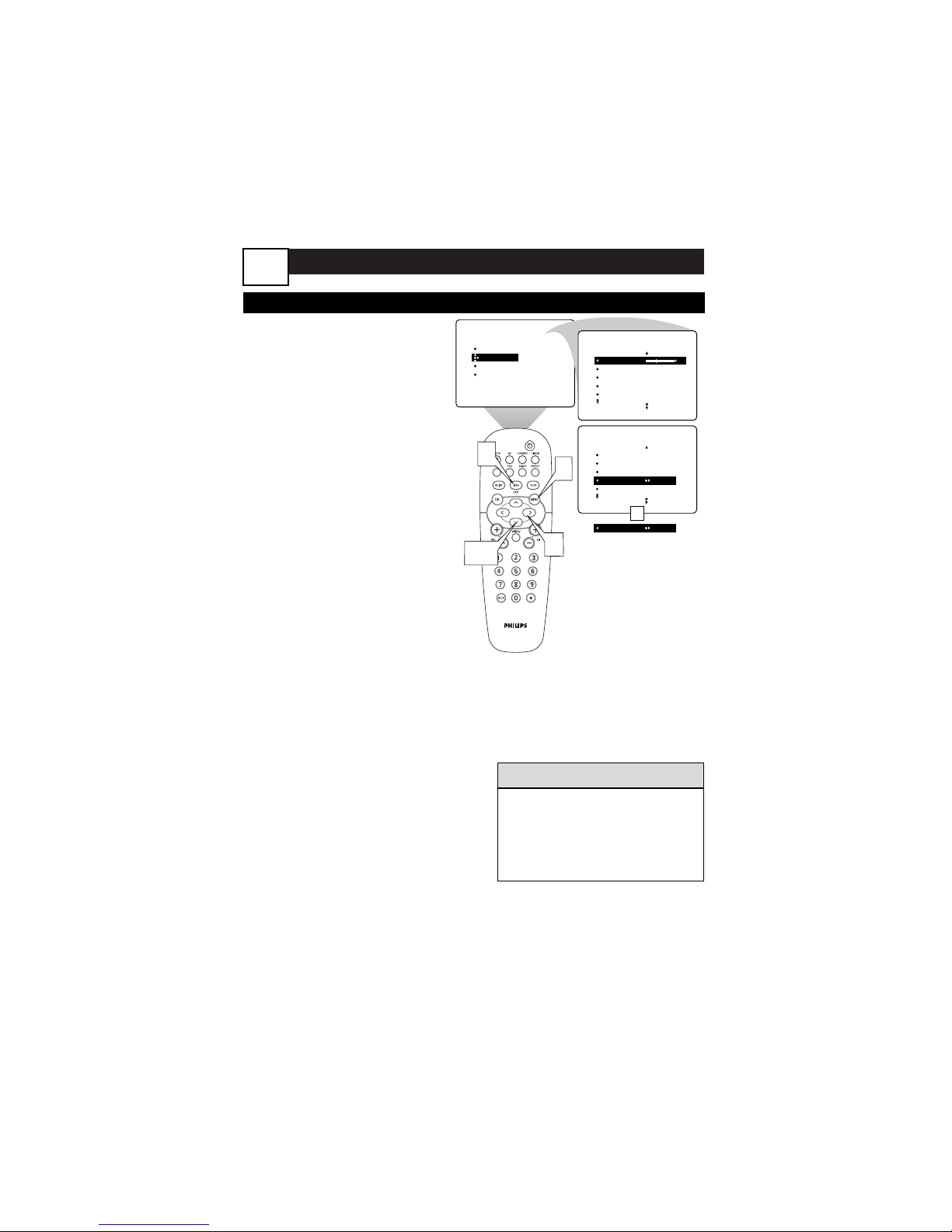

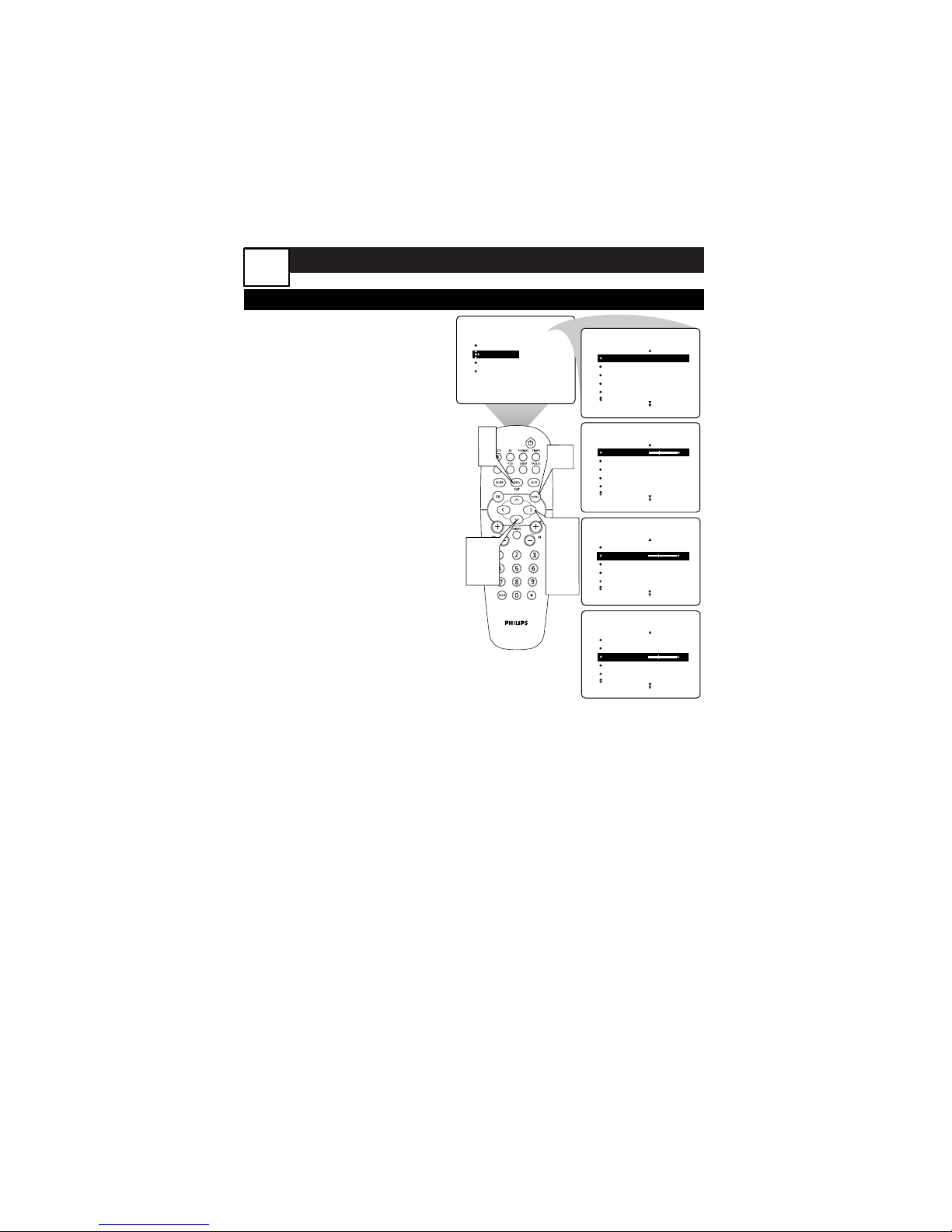

ADJUSTING PICTURE CONTROLS
T
o adjust your TV picture controls,
select a channel and follow these
steps. See descriptions of the picture-
adjustment options below.
1
Press the MENU button on
the remote control to show the
onscreen menu.
2
Press the CURSOR RIGHT
button. BRIGHTNESS will be
highlighted and an adjustment bar
will be shown to the right.
3
Press the CURSOR RIGHT
button or LEFT to adjust the
BRIGHTNESS level of the pic-
ture. Or press the CURSOR
DOWN button to select anoth-
er picture control to adjust.
4
Press the INFO/EXIT button
to exit the menu.
SOUND
FEATURES
INSTALL
BRIGHTNESS
SHARPNESS
COLOR
TINT
BRIGHTNESS
SHARPNESS
COLOR
TINT
BRIGHTNESS
SHARPNESS
COLOR
TINT
BRIGHTNESS
SHARPNESS
COLOR
TINT
BRIGHTNESS
SHARPNESS
COLOR
TINT
BRIGHTNESS
SHARPNESS
COLOR
TINT
SHARPNESS
COLOR
TINT
COLOR TEMP NORMAL
4
2,3
1
ADVANCED MENU FEATURES
6
Picture-adjustment Options
Remember, when the bar scale is cen-
tered , the control settings
are at mid-range levels. Picture adjust-
ments are described as follows:
BRIGHTNESS raises and lowers the
black level of the picture.
PICTURE raises or lowers the intensity
of the picture (also called contrast).
SHARPNESS improves the detail in the
picture.
COLOR adds or eliminates color.
TINT adjusts the picture to obtain natu-
ral skin tones.
COLOR TEMP offers NORMAL,
COOL, or WARM picture preferences.
NORMAL keeps whites white.
WARM makes whites less blue.
COOL makes whites more blue.

ADVANCED MENU FEATURES

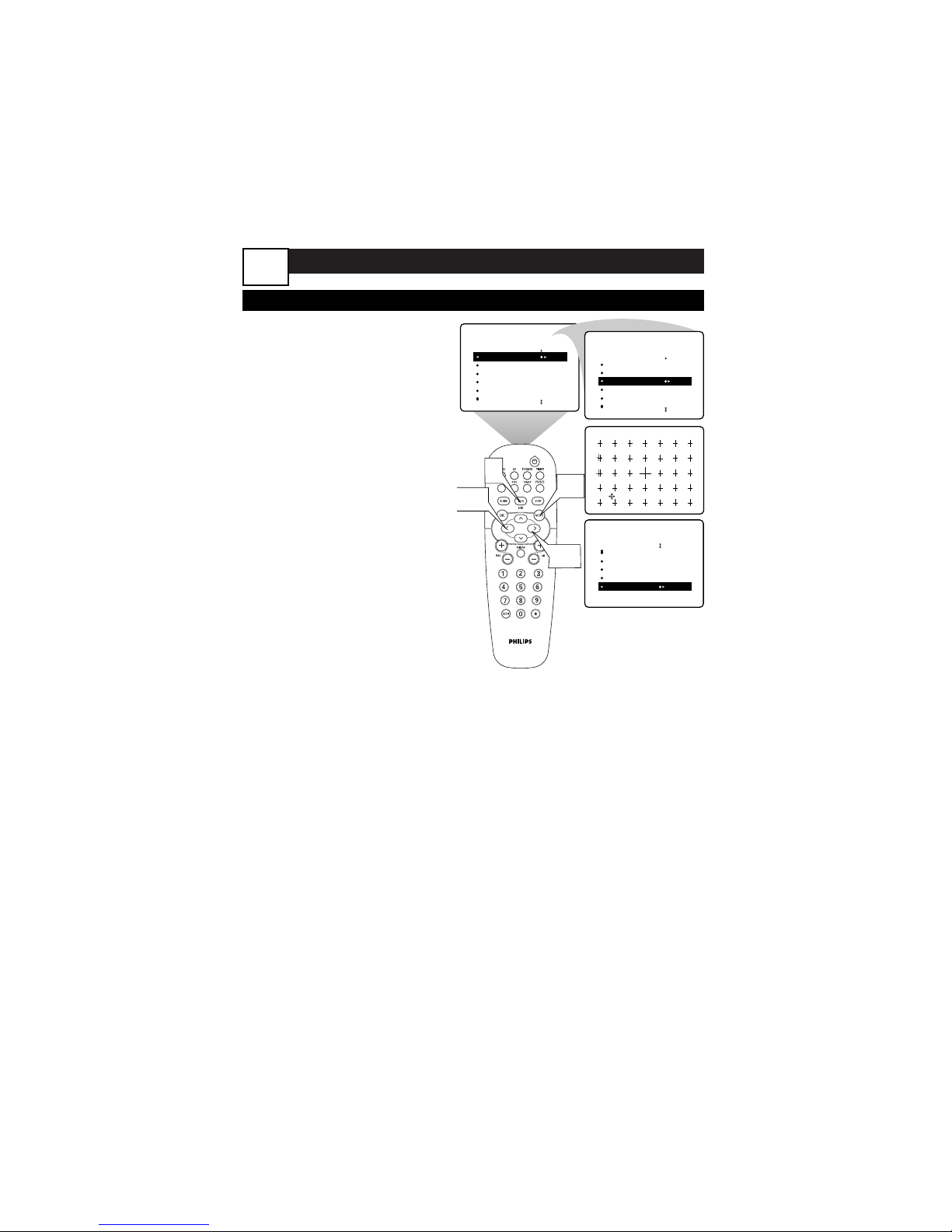

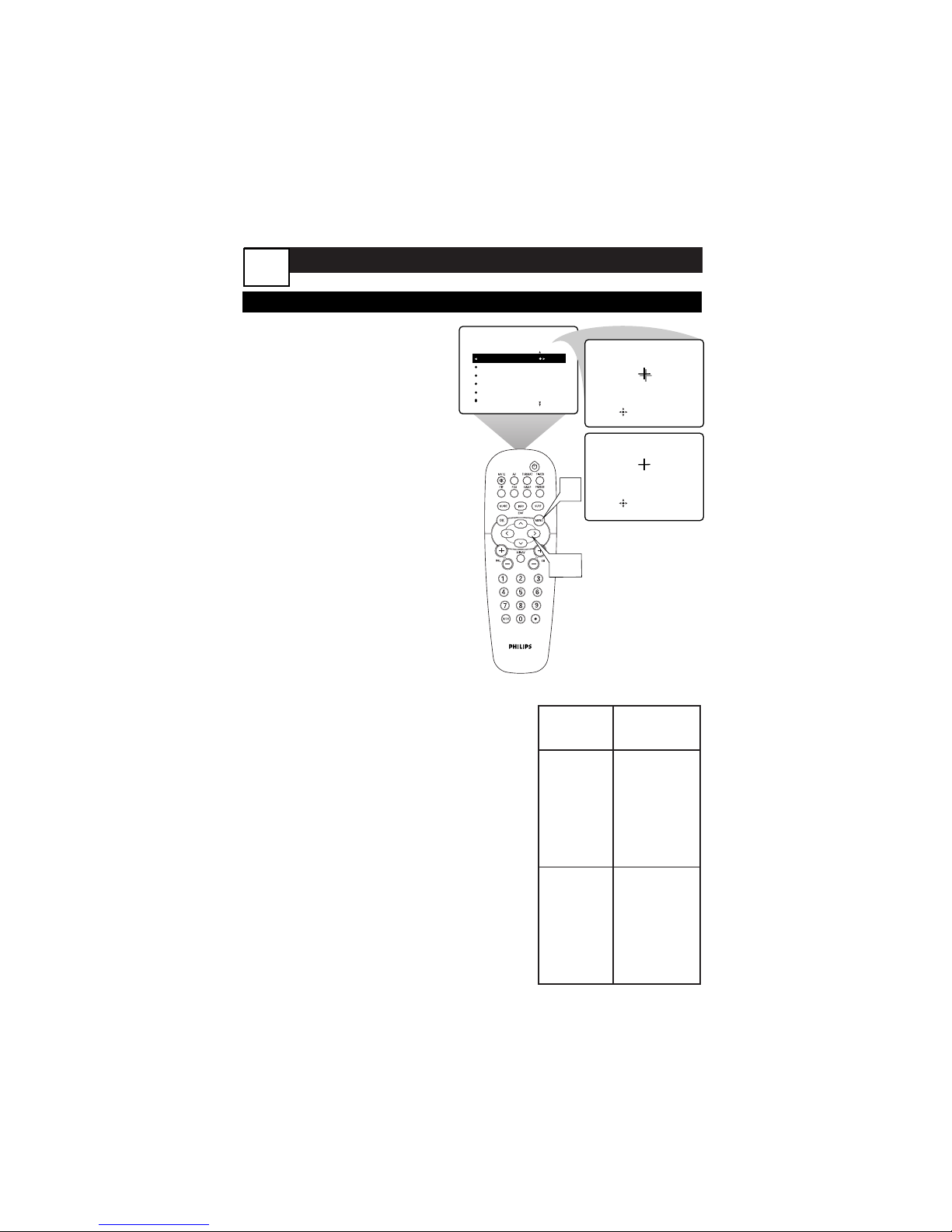

ADJUSTING CONVERGENCE:CONVERGE RED/BLUE
Y
our projection TV has three color pro-
jection tubes: one for red, one for
green, and one for blue. When mixed in
proper proportion, the beams of light
coming from the tubes can produce any
color. To create a clear picture, however,
these color beams must be precisely
aligned. This alignment is called conver-
gence.
NOTE: Allow the TV to warm up for 20
minutes before adjusting convergence.

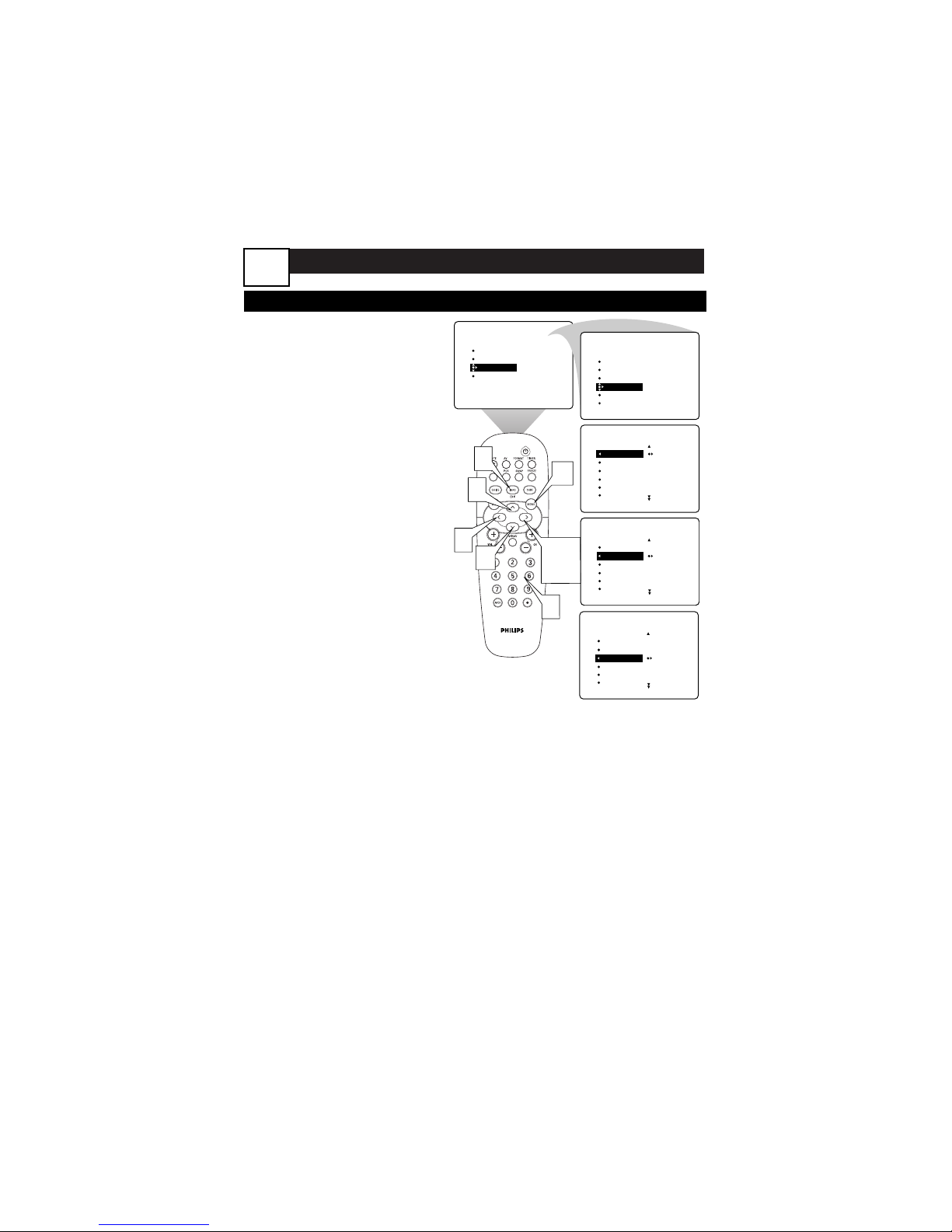

1
Press the MENU button to
show the onscreen menu. Press
the CURSOR RIGHT button to
enter the PICTURE submenu.
Then press the CURSOR
DOWN button repeatedly until
MANUAL CONVERGE is high-
lighted.
2
Press the CURSOR RIGHT
button to enter the MANUAL
CONVERGE submenu. If you
want to adjust the Red
Convergence, press the CUR-
SOR RIGHT button to enter the
adjust mode. To adjust the Blue
Convergence, press the CUR-
SOR DOWN button to high-
light CONVERGE BLUE, then
press the CURSOR RIGHT but-
ton to enter adjust mode.
3
In adjust mode, press the
CURSOR RIGHT, LEFT,
UP, or DOWN button to
adjust the cross hair until the
color outline around it is gone.
(The adjustment is automatically
saved in the TV’s memory.) To
return to the MANUAL CON-
VERGE menu, press the MENU
button. To exit the onscreen
display, press the INFO/EXIT
button.
CONVERGE RED
CONVERGE BLUE
MULTIPOINT RED
MULTIPOINT BLUE
SAVE MULTIPOINT
MANUAL CONVERGE
Converge Red
Converge Red
1
2,3
neercS
ecnaraeppanoitcA
suoiraV
segami
tuohguorht
eritneeht
evaherutcip
.seniltuoder
ehttsujdA
EGREVNOC
.lortnocDER
derynafinehT
,niamerseniltuo
ehttsujda
TNIOPITLUM
.lortnocDER
suoiraV
segaim
tuohguorht
eritneeht
evaherutcip
.seniltuoeulb
ehttsujdA
EGREVNOC
.lortnocEULB
eulbynafinehT
,niamerseniltuo
ehttsujda
TNIOPITLUM
.lortnocEULB
Determining Which
Manual Converge
Control to Use
7

ADVANCED MENU FEATURES

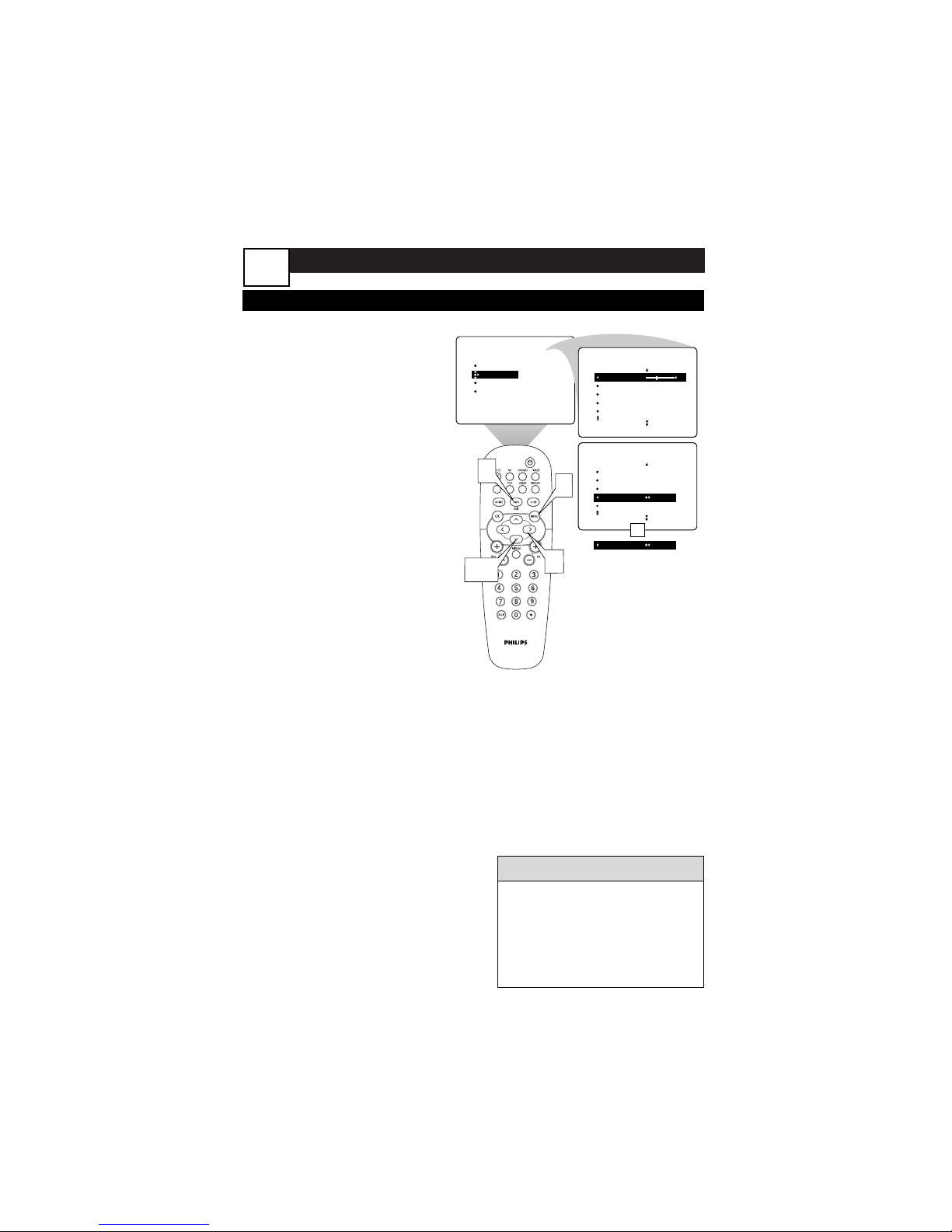

ADJUSTING CONVERGENCE:MULTIPOINT RED/BLUE
T
he Multipoint Red/Blue Convergence
controls allow you to adjust picture con-
vergence at specific points on the TV
screen.
1
Press the MENU button to
show the onscreen menu. Press
the CURSOR RIGHT button to
enter the PICTURE submenu.
Then press the CURSOR
DOWN button repeatedly until
MANUAL CONVERGE is high-
lighted.
2
Press the CURSOR RIGHT
button to enter the MANUAL
CONVERGE submenu. Press
the CURSOR DOWN button
repeatedly until MULTIPOINT
RED or MULTIPOINT BLUE is
highlighted. Then press the
CURSOR LEFT or RIGHT but-
ton to enter Navigate mode.
3
Press the CURSOR LEFT,
RIGHT, UP, or DOWN but-
ton to move to a cross hair
that has a color outline. Then
press the INFO/EXIT button to
enter adjust mode.
4
Press the CURSOR LEFT,
RIGHT, UP, or DOWN but-
ton to adjust the cross hair
until the color outline is
gone.Then press the INFO/EXIT
button to return to NAVIGATE
mode. Repeat steps 3 and 4
until all misaligned cross hairs
have been adjusted.
5
For your adjustments to be
stored in the TV’s memory,
you must activate SAVE
MULTIPOINT.
To save your multipoint
adjustments, press the MENU
button to return to the MANU-
AL CONVERGE menu. Press the
CONVERGE RED
CONVERGE BLUE
MULTIPOINT RED
MULTIPOINT BLUE
SAVE MULTIPOINT
MANUAL CONVERGE
É
▲
▲
CONVERGE RED
CONVERGE BLUE
MULTIPOINT RED
MULTIPOINT BLUE
SAVE MULTIPOINT
MANUAL CONVERGE
to Navigate Exit to Adjust
▲
MULTIPOINT RED
MULTIPOINT BLUE
SAVE MULTIPOINT
UNDO MULTIPOINT
RESTORE FACTORY
MANUAL CONVERGE
1,5
2,3
6
3,4
CURSOR DOWN button repeat-
edly until SAVE MULTIPOINT is
highlighted. Then press the CUR-
SOR LEFT or RIGHT button to
store your adjustments in the TV’s
memory.
To undo the multipoint adjust-
ments you just made, highlight
UNDO MULTIPOINT and press
the CURSOR LEFT or RIGHT but-
ton.
To restore the TV’s conver-
gence to factory settings, high-
light RESTORE FACTORY and
press the CURSOR LEFT or
RIGHT button.
6Press the INFO/EXIT button
to exit the menu.
8
