Turn up your viewing experience
with integrated Standard Definition TV
Vivid, natural and razor sharp images
• Integrated SDTV to receive digital off-air and cable signals
• Real Flat picture tube technology brings you lifelike images
• Active Control optimizes picture quality whatever the source
• Scan Velocity Modulation Improves definition and contrast
Exciting and lifelike sound
• Incredible Surround™ for enhanced audio enjoyment
Designed for your convenience
• Electronic Program Guide for retrieval of program schedules
• Auto Picture to personalise your viewing
• Auto Sound uses pre-defined sound settings for better sound
For advanced performance
• Component Video Input for top quality playback and recording
• S-Video Input for better picture performance
Philips
SDTV
27"
real flat
27PT9015D

For preview purpose only
27PT9015D/37
Technical specifications Product highlights
SDTV
27" real flat
Date of issue 2006-05-09
Version: 1.0
12 NC: 8670 000 23218
UPC: 0 37849 96747 8
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
Picture/Display
•Aspect ratio: 4:3
•Visible screen diagonal (inch): 27 inch
•Display screen type: Real Flat picture tube
•Picture enhancement: Active Control,
AutoPicture (5 modes), Black stretch, Color,
Comb Filter, Contrast Plus, Scavem,
Sharpness Adjustment, Tint, Color
Temperature Adjustment, Smart Picture
Sound
•Output power (RMS): 2 x 5W
•Sound Enhancement: Auto Volume Leveller,
AutoSound (4 modes), Balance, Incredible
Surround, Treble and Bass Control
•Sound System: Stereo, Incredible Surround
Convenience
•Ease of Installation: Autoinstall
•Ease of Use: Auto Volume Leveller (AVL),
Easy toggle Dig/Analog modes
•Remote control type: RCLU023
•Remote Control: TV
•Teletext: Closed Captioning
•Screen Format Adjustments: 4:3 expand, 4:3
•Clock: Sleep Timer
•Convenience Enhancements: AutoChron
(automatic clock), Electronic Programming
Guide, Vchip and parental lock
•On-Screen Display languages: English,
French, Spanish
Tuner/Reception/Transmission
•TV system: ATSC, NTSC
•Video Playback: NTSC
•Aerial Input: 75 ohm F-type
•Cable: Unscrambled Digital Cable -QAM
Connectivity

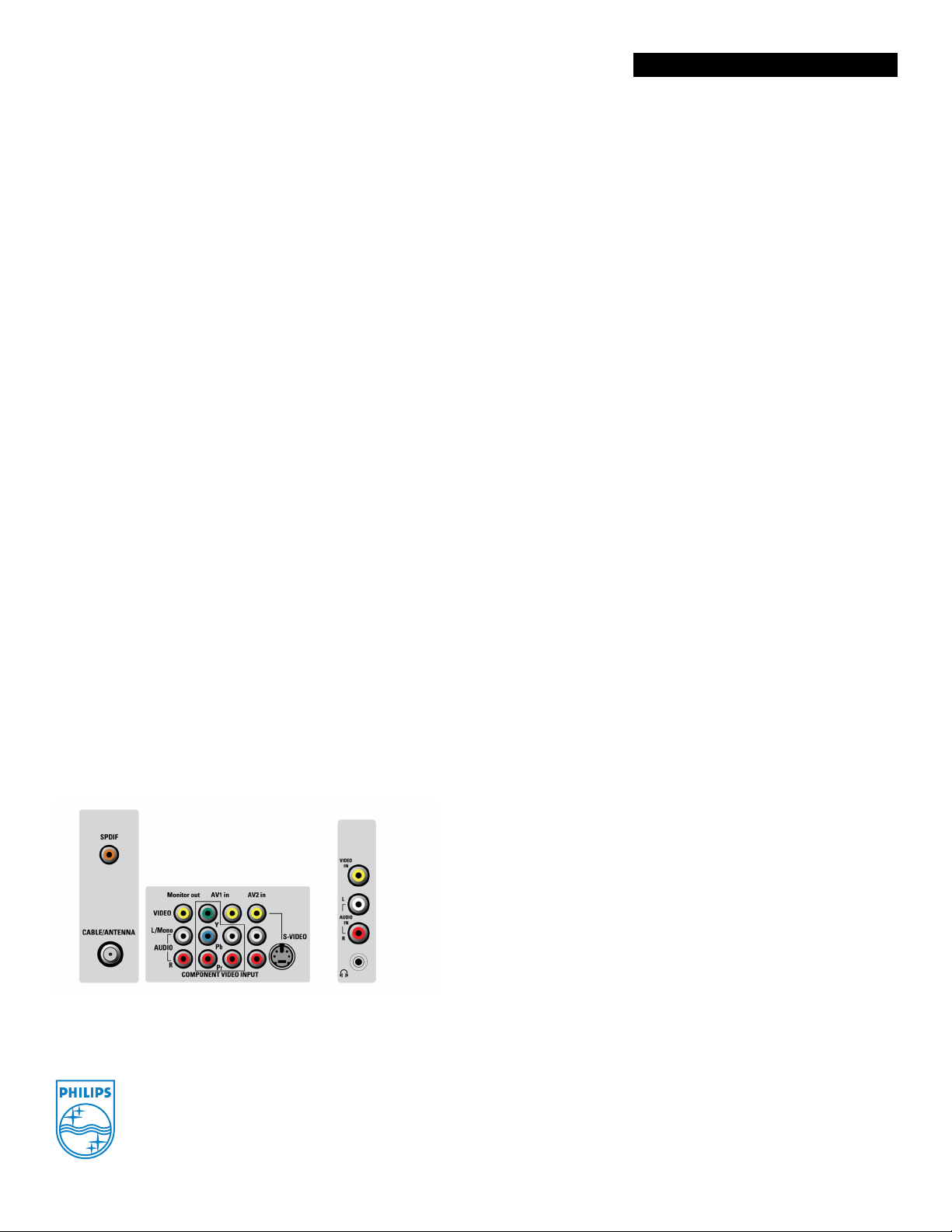

•AV 1: Component Video in, CVBS in
•AV 2: S-Video Y/C, CVBS in
•Front / Side connections: CVBS in,
Headphone out
•Audio Output - Digital: AC3 over S/PDIF
(Optical)
•Audio Output - Analog: L/R cinch
Power
•Standby power consumption: < 1 w
•Mains power: AC 108V - 132V
•Power consumption: 120 W +/-10% W
Dimensions
•Set dimensions in inch (W x H x D):
28.98 x 22.83 x 19.29 inch
•Product weight (lb): 96.8
•Box dimensions in inch (W x H x D):
32.8 x 28.35 x 23.27 inch
•Weight incl. Packaging (lb): 107.8
•
SDTV
SDTV is the latest television signal available. In order to
effectively maximize the SDTV signal, a television must
incorporate signal input connectivity and circuitry design.
Real Flat picture tube
The flatter tube provides a wider viewing angle while
minimizing reflections for the best picture possible. The
special alloy invar shadow mask helps maintain sharper
focus and eliminates 'color blooming' compared to
standard tubes.
Active Control
Active Control ensure that noise and sharpness
improvements are continuously made at a rate of 60
times per second. By continually adjusting picture setting
over 3,000 times per minute, Active Control Plus ensures
that the viewing experience is optimized.
Scavem
Scan velocity modulation varies the speed of the electron
beam for a more finely rendered picture with improved
sharpness and contrast.
Incredible Surround™
Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width of
sound, without the use of additional speakers.
Electronic Program Guide (TV)
The Electronic Program Guide (EPG) will provide you with
an overview, listing the program information
Auto Picture
Auto Picture button on the remote control enables one-
touch selection of various preset optimized image settings
to suit different TV program. Do refer to the DFU for the
various Smart Picture modes.
Auto Sound
Auto Sound provides pre-defined sound settings for ultra
bass, bass, treble and balance for the optimum
entertainment experience.
Component Video Input (YPbPr)
Component Video is the highest quality interconnection
standard for analog video. It is sharper than S-video and
composite video. Philips DVD recorders can record
directly from component video (such as YPbPr) sources
including satellite receivers
S-Video Input
An S-video format signal preserves the video quality better
than standard video input.
