Philips 40PFL4709C User manual

EN UserManual
ES ManualdelUsuario
Registeryourproductandgetsupportat
www.philips.com/support
40PFL4709C
32PFL4509C
EN Forfurtherassistance,callthecustomersupportserviceinyourcountry.
• To obtain assistance, contact Philips Customer Care Center;
Colombia; 018009520640
Panamá; 8000521372
ES Paraobtenermásinformación,llamealserviciodesoportealclientedesu
país.
• Para obtener asistencia, póngase en contacto con el CENTRO DE INFORMACION AL
CLIENTE,
Colombia; 018009520640
Panamá; 8000521372

English
2
Contents
1 Notice 5
2 Important 6
Positioning the TV 6
Regulatory notices 6
Environmental care 6
Preparing to Move/Ship Unit 6
3 Getstarted 7
Features 7
Supplied Accessories 7
Symbols used in this User Manual 7
Attaching the Base 8
Installing the Remote Control Batteries 8
Remote Control function 9
Control Panel 10
Terminals 10
Connecting the Antenna, Cable or Satellite 11
Plugging in the AC Power Cord 11
Selecting your Connection quality 12
Connecting your Devices 12

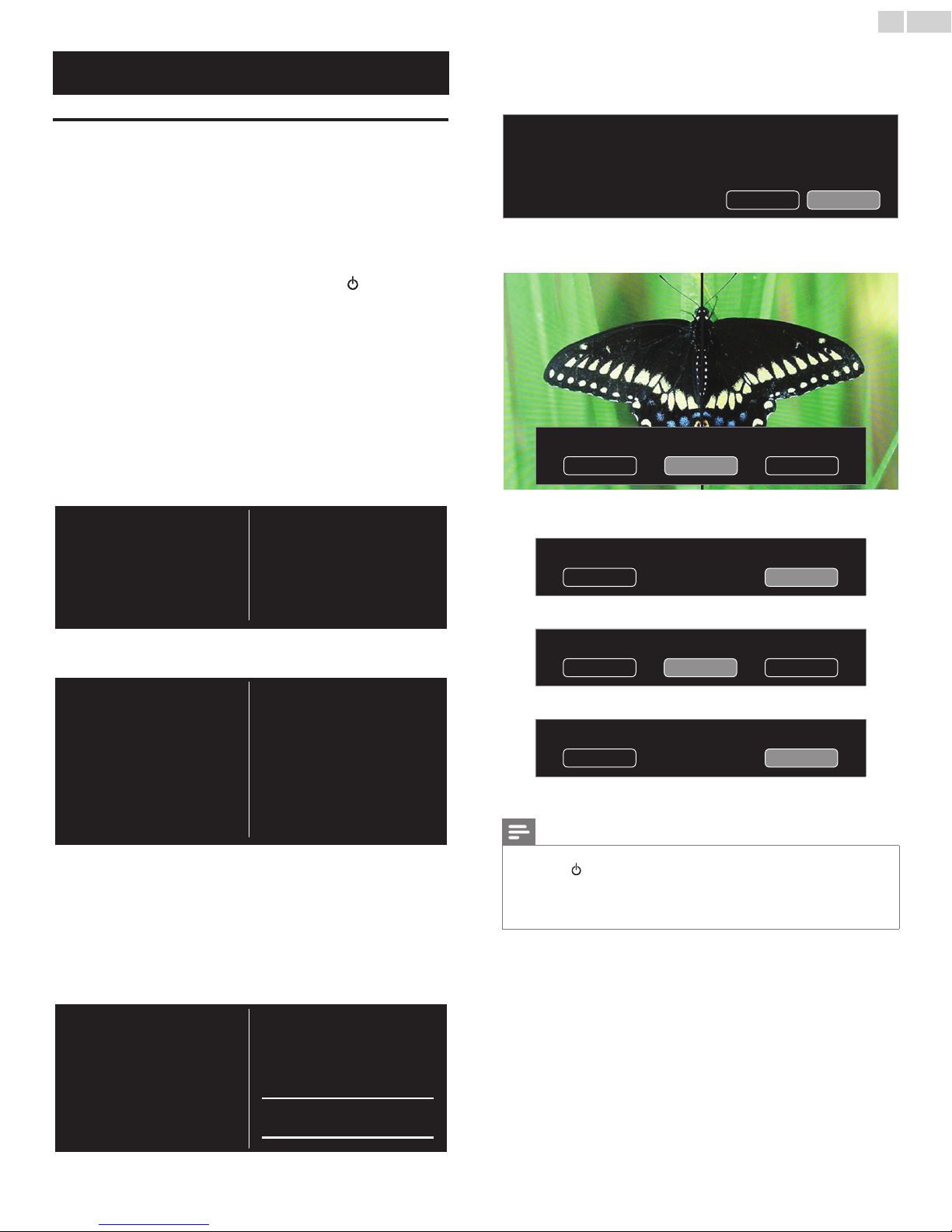

Initial setup 15
4 UseyourTV 16
Switching on your TV and putting it in Standby mode 16
Adjusting Volume 16
Switching Channels 16
Access the Home menu 17
Watching Channels from an External Device 17
Create a list of favorite channels 18
Sleep Timer 18
Subtitles 18
Changing Picture Format 19
TV screen information 20
Viewing program guide 20
Using Options menu 21
USB 22
5 MakingmoreusewithyourTV 24
Pictureandsoundsetup 25
TVsettings 25
Picture 25
Sound 27
Features 28
Installation 28
Searchforchannels 31
Update channels 31
Reinstall channels 31
Channelsettings 31
Language 31
Channel installation 31
Child Lock 32
Mono/Stereo 32
Updatesoftware 32
Starting the software update 33
Softwaresettings 33
Software 33
7 Usefultips 34
FAQ 34
Troubleshooting 35
8 Information 36
Glossary 36
Maintenance 36
9 Specications 37

English
3
Know these
safety
symbols The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the apparatus’s enclosure
that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the apparatus.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The caution marking is located on the rear or bottom of the cabinet.
CAUTION
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Apparatus shall
not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the
apparatus.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
ATTENTION : Pour éviter les choc électriques,introduire la lame la plus large de la fiche dans la borne correspondante de la
prise et pousser jusqu’au fond.
Visit our World Wide Web Site at www.philips.com/support
CHILD SAFETY:
PROPER TELEVISION PLACEMENT MATTERS
THE CONSUMER ELECTRONICS INDUSTRY
CARES
• Manufacturers, retailers and the rest of the consumer
electronics industry are committed to making home
entertainment safe and enjoyable.
• As you enjoy your television, please note that all
televisions – new and old- must be supported on proper
stands or installed according to the manufacturer’s
recommendations. Televisions that are inappropriately
situated on dressers, bookcases, shelves, desks, speakers,
chests, carts, etc., may fall over, resulting in injury.
TUNE IN TO SAFETY
• ALWAYS follow the manufacturer’s recommendations
for the safe installation of your television.
• ALWAYS read and follow all instructions for proper use
of your television.
• NEVER allow children to climb on or play on the
television or the furniture on which the television is
placed.
• NEVER place the television on furniture that can easily
be used as steps, such as a chest of drawers.
• ALWAYS install the television where it cannot be
pushed, pulled over or knocked down.
• ALWAYS route cords and cables connected to the
television so that they cannot be tripped over, pulled or
grabbed.
WALL OR CEILING MOUNT YOUR
TELEVISION
• ALWAYS contact your retailer about professional
installation if you have any doubts about your ability to
safely mount your television.
• ALWAYS use a mount that has been recommended by
the television manufacturer and has a safety certification
by an independent laboratory (such as UL, CSA, ETL).
• ALWAYS follow all instructions supplied by the
television and mount manufacturers.
• ALWAYS make sure that the wall or ceiling where you
are mounting the television is appropriate. Some mounts
are not designed to be mounted to walls and ceilings
with steel studs or cinder block construction. If you are
unsure, contact a professional installer.
• Televisions can be heavy. A minimum of two people is
required for a wall or ceiling mount installation.
MOVING AN OLDER TELEVISION TO A NEW
PLACE IN YOUR HOME
• Many new television buyers move their older CRT
televisions into a secondary room after the purchase of a
flat-panel television. Special care should be made in the
placement of older CRT televisions.
• ALWAYS place your older CRT television on furniture
that is sturdy and appropriate for its size and weight.
• NEVER place your older CRT television on a dresser
where children may be tempted to use the drawers to
climb.
• ALWAYS make sure your older CRT television does
not hang over the edge of your furniture.
CE.org/safety

English
4
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments / accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or
sold with the apparatus. When a cart
is used, use caution when moving the
cart / apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
Note to the CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close
to the point of cable entry as practical.
Example of Antenna Grounding as per NEC - National
Electric Code
ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC SERVICE EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
POWER SERVICE GROUNDING ELECTRODE
SYSTEM (NEC ART 250, PART H)
GROUND CLAMPS
WallMountBracketKit
Brand Model # Screw dimension
40PFL4709C
SANUS
SAN25BB
M4 x 0.472” (12mm)
32PFL4509C SAN18B
• The recommended Wall Mount Bracket Kit (sold
separately) allows the mounting of the TV on the wall.
• For detailed information on installing the wall mount,
refer to the Wall Mount Instruction Book.
• P&F Mexicana is not responsible for any damage to the
product or injury to yourself or others if you elect to
install the TV Wall Mount Bracket or mount the TV onto
the Bracket on your own.
• The Wall Mount Bracket must be installed by experts.
P&F Mexicana is not liable for these types of accidents or
injury noted below.
• Install the Wall Mount Bracket on a sturdy vertical wall.
• If installed onto a ceiling or slanted wall, the TV and Wall
Mount Bracket may fall which could result in a severe injury.
• Do not use screws that are longer or shorter than their
specified length. If screws too long are used this may cause
mechanical or electrical damage inside the TV set. If screws
too short are used this may cause the TV set to fall.
• Do not fasten the screws by excessive force. This may
damage the product or cause the product to fall, leading to
an injury.
• For safety reasons use 2 people to mount the TV onto a
Wall Mounting Bracket.
• Do not mount the TV onto the Wall Mounting Bracket
while your TV is plugged in or Turned On. It may result in an
electrical shock injury.
When installing the unit on the wall, allow this much space.
Top: 11.8 inches (30cm)
Left and right side: 5.9 inches (15cm)
Bottom: 3.9 inches (10cm)

English
5
1 Notice
Trademarks are the property of Koninklijke Philips N.V. or their
respective owners.
P&F Mexicana reserves the right to change products at any time
without being obliged to adjust earlier supplies accordingly.
The material in this manual is believed adequate for the intended use
of the system. If the product or its individual modules or procedures
are used for purposes other than those specified herein, confirmation
of their validity and suitability must be obtained. P&F Mexicana
warrants that the material itself does not infringe any United States
patents. No further warranty is expressed or implied.
P&F Mexicana cannot be held responsible neither for any error
s in the
content of this document nor for any problems as a result of the
content in this document. Errors reported to P&F Mexicana will be
adapted and published on the P&F Mexicana support website as soon
as possible.
Warranty
No components are user serviceable. Do not open or remove covers
to the inside of the product. Repairs may only be done by Service
Centers and official repair shops. Failure to do so shall void any
warranty, stated or implied.
Any operation expressly prohibited in this manual, any adjustments or
assembly procedures not recommended or authorized in this manual
shall void the warranty.
Pixel characteristics
This LCD product has a high number of color pixels. Although it has
effective pixels of 99.999% or more, black dots or bright points of light
(red, green or blue) may appear constantly on the screen. This is a
structural property of the display (within common industry standards)
and is not a malfunction.
Copyright
All other registered and unregistered trademarks are the property of
their respective owners.
The terms HDMI and HDMI
High-Definition Multimedia Interface,
and the HDMI Logo are trademarks
or registered trademarks of HDMI
Licensing LLC in the United States
and other countries.
Manufactured under license from
Dolby Laboratories. Dolby and the
double-D symbol are trademarks of
Dolby Laboratories.
For DTS patents, see
http://patents.dts.com.
Manufactured under license
from DTS
Licensing Limited. DTS, the Symbol, &
DTS and the Symbol together are
registered trademarks, and DTS
TruSurround is a trademark of DTS,
Inc. © DTS, Inc. All Rights Reserved.
LED backlighting technology uses less
energy when compared with a
standard CCFL backlighting LCD
television of the same screen size.
Actual energy savings will vary
depending on the screen size.
Portions of this software are copyright © The FreeType Project
(www.freetype.org).
The American Academy of Pediatrics discourages television viewing
for children younger than two years of age.

English
6
2 Important
PositioningtheTV
• Large screen TVs are heavy. 2 people are required to carry and
handle a large screen TV.
• Make sure to hold the upper and bottom
frames of the Unit firmly as illustrated.
• Install the Unit in a horizontal and stable
position.
• Do not install the Unit in direct sunlight
or in a place subject to dust or strong
vibration.
• Slots and openings in the cabinet and
the sides or bottom are provided for ventilation. To ensure
reliable operation and to protect the unit from overheating,
these openings must not be blocked or covered. Avoid
installation in enclosed spaces such as bookcases unless proper
ventilation is provided.
• Depending on the environment, the temperature of this Unit
may increase slightly. This is not a malfunction.
• Avoid a place with drastic temperature changes.
• Do not place anything directly on top or bottom of the Unit.
• Do not place any combustible objects on the Unit. (candles, etc.)
• Depending on your external devices, noise or disturbance of
the picture and / or sound may be generated if the Unit is
placed too close to them. In this case, please ensure enough
space between the external devices and the Unit.
• Do not insert the AC power cord into the power socket outlet
before all the connections are made.
• Ensure that you always have easy access to the AC power cord
or plug to disconnect the TV from the power.
• Before you move the TV, disconnect attached cables to prevent
damage to connectors.
• Be sure to unplug the AC power cord from the AC outlet
before moving or carrying the Unit.
Regulatorynotices
Do not place the Unit on the furniture that is capable of being tilted by
a child and an adult leaning, pulling, standing or climbing on it. A falling
Unit can cause serious injury or even death.
This apparatus should not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided.
Make sure to leave a space of 4 inches (10cm) or more around this
apparatus.
Press to turn the Unit on and go into standby mode.
To completely turn off the Unit, you must unplug the AC power cord
.
Disconnect the AC plug to shut the Unit off when trouble is found or
not in use. The AC plug shall remain readily available.
ACplug
Never use a gas duster on this TV.
The gas trapped inside of this Unit may cause ignition and explosion.
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
WARNING: Batteries (battery pack or battery installed) shall
not be exposed to excessive heat such as sunshine,
fire or the like.
WARNING: To prevent injury, this apparatus must be securely
attached to the furniture / wall in accordance with
the instructions. Tipping, shaking, or rocking the
unit may cause injury / death.
Environmentalcare
The packaging of this product is intended to be recycled.
Contact your local authorities for information about how to recycle
the packaging.
For product recycling information, please visit - www.recycle.philips.com
Endoflifedirectives
Philips pays a lot of attention to produce environmental-friendly
products in green focal areas. Your new TV contains materials which
can be recycled and reused. At the end of its life, specialized
companies can dismantle the discarded TV to concentrate the
reusable materials and to minimize the amount of materials to be
disposed of. Please ensure you dispose of your old TV according to
local regulations.
Disposal of Used Batteries
The Batteries supplied do not contain the heavy metals mercury
and cadmium. Nevertheless, in many areas Batteries may not be
disposed of with your household waste. Please ensure you dispose
of Batteries according to local Regulations.
PreparingtoMove/ShipUnit
Please pack the Unit properly by following the Diagram on the
Carton.
1 2 3 4
To avoid damage to the Screen, do not pack the stand on the
same side as the TV screen.

English
7
3 Getstarted
Features
• DTV/ATV/CATV
You can use your Remote Control to select channels which are broadcast
in Digital format and conventional Analog format. Also, cable subscribers
can access their cable TV channels.
• Informationdisplay
You can display the title, contents and other information of the current
program on the TV screen.
• AutomaticChannelInstallation
This unit automatically scans and memorizes channels available in your area,
eliminating difcult setup procedures.
• Childlock
This feature allows you to block children’s access to inappropriate
programs.
• MTS/SAPtuner
Audio can be selected from the Remote Control.
• AutoStandby
If there is no Input signal and no operation for 15 minutes, the unit will go
into Standby mode automatically.
• SleepTimer
You can set the unit to go into Standby mode after a specic amount of
time.
• Choicesforon-screenlanguage
Select your on-screen language: English, Spanish.
• Stereosoundfunction
• PLLfrequencysynthesizedtuning
Provides free and easy channel selection and lets you tune directly to any
channel using the number on the Remote Control.
• Variousadjustmentforpictureandsound
Customizes image quality suitable for your room and sets your sound
preference.
• EasyLinkviaHDMIlink
EasyLink allows your other HDMI link devices to be controlled by the
HDMI cable connected to your TV.
• HDMIInput
• HDMI-DVIInput
If your video device has DVI Output jack, use an HDMI-DVI conversion
cable to connect the unit.
• ComponentVideoInput
• PCInput
• AVInput
• USBterminal
The picture, music and video les stored on a USB Memory Stick can be
played back on this unit.
• DigitalAudioOutput
• HeadphoneAudioOutput
• ProgramGuide
You can display a list of the digital TV programs.
SuppliedAccessories
UserManual QuickStartguide
Quick
Start
RemoteControl and
Batteries (AAA, 1.5V x 2)
AAA
AAA
TVbase andScrews
Screws packed with this unit:
Model Quantity Size
40PFL4709C 3 M4 x 0.787” (20mm)
2 M4 x 0.393” (10mm)
32PFL4509C 3 M4 x 0.984” (25mm)
Note(s)
• If you lose the Screws, please purchase the above-mentioned Phillips head Screws at
your local store.
• If you need to replace these accessories, please refer to the part name or No. with the
illustrations and call our toll free customer support line found on the cover of this User
Manual.
WhenusingauniversalRemoteControltooperatethisunit.
• Make sure the component code on your universal Remote Control is set to our brand.
Refer to the instruction book accompanying your Remote Control for more details.
• We do not guarantee 100% interoperability with all universal Remote Controls.
SymbolsusedinthisUserManual
The following is the description for the symbols used in this User
Manual. Description refers to:
Digital TV operation
Analog/Cable TV operation
• If neither symbol appears, the operation is applicable to both.
Continued on next page.

English
8
AttachingtheBase
You must attach the base to the unit to have it as a table top unit.
Be sure the front and rear of the base match the proper direction.
For large screen TVs, at least 2 people are required for these steps.
40PFL4709C
1
2
1
×3
M4x0.787”(20mm)
×2
M4x0.393”(10mm)
2
3
4
32PFL4509C
1
21
× 1
× 2
2
3
21
× 1
× 2
4
Note(s)
• Make sure to use a table which can support the weight of this unit and is larger than
this unit.
• Make sure the table is in a stable location.
• When attaching the base, ensure that all Screws are tightly fastened. If the base is not
properly attached, it could cause the unit to fall, resulting in injuries as well as damage
to the unit.
• To remove the base from this unit, unscrew the Phillips head Screws by the reverse
procedure. Be careful not to drop the base when you remove it.
InstallingtheRemoteControlBatteries
1 Slide the battery cover off the back of the Remote Control.
2 Insert the 2 supplied Batteries (AAA, 1.5V). Be sure the + and −
ends of the Batteries line up with the markings inside the case.
3 Slide the cover back into position.
Note(s)
• Remove the Batteries if not using the Remote Control for an extended period of time.
Continued on next page.

English
9
RemoteControlfunction
a
b
c
e
d
i
p
o
q
j
k
l
n
t
r
s
g
h
f
m
a (POWER)
Turns the TV On from Standby or Off to Standby.
b EasyLink(HDMICEC)buttons
E/DSearches Backward or Forward through the Disc.
Æ∆ Starts, pauses or resume playback.
CStops the Disc Playback.
Note(s)
• Pause may not work properly on some devices even if they are complied with EasyLink
(HDMI CEC)
c AUDIO
Selects Audio mode (MONO / STEREO / SAP) / Audio language.
d (MENU)
Opens the Main On-screen Menu.
e INFO
Displays Information about the current program.
f ▲▼◄►(NAVIGATIONbuttons)/OK
Moves the cursor, Selects the On-screen Menu items.
g OPTIONS
Opens the options menu.
h SOURCE
Selects Connected Devices.
i CH+/−
Selects a Channel.
j COLORbuttons
Uses these Keys according to the directions On-screen.
k 0−9(NUMBERbuttons)
Used to enter a Channel / Program number.
l DTV/ATV
Selects signal types.
m PREV.CH
Returns to the previously viewed Channel.
n (MUTE)
Turns the Sound On and Off.
o VOL+/−
Adjusts the Volume.
p BACK
Returns to the previous Menu operation.
q GUIDE
Accesses the TV guide.
r SLEEP
Sets the Sleep Timer.
s SUBTITLE
Displays the Audio portion of programming as text superimposed
over the video.
t FORMAT
Adjusts the Picture size on the TV screen.
Continued on next page.

English
10
ControlPanel a RemoteControlSensor
Receives IR Signal from Remote Control.
b AmbientLightSensor(*40PFL4709Conly.)
Alters the brightness of the TV screen Automatically by detecting
your room lighting level. Do Not Block this Light Sensor window to
allow proper operation.
c PowerOn/StandbyIndicator
(On : lights in white, Standby : no light)
d VOL◄/►
Adjusts the Volume.
VOL ◄ : Volume Down
VOL ► : Volume Up
In the Menu screen, moves the Cursor Left (◄) / Right (►).
e CH▲/▼
Selects a Channel in the Memorized Channel Ring (Low to High
or High to Low). In the Menu screen, moves the Cursor Up (▲) /
Down (▼).
f MENU
Opens the Main On-screen Menu.
g SOURCE
Selects Connected Devices.
h  (POWER)
Turns the TV On and Off (Standby mode).
cba
d
e
f
g
h
Terminals i DigitalAudioOutputjack
Digital Audio (S/PDIF) Output to Home Theaters and other Digital
Audio systems.
j PCInputjack
VGA cable Connection for PC.
k Component(Y/Pb/Pr)/CompositeVideo(VIDEO)Inputjacks
forVIDEO
Composite Video Input (VIDEO) jack is a shared jack with
Component Video Input (Y) jack.
l AnalogAudio(L/R)Inputjacks
Connect Analog Audio Signals from;
– HDMI-DVI / Analog Audio (L/R) jacks Signal
– Component Video / Analog Audio (L/R) jacks Signal
– Composite Video / Analog Audio (L/R) jacks Signal
– PC Connection / Analog Audio (L/R) jacks Signal with Stereo
Mini 3.5mm Plug Audio Cable on PC
m HDMIInputjack(s)
Digital Audio and Video Input from High-Denition Digital Devices
such as DVD / Blu-ray Disc players, Cable / Satellite Set-top Boxes
and PC’s.
* For HDMI 1 only
In addition to normal HDMI and HDMI-DVI functionality, it outputs
TV Audio to an HDMI-ARC-compliant device, such as a home
theater system.
n USBTerminal
Data Input from USB Memory Stick only.
Do Not Connect any Device to this terminal such as; Digital
Camera, Keyboard, Mouse, etc.
o 75ohmCable/AntennaConnection
Signal Input from an Antenna or Cable / Satellite Set-top Boxes.
p HeadphoneAudioOutputjack
Headphone 3.5mm Stereo jack for personal listening.
CABLE IN HDMI 3 HDMI 2 USBHEADPHONE
DIGITAL
AUDIO OUT
( COAXIAL )
L- AUDIO -R
Y/VIDEO
COMPONENT IN
HDMI 1 (ARC)
ANTENNA IN
PrPb
n
o
p
i
l
j
k
m
Continued on next page.

English
11
ConnectingtheAntenna,CableorSatellite
Be sure your antenna or other device is connected properly before
plugging in the AC power cord.
IfconnectingtoanAntennathroughanRFcable
Any programs that are broadcasted in your area can be received for
free through an antenna connection.
ANTENNA INANTENNA IN OUT
RFcable
CABLE INCABLE IN
OUT
RFcable
Cable
IfconnectingSet-topBoxthroughanRFcable
If the TV is connected to a cable box or satellite set-top box via a
coaxial connection, set the TV to channel 3, 4 or the channel specied
by the service provider.
IN
OUT
ANTENNA INANTENNA IN Set-topbox
RFcable
RFcable
IfconnectingSet-topBoxthroughanHDMIcable
If the TV is connected to a cable or satellite set-top box via an HDMI
cable, make sure you select the correct source by using SOURCE key
on TV or SOURCE key on Remote Control.
ININ IN
IN
OUT
OUT
Set-topbox
HDMIcable
RFcable
IfconnectingSet-topBoxthroughComponentVideoInput
If the TV is connected to a cable box or satellite set-top box via
Component Video Input, make sure you select the correct Component
Video Source by using SOURCE.
OUTOUT
IN
IN
IN
IN
OUT
OUT
Set-topbox
RFcable
Audio(L/R)cables
Component
(Y/Pb/Pr)Videocables
ConnectingaSet-topBox,Blu-rayDisc/DVDRecorder
viaCompositeConnectorsandAnalogAudio
Do not place your recorder too close to the screen because some
recorders can be susceptible to signals.
OUT
OUT
OUT
OUT
OUT
IN
IN
IN
OUT
IN
ANTENNA INANTENNA IN
RFcable
RFcable
Set-topbox
Blu-raydisc/DVDrecorder
Audio(L/R)+Videocables
Audio(L/R)+
Videocables
cable
Note(s)
• If you have any question about the DTV’s antenna, visit www.antennaweb.org for further
information.
• Depending on your antenna system, you may need different types of combiners
(mixers) or separators (splitters) for HDTV signal. The minimum RF bandpass on these
devices is 2,000MHz (2GHz).
• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable
from the antenna / cable Input jack before moving the unit.
• If you did use an antenna to receive Analog TV, it should also work for DTV reception.
Outdoor or attic antennas will be more effective than a set-top box or inside antenna.
• To Turn On your reception source easily between antenna and cable, install an antenna
selector.
• If you are not receiving a signal from your cable service, contact the Cable provider.
PluggingintheACPowerCord
Make sure that the AC power cord must be plugged to an AC outlet
after all the necessary connections are made.
Caution
• Do not connect the AC power cord to a power supply outside the indicated voltage of
this unit (AC 120V).
• Connecting the AC power cord to a power supply outside of this range may result in
re or electrical shocks.
Note(s)
• Each time you plug in the AC power cord, no operations will be performed for a few
seconds. This is not a malfunction.
Continued on next page.

English
12
No supplied cables are used with these connections:
• Please purchase the necessary cables at your local store.
Before you connect AC power cord:
Be sure other devices are connected properly before plugging in the AC
power cord.
SelectingyourConnectionquality
HDMI-Highestquality
Supports high-denition Digital signals and gives highest picture and
sound quality. Video and Audio signals are combined in one cable. You
must use HDMI for full high-denition video and to enable EasyLink
(HDMI CEC).
Note(s)
• Philips HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP
is a form of Digital Rights Management that protects high-denition content in Blu-ray
discs or DVDs.
• The HDMI-ARC connector on the TV features HDMI-ARC functionality. This allows
output of TV Audio to an HDMI-ARC-compliant device.
Component(YPbPr)-Highquality
Supports high-denition Analog signals but gives lower picture quality than
HDMI. Component (Y/Pb/Pr) Video cables combine Red / Green / Blue
video cables with Red / White Audio (L/R) cables. Match the cable
colors when you connect to the TV.
Composite-Basicquality
For Analog connections. Composite Video / Audio Analog cable usually
combine a Yellow video cable with Red / White Audio (L/R) cables.
With this unit, Yellow cable must be connected to Y (Green) of
Component Video Input jacks.
ConnectingyourDevices
HDMIDigitalConnection
HDMI Connection offers the highest picture quality.
HDMI (High-Denition Multimedia Interface) transports high-denition
Digital video and multi-channel Digital Audio through a single cable.
ININ OUT
Set-topbox
or
Blu-raydiscplayer
or
HDgameconsole
HDMIcable
HDMI-DVIConnection
This unit can be connected to your device that has a DVI terminal.
Use an HDMI-DVI conversion cable for this connection and it requires
Audio cable for Analog Audio signal as well.
ININ OUT
IN
IN
OUT
HDMI-DVI
conversioncable
Audio(L/R)cables
cablereceiveror
satelliteboxwiththe
DVIOutputjack
Note(s)
• Use an HDMI cable with the HDMI logo (a certied HDMI cable). High Speed HDMI
cable is recommended for the better compatibility.
ForHDMIConnection
• The unit accepts 480i / 480p / 720p / 1080i, 1080p 24/30/60Hz of video signals, 32kHz
/ 44.1kHz and 48kHz of Audio signals.
• This unit accepts 2 channel Audio signal (LPCM and Dolby Digital) only.
• This unit accepts only signals in compliance with EIA861.
ForHDMI-DVIConnection
• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.
• HDMI-DVI Connection requires separate Audio connections as well and the Audio
signals are output as Analog (L/R) Audio.
• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.
Continued on next page.

English
13
HDMI-ARCconnection
HDMI-ARC allows you to use EasyLink to output TV Audio directly to
a connected Audio device, without the need for an additional Digital
Audio cable.
HDMI-ARCHDMI-ARC
OUT
DigitalHomeTheater
Amplier
HDMIcable
HDMI1INonly
Note(s)
• The HDMI 1 connector is HDMI Audio Return Channel (ARC) compliant. Use it to
output Digital Audio to an HDMI home theater system.
• Be sure that the device is HDMI CEC and ARC compliant and that the TV is connected
to the device using an HDMI cable attached to HDMI-ARC connectors.
ComponentAnalogVideoConnection
Component Analog Video Connection offers better picture quality for
video devices connected to the unit.
If you connect to the unit’s Component Video (Y/Pb/Pr) Input jacks,
connect Analog Audio cables to the Analog Audio (L/R) Input jacks.
OUTOUT
IN
IN
IN
IN
OUT
OUT
Component(Y/Pb/Pr)Videocables
Audio(L/R)cables
Set-topbox
or
Blu-raydisc/DVD
recorder
Note(s)
• The unit accepts 480i / 480p / 720p and 1080i/p of video signals for this connection.
CompositeAnalogVideoConnection
Composite Analog Video connection offers standard picture quality for
video devices connected to the unit.
If you connect to the unit’s Composite Video (Y/VIDEO) Input jack,
connect Audio cables to the Audio (L/R) Input jacks. When the Audio is
monaural, then only connect to the Audio L Input jack.
OUTOUT
IN
IN
DVDplayer
Audio(L/R)+Videocables
Note(s)
• With this unit, Yellow cable must be connected to Y (Green) of Component Video Input
jacks.
• Whenever you connect to the Composite Video Input jack (Y/VIDEO), you must
disconnect the Component Video Input jacks (Pb and Pr). If you leave those jacks
connected, it may cause of unstable picture.
DigitalAudioOutputConnection
If you connect this unit to an external Digital Audio device, you can
enjoy multi-channel Audio like 5.1ch Digital broadcasting sound.
Use a Digital Audio Coaxial cable to connect the unit to external Digital
Audio devices.
ININ
OUTOUT DigitalHomeTheater
Amplier
DigitalAudioCoaxialcable
Continued on next page.

English
14
PCConnection
HDMI Connection
This unit can be connected to your PC that has a HDMI terminal. Use
an HDMI cable for this Digital connection.
ININ OUT
PC
HDMIcable
HDMI-DVI Connection
This unit can be connected to your PC that has a DVI terminal. Use
an HDMI-DVI conversion cable for this Video Digital connection and it
requires Stereo mini 3.5mm plug Audio cable for Analog Audio signal as
well.
OUT
IN
IN
OUT
ININ
PC
StereoMini3.5mmPlugAudiocable
HDMI-DVI
conversioncable
VGA Connection
This unit is equipped with a PC Input jack. If you connect this Unit to
your PC, you can use this Unit as a PC monitor.
Use a VGA cable for this Video Connection and it requires a Stereo mini
3.5mm Plug Audio Cable for Analog Audio signal as well.
ININ
OUT
OUT
IN
IN
PC
StereoMini3.5mmPlugAudiocable
VGAcable
The following video signals can be displayed:
Format Resolution Refreshrate
VGA 640 x480
60Hz
SVGA 800 x600
XGA 1024 x768
WXGA 1280 x768
1360 x768
FHD * 1920 x1080
Other formats or non-standard signals will not be displayed correctly.
* 40PFL4709C only.
Note(s)
• Please purchase the VGA cable or HDMI-DVI conversion cable that has a ferrite core.
• The following operations may reduce noise.
– Attach a ferrite core to the AC power cord of your PC.
– Unplug the AC power cord and use the built-in battery of your PC.
• Use an HDMI cable with the HDMI logo (a certied HDMI cable). High Speed HDMI
cable is recommended for the better compatibility.
• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.
• HDMI-DVI Connection requires separate Audio connections as well and the Audio
signals are output as Analog (L/R) Audio.
• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.
USBMemoryStick
This unit offers easy playback of picture, music and video les.
Insert the USB Memory Stick into the USB terminal shown below.
USB ➠ p.22
Note
• The unit recognizes only a USB Memory Stick.
• Do not use a USB hub or an extension cable to connect an external hard disk drive to
the unit. (Not supported.)
• A USB Memory Stick is always inserted to this unit directly.
• A USB Memory Stick is not supplied with this unit.
• We do not guarantee that all USB Memory Sticks can be supported by this unit.
• Be sure to keep a backup copy of the original les on your device before you play them
back on this unit. We have no responsibilities for damage or loss of your stored data.
• To protect your USB Memory Stick les from being erased place the write protect
sliding tab in the protect position.
• When you are ready to remove a USB Memory Stick, set the unit to go into Standby
mode to avoid any damage to your data and the unit.
• A USB Memory Stick that requires its own driver or the device with a special system
such as ngerprint recognition are not supported.
• This unit is not allowed to use the USB Memory Stick which requires an external
power supply (500mA or more).
Continued on next page.

English
15
These operations are accessible by Remote Control.
Some may also be accessible by control panel on the main unit.
Initialsetup
This section will guide you through the unit’s initial setting which
includes selecting a language for your on-screen menu, country, location
and channel installation.
Before you begin:
Make sure the unit is connected to antenna or cable.
1 After making all the necessary connections, press to Turn On the
unit.
• It may take a few moments to Turn On the unit for the rst time.
• Initial setup menu appears automatically after the unit is Turned
On.
2 Use ▲▼ to select the on-screen language, country, TV placement,
location on the right side of the TV screen, then press OK.
• You must set Home in location setting. Otherwise, Picture and
Sound settings you adjusted will not be memorized after the unit
goes into Standby mode.
3 Use ▲▼ to select the signal type.
• If the TV is connected to a cable box or satellite set-top box,
select Set-topbox and skip to step 5.
Select"Antenna"tosetupaTV
signalfromacableTVwalljack
orastandardTVantenna.
Select"Set-topbox"tosetupa
TVsignalfromacableTVboxor
satelliteTVreceiver.
Antenna
Set-topbox
4 Use ▲▼ to select Antenna for TV channels or Cable for CATV
channels or Both, then press OK.
Makesurethatyouhaveattached
yourantennaorcablesignalinto
thejackonthebackofyourTV
labeled"ANTENNAIN".
NowselecteitherAntennaor
Cable,usingtheUp/Downbuttons
oftheremotecontrol.Onceyou
havemadeyourselection,press
theOKbuttontoproceed.
Both
Antenna
Cable
Skip
– When Antenna is selected, the TV detects antenna signals. It
searches for DTV and Analog TV channels available in your
area.
– When Cable is selected, the TV detects signals supplied by
cable. It searches for Analog TV and Cable channels available
in your area.
– When Both is selected, the TV detects signals supplied by both
antenna and cable.
• Channel search will begin.
Systemsearching.Pleasewait…
Autoprogrammingmaytakemore
than20minutestocomplete.
Digitalchannelswilltakelonger
thanAnalogtofindandprogram.
PleasewaituntilyouseetheAuto
Programmingcompletemessage.
Digitalchannels: 0
Analog(Air)channels: 0
Analog(Cable)channels: 0
Totalprogress:
Step1:
5 After the channel installation is completed, Settings assistant start
screen will appear. Use ◄► to select Start,thenpress OK to begin
Settingsassistant.
Settingsassistantwillallowyoutocustomizeyourpicturesettingstoyourpersonal
preference.Youwillseeaseriesoftestpictureswheretherightsideandleftside
differ.SelectthesidethatismostpleasingtoyouwiththeLeft/Rightbuttons.
Skip Start
6 Press ◄ or ► 5 times to select the side of the pictures that is the
most pleasing to you, then press OK.
Whichsideofthepicturedoyouprefer?
PictureACancel PictureB
7 Use ◄ ► to select your preferred energy efciency level, then
press OK.
Selecttheenergyefficiencylevelyouprefer.
Personal Energysaving
8 Use ◄ ► to select your preferred sound setting, then press OK.
Selectyourpreferredsoundsetting.
SoundBSoundA SoundC
9 Press OK to nish Settingsassistant.
Storeyourpreferences.
Cancel Store
• Select Finish to complete the Initial Setup.
Note(s)
• If you are not receiving a signal from your cable service, contact the Cable provider.
• If you press or OKduring channel installation, this setup of TV channels will be
canceled.
• The initial channel installation function can be executed for either Antenna or Cable
only once. When you change the connection (Antenna / Cable), try Reinstallchannels.
➠p.31
After an initial setup is completed...
• If you want to scan the channels automatically again.
Reinstallchannels   ➠p.31
• If you want to change to another language.
Language ➠p.28
• If you want to change the location setting.
Settingyourlocationtohome ➠p.29
• If you want to restore the picture and sound setting.
Pictureandsoundsetup ➠p.25

English
16
4 UseyourTV
SwitchingonyourTVandputtingitin
Standbymode
To Turn the TV On from Standby or Off to Standby
• Press . on the side panel or the Remote Control.
Note(s)
• Energy consumption contributes to air and water pollution. When the AC power
cord is plugged in, your TV consumes energy. Your TV has very low Standby power
consumption.
AdjustingVolume
To decrease or increase Volume
• Press VOL+/− on the Remote Control or VOL◄/► on the side
panel.
VOL◄(–) : Volume Down
VOL►(+) : Volume Up
To mute or unmute sound
• Press (MUTE) on the Remote Control to mute the sound.
• Press (MUTE) again or VOL+/− to recover the original sound.
SwitchingChannels
To select Channels by using CH +/− or CH ▲/▼
• Press CH▲/▼on the side panel or press CH+/− on the Remote
Control.
To select Channels by using the NUMBER buttons
– When selecting the channel 123
Press (PREV.CH) to return to the previously viewed channel.
To change broadcast signals
• Press DTV/ATV on the Remote Control while watching a
program.
Note(s)
• To select the non-memorized channels, use theNUMBERbuttons.
• ChannelnotavailableorNoSignal will appear on the TV screen after the subchannel
broadcast is over.
• Audioonly message will appear on the TV screen, when you receive only sound signal.
Continued on next page.

English
17
AccesstheHomemenu
1 Press .
GuidetoHomemenu
WatchTV Source TVguide Setup
a WatchTV : Switches back to the TV source if
another source is selected.
b Source : To select connected devices.
c Setup : Accesses menus that allow you to
change picture, sound and other settings.
d TVguide : Accesses TV guide.
WatchingChannelsfromanExternalDevice
Switching Each Input Mode can easily switch with the Remote Control
between TV and external devices when they are connected to the unit.
1 Turn On a set-top box or the connected device.
2 Press SOURCE and use ◄► to select the Set-top Box or
connected device and wait a few seconds till the picture appears.
WatchTV HDMI1 HDMI2 HDMI3 Component
3 Use the Remote Control of the set-top box or the connected
device to select channels.
Lockyourdevice
You can lock specied device.
Before you begin:
You need to set a pin code. ChildLock ➠ p.32
1 Press SOURCE on the Remote Control.
2 Use ◄► to select a device to lock.
3 Press OPTIONS on the Remote Control.
4 Use ▲▼ to select Lock, then press OK.
5 Enter your PIN.
To unlock the device
• Select Unlock at step 4, then press OK.
Changingdevicetype
You can change device icons displayed in the source list.
1 Press SOURCE on the Remote Control.
2 Use ◄► to select the desired device.
3 Press red button on the Remote Control.
4 Use ▲▼ to select the desired type, then press OK.
To reset the type
• Press OPTIONS on the Remote Control at step 3, then select
Originalicon.
Scanconnections
You can rescan TV connections and update the source list.
Before you begin:
You must set On in MasterEasyLink. ➠ p.30
1 Press SOURCE on the Remote Control.
2 Use ◄► to move the cursor to any device.
3 Press OPTIONS on the Remote Control.
4 Use ▲▼ to select Scanconnections, then press OK.
Continued on next page.

English
18
Createalistoffavoritechannels
You can create lists of your preferred TV channels so that you can nd
those channels easily.
1 Press OK while viewing a TV program.
2 Use ◄► to select Digital, Analog(Air) or Cable, then press OK.
3 Use ▲▼◄► to select the desired channel, then press yellow
button.
• The channel will be marked with Icon
Displaythelistoffavoritechannels
1 Press OK while viewing a TV program.
2 Use ◄► to select Favorites.
To remove a channel from the favorite list
• Select the desired channel, then press yellow button.
To reorder channels in the favorite list
1 Select the desired channel, then press green button.
2 Use ▲▼◄► to move the channel to the desired location, then
press OK.
SleepTimer
Sleep Timer can set the unit to go into Standby mode after an
incremental period of time.
 Press SLEEP repeatedly to change the amount of time
(increases the time by 5 minutes up to 180 minutes).
• Each press of ▼ will decrease the time by 5 minutes.
• To cancel sleep timer, press SLEEP or ▼ repeatedly until
“ 0 ” is displayed.
Subtitles
Digital TV operation
You can choose the subtitle display setting.
1 Press SUBTITLE while watching digital TV.
2 Use ▲▼ to select Subtitlesoff, Subtitleson or Automatic, then
press OK.
Subtitlesoff not to display the subtitle
Subtitleson to display the subtitle
Automatic to display the subtitle when you set to mute
Continued on next page.

English
19
ChangingPictureFormat
Display modes can be selected when your TV receives a 16:9 or 4:3
video signal.
Three types of display modes can be selected for a PC Input signal.
Press FORMATand use ▲▼ to switch the TV aspect ratio.
For16:9videosignal
Automatic
Widescreen
4:3
UnscaledorFull*(1080i/p only)
Automatic
Other than DTV and HDMI connected devices,
enlarges the picture to best t the screen.
DTV and HDMI connected devices display the
picture at its original size. The subtitles may remain
visible.
4:3
Displays a 16:9 picture at a 4:3 size; the picture is
shortened horizontally.
Sidebars appear on both edges of the screen.
Widescreen Displays a 16:9 picture that is stretched horizontally
and vertically.
UnscaledorFull*
(1080i/p only) Displays a 16:9 picture at its original size.
* This part differs depending on the product you have.
• Unscaled for 40PFL4709C.
• Full for 32PFL4509C.
For4:3videosignal
Automatic 4:3
Superzoom
Movieexpand16:9 Movieexpand14:9
Widescreen
Automatic
Other than DTV and HDMI connected devices,
enlarges the picture to best t the screen.
DTV and HDMI connected devices display the
picture at its original size. The subtitles may remain
visible.
Superzoom
Displays a 4:3 picture at a 16:9 size; the picture is
stretched horizontally and vertically and its left and
right edges are enlarged. This crops out the top and
bottom of the picture.
4:3 Displays a 4:3 picture at its original size.
Sidebars appear on both edges of the screen.
Movieexpand
14:9
Displays a 4:3 picture at a 14:9 size; the picture is
stretched horizontally and vertically.
This crops out the top and bottom of the picture.
Sidebars appear on both edges of the screen.
Movieexpand
16:9
Displays a 4:3 picture at a 16:9 size; the picture is
stretched horizontally and vertically.
This crops out the top and bottom of the picture.
Widescreen Displays a picture that is stretched out of
proportion to ll the screen.
ForPCInputsignal
4:3 Unscaled
Widescreen
• This unit can also be connected to your PC that has a DVI terminal.
Use an HDMI-DVI conversion cable for this Video connection and
it requires Stereo mini 3.5mm plug Audio cable for Analog Audio
signal as well.
• Refer to 16:9 video signal on this page if PC has HDMI Output.
4:3 Displays a proportionately stretched picture.
Sidebars appear on both edges of the screen.
Widescreen Displays a picture that is stretched out of proportion
to ll the screen.
Unscaled Displays a picture in its original size.
Continued on next page.

English
20
TVscreeninformation
You can check the information on the TV program that is currently on-air.
1 Press INFO.
11 KABC
20:00 - 21:00
11.1 KABC
20:00-21:00
Analog TV
a c
e
b d
b
af
Next
ADayofMemories
ADayofMemories
Now
Aquarter-centuryago,whichmaynowqualifyasthegoodolddaysofnewspapering,
run-of-papersalesaccountedfor80percentoftheindustry'sadvertisingrevenues.
Digital TV operation
Analog/Cable TV operation
a Start time - End time of the selected program and Program
name
b Channel number and Station name
c icons
: indicating HD program
: indicating the selected service is locked
: indicating the program contains subtitle
d Use ◄► to switch between current program and next
program.
e Program details
f Progress bar
2 Press INFO to hide the information.
Viewingprogramguide
Digital TV operation
You can display a list of the digital TV programs for the next 7days using
program guides provided by the broadcasters.
1 Press GUIDE.
20:00 - 21:00
20:00 Wed 31 October 20:12 20:00 20:30 20:30
12 stationF Program R
-1 day +1 day
Details
1 stationA Program A Program B
2 stationB Program C Program E Program F
4 stationC Program G Program L
8 stationD Program M Program N
4 stationE Program O Program P
12 stationF Program Q Program R
15 stationG Program S Program T
19 stationH Program U Program V
99 stationR Program W Program X
j
i
h
c
a
d
b
e
g
f
a Channel number and Station name
b Program title
c icon appears when the selected station is registered on
the favorite list.
d Current time
e Time-shift for 2 hours
f Program list
g Operation guide
• Press INFO to display the details of the selected
program.
• Press green / yellow to display the program list of the
previous / next day
h Channel list
i Current day and date
j Start time - End time of the selected program
2 Press GUIDE to hide the program guide.
Note(s)
• The program guide is not available when you rst set up this unit. This unit needs to
receive and store the data while viewing a DTV program or displaying the program
guide. It may take a while.
Continued on next page.
