Congratulations on having purchased a PIEPS DSP PRO/DSP SPORT.
The PIEPS DSP PRO/DSP SPORT is a digital 3-antenna transceiver designed to be the easiest
to use in a companion rescue. Equipped with DSP technology (Digital Signal Processing) and
a triple-antenna-search system, the PIEPS DSP PRO/DSP SPORT not only offers a maximum
circular range, but also simplies the rescue, especially in a case with multiple burials. The new
functions of the Intelligent Transmitter help to maximize support for the user in SEND-mode –
you will be found faster with your PIEPS DSP PRO/DSP SPORT!
A transceiver cannot protect you against avalanches! Obtaining the proper level
of avalanche education, and regular practicing with all avalanche rescue equipment is essential
to carry out a safe, and effective rescue. The procedures and instructions described refer solely to
specic applications in connection with PIEPS DSP PRO/DSP SPORT. The basic rules of conduct in
case of an emergency – as dened in the relevant specialist publications and in training sessions –
must be observed without fail.
DEAR WINTER SPORTS ENTHUSIAST!
7
16
15
11
10
9
8
14
13
12
1LCD-Display (backlight)
2Main switch
OFF-SEND-SEARCH
3Lock
4SCAN Button *
5MARK Button
6Loudspeaker
7Direction Indicator
8 Numeric Information
9Battery Level
10 Display “SEND”
11 Number of Burials
12 Current Sending Antenna
13 Meter-indication at SCAN *
14 Frequency measurement *
15 TX600-Mode *
16 Inclinometer *
* Only for DSP PRO
1 1
3 3
5
6 6
4 5
2 2
DSP PRO
DSP SPORT
| 06/14
22

Carrying recommendation: PIEPS recommends
carrying the PIEPS DSP PRO/DSP SPORT using the
supplied carrying harness. The neoprene-material is
water repellent, and the “Quick-pull-System” enables
you to access the PIEPS DSP PRO/DSP SPORT very
quickly in case of emergency.
Step 1:
Putting on the carrying
harness, place the shoulder
strap loop over head and
shoulder. Lead the body strap
around your back, x the quick
fastener and adjust to the
proper length.
Step 2:
Switch on the PIEPS DSP PRO/
DSP SPORT (SEND) and wait
for the results of the self-check.
Step 3:
Put the PIEPS DSP PRO/DSP
SPORT back into the carrying
system and enjoy your tour.
QUICKSTART IN 3 STEPS
Your PIEPS DSP PRO/DSP SPORT
is ready to use directly out of the box!
There is also the option to carry the PIEPS DSP PRO/
DSP SPORT with the supplied hand loop in a securely
closeable trouser pocket without a protective case.
The hand loop can be xed around your wrist during
the search to rule out losing the PIEPS DSP PRO/DSP
SPORT.
„Quick-Pull-System“
WARNING!
The volume level of an avalanche
transceiver can be up to 100 dB
(decibels), and may cause damages
to your hearing! Make sure that there
is always a minimum distance of 50
cm between the avalanche transceiver
and your ears!
06/14 |
23

SWITCHING ON | SELF-CHECK
Press the main switch lock and push the main switch to the position “SEND“ or “SEARCH“. The
PIEPS DSP PRO/DSP SPORT is now in SEND- or SEARCH-mode.
During power-on, the PIEPS DSP PRO/DSP SPORT will carry out a self-check. The transmitting
frequency, all antennas, ampliers, and processors are tested and the latest rmware is displayed.
During the self-check, a minimum distance of 5 meters should be maintained to other beacons,
and any electronic or magnetic interference.
If the self-check is successful, “OK“ is indicated on the display. In the event of a device warning,
an alert signal sounds and the display indicates “E“ in combination with a warning-code
(overview table in chapter warning-codes). If the warnings are still shown in an interference-
free area the PIEPS DSP PRO/DSP SPORT is not fully functional. Bring your PIEPS DSP PRO/DSP
SPORT to a PIEPS authorized service center.
ADVANCED BEACON-CHECK-FUNCTION
Despite the extensive self-check, PIEPS recommends that all users perform a beacon check
before each tour! Your PIEPS DSP PRO/DSP SPORT is equipped with an advanced beacon-
check-function. A check is simple and efcient, it tests to be sure your partners avalanche
transceiver is sending a signal and whether the signal is in compliance with standards.

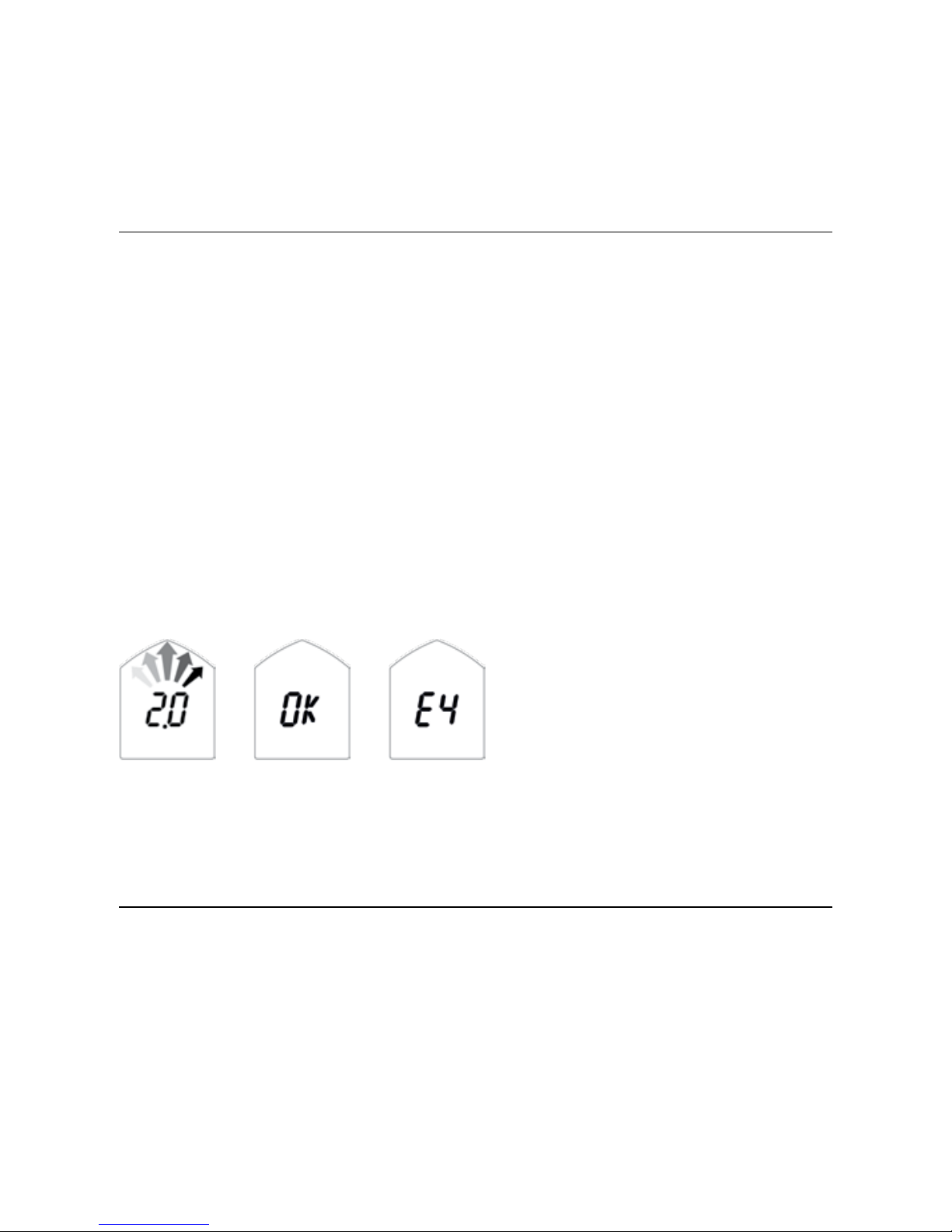

Display
Firmware-Version
Display
Self-check OK
Display
Self-check error
| 06/14
24

ADVANCED BEACON-CHECK-FUNCTION
Activation of beacon-check-function:
1. Turn on your PIEPS DSP PRO/DSP SPORT
(Position SEND).
2. Wait until „CH“ appears on the display
(CH = CHECK).
3. Press and continue to hold the
MARK button.
The beacon-check-function is active as long
as the MARK button is pressed. Release the
MARK button to exit the beacon-check-
function. After a countdown of three seconds,
your DSP PRO/DSP SPORT automatically turns
into the SEND mode. During the countdown,
the beacon-check-function can be reactivated.
The maximum range in beacon-check-mode
is one meter!
Conduct the „big“ beacon-check as follows:
(1) Receiving control
Group leader –SEND-mode: Device is sending?
All others – SEARCH-mode: Devices are receiving?
(2) Transmission control
Group leader – beacon-check-mode: Device receives?
All other –SEND-mode: Devices are sending?
3 second countdown
1
2
Device is not
sending or
distance is too
large (> 1 m)
Device
is sending.
Display +
Sound
Device is not
sending within
the acceptable
range.
TIP! The receive control can be combined
with a range test in long distance.
06/14 |
25

The Intelligent Transmitter – Gives maximum support in SEND-mode
In SEND-mode there are functions working in the background of PIEPS DSP PRO/DSP SPORT
that help to be found faster and more efciently in case of an emergency.
Auto-Antenna-Switch
If the transmitting antenna is negatively inuenced through external devices (i.e. mobile phone),
the range of receiving beacons is directly inuenced (reduction could be 30 % or greater).
The PIEPS DSP PRO/DSP SPORT is always transmitting with the strongest antenna for the
maximum range to the receiving beacon!
iPROBE-Support
Beacons with iPROBE ONE Support* will be automatically deactivated when probing with the
electronic probe PIEPS iPROBE ONE. Signal overlap is eliminated and the next strongest signal
is automatically shown on the display of the receiving beacon. The PIEPS iPROBE ONE supports
maximal in the case of a multiple burial. See also chapter „Multiple Burials“.
The PIEPS iPROBE Support gives the best solution for multiple burial situations!
*Beacons with iPROBE ONE Support: PIEPS DSP PRO, PIEPS DSP SPORT, PIEPS DSP (with
Software version 5.0 or greater), PIEPS DSP TOUR, PIEPS FREERIDE
More information can be found on www.pieps.com.

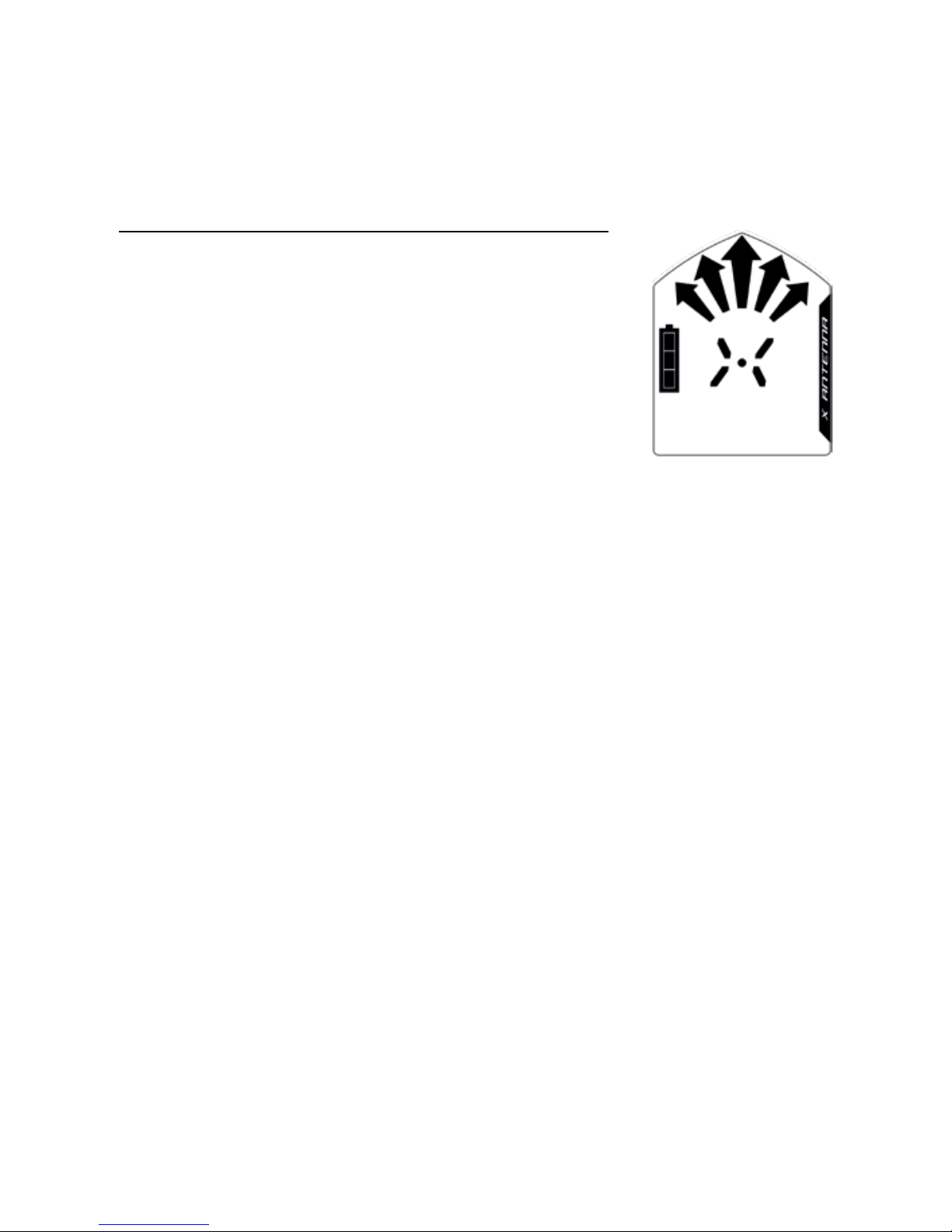

SEND-MODE
Press the main switch lock and push the main switch to the
“SEND“ position. The display indicates the SEND-symbol,
the remaining battery capacity, and the transmitting antenna.
Additionally an LED indicator light ashes simultaneous with the
transmitter bit timing.
When you are on a tour, make sure the “SEND“-mode is selected
throughout. The PIEPS DSP PRO/DSP SPORT will transmit a
continuously dened signal (457kHz) that can be picked up from
all other avalanche beacons (according EN300718).
| 06/14
26

(6) Dig: Start digging at a distance downhill
from the probe equal to the indicated depth
of burial. Dig over a large area.
(7) Rescue and rst aid: First clear the face and airways.
Watch out for any breathing cavity (air pocket) for the victim. Protect from cold.
A victim has the best chance of being rescued if the largest possible number of companions
in a given group have not been buried and work efciently as a team to search and rescue
their companion. In the event of an accident, the most important considerations are to:
STAY CALM, BE OBSERVEANT, and RAISE THE ALARM.

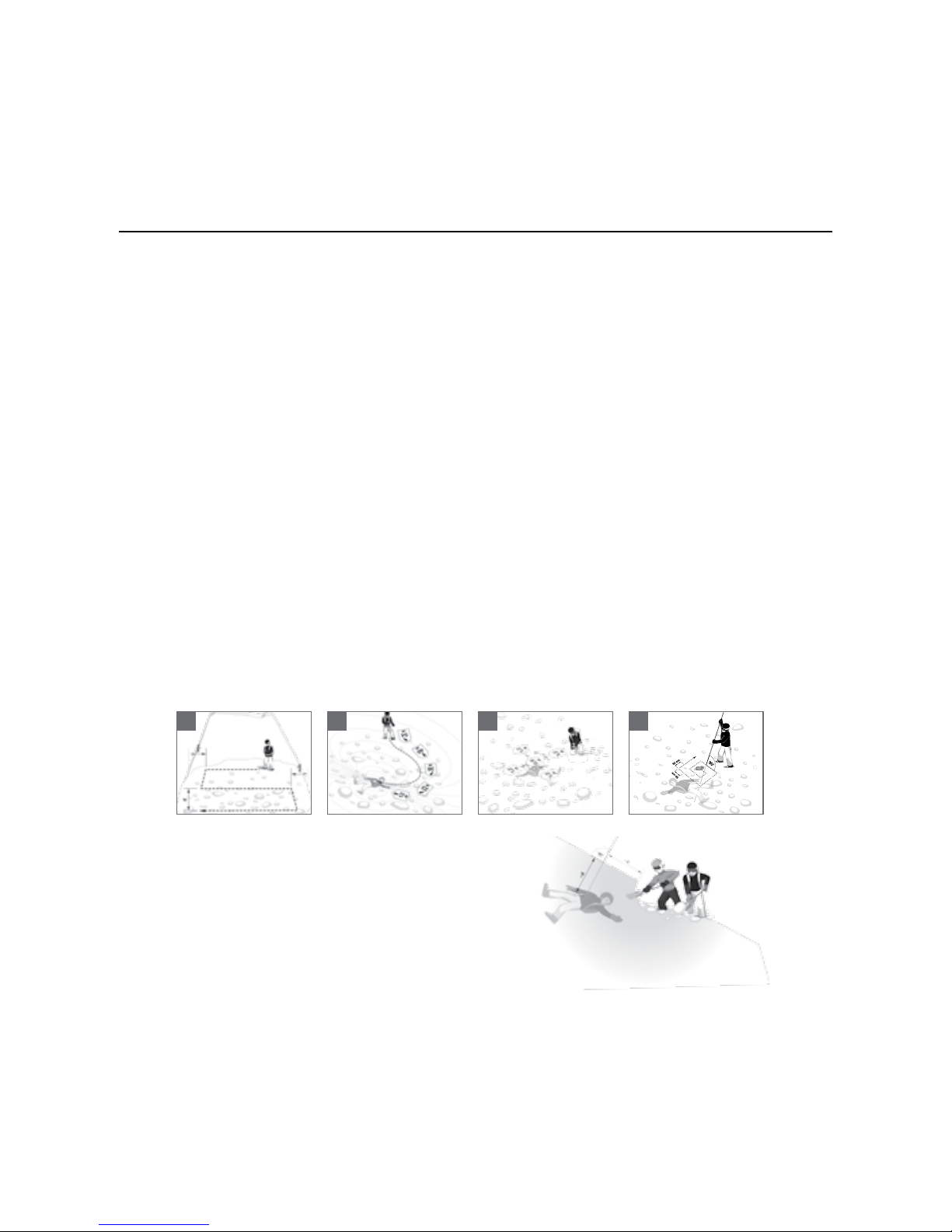

(1) Determine the search area and last point seen:
How many victims are buried? Are there several companions ready to engage
in rescue? The most experienced person takes over assignment and management.
(2) Call emergency services:
Dial 112 (EU), 911 (NA) if this is possible without losing time.
(3) Establish search areas: Where are the probable burial locations?
(4) Visual Sweep Search: Search for the avalanche cone with your eyes and ears.
(5) Search with avalanche transceiver: Switch non-searching avalanche
transceivers in SEARCH-mode. The search is divided in the following search phases
(ICAR 2009): ASignal search, BCoarse search, CFine search, DPinpointing
(Check the search results with a probe. Leave probe in place.)
IN CASE OF EMERGENCY
A B C D
06/14 |
27

SEARCH-MODE | SIGNAL SEARCH
Press the main switch lock and push the main switch to
the “SEARCH“ position.
Observe the course of the avalanche and make an exact
mental note of (1) where the victim was impacted by the
avalanche, (2) the point of disappearance. (3) The extension
of these points indicates the ow direction of the avalanche!
The primary search area is to the left and right of this.
1Point of impact
2Point of disappearance
3Flow direction
You are now beginning with the search for initial detection. The PIEPS DSP PRO/DSP SPORT has
a circular receiving range and allows a direction and distance indication from the rst signal (no
special method of operation necessary). All signals of the burials that are within the maximum
receiving range are received at the same time. To nd the rst signal walk along the dened
search area in the stated search-strip width quickly. The recommended search strip width is 60
m for PIEPS DSP PRO / 50 m for PIEPS DSP SPORT.
IMPORTANT! All participants (including observers) must switch their devices to receiving
(SEARCH) mode. Always make sure there are no electronic devices (e.g. mobiles, radios) or solid metal
items in the direct vicinity of the search.
One rescuer with skis
for signal search
One rescuer by foot
for signal search
More rescuers
for signal search
d = Search strip width
1
3
2
| 06/14
28

(1) As soon as the PIEPS DSP PRO/DSP SPORT picks
up signals, the approximate distance and direction
appear in the display. Matchstick men represent the
number of burials within the range of the device.
Using the arrow and distance reading, follow the
strongest of the received signals along the eld lines.
(2) Move in the direction indicated by the PIEPS
DSP PRO/DSP SPORT. The distance reading should
become progressively smaller. If it gets larger, switch
the search direction by 180°, i.e. turn round and
follow the opposite direction.
COARSE SEARCH
Number of Burials
Direction Indication
IMPORTANT!
When working in the
SEARCH-mode, remain
calm and concentrated,
and avoid hasty
movements!
four or morethreetwoone
move
STRAIGHT
AHEAD
turn
RIGHT
turn
LEFT
1
2
06/14 |
29

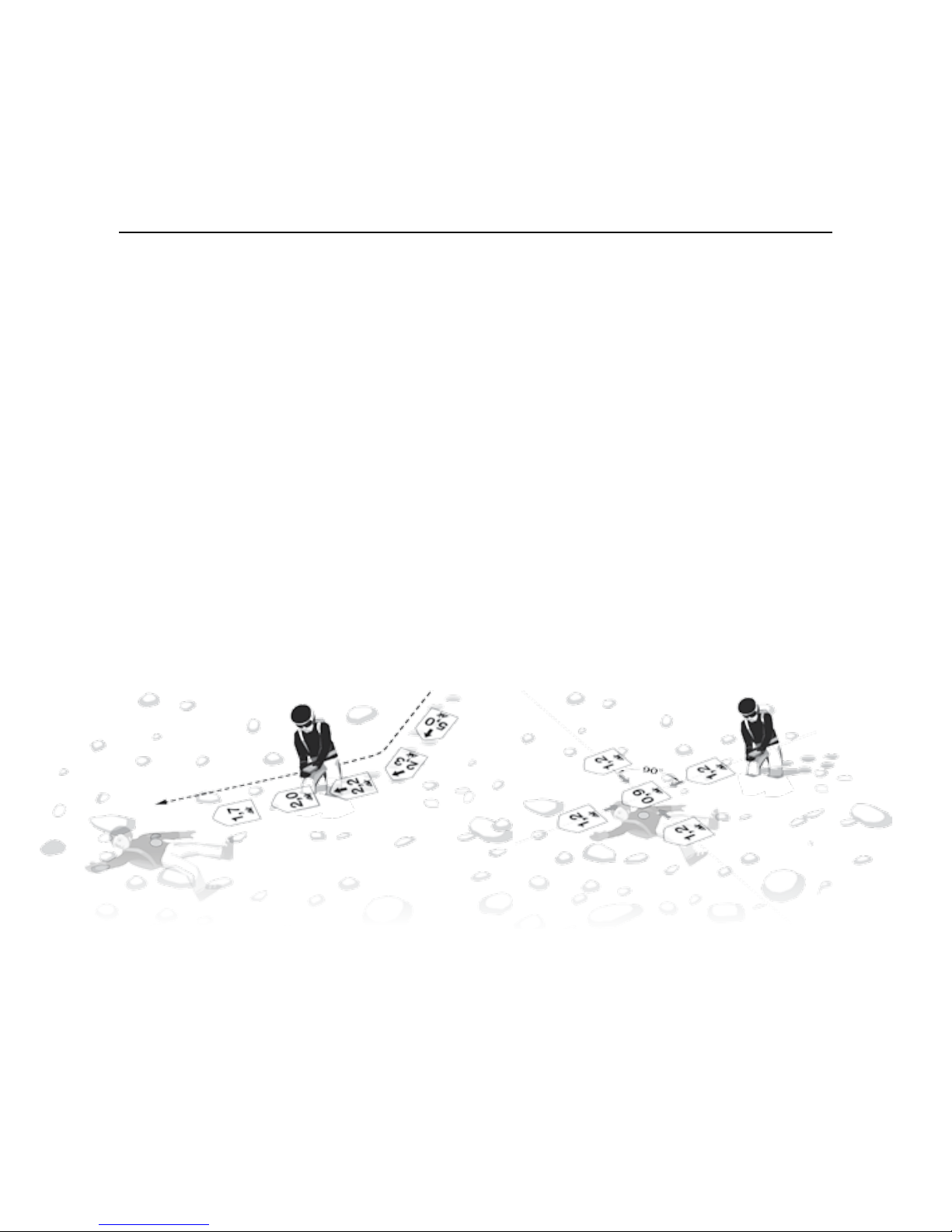

FINE SEARCH
When you are closer than 5 m to the burial, it is strongly recommended to reduce your
moving speed (50 cm/sec). Keep the PIEPS DSP PRO/DSP SPORT as close as possible to
the surface of the snow to have the minimum distance to the transmitting beacon.
To avoid confusion, the direction indication is suppressed at distances less than 2 m. Make
an exact last direction correction before the directional arrows are suppressed.
Reduce your moving speed again (10 cm/sec). Continue in the last displayed direction.
If the distance reading starts increasing again, move back to the point with the lowest
distance reading. At this point, try to get the lowest distance reading, using cross-like
movements (90°). Repeat the cross-like approach as long as no lower distance reading
can be determined. Do not rotate your PIEPS DSP PRO/DSP SPORT during the cross-like
movements. The PIEPS DSP PRO/DSP SPORT only shows one minimum pertaining to any
orientation of the transmitting beacon.
The dynamic acoustic signal supports the ne search: The closer the searcher gets to the
victim the beacons tone will become a faster pace/higher pitch.
Important! Before the direction arrows are suppressed,
the last distance correction has to be done exactly. You are
then moving to the transmitting beacon in best coupling
position and save time during the cross-like movements. In
the case of a deep burial it could happen that the minimum
direction indication is higher than 2 m!
Important! It’s strongly re-
commended to avoid hasty move-
ments (move approx. 10 cm/sec)
and avoid turning and rotating the
PIEPS DSP PRO/DSP SPORT.
(1)
(2)
(3)
| 06/14
30

The optimized multiple burial search is based on a separation of signals via the digital
signal processor (DSP).
MULTIPLE BURIALS
Number of
possible marks:
If there are multiple burials, this is clearly indicated by the number of matchstick men.
By default, the PIEPS DSP PRO/DSP SPORT will automatically search for the strongest signal.
Once the position of the rst burial has been located (see ne search), press the button
MARK without moving away from this point. This signal is now suppressed. Once a signal
has been successfully suppressed, an outline appears around the matchstick man.
The PIEPS DSP PRO/DSP SPORT will automatically search for the next strongest signal.
Now continue the search as described above, and repeat the procedures until all
transmitters are located. If there are no further signals within the receiving range the
display indicates “No Signal”.
(1)
(2)
(3)
(4)
(5)
max. 5 transmitters,
3 are indicated on
the display
06/14 |
31

Mark reset of single suppressed signals: To reset the MARK function for single signals, press
the button MARK for 3 seconds.
Mark reset of all suppressed signals: To reset the MARK function switch your PIEPS DSP
PRO/DSP SPORT into SEND-mode and then back to SEARCH-mode. With the PIEPS DSP PRO
you also have the possibility to reset MARK with the following described SCAN-function. All
information from previously suppressed signals is now reset and you can start with MARK again.
Old device mode: Older analog transceivers are transmitting a weak continuous signal
additional to the digital pulse signal that can have an impact on the digital signal separation. In
such cases, you may nd for a short time that more signals are indicated than actually exist – the
display “number of burials” starts ashing (display of “old device mode”). To suppress (MARK)
these transmitters keep a distance of more than 1 m.
signal with continuous carrier
signal without continuous carrier
IMPORTANT! The MARK function is subject to physical and technical limitations. This applies to all
transceivers with MARK function! In practice, one might observe performance-reducing limitations which
get intensied by overlapping signals. More information can be found on www.pieps.com.
MULTIPLE BURIALS
PIEPS provides with the PIEPS SAFETY SYSTEM (digital PIEPS beacon and electronic probe
PIEPS iPROBE) a technical 100% solution for multiple burials. By using a digital PIEPS
beacon in combination with the PIEPS iPROBE or iPROBE ONE someone can solve a multiple
burial without any performance-reducing limitations! See also chapter „iPROBE Support“.
| 06/14
32

ADDITIONAL FUNCTIONS FOR PIEPS DSP PRO
The following additional functions are only valid for PIEPS DSP PRO.
The functions cannot be used or added to the PIEPS DSP SPORT.
1. SCAN-FUNCTION
Press the SCAN button while in the SEARCH-mode. The PIEPS DSP PRO will begin scanning
the entire receiving range. During the scan, stand still and hold the device steady. This will give
you an overview of all buried devices within the detectable range, classied according to three
groups:
Reading 1: Number of beacons within a distance of approx. 5 m
Reading 2: Number of beacons within a distance of approx. 20 m
Reading 3: Number of beacons within a distance of approx. 50 m
IMPORTANT! Once you have
located all burials, move away from
their locations in a star shape and
use the SCAN function to check the
scenario again. That way you can
make sure you haven’t missed any
other burials.
All information from previously
suppressed (MARKED) signals
will be reset and you can start the
suppression again (MARK) or follow
the direction indication to the next
strongest signal.
Press the button SCAN again to stop
the SCAN function.
1 One beacon within 5 m
2One further beacon between 5 and 20 m
3Two or more further beacons between 20 and 50 m
5 m
20 m
50 m
06/14 |
33

ADDITIONAL FUNCTIONS FOR PIEPS DSP PRO
2. FREQUENCY MEASUREMENT
Hold the SCAN button for more than 3 seconds while in
the SEARCH-mode. The PIEPS DSP PRO uses the frequency
measurement to check the frequency of all other beacons. The
frequency of the strongest (closest) beacon is measured. The
deviation from the standardized frequency 457kHz is indicated.
The shown number is the deviation in Hz and the arrows indicates
+ (right) or – (left). The frequency measurement ends when the
button SCAN is not pressed any longer.
IMPORTANT! Check the transmitting frequency of your ski
partners regularly to ensure best performance. According the
standard EN300718 a beacon must transmit within the range of 457
kHz +/- 80 Hz. Ideal and reasonable technical operation will have a
maximum deviation of no more than +/- 30 Hz.
3. TX600-SUPPORT
The PIEPS TX600 is a mini-transmitter for dogs and equipment that
transmits at 456 kHz, which is out of the standard EN300718 (457
kHz +/- 80 Hz) and can be received with every PIEPS DSP PRO.
Hold the MARK and SCAN buttons simultaneously for 3 seconds
while in the SEARCH-mode. The PIEPS DSP PRO switches into
the TX600-mode (“TX”-indication on the display) and indicates
the direction and distance to the strongest TX600 signal. Also the
functions MARK, SCAN and frequency measurement are available
in TX600-mode. To activate the search according to the standard
EN300718 again, switch the PIEPS DSP PRO to the SEND-mode
and then back to the SEARCH-mode.
IMPORTANT! In the standard SEARCH-mode the PIEPS DSP
PRO does not indicate the TX600. Active search operations are never
inuenced. A detection of the TX600 without switching to a special
mode is only possible in immediate vicinity (<1 m).
Example:
the frequency of
the measured signal
is 457 kHz + 10 Hz
(=457.010 Hz)
| 06/14
34

ADDITIONAL FUNCTIONS FOR PIEPS DSP PRO
4. SECONDARY AVALANCHE |AUTO-SEARCH-TO-SEND
A secondary avalanche is an avalanche that occurs during a rescue situation. In this case, the
avalanche transceiver of the rescuer is switching immediately to SEND mode, if the device is
in SEARCH mode.
Slide the main switch of the PIEPS DSP PRO/DSP SPORT from SEARCH to SEND without
pressing the lock button. The main switch is engaged in SEND mode. Store the device and hold
it rmly against the body.
The function Auto-Search-to-Send switches the PIEPS DSP PRO automatically from SEARCH
into SEND-mode when the beacon is not moving for a certain time (in case of a burial).
By default, this function is disabled! The activation of the function „Auto-Search-to-Send“ is
carried out by all PIEPS competence partners (PIEPS Service Center). The Pieps DSP SPORT is
not equipped with this feature! Find more information at www.pieps.com.
PIEPS advises that the function Auto-Search-to-Send does not help, when the rescuer has
lost his/her beacon in the case of a secondary avalanche. Only if a rescuer wears an active
transmitter, is the rescuer properly equipped in the case of a secondary avalanche.
PIEPS BACKUP: PIEPS recommends to deactivate the Auto-
Search-to-Send function in every beacon and instead use an
emergency transmitter such as the PIEPS BACKUP.
The PIEPS BACKUP is a mini emergency-transmitter (frequency 457
kHz) that is worn in addition to a beacon directly on the body and only
starts to transmit in case of an emergency. So PIEPS provides the rst
100% solution for being located in the case of a possible secondary
avalanche!
The PIEPS BACKUP can be received with every standard beacon!
Active search operations are never inuenced!
06/14 |
35

SOFTWARE UPDATE
Every PIEPS DSP PRO/DSP SPORT can be tested and updated with the latest
PIEPS rmware. With your safety in mind our R&D team is constantly working
on improving the rmware to reect and incorporate all our experiences in the
eld. Every new rmware is developed to be compatible with any PIEPS DSP
PRO/DSP SPORT. You can have your PIEPS DSP PRO/DSP SPORT checked
and its rmware updated at every PIEPS Service Center and PIEPS distributor.
How can you display your rmware?
When you are switching the beacon on the latest rmware
is indicated on the display.
Further information about the PIEPS rmware
can be found on www.pieps.com
ADDITIONAL FUNCTIONS FOR PIEPS DSP PRO
5. INCLINOMETER
The PIEPS DSP PRO has an integrated three dimensional inclinometer.
You can quickly check the angle of a slope:
1) Put your ski pole in slope line at that point
of the slope you want to measure.
2) Hold the SCAN button for 3 seconds while in SEND-mode.
3) Put your PIEPS DSP PRO next to the ski pole and the
angle of the slope is indicated. The display switches back
into SEND-mode automatically after 20 seconds.
Important! During the measurement the PIEPS DSP PRO is transmitting.
In case of an emergency the beacon can be lost. PIEPS recommends to make
measurements in avalanche dangerous areas only in combination with the PIEPS
BACKUP!
| 06/14
36

BATTERIES
The battery compartment is located on the backside of the housing. The safety screw connection
can be easily opened and closed using a coin. Only use battery type alkaline LR03/AAA and
always replace all 3 batteries with new ones of the same type. Never use rechargeable batteries
and always change all batteries at the same time!
The battery indication is based on measuring the actual battery voltage. Due to the temperature
inuence the actual battery voltage may vary. A change from cold (outdoor) to warm (mountain
hut) the battery capacity typically recovers.
IMPORTANT!
During a longer time of no use (e.g. summer) the batteries have to be removed from
the PIEPS DSP PRO/DSP SPORT. Damages because of leaked batteries are not included in the warranty.
PIEPS DSP PRO PIEPS DSP SPORT
3/3 lled 400–250 h SEND 200–120 h SEND
2/3 lled 250–120 h SEND 120–60 h SEND
1/3 lled 120–20 h SEND 60–20 h SEND
empty 20 h SEND (+10°C) + 1 h SEARCH (-10°C)
empty, ashing last reserve, transceiver can be switched off at anytime
Electromagnetic Compatibility (EMC) and PIEPS Auto-Antenna-Switch:
All beacons are very sensitive against electrical and magnetic interferences. Due to this, it’s
a recommendation from all manufacturers that minimum distances should be maintained
between avalanche beacons and electronic, magnetic or metallic inuences (like radios,
mobile phones, MP3-players, bunch of keys)!
PIEPS recommends: Minimum distance in SEND-mode: 15 cm | SEARCH-mode: 50 cm
Your PIEPS DSP PRO/DSP SPORT has an Auto-Antenna-Switch included:
If there is an external inuence the strongest antenna will begin transmitting.
Further information can be found in the chapter “Intelligent Transmitter”.
06/14 |
37

TECHNICAL DATA
Device designation PIEPS DSP PRO PIEPS DSP SPORT
Transmission frequency 457 kHz (EN 300718) 457 kHz (EN 300718)
Power supply 3 batteries, Alkaline (AAA) 3 batteries, Alkaline (AAA)
Battery lifetime min. 400 h SEND min. 200 h SEND
Maximum range 60 m 50 m
Search strip width 60 m 50 m
Temperature range -20°C to +45°C -20°C to +45°C
Weight 198 g (incl. batteries) 198 g (incl. batteries)
Dimensions (LxWxH) 115 x 75 x 28 mm 115 x 75 x 28 mm
DIFFERENCES PIEPS DSP PRO PIEPS DSP SPORT
3 Receiving Antennas ✓ ✓
Maximum Range 60 m 50 m
Search Strip Width 60 m 50 m
Circular Receiving Shape
✓ ✓
Self-check ✓ ✓
Intelligent Transmitter
• Auto-Antenna-Switch
• iProbe-Support
✓ ✓
MARK ✓ ✓
SCAN ✓
–
Old Device Mode ✓ ✓
Frequency Measurement ✓
–
TX600-Support ✓
–
Auto-Search-to-Send ✓
–
Inclinometer ✓
–
Motion Sensor ✓
–
Battery Lifetime min. 400 h min. 200 h
Ergonomic Shape ✓ ✓
Hardened Display-Glass ✓ ✓
Carrying Harness yellow printing green printing
Hand Loop ✓ ✓
Updating Possibility ✓ ✓
| 06/14
38

WARNING CODES
ERROR (E) WARNING DESCRIPTION WARNING CORRECTION
No indication on display. Check batteries (polarity and voltage) and
replace if required. If there is no indication
again, bring beacon to your nearest
authorized Service Center.
E1 The beacon has very limited
functionality.
Bring the beacon to your nearest
authorized Service Center.
E2
E3
E4
The beacon has limited functionality.
The transmitting and receiving
function is reduced.
Repeat the process in an interference free
area (outdoor). Check your immediate
environment due to external interferences
(f.e. transmitting beacons, mobile phones). If
the warning is indicated again, bring beacon
to your nearest authorized Service Center.
E5 The beacon is not fully functional –
stop your tour!
Bring the beacon to your nearest
authorized Service Center.
E6 The beacon has limited functionality.
The receiving function is reduced.
Bring the beacon to your nearest
authorized Service Center.
E8 The beacon has limited functionality.
The transmitting and receiving
function is not reduced.
Bring the beacon to your nearest
authorized Service Center.
STORAGE ICLEANING
Always store your PIEPS DSP PRO/DSP SPORT at room temperature (15°C-25°C) in a dry environment.
Remove the batteries when not in use for an extended period (eg summer) . Do not use aggressive
cleaning agents and no metallic cloth for cleaning the surface.
06/14 |
39

WARRANTY | SERVICE
CERTIFICATION | CONFORMITY
PIEPS SERVICE PORTAL
The PIEPS Service Portal is the free-based online service of PIEPS. Your advantages:
• Warranty extension
• Device registration
• Information about latest software updates
• Background knowledge about your registered products
If you need further information please contact us [email protected]
PIEPS warranty extension free of charge: Extend the warranty of your PIEPS DSP PRO/DSP SPORT from 2 to 5
years: With the PIEPS warranty extension you have the possibility to extend the standard warranty of your PIEPS
DSP PRO/DSP SPORT free of charge. Simply register online at the PIEPS Service Portal and get your warranty
certicate for 5 years valid from the date of purchase. The warranty can be extended within 3 months from the
date of purchase.
Warranty Conditions: The device is guaranteed by the manufacturer against defects in material and workmanship
for a period of 2 years from the date of purchase. This warranty does not apply to damage caused by incorrect use,
dropping or dismantling of the device by unauthorized persons. Any further warranty or liability for consequential
damage is expressly excluded. • Warranty claims should be addressed - enclosing the receipt of purchase - to the
relevant sales outlet.
Certication: Manufacturer: Pieps GmbH; Country of manufacture: Austria; Model: PIEPS DSP02; The device
complies with the Standard ETS 300718 WEEE 2002/96/EC; Canada: IC: 7262A-DSP02; USA: FCC ID: REMDSP02;
This device complies with Part 15 of the FCC Rules and IC RSS-210. Operation is subject to the following two
conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference
received, including interference that may cause undesired operation.Warning: Any changes or modications not
expressly approved by the manufacturer, responsible for compliance, could void the user’s authority to operate this
device. On the device, the certication codes and serial number can be found within the battery compartment.
Conformity: Pieps GmbH declares hereby, that the product PIEPS DSP02 fulls all requirements and regulations
of directive 1999/5/EC. The declaration of conformity can be downloaded at the following source: http://www.
pieps.com/certication
Manufacturer, Sales & Service
Pieps GmbH, Parkring 4, 8403 Lebring, Austria, of[email protected], www.pieps.com
All information is supplied without liability. 06/2014.
The most recent version of the manual can be found at www.pieps.com
| 06/14
40
