Pinnacle Outdoor GardenShed User manual

GardenShed
1.5W x 0.8D x 1.53Hm
Tools required: Drill, measuring tape, Phillips-head screw driver, rivet gun, rubber mallet, sturdy ladder, shifting spanner, 2 saw horses, 3mm
steel drill bit, 4mm steel drill bit and a 9mm masonry drill bit.
1.5m Flat Roof Assembly instructions
Congratulations on purchasing your new Pinnacle garden shed. Before assembling, we recommend
you read the instructions thoroughly. Your new shed comes with pre-drilled holes to make assembly
quicker. We recommend you assemble the shed using a trestle table or sawhorses and planks. This
will ensure that you are working off the ground and make it easier for you. Assembly is a two-person
job and should not be attempted in windy conditions.

GardenShed 1.5 x 0.8 x 1.53m
900mm
CONCRETE SLAB: 1600mm
100mm
Build your garden shed in 7 easy steps!
Step 1: Check all parts against the component list
Step 2: Assemble the rear wall panels
Step 3: Assemble the side wall panels
Step 4: Assemble the roof panels
Step 5: Assemble the front wall panel
Step 6: Assemble the front door
Step 7: Fit the panels together
IMPORTANT: It is recommended that your new shed is secured to a concrete slab as per the specifications in this manual.
Concrete slab: Please ensure that your site is level. It is recommended that your slab is 100mm thick and you use builder’s
plastic and F52 reinforcing mesh. We recommend that you make your slab approximately 100mm bigger than the base
dimensions of your shed. This will allow for a 50mm edge around your shed. We recommend that you slope the 50mm edges
downward by 10mm so that rain water can drain away from your shed.

Step 1: Check all parts against the component list
Lay out all parts with number facing outwards and check off against parts list.
Picture Description Component Location Part
No. QTY Check
Sheet Sheet 1500x770 Rear wall 14J 1
Sheet Sheet 1500x735 Rear wall 11S 1
Sheet Sheet 1500x770 Side wall 14K 1
Sheet Sheet 1500x770 Side wall 14M 1
Sheet Sheet 855x770 Roof 3B 1
Sheet Sheet 855x735 Roof 11B 1
Door Sheet Sheet 1443x710 Door 5M 1
Door Sheet Sheet 1443x710 Door 5N 1
Channel Channel 1443 Door 81H 1
Channel Channel 1443 Door 81G 2

GardenShed 1.5 x 0.8 x 1.53m
Picture Description Component Location Part
No. QTY Check
Channel Channel 708 Door M29 1
Channel Channel 708 Door M30 1
Channel Channel 704 Door M31 1
Channel Channel 704 Door M32 1
Jamb Jamb 1443 Door J22 1
Brace Brace 920 Door U13 4
Channel Channel 1477 Roof 39A 1
Channel Channel 1477 Roof 39B 1
Channel Channel 1477 Rear wall 39C 1
Channel Channel 1477 Rear wall 39D 1
Channel Channel 1477 Front 39E 1
Channel Channel 1477 Front 39F 1
Channel Channel 768 Side wall 21B 2

Picture Description Component Location Part
No. QTY Check
Channel Channel 768 Side wall 21F 2
Channel Channel 1431 Front B3 1
Channel Channel 1427 Rear wall B5 1
Channel Channel 718 Side wall 32E 2
Jamb Jamb 1498 Front 45L 1
Jamb Jamb 1498 Front 45R 1
Jamb Jamb 1431 Front D3 1
Brace Corner brace 1498 Corner Z24 2
Brace Corner brace 1498 Corner Z25 2
Lip Lip 856 Roof 50A 2
Shelf 940X440 Inside S1 2
Shelf Leg 31X31X1010 Inside S2 1

GardenShed 1.5 x 0.8 x 1.53m
Qty checking date: ____ / ____ / _____
Qty checking personal badge number: _______________
Signature: _______________
In the unlikely event that you find you are missing a part, please contact Pinnacle at 1800 349 776. A copy of proof of purchase may be requested.
Picture Component QTY Picture Component QTY
Self-tapping screws (10mm) 150 Self-tapping screws (16mm) 20
4 x 10mm Rivet 22 3 x 10mm Rivet 68
Pad bolt (part: 70) 1 Keeper (part: 71) 2
65 x 65mm bar rel
bolt plate (part: 75) 1 60mm barrel bolt (part: 74) 2
Mid wall brace bracket
(part: 72) 2 Base bracket 6
5/16” x 19mm
Hexagonal bolt 6 5/16” Hexagonal nut 6
Self tapper safety cover 25 Channel safety cover
(L type) 1
Channel safety cover
(R type) 1 Plastic stopper 8
Sleeve anchor bolt 6

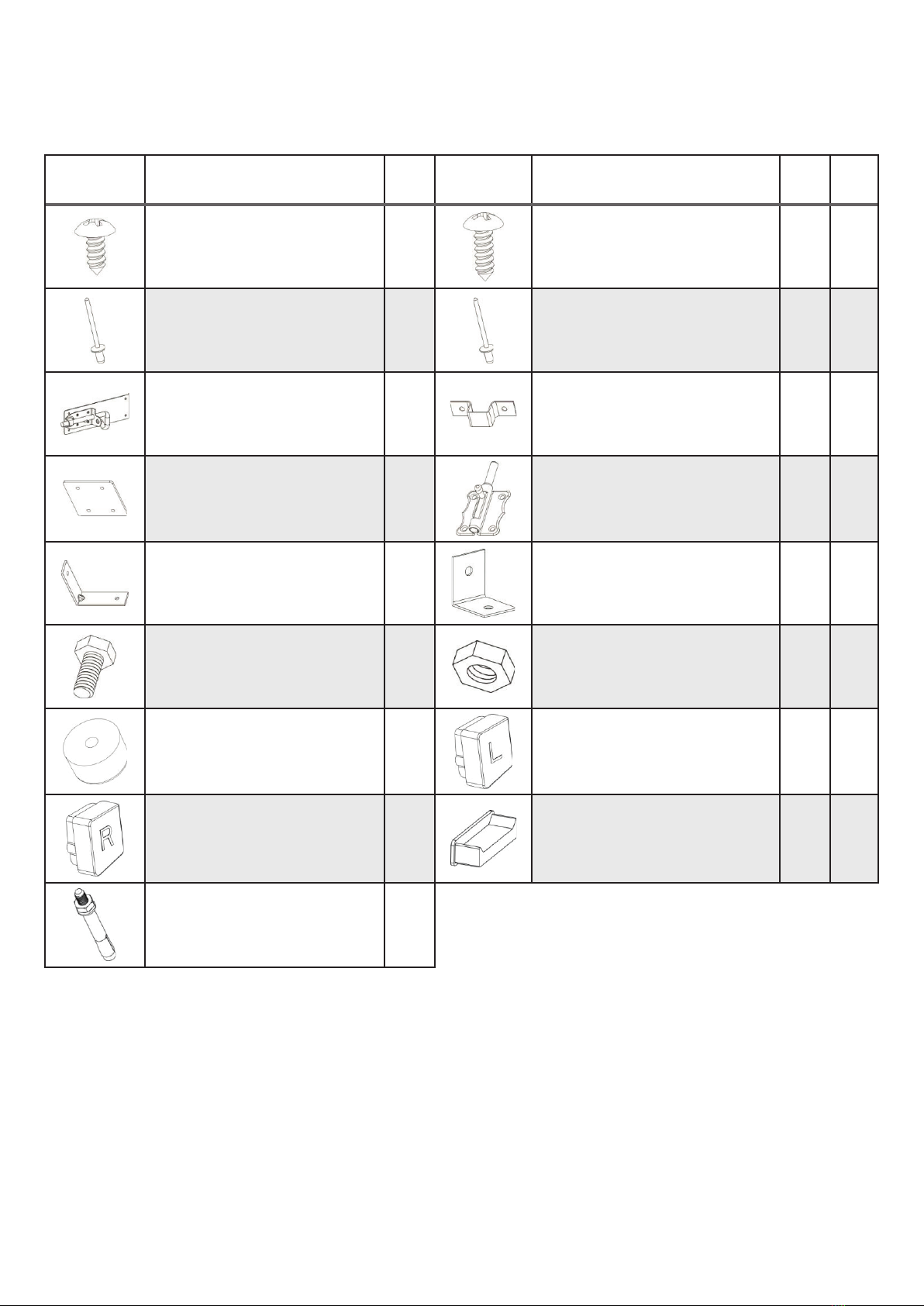

Fittings part list:

Shed overview:
3B
11B
11S
14J
14K
14M
S1
S1
39A
39B
39C
39D
39E
39F
21B
21B
21F
21F
D3
B3
B5
32E
32E
45L
45R
50A
50A
S2
72
5N
70
81G
5M
U13
71
J22
M31
74
74
75
81G
81H
Z24
Z24
Z25
Z25
U13
U13
U13
M32 M29
M30
71

GardenShed 1.5 x 0.8 x 1.53m
8
A
39C
39D
14J
11S
Step 2: Assemble the rear wall panels
You will find it easier to assemble your shed using sawhorses with timber studs attached (timber needs to be the same length as the
shed (1.5 M)) or alternatively, a trestle table.

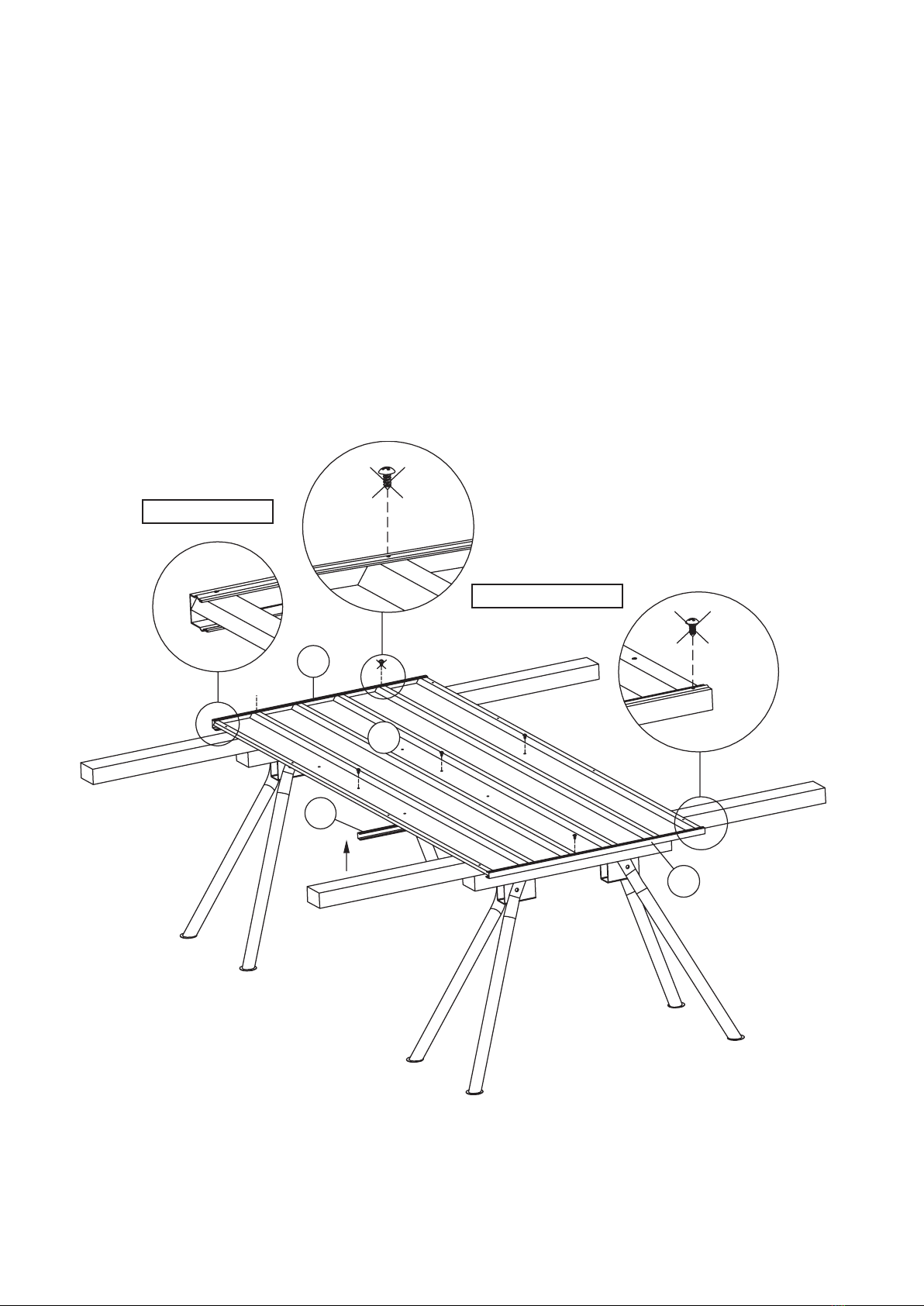

Place parts 14J and 11S (sheeting) on your worktable and join together with the self-tapping screws as per the diagram below.
Now fit parts 39C (top channel) and 39D (bottom channel) to the sheeting by tapping it in (diagram A) or sliding it in (diagram B). Make
sure the small lip of the channel is always facing out. This ensures rainwater cannot build up inside your shed.
ROOF TOP EDGE RIDGES FACING UP
A

9
B5
39C
B5
39D
TOP
RIDGES FACING UP
ROOF TOP EDGE
RIDGES FACING DOWN
Tip: If panel and screw holes do not line up, try pulling panel to match up holes.
B
39C
39D
14J
11S
ROOF TOP EDGE RIDGES FACING UP
B
Step 2: Assemble the rear wall panels (continued)

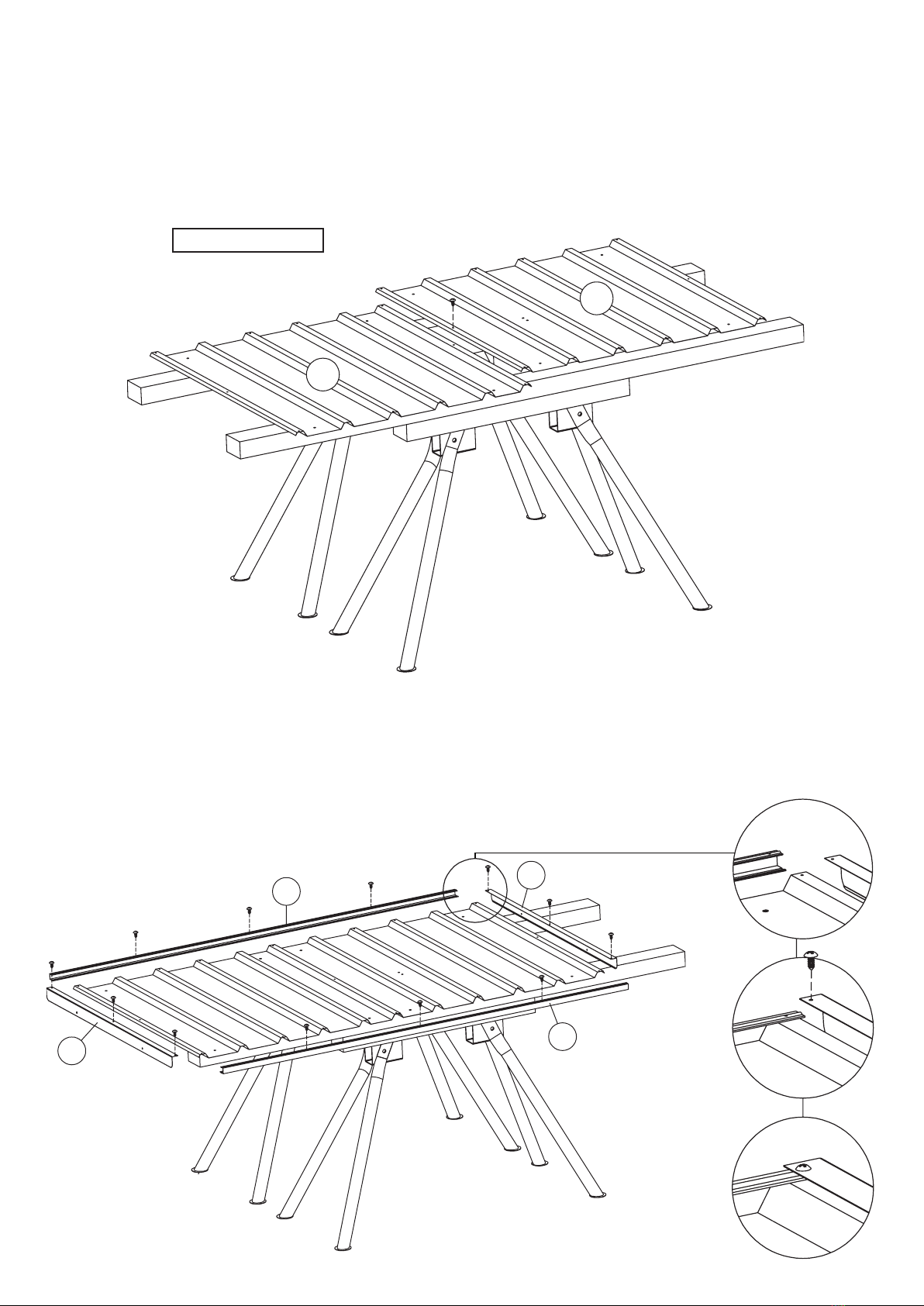

Now fit part B5 (mid wall channel) to the sheeting and position it with the provided self-tapping screws. Please note the groove should
face downwards. Position the top and bottom channels with self-tapping screws as well. NOTE: All screws marked with a cross should
not be fixed at this stage.

GardenShed 1.5 x 0.8 x 1.53m
10
32E
14K
21F
21B
Step 3: Assemble the side wall panels

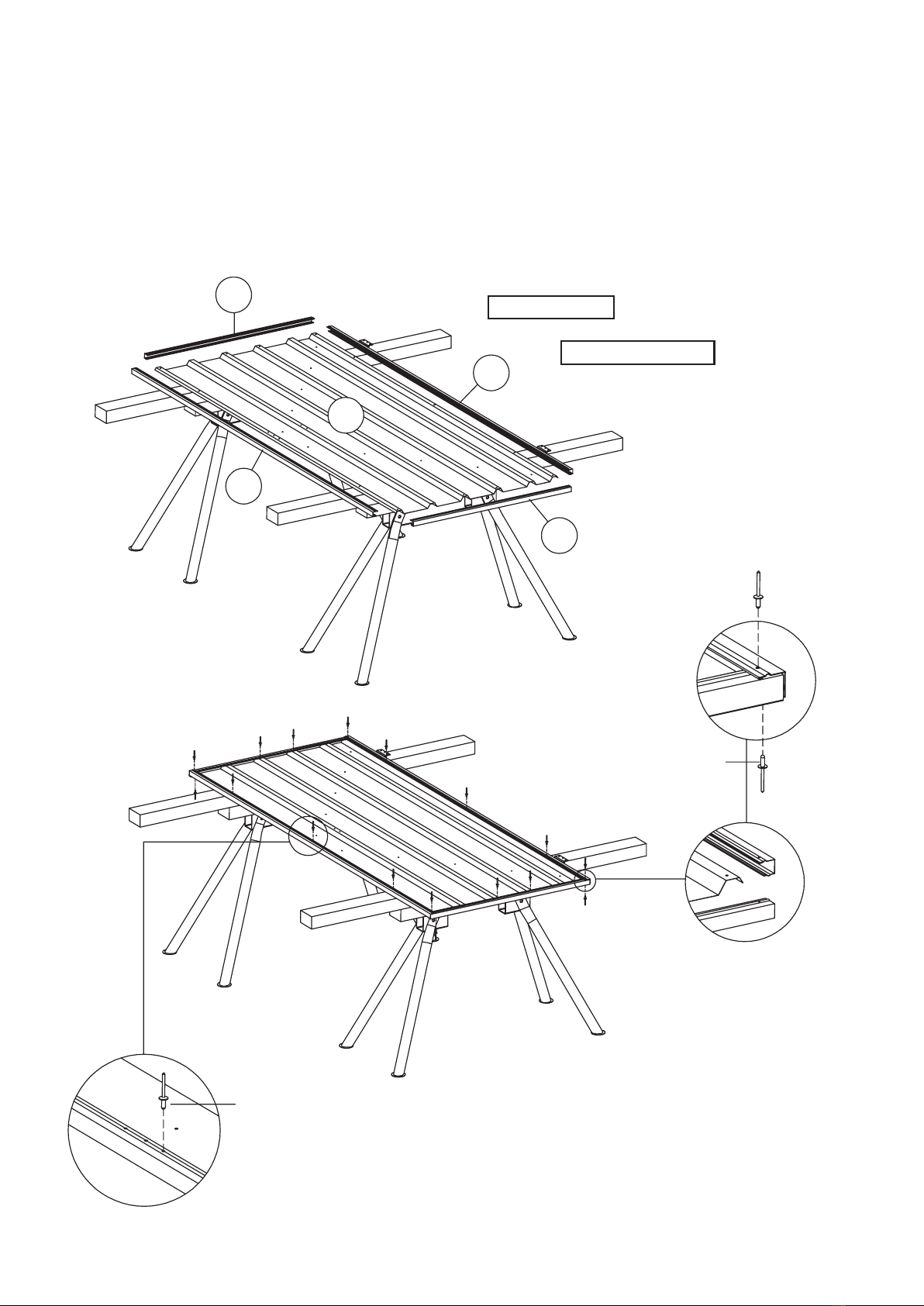

Place part 14K (sheet) on your worktable and tap or slide on part 21F (top channel) and part 21B (bottom channel). Position and fix part
32E (mid wall channel) using self-tapping screws ensuring this channel is facing down before fixing. Fix part 21B (bottom channel) with
self-tapping screws. Make sure the small lip of the channels is always facing out. This ensures rain water cannot build up inside your
shed. Repeat the same steps for part 14M (the other sidewall). NOTE: All screws marked with a cross should not be fixed at this stage.
RIDGES FACING UP
ROOF TOP EDGE

11
Step 3: Assemble the side wall panels (continued)

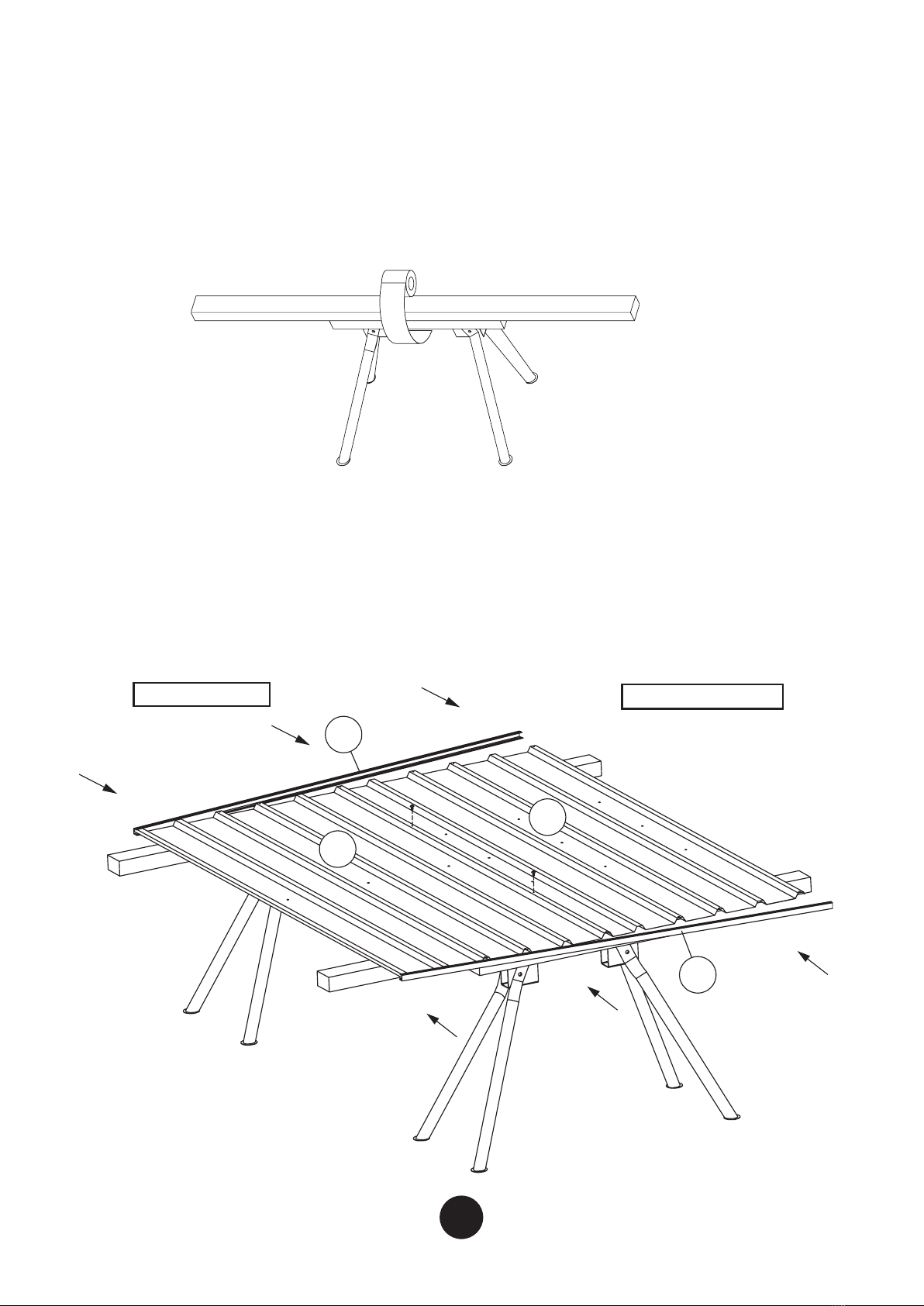

Place part 14M (sheet) on your worktable and tap or slide on part 21F (top channel) and part 21B (bottom channel). Position and fix part
32E (mid wall channel) using the self-tapping screws ensuring this channel is facing down before fixing. Fix part 21B (bottom channel)
with self-tapping screws. Make sure the small lip of the channels is always facing out. This ensures rain water cannot build up inside your
shed. NOTE: All screws marked with a cross should not be fixed at this stage.
21B
21F
14M
32E
RIDGES FACING UP
ROOF TOP EDGE

GardenShed 1.5 x 0.8 x 1.53m
12
Step 4: Assemble the roof panel

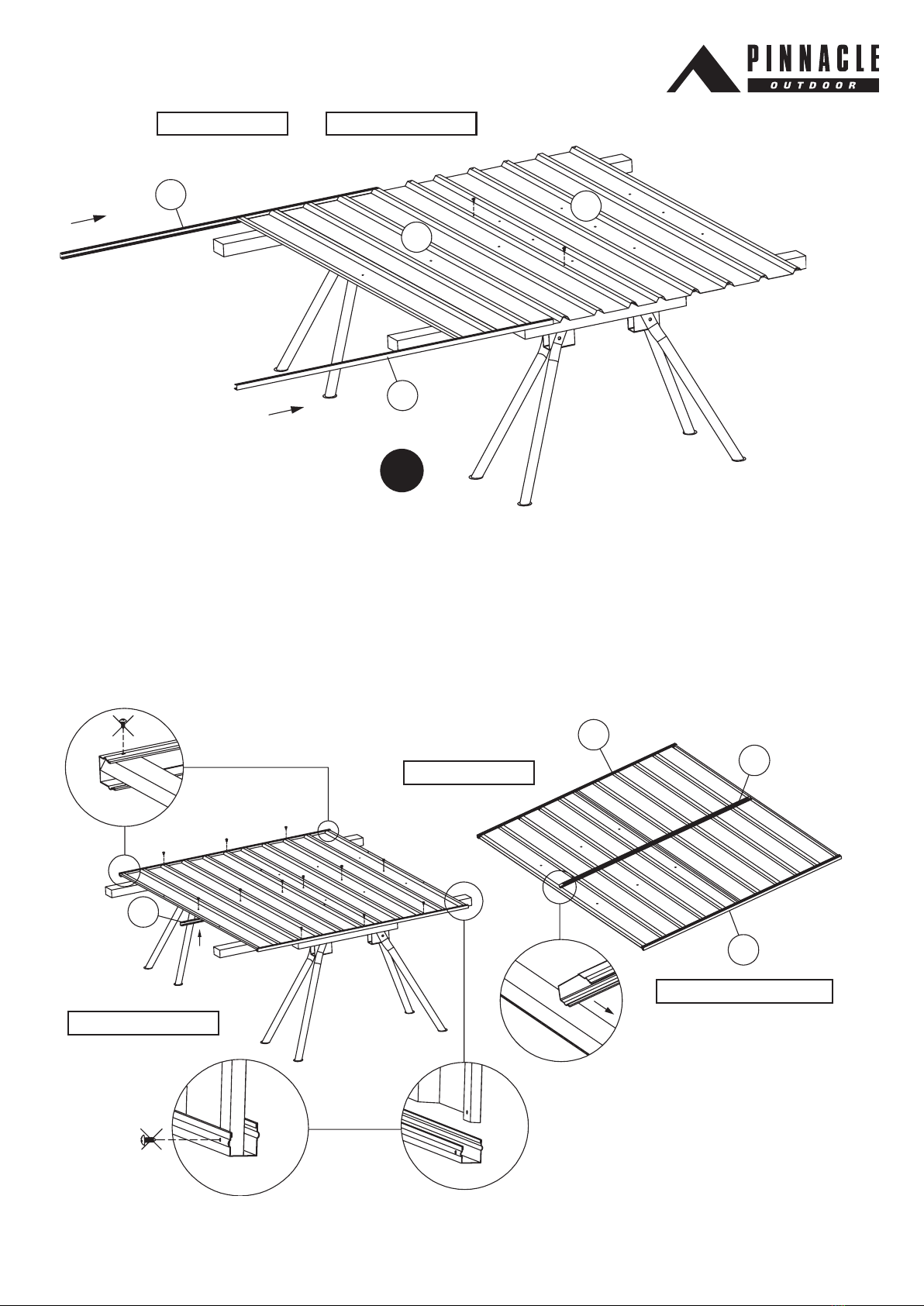

Place parts 11B and 3B (sheets) on your worktable and join together with the self-tapping screws as per the diagram below.
39A
50A
50A
39B
3B
11B
RIDGES FACING UP
Now tap or slide parts 39A and 39B (channel) onto the sheeting and fix them with self-tapping screws. Now fit 2 x part 50A (side lips)
to the sheeting and fix them with self-tapping screws. Make sure the small lip on both channels are facing out. This ensures rainwater
cannot build up inside your shed.

13
Step 5: Fit rear and side panels together and install the front frame

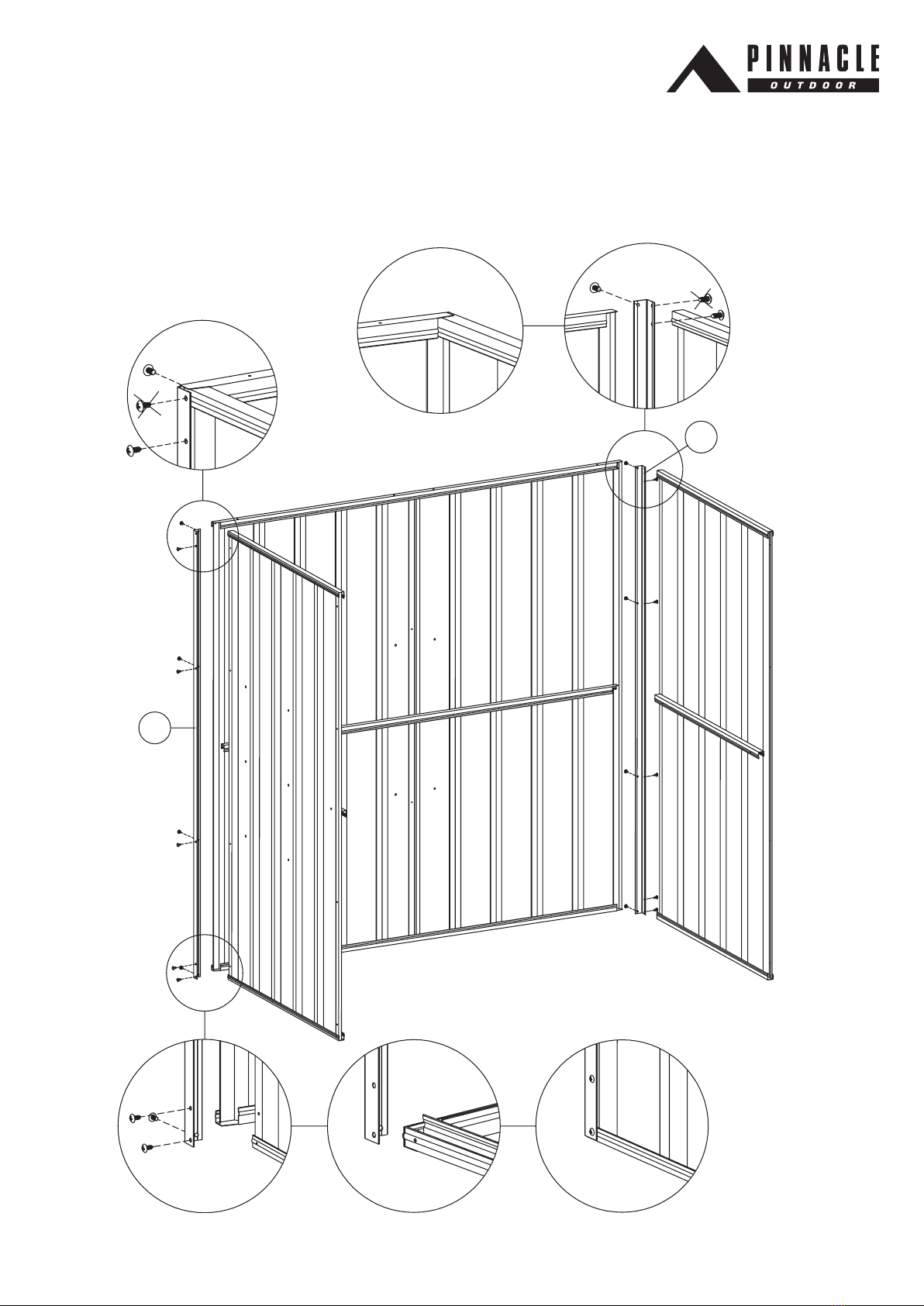

Attach the two sidewalls to the back wall, fixing to all components using the provided self-tapping screws. Also attach 2 x parts Z24
(corner brace) to each corner using the self-tapping screws as per diagram below.
Z24
Z24

GardenShed 1.5 x 0.8 x 1.53m
14
Step 5: Fit rear and side panels together and install the front frame (continued)

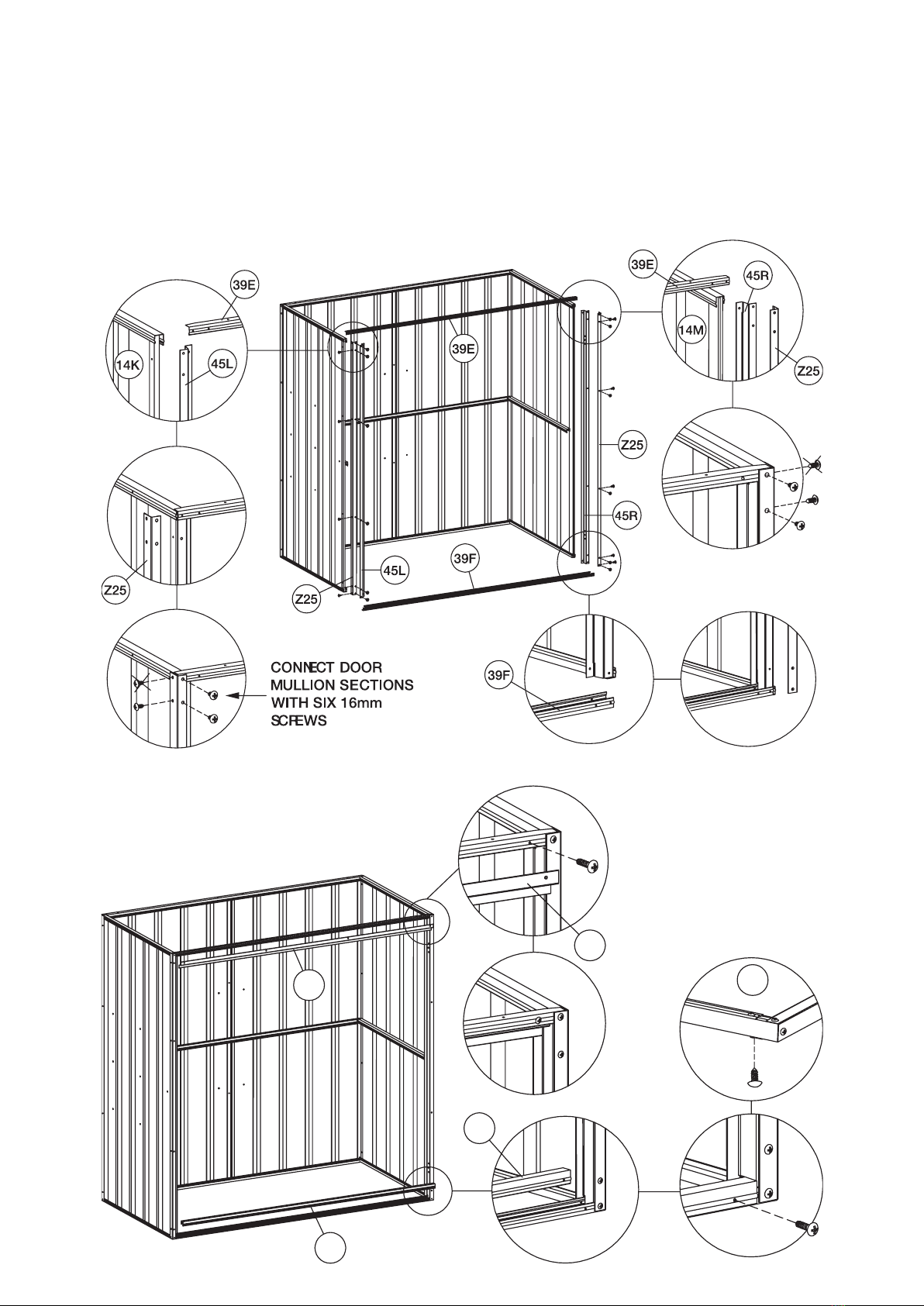

Install the front frame as per diagram below and fix the door mullion sections with 16mm self-tapping screws. Slide part D3 (jamb) into
the top channel and fix with self-tapping screws. Also attach parts 2 x Z25 (corner brace) to each corner using the self-tapping screws
provided. NOTE: All screws marked with a cross should not be fixed at this stage.
B3
Z25
D3
B3
D3

15
Step 6: Install the shelves
Fix part 72 (brackets) onto both corners first. Then fix 2 x part S1 (shelfs) using self-tapping screws along the sides as per the diagram
below. Finally fix part S2 (shelf leg) to the bottom of shelf (S1) with self-tapping screws. Note: Do not fix S2 leg to the ceiling at this stage.
S1
S1
S2
72
S2
S1

GardenShed 1.5 x 0.8 x 1.53m
16
Step 7: Install the front doors and the top panel
Place part 5N (door sheet) on the worktable. Fit parts M30, M29, 81H, 81G (channels) to the door and fix them using the provided 3.0
x 10mm rivets. Please ensure channels M29 and M30 are fixed with the smaller lip facing out. This ensures rainwater cannot build up
inside your shed.
81G
5N
FIX WITH3.0x10mm RIVET
FIX WITH 3.0x10mm RIVET
FIX WITH3.0x10mm RIVET
M30
81H
M29
ROOF TOP EDGE
RIDGES FACING UP
FIX WITH 3.0 x 10mm RIVETS
FIX WITH 3.0 x 10mm RIVETS
FIX WITH 3.0 x 10mm RIVETS

17
Step 7: Install the front doors and the top panel (continued)
Place part 5M (door sheet) on the worktable. Fit parts M31, M32, 81G (channel) and part J22 (jamb) to the door and fix them with the
provided 3.0 x 10mm rivets. Please ensure channels M31 and M32 are fixed with the smaller lip facing out. This ensures rainwater
cannot build up inside your shed.
FIX WITH3.0x10mm RIVET
FIX WITH 3.0x10mm RIVET
5M
81G
J22
M31
M32
RIDGES FACING DOWN
RIDGES FACING UP
FIX WITH 3.0 x 10mm RIVETS
FIX WITH 3.0 x 10mm RIVETS

GardenShed 1.5 x 0.8 x 1.53m
18
Step 7: Install the front doors and the top panel (continued)

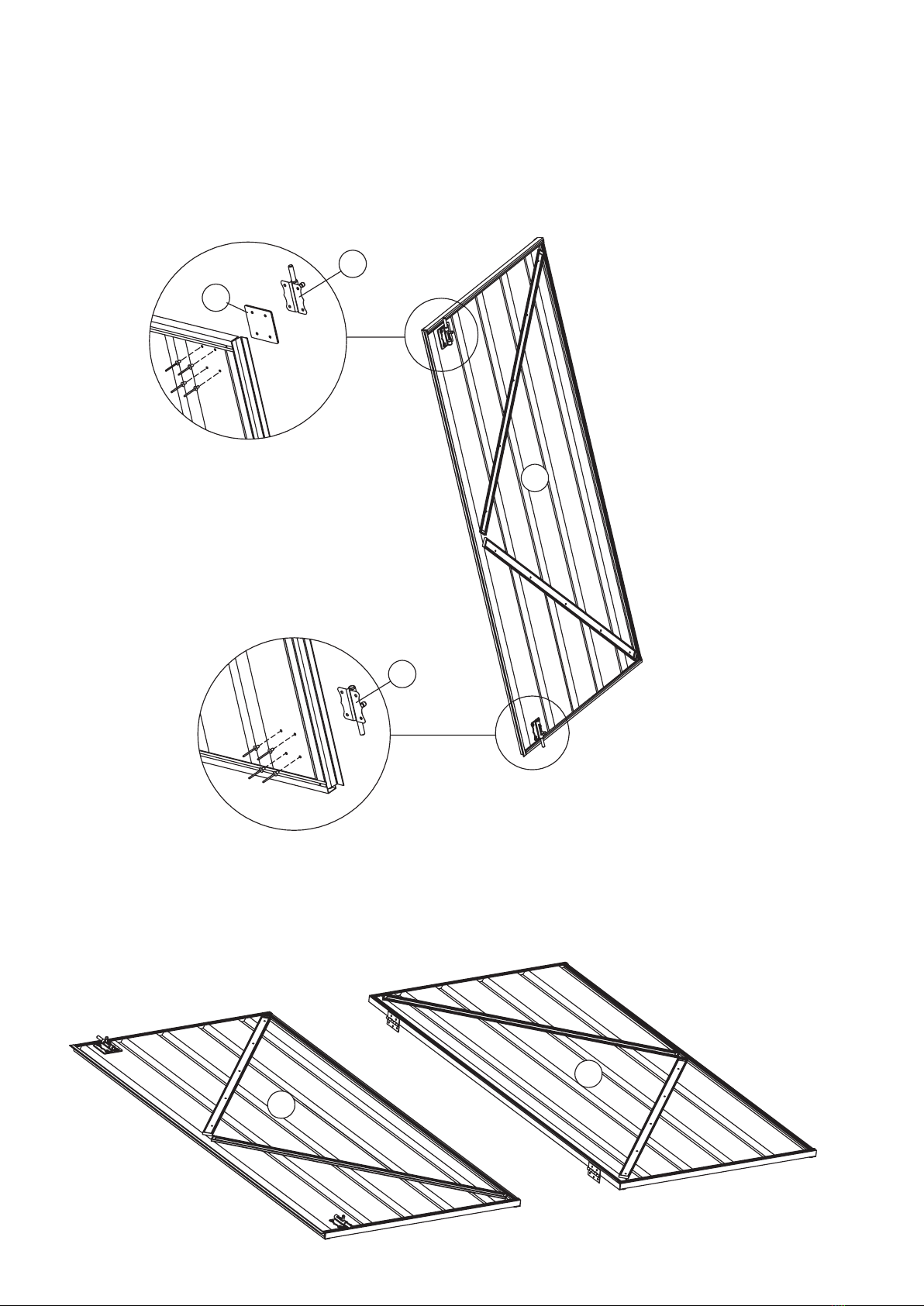

Once channels are fitted to both doors, align 2 x part U13 (brace) with holes on the back of the door and position temporarily with
some tape or simply hold in place.
U13
5N / 5M
U13
RIDGES FACING DOWN
BACK

19
Step 7: Install the front doors and the top panel (continued)
Turn door over with bracing aligned with holes (make sure the ridges of the door are facing up) and fix the bracing with the
provided 3.0 x 10mm rivets through the front of the panel. Then turn door over and insert plastic stoppers at the ends of
braces as shown below.
FIX WITH 3.0x10mm RIVET
WHITE PLASTIC STOPPER
WHITE PLASTIC
STOPPER
RIDGES FACING UP
RIDGES FACING DOWN
BACK
FIX WITH 3.0 x 10mm RIVETS
WHITE PLASTIC STOPPERS
WHITE PLASTIC
STOPPERS
Turn door over and attach plastic stoppers to the ends of bracing.

GardenShed 1.5 x 0.8 x 1.53m
20
Step 7: Install the front doors and the top panel (continued)
Fix parts 74 (barrel bolt) and 75 (plate) onto part 5M (door) using rivets. Note: Place parts 74 and 75 on the inside of the door and rivet
from the outside (through front door panel).
74
74
75
5M
5M
5N
USE 4.0 X 10MM RIVETS
