HemiTor™ Pump System
Single Use, Pulse Free
A Positive Displacement, Single Use, Full Vacuum pump head for use in any circulated fluid application
where pulsation needs to be minimized and prevention of cross-contamination of pumped fluids is
critical.
Is your fluid path sensitive to pulsation or cross-contamination? Many UF/DF
(ultrafiltration/diafiltration), culture media, and bioreactor perfusion applications are sensitive to the
pulsation from peristaltic pumps. Even at low RPM, peristaltic pump operation can lead to undesirable
foaming, bubbles, and cell shear.
The HemiTor™ pump system is a groundbreaking new product for the manufacturing and bioprocess lab
that enables a completely integrated, disposable flow-path, liquid handling system that is pulse-free,
spallation-free, and single-use. Bags, filters, and tubing assemblies can now be self-driven, pre-
sterilized, and completely disposable. For the first time, an affordable, completely single-use fluid path
is within reach for your tangential flow, mixing, or bioreactor system!
The HemiTor™ pump system replaces the conventional peristaltic pump head for almost every pump
application.

HemiTor Operating Manual
2
Piranha Color Systems
Getting Started .....................................................................4
Overview ........................................................................................................5
Features …...................................................................................................... 5
User Instructions...................................................................6
Scale Calibration.............................................................................................7
System Setup, Weighing Point………………………………….…………………………………7
Pump Actions /Operating Modes………………………………….…………………………….9
Pump RPM continuous mode………………………………………………………….10
Flow / Duration ………………………………………………………………………………13
Weight Fill……………………………………………………………………………………….15
HemiTor Pump Cassette Installation….……….…….…..….…….…...….…...16
Technical References...........................................................17

HemiTor Operating Manual
3
Piranha Color Systems
110VAC in
RJ45
Ethernet Port
USB
USB-C for
programming only.
Factory use only.
Com port for
Flow Sensor
Com port for
Scale
Back panel
Power Switch

HemiTor Operating Manual
4
Piranha Color Systems
6
6
7
8
9

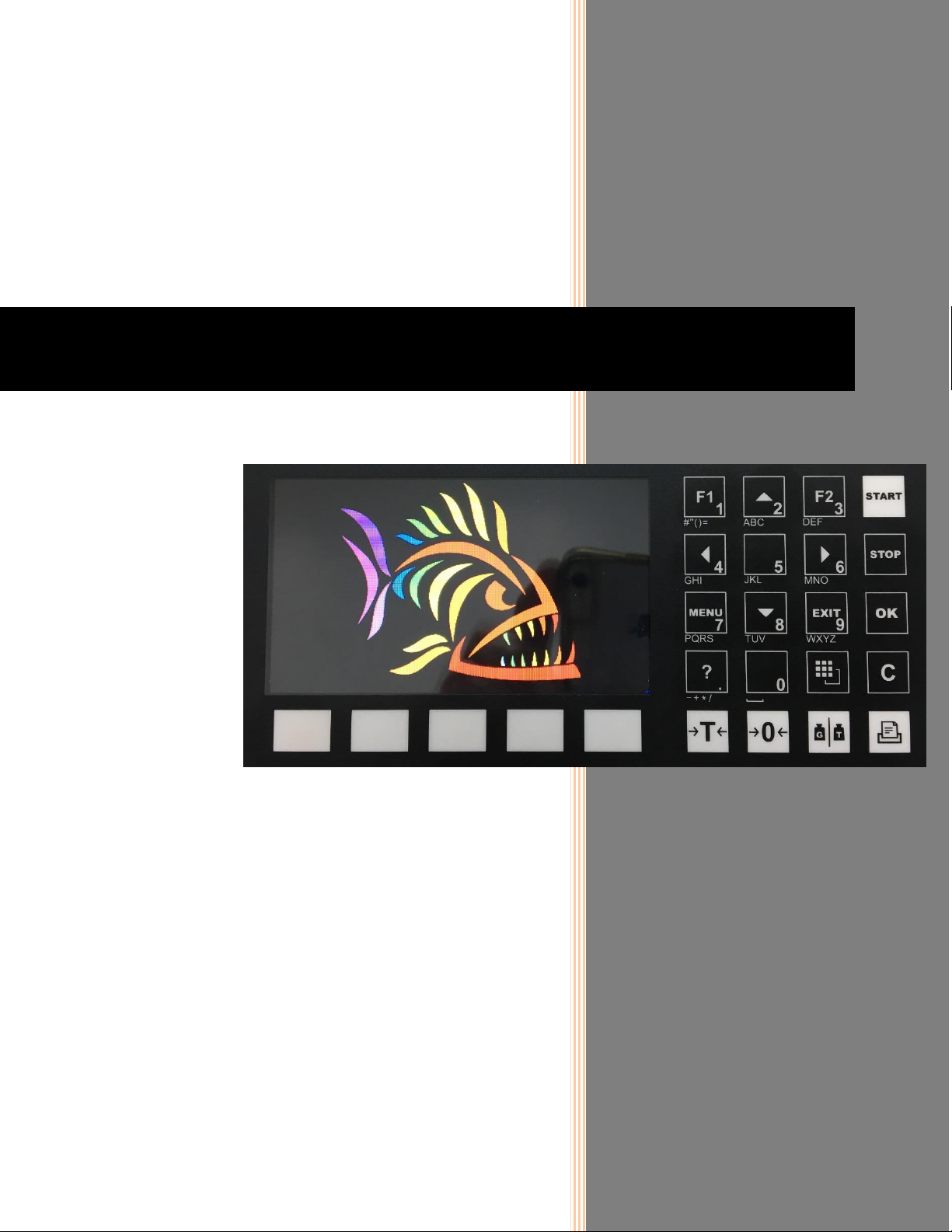

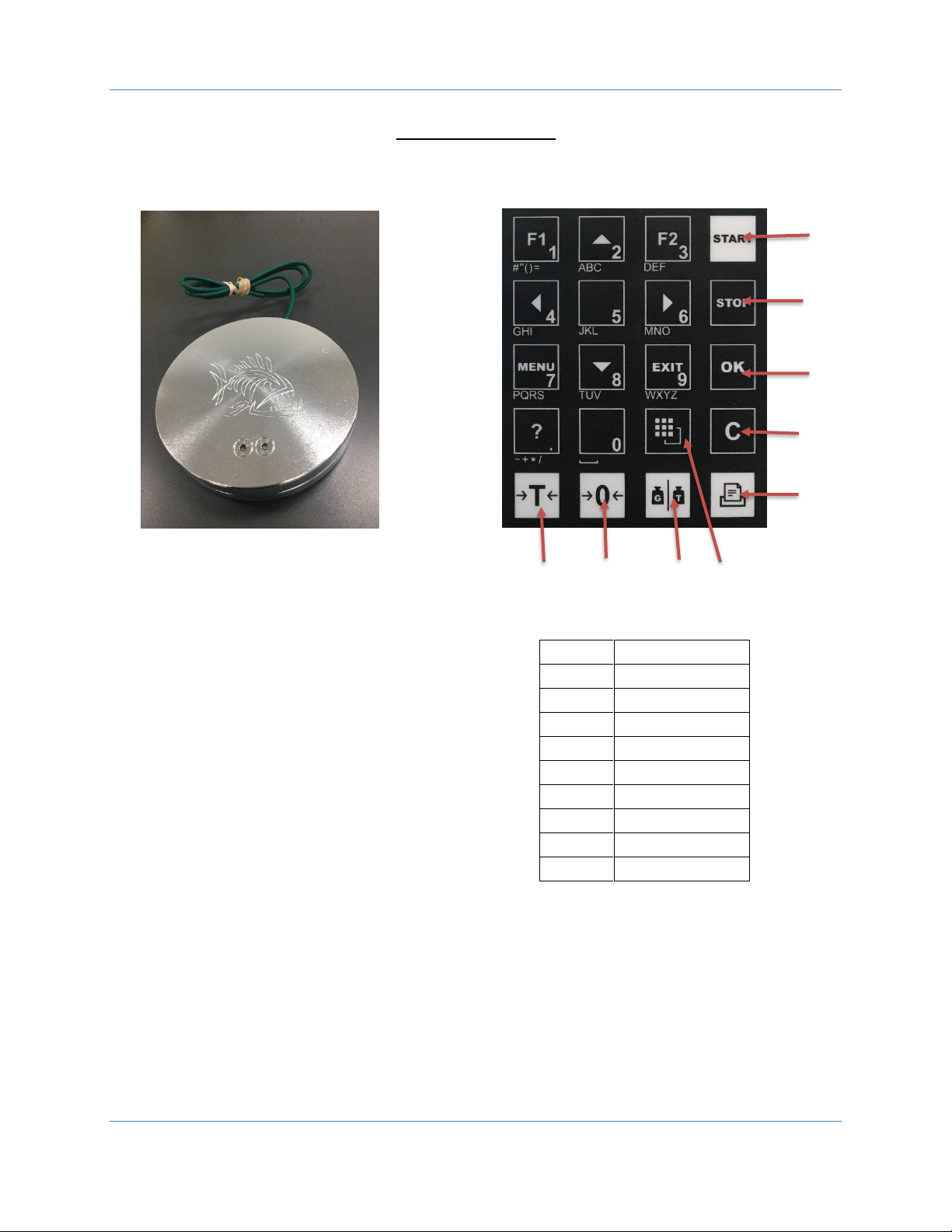

Getting Started
HemiTor Scale
Functions
1
Start
2
Stop
3
OK
4
Clear
5
Print
6
Gross Weight / Tare
7
Zero
8
Tare
9
Input: Alpha/Num/var
2
3
4
5
1

HemiTor Operating Manual
5
Piranha Color Systems
Overview
Thank you for using Piranha’s HemiTor Precision Pump for your important applications. The
HemiTor Precision Pump System delivers Precision, Versatility and Efficiency.
Piranha Color Systems proudly introduces the revolutionary HemiTor Precision Pump System. It
is a positive displacement fluid pump for precise dispensing of varying viscosity liquids as well
as for critical Life Sciences applications. The innovative pump system utilizes a novel single-use
cassette with internal dampening for precise fluid delivery and engineered for ease of use.
The HemiTor Precision Pump can be used for many different fluid transfer applications. The
basic functions are as follows:
•Accurately Dispenses by weight and volume
•Continuous Flow Rate mode
•Timed Flow Rate/Dispense mode
•Simple / universal tubing size
•Fluid Flow Pulse Dampening –Input and Output
•Unique software, easy to update for different customer requirements
Features
•The HemiTor Patented Single-Use cassette features internal pulse dampening,
minimizing product shear
•Fully programmable and customizable, advanced controller with ethernet, USB
and serial port connectivity.
•RPM operating range from 1 –1500 RPM
•Max. operating pressure 30 PSI
•Capable of pumping low to mid viscosity liquids
•Pump delivery flow rates from 0.025 mL/min to 4 L/min
•Easy to install, Single-Use pump cassette isolates the fluid path, eliminates cross
contamination and dampens pulsation.

HemiTor Operating Manual
6
Piranha Color Systems
User instructions
Scale Calibration
Turn on power switch on back of pump.
Wait for pump controller to start. Screen will show system booting.
To set and calibrate scale (make sure scale is connected)
Press Login:
Operating screen will appear

HemiTor Operating Manual
7
Piranha Color Systems

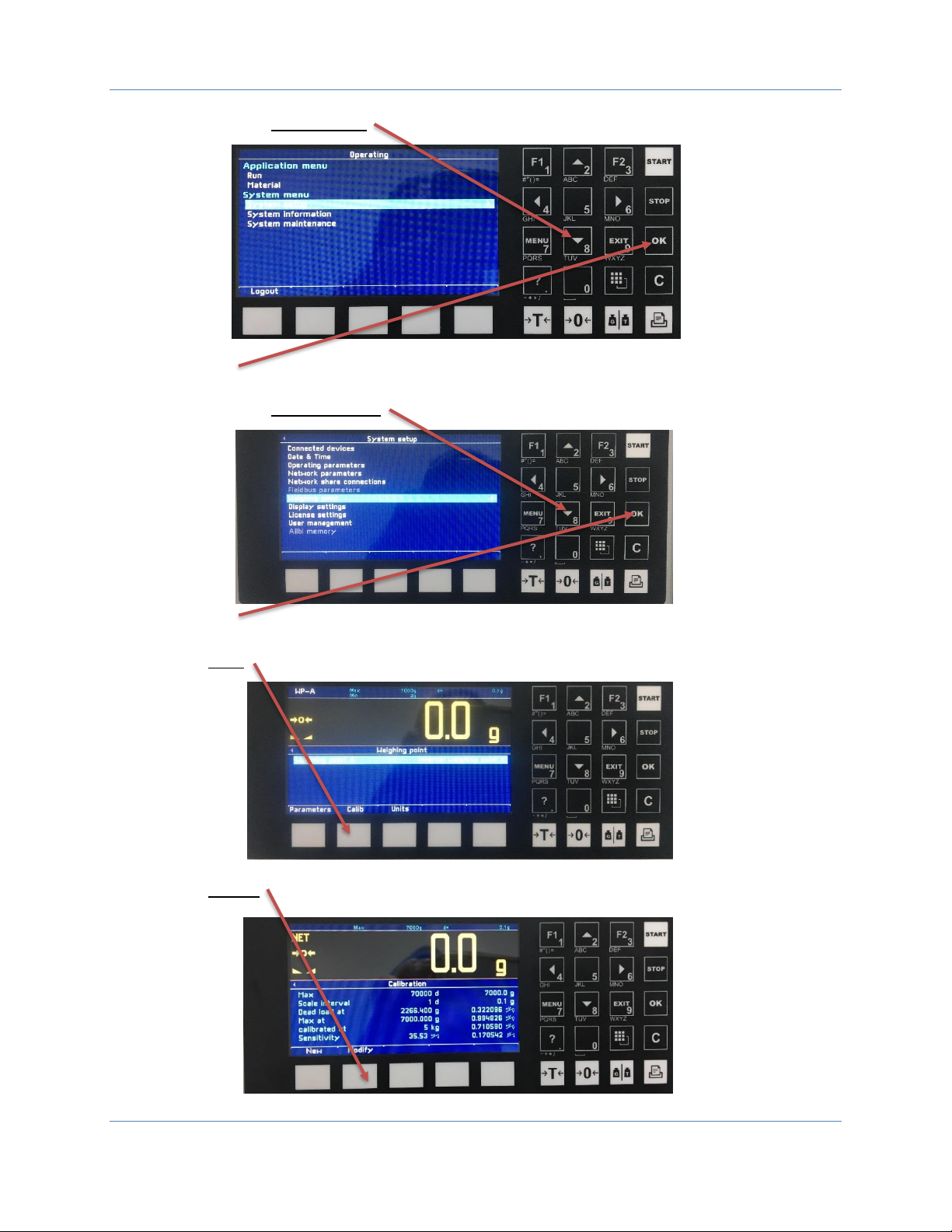

Scroll down to System Setup
Press OK
Scroll down to Weighing Point
Press OK
Press Calib
Press Modify

HemiTor Operating Manual
8
Piranha Color Systems

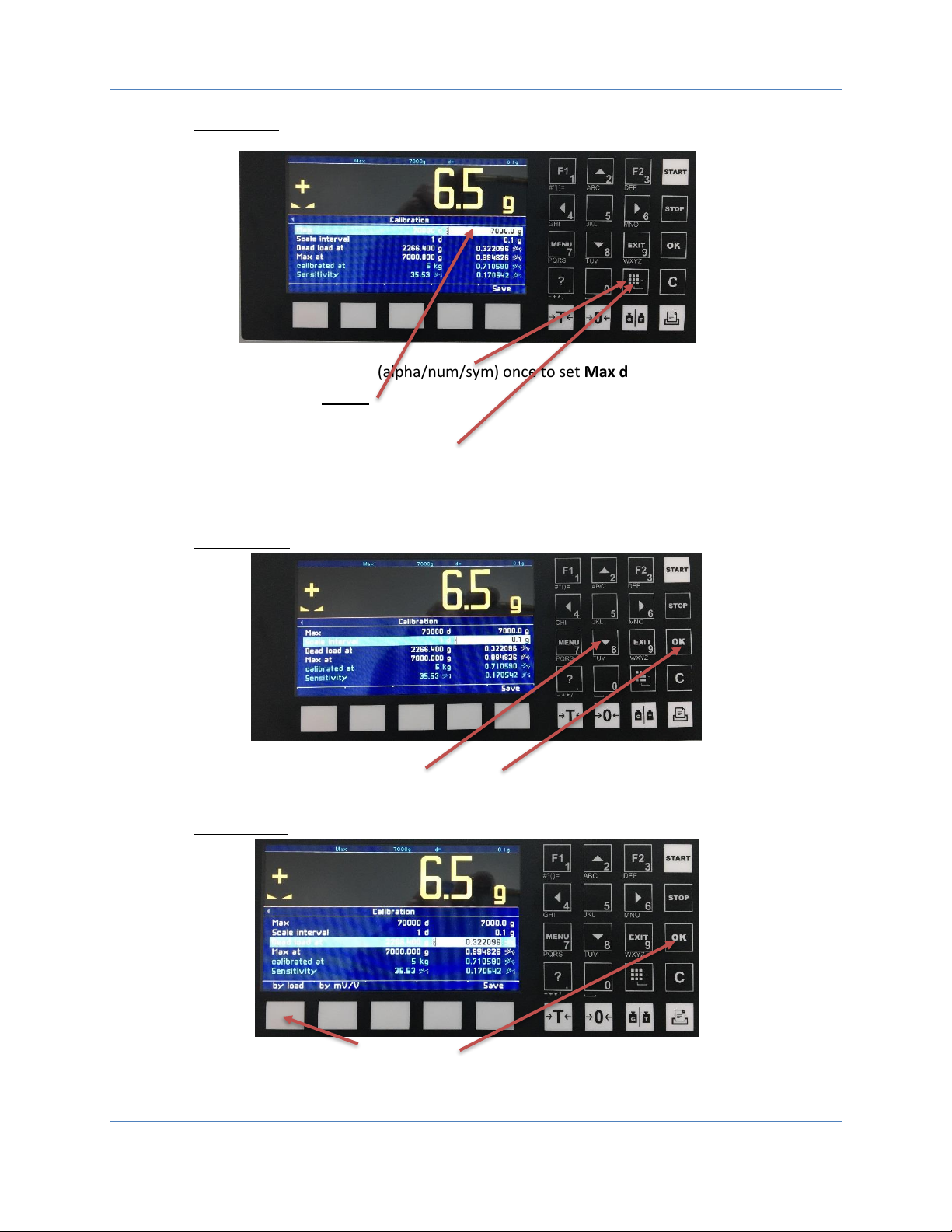

Set Max weight:
Press this key (alpha/num/sym) once to set Max d
enter 7000.0
Press OK
Press Twice to set Units.
Set to g(grams)
Press OK
Set Scale Interval:
Press OK
Scroll to 0.1g Press OK
Set Dead Load at:
Press by Load, Press OK

HemiTor Operating Manual
9
Piranha Color Systems
Set Max at:
Press by Load Press OK
Follow on screen instructions
place 5 kg weight on scale
enter weight number (e.g. 5kg)
press OK
Remove weight and return to case.
Press Save
The pump and scale have now been calibrated.
Operating Modes
Turn on power:
Controller will boot up, login screen will appear:
Press Login:

HemiTor Operating Manual
10
Piranha Color Systems

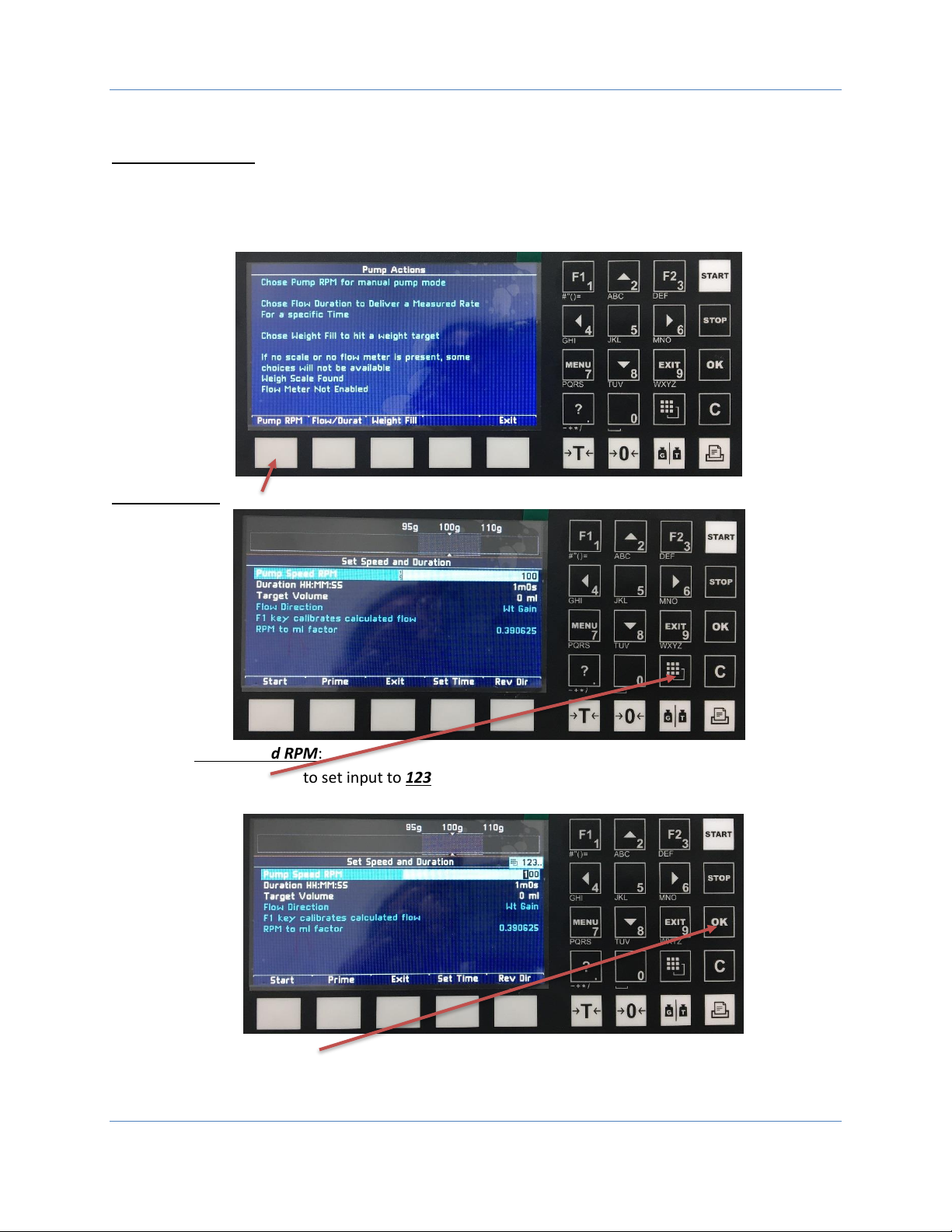

Pump Actions
Pump RPM for manual pump mode
Flow Duration for a measured rate for a specific time
Weight Fill for dispensing to a specific weight target
Pump RPM: Press
Set Pump speed RPM:
Press to set input to 123
Enter desired pump RPM
Press OK when done

HemiTor Operating Manual
11
Piranha Color Systems

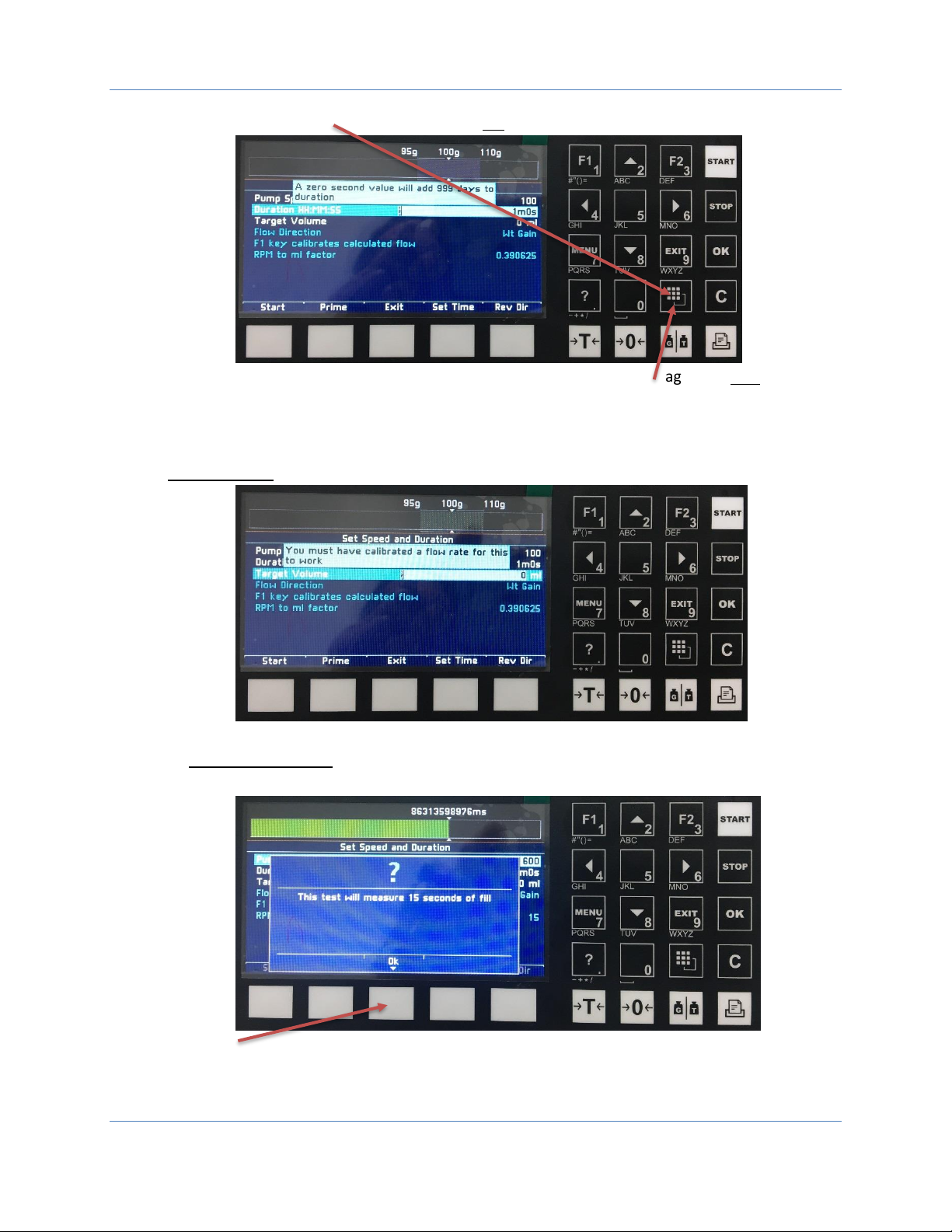

Press to enter duration (change input format to 123)
Entering 0 will add 999 days to duration. Enter a number then press again for abc,enter time
increment, s, m, or d (e.g 1m15s)
Press OK
Target Volume (note: a flow rate must be calibrated)
To Calibrate Flow Rate (Scale must be connected to calibrate flow rate)
Press F1 key: test will measure 15 second fill time
Press OK

HemiTor Operating Manual
12
Piranha Color Systems

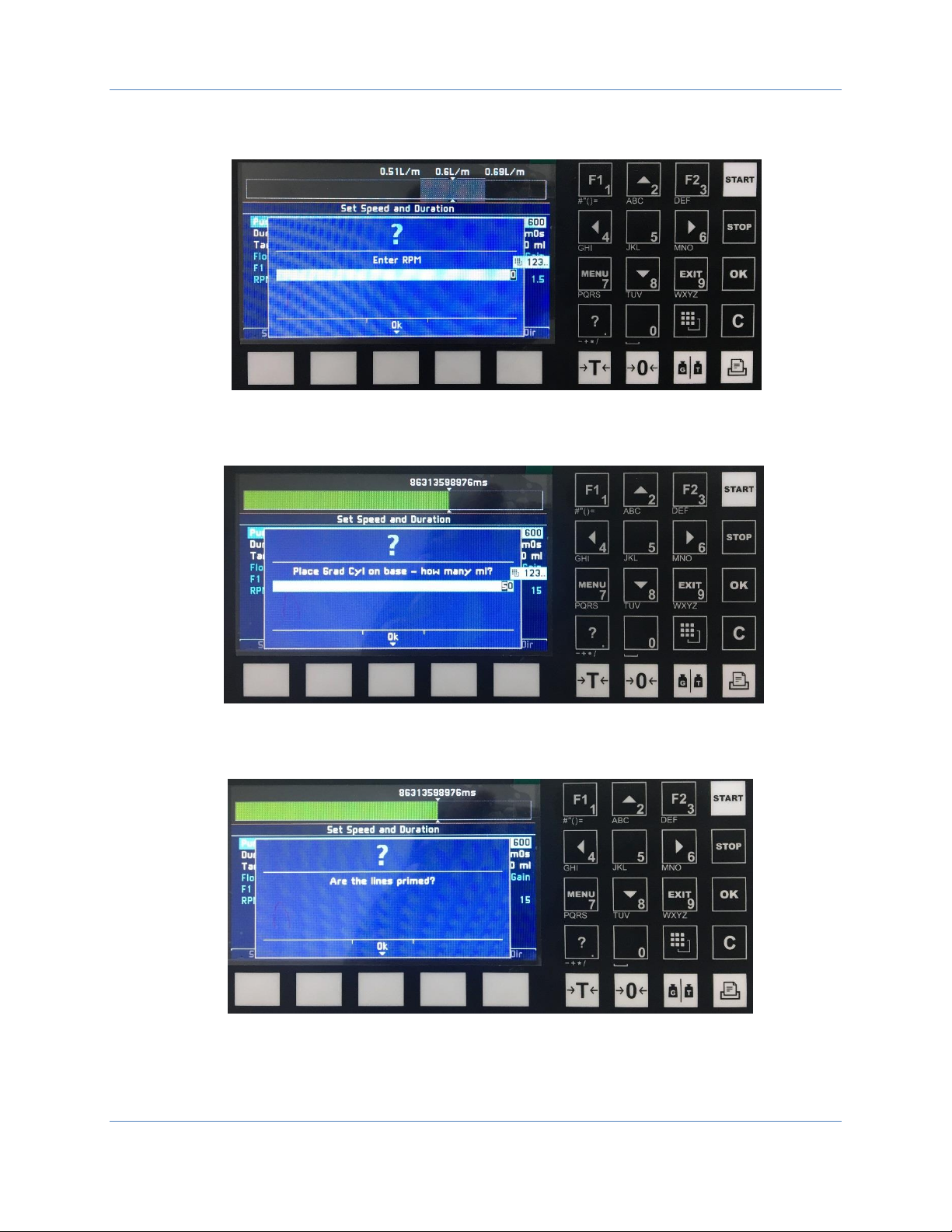

Enter desired speed (RPM) for test
Press OK
Place graduated cylinder beneath the filling nozzle, DO NOT let the nozzle touch the graduated cylinder.
Enter target volume (in mL). Press OK when done
Are Lines Primed? Press OK

HemiTor Operating Manual
13
Piranha Color Systems
Pump will run for 15 seconds
Pump will stop after 15 seconds. Observe volume dispensed into graduated cylinder.
Enter Volume dispensed (mL)
Press OK.Flow Rate has now been calculated. Target Volume feature can now be used
Flow/Duration:
Press

HemiTor Operating Manual
14
Piranha Color Systems

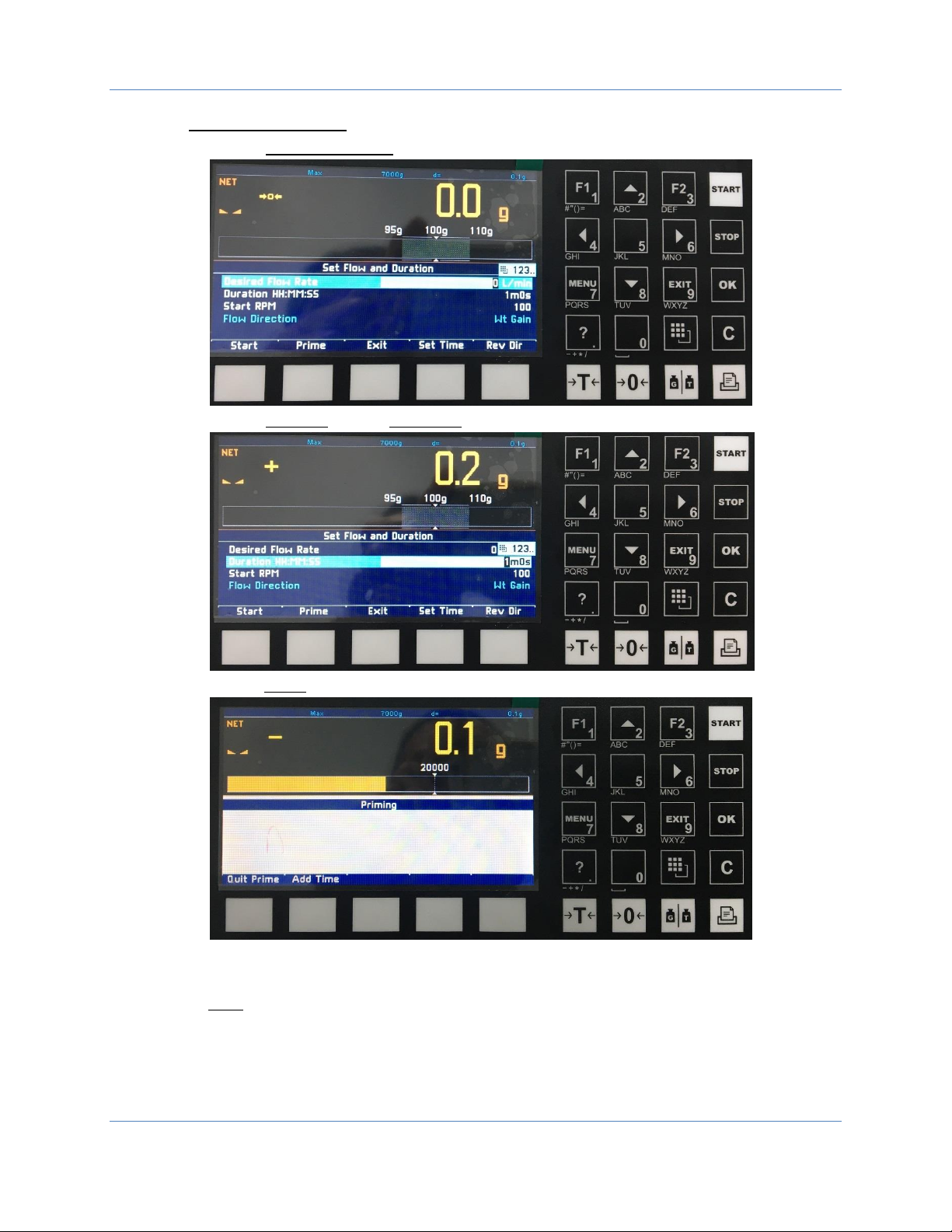

To Set Flow and Duration
Enter Desired Flow Rate
Enter Duration , Enter Start RPM
Press Prime
Pump will stop after priming.
Press Start
Pump will run for the designated time period, targeting desired flow rate.
Pump will automatically change its RPM to target desired flow rate over the desired duration,
starting at user defined Start RPM.

HemiTor Operating Manual
15
Piranha Color Systems
Weight Fill
Enter material (choose from selections on screen), press OK
Enter Target Weight, press OK
Enter Bulk RPM (pump speed for filling), press OK
Enter Bulk to Fine (how far from target for pump to slow from bulk rpm to fine rpm), press OK
Enter Fine RPM (pump speed for delivering fine amounts / slow fill) Press OK
Enter Target Overshoot to stop pump
Check Flow Direction, Press Start. Pump will stop after dispensing User defined amount.

HemiTor Operating Manual
16
Piranha Color Systems
HemiTor Pump Cassette Installation

HemiTor Operating Manual
17
Piranha Color Systems
Technical References
Liquid Densities
Alcohol ethyl
25oC
785.06 kg/m3
Alcohol methyl
25oC
786.51 kg/m3
Alcohol propyl
25oC
799.96 kg/m3
Automobile oils
15oC
910 kg/m3
Brine
15oC
1230 kg/m3
Coconut Oil
15oC
924.27 kg/m3
Cream light
1012 kg/m3
Cream heavy
994 kg/m3
Crude Oil, Texas
60F
873 kg/m3
Diesel fuel oil (20-60)
15oC
885 kg/m3
Fruit Juice
1060 kg/m3
Gasoline vehicle
60F
737.22 kg/m3
Glycerin
25oC
1259.37 kg/m3
Sea Water
25oC
1025.18 kg/m3
Sugar solution 68 brix
15oC
1338 kg/m3
Syrup maple
1320 kg/m3
Water Pure
4oC
1000 kg/m3
Material Viscosity (Higher viscosity = higher pressure)
Air
18°C
0.0182 cP
Water
20°C
1.002 cP
Olive Oil
20°C
84 cP
Pancake Syrup
20°C
2500 cP
Honey
20°C
10000 cP
Peanut Butter
20°C
250000 cP
Formulas
Force F = ma where m = mass, a = acceleration
Density ρ=m/V where m = mass, V = volume
Conversion Table for Force Units
mN
mg-force
mp
0.1
10
10.20
0.2
20
20.39
0.3
30
30.59
0.4
40
40.79
0.5
50
50.99
0.6
60
61.18
0.7
70
71.38
0.8
80
81.58
0.9
90
91.77
1
100
101.97
2
200
203.94
3
300
305.92
4
400
407.89
5
500
509.86
6
600
611.83
7
700
713.8
8
800
815.78
9
900
917.75
1N = 1 Newton = 1 kg m/s2
1p = 1 Pond
Conversion Factors
Units of force
Newton (SI unit)
Dyne
kilogram-force,
kilopond
pound-force
poundal
1 N
≡ 1 kg⋅m/s2
= 105dyn
≈ 0.10197 kp
≈ 0.22481 lbf
≈ 7.2330 pdl
1 dyn
= 10−5N
≡ 1 g⋅cm/s2
≈ 1.0197 × 10−6kp
≈ 2.2481 × 10−6lbf
≈ 7.2330 × 10−5pdl
1 kp
= 9.80665 N
= 980665 dyn
≡gn⋅(1 kg)
≈ 2.2046 lbf
≈ 70.932 pdl
1 lbf
≈ 4.448222 N
≈ 444822 dyn
≈ 0.45359 kp
≡gn⋅(1 lb)
≈ 32.174 pdl
1 pdl
≈ 0.138255 N
≈ 13825 dyn
≈ 0.014098 kp
≈ 0.031081 lbf
≡ 1 lb⋅ft/s2
The value of gnas used in the official definition of the kilogram-force is used here for all gravitational units.
Standard prefixes for the metric units of measure
Multiples
Prefix name deca hecto kilo mega giga tera peta exa zetta yotta
Prefix symbol da h k M G T P E Z Y
Factor 1001011021031061091012 1015 1018 1021 1024
Submultiples
Prefix name deci centi milli micro nano pico femto atto zepto yocto
Prefix symbol d c m μn p f a z y
Factor 10010-1 10-2 10-3 10-6 10-9 10-12 10-15 10-18 10-21 10-24
