PK Grills PKGO User manual

ASSEMBLY INSTRUCTIONS
TAILGATE STAND FOR
ORIGINAL PK GRILL + SMOKER™
• Fits the Original PK™
Grill & Smoker capsule
• Great for camping, tailgating,
and picnics
• Small footprint for use on any
non-flammable surface
• Lightweight aluminum and
stainless steel construction

GRILL CAPSULE PARTS LIST:
6) Grill lid capsule
7) Grill bottom capsule
8) Lid handle (plus hardware)
9) PK Original™ brand plate (plus
hardware)
10) Hinged cooking grid
11) Charcoal grate
STAND PARTS LIST (i f n e e d e d ):
1) Left tube section
2) Right tube section
3) 2 bottom tube sections
4) 4 allen screws and 4 rivet nuts
TOOLS NEEDED:
1) Allen wrench (included)
ASSEMBLY INSTRUCTIONS PAGE
1
6
7
8
9
10
11
1
2
3
4

ASSEMBLY INSTRUCTIONS PAGE
2
GO STAND ASSEMBLY STEPS:
Unpack box and lay out all parts.
1. Connect 1 bottom tube section into left tube section hole. Press allen screw up
through the mated bottom hole and hold in place with finger. Then place rivet
nut down through top hole to align with allen screw and hand tighten. Use allen
wrench to tighten completely. Connect 2nd bottom tube section into other left
tube hole and fasten using same process as above. Connect bottom tubes into
right tube section holes and fasten using same process.
STEP
1
2) Place grill bottom capsule on
PK-GO™ stand oriented as shown.
Hinge side of capsule should be
placed on left tube section.
3) Place charcoal grate and hinged
cooking grid inside grill bottom capsule.
Hinged Side
Hinged Side
Hex screws

ASSEMBLY INSTRUCTIONS PAGE
3
Wedge Washers

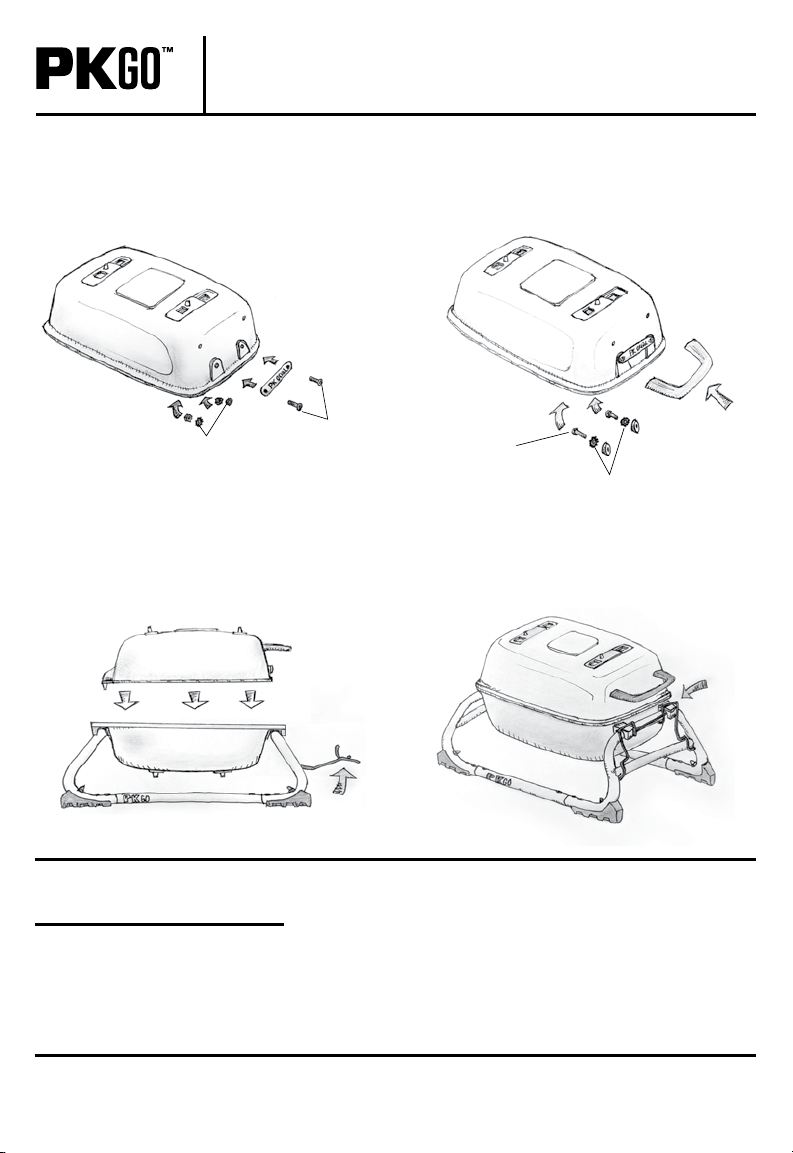

6) Place grill lid capsule on top of grill
bottom capsule. Open and close the lid once
to ensure the hinge is properly seated.
Sawtooth
washers
3/4”
1”
7) Snap shelf wire lock bar over mount on
grill bottom capsule to secure.
5) Assemble Lid Handle to grill lid capsule.
Saw tooth and wedge washers go inside
capsule.
4) Assemble Original PK™ brand plate
to grill lid capsule. Sawtooth washers
go inside.
SEE ORIGINAL PK OWNER
MANUAL FOR DETAILED
GRILL USE INSTRUCTIONS
AND SAFE USE WARNINGS.
• Always use PK-GO™ stand on a non-flammable surface.
• When grill is in use, always place an aluminum (or
other non-flammable) tray under the Original PK™
bottom vents to catch any hot ash embers that may fall
from bottom of bottom capsule.
• Use damp cloth and mild soap to clean PK-GO™ stand.
STAND USE & CARE
VISIT US AT PKGRILLS.COM FOR
PRODUCT INFORMATION, ACCESSORIES, RECIPE IDEAS & MORE.
