PL&T PLT-11397 User manual

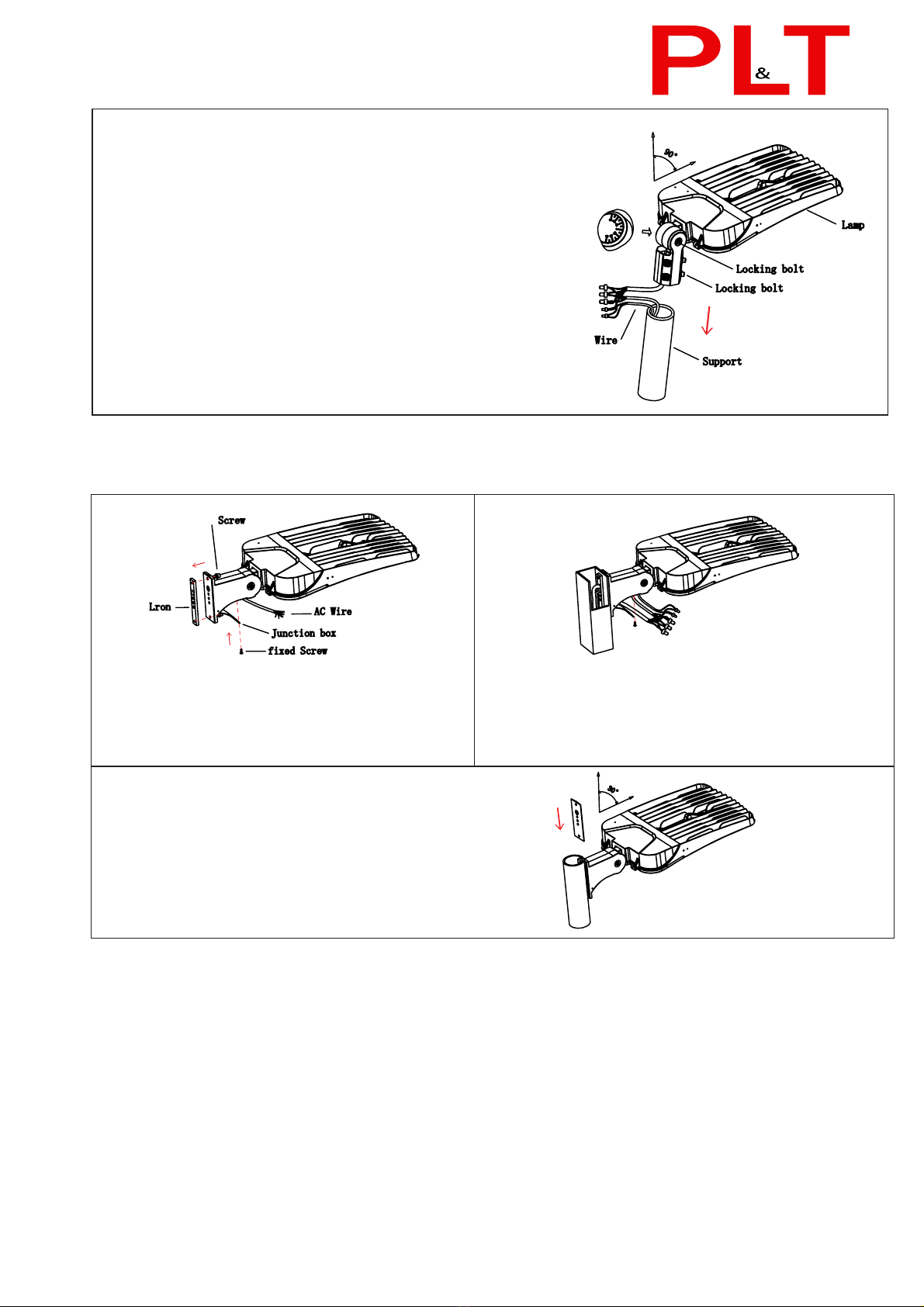

Installation Instruction
TYPEA(Slip-fitter)
Step 1: Loosen the 4 screws on the lamp
holder,connect the wires correctly and
put the wires into the lamp pole, then lock
the screws well to fix the lamp on the lamp
pole.
Step 2: Loosen the locking bolt with tools,
rotate the lamp and lock the screw after
determining required angle.
Notice: Locking bolt can be only compatible
with a lamp pole that the outer diameter is
¢60, lamp adjustable angle is 0-90°
Step 1.Use tools to take screw apart and
put installed iron bar away, remove fixed
screw and open junction box, then pass
the AC wire through it.
Step 2.Use tools to fix the lamp on square
lamp pole, connect the wires correctly
and make waterproof measures well,
close the junction box and finish installation.
Step 3.Notice: Remove the rubber mat
when the lamp is installed on round lamp
pole
Notice: Lamp adjustable angle is 0-30°
TYPEB(Square/Round pole mount with slip-fitter function)

TYPEC(Square/Round pole mount)
Step 1.Use tools to take screw apart and
put installed iron bar away, remove fixed
screw and open junction box, then pass
the AC wire through it.
Step 2.Use tools to fix the lamp on square
lamp pole, connect the wires correctly and
make waterproof measures well, close the
junction box and finish installation.
Notice: Remove the rubber mat when the
lamp is installed on round lamp pole.
Installation Instruction
TYPED(Trunnion)
Step 1.Mark the position of the fixing
holes with foold lightbracket, then drill
the fixing holes.
Step 2.Input two expansion bolts.
Step 3: Waterproof measures must be taken
after connecting the wire correctly, install the
lamp well after putting the wires back into the
trunking.
Attention: Lamp adjustable angle is 0-90°
wall hammer
expansion bolt
electrical drill

TYPEE(Yoke)
Step 3:Waterproof measures must be taken after connecting the wire correctly, install
the lamp well after putting the wires back into the trunking.
Attention: Lamp adjustable angle is 0-90°
Installation Instruction
Step 1.Mark the position of the fixing
holes with foold lightbracket, then drill
the fixing holes.
Step 2.Input two expansion bolts.
wall hammer
expansion bolt
electrical drill
