PLEERVOX AX2TVD69GT User manual

AX2TVD69GT
OWNER'S MANUAL

Contents
Thank you for your choosing our product. We hope you will find the instructions in this user manual
clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features
of your new AV7TDIN for maximum enjoyment.
Preparation
Features
Tools and Supplies
!!!WARNING
Disconnecting the Battery
Controls and Indicators
Button Operation
LCD Display / Indicators
The Key Areas Of the Touch Screen
Remote Control
Front Zone Remote Control
Multi-Zone Remote Control
Using the TFT Monitor
Open/Close the TFT Monitor
TFT Monitor Auto Open
Monitor Tilt Angle Adjustment
Rear Camera Mode
Image Setting
Parking Brake Interlock
Monitor Movement Mechanism
Basic Operations
Power On / Off
Playing Source Selection
Volume Adjustment
Audio Control Menu
Six-Channel Audio Control
Rear Zone
System Reset
Mute
System Setup Menu
MAIN Menu
Screen Setting
General Setup Menu
ASP(Audio Signal Processing) Configuration Menu
Multi-Zone Operation
Tuner Operation
Tuner Operation Display
Switch to Radio Tuner source
Select FM/AM Band
Auto Tuning
Manual Tuning
Using Preset Stations

Auto Store (AS)
Scan
DVD Player Operation
Opening/Closing the TFT Video Screen
Insert/Eject Disc
Reset the Loading Mechanism
Accessing DVD Mode
Using the Touch-Screen Controls
Controlling Playback
Accessing the DVD Menu
Moving Through Chapters
Fast Forward/Fast Reverse
Selecting 2-Channel or 6-Channel Audio Playback
GOTO Search
Direct Chapter / Track Selection
Viewing an Alternate Picture Angle (DVD Only)
Zooming
Multi-Language Discs (DVD Only)
Playback Information
General Disc Information
DVD Setup Menu
Accessing the DVD Setup Screen
LANGUAGE Menu
AUDIO Menu
VIDEO Menu
SPEAKER Menu
SURROUND MENU
CD/MP3/WMA/JPEG Operation
CD Player Operation Display
MP3/WMA Discs
JPEG Discs
SD Card Reader Operation
Accessing SD Card Mode
Using the Touch-Screen Controls
TV Tuner Operation
iPod Operation
Accessing iPod Mode
iPod Instructions
Playback of video on ipod
Bluetooth Operation
Before using Bluetooth
The Bluetooth Indicator
Accessing the Bluetooth Mode
Bluetooth User Interface
Phone Book
Bluetooth Setup
Pairing
Auto Connect
Making a phone call
Answering an incoming call
End a call
Navigation Operation
Accessing Navigation Navigation Operation
Troubleshooting
Specifications
NOTE:1. certain description in the book may differ from the actual unit.
2. Some pictures or icons in the book may differ from actual display.
3. Specifications subject to change without notice.

Please read all of the instructions below before beginning your installation. We recommend that
you have your unit installed by a mobile video/navigation installer.
Features
• Double DIN size, all-in-one highly integrated entertainment system.
• Built-in DVD Player, Car specification slot-in mechanism.
• Built-in ISS FM/AM Tuner.
• SD card reader READ/PLAY function.
• Built-in Bluetooth hands-free dial/answer for connection to Bluetooth cell phone.
• High resolution 7” (16:9) TFT color monitor, contrast and brightness adjustment, with LCD dot matrix
display.
• Built-in 50W X 5 output amplifier, 5.1 channel surround sound output.
• Dual zone function with easy operation method.
• All functions can be operated by included Remote Controls.
• Rear zone remote control operation.
• Built-in iPod Control, Navigation Ready ,
• Powerful Graphic User Interface and software update ability.
Tools and Supplies
You will need these tools and supplies to install the unit.
• Torx type, flat-head and Philips screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screwdriver, socket wrench set or other tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 18 gauge wire for power connections
• 16 – 18 gauge speaker wire
WARNING!
1. Only connect the unit to a 12-volt negative ground system.
2. Never install this unit where operation and viewing could interfere with safe driving conditions.
3. To reduce the risk of a traffic accident (except when using for rear view video camera) never use
the video display function while driving the vehicle. This is a violation of law.
4. To reduce the risk of a traffic accident, never driving with the sound at a level that prevents you
from hearing sounds outside around the vehicle.
5. Never disassemble or adjust the unit without the assistance of a professional. For details, please
consult your local car stereo specialty shop.
6. To prevent injury from shock or fire, never expose this unit to moisture or water.
7. Never use irregular discs.
8. To prevent damage to the mechanism inside this unit, avoid impact to the TFT monitor.
9. Do not change the fuse on the power wire without professional guidance. Using an improper fuse
may cause damage to the unit and result in a fire.
10. The monitor employs an automatic motorized mechanism. To prevent damage to the core
mechanism, please do not push, pull or swivel the monitor manually.
Disconnecting the Battery
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to
installation.
NOTE: If the unit is to be installed in a car equipped with an on-board drive or navigation computer, do not
disconnect the battery cable. If the cable is disconnected, the preset memory may be erased. Under these
conditions, use extra caution during installation to avoid causing a short circuit.
NOTE: It is especially important that you read the WARNINGS and NOTES in this manual.
Prearation
Prearation
Prearation
Prearation

The key areas of touch screen
A — Return to MAIN MENU
B — Display playing information
C — Select previous chapter
D — Select next chapter
E — Display the on-screen controls, and different mode displays different menu.
F —On DVD/VCD mode, display the GOTO search menu on the screen directly.
3 4
Controls and Indicators
Controls and Indicators
Controls and Indicators
Controls and Indicators

5 6

NOTE: The buttons of NAV MENU、F1、F2、F3、F4、F5、F6 are used on the navigation mode. If your
unit has the navigation function,please readthe user manual of navigation to find the functions of the
buttons.
Open/Close TFT Monitor
Press the ( ) button on the front zone remote control or press the ( ) button on the front panel to
open/close the monitor.
TFT Monitor Auto Open
•If “TFT Auto Open” is “On”, when the unit is turned on, the monitor automatically opens to the last viewing
position.
•If “TFT Auto Open” is ”Off” , when the unit is turned on, press the ( ) button on the remote control or
press the ( ) button on the front panel to open the monitor into the desired viewing position.
•If “TFT Auto Open” is ”Manual”，when the unit is turned on or turned off, the monitor has no movement.
See “General setting” for more instructions.
Monitor Tilt Angle Adjustment
The monitor angle can be adjusted for optimum viewing using one of the following methods:
• Press the ( ) button on the front panel to adjust the tilt angle of the screen one step at a time.
• Press and hold the ( ) button to continuously adjust the tilt angle.
• Adjust the “Screen Tilt” in the “Screen setting” to adjust the tilt of the screen to the desired degree.
Rear Camera Mode
When the vehicle is placed in "Reverse", and an optional rear camera is connected to the unit, the TFT
monitor will automatically switch to the camera input source.
Image Setting
Video Output Format
The table below shows the video output format for each source.
Video Output Format
Adjustable Parameters
While in RGB mode, the only parameter that can be adjusted is brightness (BRIGHT). To access
“PICTURE”,“COLOR”, “CONTRAST”, and “TINT” you must be in CVBS mode.
7 8
TFT Monitor Operation
TFT Monitor Operation

Parameter Adjustment Procedure
1. Enter Picture Quality Setting mode:
Press the PIC button on the remote or press and hold the PIC button on the unit.
2. Select Item to Set:
Press the ( / ) buttons on the remote or press the (+/-) buttons on the front panel to select an item.
3. Exit Picture Quality Setting Mode:
Press the PIC button on the remote or press and hold the PIC button on the unit.
NOTE: There must be a video signal present on the AUX or CAMERA input to adjust the above settings.
Parking Brake Inhibit
1. When the “PARKING” cable is connected to the brake switch, the display on the TFT monitor will display
video only when the vehicle is stopped and the parking brake is applied.
2. Parking brake function is overridden when the video source is set to CAMERA.
3. When the “parking brake inhibit” is active, the front monitor displays “Caution” with blue background,
preventing the driver from watching video while driving to reduce the risk of a traffic accident. Rear video
screens are not affected.
Please see “INSTALLATION SECTION” for installation.
Monitor Movement Mechanism
If an obstruction occurs in the monitor path, the motion will stop automatically to prevent damage to the
mechanism or monitor.
Normal operation is resumed by pressing the ( ) button or disconnecting and reconnecting the power.
Audio Adjustments
Power On / Off
Press the POWER /MUTE button to turn the unit on. You can also turn on the unit by pressing the button
( ) on the remote.
Press and hold the POWER/MUTE button on the front panel or press the POWER button ( ) on the
remote to power off the unit.
Playing Source Selection
Press the SRC button on the front panel or the (SRC) button on the remote to change among available
playing sources: TUNER, TV, Disc, iPod,, AUX IN, CAMERA (rear view video camera), NAVI and SD
Card. The playing mode is displayed on the TFT display.
AUX IN Mode
An external audio/video device can be connected to this unit via RCA cables to the “AUX-IN”.
CAMERA Mode
“CAMERA” mode is only available when the camera is connected and when backing up. To install a
rear view video camera, connect the CAMERA video input cable to the rear view camera output cable.
NOTE: If you have not connected a device to the unit, the source can not be selected.
Example: If you have not connected an iPod to the unit, the iPod source will not be available.
Volume Adjustment
To increase or decrease the volume level, Press the VOL+/ VOL- buttons on the remote control. The
volume ranges from “0” to “40”.
The default volume is “10” when the unit is powered on each time. Default volume memory setup:
Audio Control Menu
The Audio Control feature allows you to easily adjust your audio system to meet the acoustical
characteristics of your vehicle, which vary depending on the type of vehicle and its measurements. To
get the best possible sound quality from your new system, be sure to adjust the settings for the
speakers as well. Proper setting of the Fader and Balance boosts the effects of the cabin equalizer.
910
TFT Monitor Operation
TFT Monitor Operation
Operating Instructions
Operating Instructions

NOTE: The Bass and Treble levels are only adjustable when EQ is on “User” mode.
The Loudness function compensates for deficiencies in sound ranges at low levels. Loudness
levels range from 1-4 or “off”. When the Loudness function is on, LOUD is displayed on the screen.
Exiting the Audio Control Menu
Touch the return arrow on the top right of the display.
Press the (ESC) button on the remote control to exit the audio control menu.

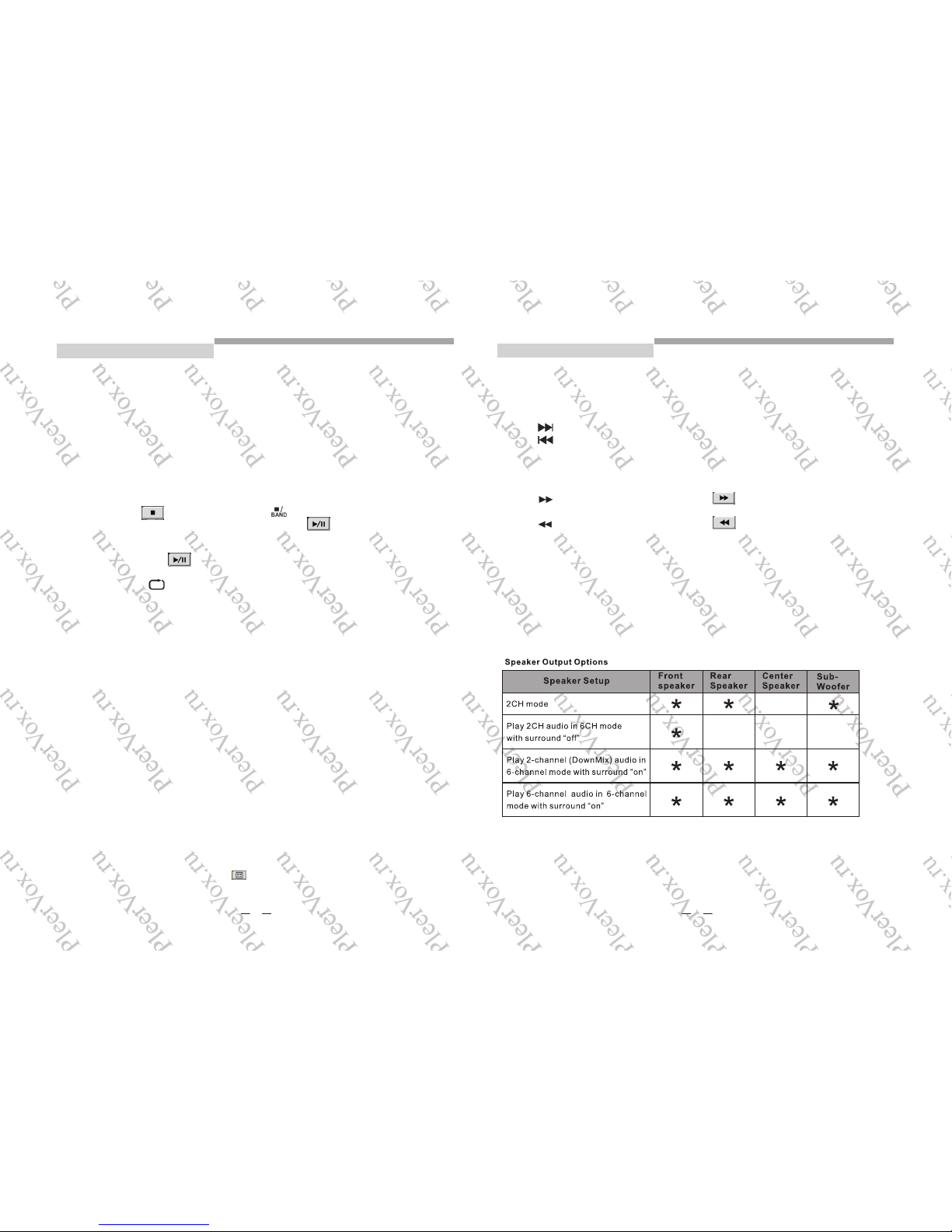

Six-Channel Audio Control
6-Channel Audio Adjustments
Rear Zone
If a monitor is installed in the rear zone and connected to the rear zone AV output, passengers in the back
seat can control the DVD output using the rear zone remote control. See “Multi-Zone Remote Control” for
instructions.
System Reset
To correct a system halt or other unusual operation, use the tip of a pen to press the RESET button located
on the front bottom-right corner of the unit. After a system reset, the unit restores the settings before last
power off.
Mute
The volume will be muted when the following cases occur:
• Automatic: audio output mutes when a telephone call is received by the car phone or when verbal
navigation is performed.
• When the “MUTE” wire is connected to a cell phone that will output a mute signal to the “MUTE” Wire.
• Manual: Press the MUTE button ( ) on the front panel or the MUTE button ( ) on the remote to mute
the volume from the unit.
NOTE: Press the MUTE button again to restore the volume.
Adjusting the volume or using any of the audio set-up features will cancel the mute function.
MAIN Menu
There are two methods to access the MAIN menu.
•Press the MENU button on the remote control.
•Touch the A area on the touch-screen.
1.Touch to turn to the previous menu.
2.Touch to access DVD mode.
3.Touch to access Radio mode.
4.Touch to access DVD setup.
5.Touch to access Screen setup.
6.Touch to access System setup.
7.Touch to access Audio setup.
8.Touch to access Navigation mode.
9.Touch to access TV mode
10.Touch to access IPod mode.
11.Touch to access Bluetooth mode.
12.Touch to access Camera mode.
13.Touch to access AUX IN mode
14.Touch to access SD Card mode.
Note: Touch screen operations and buttons on front panel are all useable to select menu and adjust
“SETTING”. The following instructions will show the different ways to access menus and
adjustments.
11 12
System setup menu
System setup menu
Operating Instructions
Operating Instructions

Screen Setting
Accessing the Screen Setup Menu
Press the (MENU) button on the remote control to access MAIN menu.
Select the button on the left bottom of the screen to access the Screen setup.
General setup Menu
Accessing the General Setup Menu
•Select the button on the left bottom of the touch screen to access the General setup.
Selecting a Feature for Adjustment
Press the direction buttons on the remote control or touch the option directly on the screen to select the
feature to be adjusted.
Adjusting a Feature
1. Enter the option field for the feature you want to adjust by pressing the (OK) button on the remote. A
submenu appears in a second row with the selected option.
2. Select a new value by pressing the direction button.
3. Confirm your selection by pressing (OK) button. The new value setup is complete.
Adjusting the Clock
1. Access the “Clock” setting under the General Setup menu.
2. Press the direction button on the remote to move the cursor to the “Hour” or “Min” position, and press the
(OK) button. You also can touch the “Hour” or “Min” position directly.
3. The numeric keypad will pop up.
4. Press the numeric button on the remote control or touch the numeric keypad on the screen to adjust the
hour or minutes.
5. Press the (OK) button on the remote control or on the keypad of the screen to confirm setup.
Return to normal playback
The system will automatically return the previous playback mode you were in before accessing the setup
menu after setting with no operation.
13 14
System setup menu
System setup menu
System setup menu
System setup menu

ASP (Audio Signal Processing) SETUP Menu
The ASP Configuration menu allows you to make fine audio adjustment.
Accessing the ASP SETUP Menu
Press the (MENU) button on the remote control to access MAIN menu.
Select the button on the left of the screen to access the ASP setup.
A menu appears with the option for the first item, and then you can touch the button to the option on
the next page, press the button to return.
Selecting a Feature for Adjustment
Press the direction buttons on the remote control or touch the option directly on the screen to select a
feature to be adjusted.
Adjusting a Feature
1. Enter the option field for the feature you want to adjust by pressing the (OK) button on the remote. A
submenu appears in a second row with the selected option.
2. Select a new value by pressing the direction button.
3. Confirm your selection by pressing (OK) button on the remote. The new setup is complete.
Return to normal playback
The system will automatically return the previous playback mode you were in before accessing the setup
menu with no operation.
15 16
System setup menu
System setup menu
System setup menu
System setup menu

Multi-Zone Operation
Independent sources can be played simultaneously on the unit. For example, the FM/AM tuner can listen
to by the front passengers, while DVD video is available to rear passengers.
Accessing the Rear-Zone
1.First you should access General setup menu or ASP Setup Menu or Screen setting , then Touch the
Button to access the Rear-Zone menu and you can select a source to play.
2. Use the Multi-Zone Remote Control to access the Rear-Zone and select a source to play.
3. Press and hold the SRC button on the front panel to toggle Rear-Zone mode on.
Exit the Rear-Zone
Press and hold the SRC button on the front panel.
NOTE: If DVD is selected as the front source and SD Card can not be selected for the rear source, if SD
card is selected as the front source and DVD can not be selected for the rear source .Since the multimedia
processor is shared between optical and SD Card media, one or the other can be selected but not both
simultaneously.
Selecting a Source for the Front Zone
Access the Front-Zone menu, and this menu allows you to select a source for the front zone.
You can also use the button on the front panel or on the front remote control.
NOTE: Optical media and an SD Card cannot be selected from the Multi-Zone Source Menu
simultaneously.
NOTE: The AM/FM tuner graphic and Ipod graphic will change to a "blue screen" background when any
optical or SD Card media is selected from the Multi-Zone menu.
Tuner TFT Display
1.Current Source information, touch this area to return to MAIN menu
2.Current Radio Band Indicator
3.Current Preset Station playing Indicator
4.Radio Frequency Indicator
5.Preset Radio Stations: Touch to recall preset stations or touch and hold to store a station. (Total 6
stations per Band you can preset.)
6.User defined equalizer mode.
7.Loud Setting Indicator (6-7 items’ setting method, see “Audio control menu” for instructions.)
8.Rear Zone Mode
9.Volume Indicator. 10.Strong Local Signal Broadcasting Indicator:Touch to activate/deactivate local
function.
11. : Touch to change among the following bands: FM-1, FM-2, FM-3.AM
12. : Touch to automatically scan and store stations in current radio band. You also can press the
AS/PS button on the front panel.
13. : Touch to seek down.
14. : Touch to seek up.
15. : Touch to tune down one step.
16. : Touch to tune up one step.
17. : Touch to activate/deactivate Scan Mode
18.Current time Indicator
19.Bluetooth Indicator
17 18
System setup menu
System setup menu
Tuner Operation
Tuner Operation

Switch to Radio Tuner source
Press the SRC button on the front panel or on the remote control to switch to the Tuner source.
Select FM/AM Band
Touch the BAND button on the screen, or press the BAND button( )on the remote control to change
among the following bands: FM-1 , FM-2 , FM-3.AM.
Auto Tuning
Press the button ( ) on remote control or touch the button on the screen to seek the next available
channel by increasing the tuning frequency. Press the button again to stop searching.
Press the button ( ) on the remote control or touch the button on the screen to seek the next
available channel by decreasing the tuning frequency. Press the button again to stop searching.
Manual Tuning
Touch the or to increase or decrease the tuning frequency one step.
Using Preset Stations
12numbered preset buttons store and recall stations for each band. The 6 stored stations (P1-P6) for the
current band appear on the screen, touch the channel directly to select.
Storing a Station
1. Select a band (if needed), then select a station.
2. Touch and hold an onscreen preset button for three seconds. The preset number appears at the top of
the screen.
Recalling a Station
1. Select a band (if needed).
2. Touch an on-screen preset button to select the corresponding stored station.
Auto Store (AS)
Press the AS/PS button on the panel or touch the button on the screen to automatic scan and store all
stations in current band.
Scan
Touch the button on the screen to automatic scan all stations in current band to preview stations.
Press any button to stop scan to listen to a station you desired.
NOTE: When properly installed, DVD video cannot be displayed on the main TFT screen unless the
parking brake is applied. If you attempt to play a DVD while the vehicle is moving, the TFT screen displays
caution information with a blue background. Rear video screens, if applicable, will operate normally.
Opening/Closing the TFT Video Screen
Opening the TFT Screen
To open the TFT video screen, press the ( ) button on the unit or press the ( ) button on the remote
control.
Closing the TFT Screen
Press the ( ) button on the unit or press the ( ) button on the remote control again to close the TFT
screen.
Insert/Eject Disc
Inserting a Disc
When inserting a DVD disc, DVD mode is entered and disc play begins.
NOTE: If Parental Lock (Rating) is activated and the disc inserted is not authorized, the 4-digit code
must be entered and/or the disc must be authorized (see “RATING (Parental Lock) Menu”).
You cannot insert a disc if there is already a disc in the unit or if the power is off.
NOTE: CD-R/RW, DVD-R/RW, DVD+R/RWs will not play unless the recording session is closed.
Ejecting a Disc
Press the button on the unit to eject the disc. The unit automatically reverts to Tuner mode at the same
time.
Reset the Loading Mechanism
If the disc loads abnormally or does not play properly, press and hold the button on the unit to reset
the loading mechanism. The disc is ejected and normal operation resumes.
Accessing DVD Mode
To switch to DVD mode when a disc is already inserted, press the SRC button on the front panel or on the
remote control till DVD appears at the top of the screen.
19 20
Tuner Operation
Tuner Operation
DVD Player Operation
DVD Player Operation

1.Touch to Play/Pause
2.Touch to stop
3.Touch to fast reverse 4.Touch to fast forward
5.Touch to repeat playback
6.Touch to repeat from A to B. Select the repeat point A wherever you want to start and the point B wherever
you want to end, then, DVD displays from A to B continually.
7.Touch to switch among sound mode..
8.Touch to display Sub-title
9.Touch to return to DVD main menu
Controlling Playback
Stopping Playback
Touch the stop button on the screen or press the ( ) button on the remote control to stop DVD
play; touch the play/pause button on the screen or the (OK) button on the remote control to resume
disk play.
Pausing Playback
Touch the play/pause button on the screen to suspend or resume disc play.
Repeat Playback
Press the Repeat button on the screen or on the remote control to alter repeat mode according to the
following:
• DVD: Repeat Title, Repeat Chapter, Repeat Off
• VCD (PBC Off): Repeat Single, Repeat Off
• MP3: Repeat Single, Repeat Folder, Repeat Off
NOTE: For VCD play, the repeat function is not available if PBC is on.
PBC (Play back Control) (VCD Only)
For VCD with play back functionality, play back control (PBC) provides additional controls for VCD
playback.
Press the (ROOT) button on the remote control to toggle the PBC function “On”/”Off”. Once PBC is on,
playback starts from track one of the play list.
NOTE: When PBC is activated, fast forward, slow playback, and previous/next track are available. Repeat
and direct track selection are not available. When PBC is activated, selecting random, scan, or search
playback automatically deactivates PBC.
Sectional Repeat Function (A-B)
Use the A-B function to define a specific area of a disc to repeat.
• Press the Repeat A-B button ( A-B) on the screen or on the remote control to set the start point (A) of the
repeated section.
• Press the Repeat A-B button (A-B) again once you reach the desired end point (B) of the repeated
section. The selected portion of the DVD will now repeat continuously.
• Press the Repeat A-B button ( A-B) again to cancel the A-B section setting and stop repeat play.
Accessing the DVD Menu
1.You can touch the area F, and then touch the button to recall the main DVD menu.
2.Use the arrow buttons on the remote to select a title from the menu.
3.Press the (TITLE) button on the remote control to select a different title for playback.
4.Press the (OK) button on the remote control or touch the item directly to confirm your selection and begin
playback.
Moving Through Chapters
Press the ( ) button on the remote control to advance to the next chapter on the DVD.
Press the ( ) button on the remote control to move to the previous chapter on the DVD.
Touch the right side of the screen to advance to the next chapter, or touch the left side of the screen to
move to the previous chapter.
Fast Forward/Fast Reverse
Press the ( ) button on the remote control or touch the of area E on the screen to fast forward.
Keep pressing or touching and releasing the button to increase the rate from “2X” to “4X”, “8X”, and “20X”.
Press the ( ) button on the remote control or touch the of area E on the screen to fast reverse.
Keep pressing or touching and releasing the button to increase the rate from “2X” to “4X”, “8X”, and “20X”.
Selecting 2-Channel and 6-Channel Audio Playback
2-Channel Audio (Down Mix) Support for CD, SD Card and DVD
Linear pulse code modulation (LPCM) and pulse code modulation (PCM) support is available for CD, SD
Card and DVD discs when 2-channel audio is selected.
6- Channel Audio Support for CD, SD Card and DVD
Surround I is available for decoding analog or digital 2- channel down mixed sources. Surround II is
available for decoding digital bit-stream sources.
NOTE: Only 2-Channel audio support is available for AM / FM tuner, TV tuner and Auxiliary input.
21 22
DVD Player Operation
DVD Player Operation
DVD Player Operation
DVD Player Operation

GOTO Search
During DVD or VCD playback, perform the following steps to use the GOTO feature to access a specific
location on a disc:
1. Press the GOTO button on remote control or touch Area F on the screen to enter “GOTO” mode.
2. Press the ( ▲/ ) buttons on the remote control to select a category.
• For DVD mode, you can choose Time or Title/ Chapter search.
• For VCD mode, press the GOTO button to choose between Track Search, Disc Search and Exit.
3. Touch the( )/ (---- / -- ) area on the screen to display a numeric keypad on the touch
screen.
4. Enter a time/Track number into the field using the numeric keypad on the remote control or on
the screen.
5. Press the OK button on the remote control or on the touch screen to go to the specified location on the
disc.
6. Press the GOTO button on the remote control or touch the F Area on the screen again to exit.
Direct Chapter / Track Selection
During DVD, VCD and CD playback, you can use the numeric keypad on the remote control to access a
track directly.
Viewing an Alternate Picture Angle (DVD Only)
Some DVDs contain scenes that have been shot simultaneously from different angles. For discs recorded
with multiple angles, press the (ANGLE) button on the remote control to toggle available angles of the on-
screen image.
Zooming
Press the ZOOM button on the remote control to enlarge and pan through the video image using the
following options: “Q1”, “Q2”, “Q3”, and “OFF”.
Multi-Language Discs (DVD Only)
Changing Audio Language
If you are watching a disc recorded in multiple languages, press the (AUDIO) button on the remote control
to choose a language. You also can touch area E, and then touch the button.
NOTE: During VCD playback, press the (AUDIO) button on the remote control to choose between
Left Channel, Right Channel, and Stereo.
Changing Subtitle Language
If you are watching a disc recorded in multiple languages with subtitles, press the (SUBT) button on the
remote control to choose the language in which you would like the subtitles to appear. You also can touch
area E, and then touch the button.
Playback Information
During DVD and VCD playback, press the (INFO) button on the remote control or touch area B to display
playback information on the screen, including the media playing and current playback time.
DVD Playback Information
The following information is displayed at the top of the screen during DVD playback:
23 24
DVD Player Operation
DVD Player Operation
DVD Player Operation
DVD Player Operation

VCD Playback Information
The following information is displayed at the top of the screen during VCD playback:
25 26
DVD Player Operation
DVD Player Operation
DVD Player Operation
DVD Player Operation

In “DVD Setup” mode, “LANGUAGE”, “AUDIO” , “VIDEO”, “SPEAKER” and “RATING” (parental lock) are
available for setup. This operation can be performed using rotary encoder, the remote control or touch
screen.
Accessing the DVD Setup Screen
If DVD is selected as the current playing source, you can access the DVD setup screen through the
following methods:
Press the MENU on the front panel or touch area A to access the MAIN menu, and then touch the DVD
TOOLS button to access DVD Setup Screen.
Press the (MENU) button on the remote control , press the direction button to select DVD TOOLS and
press the (OK)button to access.
Accessing a Menu
To access a menu (LANGUAGE, AUDIO , VIDEO, SPEAKER, RATING), press the direction buttons on the
remote control to highlight the desired menu. You can also touch the on-screen menu selection to access
that menu.
NOTE: Once the DVD setup is complete, the settings are memorized. If you want To restore the
factory default settings, please use the “Load Factory “ in the RATING Menu. (See RATING Menu.)
Selecting a Feature for Adjustment
Once inside a menu, press the ( / ) on the remote control or touch the item directly to select the
feature to be adjusted.
Adjusting a Feature
1. Enter the option field for the feature you want to adjust by pressing the (OK) button on the remote A
submenu appears in a second row with the selected option.
2. Select a new value by pressing the ( / ) buttons on the remote control
3. Confirm your selection by pressing the (OK) buttons on the remote control. The new setup is completed.
LANGUAGE Menu
If a DVD supports more than 1 Subtitle or Audio language, all the languages are available for selection
during playback. If the selected language is not supported by the DVD, then the default language is used.
During playback, press the (SUBT)or (AUDIO) button on the remote control to change the language
directly. This will not affect the DVD menu settings.
27 28
DVD Setup Menu
DVD Setup Menu
DVD Setup Menu
DVD Setup Menu

Speaker Selection
Selecting LARGE for the multi-channel speaker option will give a full range output. Selecting SMALL for
the multi channel speaker option will activate a high pass filter whose crossover is dependent upon the
sub-woofer low pass filter frequency. For example, if the subwoofer low pass filter is set to 80Hz, then the
high pass SMALL speaker crossover will be set to 90Hz.
Low pass High pass
80Hz 90Hz
120Hz 135Hz
160Hz 180Hz
RATING (Parental Lock) Menu
The DVD system has a built-in parental lock feature to prevent unauthorized persons from viewing
restricted disc content. By default, the rating system is unlocked. Once setup, the parental lock is released
only by entering the correct password. Once the password is entered, rating is available for setup.
RATING Menu Features
SettingOptionsFunction
To reset the password, access the “RATING” menu and enter the current password. Once the correct
password is entered, you can access the “Password” field and enter a new one.
NOTE: Record the password and keep it in a safe place for future reference. The rating for each disc
is marked on the disc, disc packing, or documentation. If the rating is not available on the disc, the
parental lock feature is unavailable. Some discs restrict only portions of the disc and the
appropriate content will play. For details, please refer to the disc description.
29 30
DVD Setup Menu
DVD Setup Menu
DVD Setup Menu
DVD Setup Menu

Instructions for Insert/Eject, Play/Pause, Stopping Playback, Track Selection, Fast Forward/Fast
Reverse, Scan, and Random Play are the same for DVD, CD and MP3 operation. Please see the DVD
Player Operation section for information about these topics.
The file naming formats listed below are compatible with this unit:
• ISO 9660 – file name: 12 characters, file extension: 3 characters
• ISO 9660 – file name: 31 characters, file extension: 3 characters
• Joliet – 64 characters
If the file or folder name does not conform to ISO 9660 file system standards, it may not be displayed or
played back correctly.
CD Player User Interface
1.Current source indicator, touch this area to access MAIN menu.
2.Disk title
3.Track title
4.Bluetooth indicator
5.Current time
6. : Touch to play/pause
7. : Touch to stop disc playback
8. : Touch to turn to the previous page
9. : Touch to turn to the next page
10. : Touch to fast backward current track
11. : Touch to fast forward current track
12. : Touch to activate/deactivate Scan Mode
13. : Touch to activate/deactivate Repeat Single Mode
14. : Touch to activate/deactivate Random Mode
15. : Touch to display the numeric keypad on the screen and then you can use the numeric keypad
to access a track directly.
16.Current track and total number of tracks on disk
17.Elapsed playing time
18.Playback information
19.Loud information
20.Rear information
21.Volume indicator
Playing CD Files
After inserting a CD disc, files will play in the sequence of the directory. In playing back, you can press the
numeric button on the remote control or touch a track on the onscreen directly to play.
Previous/Next Page
Touch the or on the screen to navigate through the pages/files.
Fast backward/fast forward
Touch the or on the screen to Fast backward or fast forward play.
MP3/WMA Discs
This player allows you to playback MP3/WMA files recorded on CDROM, CD-R, CD-RW, DVD+R/RW and
DVD-R/RW. For CD-RW discs, please make sure they are formatted using the full method and not the
quick method to prevent improper disc operation. Use the following settings when compressing audio data
for your MP3 disc:
• Transfer Bit Rate: 320kbps
• Sampling Frequency: 48kHz
When recording MP3 up to the maximum disc capacity, disable additional writing. For recording on an
empty disc up to maximum disc capacity, use the "Disc at once" setting.
The touch keys for MP3/WMA CD/DVD playback are described below.
31 32
CD/MP3/WMA/JPEG Operation
CD/MP3/WMA/JPEG Operation
CD/MP3/WMA/JPEG Operation
CD/MP3/WMA/JPEG Operation

1.Current source indicator, touch this area to access MAIN menu.
2.Disk title
3.Track title
4.Bluetooth indicator
5.Current time
6. : Touch to play/pause
7. : Touch to stop disc playback
8. : Touch to turn to the previous page
9. : Touch to turn to the next page
10. : Touch to display previous folder
11. : Touch to display next folder
12. : Touch to fast forward current track
13. : Touch to activate/deactivate Repeat Single Mode
14. : Touch to activate/deactivate Random Mode
15. : Touch to display the numeric keypad on the screen, and use it to access a track directly.
16.The disk format indicator, displays the current track and total number of tracks on disk
17.Elapsed playing time
18.playback information
19.Loud information
20.Rear information
21.Volume indicator
Playing MP3/WMA Files
After inserting a MP3/WMA disc, files will play in the sequence of the directories/folders. In playing back,
you can press the numeric button on the remote control or touch the a track directly to play.
Change Directory/Folder
Touch the or on the screen to navigate through the directories/folders.
Previous/Next Page
Touch the or on the screen to navigate through the pages/files.
33 34
CD/MP3/WMA/JPEG Operation
CD/MP3/WMA/JPEG Operation
CD/MP3/WMA/JPEG Operation
CD/MP3/WMA/JPEG Operation
