PNJ Reporter User manual

1
EN
Reporter
Ultra HD
4K
4k 15fps / 1080p 60fps
720p 120fps
Wi Function Wide angle Touchscreen
English
User manual
Thank you for choosing a PNJ product. This manual describes how to prepare and use your product. It’s also providing information about the utilization and safety
precautions, the regulations, compliance and technical specifications of the device. Please read completely, carefully and regularly before use, become familiar with
all the feature of the device and ensure safety use of your camera to enjoy fully with it. Keep this manual for future use. The manual is also available on our website
www.pnj.fr under the heading «User manuals».
www.pnj.FR
resolution: 14m

1
EN
1 ATTENTION / WARNING / WAARSCHUWING ........................................................................................ 3
2.Battery ....................................................................................................................................................4
3.Precaution of use ...................................................................................................................................6
4.Warning ...................................................................................................................................................7
5.Download the App ..................................................................................................................................8
6.Included in the pack ...............................................................................................................................9
7.Camera parts name .............................................................................................................................10
8.Specications .......................................................................................................................................13
9.Remote control .....................................................................................................................................14
Remplace the remote control's battery .........................................................................................14
Remote controller ..........................................................................................................................15
Connect the remote control to the camera ...................................................................................15
Remote control utilization ..............................................................................................................15
10.Camera conguration .........................................................................................................................16
Charging the battery. ......................................................................................................................16
Waterproof camera .........................................................................................................................16
Inserting the memory card .............................................................................................................17
CONTENTS

2
EN
11.Camera operation ...............................................................................................................................18
Turn on/ off the camera ..................................................................................................................18
General conguration .....................................................................................................................18
Effects conguration ......................................................................................................................20
Changing the modes of the camera ..............................................................................................21
Record videos .................................................................................................................................21
Video settings .................................................................................................................................21
Take photos ....................................................................................................................................23
Photo settings ................................................................................................................................23
Playback ..........................................................................................................................................24
Using the external microphone (Optional) ....................................................................................24
Transferring camera's les on a PC ...............................................................................................24
Connecting the camera to a HD TV ...............................................................................................24
How to use the App on a smartphone ...........................................................................................25
12.Maintenance .......................................................................................................................................28
13.Warranty ..............................................................................................................................................29
14.Recycling .............................................................................................................................................30
15.Declaration of conformity ...................................................................................................................31
16.Trademarks .........................................................................................................................................32
17.Modications ......................................................................................................................................32

3
EN
1.ATTENTION / WARNING / WAARSCHUWING
Veuillez lire le “Manuel d'utilisation” entièrement et attentivement avant toute utilisation Le manuel mis
à jour est disponible sur le site www.pnj.fr/modes-demploi/
ATTENTION: Toutes les précautions d'utilisation concernant les batteries doivent être suivies rigou-
reusement. Une mauvaise manipulation de la batterie peut provoquer un incendie, une explosion, des
blessures personnelles ou des dégâts matériels.
Please read the operation manual carefully before using the product The english User Manual can be
downloaded on our website: www.pnj.fr/en/user-manuals/
WARNING : Batteries are dangerous, please follow the instructions to avoid injuries or damages
Lees de instructies in de bedieningshandleiding zorgvuldig door voordat u onze producten gebruikt
De bedieningshandeleiding kunt u downloaden vanaf onze website: www.pnj.fr/en/user-manuals/
WAARSCHUWING : Baterijen zijn gevarlijk, het niet opvolgen van de gebruikshandekeiding kan
blessures en schaden veroorzaken.
nl
en
fr

4
EN
2.BATTERY
- By owning, charging or using the Li-battery, you assume all risks associated with the use of lithium
batteries.
- Always keep out of reach of children.
- Never leave the battery unattended while charging.
- Never leave the battery charged for more than 1 hour.
- Use only the USB charger provided in the pack. Never use a non-adaptable charger.
- Before charging the battery, check that it is not damaged. Check that the battery has not swollen or
that the battery compartment is not punctured. If you notice any of these situations: DO NOT CHARGE
THE BATTERY!
- A used battery must be removed from the unit and replaced.
- If you notice that the battery starts to swell during charging, disconnect the battery immediately
and do not use it again. Continued use of an inflated or deteriorated battery may cause an explosion.
- Make sure that the output voltage of the charger matches the battery voltage. Do not charge at a
higher current than recommended. Use only the charger provided in the pack.
- Disconnect the battery from the charger if it becomes too hot (Never exceed 49 ° C / 120 ° F) or swells.
If the battery becomes hot, disconnect the charger immediately.
- Charge only on non-flammable surfaces. Never charge inside a vehicle!
- Do not expose the battery to any source of heat or high temperature.
- Never put the battery in contact with water or immerse it in any other liquid.

5
EN
- Improper use of the battery may cause re, explosion or other hazards.
- In case of re caused by the battery, do not use water to extinguish the re (sand is recommended).
- Do not carry unwrapped batteries in your pocket or bag, as the shock of the batteries against
each other could cause a short circuit.
- Store the battery in a dry place at room temperature.

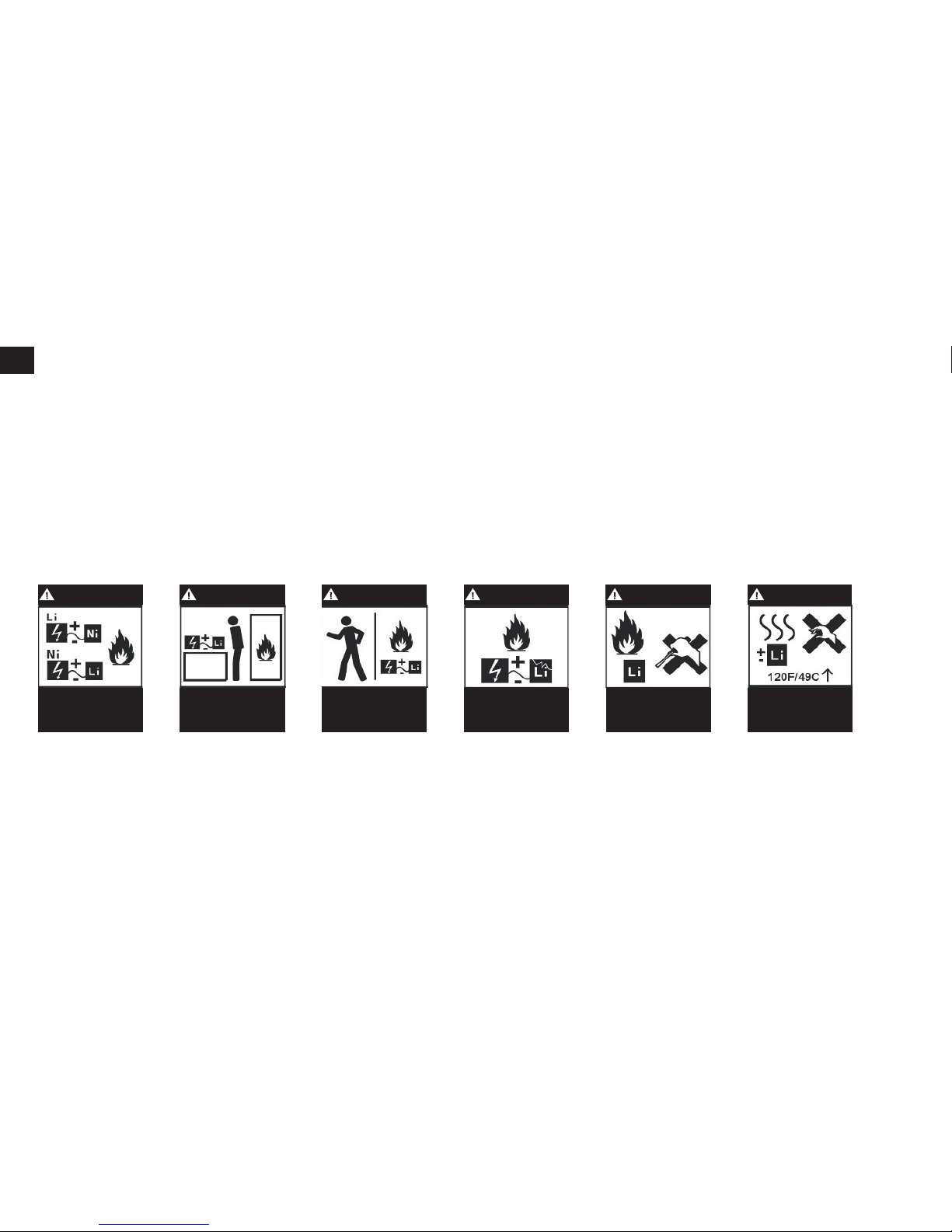

ATTENTION ATTENTION ATTENTION ATTENTION ATTENTION ATTENTION
Always use a charger
suitable for Li-Po
Always charging
away from ammable
materials
Never leave the
battery unattended
while charging
Never change or
transform a battery Never use a hot battery
Never charge a
damaged battery

6
EN
3.PRECAUTION OF USE
When using your drone, be sure to observe the following precautions:
- Not suitable for persons under 3 years of age.
- Caution: risk of ingestion of small parts.
- Be sure to use this product in a safe and responsible manner to avoid personal injury and / or
property damage.
- Make sure that your use is in accordance with the legal provisions of the country where you are
located.
- Avoid contact with sand, dust, water, liquid substances or heat, it could cause irreversible damage.
- Not suitable for people with epilepsy.
- Observe the safety instructions in this manual.
- Use only the accessories supplied by PNJ.
- Before each utilization, check that the batteries are fully charged.

7
EN
4.WARNING
The law required to use this action cam in prudent and responsible manners to avoid all human or material damage.
In case for unauthorized use or for illicit purposes, you will be fully responsible for any damage causes. Be sure
to respect laws, without violating the privacy of other people. PNJ assumes no responsibility in case of damage
resulting directly or indirectly from the use of this device, any parts of this device or the manual. PNJ is not
responsible for any accident, injury, death, loss or other claim of any kind related or resulting the use of this product.

8
EN
5.DOWNLOAD THE APP
Scan the QR code below, to have the access to our website www.pnj.fr and download the application for free. You can
also search ''Reporter App'' in Google Play Store or Apple Store to download the application for being able to control
the action cam in distance via your smartphone.

9
EN
Waterproof case Protective
cover
Lock bolt
Clip
Spanner USb Cable
Remote control
Quick release
mount
Helmet Mount
6.INCLUDED IN THE PACK

10
EN
HD OUT
MICRO SD
7.CAMERA PARTS NAME
1. Power/Navigatation
2. Mode/Shutter
3. Micro SD card Slot
5. HD Port
4. Mini USB Port
6. Internal Mic
7. LCD Touch Screen
8. Speaker
9. Li-ion Battery
Power
10. 1/4" screw hole

11
EN

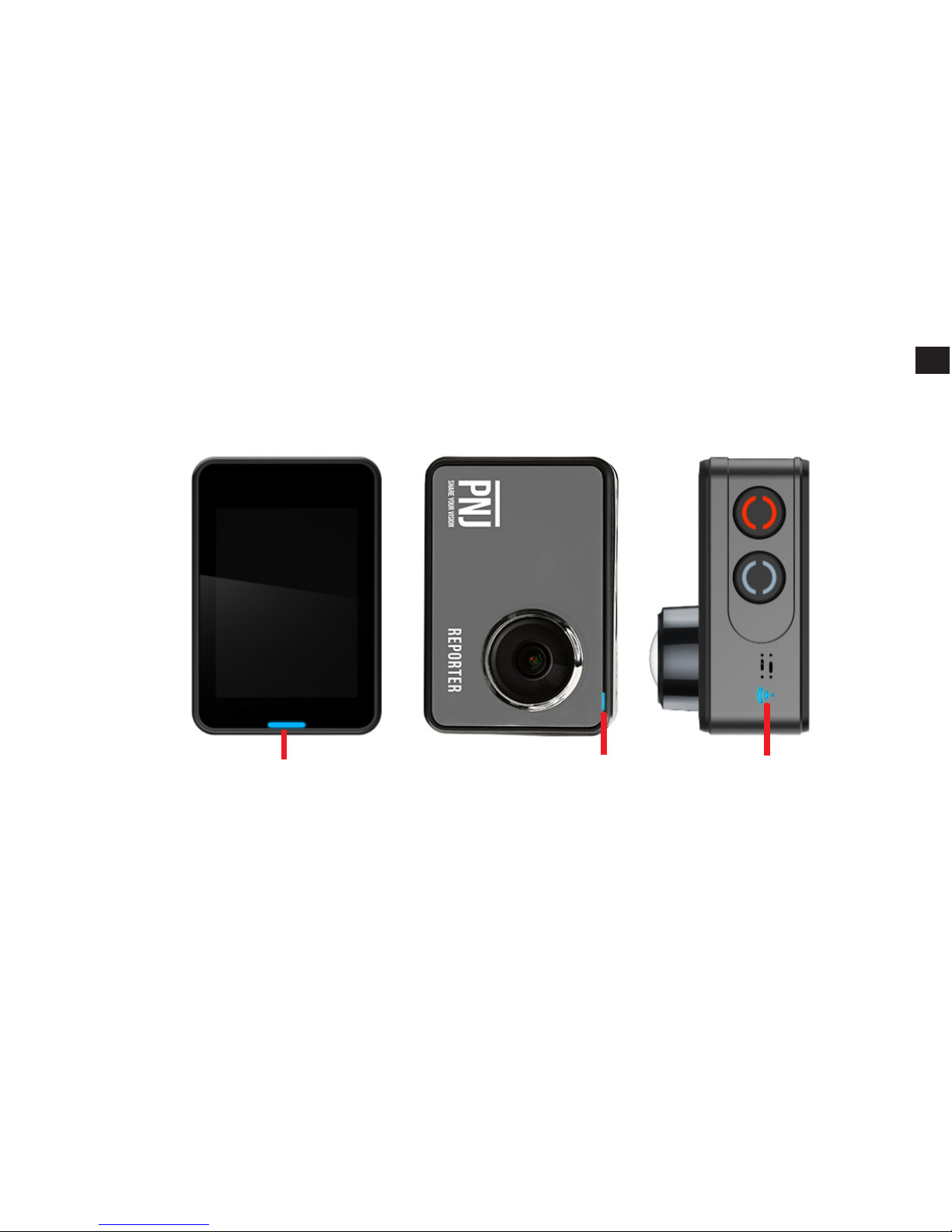

A
Power/Navigation
B
Mode/Shutter

12
EN
CDE

13
EN
8.SPECIFICATIONS
Video
resolution
4K 15fps / 2.5K 30fps / 1080P 60fps / 720P 120fps
resolution
14M
LCD screen Touchscreen 2”TFT
Battery Lithium-ion battery 1100mAh
WI-FI Wi connection up to20m
Custom
application
Android & iOS
Remote
controller
Wireless remote control 2.4 G RF
SD card Up to 32GB

14
EN
Charging Fast
Waterproof
case
Up to 30m under water
9.REMOTE CONTROL
• Remplace the remote control's battery
When the battery in the remote is close to being fully discharged the red LED indicator will flicker once
per second indicating that you need to replace the button battery.
1. Please purchase a replacement button battery with model No. CR2032.
2. Unscrew the round cap at the bottom of the remote, see the pictures for reference.
3. Remove the old battery.
4. Insert the new battery into the slot where the old battery was, with the flat surface up.
5. Screw on the round cap at the bottom of the remote.

15
EN

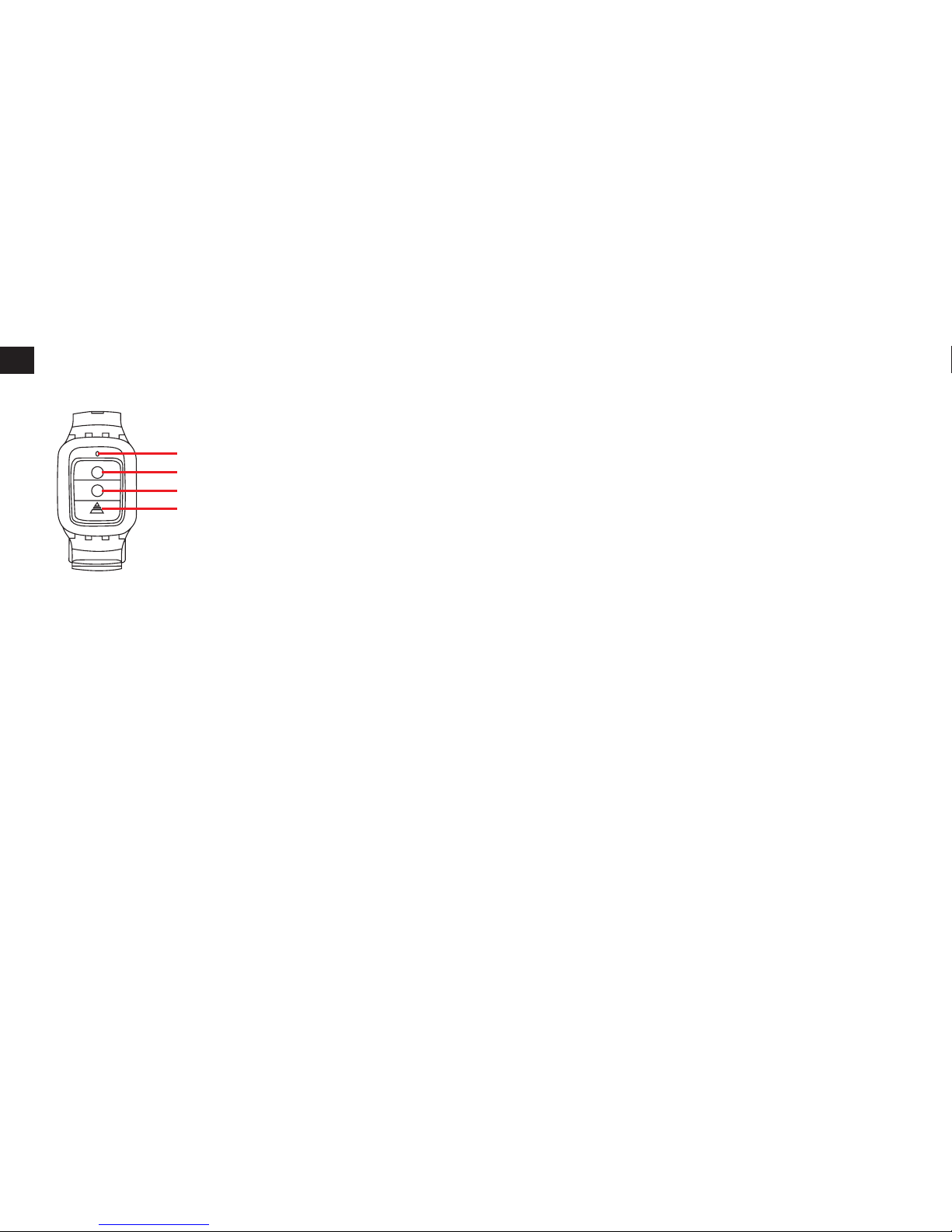

• Remote controller
LED Indicator
Photo Button
Video Button
Power Button
• Connect the remote control to the camera
- Press any key of the remote, the camera and the remote will begin the pairing process automatically, the LED
indicator will blink blue before being successfully paired. After pairing, the Reporter action camera will show:
“Bluetooth Pair Succeed” and the LED indicator of the remote will light blue.
• Remote control utilization
Photo Shooting: Press the Photo button once to shoot a single picture, the LED indicator of the remote flickers
twice.
Video Recording: Press the Video button once to start recording, the LED indicator will flicker twice, press the
video button again to stop recording.
Powering Off: Press the Power Off button and hold it for 3 seconds to turn off the camera, the LED indicator
turns off accordingly..

16
EN
• Charging the battery
-Before using the Reporter for the rst time, please fully charge the battery
1. Connect the Reporter with a charger or device by Micro USB cable .
2. Charging Indicator A turns red during charging.
3. A complete flat battery takes around 2.0 hours to get fully charged. The red indicator turns off
after the battery fully charged.
4. When the battery is going to run flat, the red indicator A blinks twice a second.
5. Some functions such as Wi-Fi is unavailable if the battery in low condition.
Note : The camera may heat up after being used for a while.
• Waterproof camera
- The Reporter can be use under water with it waterproof case. Please close it carefully to avoid any
damage on the camera. Clean the case before each use, make sure there are no sand, dust, hair or
other elements. You can now use your camera up to 30 meters under water.
10.CAMERA CONFIGURATION

17
EN
• Inserting the memory card
- This camera is not equipped with an intern SD card. For a normal operation, prepare a TF or SD card
(class 6 at least), then follow the instructions below for correctly insering a SD card into the camera.
1. Turn off the camera
2. Open the cover on the side of the camera then nd the right slot. You will heard a "click"
if the card has been inserted successfully.
Notes 1. We suggest using Class 6 (or higher) Micro SD card for Smooth shooting.
Lower Class Micro SD Cards may cause the video to blur or not record at all.
2. There is only one correct direction to insert the SD Card into the slot. Do not
force the card into the card slot as it may damage both the SD Card and camera.
3. A new Micro SD Card should be formatted before using.
4. The Reporter can be mounted using the accessories provided.

18
EN
11.CAMERA OPERATION
• Turn On/ Off the camera
1. Long press the Power button (A) for 3 seconds to power is on, indicator C turns blue.
2. Long press the Power button (A) for 3 seconds to power off, indicator C blinks and then turn off.
• General conguration
CONTROL This allows user to set the microphone volume, Speaker volume, LCD
Brightness.
BEEP Turns the sound when a button is pressed on or off.
LED INDICATOR Turns the LCD indicator on or off.
BLUETOOTH Turns Bluetooth on or off.
QUICK RECORDING The camera will start recording (depending on your choice: video or photo)
after a few seconds when the camera is turned on.

19
EN
SCREENSAVER This will determine if the LCD will turn off after 1 min, 3 min or 5 min. Press
any key to turn the screen on. Select OFF to keep the screen always ON.
AUTO POWER OFF The camera turns off when not in use after specied time..
TV OUT Setting the desired TV standard, PAL or NTSC.
TIME SETUP Adjust the date &time.
LANGUAGE Change the device language, total of 4 different languages.
MEMORY FORMAT Format the inserted SD card. Choosing to format the card will permanently
erase all data on the card.
DEFAULT Resets the camera to factory settings.
Wi-Fi Turn the Wi-Fi function on or off.
Wi-Fi INFOS Display the current WiFi SSID & Password.
