point FS45WN User manual

User Manual
UPRIGHT FREEZER
FS45WN/FS45XN

Thank you for purchasing your new POINT Upright Freezer. These
operating instructions will help you use it properly and safely. We
recommend that you spend some time reading this instruction manual
in order that you fully understand all the operational features it oers.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
Takk for at du kjøpte ditt nye POINT stående fryser. Denne
bruksanvisningen vil hjelpe deg med å bruke den på en trygg og riktig
måte. Vi anbefaler at du tar deg tid til å lese gjennom hele
bruksanvisningen for å bli fortrolig med alle funksjonene som tilbys.
Les alle sikkerhetsanvisningene nøye før bruk, og oppbevar
bruksanvisningen for fremtidig referanse.
Kiitos, kun valitsit uuden POINT-jääkaappipakastin. Nämä
käyttöohjeet opastavat sinua käyttämään laitetta oikein ja
turvallisesti. On suositeltavaa käyttää aikaa tämän käyttöoppaan
lukemiseen, jotta ymmärrät täysin, mitä toiminnallisia ominaisuuksia
tuote tarjoaa. Lue kaikki turvallisuusohjeet huolellisesti ennen laitteen
käyttöä ja säilytä käyttöopas myöhempää käyttöä varten.
Tak for købet af dit nye fryser fra POINT. Disse brugervejledninger
hjælper dig med at bruge dette apparat rigtigt og sikkert. Vi anbefaler,
at du læser denne brugervejledning, så du får en fuld forståelse af
hvordan alle funktionerne virker. Læs sikkerhedsforskrifterne grundigt
inden brug, og gem denne brugervejledning til senere brug.
Tack för att du har köpt ditt nya stående frys från POINT. Denna
bruksanvisning hjälper dig att använda den på ett säkert och korrekt
sätt. Vi rekommenderar att du tar dig tid att läsa igenom denna
bruksanvisning för att till fullo förstå alla driftfunktioner som den
erbjuder. Läs noga igenom alla säkerhetsinstruktioner före användning
och spara bruksanvisningen för framtida bruk.

4 - 22
23 - 41
42 - 60
61 - 79
80 - 98
33

4
1. WARNING Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear
of obstruction.
2. WARNING Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
3. WARNING Do not damage the refrigerant circuit.
4. WARNING Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
5. The appliance has to be unplugged after use and
before carrying out user maintenance on the
appliance.
6. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
7. Children should be supervised to ensure that they do
not play with the appliance.
8. If the mains power cable is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Warning

5
9. Please abandon the refrigerator-freezer according to
local regulations because it uses flammable blowing
gas and refrigerant.
10. Disconnect the mains power supply before replacing
the lamp.
11. Follow local regulations regarding the disposal of the
appliance because of its flammable refrigerant and
blowing gas. Before you scrap the appliance, take o
the doors to prevent children being trapped inside.

6
Some of the features and accessories of the freezer you bought might not
match with the illustrations; always refer to the packing list in the freezer.

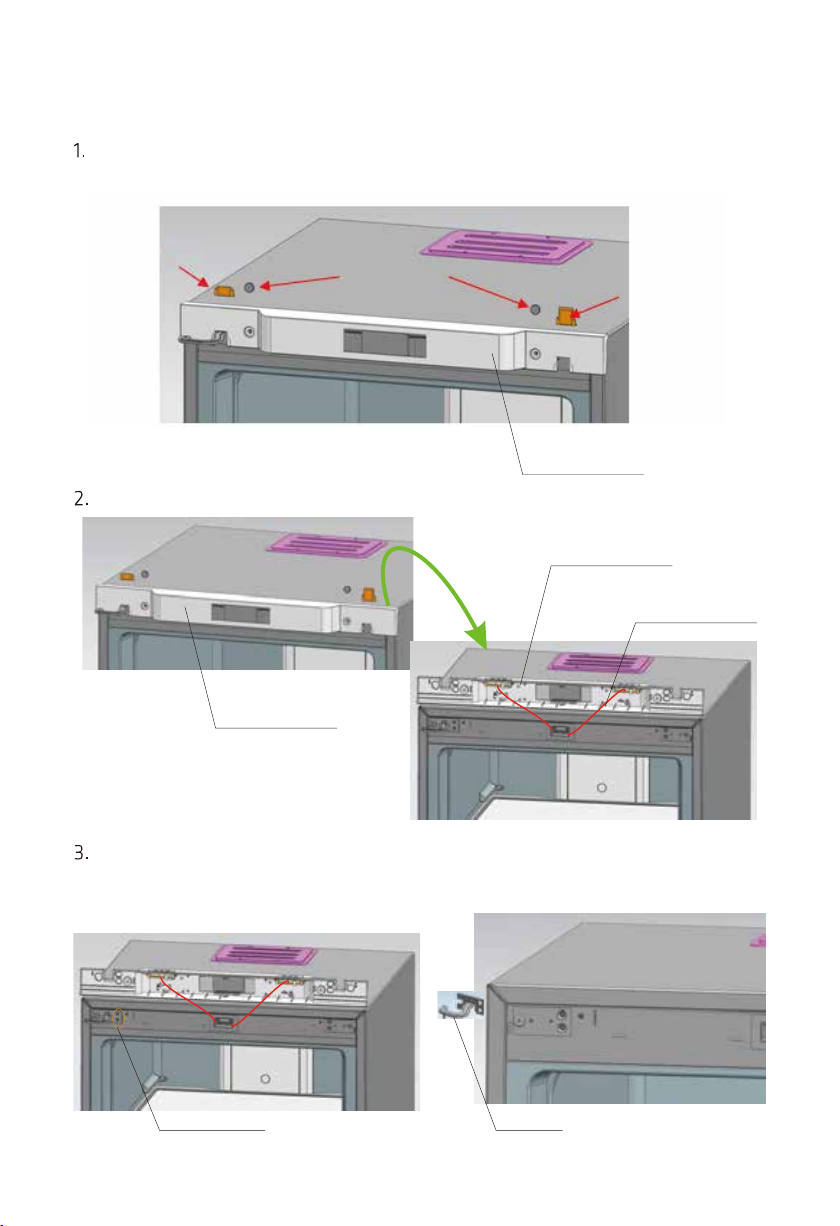

Note: remove the folding top cover, tray on the door, ice-maker, ice-collection
box and refrigerating drawer to get more space.
This will not aect the normal functions of the product.
Names of the components
Tray on the door Display control panel
Folding top cover
Folding top
cover
Glass shelf
Refrigerating
drawer
Refrigerating
drawer
Refrigerating
drawer
Lower drawer

7
Except the solutions recommended by the manufacturer, do not use
mechanical equipment or other means to accelerate defrosting.
Except the types recommended by the manufacturer, do not use any
electrical appliance inside the food closet.
The freezer is provided with R600a refrigerant and cyclopentane foaming
material and both are combustible materials. Obsolete freezer should be
isolated from fire and combustion treatment is forbidden.
Preparation before using
Warning
Remove all packing materials before using, including the bottom seating
washer, the foam pads and the gummed paper inside.
Use a warm and wet cleaning cloth to wipe the freezer's interior and
exterior (add a little detergent in the warm water and use clean water to
clean up).
Prepare a separating grounding receptacle with both polarities. Do not
share multi- purpose socket with other electrical appliances.
Connect earth wire. Earth electrode of the socket must be equipped with
a reliable grounding wire.
New freezer
Do not invert, traverse, press or shake the freezer. When moving the
freezer, the angle of inclination shall not be larger than 45°.
When moving, do not make excessive pressure to the door or top cover,
otherwise deformation will occur.
Slightly angle the freezer backwards (less than 20°) to move a short
distance.
Transportation and placement of the freezer
Transportation

8
Place the freezer in a well ventilated place, far away from any heat
sources and direct sunlight. In order to avoid rust or reduce insulation
result, do not place it in a damp place.
Space above the freezer shall not be less than 30cm. The distance against
the two sides shall not be less than 10cm. Distance from the wall shall not
exceed 75mm, providing convenience to open and close the door and
disperse the heat.
Place the freezer on a flat and solid floor. (if it is not stable, you can level
the freezer with the regulating legs)
Placement
Attention
Make sure the mains power cable is not pressed by the freezer or other
articles.
Before connecting to the mains power supply, make sure the voltage
range of the freezer follows with that of the mains power supply.
Correct application of the freezer
Ensure that the freezer is placed correctly and stably. Be aware of all safety
matters that needing attention.
1. Connect the electricity
After connecting the electricity, it will enter into ex-factory state.
2. Put food into the freezer
Suggestion: after some time, the freezer will reach food storage temperature
or after the first stop of the compressor, put food into it, which is beneficial
to retain food freshness.
Note: if the set temperature is altered or new food is put in, the temperature
inside the box will balance after a time, which is determined by the
temperature alteration degree, temperature of ambient environment,
opening frequency, quantity of the food inside and so on.

9
Generally, temperature inside the refrigerating chamber is below -18°C.
Food needing long-term storage should be put in the refrigerating
chamber.
Quick-frozen food shall be put into the refrigerating chamber as soon as
possible before it has started to defrost.
Hot food should be put into refrigerating chamber after it cools down to
room temperature.
Fruit and vegetable should not be put into refrigerating chamber. In order
to avoid freezing and rupture, glass containers with liquid should not be
put into the refrigerating chamber.
Quick-frozen food should be stored by category. Food in the same kind
should be put in together. Thus, energy conservation can be realized by
reducing opening frequency.
Note: close the drawer, after using the refrigerating chamber.
Refrigerating chamber's drawer
This is for food needing freezing. A block of meat should be put into the
drawer after being sliced for convenience. When taking out the food, pull out
the drawer first, then horizontally push the tray above the drawer inwards,
and then take out the food under the drawer.
Function introduction
1. Keys
Super FRZ: quick-frozen pattern
ON/OFF: start up or shut down the system
increase temperature of the refrigerating box/regulate quick-frozen time
decrease temperature of the refrigerating box/regulate quick-frozen time

10
Under normal operation, it will not illuminate any more after thirty
seconds without opening and key operation.
When the door is open, the display will illuminate all the time and it will
stop illuminating thirty seconds after the door is closed.
When a failure happens and it is within "Failure Code", the display will
illuminate for one time and stop to illuminate after thirty seconds (if the
buzzer has been ringing for a long time, press any key to cancel the failure
bell).
Display control:
2. Names of functions of display screen
3. Display control
Temperature region digitron
Temperature (°C) icon
Quick-frozen icon
Power on for the first time: all illuminate for three seconds with ringing of
start bell. Defaulting temperature of the refrigerating box is -18°C.
Normal operation display:
Temperature display region: when there is a failure, it will show failure codes
in turn at a priority order; without failure, it will show the set temperature.
4. User Mode operation
Start-up and shutdown
Under start-up mode, press and hold ON/OFF key (B key) for three seconds,
the start bell will ring and the system will shut down immediately;
Under shut down mode, press and hold ON/OFF key (B key) for three
seconds, the start bell will ring and the system will start immediately.
Press ON/OFF key for three seconds to shut down the system and the display
will not illuminate any more. Except ON/OFF key (B key), other keys will stop
responding, and compressor, defrosting heater, door lamp and other loads
will be shut down immediately; Press ON/OFF key for three seconds to start
up the system. Before starting, if the system is in Quick-Frozen Mode, the
display will show -24°C and Quick-frozen icon will illuminate, or otherwise the
display will show the temperature inside the refrigerating chamber (set at
the last time) and will run the mode having been set before shutdown.
