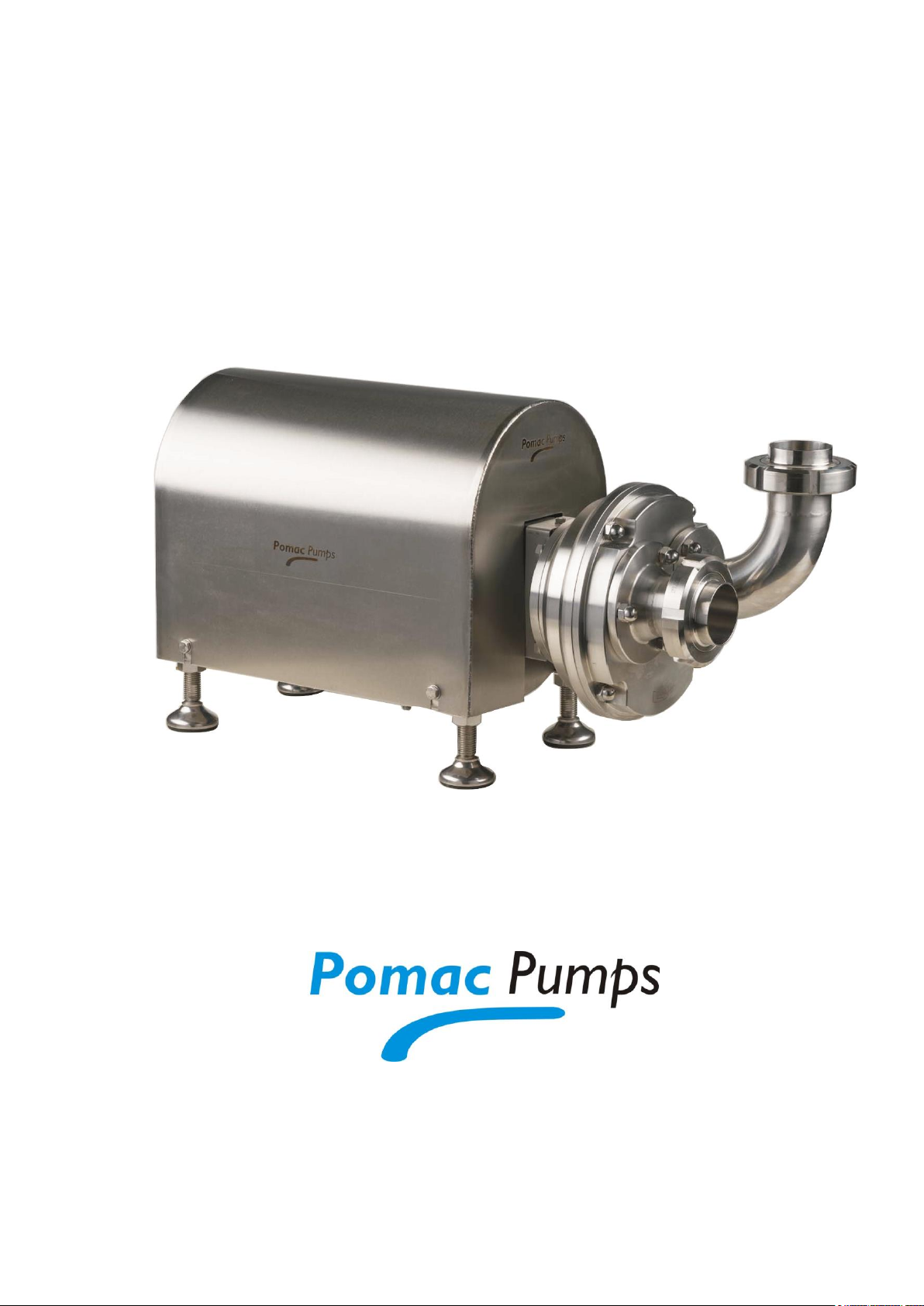

Pomac Pumps SP-LR User manual

User manual
SP-LR pumps
Pomac bv - Feithspark 13 - 9356 BX Tolbert - the Netherlands
Tel [phone] - Fax [phone]
info@ pomacpumps.com - www.pomacpumps.com

User manual Pomac SP-LR pumps
2 CE/ SP-LR (1306) EN-01

User manual Pomac SP-LR pumps
CE/ SP-LR (1306) EN-01 3
Serienummer pomp
capaciteit
m3/h
druk
bar
NPSHR
m
Fabrikaat aandrijving
type
toerental
min-1
spanning / 
/
V
frequentie
Hz
stroom
A
vermogen
kW
isolatieklasse
beschermingsklasse
IP
area classification

User manual Pomac SP-LR pumps
4 CE/ SP-LR (1306) EN-01

User manual Pomac SP-LR pumps
CE/ SP-LR (1306) EN-01 5
User manual Pomac SP-LR pumps
This manual has been compiled with the utmost care.
However, POMAC assumes no liability for possible deficiencies of the information in this
manual. It is the responsibility of the buyer/user of this pump to ensure this information is
complete and up-to-date.
All technical information mentioned in this user manual remains property of Pomac bv and may
only be used for the installation, operation and maintenance of this pump. The information may
not be copied, duplicated or passed on to third parties without our written permission.
Copyright 2013 Pomac bv
Release date: June 2013
Doc. ID. : CE/SP-LR (1306) EN-01

User manual Pomac SP-LR pumps
6 CE/ SP-LR (1306) EN-01
DECLARATION OF INCORPORATION
(according to Annex II 1 B of the Machinery Directive (2006/42/EC –1st Edition –December 2009)
Pomac bv
Feithspark 13
9356 BX Tolbert
The Netherlands
hereby declares completely under own responsibility that the pumps mentioned below:
Manufacturer: Pomac
Type: SP-LR
Execution: KAM, KAV, IGH
Materials: 1.4404 (AISI 316L)
to which this declaration refers to, are in conformity with the following standards:
Standards: EN-ISO 12100 parts 1 & 2
NEN-EN 60204 part 1
EN 809
The pump must not be put into service until the final machinery into which it is to be incorporated has
been declared in conformity with the provisions of this Directive (2006/42/EC), where appropriate.
Issued at Tolbert, 25th of June 2013
H. Poelstra
Managing Director

User manual Pomac SP-LR pumps
CE/ SP-LR (1306) EN-01 7
Table of contents
1. Introduction....................................................................................................................................... 9
1.1. General information................................................................................................................... 9
1.2. Warranty.................................................................................................................................... 9
1.3. Transport and receipt................................................................................................................ 9
1.4. Pump identification.................................................................................................................. 10
1.5. Type code ............................................................................................................................... 11
1.6. Ordering spare parts............................................................................................................... 12
1.7. Manufacturer........................................................................................................................... 12
2. Safety ............................................................................................................................................. 13
2.1. General information................................................................................................................. 13
2.2. Instructions.............................................................................................................................. 13
2.3. Staff......................................................................................................................................... 13
2.4. Precautions ............................................................................................................................. 14
2.5. Changed application ............................................................................................................... 14
3. Description ..................................................................................................................................... 15
3.1. SP-RL self-priming water ring pump....................................................................................... 15
3.1.1. Pump description............................................................................................................. 15
3.1.2. Application area............................................................................................................... 15
3.2. Connections ............................................................................................................................ 15
3.3. Materials.................................................................................................................................. 15
3.4. Construction designs............................................................................................................... 15
3.5. Shaft seals .............................................................................................................................. 16
3.5.1. Materials .......................................................................................................................... 16
3.5.2. Type indication code........................................................................................................ 16
3.6. Drive........................................................................................................................................ 16
4. Installation ...................................................................................................................................... 17
4.1. General.................................................................................................................................... 17
4.2. Connecting the electric motor ................................................................................................. 17
5. Putting into operation ..................................................................................................................... 18
5.1. Precautions ............................................................................................................................. 18
5.1.1. General ............................................................................................................................ 18
5.1.2. Quench ............................................................................................................................ 18
5.2. Checking the rotation direction ............................................................................................... 18
5.3. Putting into operation.............................................................................................................. 18
5.4. In operation ............................................................................................................................. 19
5.4.1. Noise................................................................................................................................ 19
5.4.2. Daily maintenance ........................................................................................................... 19
5.4.3. Cleaning procedure and agents....................................................................................... 19
5.4.4. Periodic maintenance ...................................................................................................... 19
5.5. Malfunction.............................................................................................................................. 20
6. Overhaul and repair........................................................................................................................ 21
6.1. Removing the pump................................................................................................................ 21
6.2. Dismantling and assembling the pump................................................................................... 21
6.2.1. Dismantling the pump...................................................................................................... 21
6.2.2. Assembling the pump ...................................................................................................... 21
6.2.3. Application IEC standard motors with extension shaft .................................................... 21
6.2.4. Adjusting the extension shaft........................................................................................... 22
6.3. Replacing the bearings of an IGH type pump......................................................................... 23
6.3.1. Removing the bearings.................................................................................................... 23
6.3.2. Installing the bearings...................................................................................................... 23
7. Dimensions..................................................................................................................................... 24
7.1. SP-RL KAM............................................................................................................................. 24
7.2. SP-RL KAV ............................................................................................................................. 24
7.3. SP-RL IGH .............................................................................................................................. 25
8. Sectional drawings and parts lists.................................................................................................. 26
8.1. KAM construction.................................................................................................................... 26
8.2. KAV construction..................................................................................................................... 28
8.3. IGH construction ..................................................................................................................... 30

User manual Pomac SP-LR pumps
8 CE/ SP-LR (1306) EN-01
8.4. KAM construction with Thermosifon Quench.......................................................................... 32
........................................................................................................................................................... 32
........................................................................................................................................................... 32
8.5. SP-LR Quench seal construction............................................................................................ 33
9. Performance curves SP-LR 186 & 232.......................................................................................... 34
9.1. SP-LR186 1-channel............................................................................................................... 34
9.2. SP-LR186 2-channel............................................................................................................... 35
9.3. SP-LR232 2-channel............................................................................................................... 35
10. Trouble shooting......................................................................................................................... 37

User manual Pomac SP-LR pumps
CE/ SP-LR (1306) EN-01 9
1. Introduction
1.1. General information
This manual provides important information regarding the correct way of installing, operating
and servicing this pump.
This manual also provides information necessary to prevent the installer/operator from injury or
discomfort during installation and operation of this pump and to ensure the correct use and
reliable performance of this pump.
This manual represents the most recent information regarding the pump types mentioned in this
manual at the time of going to print. However, POMAC reserves the right to modify the
construction of the pump types mentioned, as well as the contents of this manual, without prior
or afterward notification.
Read this manual thoroughly before installing, operating or servicing this pump. Ensure
that operators and maintenance staff are familiar with the symbols used. Follow the
instructions in this manual step by step.
1.2. Warranty
Warranty is strictly limited to the conditions specified by POMAC and will only be granted
according to these conditions.
Warranty will only come into force provided that:
⚫the pump has been installed and put into operation strictly in accordance with the
instructions given in this manual.
⚫maintenance and repairs have been carried out according to the instructions given in this
manual.
⚫exclusively original POMAC parts or parts provided by POMAC have been used for replacing
parts.
⚫the pump has not been used for applications other than those shown in the specifications
according to which the pump was sold.
⚫no changes have been made to the construction of the pump itself by the buyer.
⚫the damage is not the result of work carried out by persons not qualified or appointed.
⚫the damage has not been caused through major force.
1.3. Transport and receipt
1. Check to see if the pump has not been subject to damage during transportation. If this is the
case, report it directly to the carrier and to POMAC;
2. If the pump is delivered on a pallet, leave it on the pallet for as long as possible. This
facilitates internal transport.
3. If a suitable hoisting device is available, use this if the pump is fitted with lifting eyes.
4. With the exception of the motors fitted with a stainless steel shroud, the motors (pumps) from
construction size 112 or 132 can be fitted with a screw-in lifting eye.
Motor size
100-112
132
160
180
200
Lifting eye thread size
M8
M10
M10
M12
M16

User manual Pomac SP-LR pumps
10 CE/ SP-LR (1306) EN-01
1.4. Pump identification
⚫On the type plate of the pump the serial number and the type code are indicated. The type
code describes the arrangement of the pump.
⚫Always refer to the serial number and the type code in any correspondence and when
ordering parts.
These pump data are also stated on the first page of this manual.
If the pump type plate is missing, please provide us with the following details of the impeller so
we can establish the correct pump size:
Motor
There is a motor type plate on the motor itself.

User manual Pomac SP-LR pumps
CE/ SP-LR (1306) EN-01 11
1.5. Type code
The type code consists of the following items:
x
x
x
-
x
-
x
-
x
-
x
-
x
-
x
1
2
3
4
5
6
7
8
9
Example: SP-LR 23255 –KAM –4 –S1 –AF - S
1. Type
SP-LR
2. Pump size
186 / 232
3. Connection sizes
44 / 55
4. Construction
KAM / KAV / IGH
5. Electric motor poles
4
6. Power
2.2 = 0220
3 = 0300
4 = 0400
5.5 = 0550
7.5 = 0750
11 = 1100
7. Mechanical seal
S1 = mechanical seal, unbalanced, internal
S2 = mechanical seal, unbalanced, external
B1 = mechanical seal, balanced, internal
Q1 = double mechanical with Quench, internal
8. Connections
A = DIN 11851
B = SMS 1145
C = Tri Clamp DIN32676
D = DIN 11864-1
E = Flanges EN1092-1
F = inch
G = special connection
H = metric
9. Options
V = heating jacket
I = drain
T = turbine
X = ATEX
P = PTC probe in electric motor
S = extra surface roughness treatment internal parts
W = internal parts hardened

User manual Pomac SP-LR pumps
12 CE/ SP-LR (1306) EN-01
1.6. Ordering spare parts
An order form for ordering spare part is included in the documents accompanying this pump.
You should state the following details on this form:
⚫your address data
⚫the serial number and the type number (these are stated on the type plate of the pump
and on the first page of this manual).
⚫the item numbers and quantities of the desired parts.
See chapter 8 for the sectional drawings of the pump, with the corresponding parts lists with
item numbers.
1.7. Manufacturer
SP-RL pumps are manufactured by
Pomac bv
Feithspark 13
9356 BX Tolbert
The Netherlands
Tel [phone]
Fax [phone]
[e-mail]
www.pomacpumps.com

User manual Pomac SP-LR pumps
CE/ SP-LR (1306) EN-01 13
2. Safety
2.1. General information
This manual provides information necessary to prevent the installer/operator from injury or
discomfort during installation and operation of this pump and to ensure the correct use and
reliable performance of this pump.
⚫Read this manual thoroughly before installing, operating or servicing this pump.
⚫Ensure that operators and maintenance staff are familiar with the contents of this manual
and with the instructions given.
⚫Ensure that operators and maintenance staff are familiar with the symbols used.
⚫Follow the instructions in this manual step by step.
⚫Store this manual in a place that is known and accessible to any user.
2.2. Instructions
This manual contains instructions with regard to the safety of the user, the continued good
functioning of the pump and hints to facilitate certain actions or procedures.
These instructions are indicated with the following symbols:
Warning! May cause injury to the user! Act strictly in accordance with the instructions
given!
! Caution! May cause severe damage to the pump or bad functioning! Closely follow the
instructions given!
Note: Hint or instruction that can facilitate certain actions.
Issues which require extra attention are printed in bold.
2.3. Staff
All personnel, in charge of the installation, operation or maintenance and overhaul of the pump,
should have received the necessary training.

User manual Pomac SP-LR pumps
14 CE/ SP-LR (1306) EN-01
2.4. Precautions
When performing maintenance work to the pump ensure that the drive of the pump is
shut down and cannot be switched on unintentionally!
All work on and with the pump must always be in accordance with all the prevailing
standards regarding occupational health and safety as well as machine safety!
Always wear protective gloves and safety goggles if the pump conveys harmful liquids
that may cause injuries!
See to is that the pump is depressurized, when it has to be disassembled for overhaul!
Allow the pump to cool down first when it is used for conveying hot liquids!
2.5. Changed application
⚫Contact POMAC in case the pump is going to be used for other applications or in different
circumstances than those specified during the initial pump selection.

User manual Pomac SP-LR pumps
CE/ SP-LR (1306) EN-01 15
3. Description
3.1. SP-RL self-priming water ring pump
3.1.1. Pump description
This self-priming pump works according to the water ring principle and is therefore able to pump
liquid/air mixtures.
3.1.2. Application area
The application area goes from a capacity of 60 m3/h to a manometric head of 5 bars.
3.2. Connections
All pump types are available with the following connections:
⚫Screw coupling according to DIN 11851
⚫SMS 1145
⚫Tri-clamp
⚫DIN 11864-1
⚫DIN 11864-2
⚫Flanges DIN 2633
⚫BSP
⚫NPT
⚫Connections according to client specification
3.3. Materials
⚫All parts that come into contact with the liquid are designed in stainless steel 304 or 316L
(Werkstoffnr. 1.4301 and 1.4404 respectively).
⚫All pumps are suitable for being C.I.P. cleaned.
3.4. Construction designs
All pumps are available in the following, fully exchangeable designs:
KAM
Pump and motor close coupled and placed on
adjustable stainless steel feet. The motor is provided
with a stainless steel shroud.
KAV
Pump and motor close coupled and placed on the motor
feet.
IGH
Pump fitted to a bearing bracket, specially designed for
hydraulic drives.

User manual Pomac SP-LR pumps
16 CE/ SP-LR (1306) EN-01
3.5. Shaft seals
3.5.1. Materials
The mechanical seals are standard according to EN 12756 (DIN 24960), with the exception of
the build-in length.
The mechanical seals are available in the following materials:
⚫Carbon on silicon carbide
⚫Carbon on CrMo-steel
⚫Carbon on Ceramic
⚫Hard metal on hard metal
⚫Silicon carbide on silicon carbide
⚫Tungsten carbide on tungsten carbide
⚫Carbon on hard metal
The O-rings are available in:
⚫FPM (Viton)
⚫NBR
⚫EPDM
⚫PTFE
Pomac pumps are supplied as standard with an interior unbalanced mechanical seal (carbon on
silicon carbide with EPDM O-rings).
3.5.2. Type indication code
Code
Description
S1
interior single mechanical seal - unbalanced
S2
exterior single mechanical seal - unbalanced
B1
interior single mechanical seal - balanced
Q1
double mechanical with Quench - unbalanced
Q12
double mechanical seal with Quench - 1 side balanced, according to EHEDG
See part 8.4 and 8.5 for an overview of the Quench solution
3.6. Drive
⚫The KAM and KAV design are fitted with B3/B5 foot/flange motor acc. to IEC provided with a
balanced stainless steel extension shaft.
⚫The electric motors are available in all possible voltages, insulation categories, protection
categories and in low-noise and in ATEX design.
⚫The IGHdesign is fitted with a special bracket and a hydraulic motor.

User manual Pomac SP-LR pumps
CE/ SP-LR (1306) EN-01 17
4. Installation
4.1. General
⚫The foundation must be smooth and level.
⚫For the KAM design set the adjustable legs using the leg adjustment feet (38), in such a
way that the pump is stable on all 4 legs! Secure the leg adjustment feet with the lock
nuts (39).
⚫Verify that the system pressure does not exceed the permitted operating pressure.
⚫Verify that the pipes do not show any leakage.
⚫The pipes must be installed and connected stress-free.
⚫Mount a filter between the pump and the suction line. The gap between the impeller and the
pump casing is only 0.3 mm and particles can cause the pump to drag or seize.
⚫If backflow of the liquid flow is undesired, or there is a chance of undesired liquid mixing,
apply a non-return valve in the suction line.
4.2. Connecting the electric motor
An electric motor may only be connected by a qualified electrician!

User manual Pomac SP-LR pumps
18 CE/ SP-LR (1306) EN-01
5. Putting into operation
5.1. Precautions
5.1.1. General
⚫Check that the shaft can turn freely. To do this, rotate the pump shaft a few times manually.
⚫Check that the fuses have been fitted.
⚫Types IG and IGH are designed as standard with grease lubricated ball bearings that are
provided with grease for their entire life (2RS1).
⚫If type IG(H) is designed with oil lubricated bearings, the bearing housing should be filled
with oil first.
5.1.2. Quench
If provided with quench (shaft seals Q1 and Q12):
1. Connect the quench lines to the quench space. Capacity approx. 3 l/min. The SUPPLY line
must be connected to the LOWER port!
2. Open the inlet and outlet of these lines.
3. Set the required pressure. The maximum pressure is 0.2 bar.
See part 8.4 and 8.5 for an overview of the Quench solution
5.2. Checking the rotation direction
1. Fill the pump with the medium to be pumped.
There must be medium in the pump before putting it into operation. Without medium the
pump cannot create a vacuum. If the pump does not have a positive suction flow, make
sure to fill the pump housing before connecting the piping.
2. Check that the quench or flush system is set to the correct pressure.
3. Switch the pump on briefly.
Take care with any unprotected rotating parts!
4. Check that the rotation direction of the motor corresponds with the rotation direction of the
pump (which is indicated by an arrow on the lantern piece). If the rotation direction is not
correct, swap the connection wires L1 and L2.
This must be done by a qualified electrician!
5. Fit the guard.
5.3. Putting into operation
1. Check that the quench system is set to the correct pressure.
2. Fully open the shut-off-valve in the suction and discharge pipe.
3. Switch the pump on and allow it to come up to pressure.
4. Set the pump to its required operating point.
Remark: Never run the pump against a closed valve.

User manual Pomac SP-LR pumps
CE/ SP-LR (1306) EN-01 19
5.4. In operation
5.4.1. Noise
The noise data stated in this manual refer to normal usage, with an electric motor. Under these
conditions the noise level, measured at a distance of 1 meter and at a height of 1,6 meter, is
below 85 dB(A). If after the passage of time the pump produces excessive noise, this can be an
indication that there is a fault in the pump or elsewhere in the system (e.g. worn out bearings,
cavitation).
5.4.2. Daily maintenance
! Regularly check the pressure of quench supply (if the pump seal is equipped as such)
⚫The valve in the suction pipe must always be completely open
⚫Regularly check that the inlet pressure is not too low to avoid the occurrence of cavitation in
the pump
⚫Regularly check the delivery pressure
⚫Regularly check the shaft seals for leakage.
! The pump may never run without liquid
5.4.3. Cleaning procedure and agents
The pumps are suitable for being CIP cleaned.
Use the cleaning agents recommended for the products.
5.4.4. Periodic maintenance
The pumps basically are maintenance free. Only the following items require periodic attention:
! Periodically check that the quench system is still set at the correct pressure and
capacity!
⚫The electric motor bearings are greased for their entire life and do not require any
maintenance or subsequent lubrication. This also applies to the designs IG and IGH, if
designed with grease lubricated bearings.
⚫Regularly check the oil level for designs IG and IGH, designed with oil bath lubricated
bearings. This oil must also be changed annually or after every 5000 operating hours.
Check that the spent oil is disposed of in the correct manner (environment)!
⚫A mechanical seal may not show any visible leakage. If this is the case, replace the shaft
seal.
⚫If a mechanical seal does not show any visible leakage disassembly is not recommended!

User manual Pomac SP-LR pumps
20 CE/ SP-LR (1306) EN-01
5.5. Malfunction
If there is a malfunction in the pump, try to find the cause using the troubleshooting list at the
back of this manual or consult your installer!
Always switch off the current first if you intend to investigate the malfunction yourself.
Remove the fuse or lock the operating switch with a pad lock!
The pump can still be hot or under pressure. Allow the pump to cool down first and if
possible release the pressure from the pump. Always wear the correct personal
protection devices (goggles, gloves, etc.)!
