Pontiac 2002 Bonneville User manual

i
2002 Pontiac Bonneville
Owner’s Manual
Litho in U.S.A. E Copyright General Motors Corporation 06/14/01
Part Number 25730143 A First Edition All Rights Reserved

ii
GENERAL MOTORS, GM, the GM Emblem,
PONTIAC, the PONTIAC Emblem and the name
BONNEVILLE are registered trademarks of General
Motors Corporation.
This manual includes the latest information at the time
it was printed. We reserve the right to make changes
after that time without further notice. For vehicles first
sold in Canada, substitute the name “General Motors
of Canada Limited” for Pontiac Division whenever it
appears in this manual.
Please keep this manual in your vehicle, so it will
be there if you ever need it when you’re on the road.
If you sell the vehicle, please leave this manual in it
so the new owner can use it.
We support voluntary
technician certification.
For Canadian Owners Who Prefer a
French Language Manual:
Aux propriétaires canadiens: Vous pouvez vous
procurer un exemplaire de ce guide en français chez
votre concessionaire ou au:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207

iii
How to Use this Manual
Many people read their owner’s manual from beginning
to end when they first receive their new vehicle. If you
do this, it will help you learn about the features and
controls for your vehicle. In this manual, you’ll find
that pictures and words work together to explain
things quickly.
Safety Warnings and Symbols
You will find a number of safety cautions in this book.
We use a box and the word CAUTION to tell you
about things that could hurt you if you were to ignore
the warning.
CAUTION:
These mean there is something that could hurt
you or other people.
In the caution area, we tell you what the hazard is.
Then we tell you what to do to help avoid or reduce
the hazard. Please read these cautions. If you don’t,
you or others could be hurt.
You will also find a circle
with a slash through it in
this book. This safety
symbol means “Don’t,”
“Don’t do this” or “Don’t
let this happen.”

iv
Vehicle Damage Warnings
Also, in this book you will find these notices:
NOTICE:
These mean there is something that could damage
your vehicle.
In the notice area, we tell you about something that can
damage your vehicle. Many times, this damage would
not be covered by your warranty, and it could be costly.
But the notice will tell you what to do to help avoid
the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different
colors or in different words.
You’ll also see warning labels on your vehicle.
They use the same words, CAUTION or NOTICE.
Vehicle Symbols
Your vehicle may be equipped with components and
labels that use symbols instead of text. Symbols,
used on your vehicle, are shown along with the text
describing the operation or information relating to a
specific component, control, message, gage or indicator.
If you need help figuring out a specific name of a
component, gage or indicator reference the following
topics in the Index:
D “Engine Compartment Overview”
D “Instrument Panel”
D “Comfort Controls”
D “Audio Systems”
Also see “Warning Lights and Gages” in the Index.

v

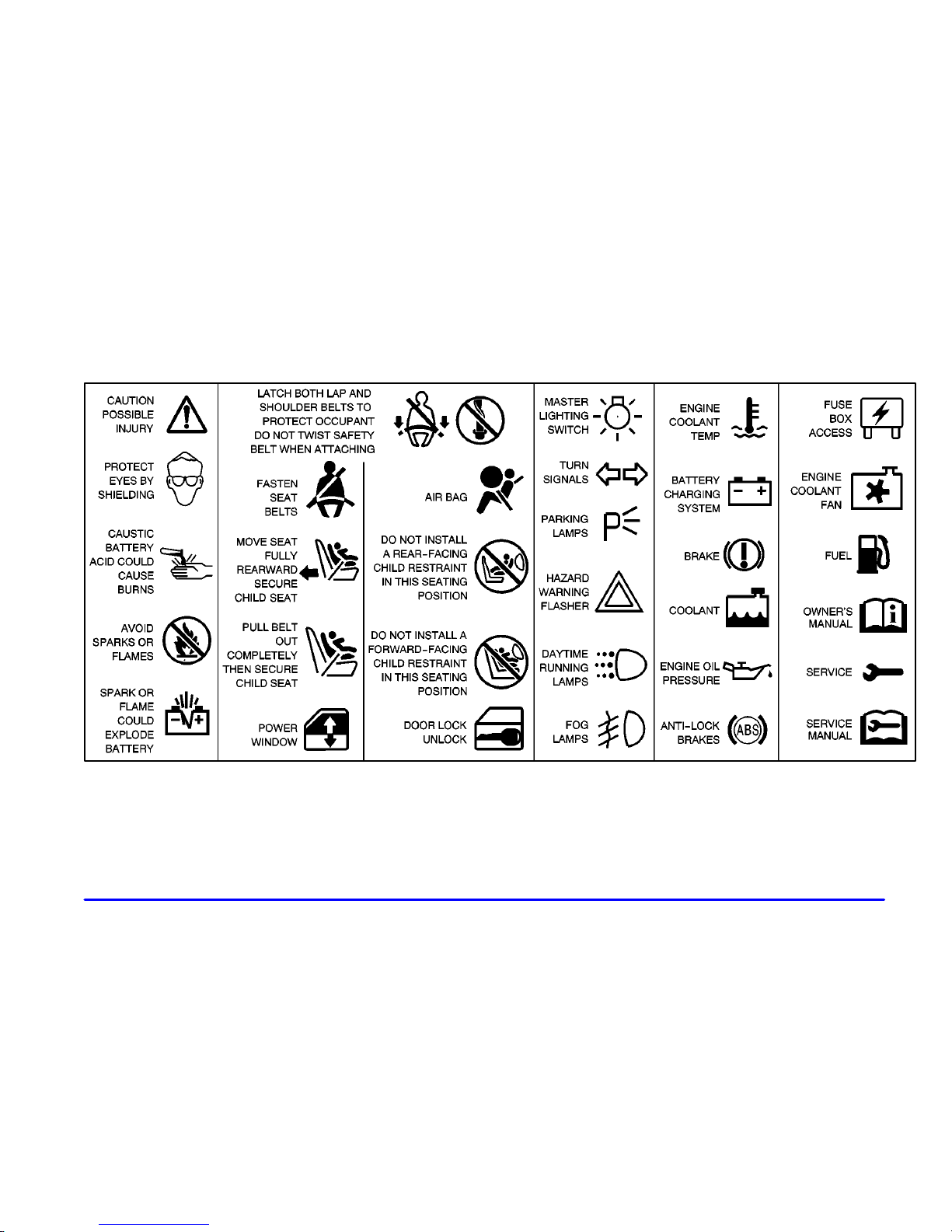

These are some examples of vehicle symbols you may find on your vehicle:

1- 1-1
Section 1 Seats and Restraint Systems
Here you’ll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1-2 Seats and Seat Controls
1-8 Safety Belts: They’re for Everyone
1-12 Here Are Questions Many People Ask About
Safety Belts -- and the Answers
1-14 How to Wear Safety Belts Properly
1-14 Driver Position
1-20 Safety Belt Use During Pregnancy
1-21 Right Front Passenger Position
1-21 Air Bag Systems
1-30 Center Front Passenger Position
1-32 Rear Seat Passengers
1-35 Rear Safety Belt Comfort Guides for Children
and Small Adults
1-37 Children
1-41 Restraint Systems for Children
1-55 Older Children
1-58 Safety Belt Extender
1-58 Checking Your Restraint Systems
1-58 Replacing Restraint System Parts
After a Crash

1-2
Seats and Seat Controls
This section tells you about the seats -- how to adjust
them -- and also about reclining seatbacks and the
head restraints.
Manual Front Seat
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don’t want to. Adjust the driver’s seat only when
the vehicle is not moving.
Pull up on the control bar located under the front of the
seat to unlock it. Slide the seat to where you want it and
then release the bar. Try to move the seat with your body
to make sure the seat is locked into place.
Manual Lumbar Support
The knob that controls this feature is located on the
outboard side of each front seat. Turn the knob toward
the front of the vehicle to increase lumbar support.
Turn the knob toward the rear of the vehicle to decrease
lumbar support.
If you have the independent front cushion moved down
as far as it will go, you may feel the lumbar support
higher in your back. Readjust the position of the cushion
until you are comfortable. You may also want to adjust
the seatback for maximum comfort.

1-3

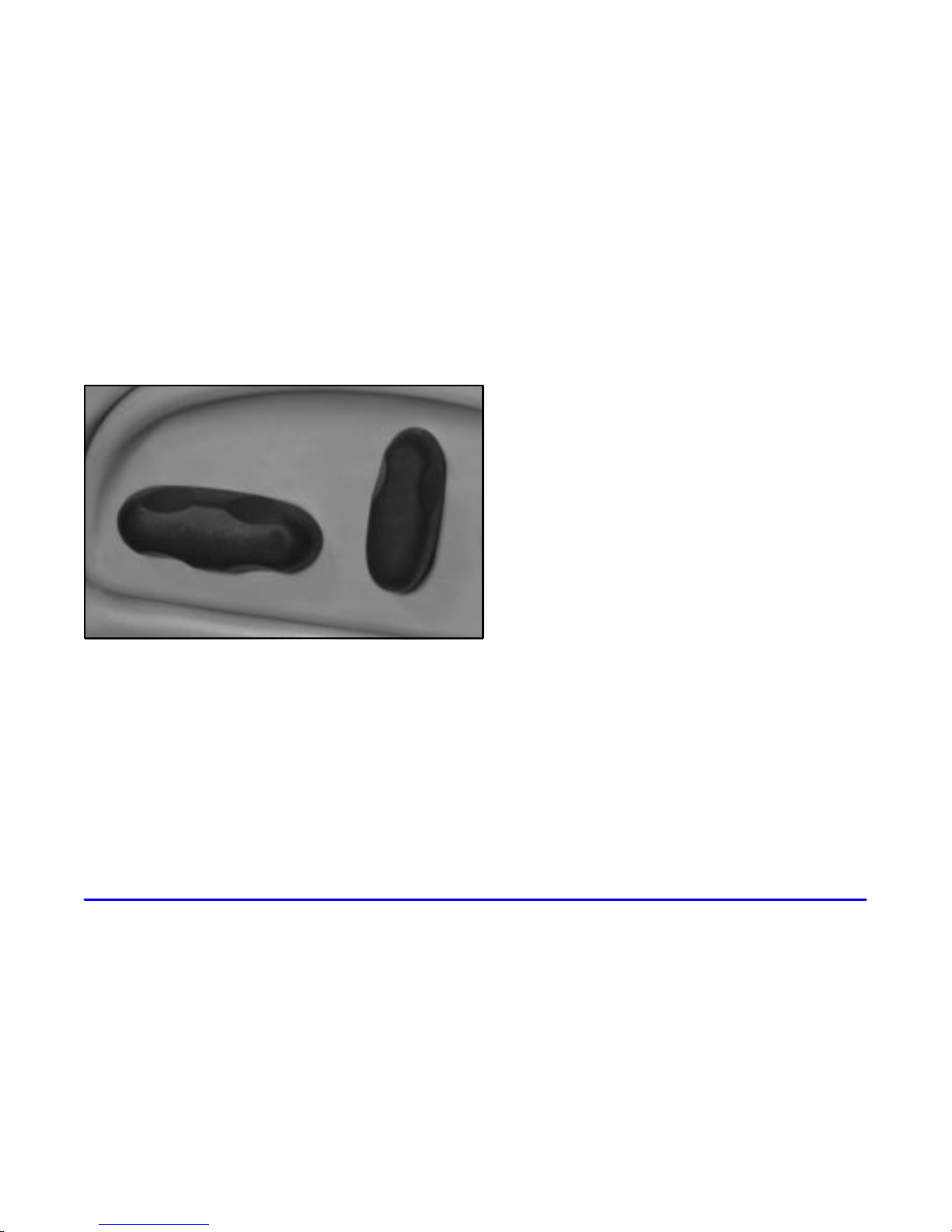

Power Seats (If Equipped)
If your vehicle has this feature, the controls for the
power seats are located on the outboard side of each
front seat.
To adjust the power seats, do the following:
Horizontal Control: Raise or lower the front of the seat
cushion by pressing the forward edge of the control up
or down.
Raise or lower the rear of the seat cushion by pressing
the rear edge of the control up or down.
Move the seat forward or rearward by pressing the
control towards the front or rear of the vehicle.
Move the seat higher or lower by holding the whole
control up or down.
Vertical Control (Option): Move the seatback into
a recline position by pressing the top of the control
backward. Move the seatback forward by pressing the
top of the control forward.

1-4
Power Lumbar Control (Option)
If your vehicle has this
option, the lumbar control is
located on the outboard side
of each front seat.
Use the power seat control first to get the proper
position. Then proceed with the lumbar adjustment.
To reshape the lower seatback, press the lumbar control
forward to increase support and rearward to decrease
support. Press the control up or down to raise or lower
the support mechanism.
Keep in mind that as your seating position changes, as it
may during long trips, so should the position of your
lumbar support. Adjust the seat as needed.
If you have the independent front cushion moved down
as far as it will go, you may feel the lumbar support
higher in your back. Readjust the position of the cushion
until you are comfortable. You may also want to adjust
the seatback for maximum comfort.
Memory Seat and Mirrors (Option)
If your vehicle has this
feature, the controls are
on the driver’s door panel,
and are used to program
and recall memory settings
for the driver’s seating,
outside mirror positions
and comfort controls. See
“Comfort Controls” in the
Index for more information.
Adjust the driver’s seat (including the lumbar
adjustments) and both outside mirrors to the position
you would like for driving. Then press and hold memory
button 1 for more than three seconds. A double beep
will sound when the memory is set.
To set the seat and mirror positions for a second driver,
follow the previous steps, but press button 2 instead.
You can also store an exit position for each driver. The
exit position is programmed by moving the seat to the
desired exit position and then holding the EXIT button
for more than three seconds. The exit position set will be
for the most recently selected driving position (1 or 2).

1-5
Mirror and lumbar positions will not be stored or
recalled for the exit position.
To recall your memory positions, your vehicle must
be in PARK (P). Push and release the memory
button (1 or 2) corresponding to the desired driving
position. The seat and mirrors will move to the position
previously stored for the identified driver. You will hear
one beep.
To recall the exit position, your vehicle must be in
PARK (P). Push and release the EXIT button and the
seat will move to the exit position previously stored for
the currently identified driver. You will hear one beep.
If an exit position has not been stored for the currently
identified driver, the seat will move all the way back.
To stop recall movement of the seat at any time, press
the power seat control located on the outboard side of
the driver’s front seat.
If you would like your stored driving or exit position
to be recalled when unlocking your vehicle with the
transmitter, see “DIC Personalization Programming”
in the Index.

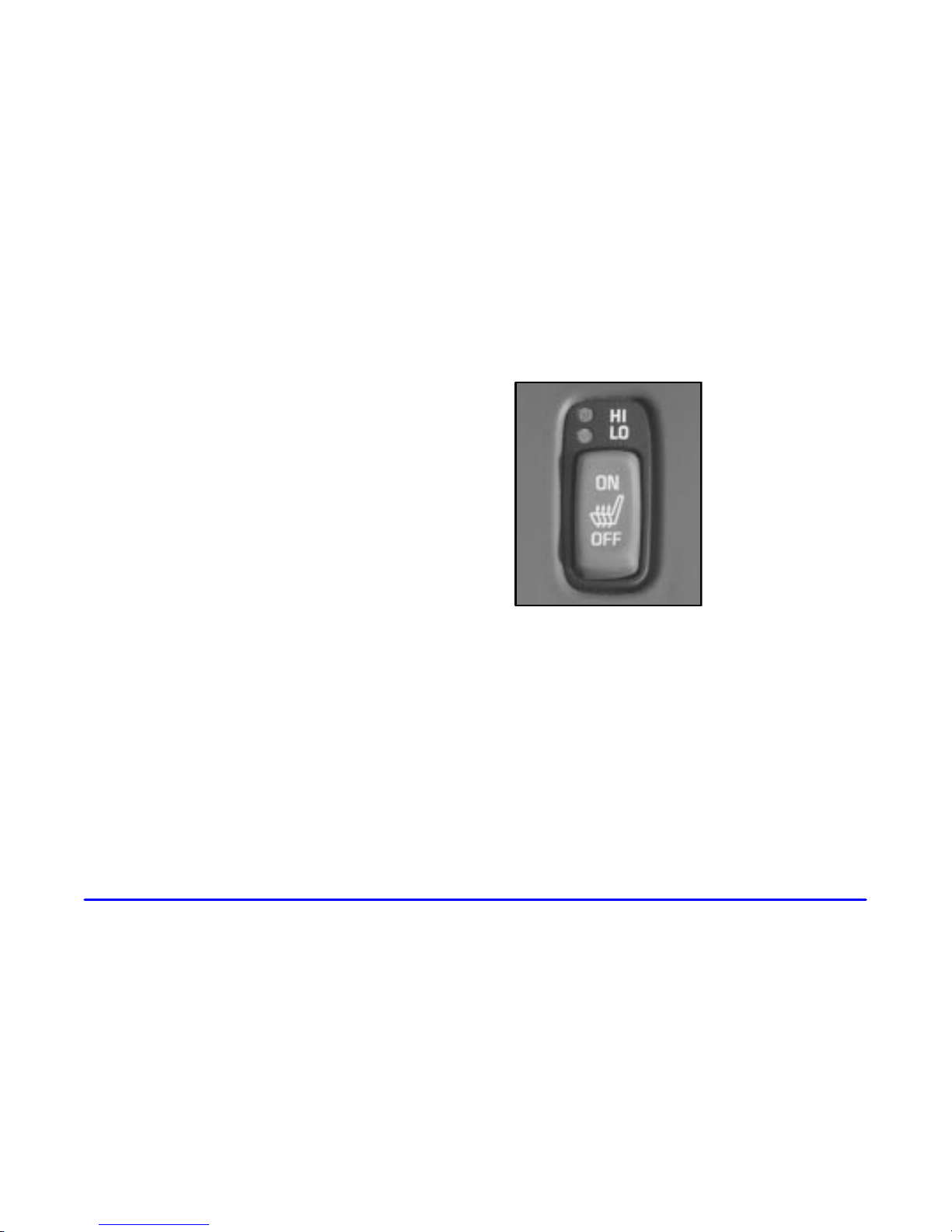

Heated Front Seats (Option)
If your vehicle has this
option, the heated front
seat controls are located
on the instrument panel
under the comfort controls.
Push the ON part of the button once for a HI setting or
twice for a LO setting. Push the OFF part of the button
to turn the heated seat off. The LO setting warms the
seatback and cushion until the seat approximates body
temperature. The HI setting heats the seatback and
cushion to a slightly higher temperature.
The heated seats can only be used when the ignition
is turned on. The heating elements in the seats
automatically turn off when the vehicle’s ignition is
turned off.

1-6
Reclining Front Seatbacks
If your vehicle has a power
recliner, the vertical control
described previously in
this section reclines the
front seatbacks.
If your vehicle has the manual recliner, lift the lever on
the outboard side of the seat and move the seatback to
the desired position. Release the lever to lock the
seatback. Pull up on the lever without pushing on the
seatback and the seatback will go to an upright position.
But don’t have a seatback reclined if your vehicle
is moving.

1-7
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can’t do their job when
you’re reclined like this.
The shoulder belt can’t do its job. In a crash you
could go into it, receiving neck or other injuries.
The lap belt can’t do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
On some models, the head restraints tilt forward and
rearward also.

1-8
Safety Belts: They’re for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not do
with safety belts.
And it explains the air bag system.
CAUTION:
Don’t let anyone ride where he or she can’t wear
a safety belt properly. If you are in a crash and
you’re not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts
are fastened properly too.
CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to be
seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
Your vehicle has a light
that comes on as a reminder
to buckle up. See “Safety
Belt Reminder Light” in
the Index.
In most states and Canadian provinces, the law says to
wear safety belts. Here’s why: They work.

1-9
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn’t survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter ... a lot!
Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it’s just a seat
on wheels.

1-10
Put someone on it. Get it up to speed. Then stop the vehicle. The rider
doesn’t stop.

1-11
The person keeps going until stopped by something.
In a real vehicle, it could be the windshield ...
or the instrument panel ...

1-12
or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That’s why
safety belts make such good sense.
Here Are Questions Many People Ask
About Safety Belts -- and the Answers
Q: Won’t I be trapped in the vehicle after an
accident if I’m wearing a safety belt?
A: You could be -- whether you’re wearing a safety
belt or not. But you can unbuckle a safety belt,
even if you’re upside down. And your chance of
being conscious during and after an accident, so
you can unbuckle and get out, is much greater
if you are belted.

1-13
Q: If my vehicle has air bags, why should I have to
wear safety belts?
A: Air bags are in many vehicles today and will
be in most of them in the future. But they are
supplemental systems only; so they work with
safety belts -- not instead of them. Every air bag
system ever offered for sale has required the use of
safety belts. Even if you’re in a vehicle that has air
bags, you still have to buckle up to get the most
protection. That’s true not only in frontal collisions,
but especially in side and other collisions.
Q: If I’m a good driver, and I never drive far from
home, why should I wear safety belts?
A: You may be an excellent driver, but if you’re in an
accident -- even one that isn’t your fault -- you
and your passengers can be hurt. Being a good
driver doesn’t protect you from things beyond your
control, such as bad drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of serious
injuries and deaths occur at speeds of less than
40 mph (65 km/h).
Safety belts are for everyone.

1-14
How to Wear Safety Belts Properly
Adults
This part is only for people of adult size.
Be aware that there are special things to know
about safety belts and children. And there are
different rules for smaller children and babies. If a
child will be riding in your vehicle, see the part of this
manual called “Children.” Follow those rules for
everyone’s protection.
First, you’ll want to know which restraint systems your
vehicle has.
We’ll start with the driver position.
Driver Position
This part describes the driver’s restraint system.
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here’s how to wear
it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight.
To see how, see “Seats” in the Index.
3. Pick up the latch plate and pull the belt across you.
Don’t let it get twisted.
The lap-shoulder belt may lock if you pull the belt
across you very quickly. If this happens, let the belt
go back slightly to unlock it. Then pull the belt
across you more slowly.
