PORTACOOL OWNER’S MANUAL
FOR PAC2K482S, PAC2K363S, PAC2K361S, PAC2K36HPVS, PAC2K24HPVS and PAC163SVT

QUICK SETUP GUIDE......................................................................... page 2
PRODUCT OVERVIEW .................................................................. pages 3-7
SAFETY INFORMATION ..................................................................... page 8
GENERAL OPERATION ............................................................... pages 9-10
MAINTENANCE AND STORAGE...................................................... page 11
TROUBLESHOOTING ................................................................ pages 12-13
TECHNICAL SUPPORT AND WARRANTY ............................... pages 14-15
EXPLODED VIEWS .................................................................... pages 16-20
WIRING DIAGRAM ............................................................................ page 21
FREQUENTLY ASKED QUESTIONS................................................ page 22
READ AND SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS
CONTENTS:
DO NOT RETURN!
For questions or comments, please HPDLOXVDWLQIR#ZKROHVDOHSULFLQJFRP
STOP

QUICK SET UP
Remove box and palette Position product on level surface Plug into appropriate outlet
Fill sump or attach water hose
Fill the tank, then turn on the pump switch and the fan.
For setup, pads should appear wet before starting the fan.
Check the water gauge to monitor water level in tank.The water
ow valve on each unit is set at max ow. However, ensure the
knob is turned completely to the left before use. Turn to the left
to increase water ow. Less water is required for cooling in more
humid environments.
1 2 3 4
5

16" VERTICAL TANK OVERVIEW
Control
Panel
Cord
Wrap
Water
Adjustment
Valve
Electrical
Plug
Locking
Casters Drain
Plug
Manual
Fill
PAC163SVT
This unit does NOT have a hose fill option.
3
Water
Gauge

24" HP OVERVIEW
Control Panel
Water
Adjustment
Valve
Electrical
Plug
Locking
Casters
Hose
Connection
4
Pad
Flap

36" OVERVIEW
Control Panel
Water
Adjustment
Valve
Electrical
Plug
Cord
Wrap
Locking
Casters
Hose
Connection
PAC2K36HPVS
5

48" OVERVIEW
Control
Panel
Water
Adjustment
Valve
Electrical
Plug
Locking
Casters
Hose
Connection
Cord
Wrap
PAC2K482S
6

SAFETY INFORMATION
OPERATION WARNINGS
SAFE OPERATION
1) Not intended for use by children
2) Not intended for use by persons with reduced physical, sensory, or mental capabilities
3) Not intended for use by persons with lack of experience and knowledge, unless they have been given instruction and are supervised during operation
4) Children should be supervised to ensure they do not play with the evaporative cooler
To reduce the risk of electric shock, re, or injury:
• Do not operate any product with a damaged cord or plug. Discard product or return to place of purchase for examination and/or repair.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from trafc area so it will not be tripped over.
• Read instructions and labels carefully.
• Always unplug the electric cord to the Portacool evaporative cooler before performing inspections or repairs.
• Plug into three-prong grounded GFCI protected electrical receptacle only.
• Do not step on or roll over power cord with heavy or sharp objects.
• Do not operate evaporative cooler unless all pads are securely in place.
• Remove the plug from the electrical receptacle by pulling on the plug and not the cord.
• Test the GFCI receptacle or breaker monthly to ensure it is functioning properly.
• Do not operate near open containers of ammable liquids or gases.
• Ensure evaporative cooler pumps are running continuously to saturate and wet combustible media when used in close proximity to open ame or spark producing activities.
A distance of at least 35 feet away from open ame or sparks is recommended to ensure safe operation.
• Never wash the evaporative cooler cabinet with a garden hose; water may harm the motor and electrical system.
• If the product is damaged or malfunctions, do not continue to operate it. Refer to the warranty, troubleshooting or FAQ section. Email Technical Support at
[email protected].
8

GENERAL OPERATION
Electrical Connection
PRODUCT MUST BE IN UPRIGHT POSITION WITH COOLING PADS INSTALLED!
All models utilize a single power cord and control switches. Before connecting the plug to an outlet, ensure there is no standing water where the cord may lie or
where the operator is standing. The use of separate multiple outlet devices is not recommended. When making electrical connections, ensure compliance to local
and national codes. Use only with GFCI Protected Receptacles. Please refer to the Barcode Product Label on the side of the product for specific electrical
requirements.
OPERATING PROCEDURES
Specifications
Each Portacool evaporative cooler has its own set of operational specifications, sizes, weights, voltage frequency, current requirements, etc. Please ask for the
specifications for your model from your distributor or check the serial number plate.
Placement of the Portacool Evaporative Cooler
There are three primary considerations when deciding where to place the Portacool evaporative cooler.
1) Make sure there is a clear, unobstructed path to provide maximum airflow.
2) If the evaporative cooler is positioned on a raised platform, ensure the platform constructed for holding the product is stable, well constructed, and will not
allow the product to tip over and that it allows for the full weight of the evaporative cooler including water in the tank. The product must be level and in the upright
position.
9

3) If placed near a wall or other obstruction, position the product a minimum of 3 feet (0.9 meters) from the wall or obstruction with pads facing the wall. This
allows the unrestricted flow of warm air to the cooling pad side of the product. When using multiple products in close proximity, be sure to aim the product so the
air flows complement each other to achieve maximum cooling capacity.
Starting the Pump and Adjusting the Water Flow
Once the water tank is full, moving the pump switch to the “ON” position will turn on the pump. When initially turning on the pump, the level in the water tank will drop suddenly
and restart the flow of supply water. This is a normal condition, as the cooling pads require a large amount of water for proper wetting.
When the Portacool evaporative cooler is new, the new pads will require an initial ‘breaking-in’ period. This period is required for the pads to begin readily absorbing water. It
may require up to a week to achieve maximum efficiency.
It is important to ensure that the spray bar is properly adjusted when first starting the water flow in the Portacool evaporative cooler. Increasing the flow using the water flow valve
(see Quick Setup on page 2) makes this adjustment. Proper water adjustment should leave the pads saturated with water, but not flooded. Pads should appear wet. However,
cascading amounts of water can actually reduce cooling efficiency. Proper adjustment will prevent problems and increase cooling capacity. When properly adjusted, one or two dry
streaks will appear across the pads.
When turning the evaporative cooler off at the end of the day or week, the pump should be turned off about 15 minutes before the fan to allow the cooling pads to dry. This will
increase the life of the pads.
Starting the Portacool Evaporative Cooler
COOLING PADS MUST BE INSTALLED AND CASTER LOCKS MUST BE ENGAGED
Start the fan by turning the fan switch to the ‘ON’ position. Step slowly through the speeds allowing the fan to obtain its full speed at the LOW speed before
going to HIGH.
10

MAINTENANCE
1) Keep the product clean to ensure peak operating performance.
2) The rugged, corrosion-resistant construction ensures low maintenance will be required. However, in dusty or dirty environments, optional filters are available
from wholesale-pricing.com.
Daily Maintenance
The pump should be turned off approximately 15 minutes before the fan is turned off. This will allow the cooling pads to dry out and extend their life. This also
helps control the growth of mildew, mold, bacteria, and other odor-causing elements.
Weekly Maintenance
The product should be shut down and the water tank should be drained once a week. Closing the water flow valve and removing the drain plug will accomplish this.
Once the water tank is drained and the power disconnected, the pads may be removed to allow cleaning of the water tank. Dust may collect in the water tank over
time. Replace pads in correct airflow direction, referring to the label on the pads.
Storage
1) Drain all water from the water tank and wipe clean, ensuring the pads and water tank are completely dry.
2) Roll up the electrical power cord and secure it to ensure it will not be rolled over, tripped over, or caught in equipment.
3) Cover the product completely to prevent dust build-up and store in a dry area. This also helps to prevent damage to the pads. Optional dust covers are
available from www.wholesale-pricing.com.
MAINTENANCE & STORAGE
11

The Portacool evaporative cooler consists of three systems — the fan system, the electrical system, and the water system. It is important to determine with which of the systems
the problem is associated. Certain problems may be associated with more than one system. A careful check of all systems should be made to fully understand the extent of the
problem.
Repair and Replacement Procedures
Ensure all water is removed from the Portacool evaporative cooler and all power is disconnected. Remove all impediments to access the component you are check-
ing or replacing.
REPLACING THE COOLING MEDIA PADS
The flap must be removed to allow access to the cooling pads. Start with the center pad, which can be tilted out from the top and lifted out of the drain trough.
The two pads to either side of the center pad may then be removed in the same manner. To remove the two outside pads, they must first be pulled sideways
toward the center of the Portacool evaporative cooler until they clear the side retainer before removing in the same manner as the other pads.
1) Locate the set screw in the rear of the unit on the upper right side of the pad flap.
2) Remove set screw and lower pad flap to vertical position.
3) Once the pad flap is moved, grasp the middle pad and tilt out at a 90 degree angle.
4) Pull the pad up to remove from unit. Repeat for other pads.
TROUBLESHOOTING
CAUTION — DISCONNECT POWER BEFORE REMOVING
COOLING PADS FROM THE PRODUCT!
NOTICE — POWER CORD MAY BE REPLACED ONLY BY THE
MANUFACTURER OR QUALIFIED AGENT!
12

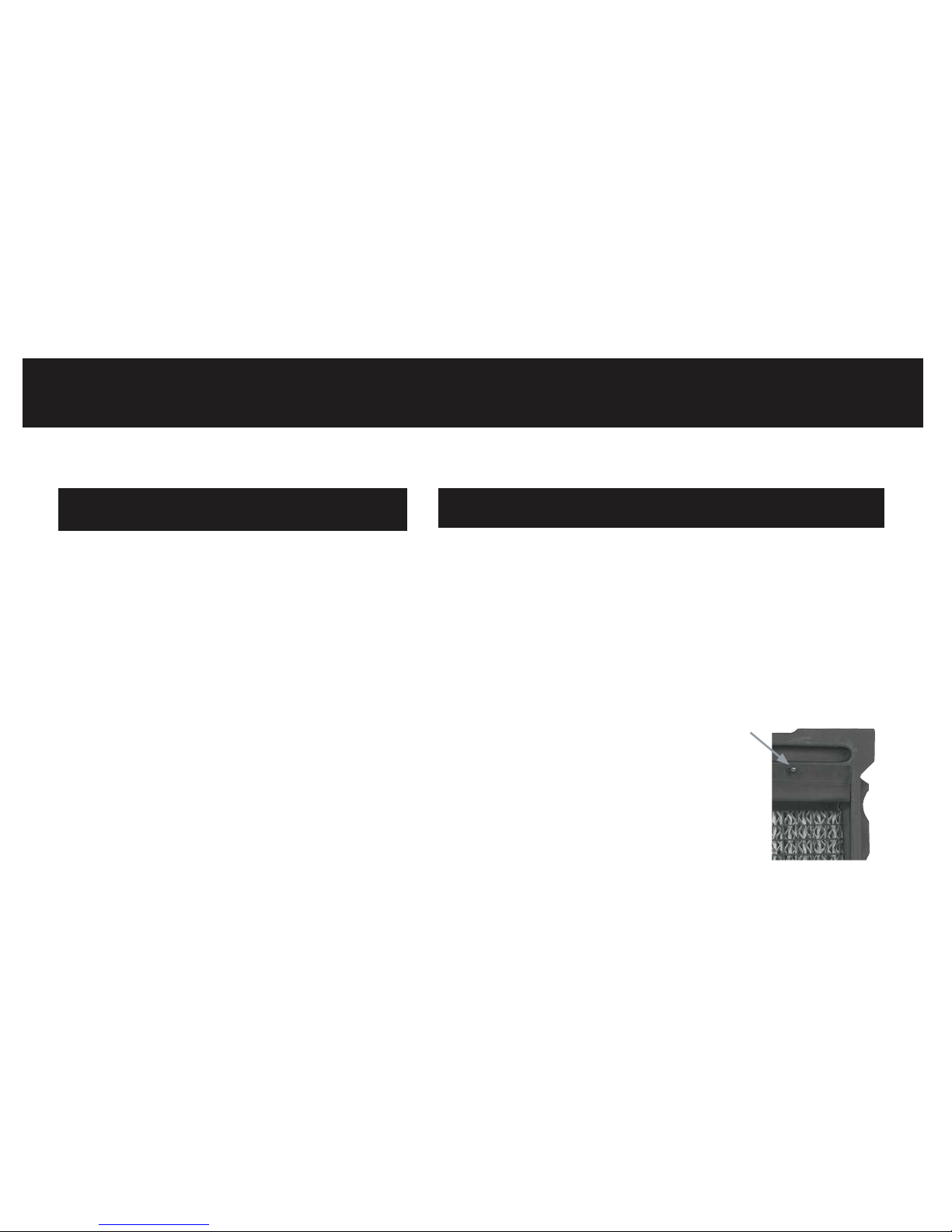

Set Screw

The following troubleshooting guide is intended to address the most common symptoms which may occur. If you are unable to resolve the issue,
please call Technical Support. Turn off all power to the evaporative cooler before attempting to troubleshoot any of the following symptoms.
SYMPTOM POSSIBLE CAUSES REMEDY
Product fails to start or deliver air 1. No electrical power to product 1. Check power
A. Circuit breaker tripped A. Reset breaker*
B. GFCI tripped B. Reset GFCI*
C. Cord(s) unplugged or damaged C. Plug in cord(s) or replace if damaged
* If condition persists, call electrician
2. Motor overheated and/or frozen 2. Replace motor
Product starts but air delivery inadequate 1. Insufficient air exhaust 1. Open windows or doors
2. Insufficient water – pad not wet 2. Check water distribution system
A. Cooling pads plugged A. Clean or replace pads
B. Dry streaks on pads B. Check water level
C. Large dry spots on pads C. Make sure cooler is level, clean spray bar
D. Pump not working D. Clean or replace pump
E. Loose water connections E. Check for leaks and correct
Water draining from cooler 1. Seat in float valve leaking 1. Replace float valve
2. Drain bushing/cap not tight 2. Tighten fitting and/or cap
Musty or unpleasant odor 1. Stale or stagnant water in sump 1. Drain, flush and clean sump
2. Pads mildewed or clogged 2. Replace pads
3. Pads not completely wet before cooler is turned on 3. Turn on pump before starting fan
Knocking, shaking, or rattling sounds 1. Loose parts 1. Check and tighten where needed
2. Fan blade rubbing shroud 2. Inspect and adjust, or replace
Water droplets in the discharge air stream 1. Too much water delivered to the cooling pads 1. Make sure pads are properly positioned in the frames and product is level
2. Outdoor humidity level is too high or it is raining 2. Use cooler as a fan only (turn pump off) or discontinue use of product until
3. Leaking hose outdoor humidity level drops.
3. Tighten connection or replace hose

TECHNICAL SUPPORT
Technical support and service is available directly from wholesale-pricing at [email protected].
You may also contact the Support Hot Line for consultation on troubleshooting and parts replacement.
Please have serial number and model number of product available.
WARRANTY AND REPLACEMENT PARTS
PORTACOOL® Evaporative Cooler Limited Warranty
All Portacool evaporative coolers are warrantied for one full year from date of purchase. This warranty covers defects in original material, workmanship, parts,
and components. To ensure that the warranty is put into effect, be sure to submit the warranty registration online or complete the warranty card that is shipped
with your unit. Factory-authorized personnel will make the final determination concerning repairing or
replacing parts or components based on customer claims.
All transportation charges on parts submitted for replacement or repair under this warranty must be borne by the purchaser. Portacool, LLC., will not be held
liable for any incidental or consequential damages. This warranty is declared void if the equipment is found to have been misused, abused or tampered with by
unauthorized personnel.
To expedite your request, please submit the RMA form found on our website at
www.wholesale-pricing.com
TECHNICAL SUPPORT
14

Returned Merchandise Authorization (RMA) Procedures
All Portacool evaporative coolers, parts, or materials being returned to Portacool, LLC for warranty replacement or repair require an RMA (Return Merchandise
Authorization) number.
Warranty parts can be replaced by:
1. The distributor can purchase the part with an RMA number and will only be charged for the cost of the part, not for the shipping. When the defective part is
returned freight paid, the distributor’s account will be credited for the cost of the part.
2. The defective part need to be returned to Portacool, LLC, labeled with the RMA number within 90 days of receipt of replacement parts.
3. The customer / distributor can call Tech Support to get an RMA number to send the defective part back to Portacool, LLC. Once the part is received by
Portacool, a replacement part will be sent at no charge.
Information needed to get an RMA number:
1. The product serial number or manufacturer date code
2. The product model number (ex. PAC2K363S)
3. The part number or description of the part to be replaced
Only major component parts need an RMA number, i.e. fans, motors, pumps, and some plumbing parts. For replacement of small parts, the serial and model
numbers are still required, but the parts do not need to be returned to Portacool, LLC.
For warranty replacement parts email Technical Support at [email protected].
Shipping Address Mailing Address:
Portacool, LLC Portacool, LLC
721 FM 2468 P.O. Box 2167
Center, Texas 75935 Center, Texas 75935
RETURNS
15

220/50 and 220/60 models require additional parts. Please contact Customer Service for assistance
16" VERTICAL TANK PARTS
28
29
6
12
8
20
9
19 16
13
10
15
2
25
4
21
11
7
1
23
26
14
26
27
17
18
3
3
3
3
PAC2K163SHD
REVISED 02/12/15
22
22
24
24
22
22
5
PORTACOOL
# PART # DESCRIPTION # PART # DESCRIPTION
1 BONNET-03 SPRAY BAR BONNET 16 PRES-REG-01 WATER PRESSURE REGULATOR
2 BOX-UL-01 3 SPD ELECTRICAL BOX 17 PUMP BRACKET PLASTIC PUMP COVER/BRACKET
3 CLAMP-01 1/2” CLAMP FOR PLASTIC TUBE 18 PUMP-0150-1 PUMP 1/70HP W/NETTING
4 CTRL-3SPD-02 3-SPD HARNESS W/SALZER
SWITCH
19 PVC-ADP-01 3/4 X 1/2 ADAPTER
5 DRAIN-PLUG-01 DRAIN PLUG 16 PAC 20 S-004 1/4-20 X 1/2” BOLT FOR FLOAT
6 FAN-ASSM-15 16” VT FAN BLADE 21 S-006 #12 X 1 1/4” TEK SCREW
7 FLAP-16-01 FRONT FLAP FOR 16” 22 S-009 10-24 x 3/4” TRUSS HEAD SCREW
8 FLOAT-02 FLOAT VALVE 23 SPRAY-07 SPRAY BAR FOR 16” PAC
9 HOSE-FM18 1/2” X 18” F/M HOSE 24 SPRAY-ACC-04 CLAMP FASTENER 1029
10 HOSE-FTG-05 FEM/FEM 3/4” BRASS SWIVEL 25 SWITCHPL-REV3SP SWITCH CVR PLATE REVERSE 3SPD
11 MESH-PAC-05 FAN SCREEN 26 TUBE-01 1/2” PLASTIC TUBE (PER FOOT)
12 MOTOR-012-04E 16” HD,FC,VT 3 SPD MOTOR 27 VALVE-01 1/2” GATE VALVE
13 PAC-PLB-01 BRASS INLET FITTING 28 VENT16-INJ-01 INJECTION MOLDED VENTURI
14 PAD6024/G PAD FOR 16” UNIT (3 per unit) 29 VENTURI-MNT-01 N/S H/D MOTOR MOUNT FRAME
15 POWERCORD-01F 16’ POWER CORD W/STRAIN
RELIEF

16" VERTICAL TANK PARTS
16
2
3
4
5
6
8
9
11
12
13
14
15
16
17
18
20
21 22
22
24
23
24
25
27
28
10
29
19
1
6
26
26
7
24
PAC163SVT
REVISED 02/17/2015
PORTACOOL, LLC.
2015
220/50 and 220/60 models require additional parts. Please contact Customer Service for assistance
# PART # DESCRIPTION # PART # DESCRIPTION
1 BASE-JS/VT CASTER BASE ASSEMBLY FOR JS/VT 16 POWERCORD-03F 10FT POWER CORD W/STRAIN RELIEF/
NUT/WASHER
2 BONNET-03 SPRAY BAR BONNET FOR 16” PAC 17 PAD6024/G 16” PAC REPLACEMENT PAD
3 BOX-UL-01 3SPD ELECTRICAL BOX 18 POLY-FTG-06 90DEG FITTING FOR SIGHT TUBE
4 CASTERS-HD-4 4” JS/VT HEAVY DUTY NON-LOCKING CASTER 19 PUMP-0140-1 PUMP ASSEMBLY FOR 16” UNIT
5 CASTERS-HD-4L 4” JS/VT HEAVY DUTY LOCKING CASTER 20 PUMP-ACC-17 JS/VS PUMP BRACKET
6 CLAMP-01 1/2” WIRE SPRING CLAMP 21 S-006 12-14 BLACK TEC SCREW
7 CTRL-VLV-BRKT-1 CONTROL VALVE MOUNTING BRACKET 22 S-009 10-24 X 3/4” TRUSS HEAD SCREW
8 CTRL-3SPD-02 3SPD SWITCH HARNESS 23 SPRAY-07 SPRAY BAR FOR 16” PAC
9 DRAIN-PLUG-34 1/4” NPT PLUG #P-28 FOR 16”UNIT 24 SPRAY-ACC-04 CLAMP FASTENER FOR SPRAY BAR
10 FAN-ASSM-15 16” VT FAN BLADE 25 SWITCHPL-REV3SP 3SPD SWITCH COVER PLATE
11 FLAP-16-01 FRONT FLAP FOR 16” JETSTREAM 26 TUBE-01 SOFT PLASTIC TUBE
12 JS-ACC-01 2” THREADED FILLER CAP RING 27 TUBE-03 SIGHT TUBE
13 JS-ACC-02 2” THREADED FILLER CAP 28 VALVE-01 PUMP TO SPRAYBAR CONTROL VALVE
14 MESH-PAC-05 FAN GUARD SCREEN FOR 16” UNITS 29 VENT16-INJ-01 VENTURI FOR 16” FAN
15 MOTOR-012-04E 16” HD, FC,VT 3SPD MOTOR

24" HIGH PERFORMANCE PARTS
24
12
5
18
30
35
4
23
26
16
29
20
31
10
14
27
25
21
17
3
22
38
13
7
19
7
6
1
34
34
37
15
33
32
2
9
8
11
28
36
PORTACOOL, LLC.
2015
PAC2K24HPVS
Revised 02/25/15
220/50 and 220/60 models require additional parts. Please contact Customer Service for assistance
# PART # DESCRIPTION # PART # DESCRIPTION
1 BASE-2K24 CADDY 20 LOCKNUT-FNG-516 5/16-18 FLANGE NYLON INSERT LOCK NUT
2 BLADE-ASSM-02 VOSTERMAN 24” FAN BLADE ASSY. (33deg.) 21 PAC-PLB-01 BRASS INLET FITTING
3 BONNET-02 SPRAY BAR BONNET FOR 24” PAC 22 PAC-PLB-02 BLACK PLUMBING ASSEMBLY
4 BOX-UL-03 VARIABLE SPEED ELECTRICAL BOX 23 PAD6036/G PAD FOR 24” PAC (4 per unit)
5 BRACE-24-01 BONNET STEEL BAR 24 POWERCORD-01F 16’ POWER CORD ASSEMBLY
6 CASTERS-HD-4 SWIVEL CASTER 25 PRES-REG-01 WATER PRESSURE REGULATER
7 CASTERS-HD-4L LOCKING SWIVEL CASTER 26 PUMP-016-4Z SUBMERSIBLE 1/6 HP PUMP
8 CTRL-KNOB-02 D-SHAFT KNOB FOR CONTROL SWITCH 27 PUMP-ACC-15 PUMP BRACKET- 1/6 HP PUMP 24” PAC
9 CRTL-VS-02 SWITCH SET FOR 24” HPVS UNIT 28 PVC-ADP-01 3/4” X 1/2” REDUCING ADAPTER
10 DRAIN-01 1/2” BOILER DRAIN 29 S-004 1/4-20 X 1/2” BOLT FOR FLOAT
11 FAN24HP-MNT-01 MOTOR MOUNT ARM FOR 24” HPVS UNIT 30 S-006 #12 X 1 1/4” TEK SCREW
12 FLAP-24-01 FRONT FLAP FOR 24” PAC 31 S-007 5/16” TRUSS HEAD SCREW FOR CASTER
13 FLOAT-02 FLOAT VALVE 32 S-009 10-24 X 3/4” TRUSS HEAD SCREW
14 HOSE-FF30 1/2” X 30” FEM/FEM HOSE TO PLB TO PUMP 33 SPRAY-04 SPRAY BAR FOR 24” PAC
15 HOSE-FF37 1/2” X 37” FEM/FEM HOSE TO SPRAYBAR
TO PLB 34 SPRAY-ACC-04 CLAMP FASTENER 1029
16 HOSE-FM22 1/2” X 22” MALE/FEMALE HOSE TO FLOAT 35 SWITCHPL-VSPD-T SWITCH PLATE FOR HP UNIT
17 HOSE-FTG-05 FEM/FEM 3/4” X 3/4” BRASS SWIVEL 36 TROUGH-02 PAD TROUGH FOR 24” PAC
18 MESH-PAC-03 FAN SCREEN FOR 24” PAC 37 VALVE-01 1/2” GATE VALVE
19 MOTOR-012-06 1/3 HP DIRECT DRIVE VOSTERMAN MOTOR 38 VENTURI-24-02 PLASTIC VENTURI FOR 24”HPVS UNIT

36" SINGLE-SPEED PARTS
18
1
3
27
9
33
22
25
5
32
19
13
4
35
16
39
11
15
18
26
17
14
31
8
24
38
12
7
20 21
10
PAC2K361S
Revised 02/25/15
34
6
36
28
36
37
40
23 29
PORTACOOL, LLC.
2015
2
30
220/50 and 220/60 models require additional parts. Please contact Customer Service for assistance
# PART # DESCRIPTION # PART # DESCRIPTION
1 BASE-2K36 CADDY 21 MOTOR-MNT-01 MOUNT FOR 36” MOTOR
2 BEARING-FAN-01 BEARING FOR 24” & 36” PAC 22 N-516-NYLOK 5/16” NYLOCK NUT FOR CASTERS
3 BELT2K-38-01 A-38 FAN BELT 23 PAC-PLB-01 BRASS INLET FITTING
4 BONNET-01 SPRAY BAR BONNET 24 PAD6048/G PAD FOR 36” PAC (5 per unit)
5 BOX-UL-02 1 SPD ELECTRICAL BOX 25 POWERCORD-01F POWER CORD ASSEMBLY
6 BRACE-36-02 BONNET BRACE 26 PRES-REG-01 WATER PRESSURE REGULATOR
7 BRACE-36-03 36” PULTRUSION ASSEMBLY 27 PULLEY-3.75 3.75 O.D. PULLEY
8 CASTERS-HD-4 HEAVY DUTY CASTER 28 PUMP-016-4Z L/G 1/6HP SUBMERSIBLE PUMP
9 CASTERS-HD-4L HEAVY DUTY LOCKING CASTER 29 PUMP-ACC-13 SUBMERSIBLE PUMP BRACE
10 CTRL-1SPD-01 1 SPEED SWITCH SET 30 PVC-ADP-01 3/4” X 1/2” REDUCING ADAPTER
11 DRAIN-01 1/2” BOILER DRAIN VALVE 31 S-004 1/4-20 X 1/2” BOLT FOR FLOAT
12 FAN-ASSM-01 PLASTIC BLADE & HUB ASSEMBLY FOR 36” PAC 32 S-006 #12 X 1 1/4” TEK SCREW
13 FLAP-36-01 FRONT FLAP FOR 36” 33 S-007 5/16-18 TRUSS HEAD SCREW
14 FLOAT-02 FLOAT VALVE 34 S-009 10-24 X 3/4” TRUSS HEAD SCREW
15 HOSE-FF24 1/2” X 24” FEM/FEM HOSE PUMP TO PLB 35 SPRAY-06 SPRAY BAR FOR 36” PAC
16 HOSE-FF50 1/2” X 50” FEM/FEM HOSE PLB TO SPRAYBAR 36 SPRAY-ACC-04 CLAMP FASTENER 1029
17 HOSE-FM30 1/2” X 30”FEM/MALE HOSE INLET TO FLOAT 37 SWITCHPL-1SPD SWITCH COVER PLATE
18 HOSE-FTG-05 FEM/FEM 3/4” BRASS SWIVEL 38 TROUGH-01 PAD TROUGH FOR 36” PAC
19 MESH-PAC-02 FAN SCREEN 39 VALVE-01 1/2” GATE VALVE
20 MOTOR-012-01STA 1SPD STUD MOUNT MOTOR (PRODUCED
W/9K922B) 40 VENTURI-36-01 36” RTM FAN VENTURI

36" THREE-SPEED PARTS
1
3
28
9
35
23
26
5
38
33
20
13
4
36
17
40
11
16
19
27
18
14
32
8
8
9
25
39
12
7
21
22
34
6
37
29
37
41
31 30
2
15
PAC2K363S
Revised 02/25/15
PORTACOOL, LLC.
2015
24
10
220/50 and 220/60 models require additional parts. Please contact Customer Service for assistance
# PART # DESCRIPTION # PART # DESCRIPTION
1 BASE-2K36 CADDY 22 MOTOR-MNT-01 MOUNT FOR 36” MOTOR
2 BEARING-FAN-01 BEARING FOR 24”/36” FAN BLADE ASSEMBLY 23 N-516-NYLOK 5/16” NYLOCK NUT FOR CASTERS
3 BELT2K-38-01 A-38 FAN BELT 24 PAC-PLB-01 BRASS INLET FITTING
4 BONNET-01 SPRAY BAR BONNET 25 PAD6048/G PAD FOR 36” PAC (5 per unit)
5 BOX-UL-04 3 SPD ELECTRICAL BOX 26 POWERCORD-01F 16’ ELECTRICAL CORD
6 BRACE-36-02 BONNET BRACE 27 PRES-REG-01 WATER PRESSURE REGULATOR
7 BRACE-36-03 36” PULTRUSION ASSEMBLY 28 PULLEY-3.75 3.75 O.D. PULLEY
8 CASTERS-HD-4 HEAVY DUTY SWIVEL CASTER 29 PUMP-016-4Z 1/6 HP SUBMERSIBLE PUMP FOR 36” PAC
9 CASTERS-HD-4L HEAVY DUTY LOCKING SWIVEL CASTER 30 PUMP-ACC-13 PUMP BRACE
10 CTRL-3SPD-02 3 SPEED SALZER SWITCH SET 31 PVC-ADP-01 3/4”X1/2” REDUCING ADAPTER
11 DRAIN-01 1/2” BOILER DRAIN VALVE 32 S-004 1/4-20 X 1/2” BOLT FOR FLOAT
12 FAN-ASSM-01 PLASTIC BLADE & HUB ASSEMBLY 33 S-006 #12 X 1 1/4” TEK SCREW
13 FLAP-36-01 FRONT FLAP FOR 36” 34 S-007 5/16-18 TRUSS HEAD SCREW
14 FLOAT-02 FLOAT VALVE 35 S-009 10-24 X 3/4” TRUSS HEAD SCREW
15 FLOATSWITCH-01 WATER PUMP SHUT OFF SWITCH 36 SPRAY-06 SPRAY BAR FOR 36” PAC
16 HOSE-FF24 1/2” X 24” FEM/FEM HOSE PLB TO PUMP 37 SPRAY-ACC-04 CLAMP FASTENER 1029
17 HOSE-FF50 1/2” X 50” FEM/FEM HOSE SPRAY BAR TO PLB 38 SWITCHPL-3SPD SWITCH COVER PLATE - 3SPD
18 HOSE-FM30 1/2” X 30” MALE/FEM HOSE INLET TO FLOAT 39 TROUGH-01 PAD TROUGH FOR 36” PAC
19 HOSE-FTG-07 FEM/FEM 3/4” BRASS SWIVEL 40 VALVE-01 1/2” GATE VALVE
20 MESH-PAC-02 FAN SCREEN 41 VENTURI-36-01 36” FAN VENTURI
21 MOTOR-012-02STA 3 SPD MOTOR
