POWERBASS HAS MADE IT THEIR GOAL TO BUILD CUTTING EDGE PRODUCTS THAT OFFER
YOU THE BEST VALUE WITH UNRIVALED PERFORMANCE. NOW, MORE THAN EVER,
THIS IS AN IMPORTANT MISSION STATEMENT.
IN THE CAR AUDIO INDUSTRY TODAY, YOU SEE A LOT OF PRODUCTS
THAT COME IN A PRETTY PACKAGE, BUT OFFER LITTLE PERFOR-
MANCE OR DURABILITY. AT POWERBASS WE INVEST IN TOP
AUDIO AND ELECTRICAL ENGINEERS TO ENSURE WE DELIVER
A PRODUCT THAT NOT ONLY LOOKS GREAT, BUT PERFORMS
EVEN BETTER.
POWERBASS IS A TEAM OF AUDIO PROFESSIONALS
WITH TECHNICAL, MUSICAL, SQ AND SPL COMPE-
TITION EXPERIENCE THAT WORK TOGETHER TO
DEVELOP PARAMETERS FOR OUR PRODUCTS.
THIS INFORMATION IS THEN SENT TO OUR
LAB WHERE OUR ENGINEERS PUSH THE
LIMITS OF PRODUCT DESIGN. THIS
PRODUCT IS THEN PUT THROUGH
RIGOROUS TESTING TO MAKE SURE IT
MEETS OUR EXPECTATIONS OF PERFOR-
MANCE AND DURABILITY, BEFORE IT
EVER HITS THE INSTALL BAY. OUR
GOAL IS TO PROVIDE USERS OF
POWERBASS PRODUCTS THE
ULTIMATE AUDIO EXPERIENCE.
WHILE ENJOYING THE SOUNDS OF A
POWERBASS PRODUCT YOU MIGHT
NOT BE THINKING ABOUT THE
ENGINEERING BEHIND THE SOUND,
BUT YOU WILL APPRECIATE THE
ULTIMATE AUDIO EXPERIENCE YOUR
POWERBASS PRODUCTS BRING YOU.
L-SERIES SUBWOOFER . . . . . . . . . . . . . . . . .
M-SERIES SUBWOOFER . . . . . . . . . . . . . . . . .
S-SERIES SUBWOOFER . . . . . . . . . . . . . . . . . .
S-SERIES THIN WOOFERS . . . . . . . . . . . . . . .
LOADED SUB ENCLOSURES . . . . . . . . . . . . . .
POWERBASS ATOM AMPLIFIERS . . . . . . . . .
ASA AMPLIFIERS . . . . . . . . . . . . . . . . . . . . . . .
L-SERIES COAXIALS . . . . . . . . . . . . . . . . . . . . .
S-SERIES FACTORY UPGRADES . . . . . . . . . . .
COMPONENT SYSTEMS . . . . . . . . . . . . . . . . . .
TWEETERS . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . .
3
4
5
6
7
8
10
12
13
14
14
15

The L Series Subwoofer line changes the rules for
both earth-shaking SPL and smooth bass for the
SQ purist.
Each L model features our all new, second
generation Zirconium cone infused with Titanium.
This new Z-2 cone combines deep bass and
distortion free sound. Next we designed a single
piece CNC machined backplate with extended pole
piece to ensure a strong symetric magnetic field
for increased operating efficiency.
To make the bass super tight, our engineers
perfected the large roll Santoprene® surround
which allows free movement of the cone for
maximum SPL, a large motor structure for high
power handling, 2” and 2.5” BASV voice coil
formers for optimum performance and cooling for
maximum heat dissipation.
L SUBWOOFERS
Z-2 Titanium Zirconium Cone
for the best, distortion free sound reproduction
Large Roll, Santoprene Surrounds
allow the free movement of the cone which equals deep loud bass and high power
handling
One Piece Chrome Plated Backplate and Extended Pole Piece
provides precise linear voice coil alignment while maximizing air flow from the
vented pole piece
Large Motor Structures for high power handling
Dual 4-ohm Voice Coils
made with pure EIW wire looped through spider
2 and 2.5” Vented KSV Voice Coil Formers
for optimum performance, power handling and cooling
Chrome Push Terminals
to guarantee optimal power transfer to your woofer from your amplifier
Rigid Tooled Basket with Black Powder Coat Finish
for a stable, high performance woofer foundation
Designed To Work Optimally In Sealed Or Ported Enclosures
for multiple sonic and installation applications
COMPATIBILITY
ENCLOSURE
MULTI
SUBWOOFERS
L-154D
L-124D
L-104D
mounting
depth
6.4"
5.4"
5.2"
size
15"
12"
10"
frequency
response
24Hz-400Hz
26Hz-450Hz
32Hz-500Hz
nominal
impedance
Dual 4-ohm
Dual 4-ohm
Dual 4-ohm
sensitivity
(1w / 1m)
94 dB
92 dB
91 dB
voice
coil size
2.5"
2"
2"
motor
structure
232 oz
180 oz
164 oz
500 / 1000 watts
400 / 800 watts
350 / 700 watts
power handling
(rms/peak)
LSeries
SUBWOOFERS
3

4
MSeries
SUBWOOFERS
M-154D
M-154
M-124D
M-124
M-104D
M-104
mounting
depth
6.4"
6.4"
5.4"
5.4"
5.2"
5.2"
size
15"
15"
12"
12"
10"
10"
frequency
response
23Hz-400Hz
23Hz-400Hz
29Hz-450Hz
29Hz-450Hz
29Hz-500Hz
32Hz-500Hz
nominal
impedance
Dual 4-ohm
Single 4-ohm
Dual 4-ohm
Single 4-ohm
Dual 4-ohm
Single 4-ohm
sensitivity
(1w / 1m)
94 dB
94 dB
92 dB
92 dB
91 dB
91 dB
voice
coil size
2.5"
2.5"
2"
2"
2"
2"
motor
structure
220 oz
220 oz
164 oz
164 oz
158 oz
158 oz
power handling
(rms/peak)
425 / 850 watts
425 / 850 watts
375 / 750 watts
375 / 750 watts
325 / 650 watts
325 / 650 watts
Proprietary 4-layer, Non-pressed Paper, DDC Finish
Cone Dynamic Damping Coating (DDC)
for deeper, distortion free bass
Large Roll Santoprene Surround
allows maximum excursion and precision bass reproduction
Black Emissive Coated Backplate and Pole Piece
dome shaped to maximize air flow from the vented pole piece
Massive Motor Structure
for high power handling and maximum output
Dual and Single 4-ohm Voice Coils
made with pure EIW wire looped through the spider
2 and 2.5” Vented BASV Voice Coil Formers
for optimal performance and power handling
Chrome Push Terminals to guarantee optimal power transfer
to your woofer from your amplifier
Rigid Tooled Basket with Black Powder Coat Finish
for a stable, high performance woofer foundation
Optimally Designed for Both Sealed or Ported
Enclosures for multiple sonic and installation applications
M SUBWOOFERS
COMPATIBILITY
ENCLOSURE
MULTI

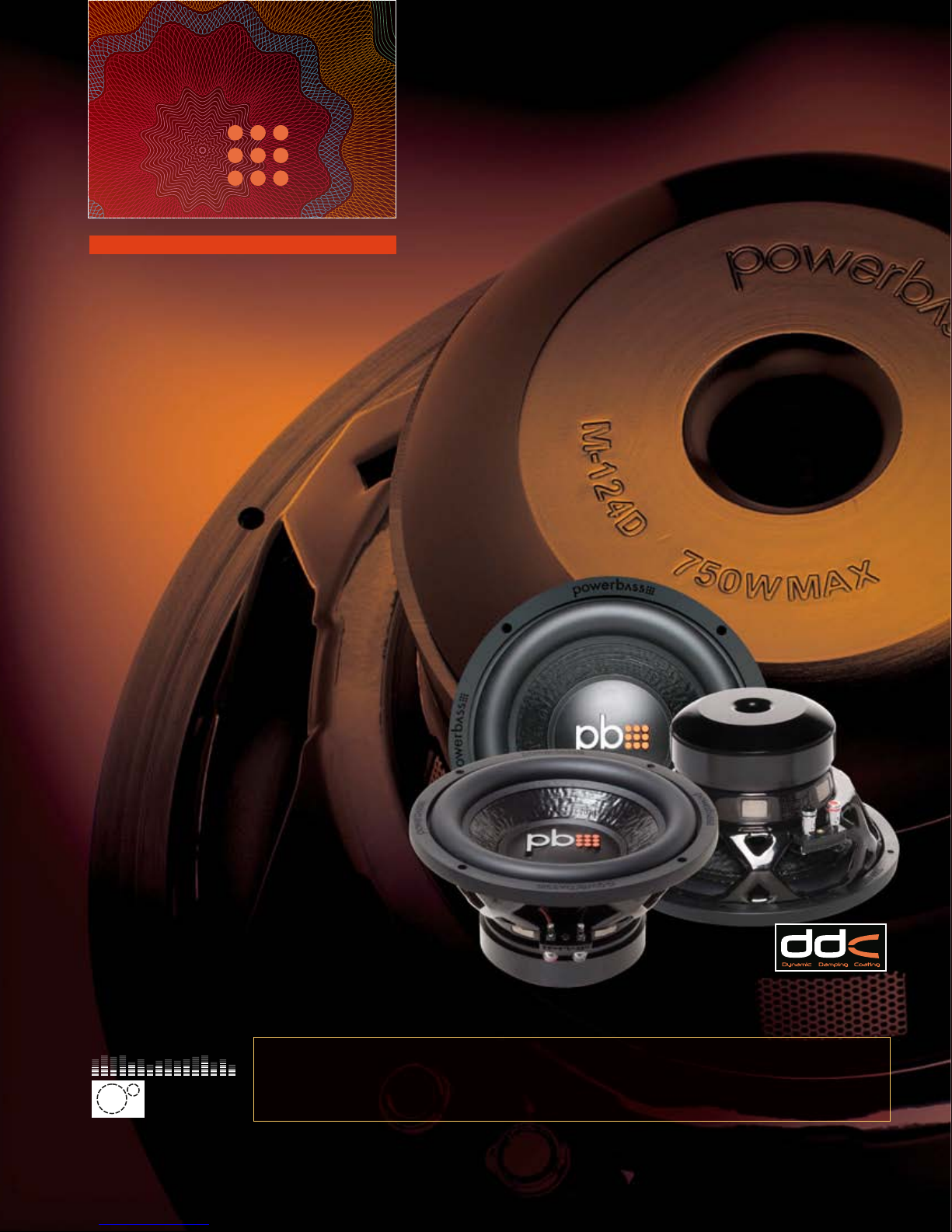

The M Series Subwoofer line represents PowerBass as a
performance and value leader. These woofers are designed
to deliver rich sounding bass at all volume levels. Check
out the high-tech features: 4-layer non pressed paper DDC
(Dynamic Damping Coating) finish cone, large roll
Santoprene® surrounds which allow free movement of the
cone for maximum SPL, a large motor structure for high-
power handling, 2” and 2.5” vented BASV Voice Coil form-
ers for optimum performance, and cooling for maximum
heat dissipation. For increased operating efficiency a CNC
machined one piece backplate and pole plate is used to
reduce magnetic losses and maximize air flow keeping the
voice coil running cooler. Chrome-plated binding post
terminals accept large gauge wire to assure all power from
the amplifier reaches the subwoofer.
Designed to work optimally in sealed or ported enclosures
and either dual or single 4 ohm voice coils for multiple bass
applications. Try the mighty M Series today!

5
The S Series Subwoofer line takes great value to a whole
new level. You will be impressed with the oversized motor
structure for high-power handling and greater reliability
during heavy hitting bass passages. Our 12-inch version
features an even larger magnet for improved performance.
We utilize a 4-layer wool/paper cone for very natural
smooth bass reproduction that provides high output with
low distortion. PowerBass S Series woofers sport a flat
black finished, stamped steel basket that is custom tooled
with our distinctive X design, 2” BASV voice coil formers
for optimum performance and cooling. Like the entire
Autosound range, we also offer a large roll foam surround
allowing free movement of the cone, which equals loud
bass.
The S Series subwoofers are well-suited for small sealed or
ported enclosures and use dual 4-ohm and single 4-ohm
voice coils for multiple bass applications. Value is the
target for the S Series woofer without sacrificing hard-
hitting performance.
COMPATIBILITY
ENCLOSURE
MULTI
S SUBWOOFERS
4-Layer Black Paper/Wool Cone
for very natural smooth bass reproduction
Large Roll Foam Surrounds
allow the free movement of the cone which equals loud bass
Oversized Motor Structure
high intensity ferrite magnet for increased power handling
Dual And Single 4-ohm Voice Coils
made with pure EIW wire looped through the spider
2" BASV Voice Coil Formers
for optimum performance and cooling
Chrome Push Input Terminals
to ensure the best current transfer from the amplifier to the woofer
Pole and Aero Vented Cooling
cooler woofers mean better bass and power handling
Rigid Tooled Flat Black Steel Basket
for a stable, high performance woofer foundation
Designed For Both Small Sealed or Ported Enclosures
which include most pre-fabricated boxes
S-124D
S-124
S-104D
S-104
5.5"
5.5"
5.2"
5.2"
mounting
depth
12"
12"
10"
10"
size
29Hz-450Hz
31Hz-450Hz
33Hz-500Hz
32Hz-500Hz
frequency
response
Dual 4-ohm
Single 4-ohm
Dual 4-ohm
Single 4-ohm
nominal
impedance
91 dB
91 dB
90 dB
90 dB
sensitivity
(1w / 1m)
2"
2"
2"
2"
voice
coil size
142 oz
142 oz
116 oz
116 oz
motor
structure
300 / 600 watts
300 / 600 watts
275 / 550 watts
275 / 550 watts
power handling
(rms/peak)
SSeries
SUBWOOFERS

SHALLOW SUBWOOFERS
SSeries
THIN WOOFERS
Thin Mount Woofer Design
allows installation behind or under seats
Fiber Composite Turbine Basket
adds structural integrity and reduces resonance
Single Piece Custom Injected Molded Cone
strong enough to withstand punishment in a small enclosure
Large Roll Rubber Surround
for optimum performance and durability
Oversized Motor Structure
high intensity ferrite magnet for increased power handling
Dual And Single 4-ohm Voice Coils
made with pure EIW wire looped through the spider
2" Vented KSV Voice Coil Former
venting keeps the coil running cooler at high power
Chrome Push Terminals ensure the best current transfer from
the amplifier to the woofer
Optimally Designed for Small Sealed Enclosures
for tight area, high SPL application
S THIN WOOFERS
COMPATIBILITY
ENCLOSURE
MULTI
Our new Thin Woofers are only 3.25" deep but don't let its
lean size fool you, these woofers are big on bass. We gave
our engineers the dificult task of builiding a thin woofer that
was up to the PowerBass reputation of great performance at
an exceptional value.
Starting with our proprietary polycarbonate/glass fiber com-
posite frame, we built a basket that is stronger then steel
and lighter then cast aluminum. Our unique one piece cone
is another break through in woofer technology, more
durable then paper, this injected molded cone is able to
withstand the abuse that comes from delivering deep bass
in a small enclosure.
By adding a tough wide roll rubber surround and 2-inch
vented voice coil, we were able to develop a woofer that has
the ability to play loud in small places. The PowerBass Thin
Woofer makes true bass a reality.
S-12TD
S-12T
S-10TD
S-10T
3.25"
3.25"
3.25"
3.25"
mounting
depth
12"
12"
10"
10"
size
29Hz-350Hz
31Hz-350Hz
33Hz-400Hz
34Hz-400Hz
frequency response
Dual 4-ohm
Single 4-ohm
Dual 4-ohm
Single 4-ohm
nominal impedance
91 dB
91 dB
90 dB
90 dB
sensitivity
(1w / 1m)
2"
2"
2"
2"
voice coil
size
140 oz
140 oz
116 oz
116 oz
motor
structure
300 / 600 watts
300 / 600 watts
275 / 550 watts
275 / 550 watts
power handling
(rms/peak)
only 3.25" !
PS-WB110T
S-12T
6

LOADED ENCLOSURES
PS-WB12
PS-WB10
PS-WB112
PS-WB110
PS-WB112T
PS-WB110T
bottom depth
14.4"
13.75"
14.4"
13.75"
5.4"
6.75"
top depth
12.25"
11.4"
12.25"
11.4"
3.5"
3.5"
width
34"
32"
18.75"
17"
30.3"
21.5"
height
13.5"
12.25"
13.5"
12.25"
14"
13"
size
Dual 12"
Dual 10"
Single 10"
Single 10"
Single 12" thin
Single 10" thin
frequency response
30Hz-120Hz
33Hz-150Hz
30Hz-120Hz
33Hz-150Hz
36Hz-250Hz
38Hz-280Hz
nominal impedance
Single 4-ohm input
Single 4-ohm input
Single 4-ohm input
Single 4-ohm input
Single 4-ohm input
Single 4-ohm input
550 / 1100 watts
500 / 1000 watts
275 / 550 watts
250 / 500 watts
300 / 600 watts
275 / 550 watts
power handling (rms/peak)
Series
LOADED BOXES
S
P
Bass is our backbone here at Powerbass and our engineers
have designed an affordable, yet powerful solution to put a
new low in the bottom end of your sound system with PS-WB
loaded woofer boxes. We take a unique design approach and
engineer the woofers to fit the box, not the other way around
like our competition. This gives our enclosures a deeper,
tighter bass that handles more power for your hard earned
cash.
We feature a vented “bass reflex” enclosures with chrome,
flared Venturi ports tuned to a very low frequency for loud
bass that shakes every bone in your body.
When you don’t have a lot of space for bass, we have our
PS-WB110T and 112T sealed “air suspension” truck enclo-
sures that are designed to fit under or behind your seat that
deliver tight, accurate bass.
PS-WB10
PS-WB110
7

2-ohm Stereo/4-ohm Mono Stable Circuitry
produces maximum output power for your speakers
Ultra Efficient Design
results in a compact A/B Class footprint and low profile chassis with
uncompromised sound
Selectable Electronic Bass EQ
can be switched from 0 to 6 or 12dB for added bass
Variable 12dB High/Low Pass Electronic Crossover
for infinite system applications
Double Sided PCB
high quality printed circuit board maximizes current flow and
increases sonic excellence
1-ohm Stable Class D Circuitry
to develop maximum power to drive your subwoofers
Low Current/High Efficiency
ultra low current draw produces less heat along with 85% efficiency
for more power in a compact footprint
Dual Link Capability
link 2 like models together for double the power
Variable Electronic Low Pass Crossover
to customize the bass to your vehicle
Variable Electronic Sub-Sonic Filter
to cut the power robbing signals that cannot be reproduced or heard
from your subwoofers
Variable Electronic Bass EQ
lets you get the most out of your subwoofers
Variable Remote Gain Control (included) gives the listener the
option of turning the subwoofer control up or down
INTRODUCING THE POWERBASS ATOM
A/B FULL RANGE FEATURES D-CLASS MONO BLOCK FEATURES
COMPACT AMPLIFIERS FOR 2010
8

4-ohm Power
2-ohm Power
4-ohm Mono Power
Peak Power
Total Harmonic Distortion
Frequency Response
S/N Ratio
Damping Factor
Input Sensitivity
Crossover Slope
High-Pass Crossover Freq (Hz)
Low-Pass Crossover Freq (Hz)
Variable Subwoofer EQ
Subwoofer EQ Frequency
ATM 660.4
100 watts x 4
200 watts x 4
400 watts x 2
1600 watts
<0.05%
10Hz~30,000Hz
>80dB
>150
0.2 - 5.0 volts
12dB
50Hz~500Hz
50Hz~500Hz
0-12dB
30Hz-80Hz
ATM 550.4
75 watts x 4
150 watts x 4
300 watts x 2
1200 watts
<0.05%
10Hz~30,000Hz
>80dB
>150
0.2 - 5.0 volts
12dB
50Hz~500Hz
40Hz~250Hz
0-12dB
30Hz-80Hz
ATM 330.2
75 watts x 2
150 watts x 2
300 watts x 1
600 watts
<0.05%
10Hz~30,000Hz
>80dB
>150
0.2 - 5.0 volts
12dB
50Hz~500Hz
40Hz~250Hz
0-12dB
30Hz-80Hz
ATM 440.2
100 watts x 2
200 watts x 2
400 watts x 1
800 watts
<0.05%
10Hz~30,000Hz
>80dB
>150
0.2 - 5.0 volts
12dB
50Hz~500Hz
40Hz~250Hz
0-12dB
30Hz-80Hz
4-ohm Power
2-ohm Power
1-ohm Mono Power
Peak Power
Total Harmonic Distortion
Frequency Response
S/N Ratio
Damping Factor
Input Sensitivity
Crossover Slope
Low-Pass Crossover Freq (Hz)
Variable Subsonic Freq
Variable Subwoofer EQ
Subwoofer EQ Frequency
ATM 900.1D
325 watts x 1
550 watts x 1
900 watts x 1
1800 watts
<1.0%
10Hz~250Hz
>80dB
>150
0.5 - 5.0 volts
12dB
40Hz~180Hz
17Hz-50Hz
0-18dB
40Hz
ATM 600.1D
250 watts x 1
400 watts x 1
600 watts x 1
1200 watts
<1.0%
20Hz~250Hz
>80dB
>150
0.5 - 4.0 volts
12dB
40Hz~250Hz
17Hz-50Hz
0/+18dB
40Hz
4-Channel Class D Bass2-Channel
9
Adding affordable, compact power to your sound system is a
no brainer with Powerbass Atom amplifiers. Developed by
our top engineers to fit into the tightest places with the larg-
est sound. They boast overbuilt, ultra efficient, linear power
supplies that create high voltage and ample current. Couple
this with our use of superior parts and the benefit is huge
amounts of dynamic headroom with plenty of reserve power
to produce the details and dynamics in a very small package.
To handle all this power in such a small footprint, we chose
double sided fiberglass circuit boards. The high quality PCB's
feature a clean board lay out consisting of 2 ounce pure
copper traces to maximize the current transfer from the inputs
to the outputs. The net result is low distortion, highly
detailed sonic reproduction.
Photo of ATM 660.4 actual size
*Size of ATM 660.4 compared to ASA 600.4x (drawn to scale)
ATM 660.4
45% smaller*

AMPLIFIERS
A/B CLASS AMPLIFIERS
2-ohm Stereo/4-ohm Mono Stable*
for multiple connection versatility
MOSFET Power Supply
for the most efficient and distortion free sound reproduction
Variable 12 dB, High/Low Pass Electronic Crossover
for infinite system applications
Variable Bass Boost
that lets you get the most out of your subwoofers
Optional Remote Gain Control
gives the listener the option of turning the subwoofers up or down
*A/B Mono blocks are stable at 2-ohm Mono
MONO BLOCK
&
A/B CLASS FULL RANGE
We asked our engineers to
load up on features usually
found only in other brands
high-end ranges. Feature
packed with a wide line-up
of 2, 4 and even 5 channel
amplifiers, ASA Amplifiers
meet the needs of any seri-
ous audiophile. With its
elegant, brushed satin black
finish, clean lines and
rounded edges, our ASA
amplifiers will not leave you
asking for more. These
amplifiers deliver pure,
clean power with the soul of
rock and roll or whatever
your taste. Variable 12 dB,
high/low pass electronic
crossover for infinite system
applications. A MOSFET
power supply for efficient
and distortion-free sound
reproduction which offers
2-ohm stereo or 4-ohm mono
stable capabilities. User-
friendly features like a vari-
able bass boost control with
18 dB of boost at 40 Hz to
give you more output from
your subwoofers. If you
really want serious control
of your subwoofer output,
an optional remote gain con-
trol is available.
4-ohm Power
2-ohm Power
4-ohm Mono Power
Peak Power
Total Harmonic Distortion
Frequency Response
S/N Ratio
Damping Factor
Input Sensitivity
Crossover Slope
High-Pass Crossover Freq (Hz)
Low-Pass Crossover Freq (Hz)
Variable Subwoofer EQ
Subwoofer EQ Frequency
ASA 700.5x
50 watts x 4 + 200 x 1
100 watts x 4 + 400 x 1
200 watts x 2 + 400 x 1
1400 watts
<0.05%
20Hz~22,000Hz
>94dB
>150
0.5 - 4.0 volts
12dB
40Hz~250Hz
40Hz~250Hz
0/+18dB
40Hz
ASA 1100.5x
75 watts x 4 + 250 x 1
150 watts x 4 + 500 x 1
300 watts x 2 + 500 x 1
2200 watts
<0.05%
20Hz~22,000Hz
>94dB
>150
0.5 - 4.0 volts
12dB
40Hz~250Hz
40Hz~250Hz
0/+18dB
40Hz
ASA 600.4x
100 watts x 4
200 watts x 4
400 watts x 2
1600 watts
<0.05%
20Hz~22,000Hz
>94dB
>150
0.5 - 4.0 volts
12dB
40Hz~250Hz
40Hz~250Hz
0/+18dB
40Hz
ASA 400.4x
50 watts x 4
100 watts x 4
200 watts x 2
800 watts
<0.05%
20Hz~22,000Hz
>94dB
>150
0.5 - 4.0 volts
12dB
40Hz~250Hz
40Hz~250Hz
0/+18dB
40Hz
ASA 600.2x
150 watts x 2
300 watts x 2
600 watts x 1
1200 watts
<0.05%
20Hz~22,000Hz
>94dB
>150
0.5 - 4.0 volts
12dB
40Hz~250Hz
40Hz~250Hz
0/+18dB
40Hz
ASA 800.2x
200 watts x 2
400 watts x 2
800 watts x 1
1600 watts
<0.05%
20Hz~22,000Hz
>94dB
>150
0.5 - 4.0 volts
12dB
40Hz~250Hz
40Hz~250Hz
0/+18dB
40Hz
ASA 400.2x
100 watts x 2
200 watts x 2
400 watts x 1
800 watts
<0.05%
20Hz~22,000Hz
>94dB
>150
0.5 - 4.0 volts
12dB
40Hz~250Hz
40Hz~250Hz
0/+18dB
40Hz
5-Channel 4-Channel 2-Channel
Our A/B Class mono block
amplifiers combine our
clean low profile design
with the necessary features
into an economical package
that puts power and control
at your command. Features
like a MOSFET power
supply. RCA preamp out,
and variable LPF electronic
crossover make these
ideally suited to add some
punch to any system.
The ASA-400.1x mono sub-
woofer amp is a great choice
when your’re looking to
pound out the bass. With
200 watts, there’s plenty of
juice on tap to power our S
or M Series single 4-ohm
woofers. Wire a pair of
4-ohm woofers in parallel
and the ASA-400.1x will kick
out a solid 400 watts. Need
more power, then step up to
the ASA-600.1x. Both amps
are stable to 2-ohms and
come complete with a wired
remote controler with up to
18dB of gain.
10

D CLASS AMPLIFIERS
1-ohm Stable Class D Circuitry
Dual Link Capability
link 2 like amplifiers together for double power
Variable Electronic Low Pass Crossover
to customize the bass for your vehicle
Variable Electronic Sub-Sonic Filter
to cut the power robbing signals that can not be reproduced or heard
from you subwoofers
Variable Electronic Bass Boost
that lets you get the most out of your subwoofers
Variable Remote Gain Control (included)
gives the listener the option of turning the subwoofers up or down
ASA 300.2x
75 watts x 2
150 watts x 2
300 watts x 1
600 watts
<0.05%
20Hz~22,000Hz
>94dB
>150
0.5 - 4.0 volts
12dB
40Hz~250Hz
40Hz~250Hz
0/+18dB
40Hz
ASA 200.2x
50 watts x 2
100 watts x 2
200 watts x 1
400 watts
<0.05%
20Hz~22,000Hz
>94dB
>150
0.5 - 4.0 volts
12dB
40Hz~250Hz
40Hz~250Hz
0/+18dB
40Hz
ASA 600.1x
300 watts x 1
600 watts x 1
n/a
1200 watts
<0.05%
20Hz~22,000Hz
>94dB
>150
0.5 - 4.0 volts
12dB
n/a
40Hz~250Hz
0/+18dB
40Hz
ASA 400.1x
200 watts x 1
400 watts x 1
n/a
800 watts
<0.05%
20Hz~22,000Hz
>94dB
>150
0.5 - 4.0 volts
12dB
n/a
40Hz~250Hz
0/+18dB
40Hz
4-ohm Power
2-ohm Power
1-ohm Mono Power
Peak Power
Total Harmonic Distortion
Frequency Response
S/N Ratio
Damping Factor
Input Sensitivity
Crossover Slope
High-Pass Crossover Freq (Hz)
Variable Subwoofer EQ
Subwoofer EQ Frequency
ASA 1000.1Dx
250 watts x 1
500 watts x 1
1000 watts x 1
2000 watts
<0.5%
20Hz~250Hz
>80dB
>150
0.5 - 4.0 volts
12dB
40Hz~250Hz
0/+18dB
40Hz
ASA 1500.1Dx
375 watts x 1
750 watts x 1
1500 watts x 1
3000 watts
<0.5%
20Hz~250Hz
>80dB
>150
0.5 - 4.0 volts
12dB
40Hz~250Hz
0/+18dB
40Hz
Mono Block Class D Bass
D CLASS BASS
ping power from where you
want them. Bass boost con-
trol also gives you the ability
to increase your subwoofers
output by up to 18 dB at the
earth shaking frequency of
40 Hz. To finish these amps
off, we include a remote
gain control to give you the
ultimate in subwoofer
volume control from the
cockpit of your vehicle.
To give your subwoofers
some serious power at an
affordable price, we offer
the ASA range in super effi-
cient Class D power. This
line offers amplifiers that
can provide 1,500 watts to a
single woofer - if it can take
it. Our Class D amplifiers
are 1-ohm stable, feature
subsonic filters to keep ultra
low frequencies from zap-
SSeries
AMPLIFIERS
A
A
11

12
L-6903x
L-4102x
L-6705x
L-6502x
L-5202x
L-4602x
L-4002x
ULTRA EFFICIENT
*Grills not included
Size
7x10"
6.75"
6.5"
4x10"
5.25"
4x6"
4"
6x9"
6x8"
Mounting
Depth
3.35"
2.15"
2.4"
2.65"
2.2"
1.95"
2.1"
3.3"
2.4"
Magnet
Size
30 oz
12 oz
12 oz
12 oz
10 oz
10 oz
10 oz
30 oz
14 oz
Sensitivity
(1W / 1M)
93 dB
89 dB
88 dB
89 dB
88 dB
87 dB
87 dB
91 dB
89 dB
Frequency
Response
40Hz-22kHz
62Hz-21kHz
59Hz-21kHz
59Hz-21kHz
64Hz-21kHz
70Hz-21kHz
70Hz-21kHz
43Hz-20kHz
54Hz-21kHz
Nominal
Impedance
3-ohm
3-ohm
3-ohm
3-ohm
3-ohm
3-ohm
3-ohm
3-ohm
3-ohm
Power Handling
(RMS/Peak)
120/ 360 watts
60 / 180 watts
60 / 180 watts
70 / 210 watts
50 / 150 watts
40 / 120 watts
40 / 120 watts
100 / 300 watts
70 / 210 watts
L-7105x
L-6903x
L-6802x*
L-6705x*
L-6502x
L-4102x*
L-5202x
L-4602x*
L-4002x
L SERIES COAXIALS
Aluminum Dome ¾” Tweeter
delivers sharp, crisp treble reproduction
(L-6903x and L-7105x use PEI tweeter and mid)
Z-2 Titanium Zirconium Cone
for the best, distortion free sound reproduction
Butyl Rubber Surround
provides linear cone movement that gives accurate sound replication
3-Ohm System Impedance
for more efficient use of amplifier power that give you cleaner and
louder audio replication
Heavy Motor Structure
with protective boot for high power handling
Rigid Tooled Basket with Black Powder Coat Finish
for a stable, high performance speaker foundation
Proprietary SEL Tweeter Ring (Sound Expander Lens)
to focus the high frequencies where you need them the most
COAXIALS
LSeries
FULL RANGE
Designed for today’s progressive music, our L-Series now
use a re-engineered Sound Expander Lens to compliment
our Aluminum Dome tweeter. By increasing the dispersion
you will hear your favorite rap, hip hop or rock music like
never before.
Upgrading your factory speakers is the most effective way
to increase the sound quality of your factory sound system.
By adding quality aftermarket speakers, you will enjoy your
music loud and clear. The PowerBass L Series systems can
make it all come together in a big way, providing you with
accurate mid-range and crisp highs that complement the
rest of your system without a strain on the wallet.
The L Series has numerous features, but one that stands out
is the use of a 3-ohm voice coil to make more efficient use of
your amplifiers power. Most amplifiers make more power
running at a lower impedance and by using a 3-ohm voice
coil, you get more output. To handle this power, we include
upgraded features like black stamped custom tooled bas-
kets, our new second generation Z-2 cones to produce the
best in distortion free sound reproduction, Butyl rubber
surrounds for high efficiency, better bass response and long
life, and a larger motor structure to handle increased power.
Audition a set of our L Series today and let your ears decide!

13
S-652
S-522
S-693
S-682
S-675
S-412
S-65T
S-462
S-402
S-352
S-275CH
Size
5.25"
6.5" thin
4x6"
4"
3.5"
6x9"
6x8"
4x10"
6.75"
6.5"
Mounting
Depth
2.0"
2.15"
1.95"
1.8"
1.5"
3.3"
2.35"
2.6"
2.15"
2.3"
Magnet
Size
8 oz
10 oz
6 oz
6 oz
4 oz
20 oz
10 oz
10 oz
10 oz
10 oz
Sensitivity
(1W / 1M)
87 dB
87 dB
86 dB
86 dB
85 dB
90 dB
88 dB
89 dB
87 dB
88 dB
Frequency
Response
65Hz-20kHz
63Hz-20kHz
70Hz-20kHz
70Hz-20kHz
80Hz-20kHz
45Hz-20kHz
56Hz-20kHz
58Hz-20kHz
63Hz-20kHz
60Hz-20kHz
Nominal
Impedance
4-ohm
4-ohm
4-ohm
4-ohm
4-ohm
4-ohm
4-ohm
4-ohm
4-ohm
4-ohm
Power Handling
(RMS/Peak)
40 / 120 watts
45 / 135 watts
35 / 105 watts
35 / 105 watts
30 / 90 watts
70 / 210 watts
60 / 180 watts
50 / 150 watts
50 / 150 watts
50 / 150 watts
S-522
S-65T
S-462*
S-402
S-352*
2.75" 1.5"3 oz90 dB115Hz-19kHz4-ohm30 / 60 watts
S-275CH*
S-693
S-682*
S-412*
S-675*
S-652
S SERIES COAXIALS
Pure Silk Dome 3/4” Tweeter
delivers smooth and accurate treble reproduction
(S-693 uses PEI tweeter and mid; S-275CH is dual cone)
2-layer Paper, DDC Cone (Dynamic Damping Coating)
reduces distortion while adding UV protection
Double Pressed, UV Treated Foam Surround
provides accurate and distortion free audio replication
OEM Drop in Replacement Design makes it easy to replace
factory speakers without any modifications including hard to find
sizes like 6 x 8” & 4 x 10” (grills may not be necessary)
EFF Motor Structures (Efficient Flux Field)
will ensure louder sound reproduction with lower power input
Rigid Tooled Basket with Flat Black Finish
for a stable, high performance speaker foundation
Proprietary SEL Tweeter Ring (Sound Expander Lens)
to focus the high frequencies where you need them the most
FACTORY UPGRADES
Designed as a great replacement for most OEM speaker
applications, the S Series speaker systems offer great perfor-
mance at a great price. This range offers a complete line-up
specifically sized for OEM drop-in replacement of 2.75”, 3.5”,
4”x6”, 4”x10”, 6.75” and 6”x8”.
For 2010 we have added a hard to find 2.75” full range
speaker that fits many Chrysler applications - making our
S-series one of the most complete lines available. With so
many sizes offered in this coaxial range these speakers make
an excellent choice for Autosound enthusiasts who seek true
value along with easy installation.
We invite you to put our S Series to the test and compare
them to speakers priced much higher. Our proprietary
2-layer paper cone features DDC, allowing you to hear
smooth and rich bass all the way through the mid-range
tones. For the high frequencies, we feature a low profile,
pure silk dome tweeter like the type used in expensive home
systems--to make sure you get a complete hi-fi experience.
SSeries
FULL RANGE

L-60Cx
L-50Cx
S-6C
S-5C
Size
6.5"
5.25"
6.5"
5.25"
Mounting
Depth
2.4"
2.2"
2.3"
2.0"
Magnet
Size
12 oz
10 oz
10 oz
10 oz
Sensitivity
(1W / 1M)
90 dB
90 dB
90 dB
89 dB
Frequency
Response
59Hz-20kHz
64Hz-20kHz
60Hz-20kHz
65Hz-20kHz
Nominal
Impedance
3-ohm
3-ohm
4-ohm
4-ohm
75 / 225 watts
60 / 180 watts
70 / 210 watts
50 / 150 watts
Power Handling
(RMS/Peak)
ULTRA EFFICIENT
Material
Aluminum
Zirconium
Pure Silk
L-1A
S-1ZT
S-1S
Size
1"
1"
1"
Mounting
Depth
0.75"
0.75"
0.75"
Sensitivity
(1W / 1M)
92 dB
102 dB
91 dB
Frequency
Response
3.5k-21kHz
5k-25kHz
3k-20kHz
Nominal
Impedance
4-ohm
4-8 ohm
4-ohm
50 / 100 watts
50 / 100 watts
100 / 200 watts
Power Handling
(RMS/Peak)
S-1ZT
L-1A S-1S
1” ALUMINUM DOME
TWEETER
for sharp wide spectrum treble reproduction
In-line 12 dB Acoustic Crossover for accurate
frequency response and outstanding reproduction.
Flush/Angle/Surface Mounts provide
pinpoint imaging and installation versatility
Ferrofluid® Cooling for higher power handling
Neodymium Magnet provide small powerful
motors for these tweeters to reproduce high output
and accurate sound reproduction
1” PURE SILK DOME
TWEETER
for smooth sound without listener fatigue
In-line 12 dB Acoustic Crossover for accurate
frequency response and outstanding reproduction
Flush/Angle/Surface Mounts provide
pinpoint imaging and installation versatility
Ferrofluid® Cooling for higher power handling
Neodymium Magnet provides small powerful
motors for these tweeters to reproduce high output
and accurate sound reproduction
1” ZIRCONIUM TWEETER
WITH COMPOSITE
SURROUND
Low Distortion, Light Weight & Highly Reliable.
The integral phase plug and ceramic Element
provide high power handling without the need
for a crossover.
Surface Mount Provides simple installation.
L SERIES COMPONENT SYSTEM
Aluminum Dome 1” Tweeter
for sharp, crisp treble reproduction
Z-2 Titanium Zirconium Cone
for the best distortion free sound reproduction
Butyl Rubber Surround
for years of accuracy and quality sound
3-Ohm System Impedance
for more efficient use of amplifier power
Heavy Motor Structure
with protective boot for high power handling
Rigid Tooled Basket With Black Powder Coat
for precise motor alignment
Deluxe External 12dB 2-way Crossover Network
for smooth transitions between the woofer and tweeter
S SERIES COMPONENT SYSTEM
Pure Silk Dome 1" Tweeter
for accurate and smooth high frequency sound reproduction.
Black 2-layer Paper, DDC Cone
Dynamic Damping Coating (DDC) for deeper, distortion free bass.
Double Pressed Treated Foam Surround
UV protected for long life
Shallow Mounting Depth
fits almost any vehicle.
EFF Motor Structures (Efficient Flux Field)
will ensure louder sound reproduction with lower power input
Rigid Tooled Basket With Flat Black Finish
for a stable, high performance speaker foundation
Computer Aided External 12dB 2-way
Crossover Network
for smooth transitions between the woofer and tweeter
S-6CL-60Cx
S-5C
L-50Cx
14
COMPONENTS
LSeries
COMPONENTS SSeries
COMPONENTS

3" CAST ALUMINUM HORN
TWEETER
Compression Horn Tweeter provides outstanding
imaging and smooth high frequency reproduction.
Bullet Design with Diamond Cut Accents
Precise frequency separation.
4-ohm
100 RMS / 200 Max
18 oz Ferrite Magnet
105 dB 1W/1M
6dB Crossover Included
6.5" MID RANGE DRIVER
Hybrid Carbon/Paper with DDC Finish
(Dynamic Damping Coating)
for reduced distortion
Phase Plug
for better dispersion and smoother sound
Treated Folded Cloth Surround
for greater efficiency and higher frequency response
Rigid Tooled Basket
with black powder coated finish
4-ohm
75 RMS/150 Max
28 oz Ferrite Magnet
1.0" KSV Voice Coil
90dB 1W/1M
L-3H L-65-9O ABA-1
BASS ACCELERATOR
Digital Bass Restorer
Variable Frequency Control
Variable "Q" Control
Visual LED Level Indicators
Frequency Response: 10Hz thru 100Hz
Remote Gain Control
4 BAND PARAMETRIC
EQUALIZER / PRE-AMP
PWM Power Supply
Switchable main/aux input
Front/Rear/Sub Output
Master Volume Control
Selectable 120/80Hz Subwoofer Crossover
Subwoofer Volume Control
Fader Control
mp3 Compatible (rear RCA input)
AEQ-7XO ATK-4, ATK-8, ATK-1O
ACP-2.4, ACP-1.2
2.4 FARAD AND 1.2 FARAD
DIGITAL CAPACITOR
Red 4 Digit LED Voltage Meter
Supercharged Electrolyte Fluid
Polycarbonate Display Cover
Auto Turn On
Mounting Clamps
Platinum Power Connectors
20 VDC
Attractive Blister Card
4 GAUGE, 8GA, 10GA
AMPLIFIER WIRING KITS
17' High Quality RCA Cables
17' OFC Power and 3' Ground Wire
Blue Turn On Wire
20' Speaker Wire
Gold Terminal Connectors
AGU Fuse Holder
6' Black Split Loom Tubing
Cable Ties, Grommets, more . . .
Attractive Blister Card
PROVIDES
THE INSTANT
POWER YOUR
AMPLIFIER NEEDS
FOR MAXIMUM SPL
AND TIGHTER
BASS
EVERYTHING
YOU NEED FOR A
COMPLETE
INSTALL !!!
15
ACCESSORIES

www.myspace.com/powerbassusainc
www.powerbassusa.com
PowerBass® USA, Inc.
13936 Mountain Avenue • Chino, CA 91710
tel [phone] • fax [phone] • www.powerbassusa.com
Due to continuing product improvement, features and specifications are subject to change without notice.
©2010 PowerBass USA, Inc. All Rights Reserved.
CAT-AS2010
0110
$2.95
Santoprene® is a registered trademark of ExxonMobil Chemcial Co.
Ferrofluid® is a registered trademark of Ferro-Tec International
Kevlar® and Kapton® are registered trademarks of E.I. du Pont de Nemours and Company
PowerBass Amplifiers and Speakers are manufactured under an
ISO9001:2000 quality System
®
