Power Craft High-pressure cleaner User manual

CAUTION:Donotusetheappliancewithouthavingreadtheinstructionsforuse
OPERATING INSTRUCTIONS

2
Wearepleasedthatyouhavedecidedtopurchasethishigh-pressurecleaner.
This high-pressure cleaner is ideally suited to the cleaning of vehicles, facades,
terraces,gardenimplements,tools.Itisnotconstructedforindustrialuse.
Please read these operating instructions before putting
your unit into use for the first time and give particular
attention to the safety notes!
Thewarningandinformationsignsaffixedtotheunitareimportant
indicationsfor its usefree from danger.
Apart from the notes provided in the operating instructions you
mustalsotakeintoconsiderationlegalregulationsforsafeprac-
ticeandthepreventionofaccidents.
This symbol identifies all instructions which are
important for your safety.Always obey these
instructionsotherwiseinjuriesmayresult!

3
Unpack the cleaner
Packing list/Controls
1High-pressure cleaner
A - Connection nipple for detergent suction
tube with filter
B - Unit switch (ON/OFF)
C - High-pressure outlet
D - Inlet water connection with filter
E - Mains cable
2Handle
3Screws (2x)
4Detergent suction hose with
detergent filter and cover
5Detergent tank
6Quick-fitting coupling
7Accessory compartment
8Handgun
9High-pressure hose
10 Spray lance with vario power nozzle
11 Spray lance with rotary nozzle
12 Rotary washing brush
13 Universal detergent (0.5 l concentrate)
Check the kit supplied!
If parts are missing or you ascertain any damage please contact us immediately by means of the
service telephone (at the latest 1 week after the date of purchase).
Please arrange for the proper disposal of the packaging
The packaging material can be recycled.
Please do not place the packaging into the ordinary refuse for disposal, but arrange for the
proper recycling.

4
Attaching the Transport Handle and Detergent Tank
A) Slide the transport handle on to the casing.
B) Fasten the transport handle using the two screws provided for the
purpose.
Insert the detergent suction hose with the filter on the connection
nipple.
Also fasten the detergent suction hose in the two guides of the trans-
port handle.
Insert the detergent suction hose with the filter in the detergent tank
and close it with a lid.
Electrical Connection
Never use defect connection or extension cables! If the connec-
tion cable is damaged, it must be replaced with a special
connection cable that is available from the manufacturer or his
customer service.
Please make sure that the connection or extension cables are
not damaged by being ran over, pulled or dragged. Protect the
connection cables from heat, oil, and sharp edges.
Never touch the mains plug and the socket with wet hands.
The connection between connection cable and extension cable
must not lie in the water.
All current-carrying components within the working area must be
jet-proof.
- The appliance may only be connected to an electrical connection
that was performed by an electrician according to IEC 60364.
- Only connect the appliance to alternating current. The voltage
must comply with the voltage specified on the rating plate.
- Minimum fuse protection of the socket 10 A (delay-action fuse).
- To avoid electric accidents, we recommend to use sockets with
a series connected residual current operated device (rated
breaking current max. 30 mA).
-Warning: Inappropriate extension cables may be dangerous. If
you work outside, only use extension lines that are approved and
specifically labelled and provide of a sufficient conductor cross
section:
1 to 10 m: 1.5 mm² 10 to 30 m: 2.5 mm²
- The plug and the coupling of an extension cable must be
waterproof.
- Always unwind the extension cable completely from the cable
drum.
Water connection
Please conform with the regulations of the water supply company.
The water supply may not exceed 10 litres/minute; the water may have a maximum temperature of
40 °C and a maximum pressure of 12 bar.
Note: The unit must be connected to the drinking water supply mains via a non-return valve.
Water hose (not in supply kit):
Use a fabric-reinforced hose with a commercially available quick-fitting coupling. The hose should
have an internal diameter of at least 1/2" 13 mm) and a length of at least 7,5 m.
Attention: Dirt in the water supply can damage the unit. We recom-
mend the use of a water filter, 3/4" fitting, to avoid this.

5
Safety Instructions
The operation of the device in hazardous locations is not admissible.
Please comply with the corresponding safety instructions if you use the appliance in danger
areas (e.g. filling stations).
Do not turn on the appliance if the power supply cable or important components of the
appliance, such as safety components, high-pressure hoses, spray jet, are damaged.
Warning: High-pressure hoses, fittings, and couplings are of importance for the appliance
safety. Only use high-pressure hoses, fittings, and couplings recommended by the manu-
facturer.
The appliance must not be operated by children or non instructed persons.
The operator must use the appliance properly. He must take the local conditions into
consideration and must pay attention to third persons, in particular children, while working
with the appliance.
Warning: Do not use the appliance if third persons are within the reach of the appliance
unless such persons wear protective clothes.
Warning: High-pressure jets may be dangerous if they are used improperly.
The jet must not be directed at people, animals, active electrical equipment, or the appli-
ance itself.
Never direct the jet at yourself or third persons to clean clothes or shoes.
Never use the appliance to spray objects containing hazardous substances (e.g. asbestos).
Warning: Vehicle tyres/tyre valves may be damaged and burst by the high-pressure jet. A
first sign is the discoloration of the tyre. Damaged vehicle tyres/tyre valves are hazardous.
Always perform the cleaning with a minimum distance of 30 cm.
Cleaning operations during which oil saturated waste water is generated, such as engine
cleaning and underbody cleaning, may only be performed in cleaning locations that are
equipped with an oil separator.
If you clean varnished surfaces, please respect a minimum distance of 30 cm to avoid
damages.
Never take in solvent-containing liquids or undiluted acids and solvents! These include, for
example, benzene, paint thinner, or heating oil. The spray is highly inflammable, explosive,
and toxic. Do not use acetone, undiluted acids, and solvents as they affect the materials
used on the appliance.
If required, wear appropriate protective clothes and glasses to protect yourself from return
spray.
Never leave the appliance unattended as long as it turned on.
Warning: This appliance has been developed for the use of detergents that are supplied or
recommended by the manufacturer. The use of other detergents or chemicals may affect
the safety of the appliance.
Safety Devices
Safety devices are intended to ensure the protection from injuries and must not be modified or
circumvented.
Unit switch
The switch prevents unintented starting of the appliance. Stop the appliance during breaks or after
operation.
Safety Button
The safety button located on the trigger gun ensures that the appliance is not switched on inadvert-
ently.

6
Initial Operation
A) First squeeze out the clip using a sharp object or similar.
B) Then you can pull out the clip.
C) Put the high-pressure hose into the handgun up to the stop. Press
the clip back into the handgun.
D) Use it to secure the high-pressure hose.
A) Insert a spray lance (or the washing brush) into the bayonet con-
nection of the handgun.
B) Turn it by 90 ° (B) until it locks into place.
A) Screw the quick-fitting coupling onto the water connection of the
unit.
B)Pressthequick-fittingcouplingofyourwaterhoseontothecoupling
of the water connection. The coupling must engage.
Connect the high-pressure hose to the high-pressure outlet.
The high-pressure hose must not be damaged (danger of
bursting). A damaged high-pressure hose must be replaced
immediately. Please call our service hotline in this case.
Connect your water hose to the water mains supply. Open the water
tap completely.
Caution! If the high-pressure cleaner is operated with a closed water
supply line, the cylinder head unit will be damaged. Never operate the
high-pressure cleaner with a closed water tap.
Insert the power plug into the plug socket.

7
Operating with high pressure
Spray lance with pressure control
You can adjust the working pressure progressively by turning the end of
the spray lance (+ / –).
Spray lance with rotary nozzle
For obstinate accumulation of grime: a pencil jet rotating at high speed
creates a high impact pressure and thus achieves a good cleaning
result.
Attach a spray lance to the handgun.
Switch on the appliance.
Note: The unit is equipped with a pressure switch. The motor only
starts running when the lever of the handgun is pressed.
Owing to the water jet emerging from the high-pressure nozzle
a recoil force acts on the handgun. Therefore hold the handgun
and spray lance firmly.
Prepare the lever of the handgun for use by releasing the safety latch
Draw in the lever of the handgun.
Note: The lever of the handgun must not be clamped in place when
in use.
Never direct the water jet towards human beings, animals, at the
unit or at electrical parts.
Vehicle tyres and tyre valves may only be cleaned at a minimum
distance of 30 cm, otherwise the vehicle tyres or tyre valves can
be damaged by the high-pressure jet. First signs of this are
a discoloration of the tyre. Damaged vehicle tyres or tyre valves
are highly dangerous.
Asbestos-containing materials and others which contain health-
endangering substances may not be washed down.
It may be necessary to wear protective clothing for protection
against return spray.

8

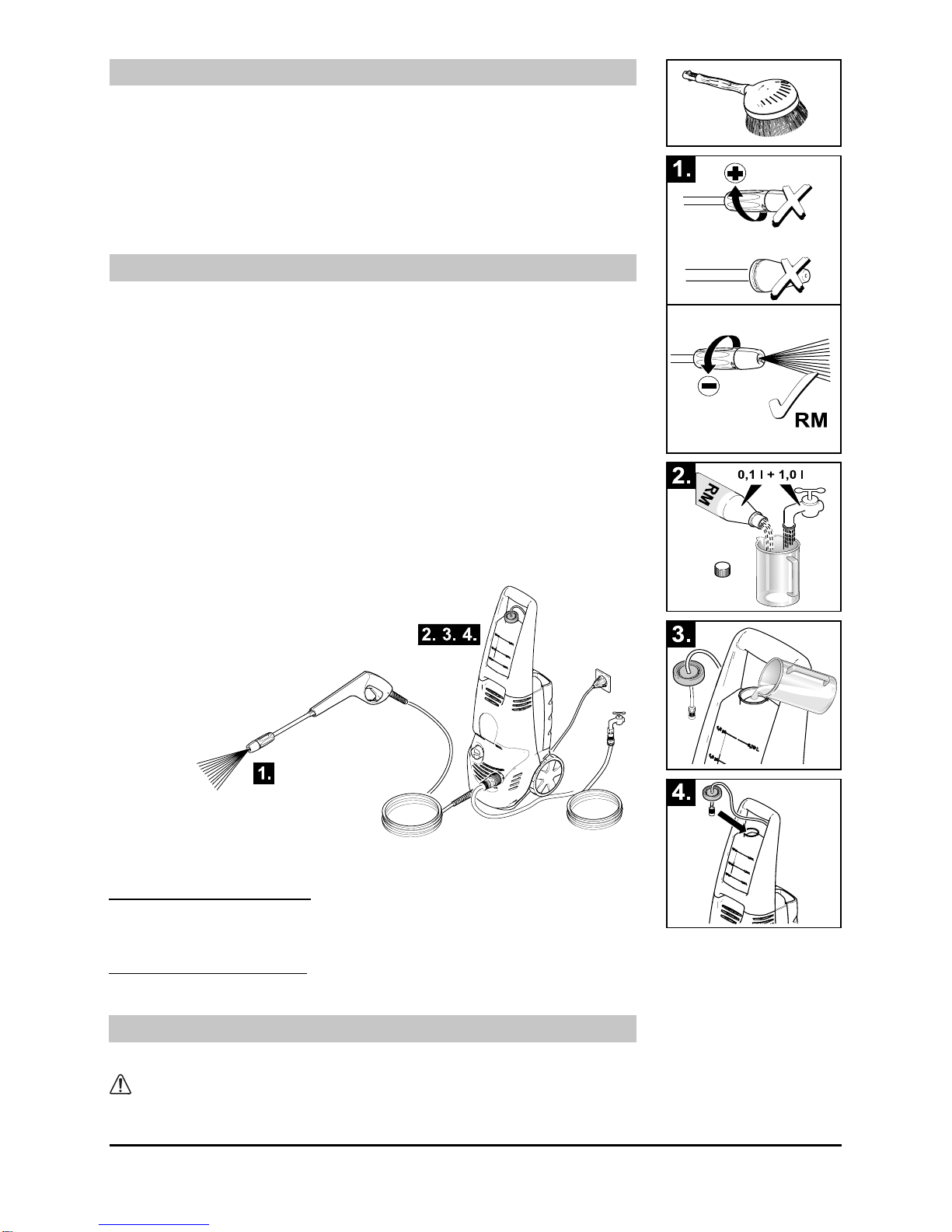

Operation with washing brush
The washing brush is ideally suited for the cleaning of vehicles.
Note: Please make sure that the washing brush is free from dirt or other
particles. Otherwise, it may cause defects in the paint work. Please
make also sure that the water flow is ensured.
Alsoa dryoperation ofthe brushcanresultindamages tothe paintwork.
1. Attach the washing brush to the handgun.
2. See “Operation with high pressure”, items  and .
Operation with detergent
Note: Operating the appliance with detergents is possible only while
using the rotating washing brush or the spray lance with pressure con-
trol. The following section describes the procedure to operate the appli-
ance with detergents and the spray lance.
Attach the spray lance with pressure control on the handgun, and set
the spray tube to low pressure („–“ direction).
Important: In the high pressure operation setting (pressure control to
”+”) and with the rotary nozzle detergent will not conveyed .
Mix 0.1 litres of universal cleaner concentrate with 1 litre of tap water.
Pour this detergent solution into the detergent tank.
Insert the detergent suction hose into the detergent tank.
See “Operation with high pressure”, items  and .
Cleaning method
1. Step: Loosening the dirt
Spray the detergent on the dry surface and allow it to react, but not to
dry.
For the vehicle cleaning: Use the washing brush in addition.
2. Step: Removing the dirt
Spray off the loosened dirt with the high-pressure jet.
Interrupting the cleaning operation
For longer breaks in work (more than 5 minutes) switch off the unit.
The unit must never be left unattended when the motor is
running.

9
Finishing work
Switch off the unit.
A) Draw the power plug out of the power socket.
B) Close off the water supply.
A) Press the lever of the handgun until the unit is free of pressure.
B) Secure the lever against inadvertent opening by using the safety
latch.
Disconnect the appliance from the water connection.
Please observe the following if the detergent tank is full:
Please pull out the detergent suction hose with the detergent filter up
to the cover once you have finished your work. This ensures that no
detergent solution enters into the high-pressure pump through the
detergent suction hose while the appliance is not in use.
Storage
1. Hang the handgun, the spray tube with pressure control, the spray
tubewiththerotarynozzle, and thewashingbrushintotheappropriate
seats on the rear of the appliance.
2. You can hang the power cord and the high-pressure hose over the
lateral rest.
Protection against frost
A unit which is not completely emptied of water can be destroyed by
frost. During the winter it is best to store the unit in a frost-free room.
A
B

10
Care and Maintenance
Switch off the unit and draw out the power plug before under-
taking any cleaning or maintenance!
Cleaning
Prior to longer periods of storage, e.g. in the winter:
Clean the sieve in the water connection. Unscrew the coupling unit
from the water connection. Remove the sieve using flat pliers.
Clean the detergent filter, and insert it again.
Maintenance
• The appliance is maintenance-free.
• Check the power cord and the high-pressure hose for damages in
regular intervals.
If the power cord is damaged, please arrange immediately for the
exchange by an authorized customer service or a skilled electrician.
Please arrange for the immediate exchange of a damage high-pres-
sure hose (risk of bursting).

11
Troubleshooting
In this section we should like to give you some advice on how you can
clear minor malfunctions yourself.
Switch off the unit and draw out the power plug before undertak-
ing any cleaning or maintenance!
Any investigation of electrical
components may only be carried out by the authorised customer
service.
When there are malfunctions, check the function with both
spray lances.
Unit does not function
• Check the mains voltage.
• Check the power cord for damage.
No water comes out of the nozzle or too little
• Check the water supply flow.
• Check the water hose for leaks or obstruction.
• Clean the filter in the water connection
(see “Care and Maintenance”).
• Bleed the unit: let the unit run without high-pressure hose, until water
emerges at the high-pressure outlet free of bubbles. Then connect the
high-pressure hose again.
Water comes out in pulses /The appliance switches on and off.
• Clean the spray lance and vario power nozzle.
Remove clogging from nozzle hole with a needle and rinse again with
water.
• Valves can become stuck if the unit has not been used for a long time.
Detergent is not taken in
• Set the spray lance with the pressure control to the minimum pres-
sure („–“ direction).
• Check whether the detergent suction hose or the detergent filter are
clogged.
• Check whether the detergent suction hose has been squeezed during
the attachment of the transport handle (see page 4).
The unit leaks
• Check the O-ring on the high-pressure hose screw fitting.
Replace defective or crushed O-rings.
• A slight leakage of the pump (3 drops per minute) is normal. If the
leakage is greater contact our service telephone.

12
Guarantee
CONDITIONS OF GUARANTEE
Warrantydoesnotextend to defectsarisingfromtheproduct beingusedforpurposesbeyond normal
household use, particularly when it goes beyond the purpose for which it was designed such as
commercial, industrial or rental applications.
All warranty periods commence on the date of purchase and are not transferable.
This warranty does not extend to defects which result from misuse, neglect, accident, abuse,
improperhandling,freezing,normalwear and tear,useofimproperchemicals or noncompliancewith
the operators instruction manual. The warranty will be invalidated if the product has been subject
to unauthorised repair or modification.
Thisguaranteeisonlyvalidprovidingtheaboveconditionsaremetandproofofpurchaseisprovided.
Aldi Stores Limited shall not be liable in any event at any time for any indirect or consequential loss
or damage. The rights and benefits under the warranty are additional to your statutory rights, which
are not affected by this warranty.
Machines and Accessories MUST be stored in a frost-free room.
FROSTDAMAGEISNOTCOVEREDBYTHISWARRANTY!
IN THE EVENT OF A BREAKDOWN
Firstly
If you think your machine is not working properly, please refer to the problem checklist on page 11
in this instruction manual.
Then
Providing the product has failed due to design or manufacturing fault within the warranty period of
36 monthsfromdateofpurchase,youmayreturntheproductbacktothestorefromwherepurchased
completewithallcomponents,themachinesoriginalpackagingandprooforpurchaseforexchangeor
refund.
Alternatively please visit your nearest HSS Hire Shop or contact the HSS Service Hotline on:
HSS Warranty and Service: UK & Northern Ireland & Republic of Ireland
Phone: [phone]
All units supplied for repair under warranty must be complete with hose, gun and lance together with
proof of purchase.
General Notes
Safety devices
Whenthe handgun isclosed theunit is switchedoff bya pressure switch.The integrated safety valve
is the safety device providing protection against exceeding the permissible operating pressure.
Accessories and Replacement parts
You may only use accessories and replacement parts which have been approved by the manufac-
turer. Original accessories and replacement parts provide the assurance that the
unitcan be operatedsafely and free of malfunctions.
Please arrange for the proper disposal of the old appliance
Old appliances contain valuable materials that can be recycled. Please arrange for the
proper recycling of old appliances. Batteries, oil, and similar substances must not enter
the environment. Please dispose of your old appliances using appropriate collection systems.
09/2006

13
Technical Data
Power supply
Voltage .......................................... 240 V
Type of current ........................................ 1~50 Hz
Connected load ........................................... 2,1 kW
Supply fusing (time-lag) ............................................ 13 A
Safety class ................................... 1, IPX 5
Water connection
Supply temperature (max.) ............................................ 40 °C
Supply volume (min.) (10 l/min)........................... 600 l/h
Supply pressure (12 bar) .............................. 1,2 MPa
Supply hose
- length, min. ........................................... 7.5 m
- diameter, min. ........................................... 1/2 inch
Performance data
Pressure (max.) (150 bar) ............................. 15 MPa
Working Pressure (120 bar) ............................. 12 MPa
Flow volume (450 l/h).............................. 7,5 l/min
Cleaning agent suction (0,3 l/min)............................ 20 l/h
Recoil force of handgun at working pressure ........................ 16 N
Sound level, LPA (EN60704-1) ................ 74 dB(A)
Guaranteed sound power level, LWA(2000/14/EC)................ 87 dB(A)
Appliance vibrations (ISO 5349) ....................... 2,14 m/s²
Subject to modification

14
EU Declaration of Conformity
We hereby declare that the equipment described below conforms to the
relevant fundamental safety and health requirements of the appropriate
EU Directives, both in its basic design and construction as well as in the
version marketed by us. This declaration will cease to be valid if any
modifications are made to the machine without our express approval.
Product: High-pressure cleaner
Model: PowerCraft
Relevant EU Directives:
98/37/EEC
73/23/EEC (+93/68/EEC)
89/336/EEC (+91/263/EEC, 92/31/EEC, 93/68/EEC)
2000/14/EEC
Harmonised standards applied:
DIN EN 60 335 – 1
DIN EN 60 335 – 2 – 79
DIN EN 55 014 – 1 : 2000 + A1: 2001 + A2: 2002
DIN EN 55 014 – 2 : 1997 + A1: 2001
DIN EN 61 000 – 3 – 2 : 2000
DIN EN 61 000 – 3 – 3 : 1995 + A1: 2001
Conformity assessment procedure followed: Anex V
Measured sound power level: 86 dB(A)
Guaranteed sound power level: 87 dB(A)
Appropriate internal measures have been taken to ensure that series-
production units conform at all times to the requirements of current EU
Directives and relevant standards. The signatories are empowered to
represent and act on behalf of the company management.
Cleanerworld GmbH
AmSchützenbaum19
D-97953Königheim
09/05

15

01-06_5961993.0
