Power Team 62072 User manual

Page No. 1 of 14
Issue Date: Rev 14 1 Sep. 2012
© SPX Hydraulic Technologies
Form No.102842
SINGLE-STAGE AND TWO-STAGE
HYDRAULIC HAND PUMP
Max. Pressure: See Pump Data Plate
Operating Instructions for:
62072 (See P159) 201338-TID (See P12) P157 SERIES
62087 (See P55) P12 SERIES P175D SERIES
64122 (See P55) P19 SERIES P159 SERIES
64215 (See P59) P23 SERIES P159D SERIES
64372 (See P55) P30F SERIES P300 SERIES
66463 (See P59) P55 SERIES P300D SERIES
64662 (See P157) P59 SERIES P460 SERIES
64663 (See P157) P59F SERIES YM-01
SPX Hydraulic Technologies
5885 11th Street
Rockford, IL 61109-3699
USA
Tech. Services: [phone]
Fax: [phone]
Order Entry: [phone]
Fax: [phone]
Internet Address: http://www.powerteam.com
5
ORIGINAL INSTRUCTIONS

Page No. 2
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
Contents
SAFETY EXPLANATIONS ...................................................................................................3
1. Pictogram Denition 3
SAFETY PRECAUTIONS .....................................................................................................4
SET-UP .................................................................................................................................7
1. Hydraulic Connections 7
OPERATION .........................................................................................................................7
1. Two-way Valve 8
2. Four-way Valve 8
PREVENTIVE MAINTENANCE ............................................................................................8
1. Bleeding Air From the System 8
2. Bleeding Air From The Pump 8
3. Hydraulic Fluid Level 9
4. Draining And Flushing The Reservoir 9
5. For models with Reservoir Type B & C: 10
6. For models with Reservoir Type D: 10
TROUBLESHOOTING GUIDE ........................................................................................... 11
POWER TEAM FACILITIES ...............................................................................................13

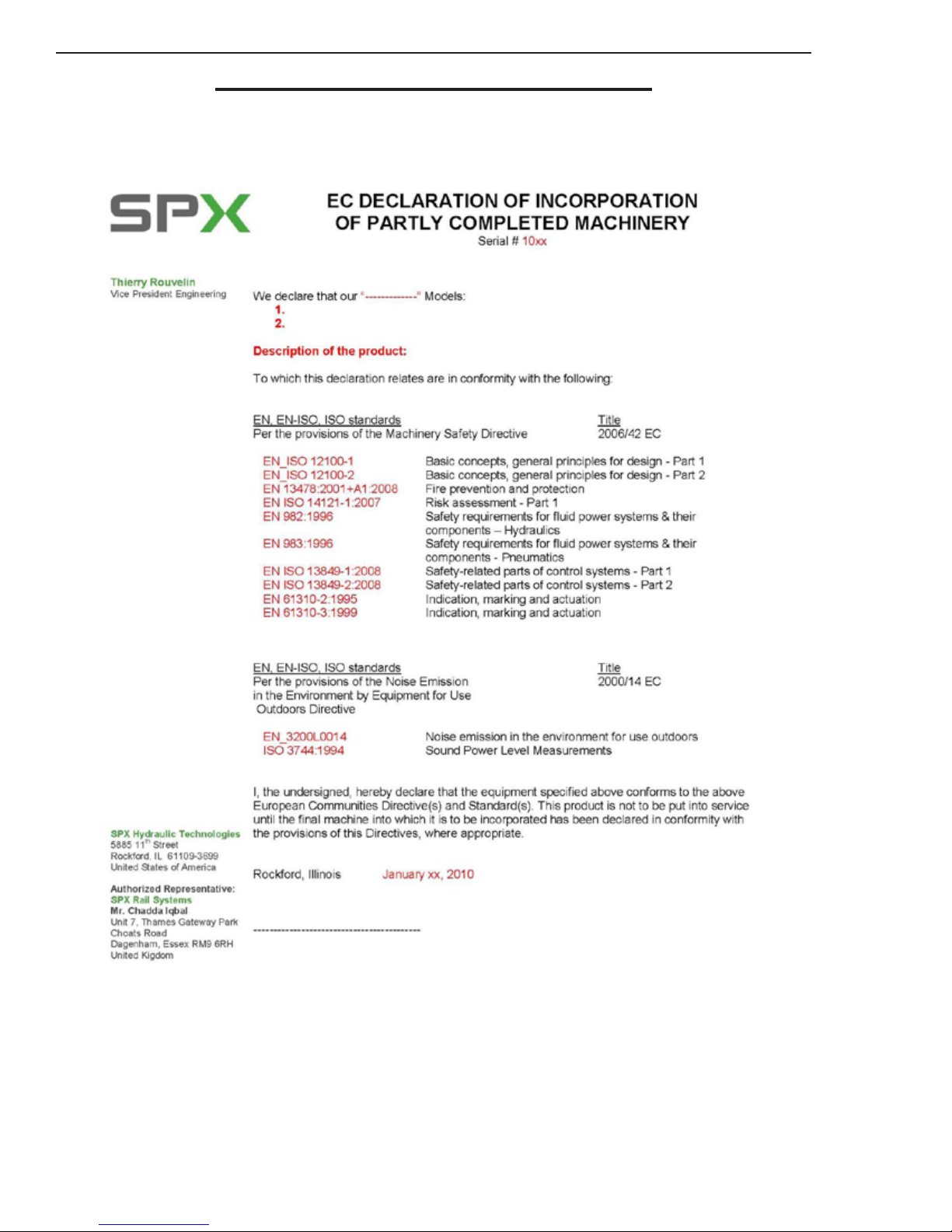

DECLARATION OF INCORPORATION .............................................................................14

Page No. 3
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
SAFETY EXPLANATIONS
Two safety symbols are used to identify any action or lack of action that can cause person-
al injury. Your reading and understanding of these safety symbols is very important.
DANGER
Danger is used only when your action or lack of action will cause serious human injury or
death.
WARNING
Warning is used to describe any action or lack of action where a serious injury can occur.
IMPORTANT
Important is used when action or lack of action can cause equipment failure, either imme-
diate or over a long period of time.
1. Pictogram Denition
Do not remove this component. For service only. Pressure must be released.
WARNING
It is the operator’s responsibility to read and understand the following safety statements,
• Only qualied operators should install, operate, adjust, maintain, clean, repair, or trans-
port this machinery.
• These components are designed for general use in normal environments. These com-
ponents are not specically designed for lifting and moving people, agri-food machin-
ery, certain types of mobile machinery or special work environments such as: explo-
sive, ammable or corrosive. Only the user can decide the suitability of this machinery
in these conditions or extreme environments. Power Team will supply information
necessary to help make these decisions.
• Do not use equipment if damaged, altered, or in poor condition.
• All safety decals must be replaced when unreadable.
These instructions are intended for end-user application needs. Most problems with new equipment are caused by
improper operation or installation. Detailed service repair instructions or parts lists can be obtained from your nearest
Power Team facility.

Page No. 4
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
SAFETY PRECAUTIONS
WARNING
To help prevent personal injury,
• Before operating the pump, all hose connections must be tightened with the proper tools.
Do not overtighten. Connections need only be tightened securely and leak-free. Over-
tightening may cause premature thread failure or high pressure ttings to split at pres-
sures lower than their rated capacities.
• Should a hydraulic hose ever rupture, burst, or need to be disconnected,
immediately shut off the pump and shift the control valve twice to release all
pressure. Never attempt to grasp a leaking hose under pressure with your
hands. The force of escaping hydraulic uid could cause serious injury.
• Do not subject the hose to any potential hazard such as re, extreme heat or cold, sharp
surfaces, heavy impact. Do not allow the hose to kink, twist, curl, or bend so tightly that
the uid ow within the hose is blocked or reduced. Periodically inspect the hose for
wear because any of these conditions can damage the hose and result in personal injury.
• Do not use the hose to move attached equipment. Stress may damage the hose and
cause personal injury.
• Hose material and coupler seals must be compatible with the hydraulic uid used. Hoses
also must not come in contact with corrosive materials such as creosote-impregnated
objects and some paints. Consult the manufacturer before painting a hose. Never paint
the couplers. Hose deterioration due to corrosive materials may result in personal injury.
• All components in the hydraulic system must match the maximum pressure rating of the
pump.
Pump
• Do not exceed the PSI rating noted on the pump nameplate or tamper with internal high
pressure relief valve. Creating pressure beyond rated capacities may result in personal
injury.
• Before adding hydraulic uid, retract the system to prevent overlling the pump res-
ervoir. An overll may cause personal injury due to excess reservoir pressure created
when cylinders are retracted.
• The load must be under operator control at all times.
• Do not connect pump to hydraulic system powered by another pump.
Cylinder
• Do not exceed rated capacities of the cylinders. Excess pressure may result in personal
injury.
• Do not set poorly-balanced or off-center loads on a cylinder. The load may tip and cause
personal injury.
• Stay clear of lifted loads and keep others away.
• Extensions are not recommended for lifting applications.

Page No. 5
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
SINGLE-STAGE AND TWO-STAGE
HYDRAULIC HAND PUMP
Max. Pressure: See Pump Data Plate
Denition: A hydraulic hand pump delivers hydraulic uid under pressure by directly applied
anual effort.

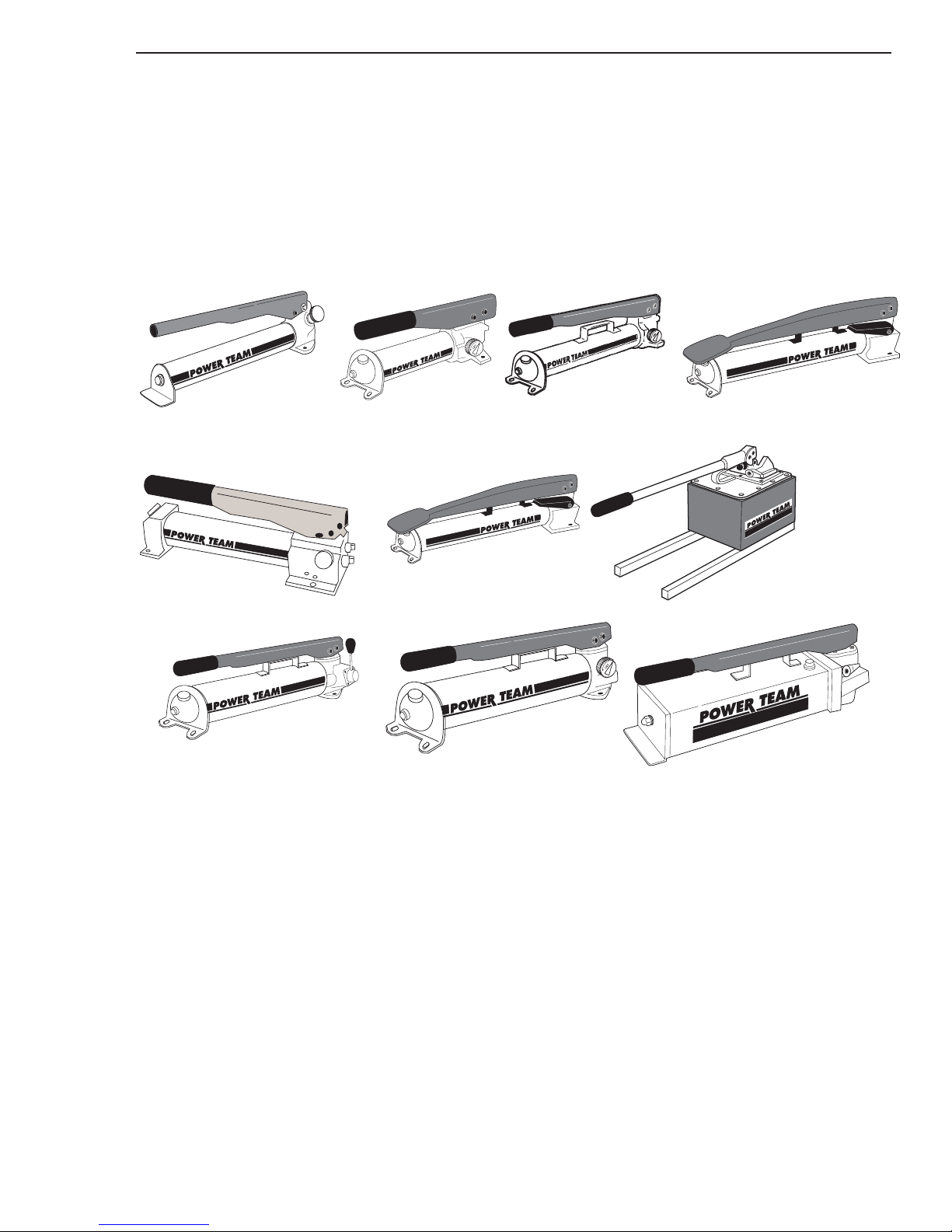

Note: Illustrations depict general pump congurations.
P12
P157D/P159D
P19
P23
P30F
P30FP
P157/P159
64662/64663 P300
P55 P59F
P59FP
P460

Page No. 6
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
For Use
With
Order
No.
Volume & Pressure Handle or Foot
Lever Effort
Reservoir Product
Weight
Stage
Volume per
stroke
Maximum
Pressure Type Oil Capacity
Usable Oil
Capacity
In.3cm3psi bar lbs. kg In.3cm3In.3cm3lbs. kg.
Single
Acting
Cylinders
(Pump
includes
2-Way
Valve)
P12 1 0.069 1.1 10000 700 75 34.0 A 12 197 9 148 5.7 2.6
P19 1
2
0.305
0.091
5
1.5
325
10000
22
700
8.5
98.5
3.8
44.7
B 24.4 400 20 328 6.6 3
P23 1 0.160 2.6 3000 200 70 31.8 B 23.8 390 20.3 333 12.0 5.4
P30F 1
2
0.216
0.054
3.5
0.9
325
10000
22
700
125 56.7 B 31 508 27 443 10.0 4.5
P30FP 1
pop-off
0.216
0.054
3.5
0.9
325
10000
22
700
125 56.7 B 31 508 27 443 10.0 4.5
P55 1 0.160 2.6 10000 700 145 65.8 B 55 901 45 738 15.8 7.2
P59 1
2
0.662
0.160
10.8
2.6
325
10000
22
700
145 65.8 B 55 901 45 738 17.2 7.8
P59F 1
2
0.550
0.130
9.0
2.1
325
10000
22
700
120 54.5 B 55 901 45 738 14.0 6.4
P59FP 1
pop-off
0.550
0.130
9.0
2.1
325
10000
22
700
145 65.8 B 55 901 45 738 14.0 6.4
P157 1
2
0.650
0.160
10.7
2.6
1400
10000
97
700
140 63.5 B 152 2491 137 2245 26.0 11.8
P159 1
2
2.600
0.160
42.6
2.6
325
10000
22
700
140 63.5 B 152 2491 137 2245 26.0 11.8
P300 1
2
2.600
0.160
42.6
2.6
325
10000
22
700
140 63.5 C 1.5 gal. 5.71 310 5081 55.3 25.1
P460 1
2
7.350
0.294
120.5
4.6
325
10000
22
700
90 40.8 D 2.5 gal. 9.51 460 7539 54.9 24.9
Double
Acting
Cylinders
(Pump
includes
4-Way
Valve)
P157D 1
2
0.650
0.160
10.7
2.6
1400
10000
97
700
140 63.5 B 152 2491 137 2245 28.8 13.1
P159D 1
2
2.600
0.160
42.6
2.6
325
10000
22
700
140 63.5 B 152 2491 137 2245 27.9 12.7
P300D 1
2
2.600
0.160
42.6
2.6
325
10000
22
700
140 63.5 C 1.5 gal. 5.71 310 5081 57.0 25.9
P460D 1
2
7.350
0.294
120.5
4.6
325
10000
22
700
90 40.8 D 2.5 gal. 9.51 460 7539 57.9 26.3
3/8 NPTF oil port(s) on all pumps.
Table 1

Page No. 7
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
SET-UP
1. Hydraulic Connections
IMPORTANT
Seal all hydraulic connections with a high grade, nonhardening thread sealant. PTFE tape
may also be used to seal hydraulic connections if only one layer of tape is used. Apply the
tape carefully, two threads back, to prevent it from being pinched by the coupler and broken
off inside the pipe end. Any loose pieces of tape could travel through the system and ob-
struct the ow of uid or cause jamming of precision t parts.
A. Clean all areas around the uid ports of the pump and cylinder. Clean all hose ends, cou-
plers, and union ends. Remove thread protectors from the hydraulic uid outlets, and con-
nect the hose assembly. Couple hose to cylinder.
B. The use of a hydraulic pressure or tonnage gauge (not included) is strongly recommended.
Remove the pipe plug from the gauge port of the valve, thread the gauge into this port and
seal as noted above.
WARNING
To help prevent personal injury,
• The gauge must have the same pressure rating as the pump and cylinder. Personal in-
jury can result if the wrong gauge is used.
• Release hydraulic pressure BEFORE removing or tightening hose couplings.
OPERATION
The P460 can be operated only in the horizontal position. All other hand pumps can be operated
in a horizontal position or in a vertical position with head pointing downward. Refer to Table 1 and
your pump name plate to determine your style of pump.
IMPORTANT
Figure 1 illustrates the normal drop of handle effort experienced when all (except P59) two-
stage pumps shift from low pressure stage to high pressure stage.
Handle Effort
Low Pressure Stage
High Perssure Stage
Unloading
Pressure
Pressure
Figure 1

Page No. 8
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
1. Two-way Valve
Pumps with a two-way valve are for use with singleacting cylinders.
A. 1. To extend the cylinder, turn the valve knob counterclockwise to a closed (seated) posi-
tion. Note: Hand tight only! Work the pump handle up and down to build pressure.
B. 2. To release pressure, open the valve slowly by turning the knob clockwise to control the
load.
2. Four-way Valve
Pumps with a three-position, four-way valve are for use with double-acting cylinders. The hose
connection for extending a cylinder can be made to either port. With the handle in the forward
position, the uid is directed to the top uid port. To maintain (hold) pressure, stop the pump-
ing action. When the valve handle is in the center position, uid ow is blocked to both ports.
WARNING
The operator should always release the pressure slowly.
PREVENTIVE MAINTENANCE
IMPORTANT
Any repair or servicing that requires dismantling the pump must be performed in a dirt-free
environment by a qualied technician.
Lubrication
Apply lubricant regularly to all pivot and rubbing points.
Use a good grade of No. 10 motor oil or grease. Do not use dry lubricants.
1. Bleeding Air From the System
Air can accumulate in the hydraulic system during the initial set-up or after prolonged use,
causing the cylinder to respond slowly or in an unstable manner. To remove the air:
A. Position the cylinder at a lower level than the pump, and turn the cylinder rod end down.
B. Extend and retract the cylinder several times without putting a load on the system. Air will
be released into the pump reservoir. Follow the uid level instructions for your reservoir
type to release the air from the reservoir and top off the uid supply.
2. Bleeding Air From The Pump
When the pump is rst put into use, or after relling the pump’s reservoir it may be necessary
to bleed any trapped air from the pump. If this is not done the pump will not function properly
(will not build pressure or has very spongy operation).

Page No. 9
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
To bleed air from the pump, turn the pressure control knob counterclockwise (CCW) (turn lever
down or clockwise on P460 models) and operate the pump handle up and down approximate-
ly twenty times. Turn the pressure control knob clockwise (CW) to its full stop position (turn
lever up or CCW on P460 models). The pump should now be bled of air and ready to use.
3. Hydraulic Fluid Level
WARNING
Cylinder(s) must be fully retracted before checking the uid level. Release all system pres-
sure before breaking any hydraulic connection in the system.
Check the hydraulic uid level in the reservoir periodically. Use a funnel with a lter to add hydrau-
lic uid if needed. Refer to Table 1 for your reservoir type.
For models with Reservoir Type A: Place the pump in a vertical position with the pump head
facing upward. Unscrew and remove the pump head from the reservoir. The uid level within the
reservoir should come to the uid level mark indicated on the reservoir body decal. Before replac-
ing the pump head, visually inspect the O-ring which seals the pump head/reservoir assembly.
Replace this O-ring if it is worn or damaged. Reinstall pump head to reservoir and tighten secure-
ly. Check for leaks.
For models with Reservoir Type B: Remove the ller cap. The uid level should come to the
bottom edge of the ller hole when the pump is level and resting horizontally on its base and the
cylinders are retracted (see Figure 2).
END VIEW
OIL
LEVEL
Figure 2
For models with Reservoir Type C: Remove the ller cap. The uid level should be 1/2 inch
(12.7 mm) from the ller hole when the pump is level and resting horizontally on its base and the
cylinders are retracted.
IMPORTANT
The pump sight gauge indicates the presence of hydraulic uid only. It does not determine
correct uid level.
For models with Reservoir Type D: Remove the ller cap. The uid level should be 1/2 inch
(12.7 mm) from the cover plate when the pump is level and resting horizontally on its base and the
cylinders are retracted.
4. Draining And Flushing The Reservoir
Drain, clean and replenish the reservoir with high-grade, approved Power Team hydraulic uid
yearly or more often if necessary. The frequency of uid change will depend upon the general

Page No. 10
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
working conditions, severity of use and overall cleanliness and care given the pump.
IMPORTANT
Clean the exterior of the pump rst. After draining and ushing the reservoir, drain and
clean the other hydraulic system components (hoses, cylinders, etc.) before connecting
them to the pump again. This will help prevent contaminated uid from entering the pump.
Refer to Table 1 for your reservoir type.
For models with Reservoir Type A:
A. Unthread and separate the pump head from the reservoir. Drain the reservoir of the used
hydraulic uid.
B. Flush out reservoir with a small amount of clean hydraulic uid. Clean the pump intake
lter.
IMPORTANT
Removing the lter from the pump assembly could result in its breakage. Attempt to clean it
as well as possible with it installed.
C. Rell the reservoir and reassemble the pump head to the reservoir. Tighten securely. Check
for leaks.
5. For models with Reservoir Type B & C:
A. Remove the ller cap. Drain the hydraulic uid through ller hole.
B. Remove the nut from the tie rod. Separate the reservoir from the pump body. Clean the
reservoir and lter.
IMPORTANT
Removing the lter from the pump assembly could result in its breakage. Attempt to clean it
as well as possible with it installed.
3. Reassemble and ll the reservoir with Power Team hydraulic uid. Replace the ller cap.
6. For models with Reservoir Type D:
A. Remove the ten screws fastening the reservoir cover to the reservoir, and lift the pump and
valve assemblies off.
B. Drain all hydraulic uid and ush reservoir with a small amount of clean hydraulic uid.
C. Remove the pump assembly lter, rinse it clean, and reassemble.
D. Rell the reservoir with Power Team hydraulic uid. Place the pump and valve assembly
(with gasket) on the reservoir, and thread the ten screws. Tighten securely and evenly.

Page No. 11
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
TROUBLESHOOTING GUIDE
WARNING
To help prevent personal injury, always release pump pressure and disconnect hose(s) from
pump before making repairs.
Refer to the appropriate pump parts list during troubleshooting. Repairs must be performed in a dirt-
free environment by qualied personnel familiar with this equipment..
PROBLEM CAUSE SOLUTION
Pump losing pressure. 1. System components
leaking.
1. Repair or replace as
necessary.
2. Directional control valve
leaks or not adjusted
properly.
2.* Reseat, repair, or replace
directional control assembly
and correctly adjust.
3. Fluid leaking past outlet
check seat(s).
3.* Check for dirt. Reseat pump
body and/or replace
poppet(s) or ball(s).
Handle rises after each
stroke.
1. Fluid leaking past outlet
check seat(s)
1.* Check for dirt. Reseat pump
body and/or replace
poppet(s) or ball(s).
Pump not delivering uid. 1. Low uid level in reservoir. 1. Check uid level per
instructions.
2. Intake lter is dirty. 2. Remove reservoir and
clean.
3. Seats worn and not seating
properly.
3.* Repair seats or replace
pump body.
Pump does not reach full
pressure.
1. Low uid level in reservoir. 1. Check uid level per
instructions
2. System components
leaking.
2. Repair or replace as
necessary.
3. Directional control valve
leaks or not adjusted
properly.
3.* Reseat, repair, or replace
directional control assembly
and correctly adjust.
4. Improperly adjusted relief
valve.
4.* Readjust.
5. Fluid leaking past inlet or
outlet checks or high
pressure piston seal
damaged.
5.* Reseat or repair inlet or
outlet checks or replace
high pressure piston seal.
Pump handle can be pushed
down (slowly) without rais-
ing the load.
1. Inlet checks are not seating. 1.* Check for dirt and/or reseat
valve seats.
2. Damaged piston assembly
or piston seals leaking,
2. Damaged piston assembly
or piston seals leaking.

Page No. 12
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
PROBLEM CAUSE SOLUTION
Pump handle operates with a
spongy action.
1. Air trapped in system. 1. Position cylinder lower
than pump. Extend and
return cylinder several
times. Follow bleeding
instructions.
2. Too much uid in reservoir. 2. Check uid level per
instructions.
Pump handle effort drops
signicantly after some pres-
sure has been obtained.
1. This is normal operation on
most two-stage hand
pumps.
*Power Team recommends these hand pump repairs be performed by an Authorized Hydraulic
Service Center.

Page No. 13
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
POWER TEAM FACILITIES

Page No. 14
Issue Date: Rev 14 28 May 2012
Operating Instructions Form No. 102842
DECLARATION OF INCORPORATION
