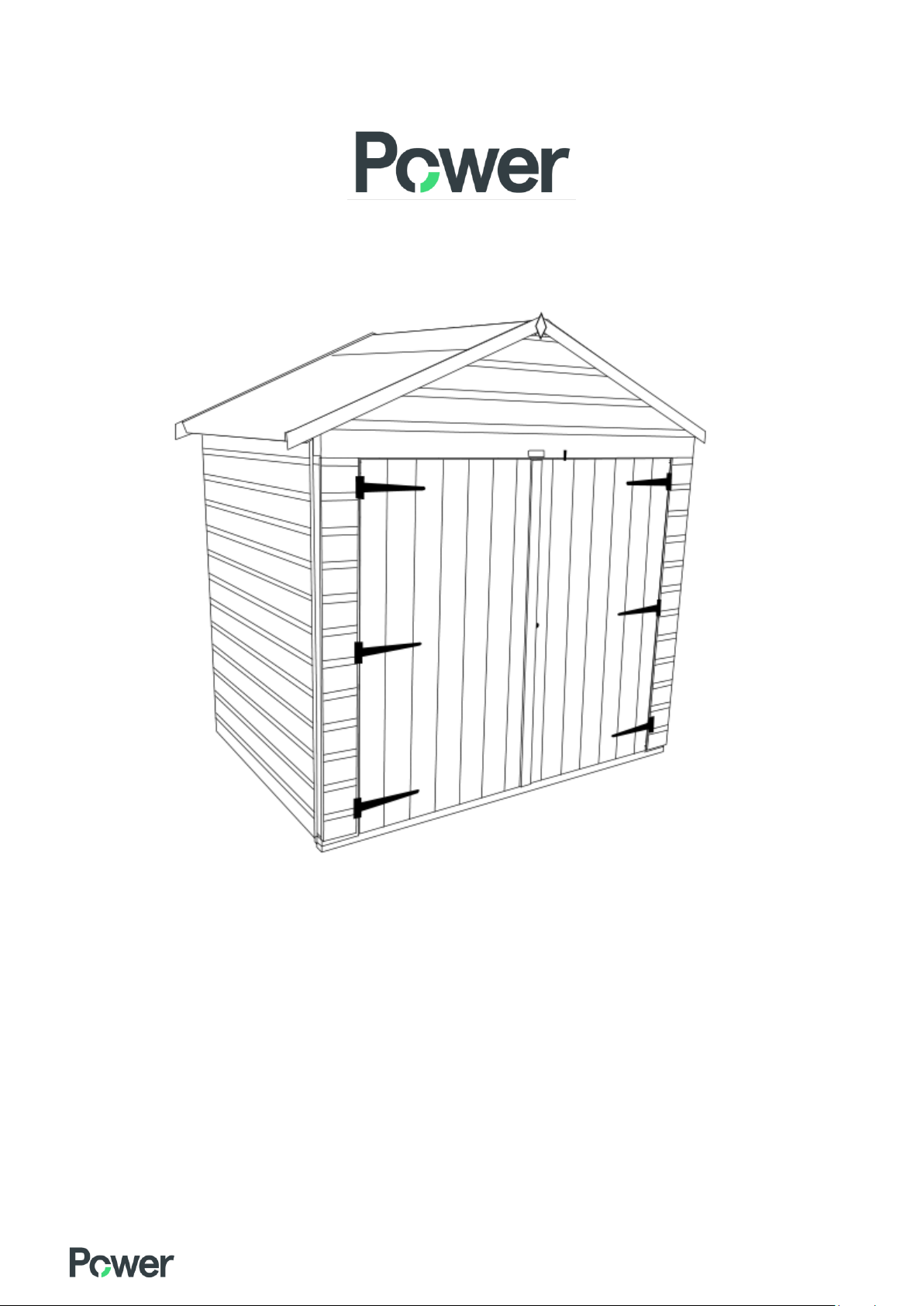

Power Apex Bike User manual

Apex Bike Shed Instruction Manual
________________________________________________________________
WARNING
UNPACKING SAFELY
Please follow these instructions to unpack your garden building safely
•Two people minimum to unpack
•Place the pallet on firm level ground
•Cut the plastic banding
•Remove each panel by removing screws one column at a time as indicated below
•Be careful of loose components inside the pack when removing panels
•Check all the components against the checklist prior to install
_______________________________________________________________
BASE KIT AND FIXING PACK
Please note –if you have ordered a base kit it’s unlikely you will be able to see the base kit from
the outside of the pack - it will be inside your panels. The fixings are also inside the pack.

Power Apex Bike Shed

Contents
Page 3 –Before You Start
Page 4 –Timber & Base Details
Page 5 –Components Checklist
Page 6 –Pre-Assembly
Page 7 –Floor
Page 8 - 11 –Walls
Page 12 –Gable Tops
Page 13 –Roof
Page 14 –Doors
Page 15 –Felt
Page 16 –Finishing Touches
Page 17 –Aftercare & Maintenance
Page 18 –Shed Shelving Instructions

Before You Start
Most accidents are the result of negligence and carelessness, usually caused by the failure of the operator to follow
simple but necessary safety precautions.
Do not install the garden building before carefully reading this manual.
Visit www.Powersheds.com to check the base size for your shed and any other dimensions you may need.
Health & Safety
Every effort has been made during the manufacturing process to eliminate splinters on the timber.
You are strongly advised to wear gloves when working with or handling timber.
We also strongly advise you to wear safety glasses when installing the felt to protect your eyes.
2 persons recommended
Power Sheds Ltd cannot be held responsible for any damage or injury sustained due to incorrect unloading,
unpacking, or assembly of any of our products.
Tools required
(not supplied)
Drill Spirit level Hammer Stanley knife Stepladder Saw
Our treatment
Wear gloves when handling freshly treated wood.
Avoid breathing dust when cutting treated or untreated wood. Dispose of off-cuts responsibly –do not burn.
Contains: IPBC (3-iodo-2-propynyl-N-butyl carbamate) and propiconazole.
May produce an allergic reaction (EUH208). Causes serious eye irritation (H319) Wash skin thoroughly after handling (P264)
Wear protective gloves/protective clothing/eye protection/face protection (P280)
IF IN EYES: Rinse cautiously with water for several minutes.
Remove contact lenses, if present and easy to do and continue rinsing. (P305 + P351 + P338)
If eye irritation persists: Get medical advice/attention (P337+P313)
PAGE 3 OF 18

Timber
As timber is a natural product, it is prone to changes in appearance, including some movement, warping and
splitting, particularly in extreme weather conditions. There may be the occasional split, knot or similar visual
imperfections in the timber.
Whilst every effort is made to hand pick timber without visible knotholes or splits there may be occasions where
timber is selected in good faith that contains what appears to be a solid knot which over the course of time / during
movement of the product it may occur that these small knot holes are then dislodged from the timber leaving a
small knot or crack.
Unfortunately, we cannot be held responsible for this maturing of the product and can only offer our best advice as
how to deal with this situation in the unlikely event that it should occur which would be to apply some wood filler to
the area affected or in extreme circumstances to change the board over.
None of this should affect the structural integrity of the product.
Firm & Level Base
All our garden sheds require a firm and level base.
When thinking about where the garden building and base is going to be constructed:
•Ensure that there will be access to all sides for maintenance work and annual treatment.
•Remember not to place the base too close to any walls or fences, as there may be a slight overhang
on the roof which may come into contact with the wall or fence.
•Ensure the base is level and is built on firm ground, to prevent distortion.
•Refer to PowerSheds.com for base dimensions.
•Consider when placing the base next to trees or large bushes as this could cause problems from
overhanging branches, especially if these are likely to grow and come into contact with the building
in the future and could cause the felt to rip.
The base is slightly smaller than the external measurement of the building, i.e. The cladding should overhang the
base, creating a run for water.
It is recommended that the floor is at least 25mm above the surrounding ground level to avoid flooding.
If you have not chosen to purchase our Power Base, then other suitable bases would include a concrete base (75mm
of concrete on top of 75mm of hardcore) or a paving slab base (slabs laid on top of 50mm of sharp sand).
Power Base Kit
If you have ordered a Power Base Kit the instructions can be found in the small base kit fixing pack.
Please scan the QR code to watch our base kit installation video -
Watch the build a base video:
www.powersheds.com/faqs/how-do-you-assemble-the-
power-sheds-base-kit/
PAGE 4 OF 18

Component checklist
*Please note -
- Cover lats, which are for each corner of the building and to cover any join in each panel (vertically from the outside) are the pieces of timber which are 12mm x 58mm thick. - Bargeboards, which are for the edges of the roof (although please carefully read the instructions where to put them as some go under the felt and some over the felt) are the pieces of timber which are 12mm x 70mm thick.
PAGE 5 OF 18
2x6
Floor
3x6
Floor
4x6
Floor
2ft Blank
Panel
3ft Blank
Panel
4ft Blank
Panel
Door
Wing
Doors Door Head Door Sill Roof Panel
6ft Apex
Gable Top
2x6 1 0 0 3 0 1 2 1 1 1 2 2
3x6 0 1 0 1 2 1 2 1 1 1 2 2
4x6 0 0 1 1 0 3 2 1 1 1 2 2
1790mm
Heavy Duty
Bearer
Bargeboard
(1965x 70mm)
Cover Lat
(1595 x
58mm)
Diamond
Finial
Felt
Fixing
Pack
2x6 2 4 5 2
(2x) 3ft Piece @ 1m wide
(1x) 3ft Piece @ 0.5m wide
1
3x6 2 4 5 2
(2x) 3ft Piece @ 1m wide
(1x) 3ft Piece @ 0.5m wide
1
4x6 2 4 5 2
(2x) 4ft Piece @ 1m wide
(1x) 4ft Piece @ 0.5m wide
1

The Fixing Pack
Your fixing pack will include:
•25mm screws (silver)
•35mm screws
•50mm screws
•70mm screws
•Clout nails (for the felt)
•40mm galvanised nails
If you have ordered a Power Base, you will also receive 80mm and 100mm screws.
On the rare occasion that not enough screws are provided please contact us and make us aware so we can
send more out to yourself. Please be aware we are unable to reimburse if you purchase your own.
Pre-Assembly
1. Safely unpack your components and check that you have all the parts required.
Please use the table in the two previous few pages to view which components are required for the size you
have ordered.
2. Carefully remove the pallet and any untreated packing timber.
See the aftercare section on ways to recycle these items or alternatively you can discard them.

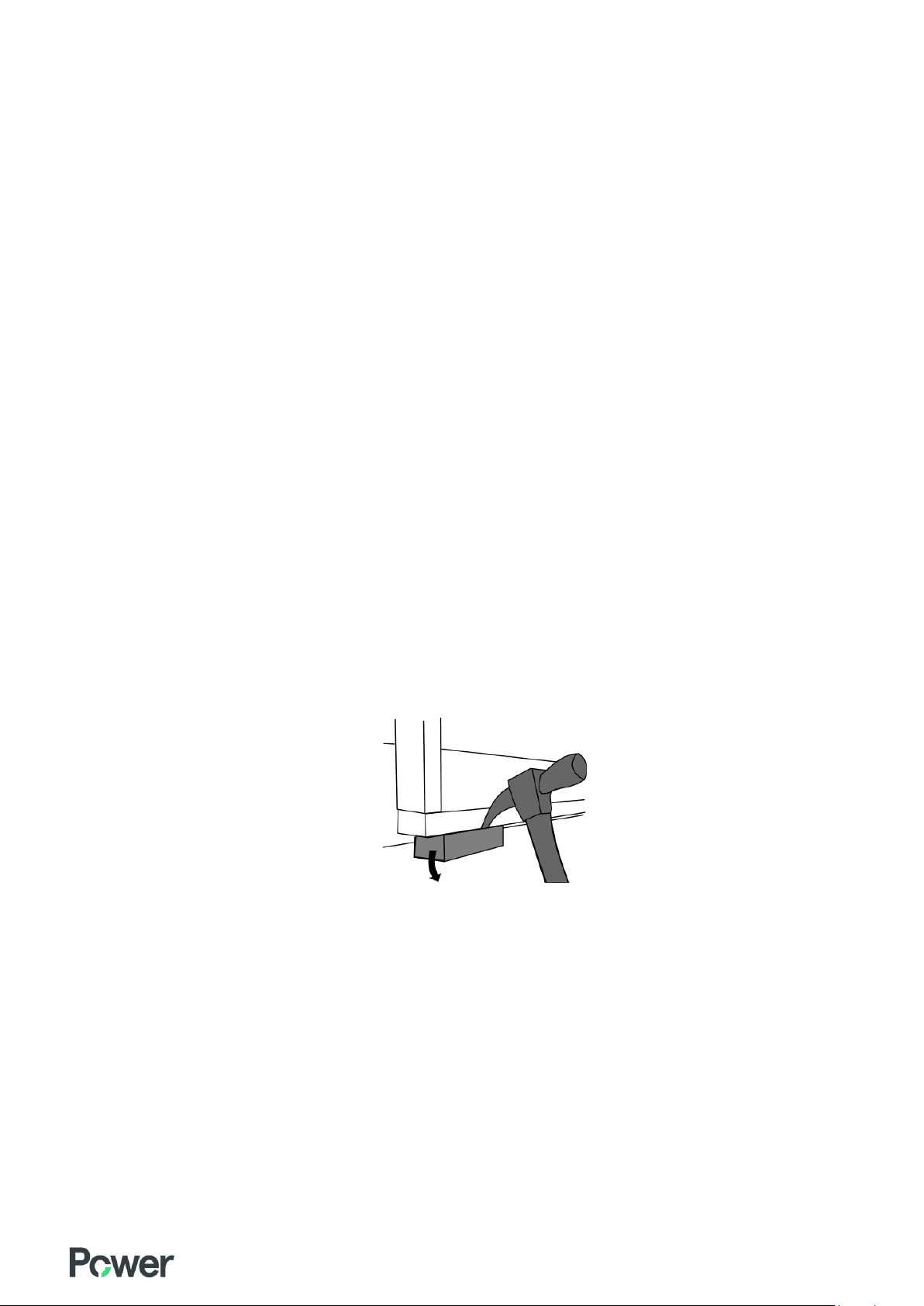

3. Remove any transport blocks from the bottom of the blank and window panels. These are there to offer
further protection to the bottom board of the panel.
USEFUL TIP!
Re-treat the underside of the floor before assembly for additional protection and maximum longevity.
Drilling
In the instructions we will talk about screwing panels together. We recommend this is done with a drill.
We suggest that you pre-drill the timber with a 3mm drill bit before inserting the screws.
This will minimise the chance the timber will split.
PAGE 6 OF 18

Floor
1. Lay down your floor panel(s) onto your firm and level base into the desired position of your shed.
Be sure to consider any overhangs on the shed when deciding the correct position as per the instructions
regarding bases in the ‘before you start’ section.
2. Screw the two ‘heavy duty bearers’, which are two pieces of framing joined together, to the 6ft front and
back with 50mm screws.
USEFUL TIP! If you have purchased a POWER Base you can screw the floor to the timber POWER base
below for maximum strength and security.
Reminder
Ensure bearers are
added to the floor!
PAGE 7 OF 18

Walls
1. Please ensure you have removed the transport blocks as per page 6.
2. Your shed will come with a number of wall sections. The quantity of these will depend which size you
ordered. Please see the components table to confirm which panels you should have for your Power Apex
Bike Shed.

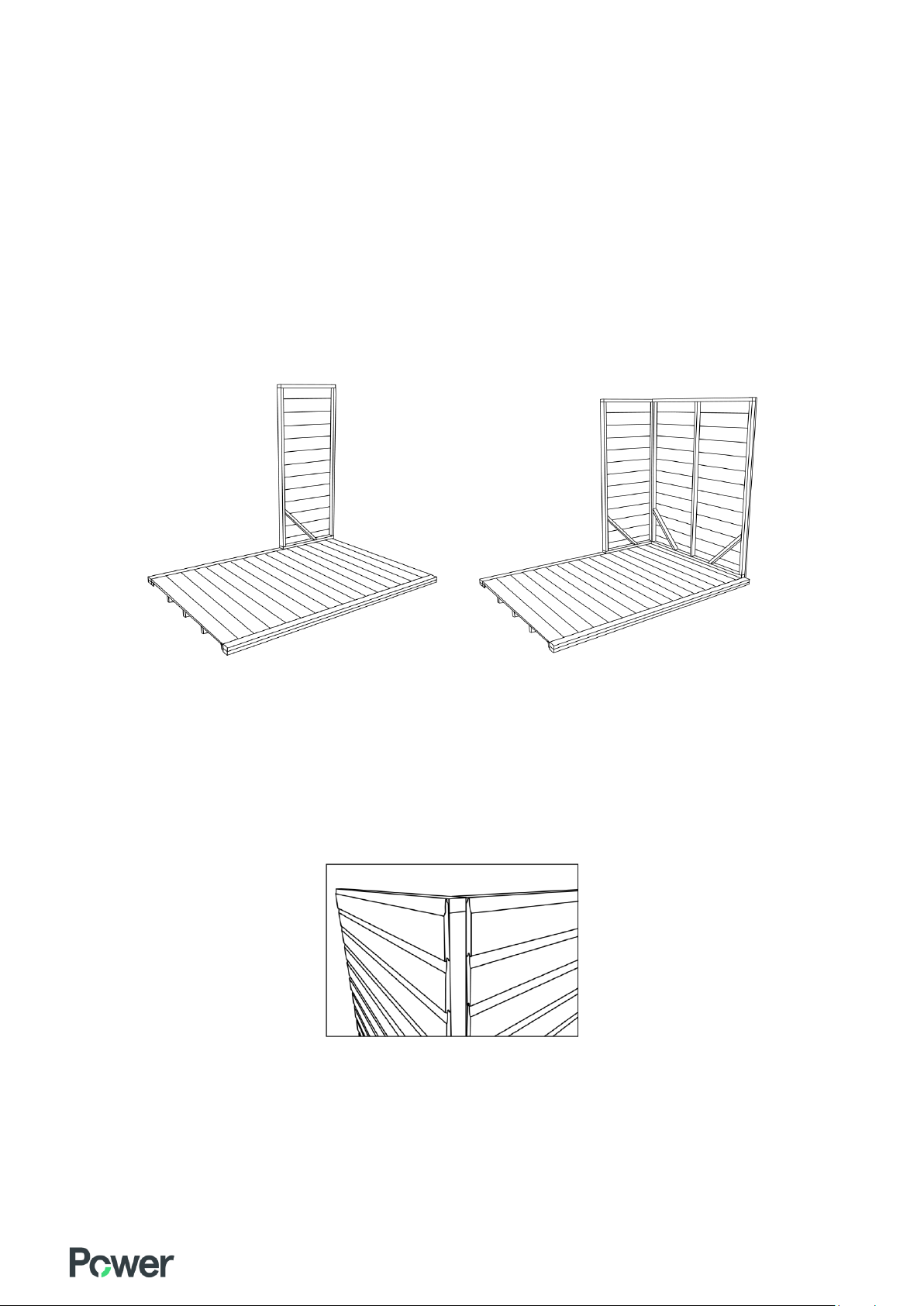

3. Start with the 2ft panel that will be part of your 6ft wall –position this on top of the floor panel. Ensure the
side of the panel is flush with outer edge of floor (but not sitting on the bearer). Then position one of the
end panels (which will either be 2ft, 3ft and 4ft) at the end (and sit this on the bearer) and secure these
panels together from the inside using the 50mm screws provided. Use three screws per join.
Important!
When securing panels together ensure they line up at the top (so the building is square) and that only the ends of
the cladding are shown, which will later be covered with corner strips).
This is only in the corner when the side meets the gable.
PAGE 8 OF 18

4. Place the 4ft back wall panel and then the other 2ft / 3ft / 4ft end wall panel and again secure using the
50mm screws provided.
5. Attach the one panel which goes at the side of doors (called the door wings). Again, continue to use 50mm
screws (three screws per join).
PAGE 9 OF 18

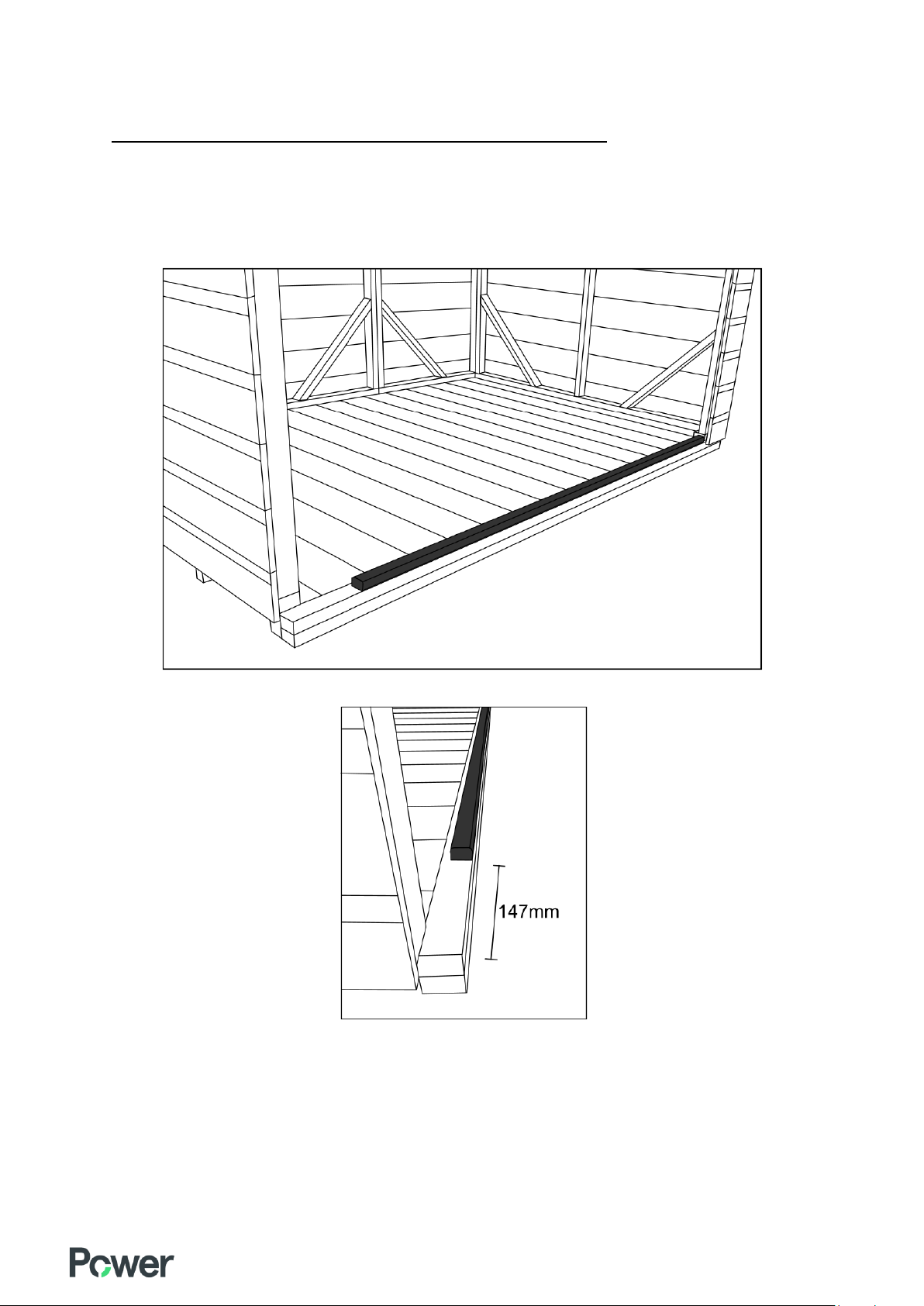

6. Before attaching the other door wing, attach the door sill which looks like a piece of framing in half. This will
be screwed to the floor beneath with 35mm screws.
We would strongly recommend to pre-drill the holes to avoid splitting.
This sill should be 147mm from each end of the floor (but not the floor bearer) and attached to the very
outside edge of the floor. (see image below)
7. You can then secure the other door wing using 50mm screws.
PAGE 10 OF 18

8. Once the two panels are on which go at the side both sides of the doors (door wings), you can add the door
head. This is the part which has the ‘Power’ brand on. To secure these to the panels below you need to
screw up through the door wings and into the door head. We strongly advise you to pre-drill before
screwing to avoid the timber splitting. You can then secure the door head to the side wall panels.
9. When you have secured all the wall panels together you then need to secure these to the floor using 70mm
screws provided. Screw into the floor with 2x screws for every wall panel (internally) ensuring the screws are
driven through the framing at the bottom of the side/gable walls, through the floorboards and into the floor
joists.
USEFUL TIP!
You can work out the position of the floor joists from the location of the existing nails in the floor. If the
upright framing or corner brace is in the way you would need to nail down into the floor joists at an angle.
If you are securing these panels against a wall (which gives you little access to nail the cover strips on, explained
later) you can pre-assemble a side and move the whole side into position (with the cover lats already nailed on)
PAGE 11 OF 18

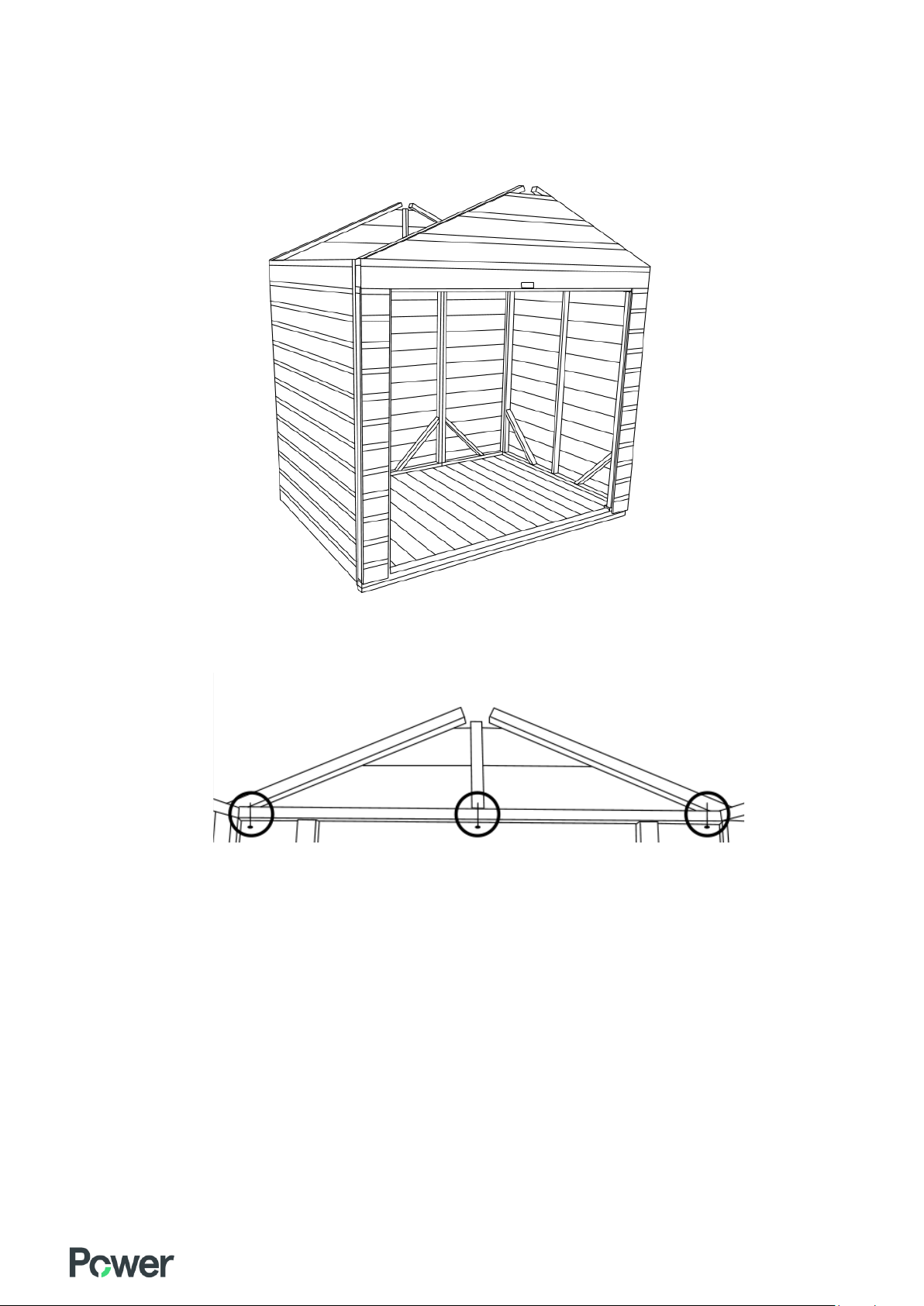

Gable Tops
1. Line up the gable tops with the panels at the front and back.
2. Secure them to the wall panels with 50mm screws from the inside, screwing upwards through the framing.
PAGE 12 OF 18

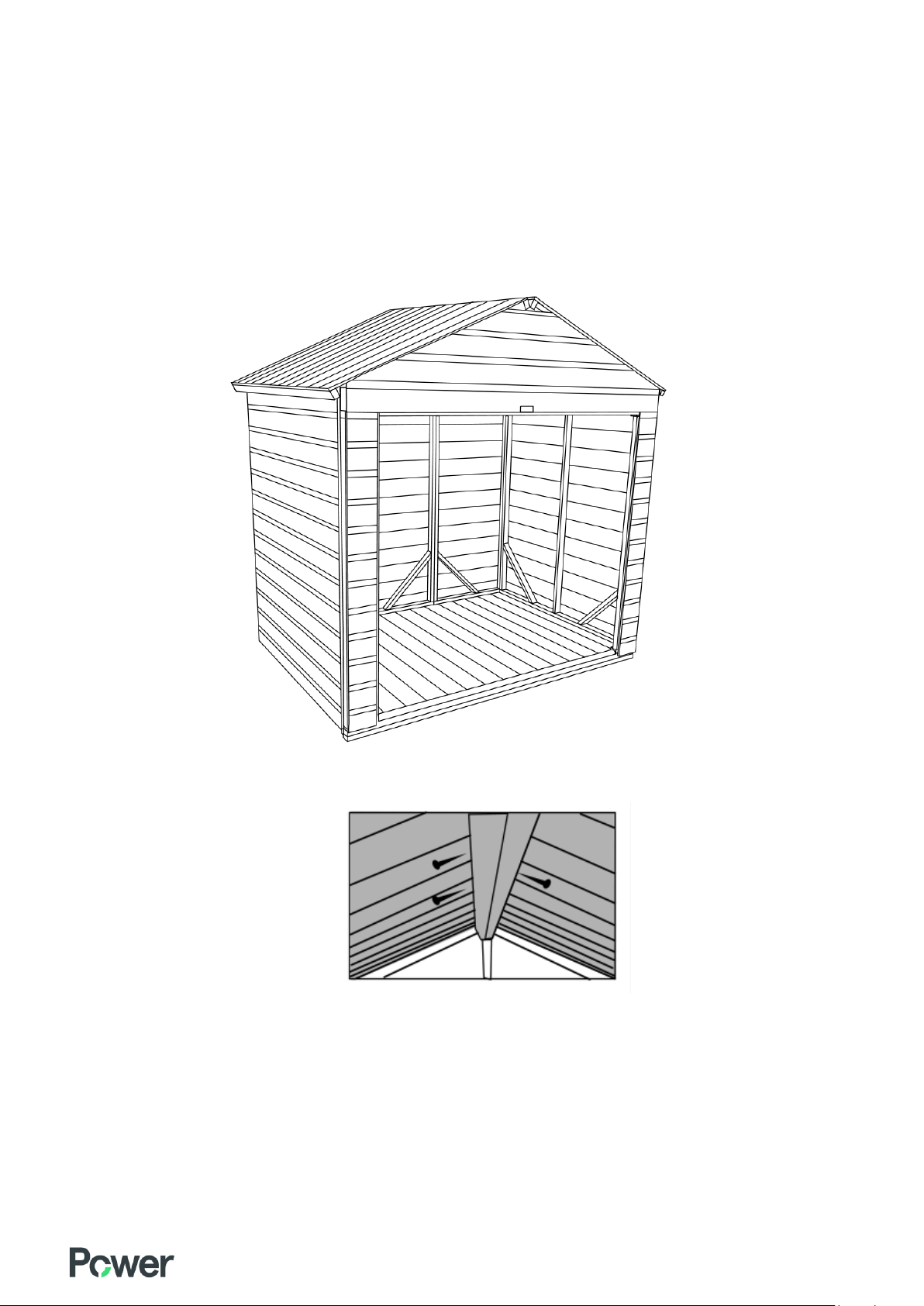

Roof
1. Your apex will come with two roof panels. These are not handed so can go on either side and does not
matter which direction the tongue and groove of the boards run as it will be covered by the felt and
bargeboards. They can go any way up.
2. Place the roof panels. Screw the roof panels together (internally) using 70mm screws.
There should be 6 screws joining the roof panels together.
3. Ensure the roof panels are positioned evenly at each end of the shed.
There will be no roof overhang at the gable end and so if one is overhanging and the other isn’t then the
position of the roof panel needs evening out. Then, screw the roof panels to the side wall panels with 50mm
screws (ensuring you screw down in to every upright piece of framing on the side walls) and screw the roof
panels into the gables at each end with 35mm screws (4x screws for each gable)
PAGE 13 OF 18

Doors
1. Your shed will come with two doors which you will need to hang.
The door with the lock on will go on the right (as you look at the shed from the outside) and the door with
the shoot bolts will go on the left.
2. Position one of the doors in place ensuring the gap between the edge of the door and the shiplap tongue
and groove cladding (which you will be screwing the doors in to) is approx. 5mm. This is the same for the top
of the door where the gap should also be approx. 5mm.
3. Ensure that it is square and when you are happy with the position, secure the hinges in place using the
25mm screws provided.
4. Repeat this process with the other door.
5. Choose a place above the door to secure your turn button.
Be careful not to screw this too tightly or it will not turn.
PAGE 14 OF 18

Felt
Health and Safety –Use safety goggles when installing the roofing felt.
1. Roll out the mineral roofing felt along the lower part of one side of the roof. Allow for sufficient overhang to
fold down onto the roof bargeboard (but not the underside roof bargeboard).
Note –If you are unsure on how to felt the roof please contact us directly for more information.
Please be aware, we cannot reimburse you if you choose to purchase additional materials
2. Use clout nails to tack along the top edge of the felt and into the roof board and the bottom edge of the felt into
the back bargeboard
Health and Safety –Use Step Ladders to put on the roof felt but do not climb on top of the roof.
Ensure there is a second person to support you when using a ladder.
3. You will receive an additional piece of felt to go on the ridge of the roof.
This will be secured to the roof using clout nails.
Important!
Take care not to tack into the
tongue and grove join between
each board as this can cause leaks.
PAGE 15 OF 18

Finishing Touches
1. Using the 40mm galvanised nails, fit the bargeboards, which are 70mm wide, to the roof panels and secure
the diamond finials over the top of the bargeboards.
2. Secure corner strips, which are 58mm wide, at each corner of your Power shed with 40mm nails (at least
four per strip). An extra strip is provided to cover the joins between back wall panels.
3. Secure the door pull to the door with 25mm screws.
4. Peel the protective blue sticker off the Power branding plate above the door.
PAGE 16 OF 18

Aftercare & Maintenance
Seal Your Windows
We recommend windows are sealed externally with the application of silicone, putty or any other ‘watertight’
solution at your own preference.
Important
Please ensure you thoroughly seal the exterior bottom corners of the windows at the edge of the sill.
Shed Preserver
All our sheds come with our Power preservative.
It is important that you re-treat your Power shed annually with a high-quality wood preserver.
Feel free to change the colour of the building giving you the ‘power’ to style it your own way.
Take extra care to brush treatment into all wooden components inside and outside.
Please ensure there are no overhanging branches or debris on the shed as this can lead to water ingress.
USEFUL TIP –Looking for some inspiration?
Our Instagram has images of hundreds of Power Sheds which have all been sent to us by customers and is a great
way to look at the different ways you can build and paint your shed!
Check Your Base
Although your base should be level at the time of assembly, some bases can move over time and if you find this
occurs then the building can twist or door may not close properly.
If such occurrences you may need to pack up the base to keep the building level.
Share Your Shed
Here at Power we love to see your sheds!
Send us photos of your finished sheds to our social media channels using the following handles –
@PowerSheds #PowerSheds
Instagram Twitter Facebook
PAGE 17 OF 18

Power Shed Shelving Instructions
Power Shed Shelving comes 4ft or 6ft long.
You will receive the following components in each shelving pack:
•(4x) board lengths (at either 4ft or 6ft depending what you ordered).
Please note: These are 70mm wide and are the same material as the bargeboards.
Be careful not to use these during assembly of your Power Shed –These boards are usually taped together.
•(3x) Brackets
•(2x) Batons
•(1x) Fixing pack - containing 70mm screws and 25mm screws.
Please note:
•When screwing the brackets into position, ensure they are fixed to the internal framing of the shed and not the
cladding
•You may have to cut the board lengths down with a saw to fit depending on the shed you have
1. Choose an appropriate location for your shelving and screw the brackets to the internal framing of the shed with
the 70mm screws.
2. Use a spirit level to ensure they are level.
Ensure the shelving bracket is the correct way up as per the diagram following:
Depending on your shed, there may not be an appropriate place to secure your brackets or there may be
framing in an unsuitable position (particularly if the shelf is going on a gable end). We have therefore sent some
additional batons to use if required.
After the brackets are attached to the framing of the side walls, you can fix the shelving board lengths into the
brackets which the 25mm screws. There should be two screws per board per bracket. There should be a small gap
between each board length
PAGE 18 OF 18

Returns
If Power is not for you and you’d like to return your shed within 14 days of delivery then we will collect the item
from you without charging a collection fee. No fuss, no fees!
All we ask is that you do not unpack the shed or take the shed off the pallet. You will be able to see the shed
panels on the pallet if you want to double check the quality of the shed panels.
You need to notify the company you ordered your garden building from to arrange a cancellation or return.
If you have unpacked the shed or taken the shed off the pallet, then you can still return the product to us providing it
is within 14 days of delivery but you will have to cover the cost of returning the item. This will either need to
be arranging the delivery yourself (to our manufacturing unit in West Yorkshire) or repacking and securing the goods
back onto the pallet and we can arrange a pallet delivery for you. The cost of this will depend on your location and
the item bought –please contact us if you would like us to advise the cost of this. In this case we will not profit from
any courier charges but simply pass on the cost we receive to you.
Any delivery surcharges you have paid (such as a quicker delivery, Saturday delivery, or a timed delivery) will not be
refunded.
Once your item has been returned it will be checked to ensure it is complete and in a re-sellable condition. If we
deem that the product is not in a re-sellable condition we shall deduct a reasonable amount to cover any costs to
use or return them to you.
Where a refund is to be paid we will usually refund any money received from you using the same method originally
used by you to pay for your purchase.
Contact Us
If you have any queries or issues with your shed then you can:
•Check out our FAQ page on www.PowerSheds.com
•Email us at [e-mail]
Please provide photographs of any reported issues*
Any replacement parts can take 1-3 working days.
•Contact us via the telephone –01274 036 577 (Mon-Fri 08:00 - 16:30)
•Write to us at: Power Sheds Ltd
21 Commondale Way
Euroway Trading Estate
Bradford
BD4 6SF
On the rare occasion that something is missing, please contact us to make us aware so we can send
out any replacements. Replacement parts will be dispatched within 1-3 working days.
Please be aware we are unable to reimburse you if you purchase your own materials.
We also cannot compensate for subsequential losses such as installation work.
