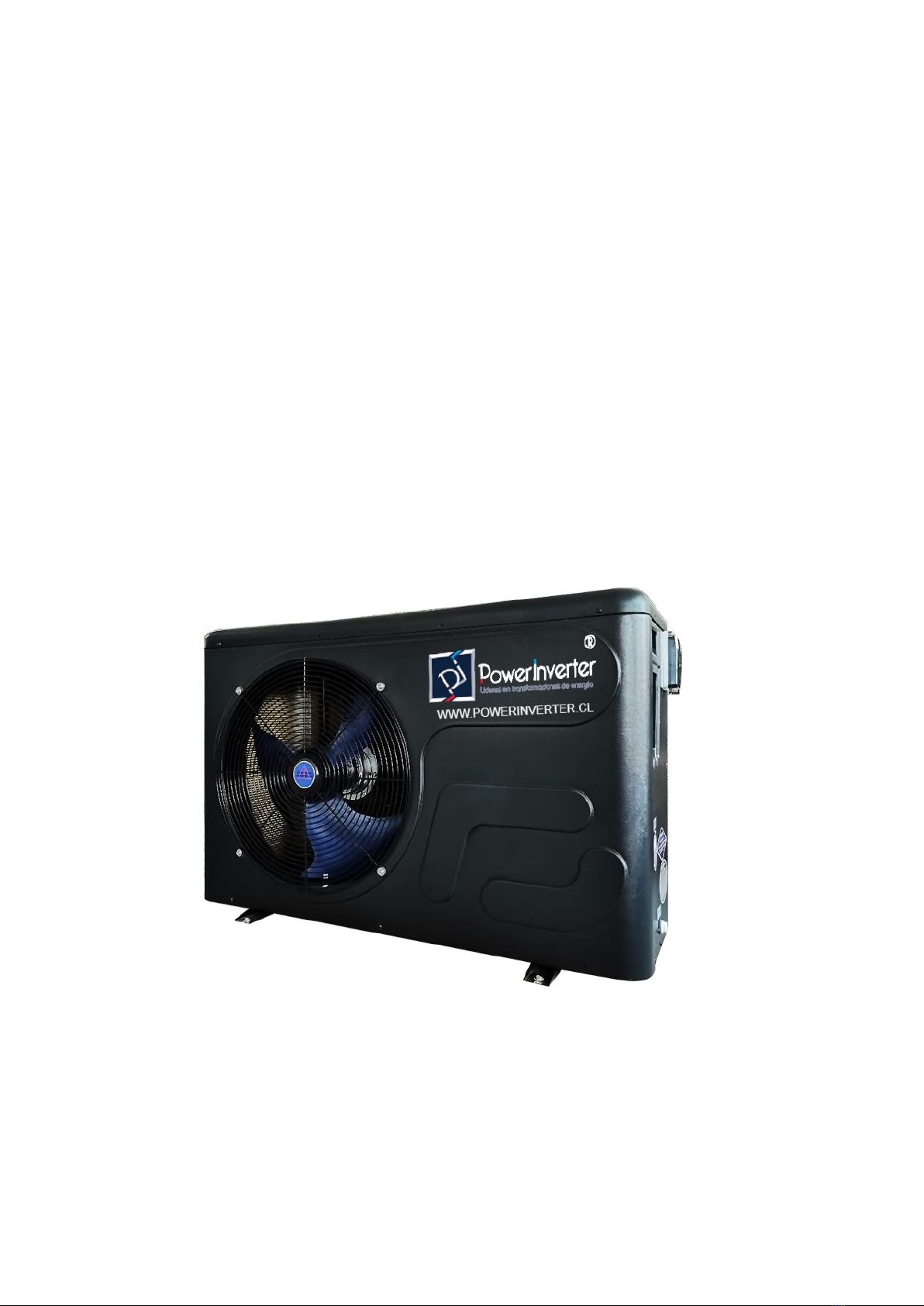

WIFI Swimming Pool Heat Pump
User and Service Manual
WIFI Swimming Pool Heat Pump

- 2 -
User and Service Manual
INDEX
1. Specifications
2. Dimensions
3. Installation and Connection
4. Accessories
5. Electrical Wiring
6. Display Controller Operation
7. Parameter Setting
8. Troubleshooting
9. Maintenance
10.WIFI Control Function
Thank you for using our swimming pool heat pump for your pool heating, it will heat your pool
water and keep a constant temperature when the ambient air temperature is at -7 ~43℃.
ATTENTION: This manual includes all the necessary information about the use and
the installation of your heat pump.
The installer must read the manual and attentively follow the instructions of implementation
and maintenance.
The installer is responsible for the installation of the product and should follow all the
instructions of the manufacturer and the regulations in application. Incorrect installation
against the manual implies the exclusion of the entire guarantee.
The manufacturer declines any responsibility for the damage caused by people, objects and
errors due to the installation against the manual. Any use that isn’t in accordance with the
original intention of its manufacturing will be regarded as dangerous.
WARNING: If you power off heat pump, please empty the water in heat pump always during
winter time or when the ambient temperature drops below 0℃, or else the titanium heat
exchanger will be damaged because of being frozen, in such case, your warranty will be lost.
WARNING: Please always cut the power supply if you want to open the cabinet to reach
inside the heat pump, because there is high voltage electricity inside.
WARNING: Please keep the display controller in a dry area, or close the insulation cover to
protect the display controller from being damaged by humidity.

- 3 -
1.Specifications
1.1Technical data
Model
/
POWERFULL
03-W
POWERFULL
06-W
POWERFULL
09-W
POWERFULL
12-W
POWERFULL
14-W
POWERFULL
16-W
Heating Capacity
A26/W26
kW
3.9
6
8.7
12
14
16
Power
Consumption
A26/W26
kW
0.75
1.05
1.5
2.05
2.45
2.7
COP
A26/W26
/
5.2
5.71
5.8
5.85
5.71
5.93
Heating Capacity
A15/W26
kW
3
4.5
6.5
8.9
10.4
11.8
Power
Consumption
A15/W26
kW
0.7
1.02
1.45
1.98
2.36
2.65
COP
A15/W26
/
4.29
4.41
4.48
4.49
4.41
4.45
Maximum Pool
Volume (Good
Insulation)
m³
20
25
35
65
75
80
Rated Current
A
3.4
4.6
6.5
9.1
10.9
11.5
Power Supply
V/Ph/Hz
220-240/1/50
Wire Controller
/
LCD Display
Condenser
/
Titanium Heat Exchanger
Compressor
Quantity
/
1
Compressor Type
/
Rotary
Refrigerant
/
R410A
Fan Quantity
/
1
Fan Power Input
W
18
25
25
55
120
120
Fan Speed
RPM
830~870
Air Flow
/
Horizontal
Noise Level (10m)
dB(A)
39
40
40
43
47
48
Noise Level (1m)
dB(A)
42
44
45
47
49
50
Water Connection
mm
φ50
Nominal Water
Flow
m³/h
1.7
2.6
3.7
5.2
6.0
6.9
Maximum Water
Pressure Drop
kPa
23
23
23
25
25
25
* Above data are subject to modification without notice.

- 4 -
2. Dimensions
Unit: mm
3. Installation and connection
3.1 Notes
The factory only supplies the heat pump. All other components, including a bypass if
necessary, must be provided by the user or the installer.
Attention:
Please observe the following rules when installing the heat pump:
1. Any addition of chemicals must take place in the piping located downstream from the
heat pump.
2. Install a bypass if the water flow from the swimming pool pump is more than 20%
greater than the allowable flow through the heat exchanger of the heat pump.
3. Install the heat pump above the water level of the swimming pool.
4. Always place the heat pump on a solid foundation and use the included rubber mounts
to avoid vibration and noise.
5. Always hold the heat pump upright. If the unit has been held at an angle, wait at least
24 hours before starting the heat pump.
3.2 Heat pump location
The unit will work properly in any desired location as long as the following three items are
present:
1. Fresh air –2. Electricity –3. Swimming pool filters
The unit may be installed in virtually any outdoor location as long as the specified minimum
distances to other objects are maintained (see drawing below). Please consult your installer
for installation with an indoor pool. Installation in a windy location does not present any
problem at all, unlike the situation with a gas heater (including pilot flame problems).
ATTENTION: Never install the unit in a closed room with a limited air volume in which the air
expelled from the unit will be reused, or close to shrubbery that could block the air inlet. Such
Model
POWERF03-W
POWERF06-W
POWERF09-W
POWERF12-W
POWER14-W
POWER16-W
A
1010
1048
B
620
690
C
195
180
D
350
440
E
173
128
F
73.2
84
G
563
700
H
300
350
J
19
19

- 5 -
locations impair the continuous supply of fresh air, resulting in reduced efficiency and
possibly preventing sufficient heat output. See the drawing below for minimum dimensions.
3.3 Distance from your swimming pool
The heat pump is normally installed within a perimeter area extending 7.5 m from the
swimming pool. The greater the distance from the pool, the greater the heat loss in the pipes.
As the pipes are mostly underground, the heat loss is low for distances up to 30 m (15 m from
and to the pump; 30 m in total) unless the ground is wet or the groundwater level is high. A
rough estimate of the heat loss per 30 m is 0.6 kWh (2,000 BTU) for every 5 ºC difference
between the water temperature in the pool and the temperature of the soil surrounding the
pipe. This increases the operating time by 3% to 5%.
3.4 Check-valve installation
Note: If automatic dosing equipment for chlorine and acidity (pH) is used, it is essential to
protect the heat pump against excessively high chemical concentrations which may corrode
the heat exchanger. For this reason, equipment of this sort must always be fitted in the piping
on the downstream side of the heat pump, and it is recommended to install a check-valve to
prevent reverse flow in the absence of water circulation.
Damage to the heat pump caused by failure to observe this instruction is not covered by the
warranty.

- 6 -
3.5 Typical arrangement
Note: This arrangement is only an illustrative example.

- 7 -
3.6 Electrical connection
Note: Although the heat pump is electrically isolated from the rest of the swimming
pool system, this only prevents the flow of electrical current to or from the water in the
pool. Earthing is still required for protection against short-circuits inside the unit.
Always provide a good earth connection.
Before connecting the unit, verify that the supply voltage matches the operating voltage of the
heat pump.
It is recommended to connect the heat pump to a circuit with its own fuse or circuit breaker
(slow type; curve D) and to use adequate wiring (see table below).
Connect the electrical wires to the terminal block marked ‘ POWER SUPPLY ’.
A second terminal block marked ‘ WATER PUMP ’ is located next to the first one. The filter
pump (max. 5 A / 240 V) can be connected to the second terminal block here. This allows the
filter pump operation to be controlled by the heat pump.
Note: In the case of three-phase models, swapping two phases may cause the electric motors
to run in the reverse direction, which can lead to damage. For this reason, the unit has a
built-in protective device that breaks the circuit if the connection is not correct. If the red LED
above this safety device lights up, you must swap the connections of two of the phase
wires.
Model
Voltage (V)
Fuse or
circuit
breaker (A)
Rated current (A)
Wire diameter mm2
(with a max. length
of 15 m)
POWERF03-W
220~240
16
3.4
2x 1.5 + 1.5
POWERF06-W
220~240
16
4.6
2x 1.5 + 1.5
POWER 09-W
220~240
16
6.5
2x 1.5 + 1.5
POWERF12-W
220~240
16
9.1
2x 2.5 + 2.5
POWERF14-W
220~240
16
10.9
2x 2.5 + 2.5
POWERF16-W
220~240
16
10.9
2x 2.5 + 2.5

- 8 -
3.7 Initial operation
Note: In order to heat the water in the pool (or hot tub), the filter pump must be running
to cause the water to circulate through the heat pump. The heat pump will not start up
if the water is not circulating.
After all connections have been made and checked, carry out the following procedure:
1. Switch on the filter pump. Check for leaks and verify that water is flowing from and to the
swimming pool.
2. Connect power to the heat pump and press the On/Off button on the electronic control
panel. The unit will start up after the time delay expires (see below).
3. After a few minutes, check whether the air blowing out of the unit is cooler.
4. When you turn off the filter pump , the unit should also turn off automatically, if not adjust
the flow switch.
5. Allow the heat pump and the filter pump to run 24 hours a day until the desired water
temperature is reached. The heat pump will stop running at this point. After this, it will
restart automatically (as long as the filter pump is running) whenever the swimming pool
water temperature drops 2 degrees below the set temperature.
Depending on the initial temperature of the water in the swimming pool and the air
temperature, it may take several days to heat the water to the desired temperature. A good
swimming pool cover can dramatically reduce the required length of time.
Water Flow Switch:
It is equipped with a flow switch to prevent the heat pump of running with inadequate water
flow rate. It will turn on when the pool pump runs and shuts off when the pump shuts off. If the
pool water level is more than 1m above or below the heat pump’s automatic adjustment knob,
your dealer may need to adjust its initial startup.
Time delay:
The heat pump has a 3-minute start-up delay to protect the circuitry and avoid excessive
contact wear. The unit will restart automatically after this time delay expires. Even a brief
power interruption will trigger this time delay and prevent the unit from restarting immediately.
Additional power interruptions during this delay period do not affect the 3-minute duration of
the delay.
3.8 Condensation
The air drawn into the heat pump is strongly cooled by the operation of the heat pump for
heating the pool water, which may cause condensation on the fins of the evaporator. The
amount of condensation may be as much as several litres per hour at high relative humidity.
This is sometimes mistakenly regarded as a water leak.

- 9 -
4. Accessories

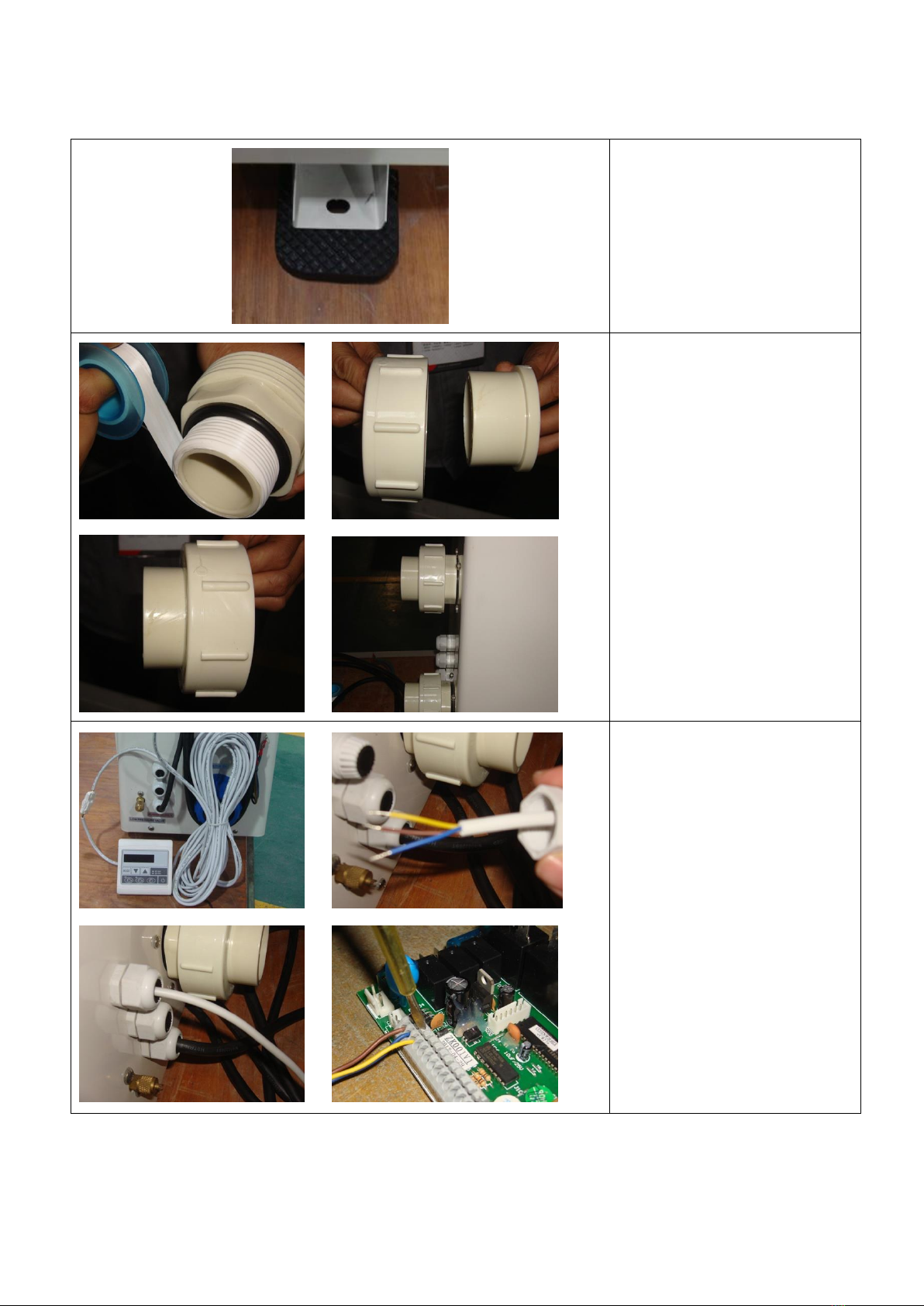

4.1 Accessories Installation
Anti-vibration bases
1. Take out 4 Anti-vibration
bases
2. Put them one by one on
the bottom of the machine
like the picture.
Water Inlet & outlet
junction
1. Use the pipe tape to
connect the water Inlet &
outlet junction onto the heat
pump
2. Install the two joints like
the picture shows
3. Screw them onto the
water Inlet & outlet junction
10 Meter Signal wiring
1. Take one side of the 10M
Signal wire, to connect with
the controller.
2. The other side needs to
be pulled through the hole,
like the third picture shows.
3. Then connect to the PC
board inside the machine :
the brown one --- first joint;
the blue one --- second joint;
the yellow one --- third joint.

- 10 -
Cable wiring
1. Connect the power supply
wire through the white hole
like the picture shows.
2. Fix the other side on
joints inside the electric box.
Water pump wiring
1. Connect the water pump
wire through the white
marked hole
2. Fix the other side on
joints inside the electric box.

- 11 -

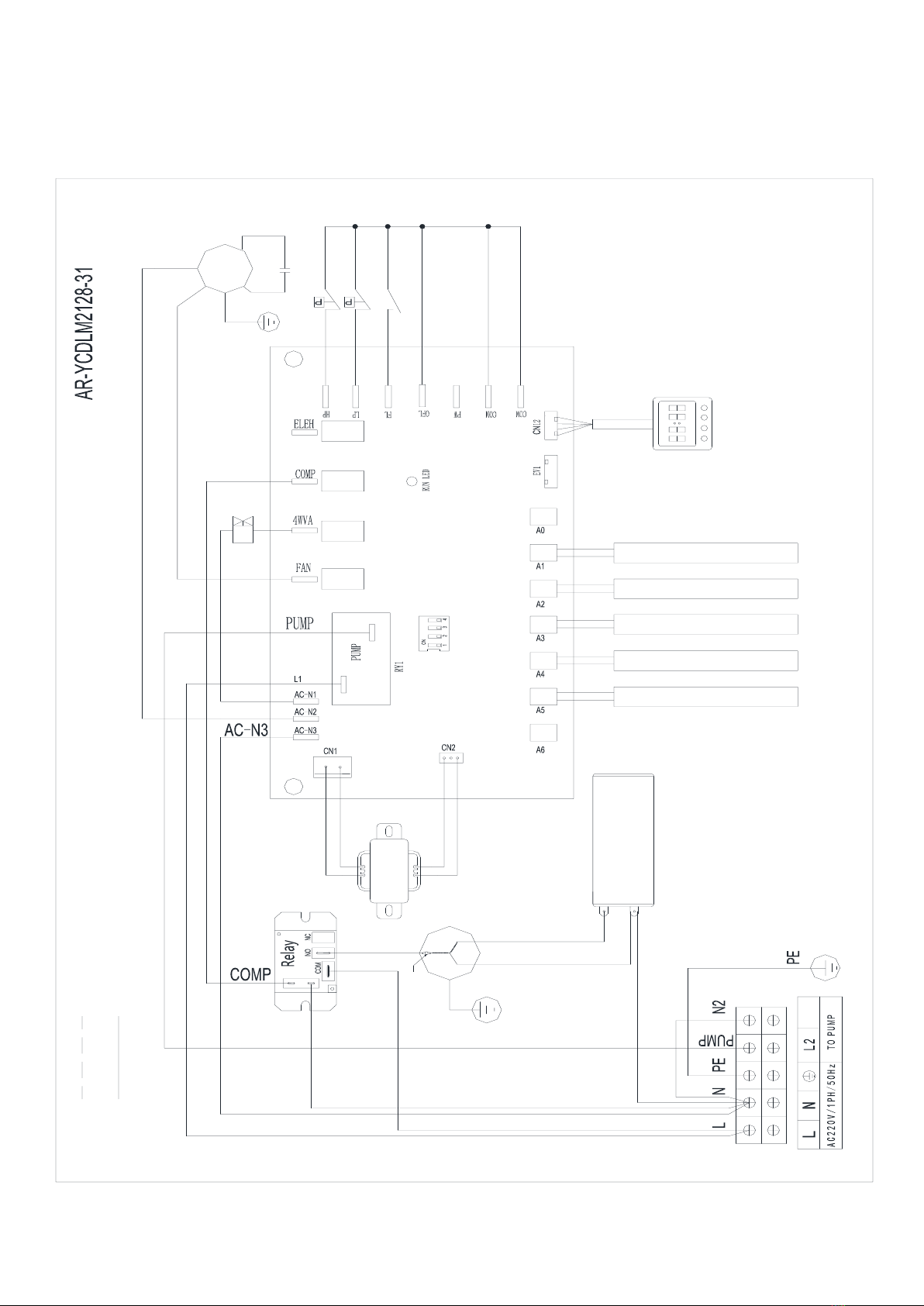

R
PE PE
N2
S
C-R
C-S
C-N Compressor
Capacitor
C-ON
N1
PE FAN
C1
WHT BLK
YEL/GRE
RED ORG
L2
OLP1
2.5HP no overload
protector
Note：The Dotted Line Indicates the Customer's Installation Section.
The Solid Line Indicates the Factory's installation Section.
Compressor
(220~240V / 50Hz Sw im m in g Po o lH eat Pu m p ElectricalW irin g D iag ram )
Transformer
4-V
MODEL:CBB65
CoilTemperature(Heating)
AmbientTemperature
WaterInletTemperature
WaterOutletTemperature
ExhaustGasTemperature
Wire
Controller
High Pressure Switch
Low Pressure Switch
Water Flow Switch
CMB:PW5879
5. Electrical Wiring
5.1 SWIMMING POOL HEAT PUMP WIRING DIAGRAM
PFSPS 03/06/09/12/14/16 -W

- 12 -
NOTE:
(1)The above electrical wiring diagrams are only for your reference, please subject the heat
pump to the posted wiring diagram.
(2)The swimming pool heat pump must be earthed well, although the unit heat exchanger is
electrically isolated from the rest of the unit. Earthing the unit is still required to protect you
against short circuits inside the unit. Bonding is also required.
Disconnect: A disconnector (circuit breaker, fused or un-fused switch) should be located
within sight of and easily accessible from the unit .This is common practice on commercial
and residential heat pumps. It prevents remotely-energizing unattended equipment and
permits turning off power to the unit while the unit is being serviced.
6. Display Controller Operation
6.1 The buttons of LCD wire controller
When the heat pump is running or standby, the LCD display shows the inlet water
temperature and setting temperature.
6.2 Start/stop the heat pump.
Press to start the heat pump, the LCD display shows the desired water temperature for
5 seconds, then shows the inlet water temperature.
Press to stop the heat pump.

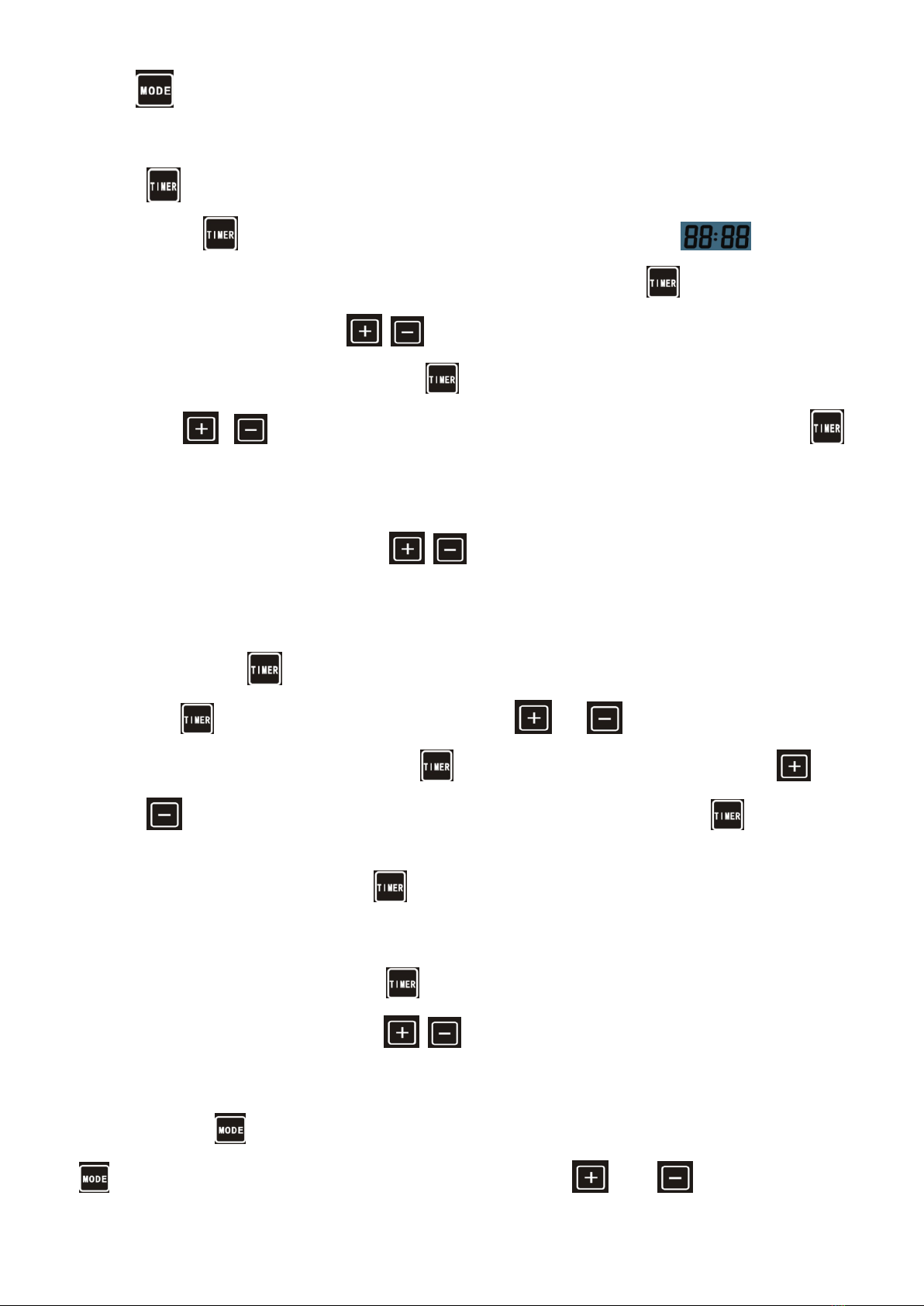

6.3 Choose Heating/Cooling/Automatic mode:

- 13 -
Press until “Heat” or “Cool” “Automatic” light is on.
6.4 Setting the real time
Timer button: used for clock and timing setting
Press button to enter clock setting, the clock at the bottom flashing to
enter the clock Settings, if need set the clock, click on the button to enter the
hours setting, combine button to change the hour Settings, after setting
completed, and then click on the button to enter the minutes setting, combined
with change the minutes Settings, set up is completed, press
complete set and return to main interface.
6.5 Water temperature setting:
On standby or running mode, press to adjust the desired water temperature
6.6 Automatic start/stop of the heat pump
Long press button, enter the time setting for group 1 timing on/off settings, click
the button to enter hours setting, press or button to change the time,
after setting completed, click the button to enter minutes setting, press or
button to change the time,after setting completed , click on the button to
enter regular shutdown Settings, set method is same with timing setting, after
setting completed,click the to enter next group setting. Same setting method
based on above operation.
During timing setting state , click the to cancel current timing setting.
During the the main interface ,Press to set the current mode’s setting temperature.
6.7 Running data query and setting
Long press button to enter parameters query state, in the query conditions click the
button to enter parameter setting state, combined with and button to change

- 14 -
the parameter value, press button again to determine modification, During the parameter
query condition press the button to return the main interface;No operation is retained in
the query condition.
Special note:
During Automatic mode, the icon is displayed;
During Cooling mode, icon is displayed ;
During Defrosting , icon is displayed;
During Heating mode, icon is displayed;
ICONS are used to identify the WIFI signals, its twinkle when its not connect with the
server; its keeps on means connection well .
7. System Parameters
Parameter
Meaning
Range
Default
Remarks
P00
Memory function
0（No）\1（Yes）
1
Adjustable
P01
Operate at set time everyday
0（No）\1（Yes）
1
Adjustable
P02
Water temperature difference back
to restart
2-10℃
3
Adjustable
P03
Water Temperature difference to
stop
0-3℃
0
Adjustable
P04
Defrosting interval
30-90Min
40Min
Adjustable
P05
Defrosting on temperature (evaporator
coil temperature)
-30—0℃
-3℃
Adjustable
P06
Defrosting exit temperature
(evaporator coil temperature)
2-30℃
20℃
Adjustable
P07
Defrosting exit time
1-15Min
8Min
Adjustable
P08
Gas exhaust temperature protection
value
95-120℃
118℃
Adjustable
P09
Max. water set temperature
40~65
40
Adjustable
P10
Water pump operation mode
1（Keep running）\2
（Stop）\3（Interval）
3
Adjustable
P11
Water pump stop time after reaching
water set temperature
3-20min
15
Adjustable
P12
Reserved parameter for second grade
anti-freezing protection
0（heat pump）\1
（E.Heater）
1
Invalid
P13
Heating/Cooling option
0(Single cooling)/
1（Heating/Cooling）/
2（Single heating）
1
Adjustable
P14
Electronic expansion valve action cycle
20s～90s
30s
Adjustable

- 15 -
P15
Degree of super heat setting
-9℃～9℃
3℃
Adjustable
P16
expansion valve forced opening gas
exhaust temperature
80℃～110℃
100℃
Adjustable
P17
Electronic expansion valve opening
setting (under defrosting)
20～450P
400P
3 digits visible
P18
Electronic expansion valve minx.
Opening setting
50～200P
150P
3 digits visible
P19
Electronic expansion valve manual
setting
20～450P
350P
Adjustable
P20
Electronic expansion valve manual
setting option
0 (No) /1(Yes)
1
0:manual/1：
automatical
P21
Target super cooling (cooling mode)
-9℃～9℃
-2℃
Adjustable
P22
expansion valve forced opening gas
exhaust temperature
80℃～110℃
90℃
Adjustable
A0
Water inlet temperature
-9~99℃
Actual
measurement
A1
Water outlet temperature
-9~99℃
Actual
measurement
A2
Evaporator coil temperature (under
heating mode)
-9~99℃
Actual
measurement
A3
Gas exhaust temperature
-9~99℃
Actual
measurement
A4
Ambient temperature
-9~99℃
Actual
measurement
A5
Gas suction temperature
-9~99℃
Actual
measurement
A6
Expansion valve opening
150~480P
Actual
measurement
A7
Coil temperature when cooling
-9~99℃
Actual
measurement
8. Troubleshooting
8.1 Error code displayed on LCD wire controller
Malfunction
Error code
Solutions
Heating condenser sensor failure
Er P1
Check or change the sensor
Exhaust temperature sensor failure
Er P2
Check or change the sensor
Inlet water temperature sensor failure
Er P3
Check or change the sensor
Outlet water temperature sensor failure
Er P4
Check or change the sensor
Coil sensor failure when cooling
Er P5
Check or change the sensor
Inlet/Outlet temperature difference too much
failure when cooling
Er P6
1.Check the water circulation. 2.check or change
the sensor
Ambient temperature sensor failure
Er P7
Check or change the sensor
Gas return sensor failure
Er P8
Check or change the sensor
Low pressure protection
Er P9
1.Check if there is any gas leakage ,re-fill the

- 16 -
refrigerant
2.Replace the filter or capillary
First grade antifreeze protection in Winter
Er PC
Water pump will run automatically for first grade
antifreeze
Second grade antifreeze protection in
Winter
Er PC
Heat pump will start heating for second grade
antifreeze
Water flow switch
Er PL
Check water flow /switch
Super cooled protection
Er 2
Exhaust temperature too high protection.
Er 3
1. Replace the compressor discharge temperature
sensor.
2. Reconnect or clean compressor discharge
temperature sensor and wrap it with insulation
tape.
3. Replace the controller or PC Board.
High pressure protection
Er 4
1. Discharge redundant refrigerant from heat
pump gas system
2.Clean the water exchanger or water filter
Communication failure
Er 8
Check the wire connection
Defrosting
Defrost
instructions
8.2 Other Malfunctions and Solutions (No display on LCD wire controller)
Malfunctions
Observation
Reasons
Solution
Heat pump is
not running
LED wire controller shows
no display
No power supply
Check whether cable and
circuit breaker are
connected
LED wire controller
displays the actual time
Heat pump under standby
status
Startup heat pump to run.
LED wire controller
displays the actual
water temperature
1. Water temperature is
reaching set value, heat pump
under constant temperature status
2. Heat pump just starts to run
3. Under defrosting
1. Verify water temperature
setting
2. Startup heat pump after
a few minutes
3. LED wire controller
should display "Defrosting"
Water
temperature is
cooling when
heat pump runs
under heating
mode
LED wire controller
displays actual water
temperature and no error
code displays
1. Chose the wrong mode
2. Figures show defects
3. Controller defect
1. Adjust the mode
2. Replace the defect LED
wire controller, and then
check the status after
changing the running
mode, verifying the water
inlet and outlet temperature
3. Replace or repair the
heat pump

- 17 -
Short running
LED displays actual water
temperature, no error code
displays
1. Fan NOT running
2. Not enough air ventilation
3.Not enough refrigerant
1. Check the cable
connections between the
motor and fan, if
necessary, they should be
replaced
2. Check the location of the
heat pump, and eliminate
all obstacles to assure a
good air ventilation
3 Replace or repair the
heat pump
water stains
Water stains on heat pump
unit
1. Concreting
2. Water leakage
1. No action
2. Check the titanium heat
exchanger carefully if it
shows any defects
Too much ice
on evaporator
Too much ice on
evaporator
1. Check the location of
heat pump, and eliminate
all obstacles to assure a
good air ventilation
2. Replace or repair the
heat pump
9. Maintenance
(1) You should check the water supply system regularly to avoid the air entering the system
and occurrence of low water flow, because it would reduce the performance and reliability of
the heat pump.
(2) Clean your pools and filtration system regularly to avoid the damage of the unit as a result
of a dirty or clogged filter.
(3) You should discharge the water from the bottom of the water pump if the heat pump will
stop running for a long time (specially during the winter season).
(4) On any other moment, you should check if the unit has enough water before the unit starts
to run again.
(5) After the unit is conditioned for the winter season, it is preferred to cover the heat pump
with the special winter heat pump cover.
(6) When the unit is running, there is always a little water discharge under the unit.

- 18 -
10. WIFI Control Function
10.1 Android WIFI Module Set Up Steps:
APP Set-up Steps:

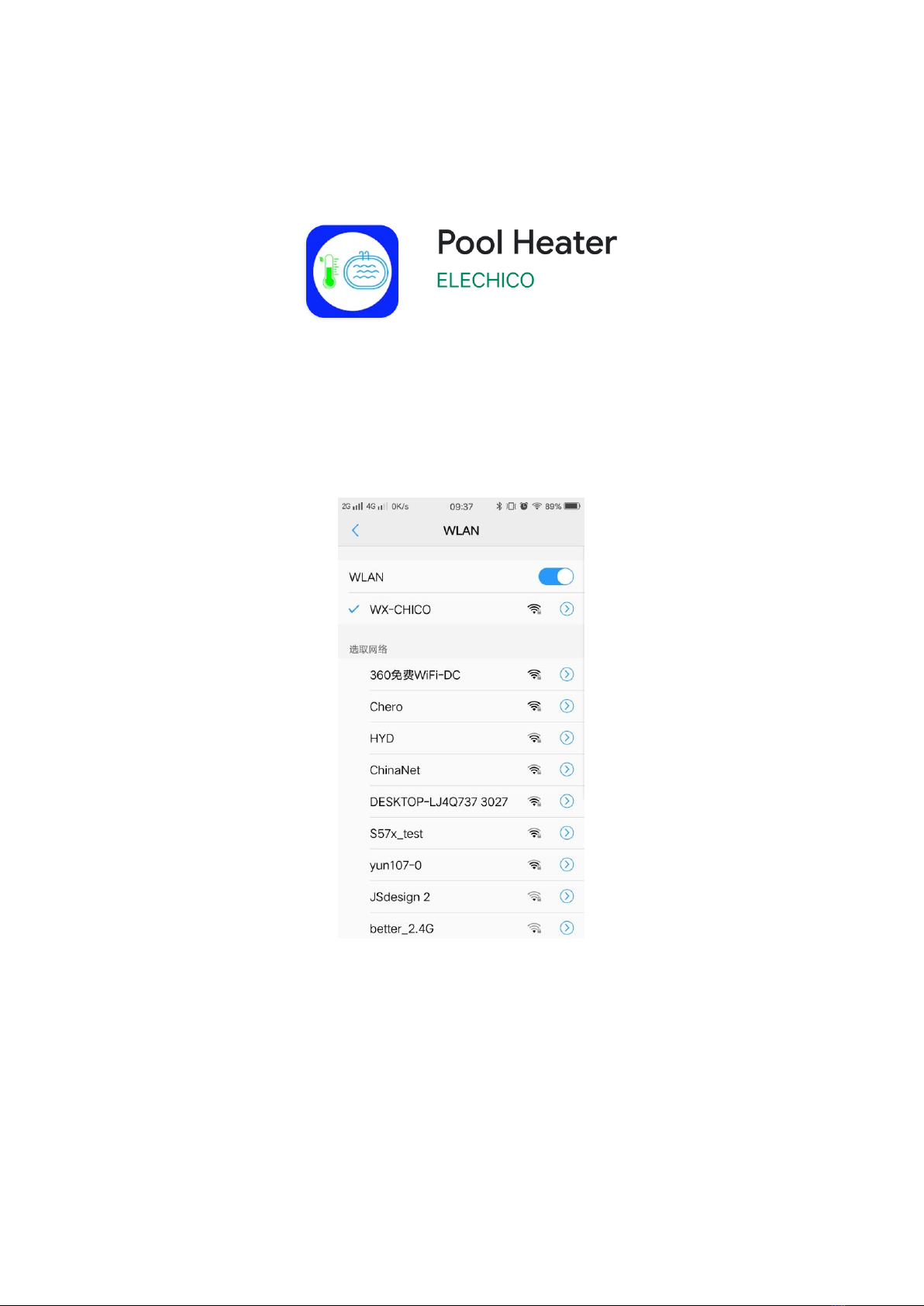

Search “Pool Heater” with its corresponding icon at below from Google Play.
Step 1: Make sure your phone is with wifi connection successfully.
⚫Turn on your WIFI function on phone and get it connected to WIFI hotspot, the WIFI
should be connected to the internet. See the below figure: Connected successfully to
WIFI “WX-CHICO”.
Step 2: Open the APP on the phone, type the account and password to login like the figures
below. (If without account, please register one by the following steps)

- 19 -
Step 3:
After login in , choose “add device”. Then you will get the tips as follow figures.
Step 4-1:
Note:

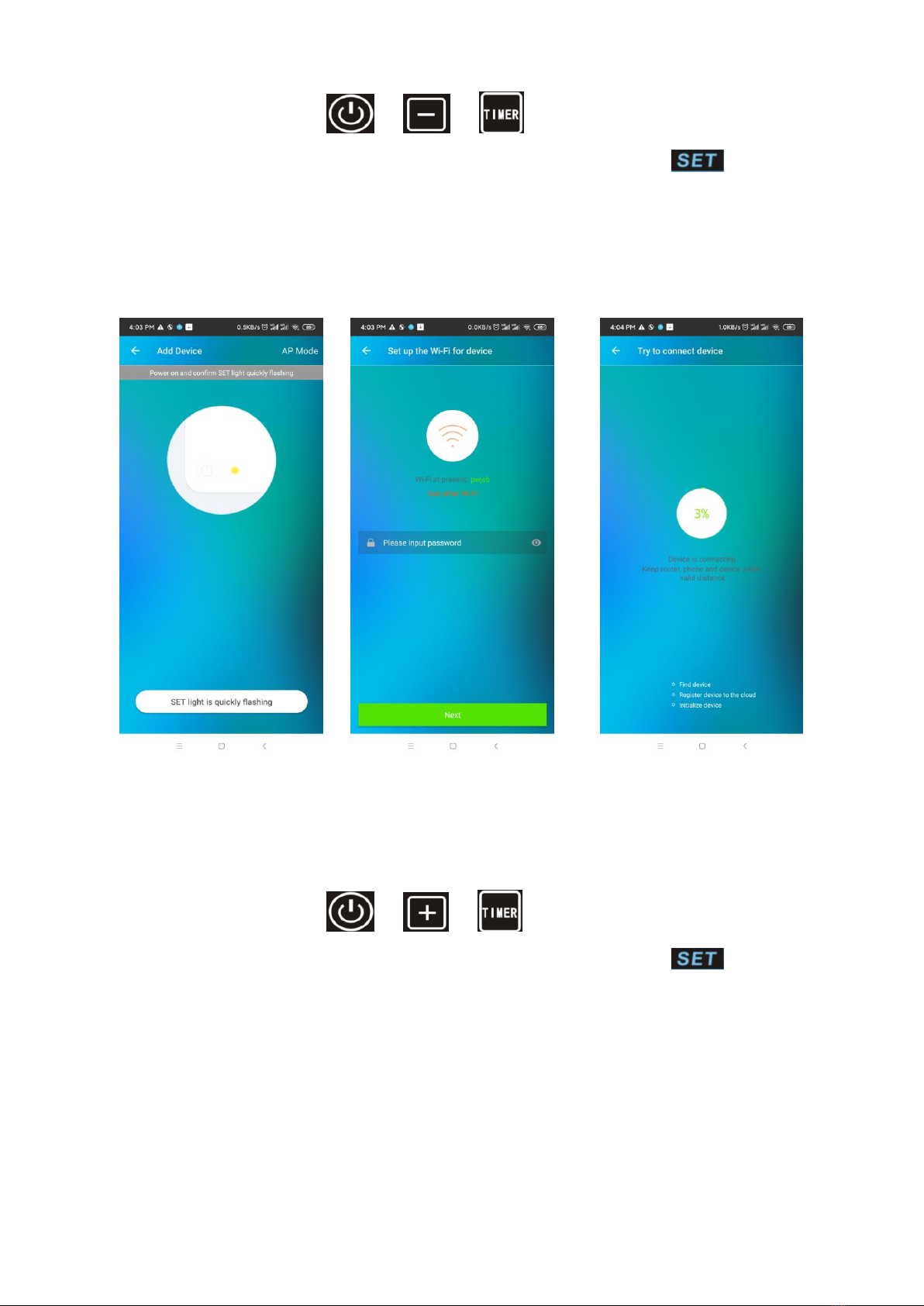

At the same time we come to the heat pump control panel to operate wifi connection. (You
have two choice for wifi connection. The one is Smart mode, the other one is AP mode.)

- 20 -
Smart mode operation
Press the controller button of + + together for 3 seconds at the same
time. When entering the Smart matching mode successfully, the button will quickly
flash.
And now we can come back to the phone APP to click "SET light is quickly flashing" in the
APP interface. And then type wifi password and press “Next“. After the process reached
100% , your account is successfully matched to the heat pump .
Or Step 4-2:
If smart mode connection is not successful, try AP mode.
AP mode operation
Press the controller button of + + together for 3 seconds at the same
time. When entering the Smart matching mode successfully, the button will quickly
flash.
And now we can come back to the phone APP to click “AP mode”, "Indicator light is slowly
flashing" in the APP interface. And then type wifi password and press “Next”. It will appear
“SmartLife_XXX” interface. Press “Connect now”, then it will automatically jump to the wifi
interface, there will be a “SmartLife_XXX”, click the “SmartLife_XXX” connect this wifi. And
then go back to phone APP to wait until the process reached 100%, your account is
successfully matched to the heat pump .
