POOLEX JETLINE 35 User manual

Contents
Important Instructions..... ..........................................................................
Products Features ........................................................................................
Safety Precautions .......................................................................................
Technical Data ...............................................................................................
Unit Dimensions ...........................................................................................
Exploded View ...............................................................................................
Tianium Heat Exchanger ..........................................................................

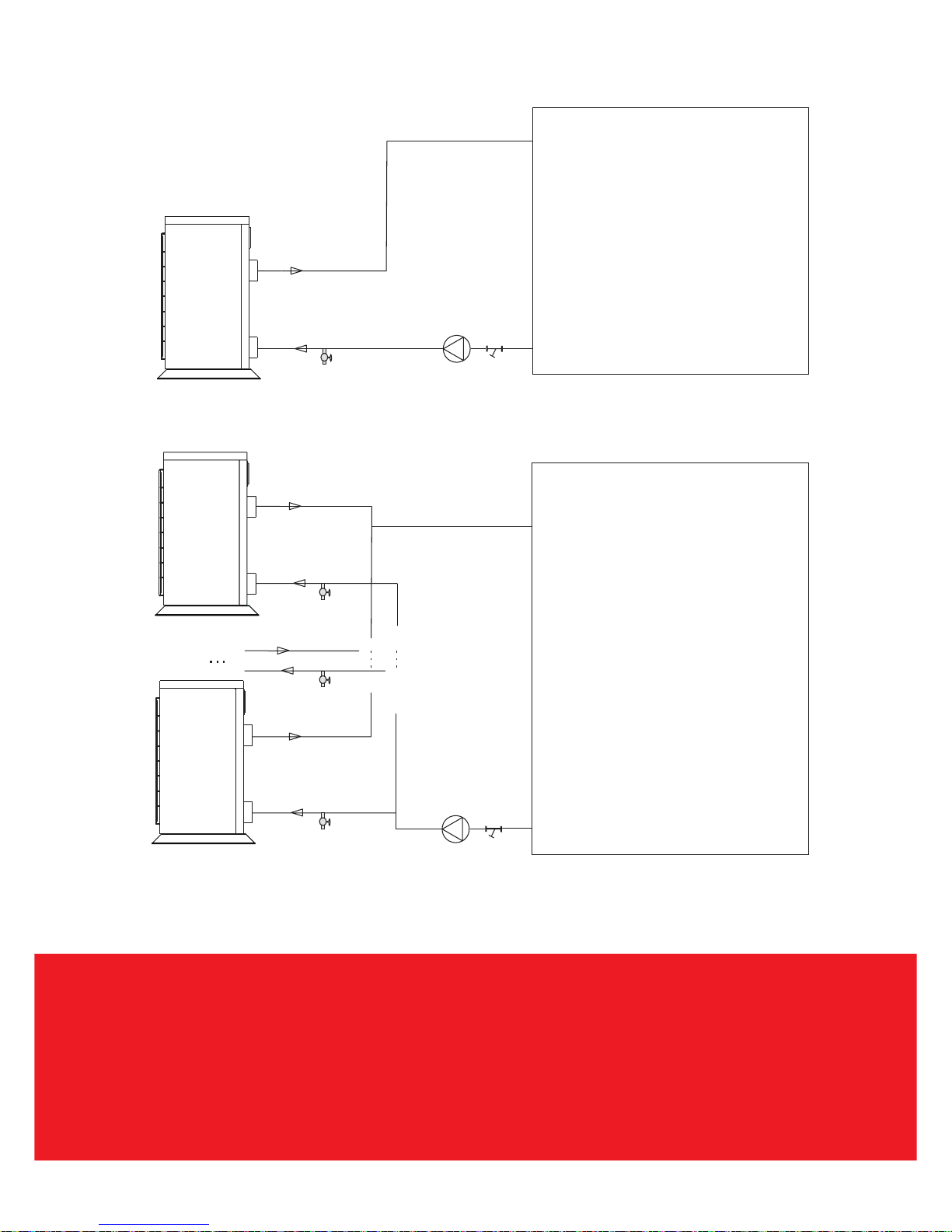

Installation.....................................................................................................

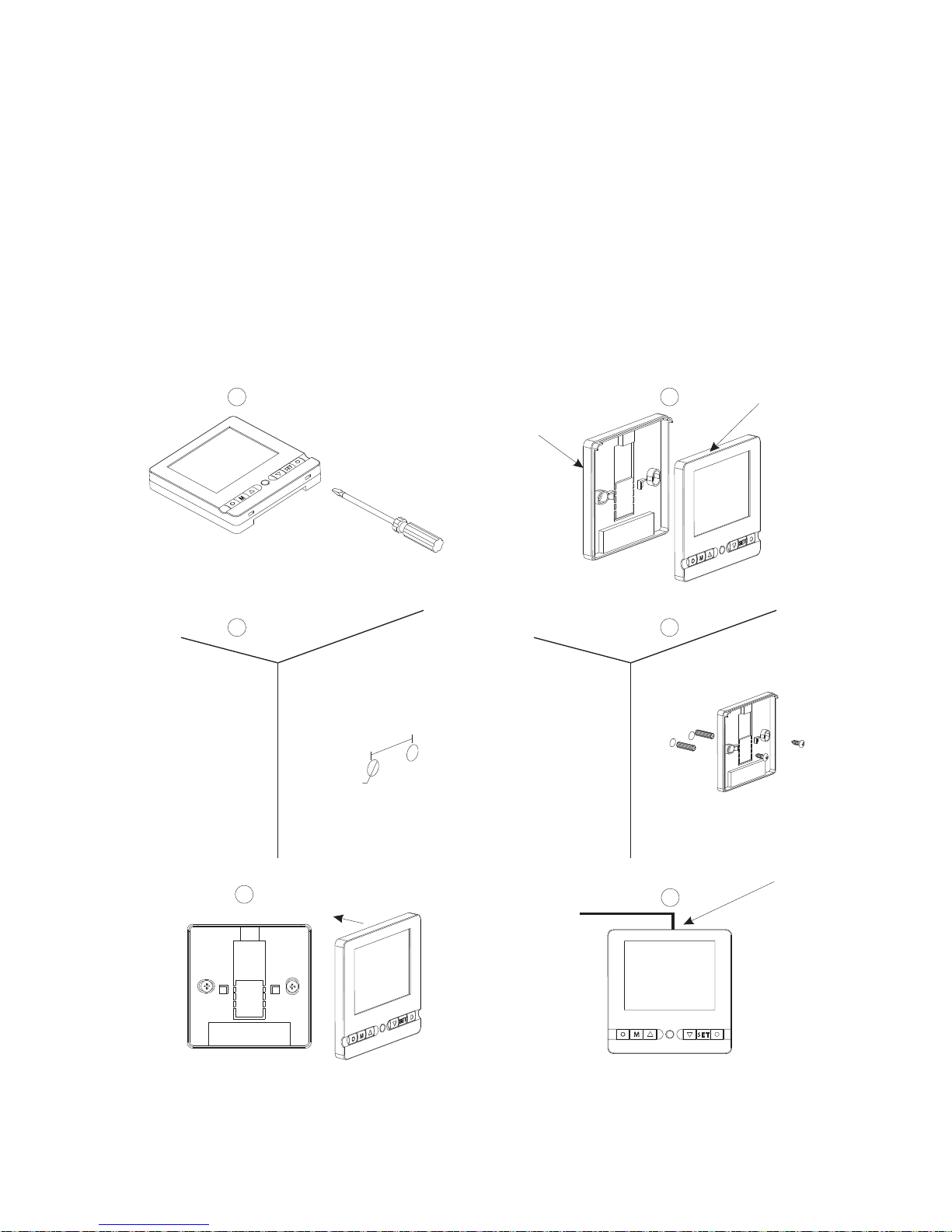

Wire control installation ...........................................................................
Noise level .....................................................................................................
Electric connection ....................................................................................
Circuit drawing ............................................................................................
Controller Operation ................................................................................
Maintenance & Troubleshoting ............................................................
Limited Warranty ........................................................................................
2
3
4
5
6
7
13
14
17
18
19
20
23
34
36
1 ENGLISH

Important Instructions
These installation instructions are an integral part of the product and must be given to the installer and kept
by the user.
The warnings and indications contained in the present handbook must be carefully read and understood as
they provide important information relative to handling and operating safety. This handbook must therefore
always be kept available for later consultation.
Installation must be carried out in compliance with valid regulations and the manufacture's instructions by a
qualied professional.
An installation error could result in physical injury to persons or animals as well as mechanical damage for
which the manufacturer may under no circumstances be held responsible.
After having unpacked the heat pump, the content should be checked for possible damage.
Before connecting the heat pump, ensure that the data provided by Poolstar is compatible with the true
installation conditions and does not exceed the maximum authorized limits for the product in question.
In the case of a fault and/or operating error on the heat pump, the electrical power supply must be isolated
and no attempt should be made to repair the fault.
Repair work may only be carried out by an authorized technical assistance service using original spare parts
only. Non-respect of the aforementioned clauses may have a negative inuence on the operating safety of
the heat pump.
To guarantee the eciency and correct operation of the heat pump, it is important to ensure it is regularly
maintained in compliance with the instructions provided by Poolstar.
In the case where a heat pump is sold or transferred to another user, always ensure that all technical
documentation is sent with the equipment to be used by the new user or installer.
This heat pump may only be used for the purpose for which it was designed: to heat a swimming pool; all
other uses must be considered inappropriate, incorrect or even dangerous.
All contractual or extra-contractual responsibilities of Poolstar will be considered nil and void for any
damage caused by installation or operating errors, or due to non-respect of the instructions provided by
Poolstar or valid installation standards for the equipment object of the present document.
2 ENGLISH
! !

Products Features
High eciency, COP up to 5.5, which can save as much as 80% of cost compared to regular water heating
equipment. Easy for installation and low running cost for maintenance.
Green refrigerant R410A---environment-friendly
Word-known brand compressor---Mitsubishi or Toshiba
Durable and reliable Titanium heat exchanger, which can resist chloride ion corrosion in water.
Good quality Evaporator with superior hydrophilic alum foil, inbuilt threaded pipe, which provides good
performance in water skiing and anti-defrost.
LCD wired controller, allowing all operation parameters to be set.
Circuit board in line with CE & ROHS standards.
Automatic control, adopted auto control thermostatic apparatus, it is very intelligent.
The system has an excellent insulation for water and electricity.
Monoblock design, beautiful and compact plastic cabinet, with winter cover.
Winter cover
It is specially designed for Poolstar heat pump, which can protect the heat pump during winter period.
EVA materials, anti-dust, anti-UVA, anti-UVB.
This dust cover is proposed as an optional extra.
Enjoy Poolstar air source swimming pool heat pump is a wise choice for you.
3 ENGLISH

Safety Precaution
General
Make sure that the xed ground wire in the building is securely connected to earth.
Wiring tasks should be carried out by qualied electricians only, In addition, they should check the safety
conditions of power utilization, for example, check if the cable capacity is adequate, and check the power
cable is damaged.
Horne users must not install , repair or relocate the unit. Improper treatment might lead to the accidents e.g.
persona! injury caused by re, electrical shock or unit's falling-o, and water leakage in the machine. Please
contact professionals for repair.
The unit shall not be installed at a spot with potential hazard of leakage of inammable gas. In case the
leaked gas is congregated around the machine, there might be the risk of explosion.
Make sure that the foundation of installation is stable .If the foundation is unstable, the outdoor unit may
drop and cause a casualty.
Make sure that the electric leakage protection switch is xed . If no electric leakage protection switch is xed
at the beginning of the electric supply, it may cause electric shocks or res .
If any abnormity occurs in the unit (such as burned smell in side the unit), cut o the power supply
immediately, and contact professionals for repair.
Please follow the instruction below when cleaning the unit :
a. Before cleaning, eut o the electric supply of the unit rstly to avoid injuries caused by fan in
operation.
b. Do not rinse the unit by water because the rinsed unit may cause electric shock.
Make sure to cut o the electric supply before maintaining the unit.
Please do not insert ngers or sticks into air outlet or air inlet.

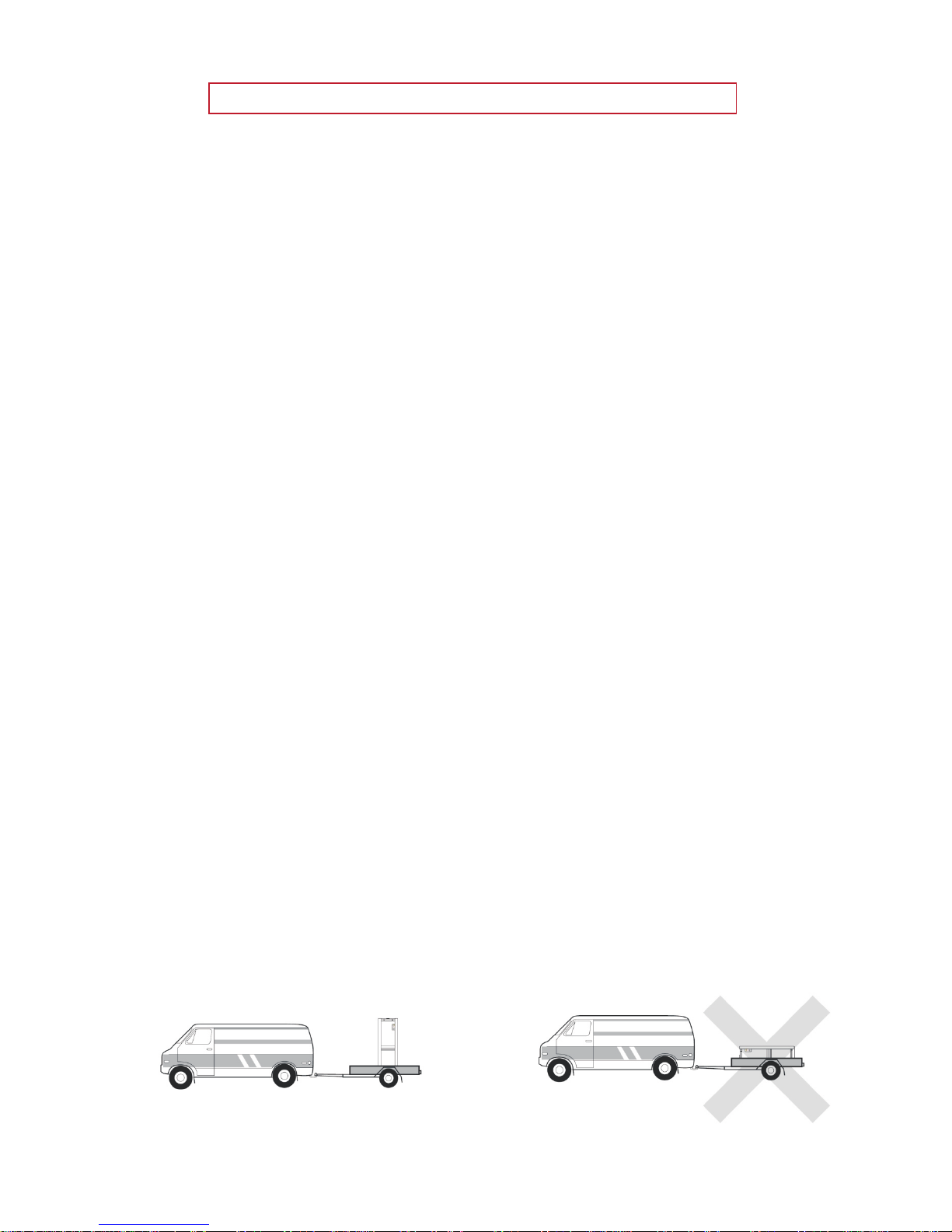

Transport and storage
The unit must be transported and stored vertically.
The unit must always be stored and transported upright on a pallet and in the original packag ing.
If the unit is stored or transported laying down, wait atleast 12 hours before switching on.
4 ENGLISH
It is required to read the safety precautions in details before opera-
tion. The precautions listed below are all-important for safety. Please
follow the instructions strictly.
! NOTE !

POOLEX
JETLINE 35
POOLEX
JETLINE 48
POOLEX
JETLINE65
POOLEX
JETLINE 85
POOLEX
JETLINE 100
POOLEX
JETLINE120
POOLEX
JETLINE 150
Heating Capacity(W) 3550 4880 6810 8530 10120 12050 15020
Heating Capacity(BTU) 12106 16641 23222 29087 34509 41091 51218
Heating Input(W) 615 873 1250 1394 1719 2060 2650
Normal Current(A) 2.81 4.00 5.72 6.38 8.71 9.95 12.80
COP 5.77 5.59 5.45 6.12 5.89 5.85 5.67
Heating Capacity(W) 3905 5368 7490 9380 11090 13200 16520
Heating Capacity(BTU) 13316 18305 25541 31986 37817 45012 56333
Heating Input(W) 707 1004 1440 1600 1982 2370 3050
Normal Current(A) 3.24 4.59 6.59 7.32 10.02 10.85 13.96
COP 5.52 5.35 5.20 5.86 5.60 5.57 5.42
Cooling Capacity(W) 2450 3360 4905 5930 6820 9700 12400
Cooling Capacity(BTU) 8355 11458 16726 20221 23256 33077 42284
Cooling Input(W) 780 1060 1520 1870 2210 2990 4070
Normal Current(A) 3.57 4.85 6.96 8.56 11.17 14.44 19.66
EER 3.14 3.17 3.23 3.17 3.09 3.24 3.05
5.7 7.8 10 14 20 25 30
3*1.5 3*2.5 3*2.5 3*2.5 3*2.5 3*3.5 3*3.5
715x565x290 930x630x350 930x630x350 930x630x350 930x630x350 1025x380x805 1025x380x805
39 47 50 57 60 85 98
≤51 ≤52 ≤52 ≤54 ≤54 ≤55 ≤55
≤38 ≤40 ≤40 ≤42 ≤42 ≤44 ≤44
≤30 ≤32 ≤32 ≤33 ≤33 ≤34 ≤34
1.5″1.5″1.5″1.5″1.5″1.5″1.5″
MITSUBISHI MITSUBISHI TOSHIBA TOSHIBA TOSHIBA TOSHIBA TOSHIBA
1.8 1.8 2.4 3.6 3.6 4.8 6
0.6 0.75 1.05 1.75 1.65 2.4 3
1.5 1.6 1.6 1.68 1.68 1.71 1.75
0-23 20-33 30-45 40-65 55-80 75-95 90-120
[4]Noise from 1m + from 5m + from 10m (in DBA) (As in the directives EN ISO 3741 & EN ISO 354...)
[5]Calculated for private inground swimming pool, with a bubles cover
.
230V～50Hz
15℃～40℃
-5℃～43℃
PVC 50mm
Titanium PVC Tank
Display
Sound pressure level at 4m[4]
Sound pressure level at 10m[4]
Load loss(mCE)
COMPRESSOR TYPE
Air24/℃
Water20℃
[2]
Hydraulic connection
Refrigerant
Power cable cross section(MM2)
Sound pressure level at 1m[4]
Water inlet/outlet dimension
Refrigerant charged (KG)
[1]Ambient air temperature 15℃(DB)/12℃(WB), water temperature 13℃;
[3]Ambient air temperature 35℃(DB)/27℃(WB), water temperature 27℃.
[2]Ambient air temperature 24℃(DB)/19℃(WB), water temperature 20℃;
Water Heat Exchanger
Min.water flow（M3/h）
Max.pool volume(M3)[5]
Mode
R410A
LCD
Heating/Cooling/AUTO
Unit dimensions W×H×D(mm)
Net Weight (KG)
Setting temperature range
Running gemperature range
Max Current(A)
Power Supply
Air35/℃
Water27℃
[3]
Air15/℃
Water13℃
[1]
Model

POOLEX
JETLINE 35
POOLEX
JETLINE 48
POOLEX
JETLINE 65
POOLEX
JETLINE 85
POOLEX
JETLINE 100
6

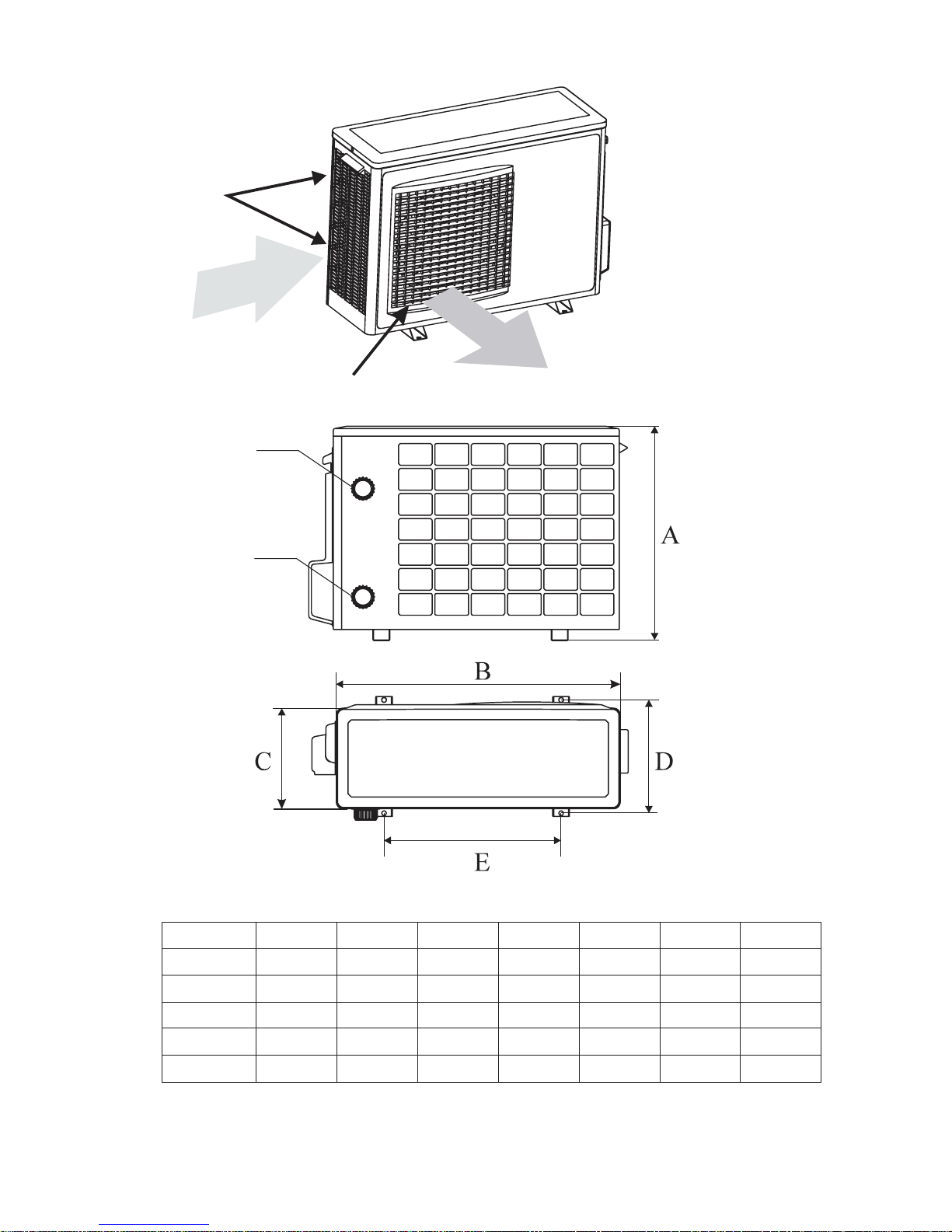

Unit dimensions
Air inlet
Air outlet
Water outlet
Water inlet
A(mm)
B(mm)
C(mm)
D(mm)
E(mm)
No. POOLEX
JETLINE 120
POOLEX
JETLINE 150
805
1025
365
380
640
805
1025
365
380
640
630
850
300
313
530
630630630
850850850
300300300
313313313
530530530
565
715
290
313
500
ENGLISH

Exploded view
Construction of POOLEX JETLINE 35
7 ENGLISH
1. Top cover
2. Internal clapboard
3. Back cover
4. Manometer
5. Four-way valve
6. Water pipe head
7. Inlet/outlet O-ring seal
8. Water switch
9. Titanium PVC tank
10. Bottom cover
11. Compressor
12. Wire control
13. Lifting handle
14. Evaporator
15. Electric control box cover
16. Motor frame
17. Fan motor
18. Fan
19. Electric control box
20. Front cover
21. High pressure switch
22. Low pressure switch
23. Needle valve
24. Fan motor capacitor
25. Compressor capacitor
26. Circuit board
27. Transformer
28. Terminal blocks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

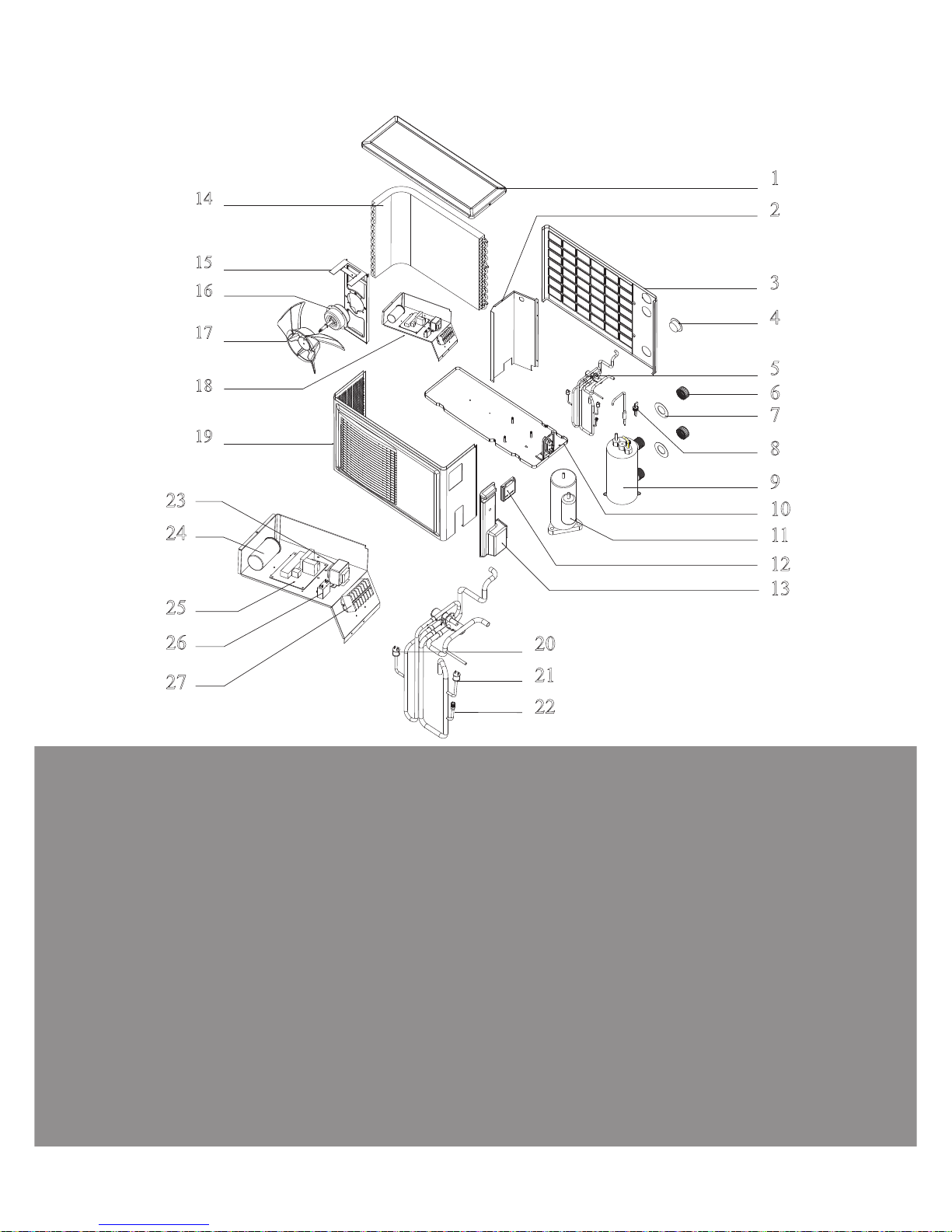

Exploded view
Construction of POOLEX JETLINE 48 and 65.
8 ENGLISH
1. Top cover
2. Internal clapboard
3. Back cover
4. Manometer
5. Four-way valve
6. Water pipe head
7. Inlet/outlet O-ring seal
8. Water switch
9. Titanium PVC tank
10. Bottom cover
11. Compressor
12. Wire control
13. Lifting handle
14. Evaporator
15. Motor frame
16. Fan motor
17. Fan
18. Electric control box
19. Front cover
20. High pressure switch
21. Low pressure switch
22. Needle valve
23. Fan motor capacitor
24. Compressor capacitor
25. Circuit board
26. Transformer
27. Terminal blocks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

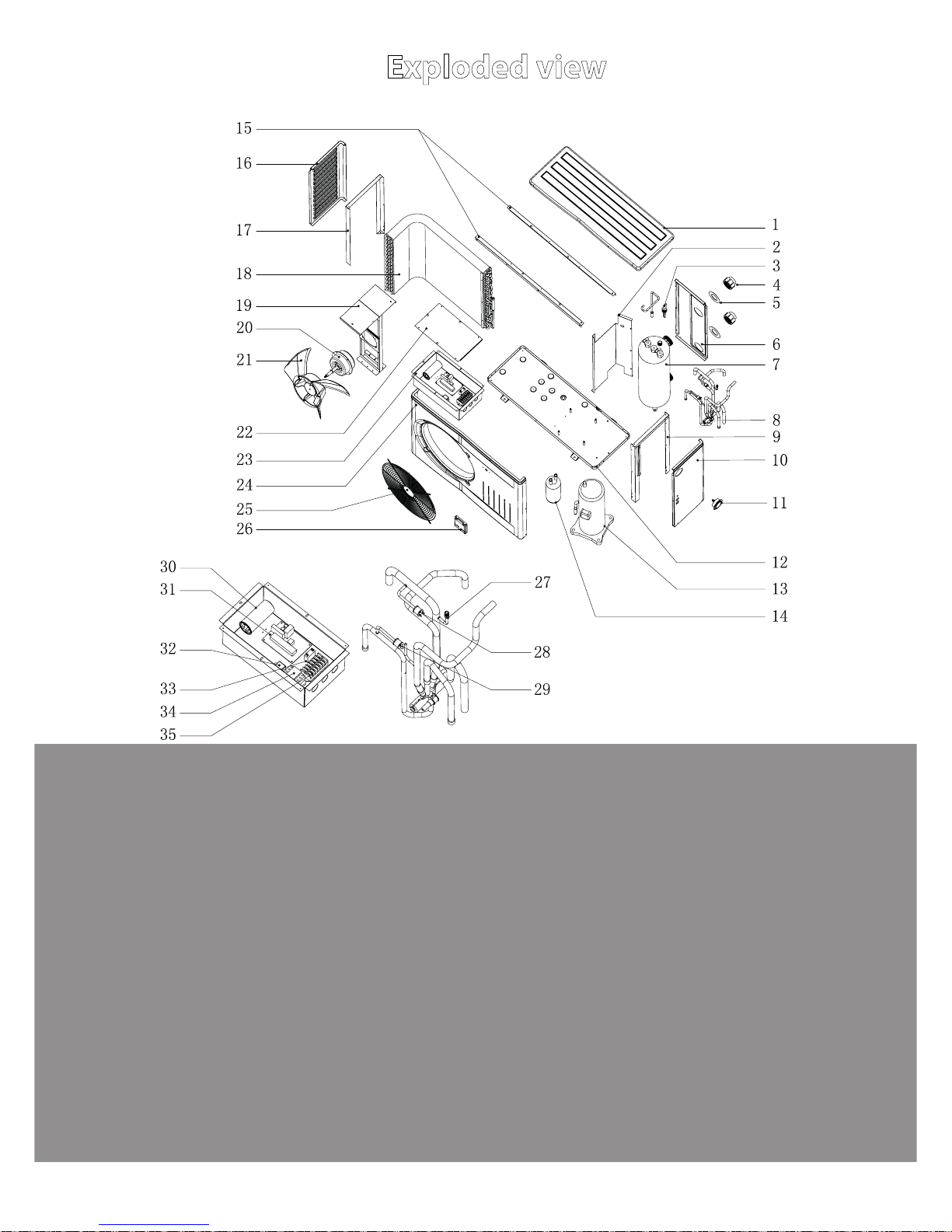

Exploded view
Construction of POOLEX JETLINE 85
9 ENGLISH
21
22
23
24
27
28
26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
25
20
1. Top cover
2. Internal clapboard
3. Back cover
4. Manometer
5. Four-way valve
6. Water pipe head
7. Inlet/outlet O-ring seal
8. Water switch
9. Titanium PVC tank
10. Bottom cover
11. Compressor
12. Wire control
13. Lifting handle
14. Evaporator
15. Electric control box cover
16. Motor frame
17. Fan motor
18. Fan
19. Electric control box
20. Front cover
21. High pressure switch
22. Low pressure switch
23. Needle valve
24. Fan motor capacitor
25. Compressor capacitor
26. Circuit board
27. Transformer
28. Terminal blocks

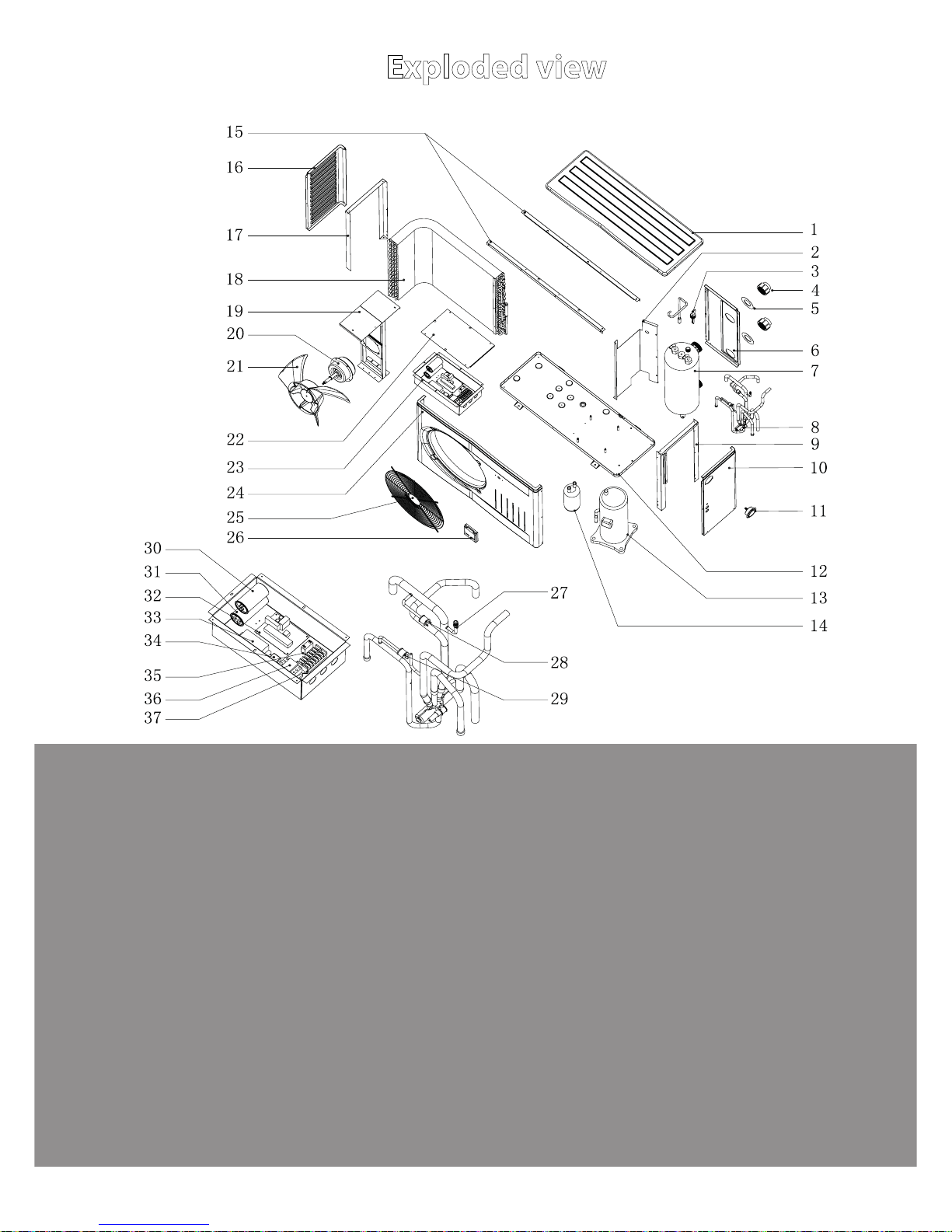

Exploded view
Construction of POOLEX JETLINE 100
10 ENGLISH
1. Top cover
2. Internal clapboard
3. Back cover
4. Manometer
5. Four-way valve
6. Water pipe head
7. Inlet/outlet O-ring seal
8. Water switch
9. Titanium PVC tank
10. Bottom cover
11. Compressor
12. Wire control
13. Lifting handle
14. Evaporator
15. Electric control box cover
16. Motor frame
17. Fan motor
18. Fan
19. Electric control box
20. Front cover
21. High pressure switch
22. Low pressure switch
23. Needle valve
24. Fan motor capacitor
25. Compressor capacitor
26. AC contactor
27. Circuit board
28. Transformer
29. Terminal blocks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
25
20
21
22
23
24
26
28
29
27

Exploded view
11ENGLISH
1. Top cover
2. Internal clapboard
3. Water switch
4. Water pipe head
5. Inlet/outlet O-ring seal
6. Back cover
7. Titanium PVC tank
8. Four-way valve
9. Right supporting frame
10. Right cover
11. Manometer
12. Bottom cover
13. Compressor
14. Gas/liquid separator
15. Top supporting frame
16. Left cover
17. Left supporting frame
18. Evaporator
19. Moter frame
20. Fan motor
21. Fan
22. Electric control box cover
23. Electric control box
24. Front cover
25.Wire Mesh
26. wire control
27. Needle valve
28. Low pressure switch
29. High pressure switch
30. Run capacitor
31. Circuit board
32. Transformer
33. Fan motor capacitor
34. ACcontactor
35. Terminal blocks
Construction of POOLEX JETLINE 120

Exploded view
12ENGLISH
1. Top cover
2. Internal clapboard
3. Water switch
4. Water pipe head
5. Inlet/outlet O-ring seal
6. Back cover
7. Titanium PVC tank
8. Four-way valve
9. Right supporting frame
10. Right cover
11. Manometer
12. Bottom cover
13. Compressor
14. Gas/liquid separator
15. Top supporting frame
16. Left cover
17. Left supporting frame
18. Evaporator
19. Moter frame
20. Fan motor
21. Fan
22. Electric control box cover
23. Electric control box
24. Front cover
25.Wire Mesh
26. wire control
27. Needle valve
28. Low pressure switch
29. High pressure switch
30. Run capacitor
31. Start capacitor
32. Circuit board
33. Soft starter
34. Transformer
35. Fan motor capacitor
36. AC contactor
37. Terminal blocks
Construction of POOLEX JETLINE 150

Titanium heat exchanger
13ENGLISH
1.Standard connectors, reliable, easy installation;
2.Sensitive water ow switch, detect water ow precisely.
3.Double spirale titanium tubes in heat exchanger, high eeciency;
4.PVC inner-tube design, make better heat exchanging.
Refrigerant inlet
Refrigerant outlet
Water out
Water in
Water switch
PVC inner-tube
PVC outcase
Titanium pipe Water outlet
Water inlet

Installation
Selection of installation site
1. installation must be simple and allow easy access for later work.
2. If the unit is to be installed on the oor, its undercarriage should be heightened, to avoid ingression of
accumulated water in rainy season. In snowy areas, it is important to prevent accumulated snow from
blocking up the air-out.The recommended height is 20cm to 30cm.
3. Drain ditch or other facilities should be arranged under the outdoor unit, to avoid the environment
inuence because of water discharge.
4. To install the unit at balcon or top of building, the installation site must meet the allowable bearing
capacity of building structure, without aecting the structural safety.
5. Ensure the unit is well vetilated, direction of air exhaust is kept away from windows of neighboring
buildings, and the exhaust air cannot ow back. Moreover, adequate service clearance should be kept
around the unit.
6. The unit should not be installed at places accompanied with oil, Inammable gas, corrosive components,
e.g. Sulfur compound, or high-frequency equipment.
7. The unit must be installed on reliable base or framework. Weight capacity of framework should be 3 times
of the body weight, and safeguard measures should be taken to avoid malfunction of fastenings.
8. The unit should not be installed at sites with typhoon/earthquake hazards. Midair installation should be
avoided as much as possible as machine falling down may result in severe accident.
9. Do not install the heat pump close to a road or path to avoid mud splashing on the unit.
10. Keep, wherever possible, the unit out of reach of children.
Installation in exceptional circumstances(unit:mm)
14ENGLISH
1.During installation, do not pick up the unit by the top panel, use the
base to lift the unit.
2.Installation must be carried out by professional.
! ATTENTION !
No obstacle in front of unit Obstacle above the unit

Installation
15ENGLISH
Valve 1\Valve 2\Valve 3 : Bypass valves.
Valve 4\Valve 5 :Setting valves*.
* Recommended to facilitate adjustments close to the machine.
Valve 1
Valve 3 Valve 2
Valve 5
TO SWIMMING POOL
FROM SWIMMING POOL
Heat pump
Water out
Water in
Condensate drain Pump Filter

Installation diagram
16ENGLISH
The lter connected with pipes should be cleaned regularly to make sure the water inside systems clean, and also
avoid other troubles of unit caused of dirty or blocked lter.
Winter anti-freezing instruction
1. The heat pump unit has auto antifreeze program. When the unit is working normally, there will not be freezing.
2. When the ambient temperature is minus, and the unit stops for over 3 hours, or the unit stops long term when
power o. the user is advised to drain allthe water inside pipes through the valve which connected to water
outlet,to avoid frost crack.
3. If the unit is under o season, should cut o power and take the protection cover outside of unit when
necessary.
4. Before restart the unit which has drained out all the water inside, the user is advised to reinstallthe unit and
adjust program. further more need complete check of the system.
Installation diagram for combination
SWIMMING
POOL
SWIMMING
POOL
WATER OUT
WATER IN
WATER OUT
WATER IN
WATER OUT
WATER IN
CIRCULATION PUMP
CIRCULATION PUMP
FILTER
FILTER
DRAIN VALVE
DRAIN VALVE
DRAIN VALVE

Wire controller installation
17ENGLISH
The wired controller is originally xed on the maintenance door of the machine; please refer to below steps if you
want to install it on the wall:
1. Take down the controller from the machine. Please pay attention that the communication wire is connected
with The circuit board, separate them from where they match.
2. Use a screwdriver to open the clip as picture 1, separate the controller as 2 parts, as picture 2.
3. On the wall that you are going to install the controller, drill 2 holes at a level parallel to the sight line as picture
3. The hole distance is 60mm, diameter is 8mm.
4. Place the plastic screws of the enclosure into the hole, and use the tapping screw (ST4*16 D-1) enclosed to x
the back cover of controller on the wall, as picture 4
5. Match the front and back covers perfectly, as picture 5, make sure that it is xed rmly on the wall.
6. Connect the communication wire well.
M
S
E
T
MS E T
1 2
56
60mm
Φ8
3 4
! Attention !
Please don't use keen-edged things to hit the controller face and keys, or it may cause damage.
When the controller is xed on the wall, don't pull the communication wire, or it may cause poor contact.
The back cover
The front cover
Outlet of the
communication wire

Noise Level
18ENGLISH
To reduce noise interference to your neighbors, please install the heat pump in a position that
faces the least sound sensitive neighboring area. Below table shows the noise level of our pool
heat pump at dierent distance. But they are only guide values because they will be further
aected by obstacles.
Noise Level
SCALE OF NOISE LEVELS
Noise level at 1m
dB(A)
Noise level at 4m
dB(A)
Noise level at 10m
dB(A)
30 dB: whispered conversation
40 dB: refrigerator
50 dB: rain
55 dB: washing machine
60 dB: Normal conversation
65 dB: TV
70 dB: ringtone
75 dB: vacuum
80 dB : automobile
85 dB: barking
90 dB: lawn mower
95 dB : klaxon
100 dB: hi-
130 dB racing
140 dB: airplane takeo
1 m4 m10 m
POOLEX
JETLINE 35
POOLEX
JETLINE 48
POOLEX
JETLINE 65
POOLEX
JETLINE 85
POOLEX
JETLINE 100
Model
51
38
30
52
40
32
52
40
32
54
42
33
54
42
33
POOLEX
JETLINE 120
POOLEX
JETLINE 150
55
44
34
55
44
34

Electrical connection
1. The electrical power supply to the heat pump must be protected with a fuse and isolator switch (not
provided) in compliance with standards and regulations valid in the country in which the system is to be
installed.
2. The unit is designed for connection to a general power supply with full earth and neutral or neutral earth
systems.
3. The power supply cable must be connected to a circuit-breaker with at least a 3mm breaking gap. Inco
ming supply must be 220~240V/1/50Hz, via a distribution board with fuses.
4. If an insulation test is to be carried out in the building, please make sure to disconnect the heat pump.
5. The communication wire must be STP(Shielded Twisted Pair), the size should not less than 0.5 m㎡
19ENGLISH
a. This section is an indication only and must be checked and adapted when neces
sary according to installation conditions.
b. Electrical installation and service must be carried outunder the supervision of a
qualied electrician.
! ATTENTION !
Isolar switch
Important remarks:
A voltage variation of ±10% during operation is acceptable.
The electrical supply conduits must be securely fastened.
The cable must be suitable for outdoor use.
Use a cable gland to pass the power supply cable into the unit.
