Panel Description：
Panel Description：
Product Introduction
Product Introduction
7.Automatic Blowing
Direction Control Key
8.Blowing Direction Control Key
1.Signal Sending Display
2.Fan Display
3.Blowing Direction Display
13.Run Mode Display
14.Temperature Display
15.Model Code
5.Temperature "+" key
18. T e mpe r a ture " - k e y
12.Clock Function Key
21.Confirmation Button
11.SET
19.Fast Cool Key
20.Fast Heat Key
6..Mode Key
17.Fan Key
16.Power Key
10.Timing ON Key
9.Timing OFF Key
Fast Cool/Heat Key
Press Fast Cool key to automatically set the machine as
refrigerating mode, 21℃, middle wind, automatic blowing
direction;
Press Fast Heat key to automatically set the machine as
heating mode, 27℃, middle wind, automatic blowing direction.
1. Remove the battery cover of
the remote control, install
two new 7# batteries;
2. Install the battery cover.
The time will appear in
the left corner of LCD
display.
Battery Installation:
Battery Installation:
Setting of Remote Control
Setting of Remote Control
Manually input code
Manually plug-in the air
conditioner, find the type
of the air conditioner in
the Code Table, and
find the first code, for
example: Haier
Hold SET button (for about
three seconds) until the
conditioner type code flickers
in the window, press
Temperature or buttons
until the desired code flickers
in the window. When the code
is right, the air conditioner will
start.
BRAND CODE
HAIER 001-019
Code is
flashing
Code
stops
flashing
Press OK button and the
selected conditioner type
code will stop flickering.
Test whether the remote
control button has been
effectively set. If yes,
setting completes. And
if no, repeat steps 2-3.
Manually plug-in the air
conditioner, aim the remote
control at the receiving
window of the air conditioner.
GREE/Haier
MD\TOSHIBA
/CHANGHONG
SHARP\
KELONG
MITSUBISHI
/OTHER
LG\
SAMSUNG
HITACHI\
Panasonic
SANYO\
HISENSE
CHIGO\
DAIKIN
FUJITSU\
CARRIER
CHUNLAN
/AUX
SHINCO\
AUCMA
21
20
19
18
17
16
1
2
3
4
5
6
7
8
9
15
14
13
12
11
10

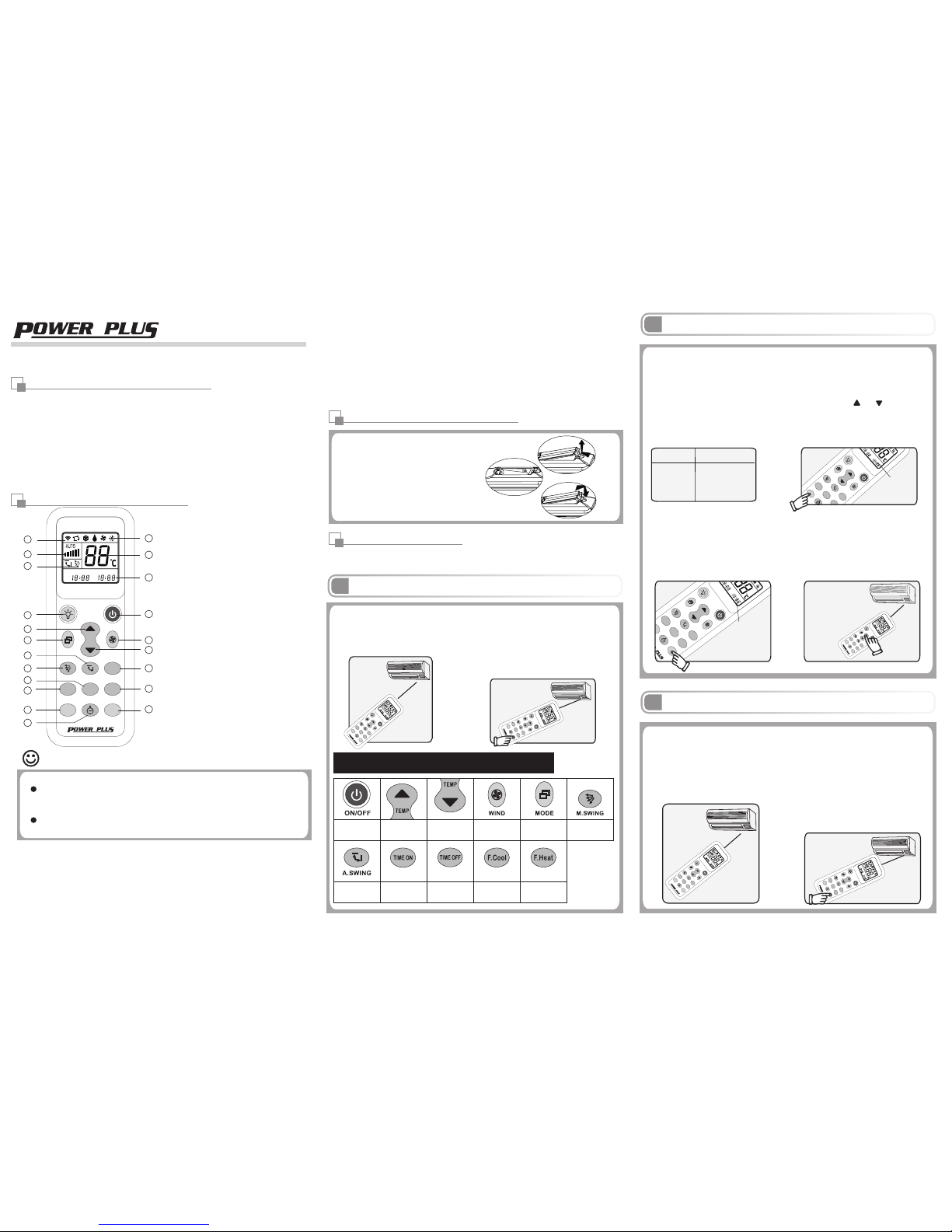

User's instruction for all-purpose
air conditioner remote controller
Model AIR-102W All-purpose Air Conditioner Remote Controller has been
designed to remotely control various brands and models of the air
conditioners . This product is characteristic of point-to-point fast brand
searching and automatic digital code searching with low power
consumption, complete functions, long transmission distance, easy
setting, simple operation and fresh visual appearance and comfortable
hand feel which can facilitate you with unlimited convenience. The
product has a large LCD screen which provides easy setting and
operation. It has built-in clock, on/off timer and night illumination function
which have facilitated more convenience for you.
4.Backlight
Remarks:
Remarks:
This remote controller has four setting modes that are marked as A, B, C .
Please select one mode for operation.
The brand corresponding point-to-point fast searching
Press the code key that
corresponds to your brand and
hold until the air conditioner is
started by giving out a sound
signal. Release the key and the
setting is completed.
Table of brand corresponding keys
Digital automatic search type
1 2
Manually plug-in the air
conditioner, aim the remote
control at the receiving
window of the air conditioner.
Hold SET button (for about six
seconds) until the conditioner
type code changes in the
window, indicating you have
entered the high-speed
conditioner type search status.
press OK button to stop
searching until the air
conditioner automatically
starts.
AIR-102W
TIME ONTIME OFF
ON/OFF
SetOk
F.Heat
F.Cool
AIR-102W
1000 in 1
MODE
M.SWING
TEMP
CLOCK
A.SWING
WIND
UNIVERSAL A/C REMOTE
LIGHT
AM
PM
TIM
E
O
FF
TIM
E
ON
AM
PM
TIME ONTIME OFF
ON/OFF
SetOk
F.Heat
F.Cool
AIR-102W
1000 in 1
MODE
M.SWING
TEMP
CLOCK
A.SWING
WIND
UNIVERSAL A/C REMOTE
LIGHT
AM
PM
TIM
E
O
FF
TIM
E
ON
AM
PM
TIME ONTIME OFF
ON/OFF
SetOk
F.Heat
F.Cool
AIR-102W
1000 in 1
MODE
M.SWING
TEMP
CLOCK
A.SWING
WIND
UNIVERSAL A/C REMOTE
LIGHT
AM
PM
TIM
E
O
FF
TIM
E
ON
AM
PM
TIME ON TIME OFF
ON/OFF
SetOk
F.Heat
F.Cool
AIR-102W
1000 in 1
MODE
M.SWING
TEMP
CLOCK
A.SWING
WIND
UNIVERSAL A/C REMOTE
LIGHT
AM
PM
TIM
E
O
FF
TIM
E
ON
AM
PM
TIME ONTIME OFF
ON/OFF
SetOk
F.Heat
F.Cool
AIR-102 W
1000 in 1
MODE
M.SWING
TEMP
CLOCK
A.SWING
WIND
UNIVERSAL A/C REMOTE
LIGHT
AM
PM
TIM
E
O
FF
TIM
E
ON
AM
PM
No need to set:
Once the battery is loaded, the remote control can control the
mainstream brands on the market: Gree (YB0F2), Midea,
Toshiba, Chunlan, Haier, Mitsubishi Heavy Industries 388,
Hualing and other brands.
Restore factory settings: press the buttons set and FAN
simultaneously for three seconds to restore the factory settings.
Note: when the battery is loaded, the combination code does
not have timing function. To use the timing function, please
control according to the setting method described in the
instruction book, which is corresponding to the model.

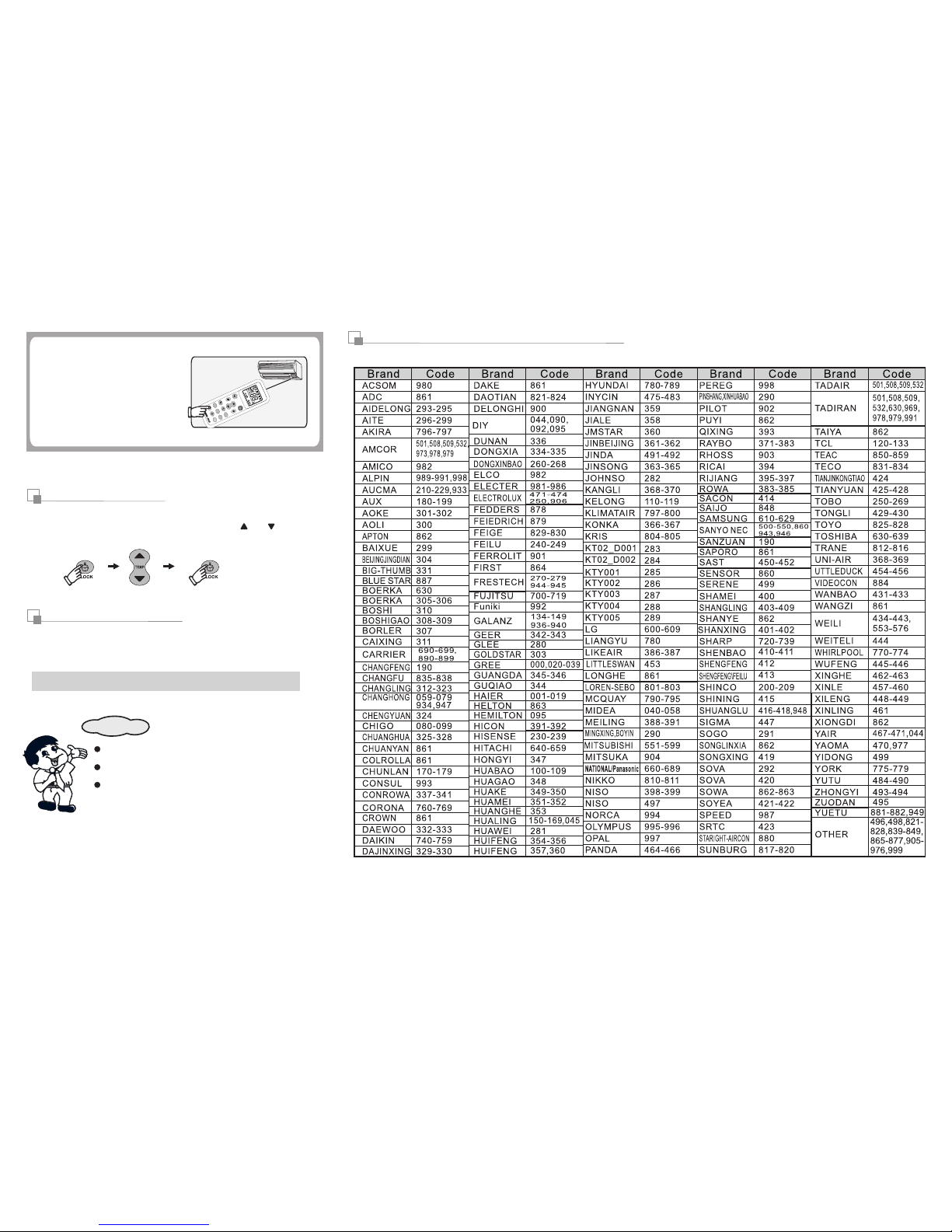

3Applicable brand and code list
Test whether the functions
of remote control buttons
(excluding Temperature"▲"and
"▼" buttons, timed ON/OFF
buttons, and SET button) are
correct. If yes, the code is
effectively set. If not, press
SET button to continue once
the search.
Set Time Function
Set Time Function
Press CLOCK button (for three seconds) to enter the clock setting
status, and the clock will flicker. Use the Temperature" " or " " buttons
to adjust the current time, and press CLOCK button again to exit setting.
Timing ON/OFF Function
Timing ON/OFF Function
To configure the timer function of the original remote control, press
TIME ON or TIME OFF buttons, and the air conditioner timer lights
will go on, indicating the air conditioner has entered the timed status.
※The timed ON function of some of the air conditioner types is
only valid only in the Power Off status.
※ This company reserves the right to interpretation of the User's Manual. Design and technical parameters may vary without notice.
This remote control is effective if the air conditioner
receiver works normally.
If this remote control is intended to be not in use for
a long time, please remove the batteries.
It may possibly caused internal program disorder if
this remote control is not operated correctly, in case
of that, please take out the battery, and install the
batteries 35 minutes later, then the remote control
may recover normal.
Warm Tips:
Warm Tips:
