Precor PVS Wiring diagram

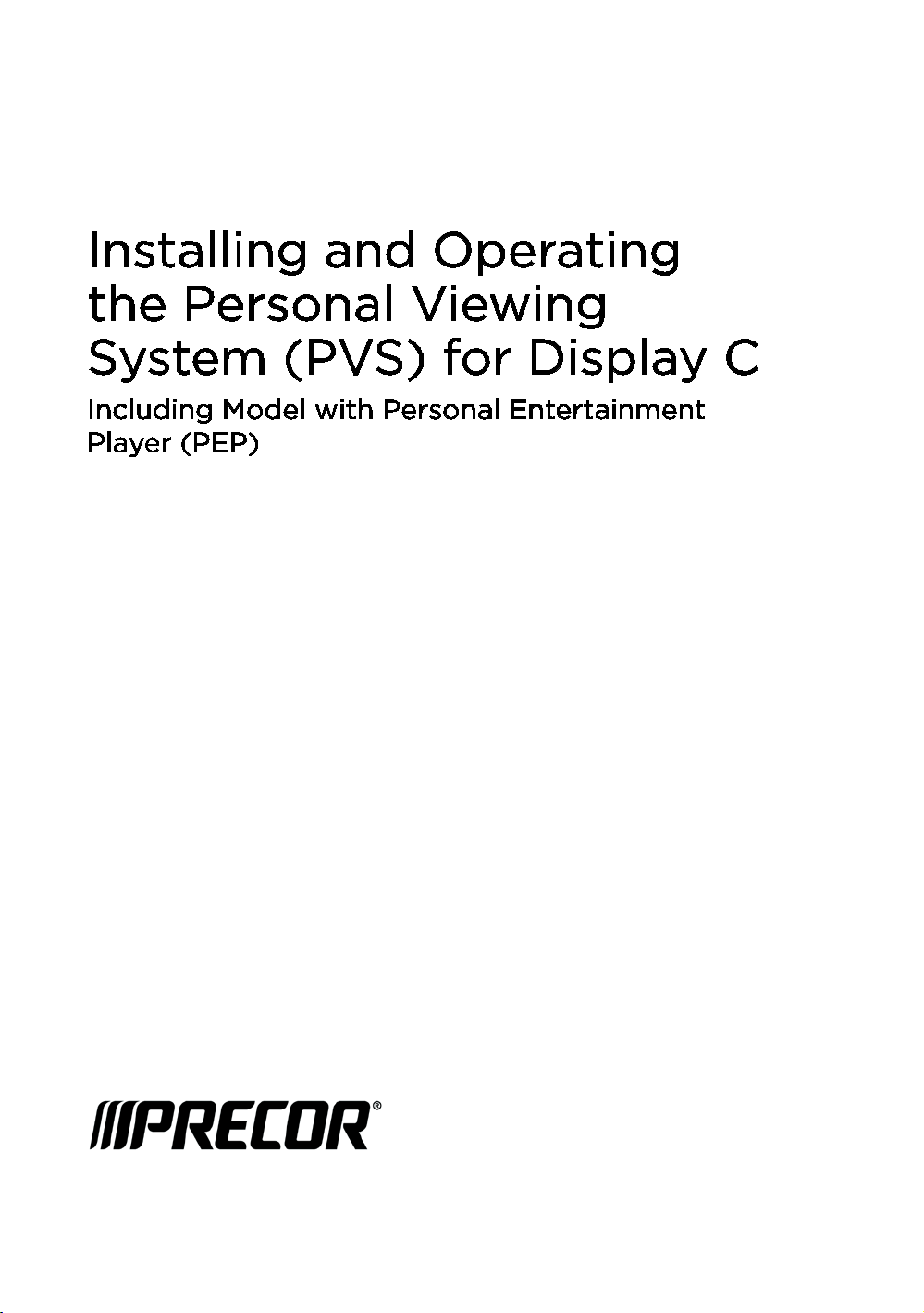

Installing and Operating the
Personal Viewing System
(PVS) for Display C
Including Model with Personal
Entertainment Player (PEP)
Precor Incorporated
20031 142nd Avenue NE
P.O. Box 7202
Woodinville, WA USA 98072-4002
PVS for Display C OM CX30632-241 rev D, en
Warranty P/N 301650-101
June 2013

Edition Information
INSTALLING AND OPERATING THE PERSONAL VIEWING
SYSTEM (PVS) FOR DISPLAY C
P/N CX30632-241 rev D
Copyright © June 2013 Precor Incorporated. All rights
reserved. Specifications subject to change without notice.
Trademark Note
Precor, AMT, EFX, and Preva are registered trademarks of
Precor Incorporated. Other names in this document may be
the trademarks or registered trademarks of their respective
owners.
iPod® is a trademark of Apple Inc., registered in the U.S. and
other countries.
Made for iPod® means that an electronic accessory has been
designed to connect specifically to iPod and has been certified
by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards. Please note
that the use of this accessory with iPod may affect wireless
performance.
Made for iPod touch® (1st, 2nd, and 5th generation), and iPod
nano® (1st, 2nd, 3rd, and 4th generation).
Manufactured under license from Dolby Laboratories. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories.

Intellectual Property Notice
All rights, title, and interests in and to the software of the
Preva Business Suite, the accompanying printed materials,
any copies of such software, and all data collected via the
Preva Business Suite, are exclusively owned by Precor or its
suppliers, as the case may be.
Precor is widely recognized for its innovative, award-winning
designs of exercise equipment. Precor aggressively seeks U.S.
and foreign patents for both the mechanical construction and
the visual aspects of its product design. Any party
contemplating the use of Precor product designs is hereby
forewarned that Precor considers the unauthorized
appropriation of its proprietary rights to be a very serious
matter. Precor will vigorously pursue all unauthorized
appropriation of its proprietary rights.
Precor Incorporated
20031 142nd Ave NE, P.O. Box 7202
Woodinville, WA 98072-4002
1-800-347-4404
http://www.precor.com

Important Safety Instructions
Safety Precautions
Important: Save these instructions for future reference.
Read all instructions in the documentation provided with your
exercise equipment, including all assembly guides, user
guides, and owner’s manuals, before installation of this
device.
Note: This product is intended for commercial use.
Always follow basic safety precautions when using this
equipment to reduce the chance of injury, fire, or damage.
Other sections in this manual provide more details of safety
features. Be sure to read these sections and observe all safety
notices. These precautions include the following:
Read all instructions in this guide before installing and
using the equipment and follow any labels on the
equipment.
Make sure all users see a physician for a complete
physical examination before they begin any fitness
program, particularly if they have high blood pressure,
high cholesterol or heart disease; have a family history of
any of the preceding conditions; are over the age of 45;
smoke; are obese; have not exercised regularly in the past
year; or are taking any medication.
French equivalent of the above notice, for Canadian
markets: Il est conseillé aux utilisateurs de subir un examen
médical complet avant d’entreprendre tout programme
d’exercice, en particulier s’ils souffrent d’hypertension
artérielle, ou de cardiopathie ou ont un taux de cholestérol
élevé, s’ils ont des antécédents familiaux des précédentes
maladies, s’ils ont plus de 45ans, s’ils fument, s’ils sont
obèses, s’ils n’ont pas fait d’exercices réguliers au cours de
l’année précédente ou s’ils prennent des médicaments. Si vous
avez des étourdissements ou des faiblesses, arrêtez les
exercices immédiatement.

6Installing and Operating the Personal Viewing System (PVS) for Display C
Do not allow children, or people unfamiliar with the
operation of this equipment, on or near it. Do not leave
children unsupervised around the equipment.
Make sure all users wear proper exercise clothing and
shoes for their workouts and avoid loose or dangling
clothing. Users should not wear shoes with heels or
leather soles, and they should check the soles of their
shoes to remove any dirt and embedded stones. They
should also tie long hair back.
Never leave the equipment unattended when it is plugged
in. Unplug the equipment from its power source when it is
not in use, before cleaning it, and before providing
authorized service.
Note: The optional power adapter is considered a power
source for self-powered equipment.
Use the power adapter provided with the equipment. Plug
the power adapter into an appropriate, grounded power
outlet as marked on the equipment.
Care should be taken when mounting or dismounting the
equipment.
For Treadmills: Do not use typing or web surfing features
while walking at speeds that exceed a slow and relaxed
leisurely pace. Always stabilize yourself by holding a
stationary handle bar while using typing or web surfing
features.
For AMT and EFX: Always stabilize yourself by holding a
stationary handle bar while using typing or web surfing
features.
Read, understand, and test the emergency stop
procedures before use.
Keep the power cord or optional power adapter and plug
away from heated surfaces.
Route power cables so that they are not walked on,
pinched, or damaged by items placed upon or against
them, including the equipment itself.
Ensure the equipment has adequate ventilation. Do not
place anything on top of or over the equipment. Do not
use on a cushioned surface that could block the
ventilation opening.
Assemble and operate the equipment on a solid, level
surface.

Important Safety Instructions 7
SPACING—The below minimum spacing
recommendations are based on a combination of the
ASTM (U.S.) voluntary standards and EN (European)
regulations as of October 1, 2012, for access, passage
around, and emergency dismount:
Treadmills—a minimum of 0.5 m (19.7 in.) on each
side of the treadmill and 2 m (78 in.) behind the
machine.
Cardio equipment other than treadmills—a
minimum of 0.5 m (19.7 in.) on at least one side, and
0.5 m (19.7 in.) behind or in front the machine.
Careful consideration should be given to the
requirements of the Americans with Disabilities Act
(ADA), US Code 28 CFR (see Section 305). ASTM
standards are voluntary and may not reflect current
industry standards. The actual area for access, passage
around, and emergency dismount is the responsibility of
the facility. The facility should consider the total space
requirements for training on each unit, voluntary and
industry standards, and any local, state, and federal
regulations. Standards and regulations are subject to
change at any time.
Important:These spacing recommendations should be used
when positioning equipment away from sources of heat, such
as radiators, heat registers, and stoves.Avoid temperature
extremes.
Keep equipment away from water and moisture. Avoid
dropping anything on or spilling anything inside the
equipment to prevent electric shock or damage to the
electronics.
When using the treadmill, always attach the safety clip to
your clothing before beginning your workout. Failure to
use the safety clip may pose a greater risk of injury in the
event of a fall.
Keep in mind that heart rate monitors are not medical
devices. Various factors, including the user’s movement,
may affect the accuracy of the heart rate readings. The
heart rate monitors are intended only as exercise aids in
determining heart rate trends in general.
Do not operate electrically powered equipment in damp
or wet locations.
Never operate this equipment if it has a damaged cord or
plug, if it is not working properly, or if it has been dropped,
damaged, or exposed to water. Call for service
immediately if any of these conditions exist.

8Installing and Operating the Personal Viewing System (PVS) for Display C
Maintain the equipment to keep it in good working
condition, as described in the Maintenance section of the
owner’s manual. Inspect the equipment for incorrect,
worn, or loose components, and then correct, replace or
tighten prior to use.
If you plan to move the equipment, obtain help and use
proper lifting techniques.
Equipment Weight Restrictions: Do not use the treadmill
if you weigh more than 500 pounds (225 kg). If you weigh
more than 350 pounds (160 kg), do not run on the
treadmill. For all other fitness equipment, the weight limit
is 350 pounds (160 kg).
Use the equipment only for its intended purpose as
described in this manual. Do not use accessory
attachments that are not recommended by Precor. Such
attachments may cause injuries.
Do not operate the equipment where aerosol (spray)
products are being used or where oxygen is being
administered.
Do not use outdoors.
Do not attempt to service the equipment yourself, except
to follow the maintenance instructions in the owner’s
manual.
Never drop or insert objects into any opening. Keep hands
away from moving parts.
Do not set anything on the stationary handrails,
handlebars, control console, or covers. Place liquids,
magazines, and books in the appropriate receptacles.
Do not lean on or pull on the console at any time.
CAUTION: DO NOT remove the cover, or you may risk
injury due to electric shock. Read the assembly and
maintenance guide before operating. There are no
user-serviceable parts inside. Contact Customer Support if
the equipment needs servicing. For use with single phase
AC power only.

Important Safety Instructions 9
Hazardous Materials and Proper Disposal
The batteries within self-powered equipment contain
materials that are considered hazardous to the environment.
Federal law requires proper disposal of these batteries.
If you plan to dispose of your equipment, contact Precor
Commercial Products Customer Support for information
regarding battery removal. Refer to Obtaining Service.
Product Recycling and Disposal
This equipment must be recycled or discarded according to
applicable local and national regulations.
Product labels, in accordance with European Directive
2002/96/EC concerning waste electrical and electronic
equipment (WEEE), determine the framework for the return
and recycling of used equipment as applicable throughout the
European Union. The WEEE label indicates that the product is
not to be thrown away, but rather reclaimed upon end of life
per this Directive.
In accordance with the European WEEE Directive, electrical
and electronic equipment (EEE) is to be collected separately
and to be reused, recycled, or recovered at end of life. Users
of EEE with the WEEE label per Annex IV of the WEEE
Directive must not dispose of end of life EEE as unsorted
municipal waste, but use the collection framework available
to customers for the return, recycling, and recovery of WEEE.
Customer participation is important to minimize any potential
effects of EEE on the environment and human health due to
the potential presence of hazardous substances in EEE. For
proper collection and treatment, refer to Obtaining Service.

10 Installing and Operating the Personal Viewing System (PVS) for Display C
Safety Approvals for Cardiovascular
Equipment
Precor equipment has been tested and found to comply with
the following applicable safety standards.
Cardiovascular Type Equipment:
CAN/CSA, IEC, EN 60335-1 (Household and similar
electrical appliances - Safety)
EN 957 (Stationary training equipment, class S/B
compliant equipment)
PVS and P80 Regulatory Notice
This Precor equipment has been tested and found to comply
with the following applicable safety standards.
CAN/CSA, UL, IEC, EN 60065 (Audio, video and similar
electronic apparatus - Safety)
Radio Frequency Interference (RFI)
This Precor exercise equipment conforms to the following
national standards defining acceptable limits for radio
frequency interference (RFI).
Federal Communications Commission, Part 15
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a commercial
installation. The equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the owner’s manual instructions, may cause
harmful interference to radio communications.
WARNING
Per FCC rules, changes or modifications not
expressly approved by Precor could void the
user’s authority to operate the equipment.

Important Safety Instructions 11
Industry Canada
This Class A digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe A est conforme à la norme
NMB-003 du Canada.
ATTENTION: Haute Tension
Débranchez avant de réparer
European Applications
CE compliance is claimed to the following directives:
2004/108/EC EMC Directive
2006/95/EC LVD Directive
2002/95/EC RoHS Directive
Directive compliance has been verified to the following
standards:
EN 55022
EN 55024
EN 60335-1
EN 60065 (P80 and PVS)

12 Installing and Operating the Personal Viewing System (PVS) for Display C
Electrical Recommendations: 120 V and 240
V Treadmills
Note: This is a recommendation only. NEC (National Electric
Code) guidelines or local region electric codes must be
followed.
You should have received a power cable that meets your local
electrical code requirements along with the equipment.
Precor treadmills must be connected to a 20 amp individual
branch circuit that can be shared only with one PVS. If you
need additional help with the power connections contact your
Precor authorized dealer.
Important: An individual branch circuit provides a hot conductor
and neutral conductor to a receptacle. The conductors must not be
looped, "daisy-chained", or connected to any other conductors.
The circuit must be grounded according to NEC guidelines or local
region electric codes.
Figure 1: North American 120-volt, 20-amp power receptacle
Figure 2: North American 240-volt, 20-amp power receptacle

Important Safety Instructions 13
Electrical Recommendations: All Equipment
Excluding Treadmills
Note: This is a recommendation only. NEC (National Electric
Code) guidelines or local region electric codes must be
followed.
For equipment fitted with a P80 console or Personal Viewing
System (PVS) screen a separate power connection is
required. For a 20 amp branch circuit up to 10 screens can be
connected. If the branch circuit has any other devices plugged
into the circuit, then the number of screens must be reduced
by the wattage of the other devices.
Note: The typical splitter power cords that have IEC-320 C13
and C14 plugs have a recommended maximum capacity of
five screens.
Figure 3: IEC-320 C13 and C14 plugs
Obtaining Service
Do not attempt to service the equipment except for
maintenance tasks. If any items are missing, contact your
dealer. For more information regarding customer support
numbers or a list of Precor authorized service centers, visit
the Precor web site at http://www.precor.com.

14 Installing and Operating the Personal Viewing System (PVS) for Display C

Table of Contents
Important Safety Instructions................................................... 5
Safety Precautions................................................................................ 5
Hazardous Materials and Proper Disposal.................................... 9
Product Recycling and Disposal ....................................................... 9
Safety Approvals for Cardiovascular Equipment....................... 10
Radio Frequency Interference (RFI)............................................... 10
Industry Canada....................................................................................11
European Applications ........................................................................11
Electrical Recommendations:
120 V and 240 V Treadmills.....................................................12
Electrical Recommendations:
All Equipment Excluding Treadmills.......................................13
Obtaining Service.................................................................................13
Beginning the Assembly...........................................................17
Installation Requirements..................................................................17
Hardware Kit.........................................................................................18
EFX: Rewiring the Equipment ..........................................................20
Installing the Cables...........................................................................22
Attaching the Entertainment Option.............................................26
Treadmill: Rewiring the Equipment ............................................... 33
Installing the Cables and Screen Mount.......................................35
Setting Up the PVS ..................................................................47
About PVS System Settings.............................................................49
Viewing the System Settings (US Models) .................................52
Viewing the System Settings (EU Model) ...................................58

16 Installing and Operating the Personal Viewing System (PVS) for Display C
About the Personal Entertainment Player (PEP).....................61
Using the PVS and the PEP.............................................................. 62
Replacing the iPod Cable.................................................................. 63
Troubleshooting the PVS ........................................................ 67
Maintenance.............................................................................71
Cleaning the PVS Screen................................................................... 71
Limited Warranty for Precor Entertainment Products ........... 73

Chapter 1
Beginning the Assembly
To assemble the equipment, you will need to attach the PVS
to the console and route several cables.
Important: Assemble the equipment according to the guidelines
in this manual to ensure that you do not void the Precor Limited
Warranty. Any damage caused during installation is not covered
by the Precor Limited Warranty.
Installation Requirements
Prior to assembly, make sure you have the required tools and
hardware. You will need the following tools to perform this
assembly:
Phillips screwdriver
³₁₅-inch socket head screwdriver
Set of metric hex wrenches
Set of SAE hex wrenches
Hex-drive torque wrench with #2 Phillips screwdriver bit

18 Installing and Operating the Personal Viewing System (PVS) for Display C
Hardware Kit
The hardware kit shipped with this equipment contains the
fasteners and other hardware components shown in the
following table. If the equipment includes a Personal
Entertainment Player (PEP), there will be additional
components as noted.
Before you begin assembly, make sure that your hardware kits
are complete. If not, please contact Precor Customer Support.
Table 1. Primary Hardware Kit
Hardware Hardware Name Quantity
Socket head screws, ¹₄ x ¹₂ inch 2
Hex head bots, ¹₄ x ³₄ inch 2
¹₄-inch washer 2
Screen mount
Note: The treadmill screen mount
is slightly longer than the screen
mount for non-tread equipment.
1
Locking Tab 2
Bracket 1
Power cord splitter 1
T-raceway cover 1
