Matsunichi PhotoBlitz PF809 User manual

www.matsunichi.com
1
A detailed operation manual is provided with the player, from which you may obtain information
concerning product introduction, operating instructions, functional settings and safety precautions.
Please read all of the documents provided prior to installation and operation of the player for the rst
time. You should keep this manual for future reference.
We were careful when compiling the manual and we consider the information provided herein to be
reliable and correct. However, product changes may occur during the production lifecycle, so some
information may be slightly different for your unit. You are always welcome to give any comments
or suggestions. Matsunichi, Inc. (hereafter referred as Matsunichi) shall not be liable for any errors
contained herein or for any damages arising out of or related to this document or the information
contained herein
Matsunichi shall not be liable for any damage due to the use of the Matsunichi digital player or for
any claims for damages brought by third parties.
Matsunichi shall not be liable for any data loss due to operation and use of the product, product
repair, battery failure/replacement, or any other condition, and shall not be liable for other indirect loss
resulting therefrom.
Matsunichi reserves the right to make changes in the specications and other information contained
in this document without prior notication. Copyright by Matsunichi, Inc. All rights reserved.
Thank you for purchasing this product
Please visit our web site: www.matsunichi.com

2
www.matsunichi.com
INDEX
Chapter 1 Overview .................................................................3
1-1 PF809M Digital Frame..........................................................3
1-2 Device Requirements........................................................4
1-3 Accessories Included.........................................................................4
1-4 Functions and Features....................................................7
Chapter 2 Connecting ......................................................9
Chapter 3 Function application .......................................12
3-1 Device.............................................................13
3-2 Photo....................................................................15
3-3 Music...................................................................17
3-4 Video...................................................................18
3-5 File...................................................................19
3-6 Setup...................................................................20
3-7 Calendar...................................................................20
3-8 Setup...................................................................21
Chapter 4 Appendix ....................................................23
4-1 Technical specifications.................................................23
4-2 Care and Maintenance..................................................25
Limited Warranty ...........................................................26

www.matsunichi.com
3
Chapter 1 Overview
1-1 PF809M Digital Frame
Includes both cherrywood and black color changeable frames
Listen to MP3 music les
View JPEG (Up to 5120 X 3840 resolution)
BMP, GIF, TIFF and PNG images
support AVI/Mpeg4 -part 2 Video format (up to 704x576 resolution)
Supports Compact Flash (CF), Secure Digital (SD), xD, Multi Media Card (MMC) and
Memory Stick & Memory Stick Pro (MS) memory cards
Audio & Video and Earphone outputs
Graphic menu operation, easy and convenient to use
Wireless Remote Control
Internal memory got up to 500 pictures with transcoding

4
www.matsunichi.com
The PF809M have an internal memory to store your
digital pictures and does not included an external
memory card with the packaging. You may also need to
have one external memory card (SD/MMC/MS/xD/CF/
MS Pro) with photos les to operate this device.
System Requirement:
Minimum conguration of the PC is required for les
upload/download:
Pentium MMX 200 or above CPU An available USB
port
30MB available hard disk space 4X or higher speed
CD-ROM
Operation system: Microsoft Windows Windows ME,
Windows 2000 Professional, Windows XP or above.
1-3 Accessories Included
1-2 Device & System Requirement
Remote control
w/ Battery AV cable
Stand
AC Adaptor User Manual
Your PF809M comes with the following accessories. Please check that you have ev-
erything listed below. Please DO NOT discard any of packaging material at this time.
USB Device USB OTG
Cabel

www.matsunichi.com
5
Remote Control Preparation & Use
The wireless remote control already has a battery installed. To enable the remote, you
will need to remove the battery protector as show below.
1. Turn over the remote to the back cover.
2. Pull the plastic tab to enable the battery in the remote.
Your remote is now ready for use.
Remote Control
Plastic Tab
Pull

6
www.matsunichi.com

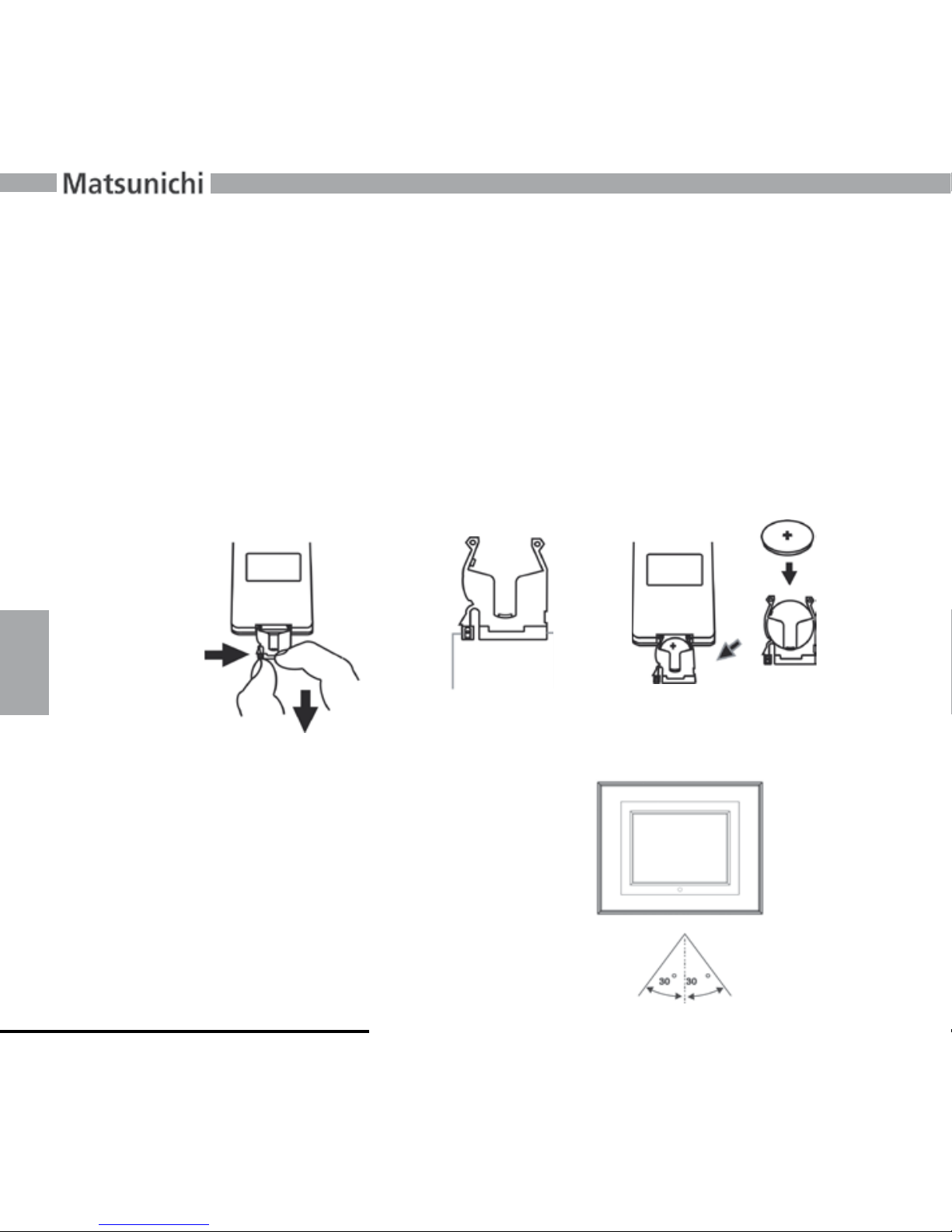

Remote Control Battery Holder
Release Clip Handle
Using the Wireless Remote Control
The remote control works best when pointed
directly at the unit. Stay within 30 degree angle
of the unit.
Battery Polarity
To replace the battery, remove the Battery Holder from the remote control. To re-
move the battery holder, use your thumbnail to squeeze the Release Clip in toward
the center, while simultaneously pulling the Handle out with your index ngernail.
Place the battery into the holder as pictured below with the POSITIVE SIDE
(marked on Battery as “ +”) facing upwards and insert into the remote control to
complete the battery installation.

www.matsunichi.com
7
1-4 Functions And Features
13
19
12
5
43 26
16
16
9
10
11
20
8
1
6
2
8
7
3
4
5
17
18
19
7
15
14

8
www.matsunichi.com
Power On /Off
Used to turn Off or On the PF809M
Up/Down/Left/Right / / /
Navigation keys, Press to choose previous/next option in the menu
Volume /
Press to increase/decrease volume level
Enter
Press to enter menu, sub-menus to congure different settings of the
player and used to conrm selected option
Power Adapter Connector
Earphone Jack
AV Output Jack
SD/MMC/xD/MS Card Slot
CF Card Slot
Wireless Remote receiver
Adjustable Rotation / Tilt Stand
Wall Mounting holes
Start slide show
Main menu
Return upper menu
USB Host / Device port
1
2-5
6-7
8
9
10
11
12
13
14
15
16
17
18
20
19

www.matsunichi.com
9

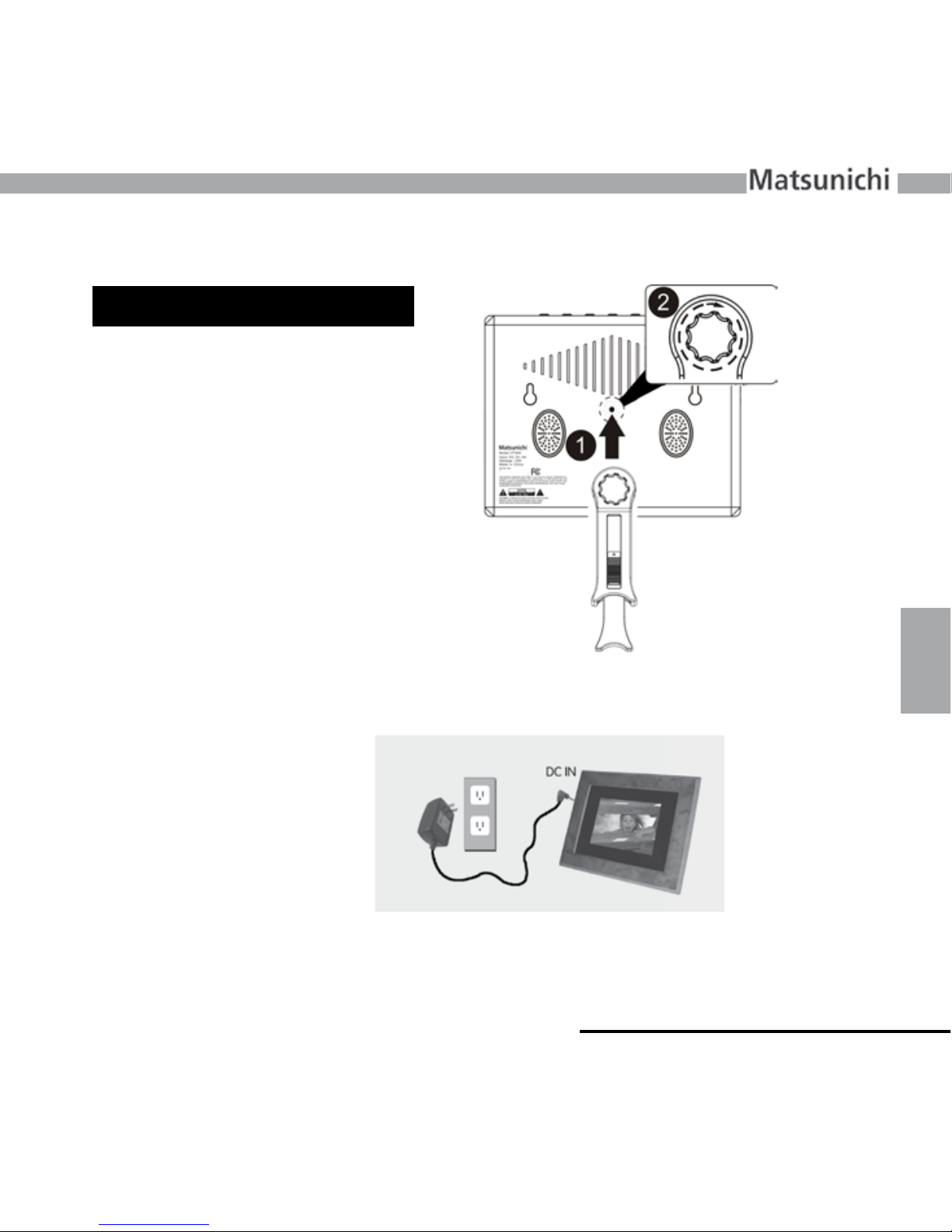

a. Connect the player with the
stand as shown :
b. Connect the power adapter to the power outlet. Connect the DC-out port of the AC
Adapter to the DC-in port of the player. As shown below:
c. Insert a memory card into the appropriate socket (be careful to insert the card
properly). Move the power switch to ON position. You are now ready to enjoy
your photos, music and video les.
Chapter 2 Connecting

10
www.matsunichi.com
d. Connect the AV cable to the TV set. As shown below:
Attention:
You must return to the picture frame’s Main Menu FIRST before connecting the
AV output cable to your TV or external video device. If there is no video signal
displayed on the external video device, try the following: Unplug the AV cable,
turn off & back on the picture frame and return to the Main Menu, then connect
the AV cable to your TV.
You cannot display video on BOTH the picture frame and an external video
device at the same time. During AV output mode, the video signal will be sent to
a TV or external video device and only a black screen will be displayed on the
picture frame
e.Connect with a U-disk
You can also connect with a U-disk or any usb storage device via USB HOST cable
between PC and the picture frame ,as show blow:

www.matsunichi.com
11
f .Connecting to PC
(1) Position properly your PC so that you may access the USB port more
easily.(Note: Some USB port(s) may be found at the front panel instead of the back.
Contact your system vendor for detail information if necessary).
(2) Plug the USB male connector of the USB device cable to your PC USB port.
(3) Turn on your PF809M device, and then plug the smaller connector of USB device
cable to the PF809M USB DEVICE/HOST port.
(5)The system detects the new hardware and installs the driver for it automatically.
(6)Upon the driver installation is nished, the device is ready to use. If you would like
to make sure whether the device has properly be installed your computer, please
double-click [My computer].
(7) Removable disks[H:] [I:] [J:] [K:][L:]appear on [My computer] (Removable disk [H:]
[I:] [J:] [K:][L:]represents the memory of memory card such as CF/SD/MMC/Xd/MS
and internal memory).
(8) Downloading les:you can download les to internal memory to operation.

12
www.matsunichi.com
First Time Powered ON Mode Message Prompt and User Preferences
The sample is not in the state of factory setting, the greeting is like this:
When you power ON the PF809M for
the rst time or after doing a factory
setting reset , you will be asked to dene
the user settings (Auto Start Slideshow & Auto
Demo le preferences). These settings will
allow you to have the PF809M automatically
start a slideshow when powered ON.
Powering ON Preference Setting for Auto Start
Settings.
Chapter 3 Function Applications

www.matsunichi.com
13
Setting Options:
Auto Slide - Slideshow of the installed memory card will be shown automatically
when device is turned ON.
Menu List - The device will not doing Slideshow function when device is turn on and
will display "Main Menu", As shown in the diagram:
Use the / / / navigation buttons to move through the selections and
press to conrm. press" "key to back to Main Menu.
Demo images - device will display Demo image when device is turn on
Choose “Photo” from the Main menu to enter the Photo Digest/Playback menu,
First you must select an available memory device from the device list.
3-1 Photo

14
www.matsunichi.com

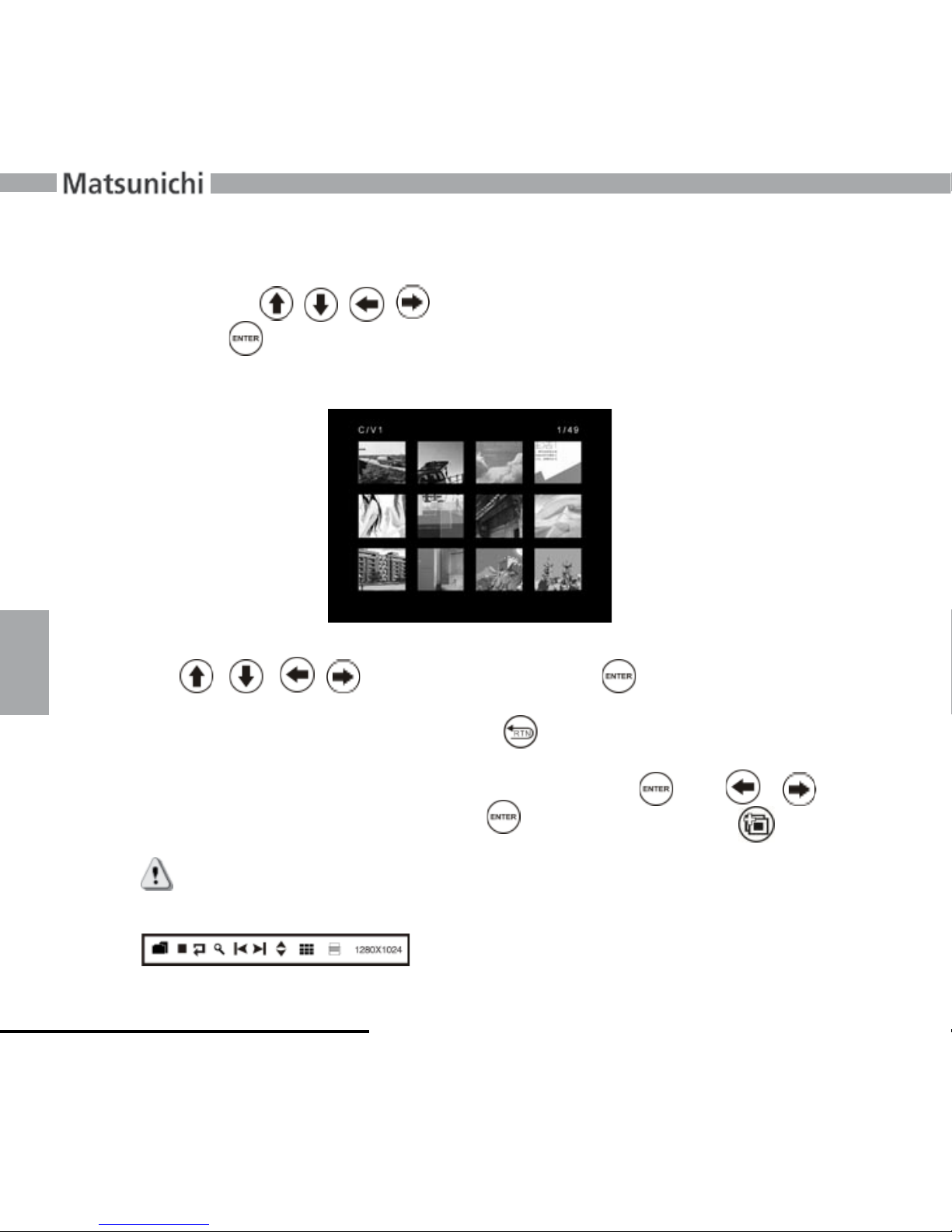

Then Use the / / / navigation buttons to move through the selections
and press to conrm. Then it will enter the photo digest browser , Shown in the
diagram:
Use / / / to navigate this page, press to conrm your selection
1. If you select a folder in the File Menu, the File Menu will open the selected
folderand display all of the les inside. Use to the previous level.
2. If you select any le displayed in the File Menu, the picture frame will display
this photo and the Function Bar will pop up while you press . Use / to
navigate the Function Bar functions. Use to conrm selection. Use to start
slide show from selected photo.
NOTE: If the Auto Start feature in the SLIDESHOW SETUP menu is set to
ON, the playback of all photo les at power up will begin .

www.matsunichi.com
15
A. Slide show: Starts/Resumes Slideshow based on Slideshow Settings in Setup.
B. Stop: Stop and return to previous menu
C. Rotate: Rotate current photo clockwise.
D. Zoom: Zoom in 2X, 3X, 4X and 5X Zoom Modes. Use buttons to scroll after
zooming into the photo.
E. Pervious: Previous photo.
F. Next: Next photo.
G. Photo ID: Show photo properties.
H. Thumbnail: Go to thumbnail digest. (There are 20 small pictures in one screen)
I.Transcode:Copy current photo to internal memory (you must set photo transcoding
"ON“ in SETUP menu, please refer to 3-8 SETUP for more details)
*Attention:Internal memory got up to 500 pictures with transcoding.
3-2 Music
Choose “Music” in the menu to enter the device selection interface to choose an
available memory device from the device list and then enter le browser.
Use the / navigation buttons to move through the selections and press
to play. Press / adjust the music volume. As shown in the diagram:

16
www.matsunichi.com

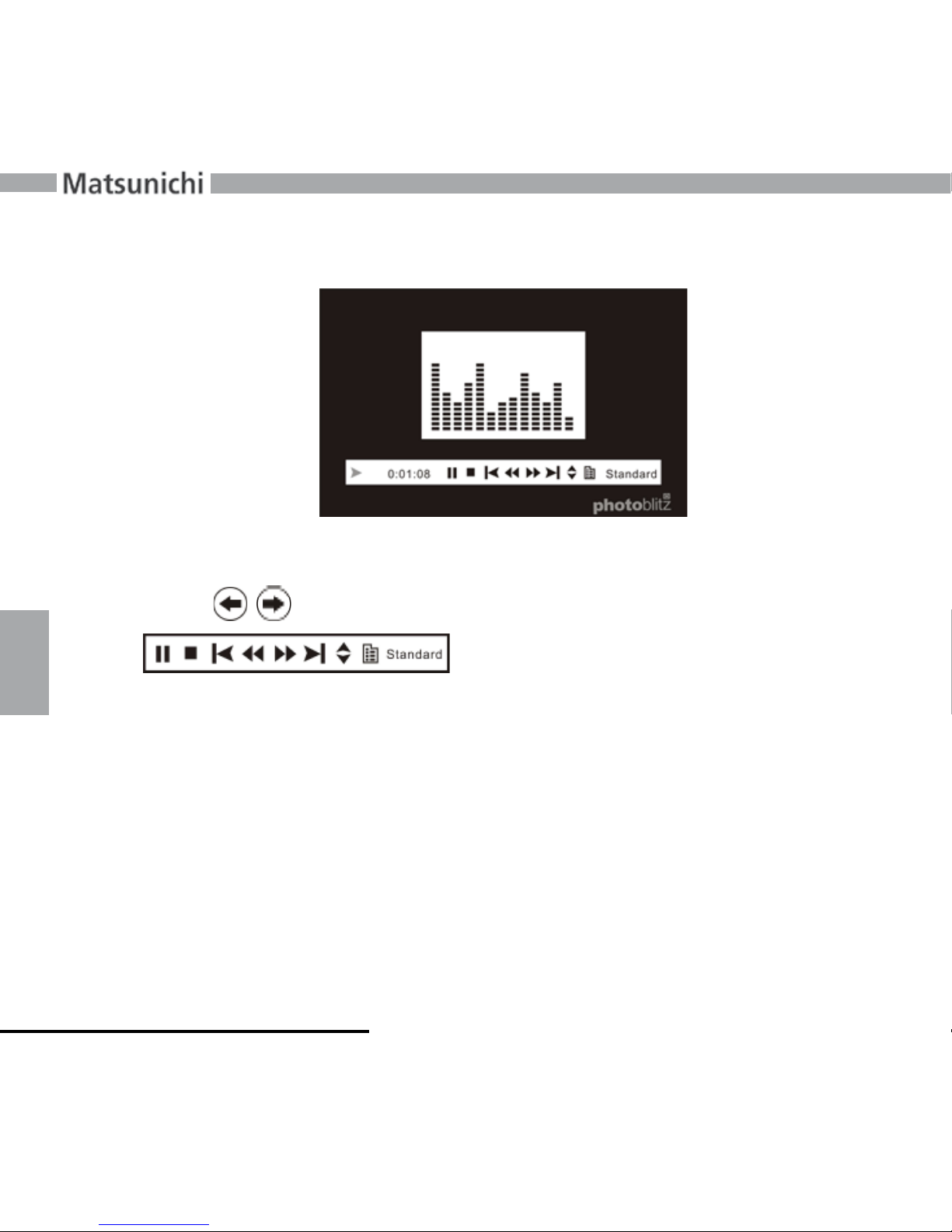

Action buttons menu - Music Menu:
Use the / button to access the action buttons, including:
a. Play/Pause
b. Stop:Stop and return to previous menu
c. Previous :Skip to previous track during playback of music
d. Fast reverse:Fast reverse 2X/3X/4X/5X speed modes within the current track during
playback of music
e. Fast forward:Fast forward 2X/3X/4X/5X speed modes within the current track during
playback of music
f. Forward :Skip to next track during playback of music
g. Music le ID: Show music le properties.
h. ID3 Tag : Show ID3 tag information

www.matsunichi.com
17
3-3 PHOTO & MUSIC
Choose “PHOTO&MUSIC” in the Main menu to enter the device selection interface to
choose an available memory device from the device list and then enter le browser.
Use the / navigation buttons to move through the photo or music les and
press to play. Press / adjust the music volume.
Action buttons menu - File Menu
While playing a le, Press button to access the action buttons, including:
a. Play/Pause
b. Stop:Stop and return to previous menu
c. Previous :Skip to previous track during playback of music
d. Fast reverse:Fast reverse 2X/3X/4X/5X speed modes within the current track
during playback of music

18
www.matsunichi.com
e. Fast forward:Fast forward 2X/3X/4X/5X speed modes within the current track during
playback of music
f. Forward :Skip to next track during playback of music
g. Music le ID: Show music le properties.
h. ID3 Tag : Show ID3 tag information
I. Repeat Mode: Press to select music playback repeat mode
Use the / button to access the action buttons, select " " then press
to pop up another function bar, as shown in the diagram:
please refer to 3- 1 PHOTO for more details.
3-4 MOVIE
Choose “Movie” in the menu to enter the device selection interface to choose an
available memory device from the device list and then enter le. Use the /
navigation buttons to move through the selections and press to play. as shown in
the diagram:
While playing movie, press / adjust
the movie volume.
Action buttons menu - Music Menu:
Use the / button to access the action
buttons, including:

www.matsunichi.com
19
a. Play/Pause
b. Stop:Stop and return to previous menu
c. Previous :Skip to previous track during playback of music
d. Fast reverse:Fast reverse 2X/3X/4X/5X speed modes within the current track
during playback of music
e. Fast forward:Fast forward 2X/3X/4X/5X speed modes within the current track
during playback of music
f. Forward :Skip to next track during playback of music
g. Movie le ID: Show movie le properties.
h. Zoom : Zoom in 2X, 3X, 4X and 5X Zoom Modes. Use buttons to scroll
after zooming into the movie.
i. Subtitle: Set subtitle display ON / OFF , if the movie le does not contant
subtitle , then screen will display "NO Subtitles"

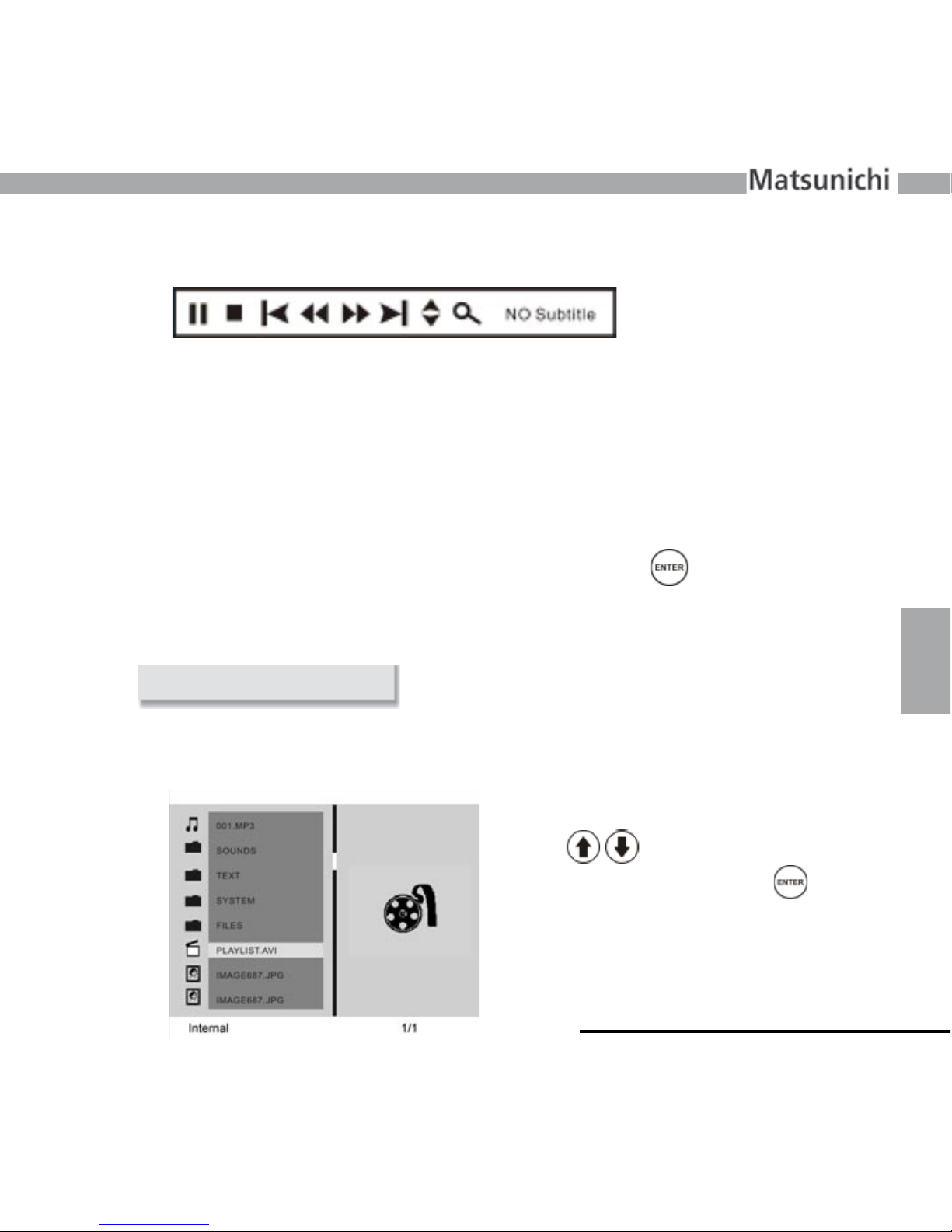

Choose “File” in the menu to enter the device selection interface to choose an
available memory device from the device list and then enter le browser, as
shown in the diagram:
3-5 FILES
Use the / navigation buttons to move
through the selections and press to open
or enter a sub-folder.
You can also copy /Paste or delete le here:

20
www.matsunichi.com
COPY/PASTE :Use the / navigation buttons to move through the source
le and press to mark les for copy, then press return to Memory Device
selection,select and enter the destination memory device and le folder, the press
the Function Bar will pop up,as shown in the diagram:
Use / Select ,press to conrm:
cancel the operation and exit; paste
to current location;
Use / Select ,press to
conrm: cancel the operation and
exit; delete the le.
Choose “CLOCK” in the menu to enter the
system clock interface, as shown in the
diagram.
/ skip to previous or next picture.
Choose “CALENDAR” in the menu to enter the system calendar interface, /
for picture change / for calendar months change, as shown in the diagram:
3-6 CLOCK
3-7 CALENDAR
