Prima PRRF209 User manual

Instruction Manual
Integrated 177cm freezer
Before use, please read and follow all the safety rules and operating
Instructions.
MODEL PRRF209

European Safety Certificate
Compliance Declaration
The manufacturer assumes full responsibility for the compliance
of products manufactured with relevant safety, health and
environmental protection requirements set out in European
Directives. Test reports are available for verification upon
request. The manufacturer will present the quality certificate or
manufacture license to a refrigerator dealer if so required.
Furthermore, the manufacturer declares that all parts intended
to be in contact with fresh food as described in this User’s
Manual are free of toxic substances.
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it shall be handed over to the applicable
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential nagetive
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local city office, your
household waste disposal service or the
shop where you purchased the product.

Content Page
1. Environmental Protection and Proper Disposal.........2
2. Location.....................................................................2
3. Installation ....................................... ......................2-3
4. Rating Plate........................................................... ...3
5. Electric Connection ...................................................3
6. Operation Instructions... .........................................3-4
7. Freezer Compartment ...............................................4
8. Ice & Ice Cream Making ...........................................5
9. Preparing for Vacation .............................................5
10.Cleaning & Maintenance .........................................5
11.Defrosting .................................................... ..........5-6
12.Problem Diagnosis ..................................................6
13.Troubleshooting ................................ .....................6-7
14.During a Power Interruption.....................................7
15.Making A Service Call .............................................7
16.Installation In Kitchen ..............................................7
17.Warranty..................................................................7
18.Illustration of Parts...................................................7
Please read these instructions carefully before use.
Underline the important instructions. Keep the User’s
Manual in a safe place for later reference. Remember to
hand it over to the owner, if you ever sell the appliance.
What you have bought is a safe and reliable refrigerator.
With appropriate use and maintenance, it will be in service
for years. The last page of this User’s Manual sets out
specifications of this appliance and the performance data
indicated in the rating plate are test results obtained at an
ambient temperature range of 16~32°C.
Important!
It is intended strictly for household use. If using it for
industrial or commercial purpose, be sure to observe the
relevant norms and regulations.
A leakage test has been conducted in accordance with
relevant safety standard.
To avoid the risk of child entrapment, please make sure
your old refrigerator is inoperative and safe by removing
the latches and bolt locks before disposal.
Important!
It must be noticed that refrigeration system contains
refrigerants, which require specialized waste disposal.
Contact your local waste disposal center for proper
disposal of an old appliance and contact your local
authority or your dealer if you have any question. Please
ensure that the pipe work of your refrigerator does not get
damaged prior to being picked up by the relevant waste
disposal center, and contribute to environmental
awareness by insisting on an appropriate, anti-pollution
method of disposal. Please see the rating plate for the
type of refrigerant and insulation used.
The plug should be accessible after the appliance is
positioned.
If the power cord is damaged, it must be replaced with a
new power cord from the manufacturer or an authorized
service agent.
Caution:
The appliance should be installed in a well ventilated place.
The shipment package should be removed.
Caution:
Do not use a sharp or pointed item to defrost.
Caution:
Make sure the refrigeration system is not damaged.
Caution:
Do not use electrical appliances inside the food storage
compartments of the appliance, other than models
recommended by the manufacturer.
This User’s Manual is applicable to a variety of models
and there may be slight changes in certain aspects from
model to model.
1

1.Environmental Protection and
Proper Disposal
Package materials
The appliance is packaged in a way to prevent damages
during transportation. Recyclable materials are used.
The packing box is made of corrugated board / cardboard
(mainly from recycled paper).
·Polystyrene parts (CFC-free foamed polystyrene)
·Linings and polyethylene bags
·Polypropylene straps
All these valuable materials may be taken to a waste
collecting center and used again after adequate recycling.
All waste materials should be disposed properly.
2.Location
Make sure the refrigerator is kept upright during handling.
If an inclination is required, it should not exceed 45
degrees. Otherwise the appliance may get damaged
resulting not only in compromised refrigeration
performance.
To avoid product damage or personal injury, the
refrigerator should be unpacked by two persons after it is
located in a previously selected position.
Before installation, make sure the refrigerator has no
visible exterior damage.
When handling the refrigerator, do not lift it by holding the
worktop, to prevent any damage to the refrigerator.
Do not start up a refrigerator that is damaged.
Check the refrigerator carefully for:
·Damaged package due to inappropriate handling
during transportation
Damage in the exterior
·Damage in power cord / plug
Any doubt, please contact Customer Service for a
thorough checkup of the appliance.
Take necessary measures to prevent leakage of
refrigerant at the start-up of refrigerator that may result in
environmental pollution.
3.Installation
a) Remove all package materials.
b) Remove items in the refrigerator.
c) Make sure to remove film and tape on the cabinet and
the door.
d) Remove polystyrene chips (if any) around the
refrigerator.
e) Take out accessories and literature in the refrigerator.
f) Clean the inside of the refrigerator with lukewarm
water and vinegar and then dry it with a soft cloth.
g) Use the spanners supplied to adjust the leveling leg to
ensure the refrigerator is stable.
Do not use detergents, sharp or pointed instruments
or soda-based cleansers to clean the refrigerator.
· Before installation, make sure the refrigeration system
is free of any damage.
· The refrigerator should be used for its intended purpose
only.
· The refrigerator should be positioned on the solid and
even floor to ensure refrigerant circulation and
refrigerating performance.
· If possible, position the refrigerator in a cool and dry
well ventilated room.
· Do not expose the refrigerator to direct sunshine and
make sure the ambient temperature is not extremely
high.
· Keep the refrigerator from a heat source, such as
heating system, oven or cookers. Otherwise the
compressor will operate more frequently resulting in
extra power consumption.
If the refrigerator will be placed near a heat source, it is
recommended to install a thermal barrier between the
refrigerator and the heat source (asbestos is prohibited) or
maintain adequate space between the refrigerator and
the heat source as follows:
Do not place any radiating apparatus, such as microwave
oven or roaster, on top of the refrigerator.
Make sure the air vent is not obstructed.
Never unplug the refrigerator by pulling on the power cord.
Always grip the plug firmly and pull it straight out from the
outlet.
2
the heat source as follows:
Cooker or electric stove 3 cm
Radiator or oven 30 cm
Another refrigerator 2 cm

Warning!
After the refrigerator is positioned, allow it to stand still for
at least 2 hours before starting it up to ensure stable
refrigerant circulation and faultless operation.
Before starting up the refrigerator, make sure the inner
compartment is dry (especially corners).
Danger!
Depending on the chemical composition, the refrigerant
may be flammable. The leak-proofness of refrigerant
circulation system is test proven. Unauthorized
intervention of the refrigerant circulation system may
cause fire.
Make sure the refrigerant circulation system and the
peripheral parts of compressor are not affected.
Any intervention of the refrigerating system should be
conducted only by professional personnel.
Warning!
Refrigerant getting into eyes can cause serious injury. In
this case, rinse the eyes under running water and consult
an ophthalmologist without delay.
The refrigerator should be used within an appropriate
range of room temperature by its climate type.
The range of room temperature for a specific climate type
should be observed. See the rating plate for the climate
type of your appliance.
Climate type Room temperature
SN +10°C~+32°C
N +16°C~+32°C
ST +18°C~+38°C
T +18°C~+43°C
4. Rating Plate
A rating plate is found on the side panel or back panel of
the refrigerator, indicating important technical data.
Write down these technical data.
Write down these technical data.
Write down the technical data for later reference to avoid
the need for moving the refrigerator when such data are
needed.
Model / Type
Storage............................................................... Liter
Working voltage…………………………………… Volt Max
input power (W) ……………………………… Watt
Current……………………………………………... Amp
Energy consumption …………………………….. kWH/24hr
Freezing capacity ………………….. kg/24hr
5.Electric Connection
The refrigerator should use a properly grounded outlet
which should be checked by a qualified electrician. The
refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating and a
fuse rating in conformity with the rating plate.
In case of nonconformity, consult the local service center
or the dealer immediately.
The refrigerator should not be connected with a converter
(such as solar cell)
Do not use an extension cord.
6.Operation instructions
a)Power on the refrigerator (or power off), and select
temperature settings
· Temperature regulator (thermostat)
· Temperature regulator is used to power on/off the
refrigerator, and select temperature settings.
b).Startup
Turn the temperature regulator clockwise to startup the
refrigerator. (Turn to restricted position at most, or you
may break the temperature regulator).
Compressor starts operation, till interior temperature
satisfies the settings.
c). Setting temperature
In order to adjust the setting of temperature regulator of
freezer compartment, use the key supplied by the
manufacturer and turn the temperature regulator clockwise
or anticlockwise to a desired setting.
3

To select a lower temperature: Turn clockwise
To select a higher temperature: Turn anti-clockwise
Turn temperature regulator counterclockwise to the lowest
setting=lightest cooling;
(Turn the regulator counterclockwise to the most will
power off the refrigerator, compressor will stop)
Turn temperature regulator counterclockwise to the
highest setting=coldest setting;
Temperature setting should conform to the following
conditions:
· Ambient temperature;
· Quantity of food stored;
· Door openings;
Through observation, you’ll soon learn how to select an
appropriate temperature setting.
Appropriate temperature setting is very important for food
storing. Microbes can get food spoiled very quickly, unless
there growth is sprouted by low temperature environment.
It is recommended to set the temperature to 18°C or lower
which may effectively eliminate food spoiling process by
microbes.
d).Stopping
Turn temperature regulator counterclockwise to the most.
The compressor should stop by then.
Unplug from wall outlet.
7.Freezer compartment
3-star or 4-star freezer are suitable for storing deep frozen
food (already frozen before added to the freezer), storing
fresh food for a short period (2-3 weeks) by freezing it, or
making ice, ice cream and water ice.
Recommended expiration date of food must be observed.
Freezer can be used to produce ice cubes.
1.Temperature within the freezer can be adjusted by
setting temperature regulator. For fresh food and food
which needs to be stored for a long period, -18°C or below
is recommended, as microbes can barely survive under
this temperature. Once temperature is higher than -10°C,
microbes will start to cause spoiling of food, and storage
period of food will be effectively reduced. If you need to
freeze food which is already partly or totally thawed,
please cook it before adding it to the freezer again. The
high temperature of cooking process can eliminate most
microbes.
2 The higher the temperature regulator is set, the lower
the temperature within the freezer will be.
3 Normally, when food requires only short period of
storage, select a medium setting.
4 Normally, when food requires a long period of storage,
select a high setting.
NOTE!
· Never add caned or bottled carbon dioxide drinks to the
freezer, as carbon dioxide may expand when under
freezing, and lead to explosion hazard.
· Bottled food which needs immediate cooling should be
stored in the freezer for no more than one hour before
they’re taken out, otherwise bottles may burst.
· Ice cream or water ice should be allowed several
minutes before using, as lips and tongue may get
frostbite (chap may occur in skin). Meanwhile, avoid
touching inner walls of freezer with wet hands.
IMPORTANT!
· Food to be added to freezer must be well wrapped.
· Observe expiration date of frozen food.
· Only fresh food in high quality is suitable for freezing
storage.
· Food stored in freezer should be properly sized.
· Weight of a single package of frozen food should not
exceed 2 kg.
· Please use reusable plastic film, aluminum film for
packing food, or put food in containers.
· Food packages should not entrap too much air inside.
· Use bungee, clip, rope or freezing-resistant tape for
sealing of food package.
· Film welding device can be used to seal the plastic
packages.
· Place the wide side of food package downward to
obtain a faster freezing process.
· Wipe the packages dry before adding them to the
freezer, as they may stick together when frozen.
· If you need to freeze food which is already partly or
totally thawed, please cook it before adding it to the
freezer again.
· Don’t use food which is already expired, as they may
cause poisoning.
4

8.Making ice cubes, ice cream and
water ice
Making ice cubes:
· Add water to ice tray to 3/4 of its volume, place it at the
bottom area of the freezer. When ice cubes are ready,
flush the ice tray with running water, then, you can
easily take out the ice cubes.
Making ice cream:
· Remove separators of the ice tray. Please note the
creamier your ice cream is, the longer it will take to
make it. When ice cream is ready, flush the ice tray with
running water, then, you can easily take out the ice
cream.
9.Preparing for Vacation
For long vacation or absence, unplug the refrigerator and
clean the refrigerator as described in “Cleaning and
Maintenance”. Leave the doors open to prevent formation
of mildew or odor.
10. Cleaning and Maintenance
Unplug or disconnect the appliance before cleaning.
Keep the outside clean. Use furniture polisher or finishing
conditioner to clean the outside regularly (do not use these
cleaners to clean the inside). Wipe the door gasket with a
cloth lightly dampened with lukewarm water. No detergent
is allowed. Never use oil or grease to clean the door
gasket.
Clean the inside regularly.
· Clean the refrigerator compartment on a monthly basis
and clean the freezer compartment after a defrost
cycle.
· Take out foods from refrigerator and freezer
compartments and kept these foods in a cool place.
· Remove all detachable parts.
· Interior parts are not suitable to be washed in a
dishwasher. Wash them manually using lukewarm
water and some dish detergent. Do not use
concentrated detergent, abrasive agents and chemicals
such as acids. Mild dish detergent is recommended.
Steam cleaners are dangerous and strictly prohibited.
Wash the inner compartment with lukewarm clean water
and dry with a soft cloth. It is absolutely dry after waiting
for 3-4 minutes. Do not destroy or remove the rating plate
of the refrigerator. It could be needed for after-sales
service or relevant processes. Make sure water doesn’t
get into electric parts in the refrigerator.
If a heat exchanger, i.e. condenser, is mounted on the
back of refrigerator, dust and lint should be removed
regularly to enable efficient heat dissipation and avoid
excessive power consumption. Use a soft brush or a
duster to clean the outside of heat exchanger.
The defrost water drains away through the gutter. The
drain hole should be cleaned regularly by use of a swab or
similar instrument.
Make sure water doesn’t run down the drain hole during
cleaning. Otherwise water may spill or splash on the
ground due to evaporation.
11. Defrosting
Freezer compartment (if applicable)
The freezer compartment, intended for storage of frozen
food, doesn’t have automatic defrosting.
The freezer compartment should be defrosted regularly.
Defrost the freezer compartment whenever the thickness
of ice layer reaches 5cm.
Unplug the refrigerator before defrosting. Take out foods
from the freezer compartment and kept these foods in a
cool place. Use an ice scraper to remove the ice. To
speed up the process, place a bowl of hot water in the
freezer compartment. Clean and reload the freezer
compartment after defrosting.
POTENTIAL SAFETY HAZARD!
Do not use electrical devices such as hair dryer,
electrical fan, steam cleaner, defrost spray or open fire
(such as candle) to defrost the freezer compartment.
The plastic parts of inner compartment may get
melted and any spark or open fire may cause fire in
presence of explosive gas. Never use a steam cleaner
to defrost the freezer compartment – danger of electric
shock!)
Cautions!
Take out the drawer, and wrap up the frozen foods with
newspaper or blanket.
·Keep these foods in a cool place before the defrosting
process is finished.
·Keep the door of freezer compartment open.
5

· Ice and frost form on the surface of evaporator during
operation. A thick layer of ice or frost acts as heat
insulation and hinders thermal conduction.
· Defrost the freezer compartment in the shortest time
possible to avoid thawing of frozen foods.
· Do not remove the ice or frost in the freezer
compartment with a sharp or pointed item. Otherwise
the evaporator surface may get damaged.
· Wipe off defrost water from time to time with sponge.
· Place a container of hot water (do not use boiling
water)
near the door of freezer compartment to speed up the
defrosting process.
· Dry the freezer compartment and place the frozen food
back.
· Reconnect the refrigerator after defrosting.
· Start up the refrigerator by adjusting the temperature
control knob.
· Close the door of freezer compartment.
12. Problem Diagnosis
The latest manufacture techniques and state-of-the-art
refrigeration and freezing technology are adopted to
ensure safe and reliable operation of your appliance. In
doubt of fault, make sure to check first as described
below before making a service call:
Things to be noted:
The compressor (also known as refrigerating unit) doesn’t
operate all the time without stop.
The compressor is controlled by the automatic
temperature regulator represented by a temperature dial.
When the interior temperature exceeds the preset
temperature, the compressor starts automatically and
when the interior temperature falls below the present
temperature, the compressor stops automatically.
It’s normal that compressor makes noise during operation.
The noise comes from the motor. The flow of refrigerant
through the refrigerating system may make a gurgling
noise. These noises don’t mean a fault of the refrigerator.
The exterior surface may be wet when it’s cold and the
ambient temperature is low. It’s normal and the exterior
surface will become dry as the ambient temperature rises.
If the reasons of such phenomena can’t be identified and
solved, please consult the service center.
13. Troubleshooting
a) Problem: Refrigerator does not operate (does not
work)
Please check:
· Is the power cord in good condition? Is the refrigerator
properly plugged in the outlet?
· Is there a power interruption? (Use a small appliance
to check out, e.g. agitator or hair dryer)
· Is the refrigerator started up? (The temperature dial
should not be set at “0”.)
· Is the fuse broken? Or in poor contact?
b) Problem: The inner compartment is not cool
enough; the compressor cycles on and off
frequently;
Please check:
· The refrigerator/freezer compartment should stand still
for at least 2 hours after installation to stabilize the
refrigerant circulation system. See “Start-up”. If it
doesn’t work, unplug the refrigerator and tilt the
refrigerator to one side for a while or place it on an
inclined plane and then place it to the original position.
Connect the refrigerator after 2 hours. Keep the door(s)
closed for 12 hours.
· Is the door properly closed? If so, the door gasket
should press on the external cabinet securely and
evenly.
Test: It should be difficult to pull out a piece of paper
caught up between the door gasket and the external
cabinet. If the paper slips away easily, consult the
service center.
· If there is thick ice in the freezer compartment. (See
“Cleaning and Maintenance”)
· Is the refrigerator exposed to direct sunshine or near a
heat source (oven, radiator, etc.)?
What to do: Do not expose the refrigerator to direct
sunshine; keep the refrigerator away from any heat
source; install a thermal barrier between the
refrigerator and the heat source (see “Location”).
· Is the inner compartment overloaded?
· Is the room well ventilated? Is the air vent obstructed?
Is the heat exchanger (condenser) on the back covered
by dust?
c) The temperature of refrigerator compartment is too
low
Please check:
· Is the temperature regulator properly set?
· Is the door of freezer compartment properly closed?
· Is there a lot of fresh food (more than 1kg) in the
freezer compartment? (If the freezer compartment
operates for long periods, the temperature of
refrigerator compartment falls accordingly.)
d) The freezer compartment is too warm and frozen
foods are thawed
· Is the ambient temperature too low? (If so, the
refrigerating unit will malfunction, resulting in higher
temperatures in the freezer compartment.)
What to do: Raise the ambient temperature.
6

e) There is thick ice in the freezer compartment.
Please check:
· Is the door of freezer compartment properly closed?
· If some food gets frozen to the inner walls, try to
remove it with a blunt instrument such as a spoon
handle.
· Defrost and clean the freezer compartment (see
“Defrosting”). A thick ice layer will impede refrigeration
performance and increase power consumption.
f) Unusual noise
Please check:
· Is the refrigerator solidly positioned? Is the refrigerator
rubbing against other furniture or items? Is there
anything stuck between the back of refrigerator and
the wall?
· Move the items in contact with the refrigerator out of
way and keep adequate space between the
refrigerator and the surroundings.
· Is the movable parts securely retained in place?
· Are bottles or containers in the inner compartment
rubbing against each other?
Note!
It’s normal that there is noise of refrigerant flowing
through the refrigerating system.
It’s normal that moisture forms around the door
handle in summer. Dry with a soft cloth.
The refrigerator is not user-serviceable and do not
attempt to intervene with the normal operation of the
appliance.
14. During a Power Interruption
There is no need to take out the frozen foods in the freezer
compartment if the power interruption lasts no more than 2
hours. Otherwise, take out the foods after 2 hours.
15. Making A Service Call
Servicing and repair should be conducted by authorized
professional personnel. The manufacturer is not
responsible for the risk of damages or injuries due to
failure to comply with this provision and the warranty will
be voided. The warranty and the list of service centers
indicate the authorized after-sales service providers for
your appliance. Please consult your dealer if the there is
no service center in your neighborhood. For faults or
problems caused due to improper use or breach of the
instructions contained herein, the costs and expenses
incurred in servicing and repair should be born by the user
and the dealer is not responsible for such costs and
expenses. In order to receive prompt assistance, the
following information is necessary:
·Type and model of refrigerator (see the rating plate)
·Date of purchase.
·Name and address of the dealer.
·Description of fault / problem.

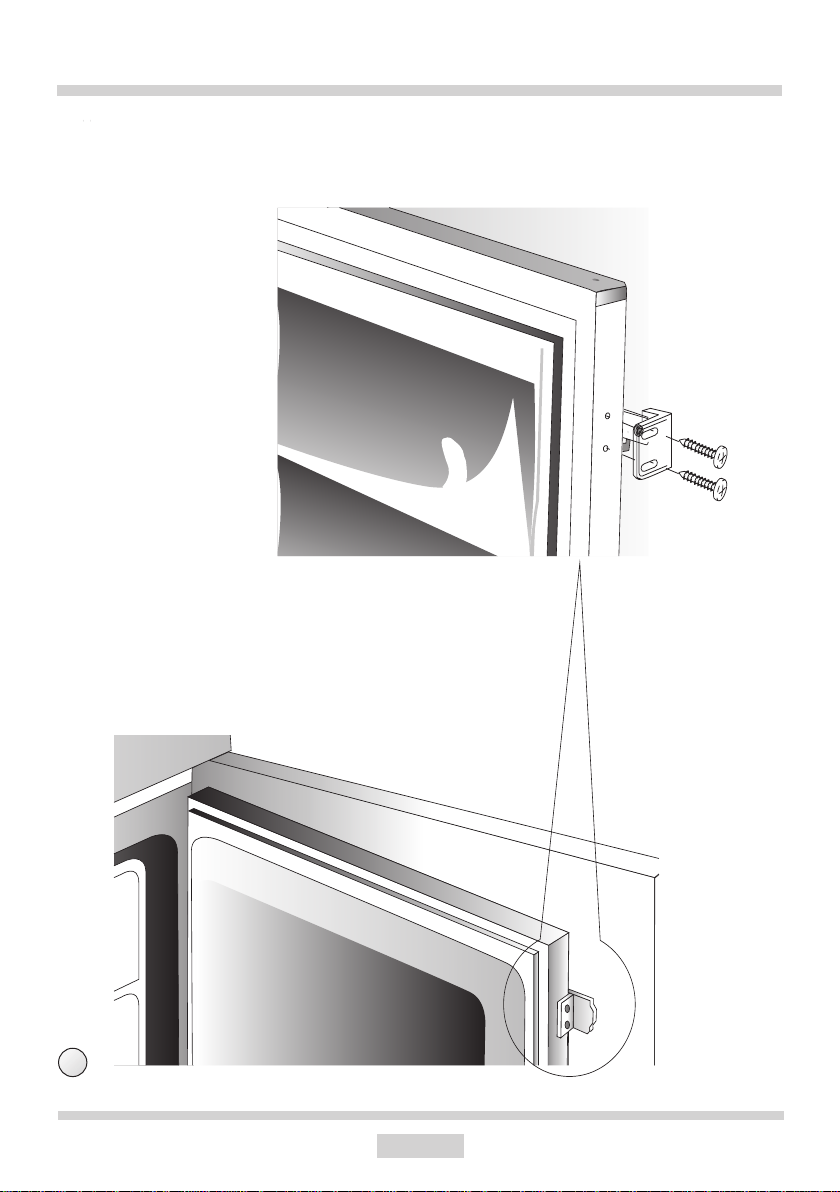

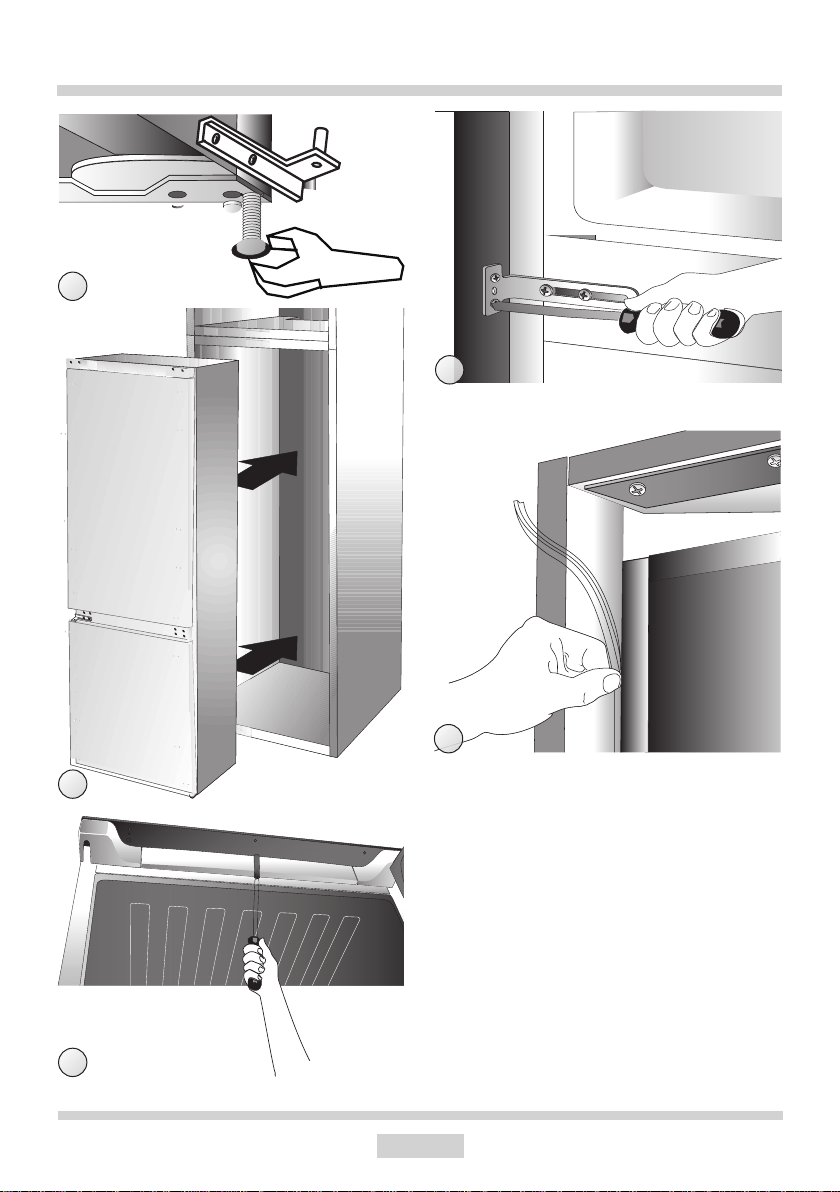

16. Installation in Kitchen
If you want to place the refrigerator in the kitchen, you
should contact with professional installer or local service
supplier.Please do not do it yourself.
17. Warranty
The terms and conditions as well as the period of warranty
are indicated in the Letter of Warranty enclosed hereto.
The dealer will brief you of the same upon purchase.
The manufacturer reserves the right to improve the
design, construction and technology from time to time
without further notice.
18. Illustration of Parts

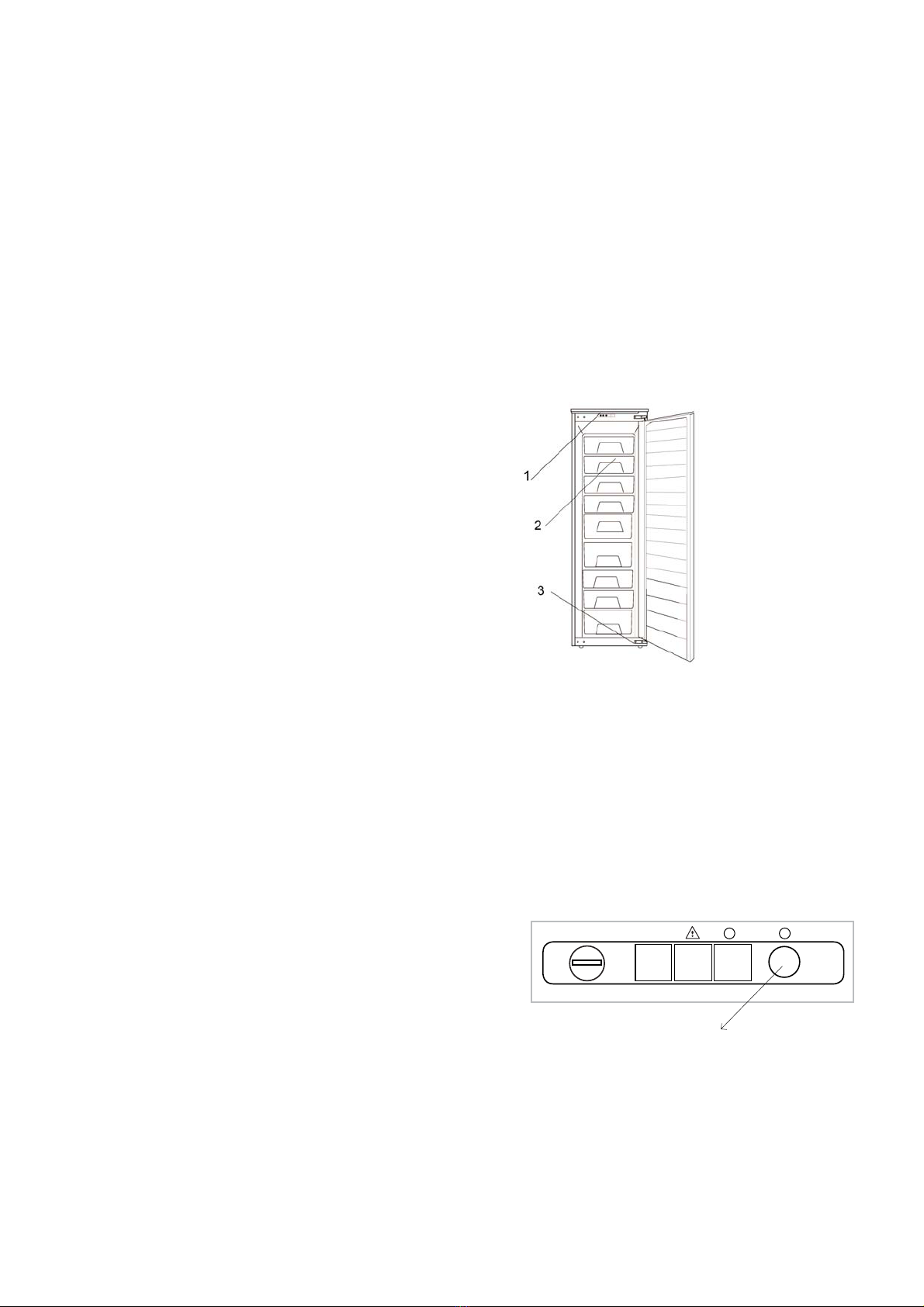

1 Thermostat
2 Drawer
3 Lower hinge Leveling leg
7
12
3
4 5
OFF
S S
Instruction of Fast Freezing Function
Fast Freezing Function Button
1. When fast freezing is needed, turn on the fast freezing function button with
the indication that yellow light is on. After 24 hours, the function will be
switched off automatically.
2. During fast freezing, press and hold the fast freezing button for 3 seconds,
then the function will be manually switched off immediately.

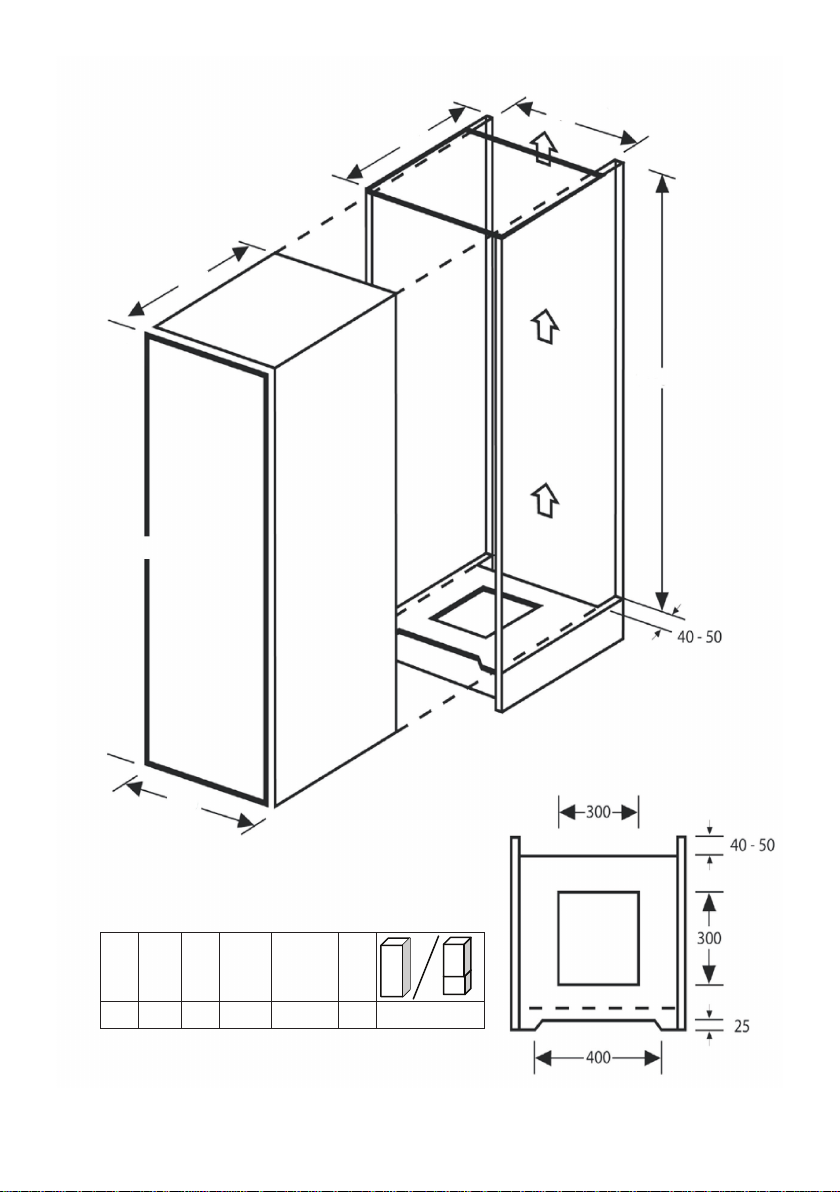

x
xx
y
yy
z
zz
X
(mm)
Y
(mm)
Z
(mm)
XX
(mm)
YY
(mm)
ZZ
(mm)
540 1776 540 550-560 1778-1785 560 1
1
2
1
